DHFP-PE: Dual-Precision Hybrid Floating Point Processing Element for AI Acceleration

Shubham Kumar , Vijay Pratap Sharma , Vaibhav Neema , Santosh Kumar Vishvakarma This is my paper

Pith reviewed 2026-05-10 20:06 UTC · model grok-4.3

classification 💻 cs.AR cs.ROeess.ASeess.IV
keywords dual-precision floating-pointbit-partitioningMAC unitFP8FP4AI acceleratorlow-power processing element28nm implementation
0
0 comments X

The pith

A processing element uses bit partitioning so one 4-bit multiplier handles either FP8 or dual FP4 modes, cutting area by up to 60 percent and power by 86 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a dual-precision hybrid floating-point processing element designed for low-power AI inference. It introduces a bit-partitioning technique that lets a single multiplier operate as a full 4x4 unit for FP8 or as two parallel 2x2 units for FP4 without duplicating hardware. This reuse achieves high utilization while supporting both standard FP8 formats and the two FP4 variants. The resulting design runs at 1.94 GHz in 28 nm technology with very small area and power, outperforming earlier units. The approach targets energy-constrained edge devices that need flexible precision for mixed AI workloads.

Core claim

The paper claims that a novel bit-partitioning technique enables a single 4-bit unit multiplier to operate either as a standard 4 x 4 multiplier for FP8 or as two parallel 2 x 2 multipliers for 2-bit operands, achieving maximum hardware utilization without duplicating logic and delivering up to 60.4 percent area reduction and 86.6 percent power savings compared to prior designs.

What carries the argument

The bit-partitioning technique that reconfigures one multiplier block for either full-precision or split dual-precision operation.

If this is right

  • Multiple such PEs can be tiled into larger accelerators with substantially lower total area and power.
  • The unit supports mixed-precision inference by switching modes without hardware duplication.
  • High clock frequency is maintained while meeting tight energy budgets for edge AI chips.
  • The design fits directly into existing accelerator fabrics that already use floating-point MAC units.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Dynamic precision switching per layer becomes feasible without extra silicon area.
  • The same partitioning idea could be tested on wider bit widths to support additional low-precision formats.
  • Full-system simulations would reveal how much the per-PE savings translate to end-to-end energy reduction in complete models.

Load-bearing premise

The bit-partitioning must produce identical numerical results and no extra overhead for both FP8 and dual FP4 modes.

What would settle it

Compare output values from the proposed PE against a reference full-precision FP8 multiplier and separate FP4 multipliers on identical input sets and check for exact matches with no added delay or power cost.

Figures

Figures reproduced from arXiv: 2604.04507 by Santosh Kumar Vishvakarma, Shubham Kumar, Vaibhav Neema, Vijay Pratap Sharma.

Figure 1

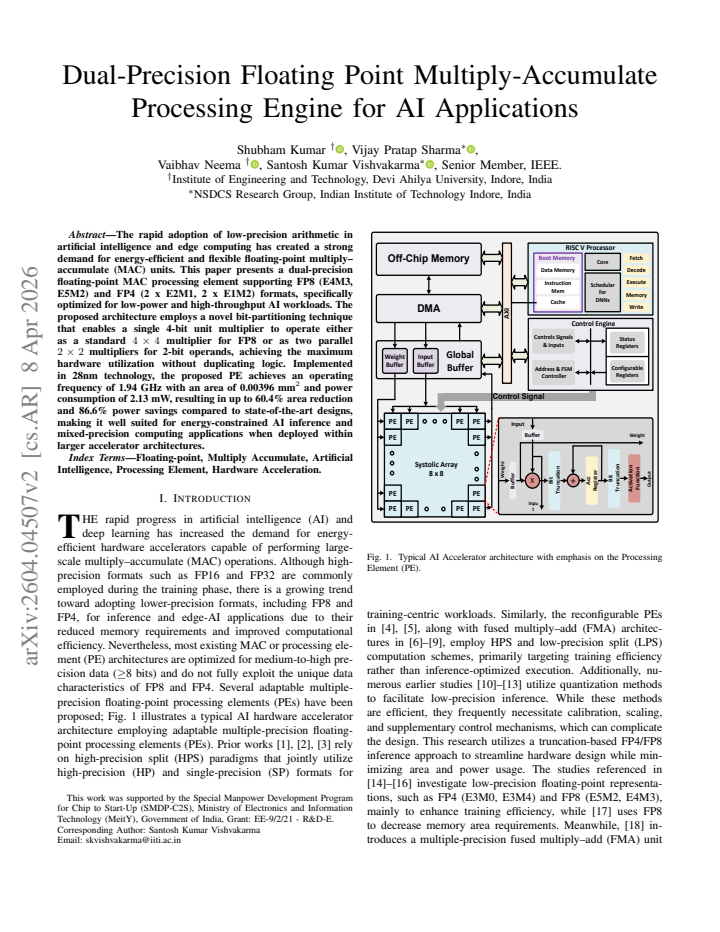

Figure 1. Figure 1: Typical AI Accelerator architecture with emphasis on the Processing [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Proposed bit-partitioning method and Unit Multiplier: (a) 4-bit operand [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 5

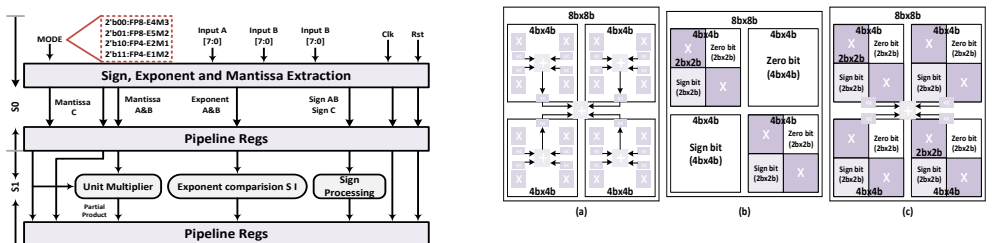

Figure 5. Figure 5: Implementation of variable precision MAC. (a) Combination MAC.(b) [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 6

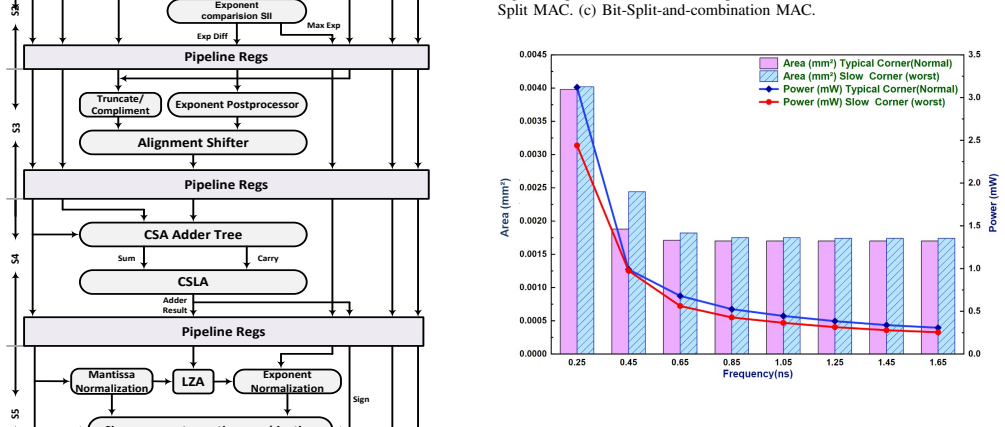

Figure 6. Figure 6: Area and power variations subject to different clock period constraints: [PITH_FULL_IMAGE:figures/full_fig_p003_6.png] view at source ↗
