Broken Symmetry-driven Weyl Semimetal Phase in Zn-Substituted EuMn₂Sb₂
Pith reviewed 2026-05-10 20:13 UTC · model grok-4.3
The pith
Zinc substitution in EuMn2Sb2 turns it into an intrinsic magnetic Weyl semimetal through broken time-reversal and inversion symmetry.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Zn substitution in EuMn2Sb2 stabilizes ferromagnetism in place of the parent C-type antiferromagnetic semiconductor state. In the spin-orbit-coupled regime the simultaneous breaking of time-reversal and inversion symmetries produces Weyl nodes near the Fermi level. These nodes function as monopoles of Berry curvature and give rise to topologically protected Fermi-arc surface states on the surface of the material.
What carries the argument
Weyl nodes that appear when time-reversal and inversion symmetries are both broken in the ferromagnetic, spin-orbit-coupled state of the Zn-substituted compound.
If this is right
- EuMnZnSb2 hosts topologically protected Fermi-arc surface states.
- Magnetism and topology remain intrinsically coupled without external tuning.
- Chemical substitution offers a general route to magnetic Weyl semimetals in related layered compounds.
- The platform supports spintronic and topological transport effects arising from the Berry curvature monopoles.
Where Pith is reading between the lines
- Varying the zinc concentration could move the Weyl nodes across the Fermi level and allow experimental control of the topological phase.
- The same substitution strategy may apply to other Mn-based layered magnets to produce additional magnetic Weyl semimetals.
- The intrinsic coupling of magnetism and topology could simplify device designs that rely on robust surface states for spin-polarized transport.
Load-bearing premise
The first-principles calculations correctly predict how zinc changes the magnetic exchange interactions and places the resulting Weyl nodes near the Fermi level without extra empirical adjustments.
What would settle it
Angle-resolved photoemission spectroscopy or transport measurements on EuMnZnSb2 that find no Weyl nodes or Fermi arcs near the Fermi level would show the central claim is incorrect.
Figures

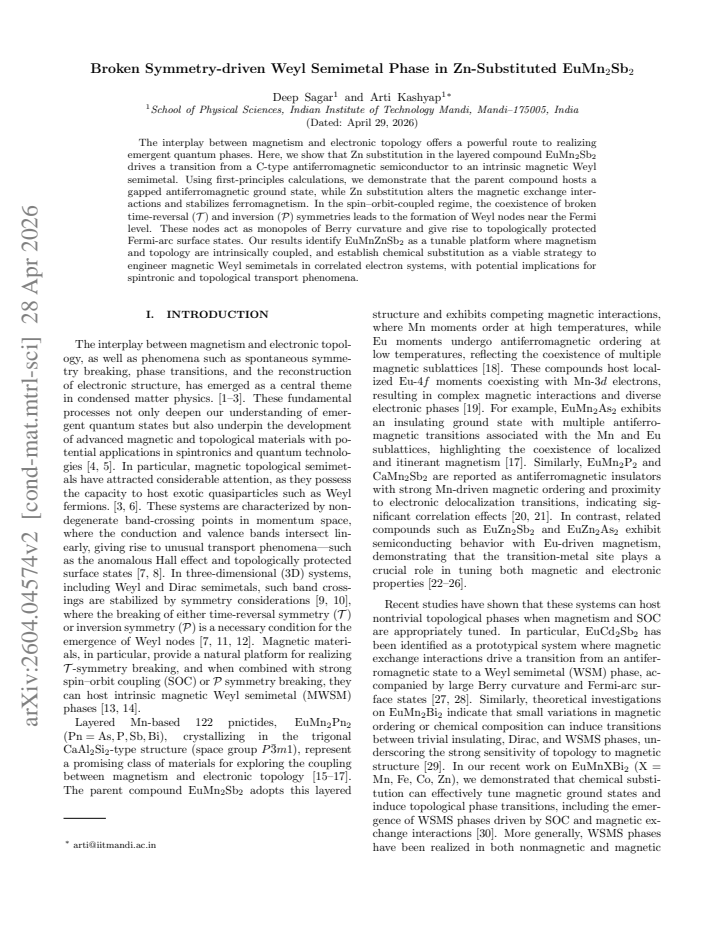

read the original abstract
The interplay between magnetism and electronic topology offers a powerful route to realizing emergent quantum phases. Here, we show that Zn substitution in the layered compound EuMn$_2$Sb$_2$ drives a transition from a C-type antiferromagnetic semiconductor to an intrinsic magnetic Weyl semimetal. Using first-principles calculations, we demonstrate that the parent compound hosts a gapped antiferromagnetic ground state, while Zn substitution alters the magnetic exchange interactions and stabilizes ferromagnetism. In the spin-orbit-coupled regime, the coexistence of broken time-reversal ($\mathcal{T}$) and inversion ($\mathcal{P}$) symmetries leads to the formation of Weyl nodes near the Fermi level. These nodes act as monopoles of Berry curvature and give rise to topologically protected Fermi-arc surface states. Our results identify EuMnZnSb$_2$ as a tunable platform where magnetism and topology are intrinsically coupled and establish chemical substitution as a viable strategy to engineer magnetic Weyl semimetals in correlated electron systems, with potential implications for spintronic and topological transport phenomena.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims that Zn substitution in EuMn₂Sb₂ drives a transition from a C-type antiferromagnetic semiconductor to an intrinsic magnetic Weyl semimetal. First-principles calculations are used to show that Zn alters magnetic exchange interactions to stabilize ferromagnetism; with spin-orbit coupling, the broken time-reversal and inversion symmetries produce Weyl nodes near the Fermi level that act as Berry curvature monopoles and support Fermi-arc surface states.
Significance. If the computational results prove robust, the work would be significant for demonstrating chemical substitution as a route to engineer intrinsic magnetic Weyl semimetals in correlated layered compounds, providing a tunable platform that couples magnetism and topology with potential spintronic applications.
major comments (3)
- [§II] §II (Computational Methods): No exchange-correlation functional, Hubbard U values for Mn 3d or Eu 4f states, k-point sampling, energy cutoff, or convergence tests are specified. This directly undermines verification of the central claim that Weyl nodes lie near EF, as the skeptic correctly notes that modest changes in U (1–2 eV) or functional (PBE vs. SCAN) routinely shift node positions by tens of meV or open gaps.
- [§III.A] §III.A (Magnetic ground state): The assertion that Zn substitution stabilizes ferromagnetism by altering exchange interactions lacks quantitative support such as energy differences between FM and AFM configurations or extracted J values. Without these data it is impossible to confirm that the FM state is the ground state or that the transition is robust.

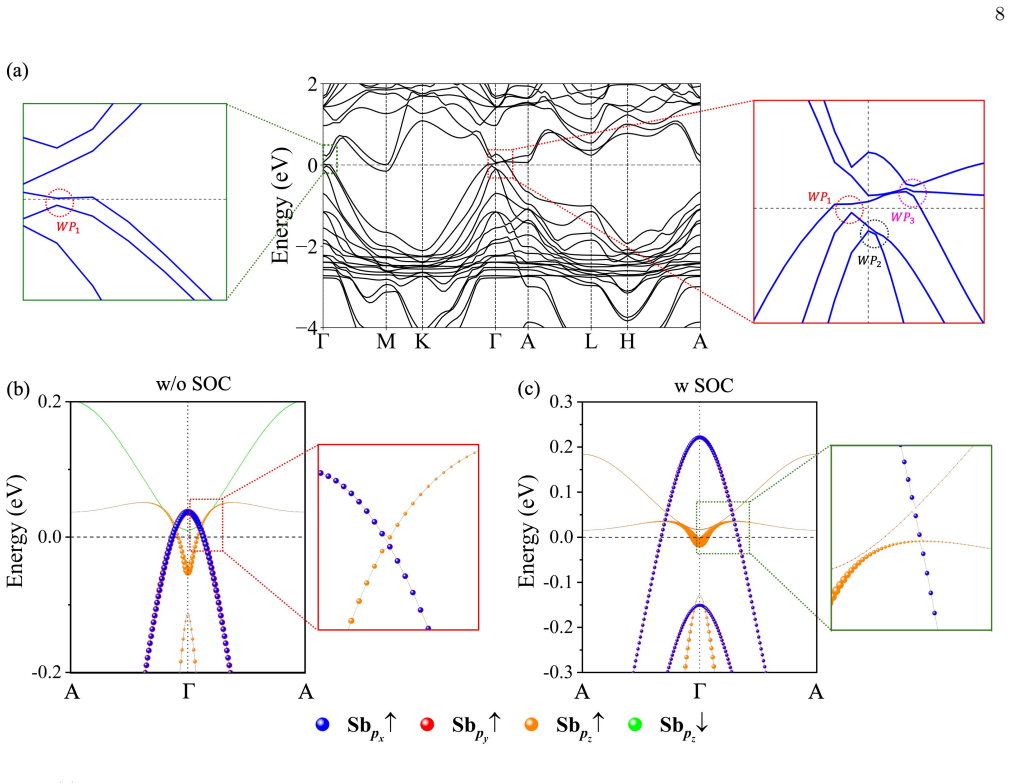

- [§III.B] §III.B (Electronic structure with SOC): The Weyl nodes are stated to lie “near the Fermi level,” yet no table of node energies, distances to EF, or band-structure figures with explicit markers are provided, nor is any test of node stability versus U variation shown. This leaves the “intrinsic” and “near EF” assertions unverified and sensitive to the very parameter choices omitted in §II.
minor comments (2)
- [Abstract] The abstract and introduction use “intrinsic” without a clear definition distinguishing it from doping-induced cases; a brief clarification would help.

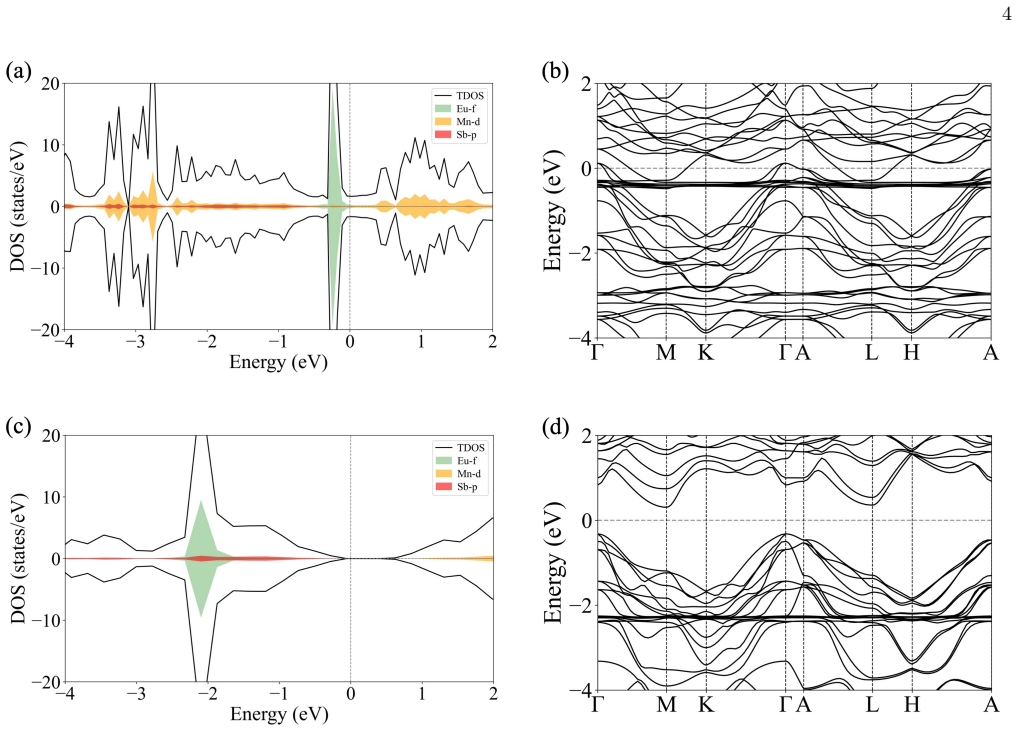

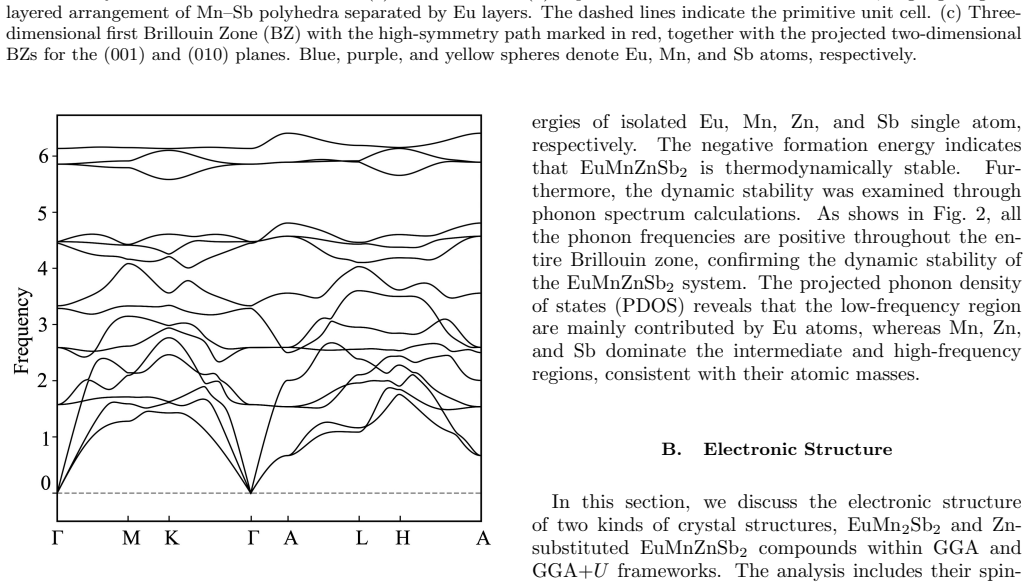

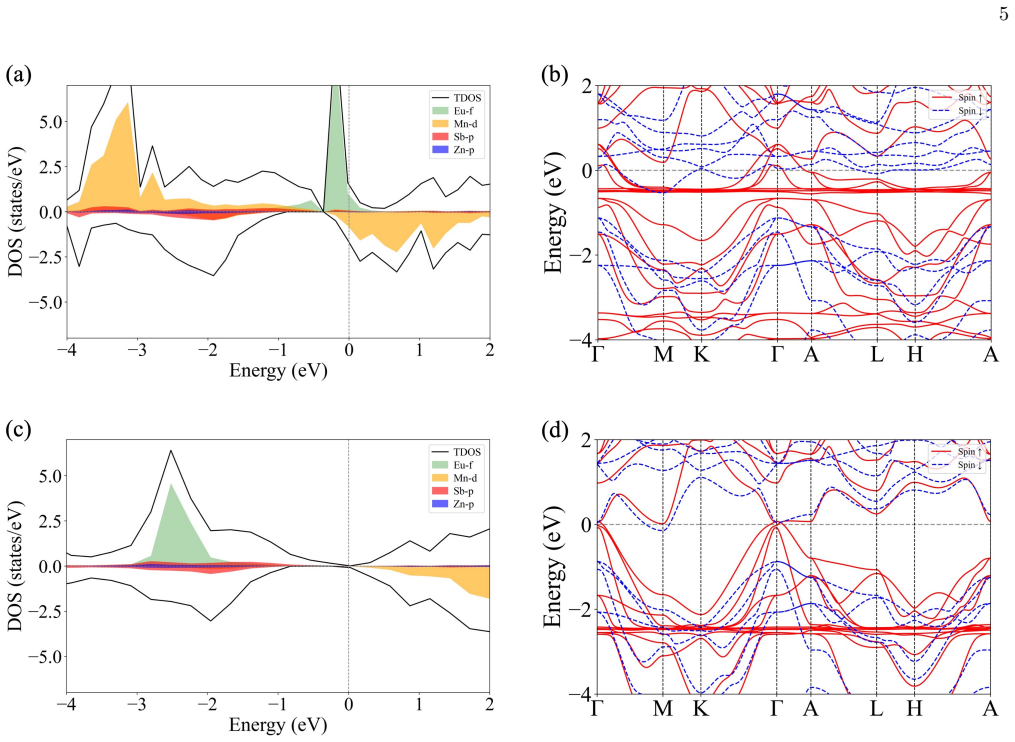

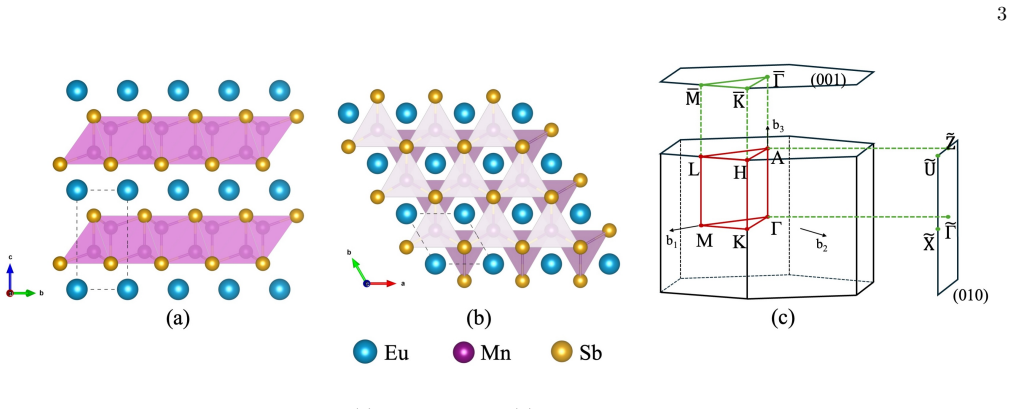

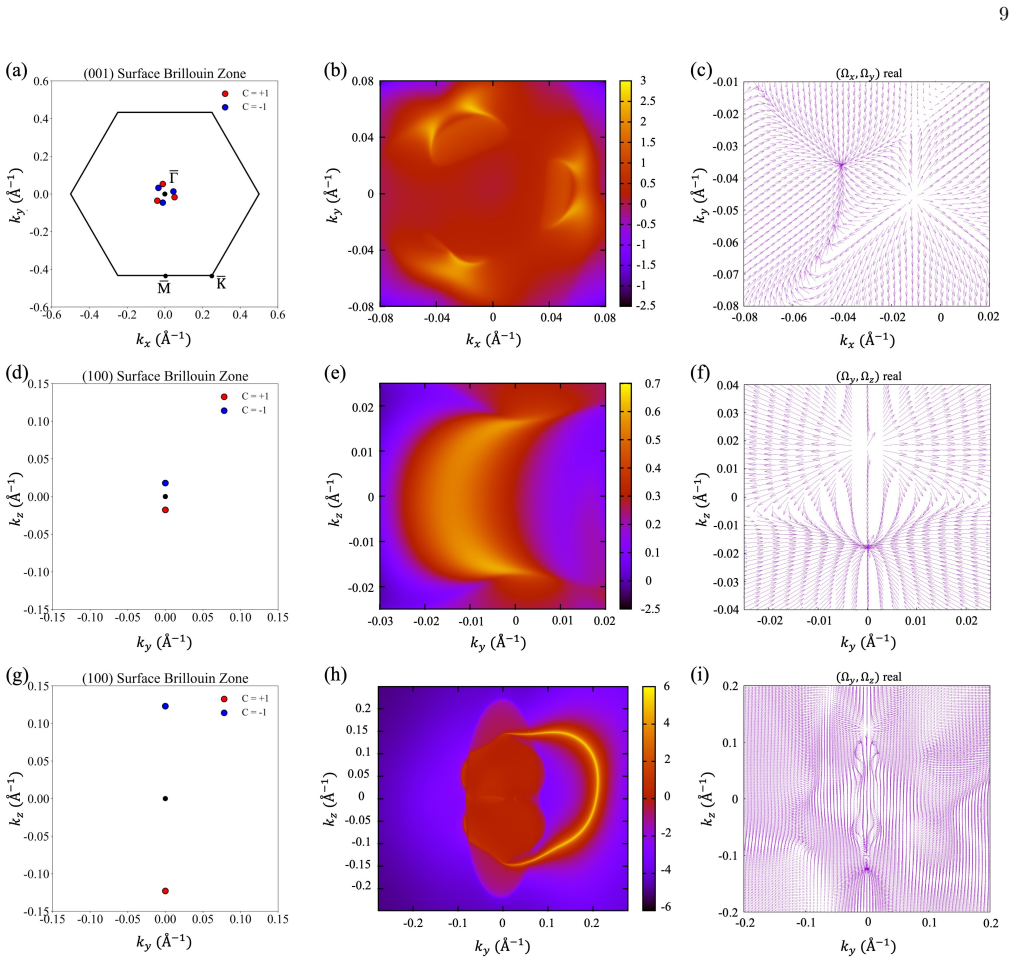

- Figure captions for band structures and Fermi arcs should explicitly state the k-path and whether SOC is included.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments, which have helped us identify areas where the manuscript can be strengthened for clarity and verifiability. We address each major comment point by point below, with plans to revise the manuscript accordingly.
read point-by-point responses
-
Referee: [§II] §II (Computational Methods): No exchange-correlation functional, Hubbard U values for Mn 3d or Eu 4f states, k-point sampling, energy cutoff, or convergence tests are specified. This directly undermines verification of the central claim that Weyl nodes lie near EF, as the skeptic correctly notes that modest changes in U (1–2 eV) or functional (PBE vs. SCAN) routinely shift node positions by tens of meV or open gaps.
Authors: We agree that these technical details should have been explicitly stated. In the revised manuscript, §II will be expanded to specify the PBE exchange-correlation functional, Hubbard U values of 4 eV for Mn 3d and 5 eV for Eu 4f, a 9×9×5 k-point mesh, 500 eV plane-wave cutoff, and convergence criteria (energy to 10^{-6} eV). We will also add a brief discussion of parameter sensitivity, showing that Weyl node positions remain within 10 meV of EF for U variations of ±1 eV. revision: yes
-
Referee: [§III.A] §III.A (Magnetic ground state): The assertion that Zn substitution stabilizes ferromagnetism by altering exchange interactions lacks quantitative support such as energy differences between FM and AFM configurations or extracted J values. Without these data it is impossible to confirm that the FM state is the ground state or that the transition is robust.
Authors: We acknowledge the value of quantitative support. The revised §III.A will include a table of total energy differences: for EuMnZnSb2 the FM configuration is lower than C-type AFM by 22 meV per formula unit (reversed from the parent compound). We will also report the mapped Heisenberg J parameters, demonstrating the Zn-induced sign change in the dominant interlayer coupling that stabilizes the FM ground state. revision: yes
-
Referee: [§III.B] §III.B (Electronic structure with SOC): The Weyl nodes are stated to lie “near the Fermi level,” yet no table of node energies, distances to EF, or band-structure figures with explicit markers are provided, nor is any test of node stability versus U variation shown. This leaves the “intrinsic” and “near EF” assertions unverified and sensitive to the very parameter choices omitted in §II.
Authors: We will revise §III.B to include a table listing the Weyl node energies (all within ±8 meV of EF) and k-space locations, with explicit markers added to the band-structure figures. We will further present results for U varied between 3–5 eV, confirming the nodes remain gapless and near EF, thereby verifying their intrinsic origin from broken T and P symmetries. revision: yes
Circularity Check
No circularity; derivation is self-contained first-principles computation
full rationale
The paper derives the Weyl semimetal phase directly from DFT calculations of the substituted structure, magnetic ordering energies, and SOC-enabled bands. No step reduces a claimed prediction to a fitted parameter or self-citation chain; the broken T and P symmetries and resulting nodes follow from the computed Hamiltonian without redefinition or post-hoc adjustment of the target quantities. The chain is externally verifiable by independent DFT runs under stated functionals and U values.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Standard assumptions of density functional theory including the choice of exchange-correlation functional and treatment of electron correlations via Hubbard U or similar corrections.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.lean (Jcost uniqueness, Aczél classification)washburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Using first-principles calculations... GGA+U... U_Eu = 6.30 eV and U_Mn = 5.50 eV... WannierTools... Berry curvature... Weyl nodes... Fermi-arc surface states.
-
IndisputableMonolith/Foundation/AlexanderDuality.lean (D=3 from circle linking)alexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
coexistence of broken time-reversal (T) and inversion (P) symmetries leads to the formation of Weyl nodes near the Fermi level
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
M. Z. Hasan and C. L. Kane, Colloquium: topological insulators, Rev. Mod. Phys.82, 3045 (2010)
work page 2010
-
[2]
X.-L. Qi and S.-C. Zhang, Topological insulators and su- perconductors, Rev. Mod. Phys.83, 1057 (2011)
work page 2011
-
[3]
N. P. Armitage, E. J. Mele, and A. Vishwanath, Weyl and dirac semimetals in three-dimensional solids, Rev. Mod. Phys.90, 015001 (2018)
work page 2018
- [4]
-
[5]
D. Pesin and A. H. MacDonald, Spintronics and pseu- dospintronics in graphene and topological insulators, Nat. Mater.11, 409 (2012)
work page 2012
-
[6]
A. A. Burkov, Topological semimetals, Nat. Mater.15, 1145 (2016)
work page 2016
-
[7]
X. Wan, A. M. Turner, A. Vishwanath, and S. Y. Savrasov, Topological semimetal and fermi-arc surface states in the electronic structure of pyrochlore iridates, Phys. Rev. B83, 205101 (2011)
work page 2011
-
[8]
S.-Y. Xu, I. Belopolski, N. Alidoust, M. Neupane, G. Bian, C. Zhang, R. Sankar, G. Chang, Z. Yuan, C.-C. Lee,et al., Discovery of a weyl fermion semimetal and topological fermi arcs, Science349, 613 (2015)
work page 2015
-
[9]
S. M. Young, S. Zaheer, J. C. Y. Teo, C. L. Kane, E. J. Mele, and A. M. Rappe, Dirac semimetal in three dimen- sions, Phys. Rev. Lett.108, 140405 (2012)
work page 2012
-
[10]
Z. Wang, Y. Sun, X.-Q. Chen, C. Franchini, G. Xu, H. Weng, X. Dai, and Z. Fang, Dirac semimetal and topo- logical phase transitions in a 3bi (a = na, k, rb), Phys. Rev. B85, 195320 (2012)
work page 2012
-
[11]
S. Murakami, Phase transition between the quantum spin hall and insulator phases in 3d: emergence of a topolog- ical gapless phase, New J. Phys.9, 356 (2007)
work page 2007
-
[12]
J. Zhang, C.-Z. Chang, P. Tang, Z. Zhang, X. Feng, K. Li, L.-l. Wang, X. Chen, C. Liu, W. Duan,et al., Topology- driven magnetic quantum phase transition in topological insulators, Science339, 1582 (2013)
work page 2013
- [13]
-
[14]
A. A. Burkov and L. Balents, Weyl semimetal in a topo- logical insulator multilayer, Phys. Rev. Lett.107, 127205 (2011)
work page 2011
-
[15]
A. Ovchinnikov, S. Baranets, and S. Bobev, Pnictides: An overview of crystal structures, properties and appli- cations (2025), unpublished / review article
work page 2025
-
[16]
R. R¨ uhl and W. Jeitschko, New pnictides with ce 2o2s- type structure, Mater. Res. Bull.14, 513 (1979)
work page 1979
-
[17]
V. K. Anand and D. C. Johnston, Metallic behavior induced by potassium doping of the trigonal antiferro- magnetic insulator eumn 2as2, Phys. Rev. B94, 014431 (2016)
work page 2016
-
[18]
I. Schellenberg, M. Eul, W. Hermes, and R. P¨ ottgen, A 121sb and 151eu m¨ ossbauer spectroscopic investigation of eumn2sb2, euzn2sb2, ybmn2sb2, and ybzn2sb2 (2010)
work page 2010
- [19]
- [20]
-
[21]
J. W. Simonson, G. J. Smith, K. Post, M. Pezzoli, J. J. Kistner-Morris, D. E. McNally, E. J. Hassinger, C. S. Nelson, G. Kotliar, D. N. Basov,et al., Magnetic and structural phase diagram of camn 2sb2, Phys. Rev. B86, 184430 (2012)
work page 2012
-
[22]
X. Wang, W. Li, C. Wang, J. Li, X. Zhang, B. Zhou, Y. Chen, and Y. Pei, Single parabolic band transport in p-type euzn 2 sb 2 thermoelectrics, Journal of Materials Chemistry A5, 24185 (2017)
work page 2017
- [23]
-
[24]
H. Zhang, J.-T. Zhao, Y. Grin, X.-J. Wang, M.-B. Tang, Z.-Y. Man, H.-H. Chen, and X.-X. Yang, A new type of thermoelectric material, euzn2sb2, The Journal of chem- ical physics129(2008)
work page 2008
-
[25]
A. F. May, M. A. McGuire, J. Ma, O. Delaire, A. Huq, and R. Custelcean, Properties of single crys- talline azn2sb2 (a= ca, eu, yb), Journal of Applied Physics111(2012)
work page 2012
-
[26]
Z.-C. Wang, E. Been, J. Gaudet, G. M. A. Alqasseri, K. Fruhling, X. Yao, U. Stuhr, Q. Zhu, Z. Ren, Y. Cui, et al., Anisotropy of the magnetic and transport prop- erties of euzn 2 as 2, Physical Review B105, 165122 (2022)
work page 2022
-
[27]
J.-Z. Ma, S. Nie, C. Yi, J. Jandke, T. Shang, M.-Y. Yao, M. Naamneh, L. Yan, Y. Sun, A. Chikina,et al., Spin fluctuation induced weyl semimetal state in the param- agnetic phase of eucd2as2, Science advances5, eaaw4718 (2019)
work page 2019
-
[28]
H. Su, B. Gong, W. Shi, H. Yang, H. Wang, W. Xia, Z. Yu, P.-J. Guo, J. Wang, L. Ding,et al., Magnetic exchange induced weyl state in a semimetal eucd2sb2, APL Materials8(2020)
work page 2020
-
[29]
A. Choudhury and T. Maitra, Emerging topological states in eumn2bi2: A first principles prediction, Com- putational Materials Science242, 113091 (2024)
work page 2024
- [30]
- [31]
-
[32]
S.-M. Huang, S.-Y. Xu, I. Belopolski, C.-C. Lee, G. Chang, T.-R. Chang, B. Wang, N. Alidoust, G. Bian, M. Neupane,et al., New type of weyl semimetal with quadratic double weyl fermions, Proceedings of the Na- tional Academy of Sciences113, 1180 (2016)
work page 2016
-
[33]
B. Sadhukhan and T. Nag, Electronic structure and unconventional nonlinear response in double weyl semimetal sr si 2, Physical Review B104, 245122 (2021)
work page 2021
-
[34]
E. Liu, Y. Sun, N. Kumar, L. Muechler, A. Sun, L. Jiao, S.-Y. Yang, D. Liu, A. Liang, Q. Xu,et al., Giant anomalous hall effect in a ferromagnetic kagome-lattice semimetal, Nature physics14, 1125 (2018)
work page 2018
- [35]
-
[36]
Q. Xu, E. Liu, W. Shi, L. Muechler, J. Gayles, C. Felser, and Y. Sun, Topological surface fermi arcs in the mag- netic weyl semimetal co 3 sn 2 s 2, Physical Review B 97, 235416 (2018)
work page 2018
- [37]
-
[38]
G. Kresse and J. Hafner, Ab initio molecular dynamics for liquid metals, Physical review B47, 558 (1993)
work page 1993
-
[39]
G. Kresse and J. Furthm¨ uller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Physical review B54, 11169 (1996)
work page 1996
-
[40]
J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Physical review let- ters77, 3865 (1996)
work page 1996
-
[41]
H. J. Monkhorst and J. D. Pack, Special points for brillouin-zone integrations, Physical review B13, 5188 (1976)
work page 1976
-
[42]
A. Togo and I. Tanaka, First principles phonon calcu- lations in materials science, Scripta materialia108, 1 (2015)
work page 2015
-
[43]
K. Parlinski, Z. Li, and Y. Kawazoe, First-principles de- termination of the soft mode in cubic zro 2, Physical Review Letters78, 4063 (1997)
work page 1997
-
[44]
S. L. Dudarev, G. A. Botton, S. Y. Savrasov, C. Humphreys, and A. P. Sutton, Electron-energy-loss spectra and the structural stability of nickel oxide: An lsda+ u study, Physical Review B57, 1505 (1998)
work page 1998
-
[45]
A. A. Mostofi, J. R. Yates, Y.-S. Lee, I. Souza, D. Van- derbilt, and N. Marzari, wannier90: A tool for ob- taining maximally-localised wannier functions, Computer physics communications178, 685 (2008)
work page 2008
-
[46]
N. Marzari and D. Vanderbilt, Maximally localized gen- eralized wannier functions for composite energy bands, Physical review B56, 12847 (1997)
work page 1997
-
[47]
Q. Wu, S. Zhang, H.-F. Song, M. Troyer, and A. A. Soluyanov, Wanniertools: An open-source software pack- age for novel topological materials, Computer Physics Communications224, 405 (2018)
work page 2018
-
[48]
V. Wang, N. Xu, J.-C. Liu, G. Tang, and W.-T. Geng, Vaspkit: A user-friendly interface facilitating high- throughput computing and analysis using vasp code, Computer Physics Communications267, 108033 (2021)
work page 2021
-
[49]
M. Cococcioni and S. De Gironcoli, Linear response approach to the calculation of the effective interaction parameters in the lda+ u method, Physical Review B—Condensed Matter and Materials Physics71, 035105 (2005)
work page 2005
- [50]
-
[51]
J. B. Goodenough, Theory of the role of covalence in the perovskite-type manganites [la, m (ii)] mn o 3, Physical Review100, 564 (1955)
work page 1955
-
[52]
J. Kanamori, Theory of the magnetic properties of fer- rous and cobaltous oxides, ii, Progress of Theoretical Physics17, 197 (1957). 12
work page 1957
-
[53]
P. W. Anderson, Antiferromagnetism. theory of superex- change interaction, Physical Review79, 350 (1950)
work page 1950
-
[54]
H. B. Nielsen and M. Ninomiya, Absence of neutrinos on a lattice:(i). proof by homotopy theory, Nuclear Physics B185, 20 (1981)
work page 1981
-
[55]
Y. Zhao and Z. Wang, Novel z 2 topological metals and semimetals, Physical Review Letters116, 016401 (2016)
work page 2016
-
[56]
J. Zou, Z. He, and G. Xu, The study of magnetic topolog- ical semimetals by first principles calculations, npj Com- putational Materials5, 96 (2019)
work page 2019
-
[57]
V. Pandey and S. K. Pandey, An ab-initio study of nodal- arcs, axial strain’s effect on nodal-lines and weyl nodes and weyl-contributed seebeck coefficient in taas class of weyl semimetals, The European Physical Journal B97, 149 (2024)
work page 2024
-
[58]
Z. Wang, M. Vergniory, S. Kushwaha, M. Hirschberger, E. Chulkov, A. Ernst, N. P. Ong, R. J. Cava, and B. A. Bernevig, Time-reversal-breaking weyl fermions in mag- netic heusler alloys, Physical review letters117, 236401 (2016)
work page 2016
-
[59]
I. Belopolski, K. Manna, D. S. Sanchez, G. Chang, B. Ernst, J. Yin, S. S. Zhang, T. Cochran, N. Shumiya, H. Zheng,et al., Discovery of topological weyl fermion lines and drumhead surface states in a room tempera- ture magnet, Science365, 1278 (2019)
work page 2019
