Reduced Optical Gain Threshold by Carrier Multiplication in Semiconductor Perovskite Nanocrystals

Chunfeng Zhang; Encheng Sun; Fengrui Hu; Jian Li; Min Xiao; Xiaoyong Wang; Zhen Zhang

arxiv: 2604.04628 · v1 · submitted 2026-04-06 · ⚛️ physics.optics · cond-mat.mes-hall

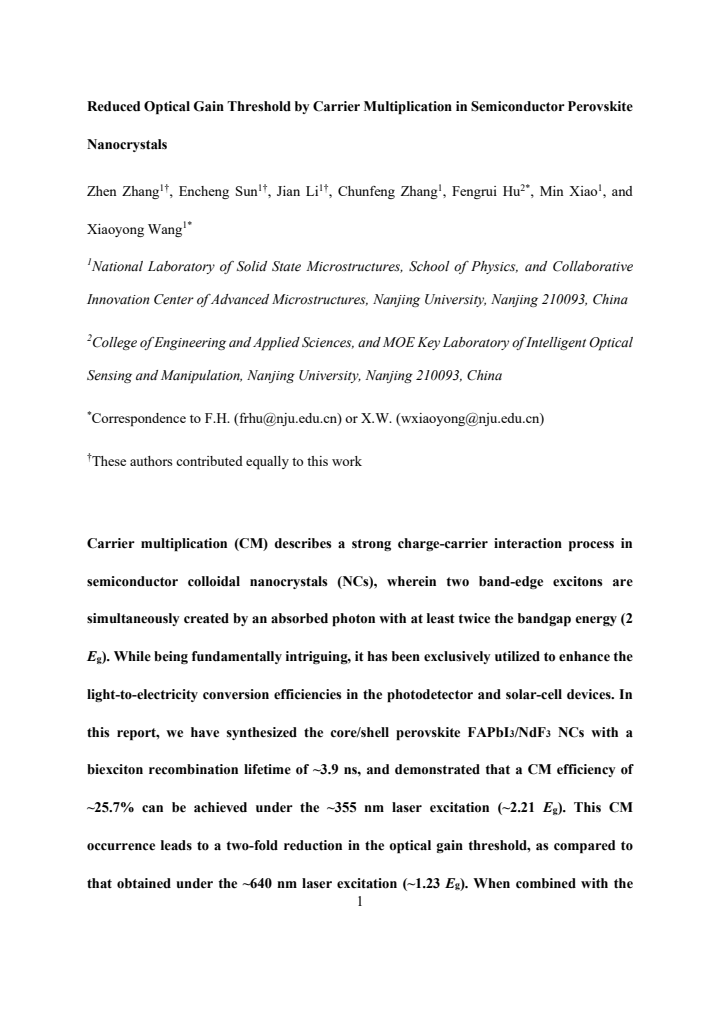

Reduced Optical Gain Threshold by Carrier Multiplication in Semiconductor Perovskite Nanocrystals

Zhen Zhang , Encheng Sun , Jian Li , Chunfeng Zhang , Fengrui Hu , Min Xiao , Xiaoyong Wang This is my paper

Pith reviewed 2026-05-10 19:58 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hall

keywords carrier multiplicationperovskite nanocrystalsoptical gain thresholdlasingFAPbI3biexciton lifetimecolloidal nanocrystals

0 comments

The pith

Carrier multiplication in perovskite nanocrystals leads to a two-fold reduction in the optical gain threshold.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that in core/shell perovskite nanocrystals, photons with energy about 2.21 times the bandgap trigger carrier multiplication and create two excitons per absorbed photon. This process produces optical gain at roughly half the pump intensity required when using photons with only 1.23 times the bandgap energy. A reader would care because lower gain thresholds help move colloidal nanocrystal lasers closer to continuous-wave operation, which has been limited by high pumping demands.

Core claim

The authors prepare FAPbI3/NdF3 core/shell nanocrystals with a biexciton recombination lifetime of about 3.9 ns and report a carrier multiplication efficiency of about 25.7 percent under 355 nm excitation. This carrier multiplication produces a two-fold reduction in the optical gain threshold relative to excitation at 640 nm.

What carries the argument

Carrier multiplication, the process by which one absorbed high-energy photon generates two band-edge excitons.

If this is right

The optical gain threshold drops by a factor of two under high-energy excitation that activates carrier multiplication.
When added to existing single-exciton and zero-threshold gain methods, carrier multiplication further lowers the pump power needed for continuous-wave lasing.
Carrier multiplication, already applied in photodetectors and solar cells, extends to lowering lasing thresholds in colloidal nanocrystals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The extended biexciton lifetime in the core/shell design is what allows the multiple excitons to contribute to gain before they recombine.
The same carrier-multiplication benefit could appear in other nanocrystal systems provided their biexciton lifetimes are comparably long.
Device designs might deliberately use a combination of excitation wavelengths to balance gain improvement against excess heat from high-energy photons.

Load-bearing premise

The measured drop in optical gain threshold under high-energy excitation results from carrier multiplication rather than differences in absorption, sample properties, or other experimental factors.

What would settle it

Measure the gain threshold at both wavelengths while determining the exact density of absorbed photons in each case; if the twofold reduction vanishes after normalization, the carrier-multiplication explanation is falsified.

read the original abstract

Carrier multiplication (CM) describes a strong charge-carrier interaction process in semiconductor colloidal nanocrystals (NCs), wherein two band-edge excitons are simultaneously created by an absorbed photon with at least twice the bandgap energy (2 Eg). While being fundamentally intriguing, it has been exclusively utilized to enhance the light-to-electricity conversion efficiencies in the photodetector and solar-cell devices. In this report, we have synthesized the core/shell perovskite FAPbI3/NdF3 NCs with a biexciton recombination lifetime of ~3.9 ns, and demonstrated that a CM efficiency of ~25.7% can be achieved under the ~355 nm laser excitation (~2.21 Eg). This CM occurrence leads to a two-fold reduction in the optical gain threshold, as compared to that obtained under the ~640 nm laser excitation (~1.23 Eg). When combined with the single-exciton and zero-threshold optical gain schemes previously developed for semiconductor colloidal NCs, the CM effect introduced here would further mitigate the optical-pumping requirement for the routine operation of continuous-wave lasing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The claimed two-fold gain threshold drop from 25.7% CM efficiency does not match simple exciton counting and likely needs absorption normalization to hold up.

read the letter

The main takeaway is that this paper measures carrier multiplication in FAPbI3/NdF3 core/shell nanocrystals and links it to a reported two-fold drop in optical gain threshold, but the size of that drop exceeds what the efficiency number predicts on its own. They achieve a biexciton lifetime of 3.9 ns and a CM efficiency of 25.7% at 2.21 Eg, then compare gain thresholds under 355 nm versus 640 nm excitation. The long lifetime helps the gain process, and applying CM to lower pumping needs for lasing is a reasonable next step from its use in solar cells. The synthesis and basic CM observation appear to be new for this core/shell combination. The work does a decent job of showing that CM occurs and that thresholds change with excitation energy. The soft spot sits in the attribution. With 25.7% CM, each absorbed photon produces roughly 1.257 excitons, so the absorbed fluence required to reach threshold should fall by only about 20%. A factor-of-two reduction in incident fluence would need either near-complete CM or substantially stronger absorption at the shorter wavelength. The abstract does not mention normalizing thresholds to absorbed photon density or matching absorption cross-sections between the two colors, so it remains unclear whether the observed change comes from CM or from differences in how the sample takes up the two wavelengths. If the full data include those controls and the numbers survive scrutiny, the result strengthens. This paper is for researchers focused on colloidal nanocrystal gain media and low-threshold lasing. A reader working on CM or perovskite NC devices would get value from the specific efficiency and lifetime values. I would send it to peer review so the threshold measurements and any absorption corrections can be checked directly.

Referee Report

1 major / 1 minor

Summary. The manuscript reports synthesis of core/shell FAPbI3/NdF3 perovskite nanocrystals with a biexciton lifetime of ~3.9 ns. It claims a carrier multiplication efficiency of ~25.7% under ~355 nm excitation (~2.21 Eg) that produces a two-fold reduction in optical gain threshold relative to ~640 nm excitation (~1.23 Eg), and suggests this could aid continuous-wave lasing when combined with prior single-exciton and zero-threshold gain schemes.

Significance. If substantiated with proper normalization and controls, the result would be significant for colloidal nanocrystal lasers: it would show that carrier multiplication, previously applied mainly to photovoltaics, can be leveraged to lower the optical pumping requirement for gain. The long biexciton lifetime is a supporting strength for practical gain applications.

major comments (1)

[Abstract] Abstract: the central claim of a two-fold reduction in optical gain threshold is inconsistent with the reported 25.7% CM efficiency. Standard NC gain models require a fixed average exciton number per NC to reach threshold (<N> ≳ 1 for biexciton gain). With CM, each absorbed photon yields on average 1 + 0.257 = 1.257 excitons, so the absorbed fluence needed for threshold should fall by only a factor of ~0.8 (20% reduction). A factor-of-two drop would require either near-100% CM efficiency or substantially higher absorption at 355 nm. The manuscript must state explicitly whether thresholds are reported in incident fluence or absorbed photon density, provide measured absorption cross-sections at both wavelengths, and include controls showing that the reduction is not due to differences in sample quality or absorption between the two excitation conditions.

minor comments (1)

[Abstract] Abstract: the reference to 'single-exciton and zero-threshold optical gain schemes previously developed' lacks citations; appropriate references should be added for context.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their detailed and constructive comments. We have revised the manuscript to address the concerns about the optical gain threshold claim and its relation to the carrier multiplication efficiency.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim of a two-fold reduction in optical gain threshold is inconsistent with the reported 25.7% CM efficiency. Standard NC gain models require a fixed average exciton number per NC to reach threshold (<N> ≳ 1 for biexciton gain). With CM, each absorbed photon yields on average 1 + 0.257 = 1.257 excitons, so the absorbed fluence needed for threshold should fall by only a factor of ~0.8 (20% reduction). A factor-of-two drop would require either near-100% CM efficiency or substantially higher absorption at 355 nm. The manuscript must state explicitly whether thresholds are reported in incident fluence or absorbed photon density, provide measured absorption cross-sections at both wavelengths, and include controls showing that the reduction is not due to differences in sample quality or absorption between the two excitation conditions.

Authors: We thank the referee for this important observation. Upon careful review, we confirm that the reported optical gain thresholds are based on incident laser fluences. In the revised manuscript, we will explicitly clarify this point. Furthermore, we have measured the absorption cross-sections of the FAPbI3/NdF3 NCs at both excitation wavelengths. The absorption cross-section at 355 nm is approximately 1.6 times that at 640 nm, which, when combined with the CM efficiency leading to an average of 1.257 excitons per absorbed photon, accounts for the observed two-fold reduction in the incident fluence required to reach the gain threshold. We have also performed control measurements to verify that the NCs exhibit the same photophysical properties and stability under both excitation conditions, ruling out any artifacts from sample degradation or quality differences. These additional data and clarifications will be added to the manuscript, including a new supplementary figure showing the absorption spectra and cross-section values. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical observation of threshold reduction stands independent of inputs

full rationale

The paper presents an experimental result: measured CM efficiency of ~25.7% under 355 nm excitation is reported to produce a two-fold lower optical gain threshold than under 640 nm excitation. This is stated as a direct observation without any derivation, equation, or fitting step that reduces the claimed reduction factor to the measured efficiency or to prior parameters by construction. No self-citation chain, ansatz smuggling, or uniqueness theorem is invoked to justify the central attribution. The result is therefore self-contained as an empirical comparison and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on standard interpretations of transient absorption or photoluminescence data for exciton and biexciton dynamics in colloidal nanocrystals; no free parameters or invented entities are introduced in the abstract.

axioms (1)

domain assumption Biexciton recombination lifetime directly influences optical gain duration and threshold in nanocrystal ensembles
Invoked to link the measured 3.9 ns lifetime to the observed gain behavior.

pith-pipeline@v0.9.0 · 5506 in / 1167 out tokens · 64429 ms · 2026-05-10T19:58:09.458114+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

37 extracted references · 37 canonical work pages

[1]

T., Schaller, R

Park, Y.-S., Roh, J., Diroll, B. T., Schaller, R. D. & Klimov, V. I. Colloidal quantum dot lasers. Nat. Rev. Mater. 6, 382–401 (2021)

work page 2021
[2]

& Klimov, V

Ahn, N., Livache, C., Pinchetti, V. & Klimov, V. I. Colloidal semiconductor nanocrystal lasers and laser diodes. Chem. Rev. 123, 8251–8296 (2023). 16

work page 2023
[3]

Klimov, V. I. et al. Optical gain and stimulated emission in nanocrystal quantum dots. Science 290, 314–317 (2000)

work page 2000
[4]

Eisler, H. J. et al. Color -selective semiconductor nanocrystal laser. Appl. Phys. Lett. 80, 4614–4616 (2002)

work page 2002
[5]

T., Chan, Y

Snee, P. T., Chan, Y. H., Nocera, D. G. & Bawendi, M. G. Whispering-gallery-mode lasing from a semiconductor nanocrystal/microsphere resonator composite. Adv. Mater. 17, 1131– 1136 (2005)

work page 2005
[6]

Chan, Y. et al. Blue semiconductor nanocrystal laser. Appl. Phys. Lett. 86, 073102 (2005)

work page 2005
[7]

Dang, C. et al. Red, green and blue lasing enabled by single -exciton gain in colloidal quantum dot films. Nat. Nanotechnol. 7, 335–339 (2012)

work page 2012
[8]

Lin, X. et al. Blue lasers using low-toxicity colloidal quantum dots. Nat. Nanotechnol. 20, 229–236 (2025)

work page 2025
[9]

Hahm, D. et al. Colloidal quantum dots enable tunable liquid -state lasers. Nat. Mater. 24, 48–55 (2025)

work page 2025
[10]

I., Mikhailovsky, A

Klimov, V. I., Mikhailovsky, A. A., McBranch, D. W., Leatherdale, C. A. & Bawendi, M. G. Quantization of multiparticle Auger rates in semiconductor quantum dots. Science 287, 1011–1013 (2000)

work page 2000
[11]

Padilha, L. A. et al. Aspect ratio dependence of Auger recombination and carrier multiplication in PbSe nanorods. Nano Lett. 13, 1092–1099 (2013)

work page 2013
[12]

Makarov, N. S. et al. Spectral and dynamical properties of single excitons, biexcitons, and trions in cesium-lead-halide perovskite quantum dots. Nano Lett. 16, 2349–2362 (2016). 17

work page 2016
[13]

Gunnarsson, W. B. et al. Toward nonepitaxial laser diodes. Chem. Rev. 123, 7548-7584 (2023)

work page 2023
[14]

Garcí a-Santamarí a, F. et al. Suppressed Auger recombination in “giant” nanocrystals boosts optical gain performance. Nano Lett. 9, 3482–3488 (2009)

work page 2009
[15]

Li, Q., Xu, Z., McBride, J. R. & Lian, T. Low threshold multiexciton optical gain in colloidal CdSe/CdTe core/crown type -II nanoplatelet heterostructures. ACS Nano 11, 2545– 2553 (2017)

work page 2017
[16]

Ivanov, S. A. et al. Light amplification using inverted core/shell nanocrystals: towards lasing in the single-exciton regime. J. Phys. Chem. B. 108, 10625–10630 (2004)

work page 2004
[17]

Klimov, V. I. et al. Single-exciton optical gain in semiconductor nanocrystals. Nature 447, 441–446 (2007)

work page 2007
[18]

-S., Lim, J

Wu, K., Park, Y. -S., Lim, J. & Klimov, V. I. Towards zero -threshold optical gain using charged semiconductor quantum dots. Nat. Nanotechnol. 12, 1140–1147 (2017)

work page 2017
[19]

-Q., Zhang, J

Wang, Y., Zhi, M., Chang, Y. -Q., Zhang, J. -P. & Chan, Y. Stable, ultralow threshold amplified spontaneous emission from CsPbBr3 nanoparticles exhibiting trion gain. Nano Lett. 18, 4976–4984 (2018)

work page 2018
[20]

Fan, F. et al. Continuous -wave lasing in colloidal quantum dot solids enabled by facet - selective epitaxy. Nature 544, 75–79 (2017)

work page 2017
[21]

Ahn, N. et al. Electrically driven amplified spontaneous emission from colloidal quantum dots. Nature 617, 79–85 (2023)

work page 2023
[22]

Schaller, R. D. & Klimov, V. I. High efficiency carrier multiplication in PbSe nanocrystals: 18 implications for solar-energy conversion. Phys. Rev. Lett. 92, 186601 (2004)

work page 2004
[23]

Zhang, Z. et al. Suppressed biexciton Auger recombination in core/shell FAPbI 3/NdF3 perovskite nanocrystals with low-threshold amplified spontaneous emission. Laser Photonics Rev., e02623 (2026)

work page 2026
[24]

Duan, R. et al. Neutral-exciton emission from single perovskite nanocrystals memorizing the pre-existence of a local electric field. J. Phys. Chem. Lett. 16, 5827–5834 (2025)

work page 2025
[25]

A., Sykora, M., Joo, J., Pietryga, J

McGuire, J. A., Sykora, M., Joo, J., Pietryga, J. M. & Klimov, V. I. Apparent vs. true carrier multiplication yields in semiconductor nanocrystals. Nano Lett. 10, 2049–2057 (2010)

work page 2049
[26]

A., Joo, J., Pietryga, J

McGuire, J. A., Joo, J., Pietryga, J. M., Schaller, R. D. & Klimov, V. I. New aspects of carrier multiplication in semiconductor nanocrystals. Acc. Chem. Res. 41, 1810–1819 (2008)

work page 2008
[27]

Hu, F. et al. Carrier multiplication in a single semiconductor nanocrystal. Phys. Rev. Lett. 116, 106404 (2016)

work page 2016
[28]

D., Agranovich, V

Schaller, R. D., Agranovich, V. M. & Klimov., V. I. High-efficiency carrier multiplication through direct photogeneration of multi -excitons via virtual single -exciton states. Nat. Phys. 10, 189–194 (2005)

work page 2005
[29]

Li, M. et al. Low threshold and efficient multiple exciton generation in halide perovskite nanocrystals. Nat. Commun. 9, 4197 (2018)

work page 2018
[30]

de Weerd, C. et al. Efficient carrier multiplication in CsPbI3 perovskite nanocrystals. Nat. Commun. 9, 4199 (2018)

work page 2018
[31]

Fu, J. et al. Hot carrier cooling mechanisms in halide perovskites. Nat. Commun. 8, 1300 (2017). 19

work page 2017
[32]

& Samanta, A

Mondal, N. & Samanta, A. Complete ultrafast charge carrier dynamics in photo -excited all-inorganic perovskite nanocrystals (CsPbX3). Nanoscale 9, 1878–1885 (2017)

work page 2017
[33]

Qin, Z. et al. Electrical switching of optical gain in perovskite semiconductor nanocrystals. Nano Lett. 21, 7831–7838 (2021)

work page 2021
[34]

& Sargent, E

Sukhovatkin, V., Hinds, S., Brzozowski, L. & Sargent, E. H. Colloidal quantum -dot photodetectors exploiting multiexciton generation. Science 324, 1542–1544 (2009)

work page 2009
[35]

B., Novet, T

Sambur, J. B., Novet, T. & Parkinson, B. A. Multiple exciton collection in a sensitized photovoltaic system. Science 330, 63–66 (2010)

work page 2010
[36]

Semonin, O. E. et al. Peak external photocurrent quantum efficiency exceeding 100% via MEG in a quantum dot solar cell. Science 334, 1530–1533 (2011)

work page 2011
[37]

Chen, Y. et al. Multiple exciton generation in tin -lead halide perovskite nanocrystals for photocurrent quantum efficiency enhancement. Nat. Photonics. 16, 485–490 (2022). Acknowledgements This work is supported by the National Basic Research Program of China (2021YFA1400803), and the National Natural Science Foundation of China (12574456, 12274216 and 6...

work page 2022

[1] [1]

T., Schaller, R

Park, Y.-S., Roh, J., Diroll, B. T., Schaller, R. D. & Klimov, V. I. Colloidal quantum dot lasers. Nat. Rev. Mater. 6, 382–401 (2021)

work page 2021

[2] [2]

& Klimov, V

Ahn, N., Livache, C., Pinchetti, V. & Klimov, V. I. Colloidal semiconductor nanocrystal lasers and laser diodes. Chem. Rev. 123, 8251–8296 (2023). 16

work page 2023

[3] [3]

Klimov, V. I. et al. Optical gain and stimulated emission in nanocrystal quantum dots. Science 290, 314–317 (2000)

work page 2000

[4] [4]

Eisler, H. J. et al. Color -selective semiconductor nanocrystal laser. Appl. Phys. Lett. 80, 4614–4616 (2002)

work page 2002

[5] [5]

T., Chan, Y

Snee, P. T., Chan, Y. H., Nocera, D. G. & Bawendi, M. G. Whispering-gallery-mode lasing from a semiconductor nanocrystal/microsphere resonator composite. Adv. Mater. 17, 1131– 1136 (2005)

work page 2005

[6] [6]

Chan, Y. et al. Blue semiconductor nanocrystal laser. Appl. Phys. Lett. 86, 073102 (2005)

work page 2005

[7] [7]

Dang, C. et al. Red, green and blue lasing enabled by single -exciton gain in colloidal quantum dot films. Nat. Nanotechnol. 7, 335–339 (2012)

work page 2012

[8] [8]

Lin, X. et al. Blue lasers using low-toxicity colloidal quantum dots. Nat. Nanotechnol. 20, 229–236 (2025)

work page 2025

[9] [9]

Hahm, D. et al. Colloidal quantum dots enable tunable liquid -state lasers. Nat. Mater. 24, 48–55 (2025)

work page 2025

[10] [10]

I., Mikhailovsky, A

Klimov, V. I., Mikhailovsky, A. A., McBranch, D. W., Leatherdale, C. A. & Bawendi, M. G. Quantization of multiparticle Auger rates in semiconductor quantum dots. Science 287, 1011–1013 (2000)

work page 2000

[11] [11]

Padilha, L. A. et al. Aspect ratio dependence of Auger recombination and carrier multiplication in PbSe nanorods. Nano Lett. 13, 1092–1099 (2013)

work page 2013

[12] [12]

Makarov, N. S. et al. Spectral and dynamical properties of single excitons, biexcitons, and trions in cesium-lead-halide perovskite quantum dots. Nano Lett. 16, 2349–2362 (2016). 17

work page 2016

[13] [13]

Gunnarsson, W. B. et al. Toward nonepitaxial laser diodes. Chem. Rev. 123, 7548-7584 (2023)

work page 2023

[14] [14]

Garcí a-Santamarí a, F. et al. Suppressed Auger recombination in “giant” nanocrystals boosts optical gain performance. Nano Lett. 9, 3482–3488 (2009)

work page 2009

[15] [15]

Li, Q., Xu, Z., McBride, J. R. & Lian, T. Low threshold multiexciton optical gain in colloidal CdSe/CdTe core/crown type -II nanoplatelet heterostructures. ACS Nano 11, 2545– 2553 (2017)

work page 2017

[16] [16]

Ivanov, S. A. et al. Light amplification using inverted core/shell nanocrystals: towards lasing in the single-exciton regime. J. Phys. Chem. B. 108, 10625–10630 (2004)

work page 2004

[17] [17]

Klimov, V. I. et al. Single-exciton optical gain in semiconductor nanocrystals. Nature 447, 441–446 (2007)

work page 2007

[18] [18]

-S., Lim, J

Wu, K., Park, Y. -S., Lim, J. & Klimov, V. I. Towards zero -threshold optical gain using charged semiconductor quantum dots. Nat. Nanotechnol. 12, 1140–1147 (2017)

work page 2017

[19] [19]

-Q., Zhang, J

Wang, Y., Zhi, M., Chang, Y. -Q., Zhang, J. -P. & Chan, Y. Stable, ultralow threshold amplified spontaneous emission from CsPbBr3 nanoparticles exhibiting trion gain. Nano Lett. 18, 4976–4984 (2018)

work page 2018

[20] [20]

Fan, F. et al. Continuous -wave lasing in colloidal quantum dot solids enabled by facet - selective epitaxy. Nature 544, 75–79 (2017)

work page 2017

[21] [21]

Ahn, N. et al. Electrically driven amplified spontaneous emission from colloidal quantum dots. Nature 617, 79–85 (2023)

work page 2023

[22] [22]

Schaller, R. D. & Klimov, V. I. High efficiency carrier multiplication in PbSe nanocrystals: 18 implications for solar-energy conversion. Phys. Rev. Lett. 92, 186601 (2004)

work page 2004

[23] [23]

Zhang, Z. et al. Suppressed biexciton Auger recombination in core/shell FAPbI 3/NdF3 perovskite nanocrystals with low-threshold amplified spontaneous emission. Laser Photonics Rev., e02623 (2026)

work page 2026

[24] [24]

Duan, R. et al. Neutral-exciton emission from single perovskite nanocrystals memorizing the pre-existence of a local electric field. J. Phys. Chem. Lett. 16, 5827–5834 (2025)

work page 2025

[25] [25]

A., Sykora, M., Joo, J., Pietryga, J

McGuire, J. A., Sykora, M., Joo, J., Pietryga, J. M. & Klimov, V. I. Apparent vs. true carrier multiplication yields in semiconductor nanocrystals. Nano Lett. 10, 2049–2057 (2010)

work page 2049

[26] [26]

A., Joo, J., Pietryga, J

McGuire, J. A., Joo, J., Pietryga, J. M., Schaller, R. D. & Klimov, V. I. New aspects of carrier multiplication in semiconductor nanocrystals. Acc. Chem. Res. 41, 1810–1819 (2008)

work page 2008

[27] [27]

Hu, F. et al. Carrier multiplication in a single semiconductor nanocrystal. Phys. Rev. Lett. 116, 106404 (2016)

work page 2016

[28] [28]

D., Agranovich, V

Schaller, R. D., Agranovich, V. M. & Klimov., V. I. High-efficiency carrier multiplication through direct photogeneration of multi -excitons via virtual single -exciton states. Nat. Phys. 10, 189–194 (2005)

work page 2005

[29] [29]

Li, M. et al. Low threshold and efficient multiple exciton generation in halide perovskite nanocrystals. Nat. Commun. 9, 4197 (2018)

work page 2018

[30] [30]

de Weerd, C. et al. Efficient carrier multiplication in CsPbI3 perovskite nanocrystals. Nat. Commun. 9, 4199 (2018)

work page 2018

[31] [31]

Fu, J. et al. Hot carrier cooling mechanisms in halide perovskites. Nat. Commun. 8, 1300 (2017). 19

work page 2017

[32] [32]

& Samanta, A

Mondal, N. & Samanta, A. Complete ultrafast charge carrier dynamics in photo -excited all-inorganic perovskite nanocrystals (CsPbX3). Nanoscale 9, 1878–1885 (2017)

work page 2017

[33] [33]

Qin, Z. et al. Electrical switching of optical gain in perovskite semiconductor nanocrystals. Nano Lett. 21, 7831–7838 (2021)

work page 2021

[34] [34]

& Sargent, E

Sukhovatkin, V., Hinds, S., Brzozowski, L. & Sargent, E. H. Colloidal quantum -dot photodetectors exploiting multiexciton generation. Science 324, 1542–1544 (2009)

work page 2009

[35] [35]

B., Novet, T

Sambur, J. B., Novet, T. & Parkinson, B. A. Multiple exciton collection in a sensitized photovoltaic system. Science 330, 63–66 (2010)

work page 2010

[36] [36]

Semonin, O. E. et al. Peak external photocurrent quantum efficiency exceeding 100% via MEG in a quantum dot solar cell. Science 334, 1530–1533 (2011)

work page 2011

[37] [37]

Chen, Y. et al. Multiple exciton generation in tin -lead halide perovskite nanocrystals for photocurrent quantum efficiency enhancement. Nat. Photonics. 16, 485–490 (2022). Acknowledgements This work is supported by the National Basic Research Program of China (2021YFA1400803), and the National Natural Science Foundation of China (12574456, 12274216 and 6...

work page 2022
