arxiv: 2604.04691 · v1 · submitted 2026-04-06 · 🪐 quant-ph

Recognition: no theorem link

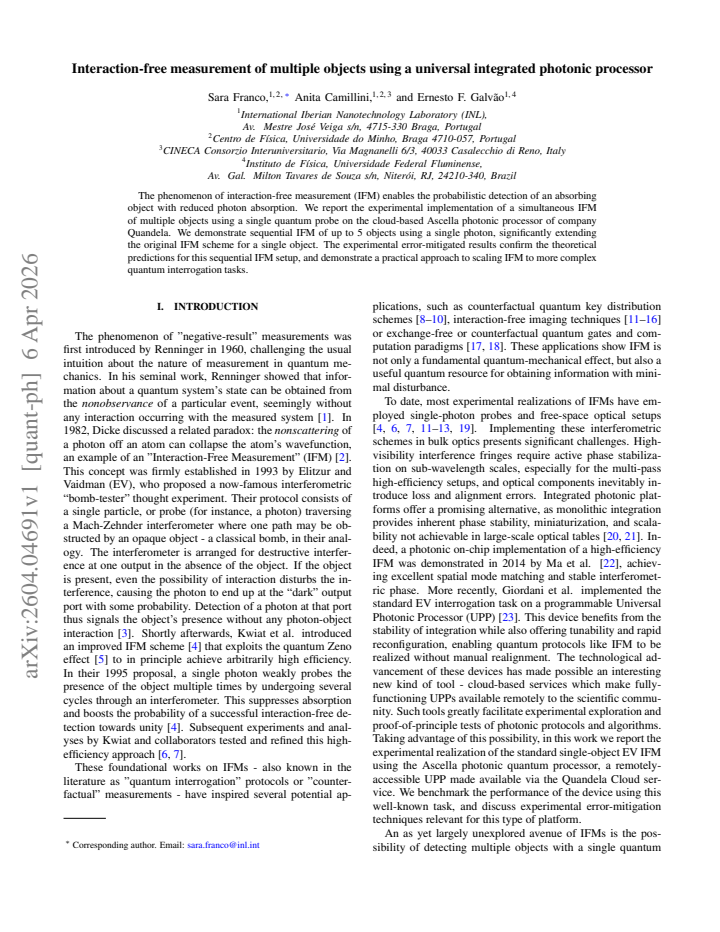

Interaction-free measurement of multiple objects using a universal integrated photonic processor

Sara Franco , Anita Camillini , Ernesto F. Galv\~ao

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:39 UTC · model grok-4.3

classification 🪐 quant-ph

keywords interaction-free measurementphotonic processorsingle photonquantum interrogationerror mitigationsequential protocol

0 comments

The pith

A single photon can detect the presence of up to five absorbing objects without being absorbed by them when a photonic processor runs a sequential measurement circuit.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates an experimental extension of interaction-free measurement from its original single-object form to a sequential scheme that interrogates multiple objects with one photon. It does so by programming a universal integrated photonic processor to implement the required quantum operations and then applying error mitigation to the measured outcomes. A sympathetic reader would care because the work shows that current hardware can realize the multi-object version of the protocol, matching theoretical expectations and providing a concrete route to more elaborate quantum interrogation setups. The results treat the processor as a black-box programmable device rather than a bespoke interferometer.

Core claim

We report the experimental implementation of a simultaneous IFM of multiple objects using a single quantum probe on the cloud-based Ascella photonic processor. We demonstrate sequential IFM of up to 5 objects using a single photon, significantly extending the original IFM scheme for a single object. The experimental error-mitigated results confirm the theoretical predictions for this sequential IFM setup, and demonstrate a practical approach to scaling IFM to more complex quantum interrogation tasks.

What carries the argument

The sequential interaction-free measurement protocol executed on a universal integrated photonic processor, in which a single photon is routed through a programmable circuit that probes multiple potential absorbers in sequence while preserving the no-absorption detection branch.

If this is right

The original single-object IFM scheme generalizes to an arbitrary number of objects when the photonic circuit is programmed accordingly.
Error-mitigated data from the processor reproduces the expected no-absorption detection probabilities for up to five objects.
Photonic processors supply a practical testbed for scaling IFM beyond the two-path Elitzur-Vaidman geometry.
The same hardware can in principle be reprogrammed for other multi-object quantum interrogation tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Programmable photonic chips may serve as rapid prototyping platforms for other interaction-minimizing quantum protocols that have so far remained theoretical.
The sequential scheme could be combined with existing single-photon sources or detectors to explore non-destructive multi-site sensing in quantum optics experiments.
If the error-mitigation step proves robust across different processor calibrations, the approach might be ported to larger-scale photonic circuits without redesigning the optical layout.

Load-bearing premise

Error mitigation applied to the processor output accurately restores the ideal interaction-free probabilities without creating or hiding systematic biases that could imitate the interaction-free signature.

What would settle it

A measurement run in which the observed detection and absorption rates, after the same error-mitigation procedure, deviate from the theoretical sequential-IFM probabilities by more than the reported experimental uncertainty would falsify the successful implementation.

Figures

Figures reproduced from arXiv: 2604.04691 by Anita Camillini, Ernesto F. Galv\~ao, Sara Franco.

**Figure 2.** Figure 2: FIG. 2. Generalized setup for single object interaction-free measure [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. Filatov-Auzinsh proposal for the simultaneous IFM of two [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

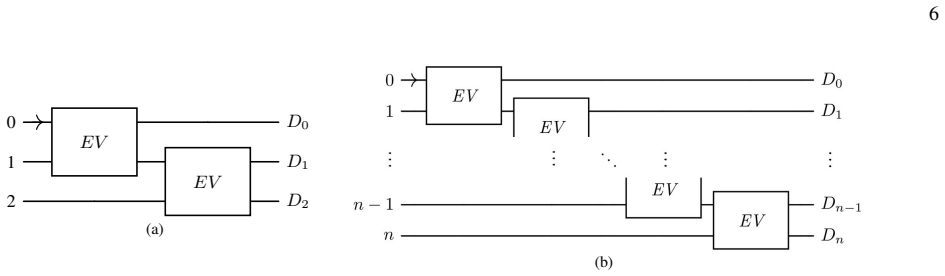

**Figure 4.** Figure 4: FIG. 4. (a) Scheme for the simultaneous interaction-free measurement of two objects. Each EV box corresponds to the scheme in Fig. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5. Extension of the scheme illustrated in Fig. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6. (a) Circuit implemented in Perceval for the standard Elitzur-Vaidman protocol. The opaque object is modelled by photodetector [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

**Figure 7.** Figure 7: FIG. 7. (a) Scheme of the circuit used to implement a simultaneous IFM of two objects. (b) Efficiency [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8. Error-mitigated circuit implemented to estimate the effi [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗

**Figure 9.** Figure 9: FIG. 9. Experimental data collected for (a) the EV IFM task and (b) the multi-object IFM task. In both graphs, the error mitigated data shown [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗

**Figure 10.** Figure 10: FIG. 10. Data for IFM circuits where the absorbing object is removed. (a) Photon counting probabilities, in logarithmic scale, for the dark [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗

**Figure 11.** Figure 11: FIG. 11. Circuit simulated in Perceval for a [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗

**Figure 12.** Figure 12: FIG. 12. Histograms of simulated efficiency data of [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗

**Figure 13.** Figure 13: FIG. 13. Standard deviation of efficiency of multimode setups, as a [PITH_FULL_IMAGE:figures/full_fig_p015_13.png] view at source ↗

**Figure 14.** Figure 14: FIG. 14. Numerically determined values of [PITH_FULL_IMAGE:figures/full_fig_p015_14.png] view at source ↗

read the original abstract

The phenomenon of interaction-free measurement (IFM) enables the probabilistic detection of an absorbing object with reduced photon absorption. We report the experimental implementation of a simultaneous IFM of multiple objects using a single quantum probe on the cloud-based Ascella photonic processor of company Quandela. We demonstrate sequential IFM of up to 5 objects using a single photon, significantly extending the original IFM scheme for a single object. The experimental error-mitigated results confirm the theoretical predictions for this sequential IFM setup, and demonstrate a practical approach to scaling IFM to more complex quantum interrogation tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

First experimental sequential IFM on up to five objects with one photon on an integrated photonic processor, but the results hinge on error mitigation whose details are not fully visible.

read the letter

This paper reports the first lab demonstration of sequential interaction-free measurements for multiple objects using a single photon. They implement it on Quandela's Ascella processor by programming a universal photonic circuit to chain the measurements, reaching five objects while keeping the probe photon mostly unabsorbed when the objects are present. The error-mitigated counts match the theoretical probabilities they derive for the extended scheme. That is the concrete advance: moving from the single-object Elitzur-Vaidman case to a programmable multi-object version on cloud hardware. It shows a workable route for scaling IFM without needing separate probes for each object. The hardware flexibility is a plus; they can reconfigure the same chip for different object counts. The main limitation is the reliance on error mitigation. The abstract claims the mitigated data confirms theory, yet the description gives no full circuit diagram, explicit noise model, or raw detection statistics. If the mitigation step (post-selection, extrapolation, or whatever they use) does not fully account for photon loss, mode crosstalk, or detector inefficiency, it could suppress apparent absorption events and inflate the apparent IFM success rate. That uncertainty grows with object number because the ideal probability falls and cumulative noise rises. Without those details it is difficult to rule out that the match to theory is partly an artifact of the correction. The work is aimed at quantum optics groups doing non-destructive sensing or photonic implementations of interaction-free protocols. A reader already building on IFM or looking for experimental testbeds on integrated chips would get practical value from the setup. It deserves peer review because the experimental scaling is new and the platform is accessible, even though referees will need to see the mitigation procedure and raw data before the claims can be taken as solid.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an experimental demonstration of sequential interaction-free measurement (IFM) of up to five objects using a single photon on the cloud-based Ascella universal integrated photonic processor. It extends the original single-object Elitzur-Vaidman IFM protocol to a sequential multi-object scheme and states that error-mitigated experimental results confirm the independently derived theoretical predictions for the success probabilities.

Significance. If the error mitigation is rigorously validated as unbiased, the work provides a concrete experimental platform for scaling IFM protocols beyond the single-object case, using accessible photonic hardware. It offers a practical route to more complex quantum interrogation tasks and includes direct comparison between hardware output and theory, which is a strength for reproducibility in quantum optics experiments.

major comments (2)

[§4 (Experimental Results)] §4 (Experimental Results) and associated methods paragraph: The central claim that 'error-mitigated results confirm the theoretical predictions' is load-bearing, yet the manuscript provides no explicit description of the mitigation procedure, the underlying error model (e.g., photon loss, crosstalk, detector inefficiency), or quantitative comparison of raw versus mitigated data statistics. Without these, it is impossible to assess whether the mitigation faithfully recovers ideal IFM probabilities or selectively suppresses absorption events in a way that artificially reproduces the interaction-free signature, especially as object count increases to 5 and ideal success probability decreases.
[Circuit implementation subsection] Circuit implementation subsection: The programming of the universal photonic processor for the sequential IFM unitary (beam-splitter ratios and phases for the multi-object sequence) is not specified with sufficient precision, including any calibration data or the exact decomposition used for the 5-object case. This detail is required to allow independent verification that the implemented circuit corresponds to the theoretical protocol rather than an approximation that could bias the outcome.

minor comments (2)

[Abstract] Abstract: The opening sentence refers to 'simultaneous IFM' while the body and title emphasize 'sequential IFM'; align the terminology for consistency.
[Figure captions] Figure captions and data presentation: Include raw (unmitigated) data points alongside mitigated ones in all result figures, and report the number of experimental runs or photon statistics used for each object count.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful review and constructive comments on our manuscript. We address each major comment below and have revised the manuscript to incorporate additional details where appropriate.

read point-by-point responses

Referee: [§4 (Experimental Results)] §4 (Experimental Results) and associated methods paragraph: The central claim that 'error-mitigated results confirm the theoretical predictions' is load-bearing, yet the manuscript provides no explicit description of the mitigation procedure, the underlying error model (e.g., photon loss, crosstalk, detector inefficiency), or quantitative comparison of raw versus mitigated data statistics. Without these, it is impossible to assess whether the mitigation faithfully recovers ideal IFM probabilities or selectively suppresses absorption events in a way that artificially reproduces the interaction-free signature, especially as object count increases to 5 and ideal success probability decreases.

Authors: We agree that explicit details on the error mitigation are necessary to substantiate the central claim. In the revised manuscript, we have expanded the Methods section with a dedicated subsection describing the error model (incorporating measured photon loss rates, crosstalk, and detector inefficiency from the Ascella processor) and the mitigation procedure (a calibrated post-selection and renormalization approach). We have also added a new supplementary figure providing direct quantitative comparison of raw versus mitigated success probabilities for 1–5 objects, demonstrating that the mitigation corrects for hardware imperfections without selectively suppressing absorption events. The mitigated data remain consistent with theoretical predictions within statistical uncertainties. revision: yes
Referee: [Circuit implementation subsection] Circuit implementation subsection: The programming of the universal photonic processor for the sequential IFM unitary (beam-splitter ratios and phases for the multi-object sequence) is not specified with sufficient precision, including any calibration data or the exact decomposition used for the 5-object case. This detail is required to allow independent verification that the implemented circuit corresponds to the theoretical protocol rather than an approximation that could bias the outcome.

Authors: We acknowledge that the circuit programming details were insufficiently specified. The revised manuscript now includes the exact beam-splitter ratios, phases, and decomposition steps for the sequential IFM unitary up to the 5-object case in the Circuit implementation subsection. Calibration data from the Ascella processor (including measured transmission and phase stability) have been added to the supplementary material to enable independent verification that the implemented circuit matches the theoretical protocol. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental validation against independent theory

full rationale

The paper is an experimental implementation of sequential IFM on a photonic processor, with results compared to theoretical predictions derived from the standard Elitzur-Vaidman IFM protocol extended to multiple objects. No load-bearing step reduces by construction to fitted parameters, self-citations, or ansatzes imported from the authors' prior work. The derivation chain for the predicted probabilities is self-contained and externally falsifiable; error mitigation is applied post hoc to data and does not redefine the target quantities. This is the common honest case of an experimental paper whose central claim rests on independent benchmarks rather than internal redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard quantum mechanics and linear optical interferometry; no new free parameters, axioms beyond standard quantum theory, or invented entities are introduced in the abstract description.

axioms (1)

standard math Standard quantum mechanics governs single-photon interference and absorption in linear optical networks
Invoked implicitly as the basis for both the theoretical predictions and the photonic processor implementation.

pith-pipeline@v0.9.0 · 5392 in / 1151 out tokens · 33516 ms · 2026-05-10T19:39:29.927354+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages

[1]

Renninger, Z

M. Renninger, Z. Physik158, 417 (1960)

work page 1960
[2]

R. H. Dicke, Am. J. Phys.49, 925 (1981)

work page 1981
[3]

Elitzur and L

A. Elitzur and L. Vaidman, Found Phys23, 987 (1993)

work page 1993
[4]

Kwiat, H

P. Kwiat, H. Weinfurter, T. Herzog, and A. Zeilinger, Phys. Rev. Lett.74, 4763 (1995)

work page 1995
[5]

W. M. Itano, D. J. Heinzen, J. J. Bollinger, and D. J. Wineland, Phys. Rev. A41, 2295 (1990)

work page 1990
[6]

Kwiat, Physica Scripta76, 115 (1998)

P. Kwiat, Physica Scripta76, 115 (1998)

work page 1998
[7]

Kwiat, A

P. Kwiat, A. G. White, J. R. Mitchell, O. Nairz, G. Weihs, H. Weinfurter, and A. Zeilinger, Phys. Rev. Lett.833, 4725 (1999)

work page 1999
[8]

Noh, Phys

T.-G. Noh, Phys. Rev. Lett.103, 230501 (2009)

work page 2009
[9]

Y . Liu, L. Ju, X.-L. Liang, S.-B. Tang, G.-L. S. Tu, L. Zhou, C.- Z. Peng, K. Chen, T.-Y . Chen, Z.-B. Chen, and J.-W. Pan, Phys. Rev. Lett.109, 030501 (2012), arXiv:1107.5754 [quant-ph]

work page arXiv 2012
[10]

Salih, Z.-H

H. Salih, Z.-H. Li, M. Al-Amri, and M. S. Zubairy, Phys. Rev. Lett.110, 170502 (2013), arXiv:1206.2042

work page arXiv 2013
[11]

A. G. White, J. R. Mitchell, O. Nairz, and P. G. Kwiat, Phys. Rev. A58, 605 (1998), arXiv:quant-ph/9803060

work page arXiv 1998
[12]

G. B. Lemos, V . Borish, G. D. Cole, S. Ramelow, R. Lap- kiewicz, and A. Zeilinger, Nature512, 409 (2014)

work page 2014
[13]

Y . Yang, H. Liang, X. Xu, L. Zhang, S. Zhu, and X. song Ma, npj Quantum Inf9, 2 (2023), arXiv:2212.06531. 11

work page arXiv 2023
[14]

Zhang, A

Y . Zhang, A. Sit, F. Bouchard, H. Larocque, F. Grenapin, E. Co- hen, A. C. Elitzur, J. L. Harden, R. W. Boyd, and E. Karimi, Optics Express27, 2212 (2019), arXiv:1711.09171

work page arXiv 2019
[15]

J. R. Hance and J. Rarity, npj Quantum Inf.7, 88 (2021), arXiv:2010.14292

work page arXiv 2021
[16]

Kent and D

A. Kent and D. Wallace, (2001), arXiv:2301.12345 [quant-ph]

work page arXiv 2001
[17]

Salih, J

H. Salih, J. R. Hance, W. McCutcheon, T. Rudolph, and J. Rarity, New Journal of Physics23, 013004 (2021), arXiv:2008.00841

work page arXiv 2021
[18]

Salih, J

H. Salih, J. R. Hance, W. McCutcheon, T. Rudolph, and J. Rar- ity, J. Phys. Commun.9, 045004 (2025), arXiv:2009.05564

work page arXiv 2025
[19]

Cao, Phys

Z. Cao, Phys. Rev. A102, 052413 (2020), arXiv:2011.07195 [quant-ph]

work page arXiv 2020
[20]

B. J. Metcalf, N. Thomas-Peter, J. B. Spring, D. Kundys, M. A. Broome, P. C. Humphreys, X.-M. Jin, M. Barbieri, W. Steven Kolthammer, J. C. Gates, B. J. Smith, N. K. Lang- ford, P. G. Smith, and I. A. Walmsley, Nature Communications 4, 1356 (2013)

work page 2013
[21]

J. Wang, F. Sciarrino, A. Laing, and M. G. Thompson, Nat. Photonics14, 273 (2020)

work page 2020
[22]

X.-S. Ma, X. Guo, C. Schuck, K. Y . Fong, L. Jiang, and H. X. Tang, Phys. Rev. A90, 042109 (2014), arXiv:1405.2068

work page arXiv 2014
[23]

Giordani, R

T. Giordani, R. Wagner, C. Esposito, A. Camillini, F. Hoch, G. Carvacho, C. Pentangelo, F. Ceccarelli, S. Piacentini, A. Crespi, N. Spagnolo, R. Osellame, E. F. Galv˜ao, and F. Scia- rrino, Sci. Adv.9, eadj4249 (2023)

work page 2023
[24]

Filatov and M

S. Filatov and M. Auzinsh, Appl. Phys. B130, 121 (2024)

work page 2024
[25]

E. H. Du Marchie Van V oorthuysen, Am. J. Phys.64, 1504 (1996)

work page 1996
[26]

Hafner and J

M. Hafner and J. Summhammer, Phys. Rev. A235, 563 (1997)

work page 1997
[27]

A. M. P ˘alici, T.-A. Isdrail˘a, S. Ataman, and R. Ionicioiu, Phys. Rev. A105, 013529 (2022)

work page 2022
[28]

Guo and B.-S

G.-C. Guo and B.-S. Shi, Physics Letters A256, 109 (1999)

work page 1999
[29]

Maring, A

N. Maring, A. Fyrillas, M. Pont, E. Ivanov, P. Stepanov, N. Mar- garia, W. Hease, A. Pishchagin, A. Lema ˆıtre, I. Sagnes, T. H. Au, S. Boissier, E. Bertasi, A. Baert, M. Valdivia, M. Billard, O. Acar, A. Brieussel, R. Mezher, S. C. Wein, A. Salavrakos, P. Sinnott, D. A. Fioretto, P.-E. Emeriau, N. Belabas, S. Mans- field, P. Senellart, J. Senellart, and ...

work page 2024
[30]

W. R. Clements, P. C. Humphreys, B. J. Metcalf, W. S. Kolthammer, and I. A. Walmsley, Optica3, 1460 (2016)

work page 2016
[31]

Fyrillas, O

A. Fyrillas, O. Faure, N. Maring, J. Senellart, and N. Belabas, Optica11, 427 (2024)

work page 2024
[32]

Heurtel, A

N. Heurtel, A. Fyrillas, G. de Gliniasty, R. L. Bihan, S. Mal- herbe, M. Pailhas, E. Bertasi, B. Bourdoncle, P.-E. Eme- riau, R. Mezher, L. Music, N. Belabas, B. Valiron, P. Senel- lart, S. Mansfield, and J. Senellart, Quantum7, 931 (2023), arXiv:2204.00602 [quant-ph]. APPENDIX A Methods 1 Experimental setup The quantum interrogation tasks explored in thi...

work page arXiv 2023
