DeepStack: Scalable and Accurate Design Space Exploration for Distributed 3D-Stacked AI Accelerators

Zhiwen Mo , Guoyu Li , Hao Mark Chen , Yu Cheng , Zhengju Tang , Qianzhou Wang , Lei Wang , Shuang Liang
show 6 more authors
Lingxiao Ma Xianqi Zhou Yuxiao Guo Wayne Luk Jilong Xue Hongxiang Fan
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:58 UTC · model grok-4.3

classification 💻 cs.AR cs.DC
keywords 3D-stacked acceleratorsdesign space explorationLLM inferenceperformance modelingdistributed systemshardware-software co-designmemory bandwidth modeling
0
0 comments X

The pith

DeepStack models 3D-stacked AI accelerators to explore 250 trillion design points up to 100000 times faster than simulators while delivering up to 9.5 times higher LLM throughput.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents DeepStack as a performance model and tool that supports early co-design of distributed 3D-stacked hardware and software for large language model inference. It builds detailed representations of 3D memory behavior and execution scheduling to let designers evaluate enormous numbers of possible configurations quickly. A sympathetic reader would care because manual or slow simulation of such systems is impractical at current AI scales, and early identification of better hardware choices can reduce later redesign costs. The model maintains accuracy through targeted abstractions while running much faster than prior simulators, and the resulting search shows concrete gains plus new observations about what drives optimal choices.

Core claim

DeepStack captures fine-grained 3D memory semantics such as transaction-aware bandwidth, bank activation constraints, buffering limitations, and thermal-power modeling, together with comprehensive parallelization strategies and execution scheduling for distributed LLM inference. Novel techniques of dual-stage network abstraction and tile-level compute-communication overlap produce runtimes up to 100000 times faster than state-of-the-art simulators at comparable accuracy, as cross-validated on in-house 3D designs, NS-3, and vLLM. The resulting hierarchical search covers 2.5 times 10 to the 14 design points across DRAM layers, vertical connectivity, interconnect, compute-memory allocation, and

What carries the argument

Dual-stage network abstraction together with tile-level compute-communication overlap, which together enable rapid yet accurate simulation of distributed 3D memory and scheduling behavior.

If this is right

  • Up to 100000 times faster runtime than existing simulators at comparable accuracy.
  • Practical exploration of a 2.5 times 10 to the 14 point design space covering hardware layers, connectivity, allocation, and scheduling.
  • Up to 9.5 times higher throughput from co-optimized parallelism and 3D architecture choices.
  • Batch size creates a more fundamental architectural divide than the prefill versus decode distinction.
  • Parallelism strategy and hardware architecture are tightly coupled, so incomplete schedule search produces permanently suboptimal silicon.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Design teams may need to treat batch-size handling as a primary constraint when laying out future 3D memory stacks.
  • The same modeling approach could be applied to evaluate non-LLM workloads on similar 3D hardware.
  • Early adoption of such tools might reduce the frequency of hardware revisions that later software tuning cannot fix.

Load-bearing premise

The accuracy of the fine-grained 3D memory semantics and dual-stage network abstraction will hold for hardware and workloads beyond the specific in-house designs and validation cases used.

What would settle it

Run DeepStack on a new 3D-stacked prototype not used in its validation, compare its throughput and latency predictions against measured hardware execution, and check whether error stays inside the reported 2 to 12 percent range.

Figures

Figures reproduced from arXiv: 2604.04750 by Guoyu Li, Hao Mark Chen, Hongxiang Fan, Jilong Xue, Lei Wang, Lingxiao Ma, Qianzhou Wang, Shuang Liang, Wayne Luk, Xianqi Zhou, Yu Cheng, Yuxiao Guo, Zhengju Tang, Zhiwen Mo.

Figure 1

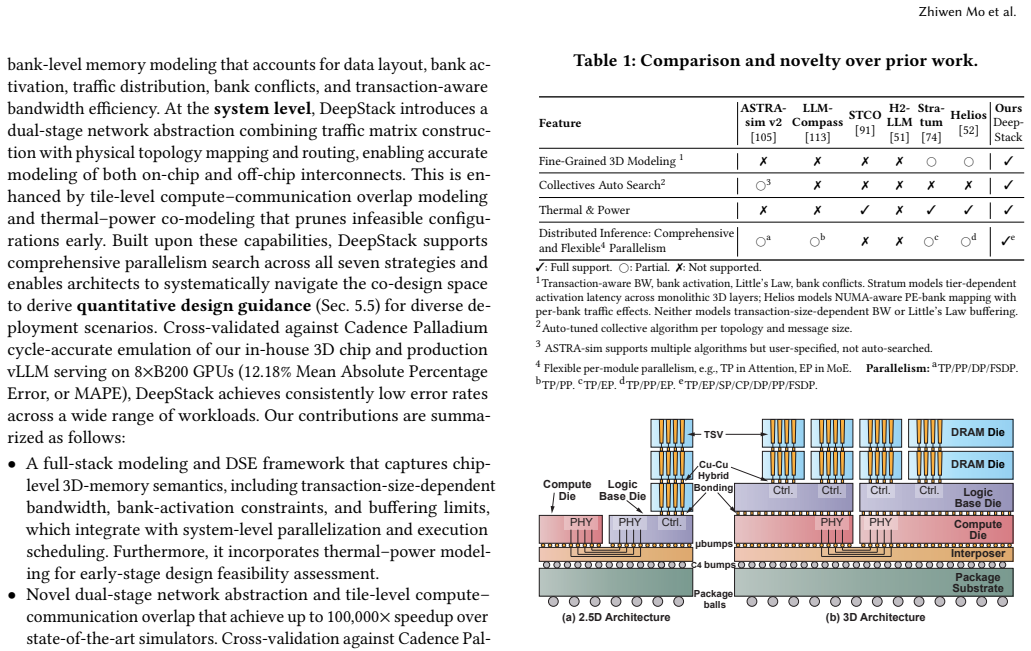

Figure 1. Figure 1: 2.5D hardware and 3D-stacked architecture. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: The number of distinct parallelisms achieved at a [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Overview of DeepStack DSE Framework. Chips Ethernet Die UCIe Interposer Substrate XBAR (a)Processing Engine View (b) DRAM Stack Cluster View (c) Die View (d) Chip View (e) System Overview Clusters Inter-Cluster Connection PE PE PE PE PE PE PE X BAR PE PHY PHY PHY PHY HBM HBM HBM HBM Compute Layer Logic Base Layer SFU Vector Unit Matrix Unit Scheduler Register File SFU Vector Unit Matrix Unit Scheduler Regi… view at source ↗
Figure 5
Figure 5. Figure 5: Example of Cross Sectional and Top View of a 3D-Stacked DRAM Architecture. [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Example of mapping 64-node logical EP all-to-all [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Tile-level compute–communication overlap model [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 10

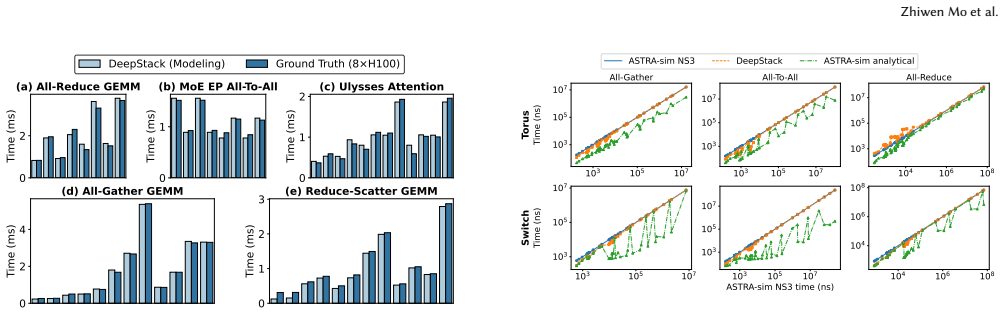

Figure 10. Figure 10: DeepStack modeling accuracy vs. ASTRA-sim (NS-3 [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 9

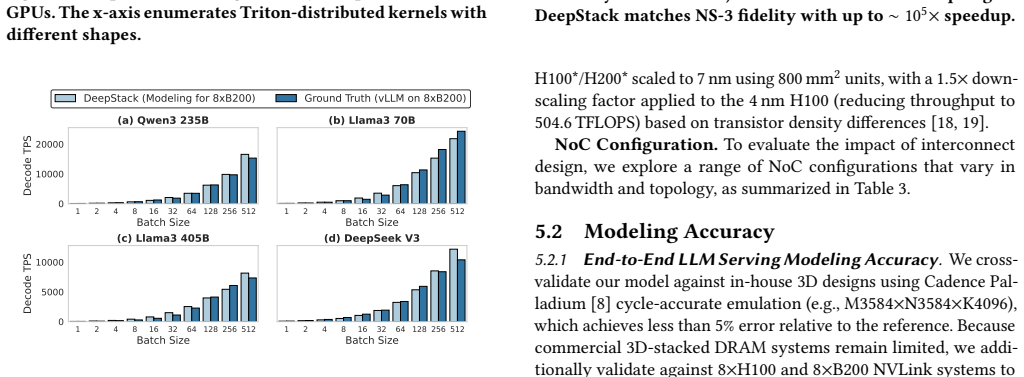

Figure 9. Figure 9: DeepStack modeling accuracy on vLLM TP8 and [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 11

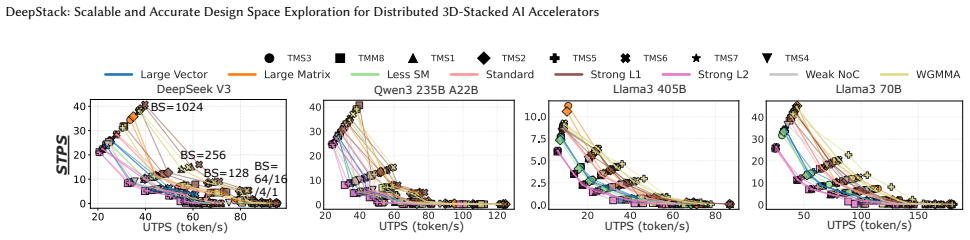

Figure 11. Figure 11: Pareto frontiers from DeepStack’s DSE across design points. A representative subset is shown for clarity. [PITH_FULL_IMAGE:figures/full_fig_p009_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: UTPS/STPS decoding performance comparison. DeepStack DSE denotes the best configuration searched by our [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 13

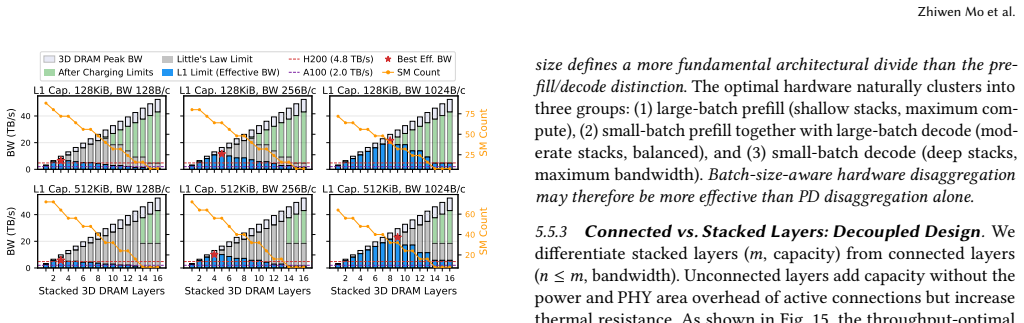

Figure 13. Figure 13: Theoretical and effective DRAM bandwidth break [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗
Figure 14

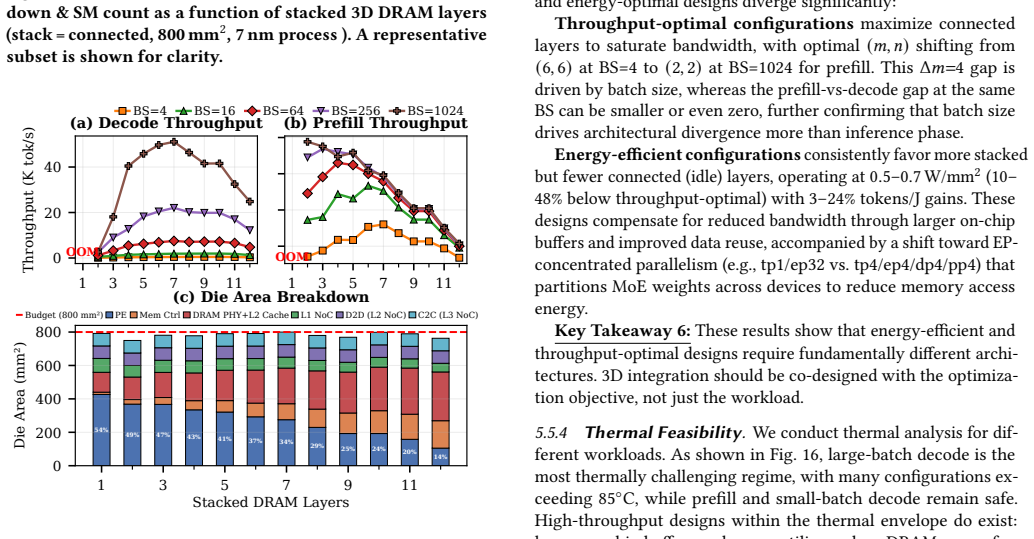

Figure 14. Figure 14: End-to-end TPS for DeepSeek-V3 and area break [PITH_FULL_IMAGE:figures/full_fig_p010_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: DSE heatmaps for throughput-optimal and energy-optimal designs across stacked ( [PITH_FULL_IMAGE:figures/full_fig_p011_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Temperature distribution across the 3D DRAM [PITH_FULL_IMAGE:figures/full_fig_p011_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: NoC bandwidth and hop latency sensitivity. Re [PITH_FULL_IMAGE:figures/full_fig_p011_17.png] view at source ↗
read the original abstract

Advances in hybrid bonding and packaging have driven growing interest in 3D DRAM-stacked accelerators with higher memory bandwidth and capacity. As LLMs scale to hundreds of billions or trillions of parameters, distributed inference across multiple 3D chips becomes essential. With cross-stack co-design increasingly critical, we propose DeepStack, an accurate and efficient performance model and tool to enable early-stage system-hardware co-design space exploration (DSE) for distributed 3D-stacked AI systems. At the hardware level, DeepStack captures fine-grained 3D memory semantics such as transaction-aware bandwidth, bank activation constraints, buffering limitations, and thermal-power modeling. At the system level, DeepStack incorporates comprehensive parallelization strategies and execution scheduling for distributed LLM inference. With novel modeling techniques such as dual-stage network abstraction and tile-level compute-communication overlap, we achieve up to 100,000x faster runtime over state-of-the-art simulators at comparable accuracy, cross-validated against our in-house 3D designs, NS-3 backend (2.12%), and vLLM serving on 8xB200 GPUs (12.18%). With hierarchical design space search, DeepStack enables efficient exploration over 2.5x10^14 design points spanning 3D-stacked DRAM layers, DRAM vertical connectivity, interconnect, compute-memory allocation, and distributed scheduling. Compared with baseline designs, DeepStack achieves up to 9.5x higher throughput through co-optimized parallelism and 3D architecture search. Our DSE further reveals that batch size drives a more fundamental architectural divide than the prefill/decode distinction, and that parallelism strategy and hardware architecture are tightly coupled -- incomplete schedule search leads to permanently suboptimal silicon irrecoverable by software tuning. We intend to open source DeepStack to support future research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper introduces DeepStack, a performance modeling tool for early-stage design space exploration (DSE) of distributed 3D-stacked AI accelerators targeting LLM inference. It incorporates fine-grained hardware models for 3D DRAM (transaction-aware bandwidth, bank activation, buffering, thermal-power) and system-level elements including parallelization strategies and scheduling. Novel techniques include dual-stage network abstraction and tile-level compute-communication overlap, enabling up to 100,000x faster runtime than state-of-the-art simulators at comparable accuracy. Cross-validation is reported against in-house 3D designs, NS-3 (2.12% error), and vLLM on 8xB200 GPUs (12.18% error). Hierarchical search allows exploration of 2.5x10^14 design points across DRAM layers, vertical connectivity, interconnect, compute-memory allocation, and scheduling. Results claim up to 9.5x higher throughput versus baselines via co-optimized parallelism and architecture search, plus insights that batch size drives architectural divides more than prefill/decode and that parallelism and hardware are tightly coupled.

Significance. If the accuracy and generalization claims hold, DeepStack would be a significant contribution to hardware-software co-design for 3D-stacked AI systems, as the reported speedup and scale of DSE (2.5x10^14 points) could substantially accelerate exploration of distributed inference architectures. The cross-validation against independent simulators (NS-3) and real GPU runs (vLLM) plus the intent to open-source the tool are notable strengths that support reproducibility and broader adoption.

major comments (2)
  1. [Abstract and Evaluation] Abstract and Evaluation section: The cross-validation reports average errors of 2.12% (NS-3) and 12.18% (vLLM) but provides no details on the number of design points validated, the distribution of errors across regimes (e.g., DRAM layer counts >4, extreme batch sizes, or novel parallelism strategies), or whether the transaction-aware bandwidth, bank-activation, and thermal models were tested for bias in unvalidated configurations. This is load-bearing for the claim that the model supports accurate ranking over the full 2.5x10^14-point space.
  2. [DSE and Results] DSE and Results sections: The 9.5x throughput improvement and architectural insights (batch size as fundamental divide, tight coupling of parallelism and hardware) rest on the dual-stage network abstraction and tile-level overlap model correctly predicting performance without post-hoc tuning. No explicit evidence is given that these components remain unbiased when extrapolating beyond the specific in-house 3D designs and NS-3/vLLM cases, which risks mis-ranking designs in the co-optimization conclusions.
minor comments (3)
  1. [Abstract] The abstract mentions 'hierarchical design space search' but the manuscript does not clarify the exact partitioning or pruning criteria used to traverse 2.5x10^14 points efficiently.
  2. [Modeling] Notation for the dual-stage network abstraction and tile-level overlap model could be more precisely defined with equations or pseudocode to aid reproducibility.
  3. [Figures] Figure captions and legends should explicitly state the error metric (e.g., mean absolute percentage error) and the exact configurations compared in the NS-3 and vLLM validations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important areas for strengthening the validation and extrapolation claims. We address each major comment below and will incorporate revisions to improve clarity and rigor.

read point-by-point responses

  1. Referee: [Abstract and Evaluation] Abstract and Evaluation section: The cross-validation reports average errors of 2.12% (NS-3) and 12.18% (vLLM) but provides no details on the number of design points validated, the distribution of errors across regimes (e.g., DRAM layer counts >4, extreme batch sizes, or novel parallelism strategies), or whether the transaction-aware bandwidth, bank-activation, and thermal models were tested for bias in unvalidated configurations. This is load-bearing for the claim that the model supports accurate ranking over the full 2.5x10^14-point space.

    Authors: We agree that the manuscript lacks sufficient detail on the validation set composition and error distribution. The reported average errors are based on a set of configurations that include multiple DRAM layer counts, batch sizes, and parallelism strategies, but these specifics are not broken out. In the revised manuscript, we will add a new subsection (or expanded table) in the Evaluation section that reports the exact number of validated design points (approximately 45 for NS-3 and 25 for vLLM), error distributions across regimes including DRAM layers >4 and extreme batch sizes, and a discussion of coverage for the transaction-aware bandwidth, bank-activation, and thermal models. We will also note any observed biases and the fraction of the full DSE space represented by the validated points. revision: yes

  2. Referee: [DSE and Results] DSE and Results sections: The 9.5x throughput improvement and architectural insights (batch size as fundamental divide, tight coupling of parallelism and hardware) rest on the dual-stage network abstraction and tile-level overlap model correctly predicting performance without post-hoc tuning. No explicit evidence is given that these components remain unbiased when extrapolating beyond the specific in-house 3D designs and NS-3/vLLM cases, which risks mis-ranking designs in the co-optimization conclusions.

    Authors: The dual-stage network abstraction and tile-level compute-communication overlap were validated as part of the overall model accuracy against both NS-3 and real vLLM runs on 8xB200 GPUs, and the 9.5x gains and insights emerge directly from the hierarchical search results. We acknowledge that the manuscript does not provide separate bias analysis for these modeling components in extrapolated regimes beyond the validated cases. In the revision, we will add sensitivity analysis and additional cross-checks in the DSE and Results sections demonstrating that the components maintain low error in configurations outside the original validation set (e.g., higher layer counts and novel parallelism). This will better support the reliability of the reported throughput improvements and architectural conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; model grounded in explicit semantics and externally validated

full rationale

The paper's core performance model incorporates fine-grained 3D memory semantics (transaction-aware bandwidth, bank activation, buffering, thermal-power) and dual-stage network abstraction with tile-level overlap. These are presented as direct hardware modeling rather than fitted parameters or self-referential definitions. Accuracy is cross-validated against independent external references (NS-3 at 2.12% error, vLLM on 8xB200 at 12.18% error, plus in-house 3D designs), not against the model's own outputs or fitted subsets of the target DSE data. The 2.5e14-point search and 9.5x throughput gains are downstream applications of the validated model; no equations, self-citations, or ansatzes reduce the claimed predictions or uniqueness to the inputs by construction. This is a standard non-circular engineering modeling paper.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 2 invented entities

The central claims rest on standard performance-modeling assumptions plus two novel abstractions introduced in the paper; no explicit free parameters are named in the abstract, but accuracy claims implicitly depend on calibration against the validation workloads.

axioms (2)
  • domain assumption 3D memory semantics (transaction-aware bandwidth, bank activation constraints, buffering limitations, thermal-power) can be abstracted accurately enough for early DSE
    Invoked in the hardware-level modeling section of the abstract as the foundation for the claimed accuracy.
  • domain assumption Distributed LLM inference can be captured by comprehensive parallelization strategies and execution scheduling that interact with the 3D hardware model
    Stated as part of the system-level modeling contribution.
invented entities (2)
  • dual-stage network abstraction no independent evidence
    purpose: To model cross-stack communication at sufficient fidelity while enabling 100,000x speedup
    Introduced as a novel modeling technique; no independent evidence outside the paper's validation is provided in the abstract.
  • tile-level compute-communication overlap model no independent evidence
    purpose: To capture fine-grained overlap between computation and communication in distributed 3D inference
    Presented as a key novel technique enabling both speed and accuracy; independent evidence limited to the reported error rates.
