The pith

Minimizing the total spatial spread of modes in a multimode fiber produces self-organized concentric rings without any geometric constraints imposed.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

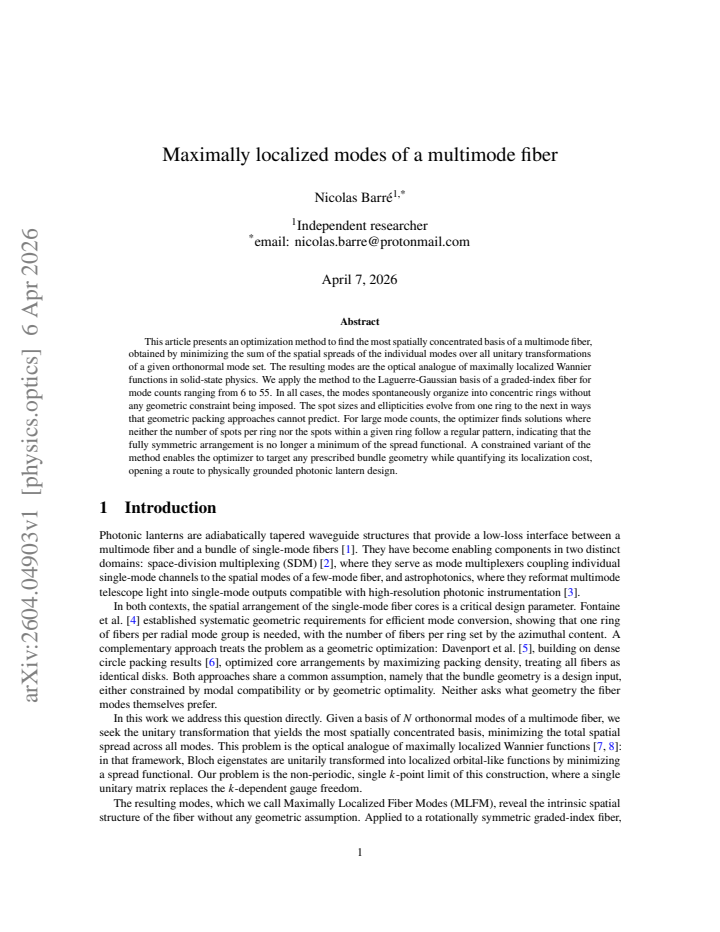

The paper introduces a numerical method that searches for the most compact orthonormal basis of fiber modes by applying unitary transformations to an initial set and minimizing the sum of each mode's spatial spread. When applied to the Laguerre-Gaussian modes of a graded-index fiber, the optimization yields solutions in which the modes arrange themselves into concentric rings for every tested count from 6 to 55. Spot sizes and ellipticities change from ring to ring in patterns that standard geometric packing cannot forecast. At larger mode numbers the rings themselves become irregular, with neither the number of spots per ring nor their internal arrangement following obvious symmetry, showing that fully symmetric configurations cease to be minima of the spread functional. A constrained version of the same optimizer can force any desired bundle shape and then report the extra spread cost incurred.

Core claim

The optimization procedure identifies the optical equivalent of maximally localized Wannier functions by finding the unitary transformation of the Laguerre-Gaussian basis that minimizes the sum of individual mode spreads; the resulting modes spontaneously form concentric rings whose radii, spot sizes, and ellipticities evolve systematically yet non-geometrically, and for high mode counts the arrangements within rings lose regularity.

What carries the argument

The spread functional minimized over all unitary transformations of a fixed orthonormal mode basis, which selects the linear combinations that are most concentrated in space.

If this is right

  • Modes form concentric rings spontaneously for all tested counts between 6 and 55.
  • Spot sizes and ellipticities vary between rings in ways geometric packing cannot predict.
  • For large mode counts neither the number of spots per ring nor the arrangement inside a ring remains regular.
  • A constrained optimizer can enforce any prescribed bundle geometry and directly quantify the resulting increase in total spread.
  • The approach supplies a concrete, physically motivated cost for any target mode layout in photonic lantern design.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The ring structures may appear in other wave systems where a similar spread functional can be defined, such as acoustic or quantum waveguides.
  • Comparing the optimized spreads against known analytic bounds could test whether the irregular patterns found at high mode counts are truly global minima.
  • The method offers a way to rank candidate mode layouts for applications by their localization cost rather than by ad-hoc symmetry assumptions.

Load-bearing premise

That the numerical minimization reliably reaches the global minimum of the spread functional and that the Laguerre-Gaussian starting basis does not itself force the observed ring organization.

What would settle it

Running the same minimization starting from a different complete orthonormal basis such as Hermite-Gaussian modes and obtaining a lower total spread with a non-ring arrangement for mode counts above 30.

Figures

Figures reproduced from arXiv: 2604.04903 by Nicolas Barr\'e.

Figure 1
Figure 1. Figure 1: MLFM obtained by minimizing Ω over the LG basis of a graded-index fiber, for 𝑁 = 6 to 55. Each spot is represented by its intensity centroid (dot) and an ellipse whose semi-axes are proportional to 𝜎𝑟 and 𝜎𝜃 (scaled by 0.45 for clarity). The two families of solutions (𝑛1 = 1 and 𝑛1 = 3) are clearly visible. bundle geometries generated from the recurrence rule, with 𝑛1 = 3 for 𝑁 = 36 and 𝑁 = 55, and 𝑛1 = 1 … view at source ↗
Figure 2

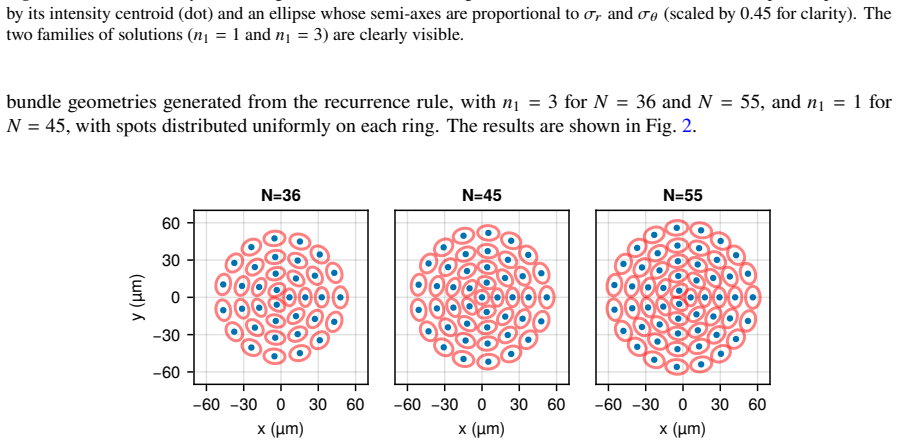

Figure 2. Figure 2: MLFM obtained with constrained optimization (𝛽 = 1) targeting the regular concentric ring geometry, for 𝑁 = 36, 45, and 55. The total spread is within 0.8%, 1.4%, and 1.7% of the unconstrained optimum respectively, confirming that the regular packing is near-optimal. The constrained optimization successfully recovers symmetric solutions in all three cases. Interestingly, the centroids of the resulting mode… view at source ↗
Figure 3

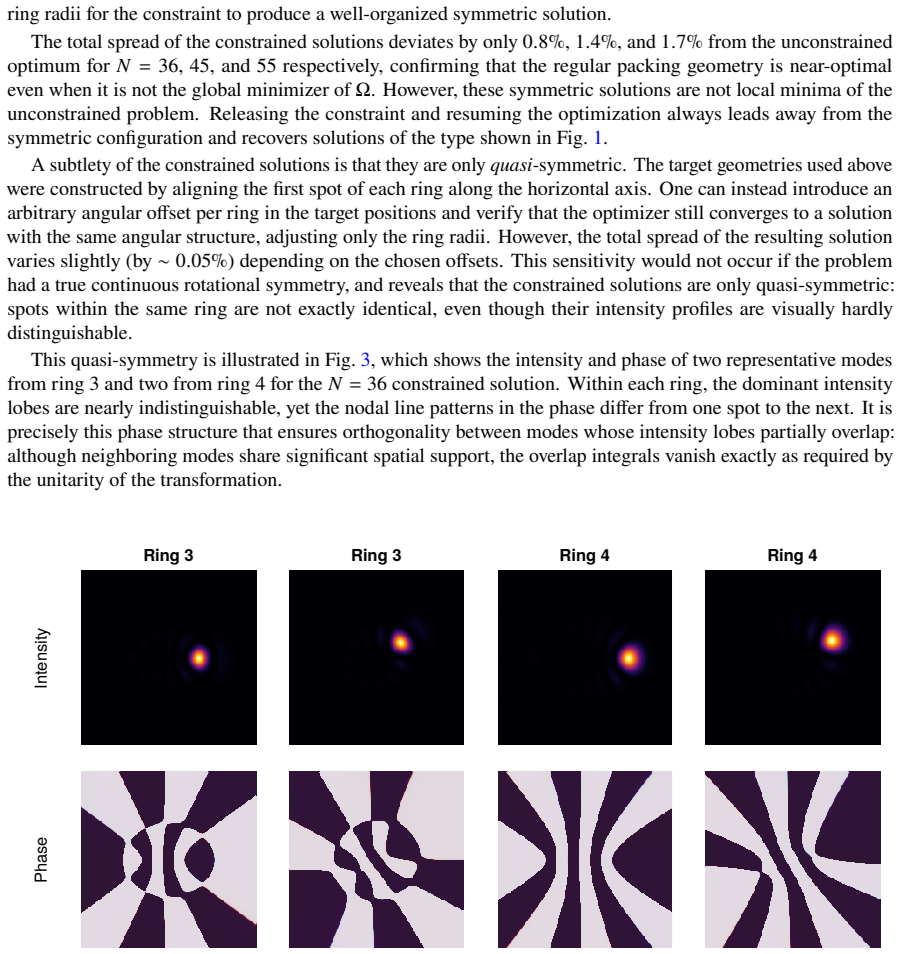

Figure 3. Figure 3: Intensity (top) and phase (bottom) of representative MLFM for the 𝑁 = 36 constrained solution. Columns 1–2: two adjacent spots from ring 3; columns 3–4: two adjacent spots from ring 4. Within each ring, the dominant intensity lobes are nearly identical while the nodal line patterns differ, illustrating the quasi-symmetry of the constrained solutions. Modes from different rings have partially overlapping sp… view at source ↗
