arxiv: 2604.05105 · v1 · submitted 2026-04-06 · 🪐 quant-ph

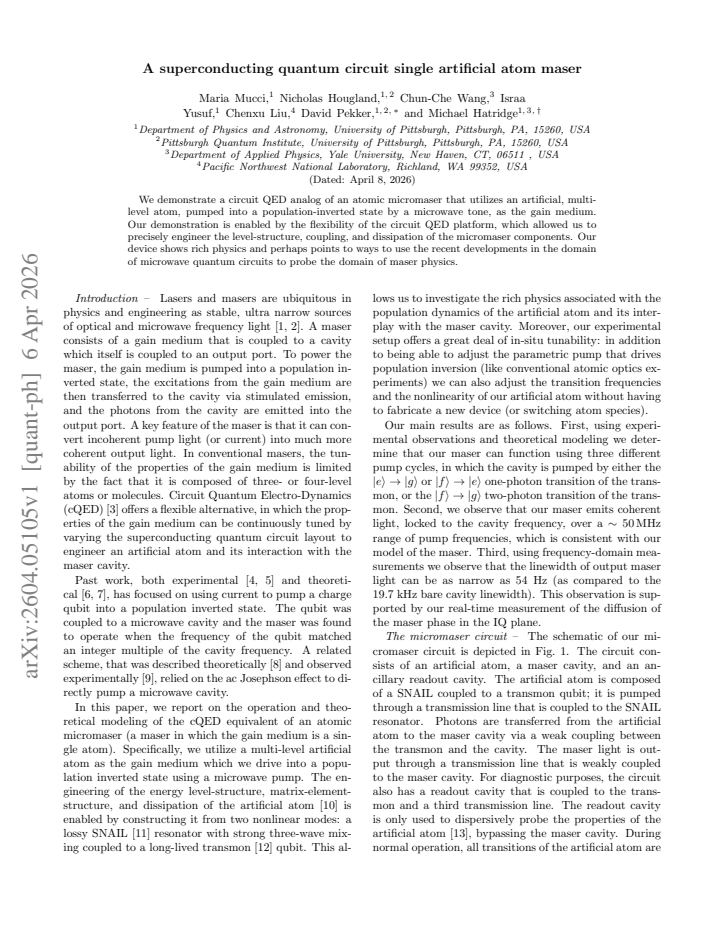

A superconducting quantum circuit single artificial atom maser

Maria Mucci , Nicholas Hougland , Chun-Che Wang , Israa Yusuf , Chenxu Liu , David Pekker , Michael Hatridge This is my paper

Pith reviewed 2026-05-10 19:03 UTC · model grok-4.3

classification 🪐 quant-ph
keywords circuit QEDartificial atommicromaserpopulation inversionsuperconducting circuitquantum amplifierstimulated emission
0
0 comments X

The pith

A superconducting quantum circuit demonstrates a single artificial atom maser.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how to build a micromaser using an artificial atom made from a superconducting circuit instead of a real atom. The circuit is engineered so that a multi-level artificial atom can be pumped by microwaves into a state where more atoms are excited than in the ground state. Stimulated emission then amplifies the microwave field in a cavity-like setup. A reader might care because this combines the controllability of quantum circuits with the physics of masers, which could lead to new tools for quantum technologies and studies of light-matter interaction at microwave frequencies.

Core claim

We demonstrate a circuit QED analog of an atomic micromaser that utilizes an artificial, multi level atom, pumped into a population-inverted state by a microwave tone, as the gain medium. Our demonstration is enabled by the flexibility of the circuit QED platform, which allowed us to precisely engineer the level-structure, coupling, and dissipation of the micromaser components. Our device shows rich physics and perhaps points to ways to use the recent developments in the domain of microwave quantum circuits to probe the domain of maser physics.

What carries the argument

An artificial multi-level atom in a superconducting circuit QED setup, pumped to population inversion to serve as the gain medium for maser action.

If this is right

  • The device produces amplification through stimulated emission from the inverted artificial atom.
  • The system exhibits dynamics characteristic of maser operation in a highly controllable platform.
  • Precise engineering of level structure, coupling, and dissipation is possible due to circuit QED flexibility.
  • This setup may allow probing maser physics with microwave quantum circuits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such devices could be scaled or integrated with other quantum circuit elements for more complex quantum information processing.
  • The rich physics observed might reveal quantum features of maser operation not easily accessible in traditional systems.
  • This work suggests a pathway to engineer maser-like behavior for applications in quantum sensing or amplification.

Load-bearing premise

The amplification and observed dynamics result from the population inversion and stimulated emission in the artificial atom rather than unintended nonlinearities or other effects in the circuit.

What would settle it

If disabling the microwave pump tone that creates population inversion eliminates the amplification and maser-like dynamics while other circuit parameters remain the same this would support the claim; conversely if amplification continues without inversion it would falsify it.

Figures

Figures reproduced from arXiv: 2604.05105 by Chenxu Liu, Chun-Che Wang, David Pekker, Israa Yusuf, Maria Mucci, Michael Hatridge, Nicholas Hougland.

Figure 1
Figure 1. Figure 1: Schematic of the micromaser circuit. The circuit is [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

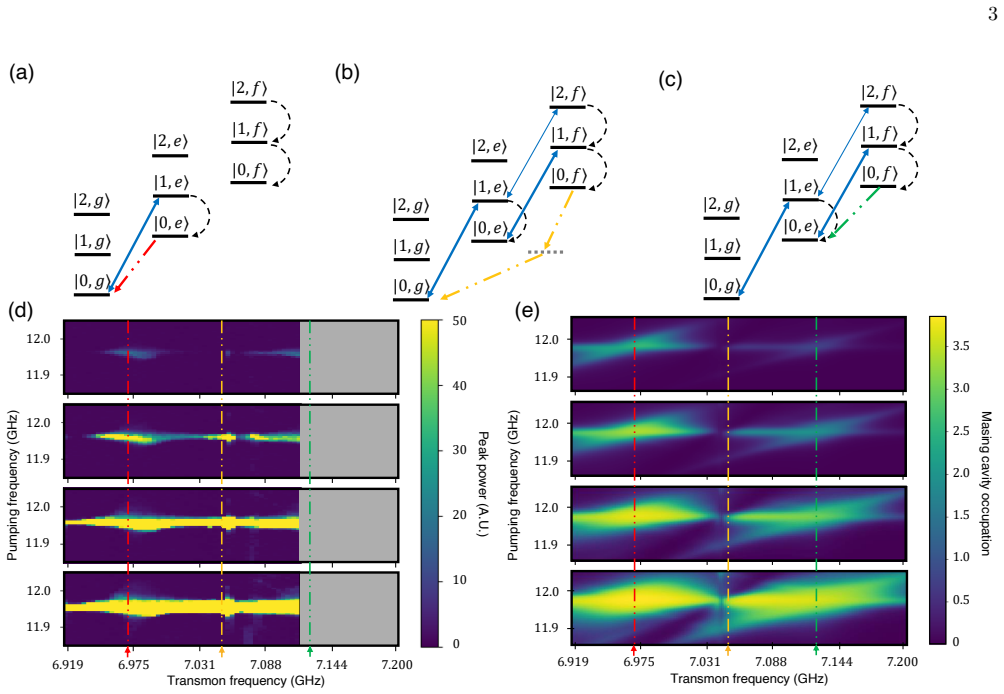

Figure 2. Figure 2: Diagram of levels in the SNAIL-transmon subsystem. Blue arrows represent couplings due to the parametric pump, [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Comparison of the (a) weakly probed ‘bare’ maser [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Time-domain measurement of the maser output-light. The in- and out-of-phase quadratures were measured every [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

We demonstrate a circuit QED analog of an atomic micromaser that utilizes an artificial, multi level atom, pumped into a population-inverted state by a microwave tone, as the gain medium. Our demonstration is enabled by the flexibility of the circuit QED platform, which allowed us to precisely engineer the level-structure, coupling, and dissipation of the micromaser components. Our device shows rich physics and perhaps points to ways to use the recent developments in the domain of microwave quantum circuits to probe the domain of maser physics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript claims to demonstrate a circuit QED analog of an atomic micromaser utilizing an artificial multi-level atom as the gain medium after microwave pumping into a population-inverted state. The circuit QED platform enables precise engineering of the level structure, coupling strengths, and dissipation rates, resulting in observed amplification and rich dynamical behavior that points toward using microwave quantum circuits to explore maser physics.

Significance. If the experimental demonstration is substantiated, this work offers a highly controllable platform for studying maser physics that is difficult to achieve with natural atoms, leveraging the flexibility of superconducting circuits for tailored level engineering and dissipation. This could enable new experiments on quantum-limited amplification and non-equilibrium dynamics in hybrid quantum systems.

major comments (1)
  1. Abstract: the central claim of a successful demonstration of maser action via engineered population inversion is asserted, but no spectra, gain measurements, threshold behavior, or controls excluding alternative explanations (e.g., circuit nonlinearities or thermal effects) are supplied; this leaves the evidence for stimulated emission load-bearing and unverified from the provided description.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive feedback on our manuscript. We address the major comment below and propose a revision to improve clarity.

read point-by-point responses

  1. Referee: Abstract: the central claim of a successful demonstration of maser action via engineered population inversion is asserted, but no spectra, gain measurements, threshold behavior, or controls excluding alternative explanations (e.g., circuit nonlinearities or thermal effects) are supplied; this leaves the evidence for stimulated emission load-bearing and unverified from the provided description.

    Authors: The abstract is intentionally concise and follows standard practice by summarizing results without embedding raw data or figures. The full manuscript contains the supporting experimental details, including spectra demonstrating amplification, gain versus pump power curves exhibiting threshold behavior, and additional measurements plus simulations ruling out circuit nonlinearities and thermal effects. To better substantiate the central claim within the abstract itself, we will revise it to briefly reference these key observations. revision: yes

Circularity Check

0 steps flagged

No significant circularity: experimental demonstration only

full rationale

The paper is an experimental demonstration of a circuit-QED micromaser analog using a multi-level artificial atom with microwave-pumped inversion. No derivation chain, equations, or first-principles predictions are presented that could reduce to fitted inputs, self-definitions, or self-citations. The central claim rests on observed amplification and dynamics in the device, which are independent of any internal mathematical reduction. This is the expected outcome for a purely experimental work with no load-bearing theoretical derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim is an experimental demonstration that rests on the standard circuit QED toolbox for engineering artificial atoms; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • standard math Standard quantum mechanics and established circuit QED techniques suffice to design and interpret the multi-level artificial atom, its pumping, and its interaction with the microwave field.
    The abstract states that the demonstration is enabled by the flexibility of the circuit QED platform for precise engineering of level structure, coupling, and dissipation.

pith-pipeline@v0.9.0 · 5389 in / 1325 out tokens · 86500 ms · 2026-05-10T19:03:31.778242+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

39 extracted references · 39 canonical work pages

  1. [1]

    J. P. Gordon, H. J. Zeiger, and C. H. Townes, Phys. Rev. 99, 1264 (1955)

    work page 1955

  2. [2]

    M. O. Scully and M. S. Zubairy,Quantum optics(Cam- bridge University Press, 1997)

    work page 1997

  3. [3]

    Blais, R.-S

    A. Blais, R.-S. Huang, A. Wallraff, S. M. Girvin, and R. J. Schoelkopf, Physical Review A69, 062320 (2004)

    work page 2004

  4. [4]

    Astafiev, K

    O. Astafiev, K. Inomata, A. O. Niskanen, T. Yamamoto, Y. A. Pashkin, N. Y, and J. S. Tsai, Nature449(2007)

    work page 2007

  5. [5]

    F. Chen, J. Li, A. D. Armour, e. Brahimi, J. Stettenheim, A. J. Sirois, R. W. Simmonds, M. P. Blencowe, and A. J. Rimber, Phys. Rev. B90(2014)

    work page 2014

  6. [6]

    J. Q. You, Y.-X. Liu, C. P. Sun, and F. Nori, Phys. Rev. B75(2007)

    work page 2007

  7. [7]

    Ashhab, J

    S. Ashhab, J. R. Johansson, A. M. Zagoskin, and F. Nori, New Journal of Physics11(2009)

    work page 2009

  8. [8]

    S. H. Simon and N. R. Cooper, Physical Review Letters 121, 027004 (2018)

    work page 2018

  9. [9]

    M. C. Cassidy, A. Bruno, S. Rubbert, M. Irfan, J. Kammhuber, R. N. Schouten, A. R. Akhmerov, and L. P. Kouwenhoven, Science355, 939 (2017)

    work page 2017

  10. [12]

    J. Koch, T. M. Yu, J. Gambetta, A. A. Houck, D. I. Schuster, J. Majer, A. Blais, M. H. Devoret, S. M. Girvin, and R. J. Schoelkopf, Physical Review A76, 042319 (2007)

    work page 2007

  11. [15]

    A. P. M. Place, L. V. H. Rodgers, P. Mundada, B. M. Smitham, M. Fitzpatrick, Z. Leng, A. Premkumar, J. Bryon, A. Vrajitoarea, S. Sussman, G. Cheng, R. Mad- havan, H. K. Babla, X. H. Le, Y. Gang, B. J¨ ack, A. Gye- nis, N. Yao, R. j. Cava, de Leon N P, and A. A. Houck, Nature Communications12(2021)

    work page 2021

  12. [16]

    Bergeal, F

    N. Bergeal, F. Schackert, M. Metcalfe, R. Vijay, V. E. Manucharyan, L. Frunzio, D. E. Prober, R. J. Schoelkopf, S. M. Girvin, and M. H. Devoret, Nature465, 64 (2010)

    work page 2010

  13. [17]

    Roy and M

    A. Roy and M. Devoret, Comptes Rendus Physique17, 740 (2016)

    work page 2016

  14. [18]

    Brune, J

    M. Brune, J. M. Raimond, P. Goy, L. Davidovich, and S. Haroche, Physical Review Letters59, 1899 (1987)

    work page 1987

  15. [19]

    D. J. Gauthier, Progress in Optics45, 205 (2003)

    work page 2003

  16. [21]

    Stefanazzi, K

    L. Stefanazzi, K. Treptow, N. Wilcer, C. Stoughton, C. Bradford, S. Uemura, S. Zorzetti, S. Montella, G. Can- celo, S. Sussman, A. Houck, S. Saxena, H. Arnaldi, A. A, H. Zhang, C. Ding, and D. I. Schuster, Rev. Sci. Instrum. 93, 044709 (2022)

    work page 2022

  17. [22]

    A. L. Schawlow and C. H. Townes, Phys. Rev.112, 1940 (1958)

    work page 1940

  18. [23]

    H. M. Wiseman, Phys. Rev. A60(1999)

    work page 1999

  19. [24]

    C. Liu, M. Mucci, X. Cao, M. V. G. Dutt, M. Hatridge, and D. Pekker, Nature Communications12(2021)

    work page 2021

  20. [25]

    PL5Mct0KARrrRpd0BvUTr4DggRA=

    T. J. Baker, S. N. Saadatmand, D. W. Berry, and H. M. Wiseman, Nature Physics17, 179 (2021). Supplement Material for: A superconducting quantum circuits single artificial atom maser Maria Mucci, 1 Nicholas Hougland, 1, 2 Chun-Che Wang,3 Israa Yusuf,1 Chenxu Liu, 4 David Pekker,1, 2,∗ and Michael Hatridge 3,† 1Department of Physics and Astronomy, Universit...

    work page 2021

  21. [26]

    In order to implement derivatives in the discrete Hamilto- nian, we use the finite differences method to define opera- tors for first and second derivatives for each component

    Derivative operators Upon quantization, the momentum operatorC˙φbe- comes−iℏ∇ φ (and we use the units whereℏ= 1). In order to implement derivatives in the discrete Hamilto- nian, we use the finite differences method to define opera- tors for first and second derivatives for each component. Given the value of a function Ψ at a pointφ 0 and its nearest neig...

    work page

  22. [27]

    How- ever, the SNAIL is more complicated than the other com- ponents because we include in our model a stray linear inductanceL lin which divides the phaseφ s

    Fitting and modeling the SNAIL Modeling our SNAIL, like modeling the transmon and cavity, requires fitting its circuit parameters such that the SNAIL behavior matches experimental data. How- ever, the SNAIL is more complicated than the other com- ponents because we include in our model a stray linear inductanceL lin which divides the phaseφ s. Therefore, ...

    work page

  23. [28]

    A20 contains rotating terms due to the pump

    Applying a rotating frame and dropping rotating terms The master equation as written in Eq. A20 contains rotating terms due to the pump. We apply a rotation which takes us to a frame where these rotating terms are stationary which allows for tractable analysis of the master equation without integrating in time to find the steady state solution. In particu...

    work page

  24. [29]

    Device setup and mode details The device is made of superconducting thin-film ele- ments on sapphire substrates in a superconducting alu- minum housing pictured in Fig. S4. This housing is a block of 6061 aluminum with extruded small tubes that are spanned by sapphire chips [6]. The outer surfaces of the aluminum were mirror polished to ensure clean matin...

    work page

  25. [30]

    Micromaser operation and pump cycles

    Cryogenic and room temperature measurement setup Measurements of the SNAILs, the weakly probed bare cavityc, and transmontthrough the readout moder were taken in reflection. The output of the maser was measured as signal output to the data collection device (either the spectrum analyzer or QICK ADC). The cryo- genic setup of our device, mounted at the bas...

    work page

  26. [31]

    On the spec- trum analyzer, the light peak is a coherent state with a Lorentzian shape

    Data fitting The masing cavity emits light that can be captured by either a spectrum analyzer, capturing slow steady- state emission, or with a digitizing ADC which captures fast, time-resolved snapshots of emission. On the spec- trum analyzer, the light peak is a coherent state with a Lorentzian shape. We extract the frequency of the cavity when masing,f...

    work page

  27. [32]

    The transmon may be detuned from the masing cavity and the SNAIL may be both detuned in frequency and in nonlinearity from its idealg ssss = 0 op- erating point

    Maser Tuning One of the key features of this device is its wide oper- ation window. The transmon may be detuned from the masing cavity and the SNAIL may be both detuned in frequency and in nonlinearity from its idealg ssss = 0 op- erating point. Additionally, the driving amplitude of the SNAIL’s parametric pump adds another control knob to modulate the ma...

    work page

  28. [33]

    Circuit qed: superconducting qubits cou- pled to microwave photons,

    S. M. Girvin, “Circuit qed: superconducting qubits cou- pled to microwave photons,” inQuantum Machines: Measurement and Control of Engineered Quantum Sys- tems(Oxford University PressOxford, 2014) p. 113–256

    work page 2014

  29. [34]

    E. M. Purcell, H. C. Torrey, and R. V. Pound, Phys. Rev.69, 37 (1946)

    work page 1946

  30. [35]

    A. A. Houck, J. A. Schreier, B. R. Johnson, J. M. Chow, J. Koch, J. M. Gambetta, D. I. Schuster, L. Frunzio, M. H. Devoret, S. M. Girvin, and R. J. Schoelkopf, Phys- ical Review Letters101, 080502 (2008)

    work page 2008

  31. [36]

    Patel, M

    P. Patel, M. Xia, C. Zhou, P. Lu, X. Cao, I. Yusuf, J. Repicky, and M. Hatridge, ArXiv (2024)

    work page 2024

  32. [37]

    X. Cao, M. Mucci, G. Liu, D. Pekker, and M. Hatridge, Phys. Rev. Lett.135, 230403 (2025)

    work page 2025

  33. [38]

    Axline, M

    C. Axline, M. Reagor, R. Heeres, P. Reinhold, C. Wang, K. Shain, W. Pfaff, Y. Chu, L. Frunzio, and R. J. Shoelkopf, Applied Physics Letters109, 042601 (2016)

    work page 2016

  34. [39]

    Potts, P

    A. Potts, P. R. Routley, G. J. Parker, J. J. Baumber, and P. A. J. de Groot, Journal of Materials Science: Materials in Electronics12, 289 (2001)

    work page 2001

  35. [40]

    N. E. Frattini, U. Vool, S. Shankar, A. Narla, K. M. Sliwa, and M. H. Devoret, Applied Physics Letters110, 222603 (2017)

    work page 2017

  36. [41]

    V. V. Sivak, N. E. Frattini, V. R. Joshi, A. Lingenfelter, S. Shankar, and M. H. Devoret, Physical Review Applied 11, 5 (2019)

    work page 2019

  37. [42]

    Wallraff, D

    A. Wallraff, D. I. Schuster, A. Blais, L. FRunzio, J. Ma- jer, M. H. Devoret, S. M. Girvin, and R. J. Schoelkopf, Physical Review Letters95, 060501 (2005)

    work page 2005

  38. [43]

    Macklin, K

    C. Macklin, K. O’Brien, D. Hover, M. E. Schwartz, V. Bolkhovsky, X. Zhang, W. D. Oliver, and I. Siddiqi, Science350, 307 (2015)

    work page 2015

  39. [44]

    M. Xia, C. Zhou, C. Liu, P. Patel, X. Cao, P. Lu, B. Mesits, M. Mucci, D. Gorski, D. Pekker, and M. Ha- tridge, Nature Communications (2025). 11 Phase (𝑟𝑎𝑑) Transmon frequency (GHz) 6.9720 6.9721 6.9718 6.9722 6.9719 Frequency on VNA (GHz) −𝜋 0 𝜋 6.9996.919 7.075 7.148 7.217 Figure S8.Maser cavity response vs. transmon frequency biasSweeping transmon freq...

    work page arXiv 2025
