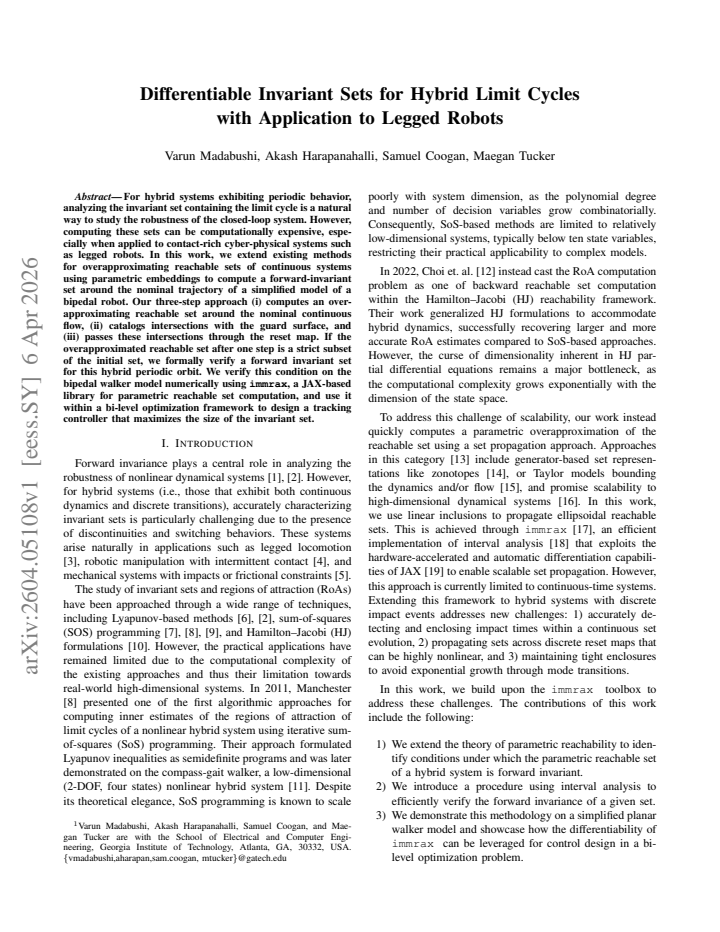

Differentiable Invariant Sets for Hybrid Limit Cycles with Application to Legged Robots

Varun Madabushi , Akash Harapanahalli , Samuel Coogan , Maegan Tucker This is my paper

Pith reviewed 2026-05-10 18:48 UTC · model grok-4.3

classification 📡 eess.SY cs.ROcs.SY
keywords hybrid systemsinvariant setsreachable setslimit cycleslegged robotsparametric embeddingsbipedal robotsformal verification
0
0 comments X

The pith

If the overapproximated reachable set after one hybrid step is a strict subset of the initial set, a forward invariant set for the hybrid periodic orbit is formally verified.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper extends parametric embedding techniques from continuous systems to hybrid systems to compute forward-invariant sets around limit cycles. The approach involves overapproximating the reachable set for the continuous flow, cataloging intersections with the guard, and applying the reset map. For a bipedal robot model, if the final overapproximated set is strictly inside the initial one, the invariant set is verified. This verification is performed numerically and used to optimize a tracking controller that enlarges the invariant set.

Core claim

The central claim is that for hybrid periodic orbits, a three-step overapproximation of reachable sets via parametric embeddings verifies a forward invariant set containing the orbit whenever the approximated set after one full step is strictly contained in the starting set.

What carries the argument

Parametric embeddings for overapproximating reachable sets in hybrid systems, handling continuous flows, guard intersections, and reset maps.

If this is right

  • If the condition holds, the invariant set provides a formal guarantee of robustness for the periodic behavior.
  • The bi-level optimization can tune controller parameters to increase the size of this verified set.
  • The numerical method using differentiable computation applies directly to simplified models of contact-rich legged locomotion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This could support designing controllers with explicit robustness certificates for legged robots in uncertain environments.
  • The differentiability of the embeddings opens possibilities for gradient-based search over larger classes of controllers or gaits.
  • Similar verification might apply to other hybrid systems exhibiting periodic orbits beyond robotics.

Load-bearing premise

The overapproximations from the parametric embeddings are tight enough to capture the true reachable sets without excessive added volume or undetected numerical errors.

What would settle it

Compute the overapproximated reachable set for the bipedal model starting from a candidate initial set; if it is not strictly smaller after one step, or if trajectories from within the set leave the verified invariant set, the claim does not hold for that instance.

Figures

Figures reproduced from arXiv: 2604.05108 by Akash Harapanahalli, Maegan Tucker, Samuel Coogan, Varun Madabushi.

Figure 1
Figure 1. Figure 1: A visualization of the conditions supposed in Theorem 1. While [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

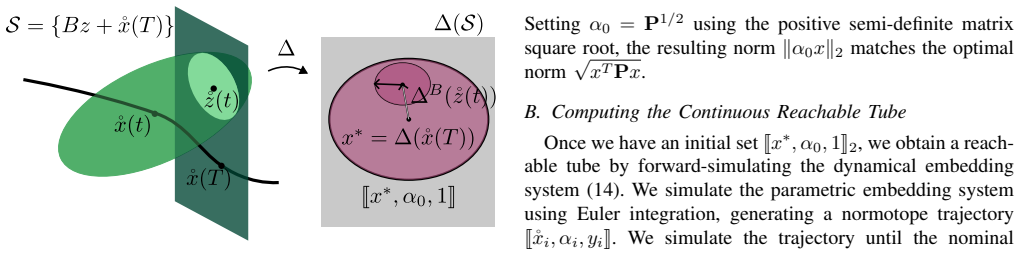

Figure 2. Figure 2: The slicing and bounding procedure used in Lemma 1 and Theorem [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

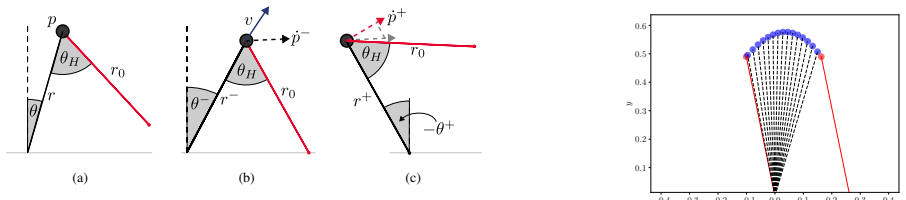

Figure 3. Figure 3: Simplified Bipedal Walker illustrated for the (a) continuous domain, [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5

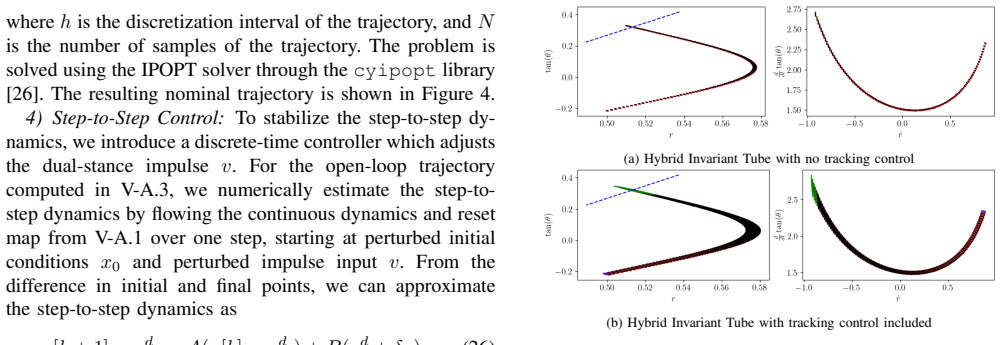

Figure 5. Figure 5: Slices of the computed Hybrid Invariant Tube with no tracking [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

For hybrid systems exhibiting periodic behavior, analyzing the invariant set containing the limit cycle is a natural way to study the robustness of the closed-loop system. However, computing these sets can be computationally expensive, especially when applied to contact-rich cyber-physical systems such as legged robots. In this work, we extend existing methods for overapproximating reachable sets of continuous systems using parametric embeddings to compute a forward-invariant set around the nominal trajectory of a simplified model of a bipedal robot. Our three-step approach (i) computes an overapproximating reachable set around the nominal continuous flow, (ii) catalogs intersections with the guard surface, and (iii) passes these intersections through the reset map. If the overapproximated reachable set after one step is a strict subset of the initial set, we formally verify a forward invariant set for this hybrid periodic orbit. We verify this condition on the bipedal walker model numerically using immrax, a JAX-based library for parametric reachable set computation, and use it within a bi-level optimization framework to design a tracking controller that maximizes the size of the invariant set.
