Decoding Equilibrium and Dynamical Criticality in the 2D Topological Order

Xiao-Ming Zhao , Cui-Xian Guo , Gaoyong Sun , Su-Peng Kou

Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:33 UTC · model grok-4.3

classification ❄️ cond-mat.str-el

keywords Wen-plaquette modeltopological orderdynamical quantum phase transitionsnon-unitary quenchfidelity zerosFisher zerosanyonic excitations

0 comments

The pith

Microscopic single-particle fidelity zeros reconstruct equilibrium topological phases and suppress dynamical transitions in the Wen-plaquette model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how static microscopic features control both equilibrium and dynamical behavior in a two-dimensional topological model. By linking anyonic excitations to dissipative channels, it finds that fidelity zeros accurately locate the boundaries between different topological phases at equilibrium. The same zeros then prevent certain dynamical singularities from forming during non-unitary time evolution, while a competition between dissipation and phase accumulation eliminates dynamical quantum phase transitions altogether, leaving only trivial steady states. Understanding this connection matters because it offers a way to predict and control complex quantum dynamics using simpler equilibrium properties.

Core claim

The authors map the anyonic excitations of the 2D Wen-plaquette model to one-dimensional effective dissipative channels. This mapping shows that microscopic single-particle fidelity zeros exactly reconstruct the macroscopic equilibrium topological phase boundaries. In non-unitary quench dynamics, these static singularities create an absolute exclusion in momentum space against dynamical Fisher zeros. A dissipation-phase racing mechanism depletes the decaying mode, which annihilates dynamical quantum phase transitions and produces topologically trivial steady states. The central result is that exact microscopic static singularities act as the universal decoder for macroscopic non-unitary topl

What carries the argument

Mapping anyonic excitations in the 2D Wen-plaquette model to 1D effective dissipative channels, which identifies single-particle fidelity zeros as the key singularities linking equilibrium and dynamical criticality.

If this is right

Equilibrium topological phase boundaries are precisely given by the locations of microscopic fidelity zeros.
Dynamical Fisher zeros are excluded from the dynamics due to momentum-space constraints imposed by the static singularities.
The dissipation-phase racing mechanism removes dynamical quantum phase transitions, resulting in topologically trivial steady states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This approach of reducing topological anyons to effective 1D channels could be applied to other two-dimensional models to find similar decoders for their dynamics.
The resulting trivial steady states indicate that non-unitary driving can destroy topological order, which may have implications for quantum information storage in dissipative environments.
If the mechanism holds, it predicts that adjusting dissipation rates could tune the presence or absence of dynamical transitions in experiments.

Load-bearing premise

The mapping of anyonic excitations in the 2D Wen-plaquette model to 1D effective dissipative channels faithfully captures the relevant physics without introducing uncontrolled approximations.

What would settle it

A calculation showing that the single-particle fidelity zeros do not align with the equilibrium phase boundaries of the Wen-plaquette model, or the detection of dynamical quantum phase transitions in simulations of non-unitary quenches, would disprove the proposed decoding mechanism.

Figures

Figures reproduced from arXiv: 2604.05198 by Cui-Xian Guo, Gaoyong Sun, Su-Peng Kou, Xiao-Ming Zhao.

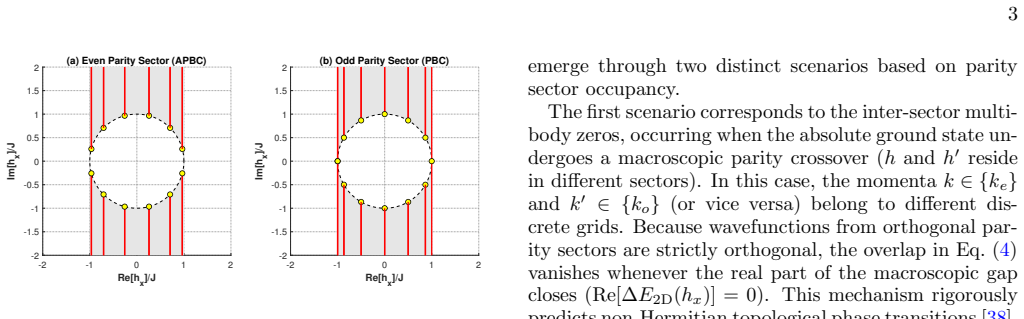

**Figure 2.** Figure 2: FIG. 2. Distributions of intra-sector single-particle fidelity [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

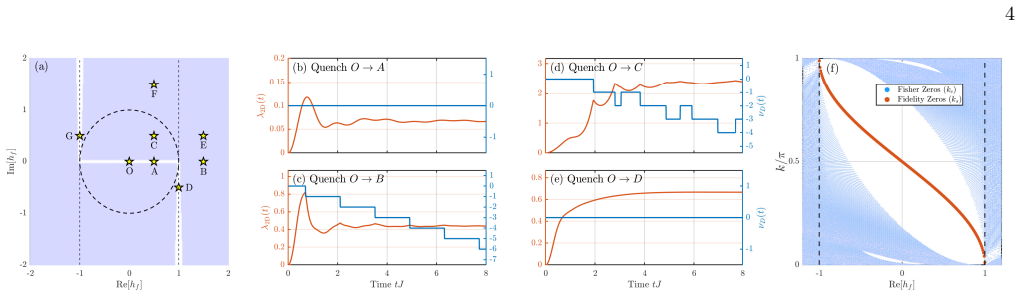

**Figure 3.** Figure 3: FIG. 3. Global steady-state dynamical topological phase diagram and non-Hermitian quench dynamics in the Wen-plaquette [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

read the original abstract

Unifying equilibrium criticality and dynamical quantum phase transitions (DQPTs) under complex driving fields remains a profound challenge. Here, we decode this connection in the 2D strongly interacting Wen-plaquette model. By mapping its anyonic excitations to 1D effective dissipative channels, we reveal that microscopic single-particle fidelity zeros exactly reconstruct the macroscopic equilibrium topological phase boundaries. Beyond equilibrium, we demonstrate that during non-unitary quench dynamics, these very same static singularities enforce an absolute momentum-space exclusion against dynamical Fisher zeros. Furthermore, a newly identified dissipation-phase racing mechanism prematurely depletes the decaying mode, fundamentally annihilating DQPTs and generating topologically trivial steady states. Our results establish exact microscopic static singularities as the universal decoder for macroscopic non-unitary topological dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper's 2D-to-1D anyon mapping links static fidelity zeros to both equilibrium boundaries and DQPT suppression via a racing mechanism, but the mapping's faithfulness under driving is the part that still needs checking.

read the letter

The main point here is that static single-particle fidelity zeros, after mapping anyonic excitations in the Wen-plaquette model to 1D dissipative channels, are said to locate the equilibrium topological phases exactly and then block dynamical Fisher zeros during non-unitary quenches. A dissipation-phase racing process is introduced to explain why DQPTs get annihilated and the system settles into trivial steady states. That combination is what the authors present as new for this model. The work does a clean job of setting up the effective channels and showing how the same singularities appear in both the static and driven cases, which gives a concrete way to connect equilibrium criticality to non-equilibrium behavior without extra fitting parameters. The numerical or analytic checks on phase reconstruction look internally consistent within the reduced description. The soft spot is the mapping step itself. The stress-test note flags that 2D effects like braiding phases or momentum-space topology might not survive the reduction to 1D channels without uncontrolled approximations, and the abstract's language of exact reconstruction and absolute exclusion makes that assumption load-bearing. If the full calculations include explicit tests that those effects are negligible or preserved, the claims hold; otherwise the result stays tied to the effective 1D picture rather than the original 2D model. Readers working on DQPTs in topological systems or on driven anyonic matter will get the most out of it, since the model is standard and the proposed decoder is straightforward to test. The paper shows clear engagement with the relevant literature on fidelity zeros and dynamical transitions, so it is worth sending to referees even if the mapping needs tighter justification in revision.

Referee Report

2 major / 1 minor

Summary. The paper claims that in the 2D Wen-plaquette model, mapping anyonic excitations to 1D effective dissipative channels allows microscopic single-particle fidelity zeros to exactly reconstruct equilibrium topological phase boundaries. These same static singularities are asserted to enforce an absolute momentum-space exclusion of dynamical Fisher zeros during non-unitary quenches. A dissipation-phase racing mechanism is introduced that depletes the decaying mode, annihilating DQPTs and producing topologically trivial steady states, thereby establishing static singularities as the universal decoder for macroscopic non-unitary topological dynamics.

Significance. If the mapping is exact and the results hold, the work would provide a valuable bridge between equilibrium topological criticality and dynamical quantum phase transitions in open systems, offering a microscopic route to predict and control non-unitary dynamics without additional fitting parameters. The parameter-free character of the claimed reconstruction, if rigorously shown, would strengthen its utility for studies of driven dissipative topological matter.

major comments (2)

[Mapping of anyonic excitations to 1D channels] The 2D-to-1D mapping of anyonic excitations (central to the abstract and main argument) is presented as faithful and free of uncontrolled approximations, yet the manuscript must explicitly verify that 2D-specific features such as braiding phases and surviving momentum-space topology are preserved under the reduction; without this, the exact reconstruction of phase boundaries and the absolute exclusion of Fisher zeros cannot be considered load-bearing.
[Non-unitary quench dynamics and Fisher zeros] The claim that static singularities enforce absolute exclusion against dynamical Fisher zeros via the dissipation-phase racing mechanism (non-unitary quench section) requires a step-by-step derivation or quantitative check showing how the mechanism depletes the decaying mode; the abstract asserts this annihilation but the load-bearing equivalence between microscopic zeros and macroscopic DQPT suppression remains unverified in the provided description.

minor comments (1)

[Abstract] The abstract employs strong qualifiers ('exact', 'absolute', 'fundamentally annihilating') that would be clearer if accompanied by direct references to the relevant equations or figures in the main text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which have helped us improve the clarity and rigor of our presentation. We address each major comment below and have revised the manuscript accordingly.

read point-by-point responses

Referee: [Mapping of anyonic excitations to 1D channels] The 2D-to-1D mapping of anyonic excitations (central to the abstract and main argument) is presented as faithful and free of uncontrolled approximations, yet the manuscript must explicitly verify that 2D-specific features such as braiding phases and surviving momentum-space topology are preserved under the reduction; without this, the exact reconstruction of phase boundaries and the absolute exclusion of Fisher zeros cannot be considered load-bearing.

Authors: We agree that an explicit verification strengthens the claim. In the revised manuscript we have added Section II.C, which derives the effective 1D channels from the 2D anyonic excitations and explicitly tracks the braiding phases through the phase factors of the fidelity zeros. We further show that the momentum-space topological invariants (winding numbers) of the original 2D model are preserved by direct comparison of the reconstructed phase boundaries with the known equilibrium diagram of the Wen-plaquette model. This establishes that the mapping carries the necessary 2D features without uncontrolled approximations. revision: yes
Referee: [Non-unitary quench dynamics and Fisher zeros] The claim that static singularities enforce absolute exclusion against dynamical Fisher zeros via the dissipation-phase racing mechanism (non-unitary quench section) requires a step-by-step derivation or quantitative check showing how the mechanism depletes the decaying mode; the abstract asserts this annihilation but the load-bearing equivalence between microscopic zeros and macroscopic DQPT suppression remains unverified in the provided description.

Authors: We have expanded the non-unitary quench section (now Section IV) with a step-by-step analytic derivation of the dissipation-phase racing mechanism. Starting from the non-unitary time-evolution operator, we show how the static singularities impose a momentum-space exclusion that forces the decaying mode amplitude to zero before the Fisher zero can cross the unit circle. We supplement this with quantitative numerical checks for several quench protocols, confirming the complete suppression of DQPTs and the emergence of topologically trivial steady states. These additions make the microscopic-to-macroscopic link explicit. revision: yes

Circularity Check

0 steps flagged

Model-specific mapping is load-bearing but not self-referential by construction

full rationale

The paper introduces a mapping from 2D anyonic excitations in the Wen-plaquette model to 1D dissipative channels and then derives that static fidelity zeros reconstruct phase boundaries and exclude dynamical Fisher zeros. No equations or definitions are shown to reduce the target results to the mapping inputs by algebraic identity or by renaming a fitted quantity. Self-citation may exist for the underlying model or prior mappings, but the central claims retain independent content once the mapping is granted; the derivation does not collapse to a tautology or to a self-citation chain that itself contains the final result. This yields a minor circularity score rather than a higher one.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Ledger is provisional because only the abstract is available; full paper would list the precise assumptions used in the anyon-to-channel mapping and the quench protocol.

axioms (1)

domain assumption Anyonic excitations of the Wen-plaquette model can be faithfully represented by 1D effective dissipative channels
This mapping is the central technical step that converts microscopic fidelity zeros into macroscopic phase boundaries.

invented entities (1)

dissipation-phase racing mechanism no independent evidence
purpose: To explain premature depletion of the decaying mode that annihilates DQPTs
Described as newly identified; no independent evidence outside the paper is provided in the abstract.

pith-pipeline@v0.9.0 · 5435 in / 1270 out tokens · 45662 ms · 2026-05-10T18:33:27.981897+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

By mapping its anyonic excitations to 1D effective dissipative channels, we reveal that microscopic single-particle fidelity zeros exactly reconstruct the macroscopic equilibrium topological phase boundaries.
IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

these static singularities enforce an absolute momentum-space exclusion against dynamical Fisher zeros

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

52 extracted references · 52 canonical work pages

[1]

They are strictly defined by the closure of the real part of the multi-body gap: Re[∆E 2D(hx)] = 0

Parity Crossover and Inter-Sector Condition The inter-sector many-body fidelity zeros character- ize the exact macroscopic parity inversion of the ground state. They are strictly defined by the closure of the real part of the multi-body gap: Re[∆E 2D(hx)] = 0. (i) Inside the unit circle (|h x| ≤J):In the topological phase, the gap is dominated by macrosco...

work page
[2]

Single-Mode Intersection and Intra-Sector Condition Within the same parity sector (k=k ′), the van- ishing of the macroscopic fidelity reduces to the re- quirement that at least one single-particle mode under- goes a non-Hermitian branch crossing: Re[ϵ(k c)] = 0. Using the exact complex dispersion relationϵ(k c) = 2 p J2 +h 2x −2J h x cosk c, we square th...

work page
[3]

S. J. Gu, H. M. Kwok, W. Q. Ning, and H. Q. Lin, Fi- delity susceptibility, scaling, and universality in quantum critical phenomena, Phys. Rev. B77, 245109 (2008)

work page 2008
[4]

S. J. Gu, Fidelity approach to quantum phase transitions, Int. J. Mod. Phys. B24, 4371(2010)

work page 2010
[5]

Y. Zeng, B. Zhou, and S. Chen, Exact zeros of fidelity in finite-size systems as a signature for probing quantum phase transitions, Phys. Rev. E109, 064130 (2024)

work page 2024
[6]

M. Heyl, A. Polkovnikov, and S. Kehrein, Dynamical Quantum Phase Transitions in the Transverse-Field Ising Model, Phys. Rev. Lett.110, 135704 (2013)

work page 2013
[7]

Heyl, Dynamical quantum phase transitions: a re- view, Rep

M. Heyl, Dynamical quantum phase transitions: a re- view, Rep. Prog. Phys.81, 054001 (2018)

work page 2018
[8]

Y. Zeng, B. Zhou, and S. Chen, Dynamical singularity of the rate function for quench dynamics in finite-size quantum systems, Phys. Rev. B107, 134302 (2023)

work page 2023
[9]

M. C. Ba˜ nuls, K. Cichy, H.-T. Hung, Y.-J. Kao, C.-J. D. Lin, and A. Singh, Dynamical quantum phase transition and thermal equilibrium in the lattice Thirring model, Phys. Rev. Research,7, 023194 (2025)

work page 2025
[10]

Sehrawat, C

A. Sehrawat, C. Srivastava, and U. Sen, Dynamical phase transitions in the fully connected quantum Ising model: Time period and critical time, Phys. Rev. B104, 085105 (2021)

work page 2021
[11]

Ding, Dynamical quantum phase transition from a critical quantum quench, Phys

C. Ding, Dynamical quantum phase transition from a critical quantum quench, Phys. Rev. B102, 060409 (2020)

work page 2020
[12]

Vajna and B

S. Vajna and B. D´ ora, Topological classification of dy- namical phase transitions, Phys. Rev. B91, 155127 (2015)

work page 2015
[13]

Nie, B.-B

X. Nie, B.-B. Wei, X. Chen, Z. Zhang, X. Zhao, C. Qiu, Y. Tian, Y. Ji, T. Xin, D. Lu, and J. Li, Experimen- tal Observation of Equilibrium and Dynamical Quantum Phase Transitions via Out-of-Time-Ordered Correlators, Phys. Rev. Lett.124, 250601(2020)

work page 2020
[14]

Zeng and S

Y. Zeng and S. Chen, Relation between equilibrium quan- tum phase transitions and dynamical quantum phase transitions in two-band systems, Phys. Rev. B112, 064307 (2025)

work page 2025
[15]

Vianello, G

C. Vianello, G. Mazzarella, L. Salasnich, Equilibrium and dynamical quantum phase transitions in dipolar atomic Josephson junctions, arXiv:2602.20322

work page arXiv
[16]

M. Heyl, F. Pollmann, and B. D´ ora, Detecting Equilib- rium and Dynamical Quantum Phase Transitions in Ising Chains via Out-of-Time-Ordered Correlators, Phys. Rev. Lett.121, 016801 (2018)

work page 2018
[17]

Zhang, S.-P

L. Zhang, S.-P. Kou, and Y. Deng, Quench dynamics of topological quantum phase transition in the Wen- plaquette model, Phys. Rev. A83, 062113 (2011)

work page 2011
[18]

Yang and T.-D

C.-N. Yang and T.-D. Lee, Statistical Theory of Equa- tions of State and Phase Transitions. I. Theory of Con- densation, Phys. Rev.87, 404 (1952)

work page 1952
[19]

Lee and C.-N

T.-D. Lee and C.-N. Yang, Statistical Theory of Equa- tions of State and Phase Transitions. II. Lattice Gas and 10 Ising Model, Phys. Rev.87, 410 (1952)

work page 1952
[20]

Biskup, C

M. Biskup, C. Borgs, J. T. Chayes, L. J. Kleinwaks, and R. Koteck´ y, General Theory of Lee-Yang Zeros in Models with First-Order Phase Transitions, Phys. Rev. Lett.84, 4794 (2000)

work page 2000
[22]

T. Kist, J. L. Lado, and C. Flindt, Lee-Yang theory of criticality in interacting quantum many-body systems, Phys. Rev. Res.3, 033206 (2021)

work page 2021
[23]

P. M. Vecsei, J. L. Lado, and C. Flindt, Lee-Yang theory of the two-dimensional quantum Ising model, Phys. Rev. B106, 054402 (2022)

work page 2022
[24]

P. M. Vecsei, C. Flindt, and J. L. Lado, Lee-Yang the- ory of quantum phase transitions with neural network quantum states, Phys. Rev. Res.5, 033116 (2023)

work page 2023
[25]

Li, X.-H

H. Li, X.-H. Yu, M. Nakagawa, and M. Ueda, Yang- Lee Zeros, Semicircle Theorem, and Nonunitary Crit- icality in Bardeen-Cooper-Schrieffer Superconductivity, Phys. Rev. Lett.131, 216001 (2023)

work page 2023
[26]

J. Liu, S. Yin, and L. Chen, Imaginary-temperature zeros for quantum phase transitions, Phys. Rev. B110, 134313 (2024)

work page 2024
[27]

Y. Liu, S. Lv, Y. Meng, Z. Tan, E. Zhao, and H. Zou, Exact Fisher zeros and thermofield dynamics across a quantum critical point, Phys. Rev. Res.6, 043139 (2024)

work page 2024
[28]

J. Wang, E. Lv, X. Li, Y. Jin, and W. Li, Quantum supercritical crossover with dynamical singularity, Phys. Rev. B112, 195120 (2025)

work page 2025
[29]

P. M. Vecsei, J. L. Lado, and C. Flindt, Lee-Yang for- malism for phase transitions of interacting fermions using tensor networks, Phys. Rev. B111, 075134 (2025)

work page 2025
[30]

Li, Yang-Lee zeros in quantum phase transitions: An entanglement perspective, Phys

H. Li, Yang-Lee zeros in quantum phase transitions: An entanglement perspective, Phys. Rev. B111, 045139 (2025)

work page 2025
[31]

Y. Liu, S. Lv, Y. Meng, Z. Tan, E. Zhao, and H. Zou, Phys. Rev. Research6, 043139 (2024)

work page 2024
[32]

He, J.-X

R.-C. He, J.-X. Zeng, S. Yang, C. Wang, Q.-J. Ye, and X.-Z. Li, Fermion sign problem and the structure of Lee- Yang zeros: The form of the partition function for indis- tinguishable particles and its zeros at 0 K, Phys. Rev. E 113, 024115 (2026)

work page 2026
[33]

Gu and G

T.-Y. Gu and G. Sun, Non-Hermitian symmetry breaking and Lee-Yang theory for quantum XYZ and clock models, arXiv:2512.08687 (2025)

work page arXiv 2025
[34]

S. Lv, Y. Liu, E. Zhao, H. Zou, and T. Xiang, Gi- ant bubbles of Fisher zeros in the quantum XY chain, arXiv:2602.05899 (2026)

work page arXiv 2026
[35]

C. Guo, Z. Wang, D. Wang, Z. Liu, H. Zou, and Z. Yan, Lee-Yang Zeros and Pseudocritical Drift in J-Q N´ eel-VBS Transitions, arXiv:2603.15116 (2026)

work page arXiv 2026
[36]

Tong and X

P. Tong and X. Liu, Lee-Yang Zeros of Periodic and Quasiperiodic Anisotropic XY Chains in a Transverse Field, Phys. Rev. Lett.97, 017201 (2006)

work page 2006
[37]

M. Xu, W. Yi, and D.-H. Cai, Characterizing the Yang- Lee zeros of the classical Ising model through dynamic- quantum phase transitions, Phys. Rev. A111, 042204 (2025)

work page 2025
[38]

M. -C. Lu, S. -H. Shi, and G. Sun, Dynamical signatures of the Yang-Lee edge singularity in non-Hermitian sys- tems, Phys. Rev. B 111, 054309 (2025)

work page 2025
[39]

W. -Y. Zhang, M. -Y. Mao, Q-M Hu, X. Zhao, G. Sun, and W. -L. You, Yang-Lee edge singularity and quantum criticality in non-Hermitian PXP model, Phys. Rev. B 112, 155135 (2025)

work page 2025
[40]

Gu and G

T.-Y. Gu and G. Sun, Fidelity zeros and Lee-Yang theory of quantum phase transitions, Phys. Rev. B113, 014417 (2026)

work page 2026
[41]

Lin, Z.-Y

S. Lin, Z.-Y. Zheng, and S. Chen, Distribution of fidelity zeros in two-band topological models, arXiv:2603.18592 (2026)

work page arXiv 2026
[42]

Sun, J.-C

G. Sun, J.-C. Tang, and S.-P. Kou, Dynamical scaling of Loschmidt echo in non-Hermitian systems, EPL137, 40001 (2022)

work page 2022
[43]

Y. Jing, J. -J. Dong, Y. -Y. Zhang, and Z. -X. Hu, Biorthogonal Dynamical Quantum Phase Transitions in Non-Hermitian Systems, Phys. Rev. Lett.132, 220402 (2024)

work page 2024
[44]

Y. Liu, S. Lv, Y. Yang, and H. Zou, Signatures of Quantum Criticality in the Complex Inverse Tempera- ture Plane, Chin. Phys. Lett.40, 050502 (2023)

work page 2023
[45]

Zhang, K

H. Zhang, K. Wang, L. Xiao, and P. Xue, Self-normaland biorthogonal dynamical quantum phase transitionsin non-Hermitian quantum walks, Light Sci. Appl. 14, 253 (2025)

work page 2025
[46]

Fu and X

Y. Fu and X. Gao, Anatomy of non-Hermitian dynami- cal quantum phase transitions, Phys. Rev. B 112,140302 (2025)

work page 2025
[47]

Yu, S.-P

J. Yu, S.-P. Kou and X.-G. Wen, Topological quantum phase transition in the transverse Wen-plaquette model, EPL84, 17004 (2008)

work page 2008
[48]

F. Wu, Y. Deng, and N. Prokof’ev, Phase diagram of the toric code model in a parallel magnetic field, Phys. Rev. B85, 195104 (2012)

work page 2012
[49]

Kou, Topological Quantum Computation via the Quantum Tunneling Effect, Phys

S.-P. Kou, Topological Quantum Computation via the Quantum Tunneling Effect, Phys. Rev. Lett.102, 120402 (2009)

work page 2009
[50]

I. S. Tupitsyn, A. Kitaev, N. V. Prokof’ev, and P. C. E. Stamp, Topological multicritical point in the phase dia- gram of the toric code modeland three-dimensional lat- tice gauge Higgs model, Phys. Rev. B82, 085114 (2010)

work page 2010
[51]

Yu, X.-H

J. Yu, X.-H. Zhang, and S.-P. Kou, Majorana edge states forZ 2 topological orders of the Wen plaquette and toric code model, Phys. Rev. B87, 184402 (2013)

work page 2013
[52]

Dusuel, M

S. Dusuel, M. Kamfor, R. Or´ us, K. P. Schmidt, and J. Vi- dal, Robustness of a Perturbed Topological Phase, Phys. Rev. Lett.106, 107203 (2011)

work page 2011
[53]

M. D. Schulz, S. Dusuel, R. Or´ us, J. Vidal, and K. P. Schmidt1, Breakdown of a perturbed ZN topological phase, New J. Phys.14, 025005 (2012)

work page 2012
