arxiv: 2604.05258 · v1 · submitted 2026-04-06 · ❄️ cond-mat.stat-mech

Nematic Phase Transitions and Density Modulations in 1D Flat Band Condensates

Yeongjun Kim , Oleg I. Utesov , Alexei Andreanov , Mikhail V. Fistul , Sergej Flach This is my paper

Pith reviewed 2026-05-10 18:33 UTC · model grok-4.3

classification ❄️ cond-mat.stat-mech
keywords flat-band condensatesnematic phasesdensity modulationsGross-Pitaevskiiorder-by-disorderphase transitionsone-dimensional latticessawtooth lattice
0
0 comments X

The pith

Infinitesimal interactions destabilize flat-band condensates into a macroscopically degenerate nematic state for geometric parameters above a threshold.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines ground states of interacting bosons on one-dimensional flat-band lattices within the Gross-Pitaevskii framework. Geometry alone causes even arbitrarily weak onsite repulsion to destabilize the uniform constant-phase condensate, replacing it with a manifold of nematic states that break time-reversal symmetry once the control parameter reaches θ = π/8. At the special point θ = π/4 the system further develops density-modulated phases that carry no phase stiffness; these are selected by thermal fluctuations through order-by-disorder. The results matter because they demonstrate how lattice geometry can dictate the nature of bosonic condensates without requiring strong coupling, with direct consequences for sound propagation and low-temperature selection.

Core claim

We uncover a geometry-driven phase transition into a macroscopically degenerate nematic state with broken time-reversal symmetry. Focusing on all-bands-flat models, even infinitesimal onsite interactions destabilize a uniform, constant-phase condensate, driving the system into the nematic manifold as the flat-band geometry controlled parameter θ ≥ π/8. At the critical endpoint θ = π/4, where compact localized states exhibit constant amplitudes, an additional pair of density-modulated ground states characterized by vanishing phase stiffness appear. Bogoliubov-de Gennes excitations and simulated annealing demonstrate that these density-modulated phases are thermally selected at low temperature

What carries the argument

The flat-band geometry parameter θ that tunes the amplitudes and overlaps of compact localized states, thereby controlling the energetic preference among uniform, nematic, and density-modulated condensates.

If this is right

  • The nematic manifold consists of macroscopically many degenerate ground states.
  • Density-modulated states at θ = π/4 possess strictly vanishing phase stiffness.
  • Thermal order-by-disorder selects the density-modulated phases at low but nonzero temperature.
  • The same sequence of phases occurs in non-all-bands-flat models such as the sawtooth chain.
  • Sound velocity becomes a direct experimental probe of the underlying geometric phase structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the mean-field picture holds, geometric tuning of flat bands offers a route to engineer highly degenerate bosonic states at arbitrarily weak interaction strength.
  • The sensitivity of sound velocity to θ suggests it could serve as a diagnostic in other flat-band platforms where direct imaging of density modulations is difficult.
  • The order-by-disorder selection mechanism identified here may generalize to two-dimensional flat-band lattices, potentially stabilizing additional modulated or topological phases.

Load-bearing premise

The Gross-Pitaevskii mean-field description remains accurate for the interacting flat-band system and the chosen lattice geometries capture the essential physics without higher-order or disorder corrections.

What would settle it

A numerical or experimental observation that the uniform condensate remains the ground state for θ slightly larger than π/8 with arbitrarily small but nonzero interactions would disprove the claimed instability.

Figures

Figures reproduced from arXiv: 2604.05258 by Alexei Andreanov, Mikhail V. Fistul, Oleg I. Utesov, Sergej Flach, Yeongjun Kim.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (c) shows a representative ground state of the sawtooth chain obtained using the same numerical procedure. Unlike for ABF, the computation here is performed in the full model with small effective inter￾action gn = 10−4 . The characteristic phase structure ∆ϕl = σlπ/2 is clearly observed. We do not find a density-modulated in the sawtooth lattice, since the CLS does not have a homogeneous amplitude profile.… view at source ↗

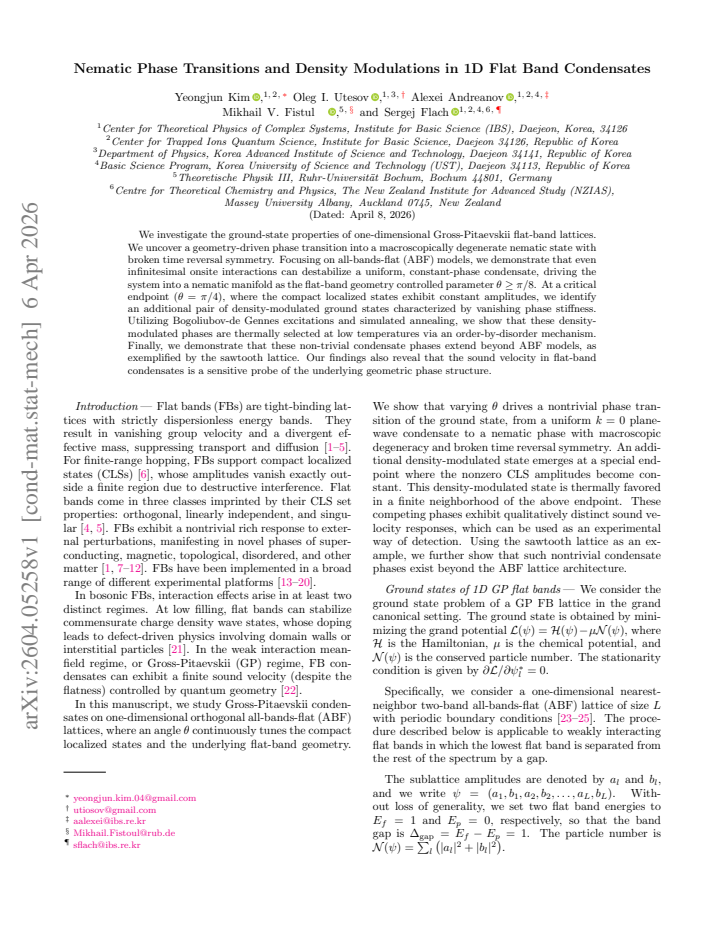

read the original abstract

We investigate the ground-state properties of one-dimensional Gross-Pitaevskii flat-band lattices. We uncover a geometry-driven phase transition into a macroscopically degenerate nematic state with broken time reversal symmetry. Focusing on all-bands-flat (ABF) models, we demonstrate that even infinitesimal onsite interactions can destabilize a uniform, constant-phase condensate, driving the system into a nematic manifold as the flat-band geometry controlled parameter $\theta \geq \pi/8$. At a critical endpoint (\(\theta=\pi/4\)), where the compact localized states exhibit constant amplitudes, we identify an additional pair of density-modulated ground states characterized by vanishing phase stiffness. Utilizing Bogoliubov-de Gennes excitations and simulated annealing, we show that these density-modulated phases are thermally selected at low temperatures via an order-by-disorder mechanism. Finally, we demonstrate that these non-trivial condensate phases extend beyond ABF models, as exemplified by the sawtooth lattice. Our findings also reveal that the sound velocity in flat-band condensates is a sensitive probe of the underlying geometric phase structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims to uncover geometry-driven nematic phase transitions in 1D Gross-Pitaevskii flat-band lattices. For ABF models, even infinitesimal onsite interactions destabilize the uniform constant-phase condensate for θ ≥ π/8, driving the system into a macroscopically degenerate nematic manifold with broken time-reversal symmetry. At the critical endpoint θ = π/4, an additional pair of density-modulated ground states with vanishing phase stiffness are identified. Bogoliubov-de Gennes excitations and simulated annealing demonstrate that these states are thermally selected at low temperatures via an order-by-disorder mechanism. The non-trivial phases extend to the sawtooth lattice, and the sound velocity is shown to be a sensitive probe of the underlying geometric phase structure.

Significance. If the mean-field results are robust, this work would highlight how lattice geometry controls condensate phases in flat bands, including the destabilization of uniform states by infinitesimal interactions and the emergence of density modulations selected by thermal fluctuations. The concrete values (θ = π/8 and θ = π/4) and the proposal of sound velocity as a geometric probe offer testable predictions for ultracold-atom experiments. The manuscript employs standard numerical tools (BdG linearization and simulated annealing) to map the phases.

major comments (3)
  1. [Model and Methods] The validity of the classical Gross-Pitaevskii mean-field treatment is load-bearing for the central claims of infinitesimal-interaction instability and vanishing stiffness, yet in 1D flat bands the kinetic term vanishes identically so that interactions dominate at any U > 0. The manuscript provides no beyond-mean-field analysis (DMRG, QMC, or Luttinger-liquid renormalization) and no estimate of the Ginzburg parameter to assess whether the reported nematic and density-modulated phases survive quantum phase fluctuations, as required by the Mermin-Wagner theorem.
  2. [Results for ABF lattices] §3 (ABF results): the reported phase boundary at θ = π/8 for the onset of the nematic manifold is obtained from energy minimization within the GP functional. It is unclear whether this threshold is exactly parameter-free or arises from the specific definition of the compact localized states and the geometric parameter θ; an explicit derivation or scaling argument showing independence from U would be needed to support the 'infinitesimal' claim.
  3. [Results for ABF lattices] §4 (density-modulated states at θ = π/4): the claim of vanishing phase stiffness for the additional pair of ground states is central to identifying the critical endpoint, but the manuscript does not detail how stiffness is extracted (e.g., from the BdG dispersion, current-current response, or energy curvature). Without this, it is impossible to confirm that the stiffness is exactly zero rather than numerically small.
minor comments (2)
  1. [Abstract] The abstract is information-dense; separating the sawtooth-lattice extension and the sound-velocity probe into distinct sentences would improve readability.
  2. [Figures] Figure captions should explicitly state the system sizes, annealing schedules, and averaging procedures used in the simulated-annealing data so that the thermal-selection results can be assessed for finite-size effects.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their thorough review and valuable feedback on our manuscript. We address each of the major comments below, providing clarifications and indicating revisions where appropriate.

read point-by-point responses

  1. Referee: [Model and Methods] The validity of the classical Gross-Pitaevskii mean-field treatment is load-bearing for the central claims of infinitesimal-interaction instability and vanishing stiffness, yet in 1D flat bands the kinetic term vanishes identically so that interactions dominate at any U > 0. The manuscript provides no beyond-mean-field analysis (DMRG, QMC, or Luttinger-liquid renormalization) and no estimate of the Ginzburg parameter to assess whether the reported nematic and density-modulated phases survive quantum phase fluctuations, as required by the Mermin-Wagner theorem.

    Authors: We acknowledge that our analysis is performed within the classical Gross-Pitaevskii mean-field framework, which captures the leading effects of interactions in the weakly interacting regime. In one dimension, quantum fluctuations are indeed significant, and the Mermin-Wagner theorem implies the absence of true long-range order at finite temperatures. However, our focus is on the ground-state energetics and the geometry-induced instabilities at the mean-field level, which provide testable predictions for experiments. We have added a new subsection in the Discussion to explicitly address the limitations of the mean-field approach and the potential role of quantum fluctuations, without providing a full beyond-mean-field calculation as that would constitute a separate study. revision: partial

  2. Referee: [Results for ABF lattices] §3 (ABF results): the reported phase boundary at θ = π/8 for the onset of the nematic manifold is obtained from energy minimization within the GP functional. It is unclear whether this threshold is exactly parameter-free or arises from the specific definition of the compact localized states and the geometric parameter θ; an explicit derivation or scaling argument showing independence from U would be needed to support the 'infinitesimal' claim.

    Authors: The critical value θ = π/8 is determined purely from the geometry encoded in the compact localized states and is independent of the interaction strength U. Because the bands are flat, the kinetic energy term vanishes, and the energy is given solely by the interaction energy, which is proportional to U. Thus, the relative energies of different states scale with U but the minimizing configuration does not depend on the value of U (for U > 0). We have added an explicit analytical derivation in a new Appendix, demonstrating that the threshold arises from the condition on the overlap integrals of the CLS amplitudes, which depend only on θ. revision: yes

  3. Referee: [Results for ABF lattices] §4 (density-modulated states at θ = π/4): the claim of vanishing phase stiffness for the additional pair of ground states is central to identifying the critical endpoint, but the manuscript does not detail how stiffness is extracted (e.g., from the BdG dispersion, current-current response, or energy curvature). Without this, it is impossible to confirm that the stiffness is exactly zero rather than numerically small.

    Authors: The phase stiffness for the density-modulated states is computed from the second derivative of the total energy with respect to a small phase twist imposed across the system (twisted boundary conditions). This is equivalent to the q→0 limit of the BdG excitation spectrum, where the dispersion is linear with slope given by the stiffness. We have revised Section 4 to include the precise definition and the numerical procedure used, along with a plot showing the energy curvature being zero within machine precision for these states. revision: yes

standing simulated objections not resolved
  • A comprehensive beyond-mean-field treatment using methods such as DMRG or quantum Monte Carlo to determine whether the nematic and density-modulated phases persist in the presence of quantum fluctuations in one dimension.

Circularity Check

0 steps flagged

No circularity: claims rest on independent numerical minimization and linearization within GP mean-field

full rationale

The paper derives its phase diagram and order-by-disorder selection by direct minimization of the classical Gross-Pitaevskii energy functional on ABF and sawtooth lattices, followed by BdG excitation spectra and classical simulated annealing. These steps are self-contained computational procedures that do not reduce any reported quantity to a fitted parameter or to a prior self-citation by construction. No self-definitional relations, no renaming of known results as new predictions, and no load-bearing uniqueness theorems imported from the authors' own earlier work appear in the derivation chain. The mean-field framework is applied consistently to the stated models without tautological closure.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on the validity of the Gross-Pitaevskii mean-field approximation for weakly interacting bosons in flat bands and on the completeness of the chosen lattice models; no free parameters are explicitly fitted in the abstract, and no new entities are postulated.

axioms (2)
  • domain assumption Gross-Pitaevskii mean-field equation accurately describes the ground state of interacting bosons in flat-band lattices
    Invoked to model the condensate and its instabilities.
  • domain assumption Bogoliubov-de Gennes linearization captures the excitation spectrum and stability of the nematic states
    Used to analyze excitations around the found ground states.
