Distributed Load Frequency Control of Multi-Area Smart Grid

Wenjing Yang , Zhaorong Zhang , Xun Li , Juanjuan Xu This is my paper

Pith reviewed 2026-05-10 19:45 UTC · model grok-4.3

classification 🧮 math.OC
keywords distributed controlload frequency controlsmart gridRiccati equationinformation privacymulti-area systemsoptimal controlstate estimation
0
0 comments X

The pith

A distributed algorithm for load frequency control in smart grids can approach centralized optimal performance while keeping each area's internal parameters and states private from non-neighbors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that global optimal power regulation commands can still be computed in a multi-area grid even when non-adjacent areas refuse to share their internal models or real-time states. It does this by replacing the usual centralized Riccati solutions with local iterative approximations that each area can run using only neighbor-to-neighbor exchanges. If the approximations hold, the resulting controller handles load disturbances and measurement noise nearly as well as the ideal centralized law and better than standard distributed heuristics. A sympathetic reader would care because real smart-grid operators face strict privacy and cybersecurity rules that block full-information methods, yet frequency must stay stable across the whole interconnection.

Core claim

The global optimal power regulation command can be recovered through distributed approximations of the control Riccati equation, the estimation Riccati equation, and the state estimation, all computed without transmitting internal structural parameters or operational states beyond neighboring areas.

What carries the argument

Distributed iterative approximations to the control and estimation Riccati equations together with a distributed state estimator, which together generate the optimal feedback command from local and neighbor data only.

If this is right

  • The closed-loop frequency deviations and control effort under the new controller stay close to those of the centralized optimal law.
  • The performance index is lower than that obtained by commonly used distributed control methods that do not solve the Riccati equations distributively.
  • External load disturbances and measurement noise are rejected without requiring global information sharing.
  • Information privacy constraints are satisfied because non-neighboring areas never exchange internal parameters or states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be tested on larger interconnections to check whether the number of neighbor iterations needed for acceptable accuracy grows acceptably with system size.
  • If the approximations remain accurate, similar distributed Riccati methods might be tried for other privacy-constrained networked control problems such as voltage regulation or economic dispatch.
  • Real-time hardware-in-the-loop experiments would reveal whether communication delays between neighbors degrade the performance guarantee observed in the simulations.

Load-bearing premise

Each area can compute a sufficiently accurate local copy of the global Riccati solution and state estimate using only neighbor exchanges, even though the true system matrices and states of distant areas remain hidden.

What would settle it

A numerical simulation on the same multi-area benchmark in which the performance index achieved by the proposed distributed controller is not smaller than the index achieved by a standard distributed controller or deviates substantially from the centralized optimum.

Figures

Figures reproduced from arXiv: 2604.05390 by Juanjuan Xu, Wenjing Yang, Xun Li, Zhaorong Zhang.

Figure 1
Figure 1. Figure 1: Multi-area smart grid structure [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

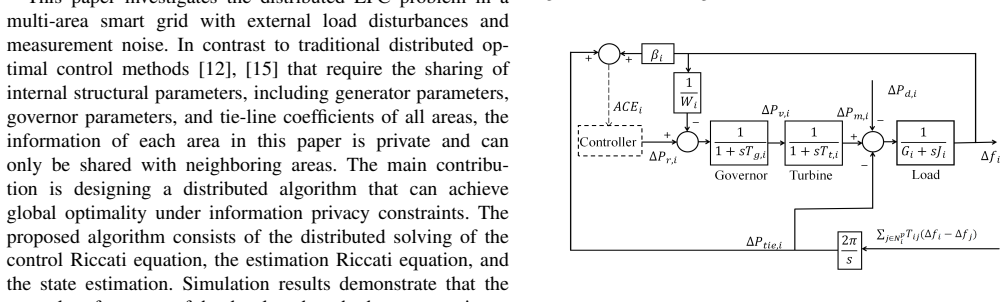

Figure 2. Figure 2: The structure of ith area. d dt∆Pm,i = 1 Tt,i (∆Pv,i − ∆Pm,i), (2) d dt∆Pv,i = 1 Tg,i (∆Pr,i − 1 Wi ∆fi − ∆Pv,i), (3) d dt∆Ptie,i = X j∈Np i 2πTij (∆fi − ∆fj ), (4) ACEi = βi∆fi + ∆Ptie,i, (5) where i is the control area, ∆fi is the frequency deviation, ∆Pm,i is the mechanical power deviation of the generator, ∆Ptie,i is the tie line power deviation, ∆Pd,i is the external load disturbance, ∆Pv,i is the gov… view at source ↗
Figure 3
Figure 3. Figure 3: The overall distributed architecture. Y m i,r(t) =Y m i,r−1 (t) + αr[Qi + P m−1 i (t)B˜ iR˜ iB˜′ i × P m−1 i (t) − Y m i,r−1 (t)] + 1 δ × X j∈Nc i [Y m j,r−1 (t) − Y m i,r−1 (t)], (23) P˙ m i (t) = − Xm i,∞(t) ′P m i (t) − P m i (t)Xm i,∞(t) − Y m i,∞(t), (24) where r = 1, 2, · · · and m = 1, 2, · · · denote the inner and outer iteration indices, respectively. R˜ i = diag{0, · · · ,(1/N)R −1 i , · · · , 0}… view at source ↗

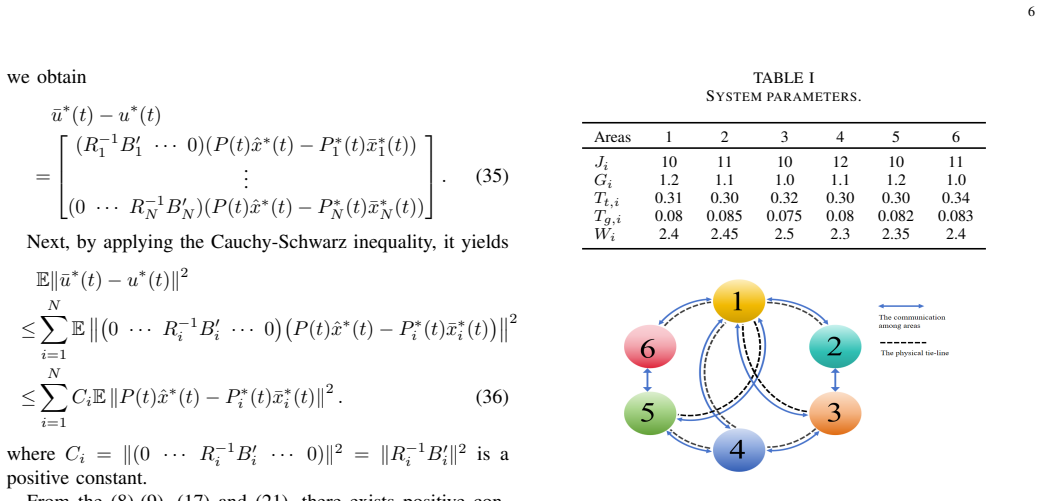

Figure 4
Figure 4. Figure 4: Communication topology and the physical interconnection lines [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The trajectories of ∥P ∗ i (t)∥ 2 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The trajectories of ∥Σ∗ i (t)∥ 2 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

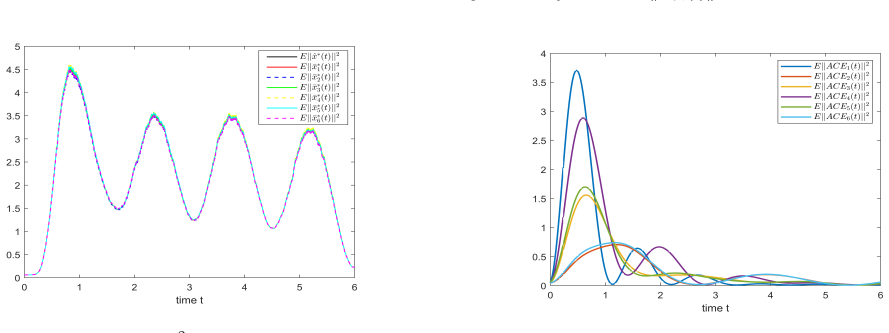

Figure 7
Figure 7. Figure 7: The trajectories of E∥x¯ ∗ i (t)∥ 2 . controller, and the distributed LFC method in [9] under identi￾cal initial conditions and system parameters. The quantitative results are summarized in Table II. It can be observed that the performance index J achieved by the proposed method approximates that of the centralized optimal controller and is smaller than that of the controller in [9] under different noise s… view at source ↗
read the original abstract

In this paper, we investigate the distributed load frequency control problem in a multi-area smart grid under external load disturbances and measurement noise. The novelty lies in that the information privacy is fully taken into account, that is, the internal structural parameters and operational states of each area are not shared with non-neighboring areas, which makes traditional distributed optimal control methods ineffective. The main contribution is to propose a distributed algorithm for the global optimal power regulation command under information privacy constraints via distributed approximation of the control Riccati equation, the estimation Riccati equation, and the state estimation. Simulation results show that the proposed algorithm can approximate the performance of centralized optimal control, and the performance index under the proposed distributed controller is smaller than that under the commonly used distributed control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper addresses distributed load frequency control (LFC) for multi-area smart grids subject to external load disturbances and measurement noise. It proposes a distributed algorithm that respects information privacy by avoiding sharing of internal structural parameters and operational states with non-neighboring areas. The approach approximates the centralized optimal power regulation via distributed solutions to the control Riccati equation, estimation Riccati equation, and state estimation. Simulations are used to claim that the resulting controller approximates centralized optimal performance and achieves a smaller performance index than standard distributed control methods.

Significance. If the distributed Riccati approximations are shown to be reliable, this work would contribute to privacy-preserving optimal control in interconnected power systems, a practical concern for smart grids. The simulation-based demonstration of near-centralized performance and improvement over common distributed methods is a positive aspect, though stronger theoretical error bounds or convergence results would increase impact.

major comments (2)
  1. [Abstract and main derivation sections] The central claim that the distributed approximations achieve near-global optimality without non-neighbor information relies on the specific construction of the local Riccati updates and state estimators, but the abstract provides no error bounds, convergence rates, or conditions under which the approximation holds; this is load-bearing for the performance guarantee.
  2. [Simulation results section] Simulation results are invoked to support the approximation claim and superiority over common distributed control, yet without reported details on the number of areas, disturbance magnitudes, noise levels, or quantitative performance index values, it is not possible to assess whether the evidence is sufficient to back the near-optimality assertion.
minor comments (1)
  1. [Method sections] Notation for the distributed Riccati solutions and state estimates should be clarified to distinguish local from global quantities explicitly.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the opportunity to clarify and strengthen the manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract and main derivation sections] The central claim that the distributed approximations achieve near-global optimality without non-neighbor information relies on the specific construction of the local Riccati updates and state estimators, but the abstract provides no error bounds, convergence rates, or conditions under which the approximation holds; this is load-bearing for the performance guarantee.

    Authors: The abstract summarizes the main contribution as a privacy-preserving distributed approximation to the centralized optimal LFC via local Riccati updates and state estimation. The derivation sections present the specific local update rules that enable this without non-neighbor sharing. We agree that the abstract does not state explicit error bounds or convergence rates. In revision we will modify the abstract to describe the result as an approximation under the stated privacy constraints and add a short discussion of the construction's assumptions and limitations in the main text. revision: partial

  2. Referee: [Simulation results section] Simulation results are invoked to support the approximation claim and superiority over common distributed control, yet without reported details on the number of areas, disturbance magnitudes, noise levels, or quantitative performance index values, it is not possible to assess whether the evidence is sufficient to back the near-optimality assertion.

    Authors: We thank the referee for this observation. The simulation section compares the proposed controller against centralized optimal control and standard distributed methods under disturbances and noise. We will revise the section to explicitly state the number of areas, the specific disturbance and noise magnitudes employed, and to include quantitative performance-index values (e.g., in a table) so that the evidence for the approximation claim can be directly evaluated. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper's core contribution is a distributed approximation scheme for the global Riccati solutions (control and estimation) and state estimates under privacy constraints that forbid sharing non-neighbor parameters or states. This is presented as an algorithmic construction built on standard LQR and Kalman-filter Riccati equations, with performance assessed via simulation against centralized optima and conventional distributed controllers. No step equates a claimed prediction or optimality result to a fitted parameter or self-referential definition; the approximations are not shown to be tautological with their inputs. No self-citation chain is load-bearing for the uniqueness or correctness of the method, and no ansatz is smuggled via prior work by the same authors. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard linear system assumptions for applying Riccati equations in optimal control and estimation; no free parameters, invented entities, or ad-hoc axioms are described in the abstract.

axioms (1)
  • domain assumption The multi-area grid dynamics can be modeled as linear time-invariant systems for which Riccati equations yield optimal control and estimation solutions.
    This is the standard modeling assumption invoked when using Riccati-based methods for load frequency control problems.

pith-pipeline@v0.9.0 · 5426 in / 1219 out tokens · 61138 ms · 2026-05-10T19:45:13.728855+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages

  1. [1]

    Load frequency control with com- munication topology changes in smart grid,

    V . P. Singh, N. Kishor, and P. Samuel, “Load frequency control with com- munication topology changes in smart grid,”IEEE Trans. Ind. Informat., vol. 12, no. 5, pp. 1943-1952, 2016. 8 TABLE II PERFORMANCE INDEX COMPARISON AMONG DIFFERENT CONTROLLERS. Case (Rwi, Rvi) J(Proposed) J(Centralized) J([9]) Case 1 (0.4, 0.5) 24.9134 24.9388 42.1107 Case 2 (0.1, 0...

    work page 1943

  2. [2]

    Exhaustive modal analysis of large-scale interconnected power systems with high power electronics penetration,

    M. Kouki, B. Marinescu, and F. Xavier, “Exhaustive modal analysis of large-scale interconnected power systems with high power electronics penetration,”IEEE Trans. Power Syst., vol. 35, no. 4, pp. 2759-2768, 2020

    work page 2020

  3. [3]

    Load frequency control in power systems,

    D. K. Chaturvedi, “Load frequency control in power systems,” Springer, 2011

    work page 2011

  4. [4]

    Load frequency control in isolated micro-grids using centralized model predictive control,

    P. S. V . Sagar and K. S. Swarup, “Load frequency control in isolated micro-grids using centralized model predictive control,” inProc. IEEE Int. Conf. Power Electron., Drives Energy Syst., Trivandrum, India, 2016, pp. 1-6

    work page 2016

  5. [5]

    Decentralized model predictive control for load-frequency control of interconnected power system,

    S. Rajesh and M. Swarup, “Decentralized model predictive control for load-frequency control of interconnected power system,”IEEE Trans. Power Syst., vol. 30, no. 1, pp. 1-9, 2014

    work page 2014

  6. [6]

    Decentralized fuzzyH ∞-iterative learning LFC with time-varying communication delays and parametric uncertainties,

    C. J. Ramlal, A. Singh, S. Rocke, and M. Sutherland, “Decentralized fuzzyH ∞-iterative learning LFC with time-varying communication delays and parametric uncertainties,”IEEE Trans. Power Syst., vol. 34, no. 6, pp. 4718-4727, 2019

    work page 2019

  7. [7]

    Distributed robust finite- time secondary voltage and frequency control of islanded microgrids,

    N. M. Dehkordi, N. Sadati, and M. Hamzeh, “Distributed robust finite- time secondary voltage and frequency control of islanded microgrids,” IEEE Trans. Power Syst., vol. 32, no. 5, pp. 3648-3659, 2017

    work page 2017

  8. [8]

    Robust cooperative load frequency control for enhancing wind energy integration in multi-area power systems,

    Z. Hu, K. Zhang, R. Su, and R. Wang, “Robust cooperative load frequency control for enhancing wind energy integration in multi-area power systems,”IEEE Trans. Autom. Sci. Eng., vol. 22, pp. 1508-1518, 2025

    work page 2025

  9. [9]

    Distributed multi-agent system- based load frequency control for multi-area power system in smart grid,

    V . P. Singh, N. Kishor, and P. Samuel, “Distributed multi-agent system- based load frequency control for multi-area power system in smart grid,” IEEE Trans. Ind. Informat., vol. 64, no. 6, pp. 5151-5160, Jun. 2017

    work page 2017

  10. [10]

    Distributed model-based control and scheduling for load frequency regulation of smart grids over limited bandwidth networks,

    S. Liu and P. X. Liu, “Distributed model-based control and scheduling for load frequency regulation of smart grids over limited bandwidth networks,”IEEE Trans. Ind. Informat., vol. 14, no. 5, pp. 1814-1823, 2018

    work page 2018

  11. [11]

    Dynamic consensus and extended high gain observers as a tool to achieve practical frequency synchronization in power systems under unknown time-varying power demand,

    D. Chowdhury and H. K. Khalil, “Dynamic consensus and extended high gain observers as a tool to achieve practical frequency synchronization in power systems under unknown time-varying power demand,”Automatica, vol. 131, p. 109753, 2021

    work page 2021

  12. [12]

    Distributed LQR design for identical dynamically coupled systems: Application to load frequency control of multi-area power grid,

    E. Vlahakis, L. D. Dritsas, and G. D. Halikias, “Distributed LQR design for identical dynamically coupled systems: Application to load frequency control of multi-area power grid,” inProc. IEEE Conf. Decis. Control, Nice, France, 2019, pp. 4471-4476

    work page 2019

  13. [13]

    Distributed optimal generation and load-side control for frequency regulation in power systems,

    L. Yang, T. Liu, Z. Tang, and D. J. Hill, “Distributed optimal generation and load-side control for frequency regulation in power systems,”IEEE Trans. Autom. Control, vol. 66, no. 6, pp. 2724-2731, 2021

    work page 2021

  14. [14]

    Distributed robust adaptive frequency control of power systems with dynamic loads,

    H. Kim, M. Zhu, and J. Lian, “Distributed robust adaptive frequency control of power systems with dynamic loads,”IEEE Trans. Autom. Control, vol. 65, no. 11, pp. 4887-4894, 2020

    work page 2020

  15. [15]

    Distributed LQR design for a class of large-scale multi-area power systems: Application to load frequency control of multi-area power grid,

    E. Vlahakis, L. D. Dritsas, and G. D. Halikias, “Distributed LQR design for a class of large-scale multi-area power systems: Application to load frequency control of multi-area power grid,”Energies, vol. 12, no. 14, p. 2664, 2019

    work page 2019

  16. [16]

    Extended-state- observer-based distributed robust secondary voltage and frequency control for an autonomous microgrid,

    P. Ge, X. Dou, X. Quan, Q. Hu, Z. Wu, and W. Gu, “Extended-state- observer-based distributed robust secondary voltage and frequency control for an autonomous microgrid,”IEEE Trans. Sustain. Energy, vol. 11, no. 1, pp. 195-205, 2020

    work page 2020

  17. [17]

    Distributed observer- based event-triggered load frequency control of multiarea power systems under cyber attacks,

    M. Zhang, S. Dong, P. Shi, G. Chen, and X. Guan, “Distributed observer- based event-triggered load frequency control of multiarea power systems under cyber attacks,”IEEE Trans. Autom. Sci. Eng., vol. 20, no. 4, pp. 2435-2444, 2023

    work page 2023

  18. [18]

    Deterministic dynamic state estimation-based optimal LFC for intercon- nected power systems using unknown input observer,

    H. Haes Alhelou, M. E. Hamedani Golshan, and N. D. Hatziargyriou, “Deterministic dynamic state estimation-based optimal LFC for intercon- nected power systems using unknown input observer,”Inf. Control, vol. 38, no. 1, pp. 21-50, 1978

    work page 1978

  19. [19]

    Globally stealthy attacks against distributed state estimation in smart grid,

    S. Xu, D. Ye, G. Li, and D. Yang, “Globally stealthy attacks against distributed state estimation in smart grid,”IEEE Trans. Autom. Sci. Eng., vol. 22, pp. 1353-1363, 2025

    work page 2025

  20. [20]

    Observer-based finite-time fuzzy load frequency control for multiarea nonlinear power systems under input delays and cyber attacks,

    Z. Wang, J. Dai, H. Zhang, and J. Zhang, “Observer-based finite-time fuzzy load frequency control for multiarea nonlinear power systems under input delays and cyber attacks,”IEEE Trans. Smart Grid, vol. 16, no. 4, pp. 3336-3345, 2025

    work page 2025

  21. [21]

    Predictor-based load frequency control for large-scale networked control power systems,

    J. Xia, X. Guo, J. H. Park, G. Chen, and X. Xie, “Predictor-based load frequency control for large-scale networked control power systems,”IEEE Trans. Power Syst., vol. 39, no. 5, pp. 6263–6276, 2024

    work page 2024

  22. [22]

    A robust load frequency control scheme for power systems based on second-order sliding mode and extended disturbance observer,

    K. Liao and Y . Xu, “A robust load frequency control scheme for power systems based on second-order sliding mode and extended disturbance observer,”IEEE Trans. Ind. Informat., vol. 14, no. 7, pp. 3076-3086, 2018

    work page 2018

  23. [23]

    Robust and optimal control,

    K. Zhou, J. C. Doyle, and K. Glover, “Robust and optimal control,” Prentice Hall, 1996

    work page 1996

  24. [24]

    Distributed solving of linear quadratic optimal controller with terminal state constraint,

    W. Yang, Z. Zhang, and J. Xu, “Distributed solving of linear quadratic optimal controller with terminal state constraint,” arXiv:2504.05631, 2025

    work page arXiv 2025
