arxiv: 2604.05402 · v1 · submitted 2026-04-07 · 💻 cs.CV · cs.RO

LSGS-Loc: Towards Robust 3DGS-Based Visual Localization for Large-Scale UAV Scenarios

Pith reviewed 2026-05-10 19:32 UTC · model grok-4.3

classification 💻 cs.CV cs.RO
keywords visual localization3D Gaussian SplattingUAVpose initializationphotometric refinementreliability maskinglarge-scale scenes
0
0 comments X

The pith

LSGS-Loc achieves robust visual localization in large-scale UAV scenes by adding scale-aware pose initialization and Laplacian masking to 3D Gaussian Splatting.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents LSGS-Loc as a visual localization pipeline built for expansive UAV environments modeled with 3D Gaussian Splatting. It solves weak starting poses and sensitivity to rendering flaws by fusing scene-agnostic relative pose estimates with explicit scale limits drawn from the 3DGS representation. During refinement, a Laplacian-based mask steers optimization toward reliable image regions and away from blur or floaters. Experiments on UAV benchmarks show higher accuracy than prior 3DGS methods when queries arrive in random order, which supports practical autonomous drone operation.

Core claim

LSGS-Loc is a visual localization pipeline for large-scale 3DGS scenes that combines scene-agnostic relative pose estimation with explicit 3DGS scale constraints to produce geometrically grounded initial poses without scene-specific training. In the refinement stage, Laplacian-based reliability masking directs photometric optimization to high-quality regions and away from reconstruction artifacts such as blur and floaters. The resulting method reaches state-of-the-art accuracy and robustness on large-scale UAV benchmarks for unordered image queries.

What carries the argument

Scale-aware pose initialization that merges relative pose estimation with 3DGS scale constraints, paired with Laplacian reliability masking that filters unreliable regions during photometric refinement.

Load-bearing premise

The scale-aware initialization and Laplacian masking will continue to deliver reliable results across varied large-scale UAV environments without scene-specific retraining or benchmark-specific tuning.

What would settle it

Evaluation on a fresh large-scale UAV dataset containing new terrain, lighting, or reconstruction artifacts where the method no longer exceeds baseline 3DGS accuracy or shows clear degradation from unmasked regions.

Figures

Figures reproduced from arXiv: 2604.05402 by Fang Xu, Tengfei Wang, Xiang Zhang, Xin Wang, Zongqian Zhan.

Figure 1

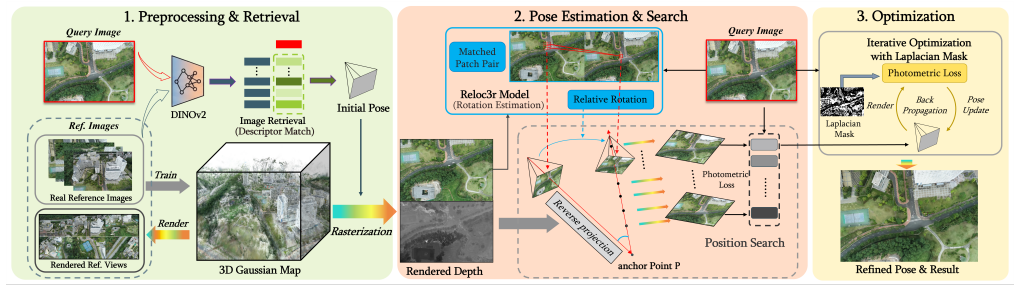

Figure 1. Figure 1: Workflow of the proposed LSGS-Loc. (1) Scene representation via 3DGS followed by reference retrieval; (2) Intermediate pose alignment based [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3

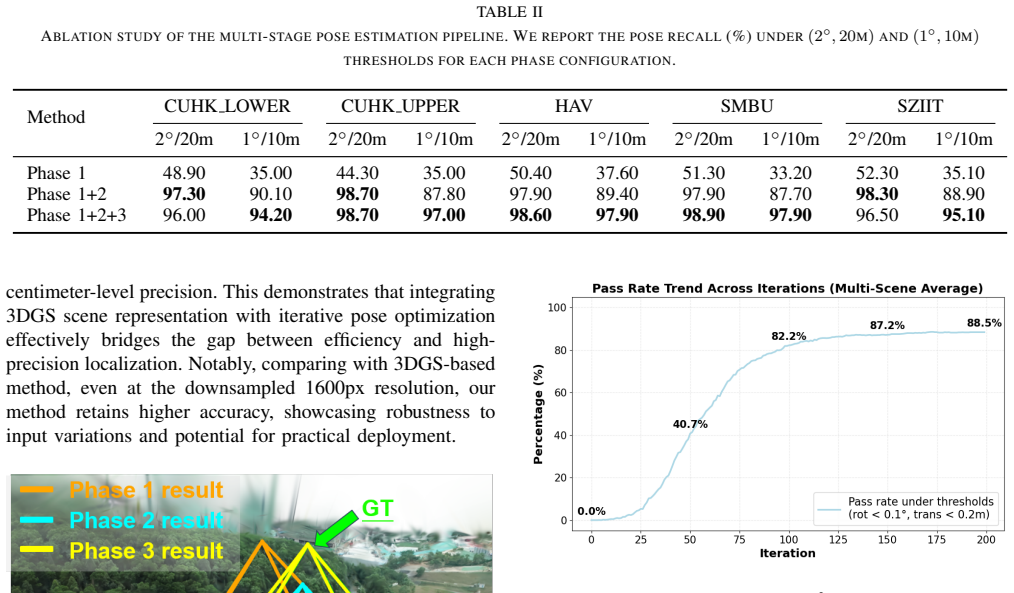

Figure 3. Figure 3: Pass rate under strict thresholds (0.1 ◦, 0.2m) across 200 optimiza￾tion iterations, averaged over all scenes. This indicates that the optimization stage successfully con￾verges most residual errors from Phase 2, underscoring the robustness of our complete pipeline. The qualitative results in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: Visualization of the camera localization process. The Illustration [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 4

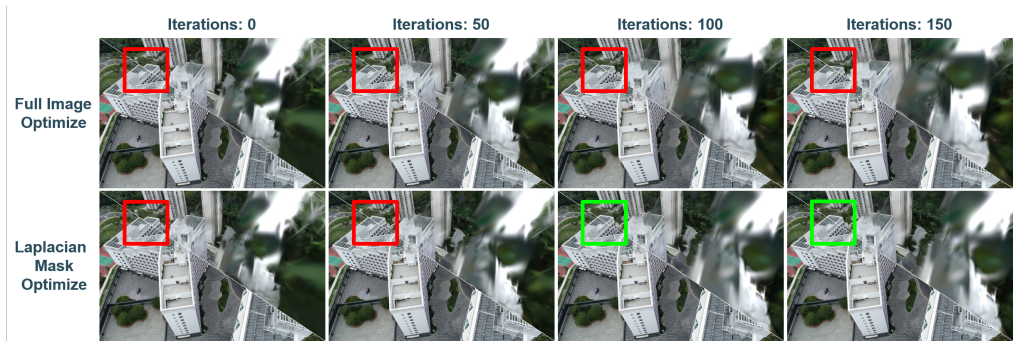

Figure 4. Figure 4: Qualitative comparison of different optimization methods. The diagonal partitions the ground-truth query (lower-left) and the rendered image [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

Visual localization in large-scale UAV scenarios is a critical capability for autonomous systems, yet it remains challenging due to geometric complexity and environmental variations. While 3D Gaussian Splatting (3DGS) has emerged as a promising scene representation, existing 3DGS-based visual localization methods struggle with robust pose initialization and sensitivity to rendering artifacts in large-scale settings. To address these limitations, we propose LSGS-Loc, a novel visual localization pipeline tailored for large-scale 3DGS scenes. Specifically, we introduce a scale-aware pose initialization strategy that combines scene-agnostic relative pose estimation with explicit 3DGS scale constraints, enabling geometrically grounded localization without scene-specific training. Furthermore, in the pose refinement, to mitigate the impact of reconstruction artifacts such as blur and floaters, we develop a Laplacian-based reliability masking mechanism that guides photometric refinement toward high-quality regions. Extensive experiments on large-scale UAV benchmarks demonstrate that our method achieves state-of-the-art accuracy and robustness for unordered image queries, significantly outperforming existing 3DGS-based approaches. Code is available at: https://github.com/xzhang-z/LSGS-Loc

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces LSGS-Loc, a visual localization pipeline for large-scale UAV scenarios based on 3D Gaussian Splatting. It proposes a scale-aware pose initialization that combines scene-agnostic relative pose estimation with explicit 3DGS scale constraints, and a Laplacian-based reliability masking mechanism to guide photometric refinement away from reconstruction artifacts such as blur and floaters. The central claim is that extensive experiments on large-scale UAV benchmarks show state-of-the-art accuracy and robustness for unordered image queries, significantly outperforming prior 3DGS-based methods, without requiring scene-specific training.

Significance. If the empirical claims hold after addressing the noted issues, the work would provide a practical advance in 3DGS-based localization for UAVs by improving initialization robustness and artifact handling in large-scale settings. The public code release supports reproducibility and allows direct verification of the reported gains.

major comments (3)
  1. [Experiments] Experiments section: The claim that the method generalizes robustly across diverse large-scale UAV environments rests on evaluation confined to a small number of existing UAV benchmarks. No cross-benchmark transfer tests or out-of-distribution evaluation (e.g., varying altitudes, lighting, or reconstruction quality) are reported, which is load-bearing for the central assertion of scene-agnostic robustness and SOTA performance on unordered queries.
  2. [Method] Method section (scale-aware initialization): The explicit 3DGS scale constraints are described as enabling geometrically grounded localization, but the manuscript does not provide a quantitative analysis of how these constraints interact with the relative-pose estimator under varying scene scales or reconstruction errors; this detail is necessary to substantiate that the gains are method-intrinsic rather than benchmark-specific.
  3. [Experiments] Experiments / ablation studies: The abstract asserts SOTA accuracy and robustness, yet the provided description lacks detailed error distributions, failure-case analysis, or full ablation tables isolating the contribution of Laplacian masking versus scale constraints; without these, it is impossible to confirm that the reported improvements are not influenced by post-hoc benchmark choices.
minor comments (2)
  1. [Introduction] The phrase 'unordered image queries' is used repeatedly but never formally defined; a brief clarification in the introduction or problem statement would improve readability.
  2. [Method] Figure captions for the pipeline diagram should explicitly label the scale-constraint and Laplacian-masking modules to match the textual description.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments on our manuscript. We address each major comment point by point below, providing clarifications and committing to revisions where appropriate to strengthen the presentation of LSGS-Loc.

read point-by-point responses
  1. Referee: The claim that the method generalizes robustly across diverse large-scale UAV environments rests on evaluation confined to a small number of existing UAV benchmarks. No cross-benchmark transfer tests or out-of-distribution evaluation (e.g., varying altitudes, lighting, or reconstruction quality) are reported, which is load-bearing for the central assertion of scene-agnostic robustness and SOTA performance on unordered queries.

    Authors: We agree that broader generalization tests would further support the claims. Our evaluations use standard large-scale UAV benchmarks that encompass variations in scene scale, altitude, lighting conditions, and reconstruction quality, with consistent outperformance over prior 3DGS methods on unordered queries. These benchmarks are representative of the target scenarios and were chosen for their public availability and relevance. In the revision, we will expand the experiments section with a detailed characterization of benchmark diversity, additional per-scene breakdowns, and an explicit discussion of limitations regarding cross-benchmark transfer and OOD robustness. We will also explore any feasible supplementary analysis using existing data splits. revision: partial

  2. Referee: The explicit 3DGS scale constraints are described as enabling geometrically grounded localization, but the manuscript does not provide a quantitative analysis of how these constraints interact with the relative-pose estimator under varying scene scales or reconstruction errors; this detail is necessary to substantiate that the gains are method-intrinsic rather than benchmark-specific.

    Authors: The scale-aware initialization integrates scene-agnostic relative pose estimation with explicit 3DGS scale constraints derived from the Gaussian representation to enforce geometric consistency during initialization. Ablation results in the manuscript already isolate the contribution of this module to overall accuracy. To provide the requested quantitative analysis, we will add new experiments in the revised manuscript that measure the interaction effects, including sensitivity to varying scene scales and controlled levels of reconstruction error (e.g., by perturbing the 3DGS model), using the existing benchmark data to demonstrate that the gains are intrinsic to the proposed constraints. revision: yes

  3. Referee: The abstract asserts SOTA accuracy and robustness, yet the provided description lacks detailed error distributions, failure-case analysis, or full ablation tables isolating the contribution of Laplacian masking versus scale constraints; without these, it is impossible to confirm that the reported improvements are not influenced by post-hoc benchmark choices.

    Authors: We acknowledge that more granular analysis would improve transparency. The manuscript already includes ablation studies demonstrating the individual and combined effects of the scale-aware initialization and Laplacian-based reliability masking. In the revision, we will expand the experiments section to include full ablation tables with isolated component contributions, statistical error distributions (e.g., median, percentiles, and histograms of pose errors), and a dedicated failure-case analysis highlighting scenarios where artifacts or initialization challenges persist. These additions will use the same benchmark results to substantiate the reported improvements. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation; method builds on external benchmarks and standard components

full rationale

The paper presents LSGS-Loc as an engineering pipeline: scene-agnostic relative pose estimation augmented by explicit 3DGS scale constraints for initialization, followed by Laplacian reliability masking during photometric refinement. These are introduced as practical additions to address specific failure modes in large-scale 3DGS scenes, not as quantities derived from or fitted to the target localization accuracy. Performance is asserted via experiments on independent UAV benchmarks rather than any self-referential prediction or uniqueness theorem. No equations reduce the output metrics to the input definitions by construction, no load-bearing self-citations appear, and the central claims remain falsifiable against external data. The derivation chain is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on standard domain assumptions from 3D Gaussian Splatting and visual localization literature with no new free parameters, axioms, or invented entities introduced in the abstract description.

axioms (1)
  • domain assumption Core 3DGS rendering and photometric consistency assumptions hold for large-scale UAV scenes.
    The pipeline builds directly on existing 3DGS without re-deriving or questioning its foundational rendering model.
