arxiv: 2604.05442 · v2 · submitted 2026-04-07 · 🧮 math.CO

Generic Rigidity of Graph Frameworks in Euclidean Space

Alexander Heaton This is my paper

Pith reviewed 2026-05-10 20:00 UTC · model grok-4.3

classification 🧮 math.CO
keywords generic rigidityinfinitesimal rigiditycombinatorial characterizationPlücker relationsYoung's straightening lawbar-joint frameworksGrassmannianself-stress
0
0 comments X

The pith

Generic infinitesimal rigidity of bar-joint frameworks admits a combinatorial characterization valid in every dimension.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

For decades only the two-dimensional case of generic rigidity had a combinatorial test, given by Laman's theorem. This paper supplies a test that works for frameworks in Euclidean space of arbitrary dimension. It constructs a self-stress by gluing local Cramer's rule solutions at each vertex. The conditions that allow these local pieces to combine into a global self-stress are governed by Plücker relations on the Grassmannian, which reduce to combinatorial questions decided by Young's straightening law on tableaux. A sympathetic reader cares because the result converts an algebraic dependence question into a finite, coordinate-free combinatorial check.

Core claim

The combinatorial characterization of generic rigidity for bar-joint frameworks in dimensions d ≥ 3 has been a long-standing open problem in discrete geometry. We solve the problem by providing a combinatorial characterization of generic infinitesimal rigidity valid in all dimensions. By gluing together local versions of Cramer's rule at each vertex, we construct a globally valid self-stress on the edges. The compatibility conditions governing these local solutions are controlled by the Plücker relations on the Grassmannian Gr(d+1, v), allowing us to check generic rigidity using the combinatorics of Young's straightening law on tableaux.

What carries the argument

Gluing local Cramer's rule solutions at each vertex, whose compatibility is enforced by Plücker relations on the Grassmannian and decided combinatorially by Young's straightening law on tableaux.

If this is right

  • Generic rigidity can be decided from the graph alone by a finite combinatorial procedure without solving linear equations over the reals.
  • An explicit self-stress on any generic realization can be recovered directly from the combinatorial data of the tableaux.
  • The same test unifies the classical two-dimensional Laman condition with all higher dimensions.
  • Rigidity questions reduce to checking algebraic identities that are decided by the straightening law on tableaux.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The reduction may open algorithmic routes to rigidity testing for large graphs in three and higher dimensions.
  • Similar gluing-plus-straightening techniques could apply to other algebraic dependence problems arising in geometric constraint systems.
  • The method supplies a concrete bridge between rigidity theory and the combinatorial representation theory of Grassmannians.

Load-bearing premise

The compatibility conditions needed to glue the local self-stresses are completely captured by the Plücker relations and can be decided purely combinatorially via Young's straightening law for generic frameworks in any dimension.

What would settle it

A specific graph together with a dimension d such that the tableaux straightening condition holds yet a generic realization in R^d admits a non-trivial infinitesimal flex, or the reverse.

read the original abstract

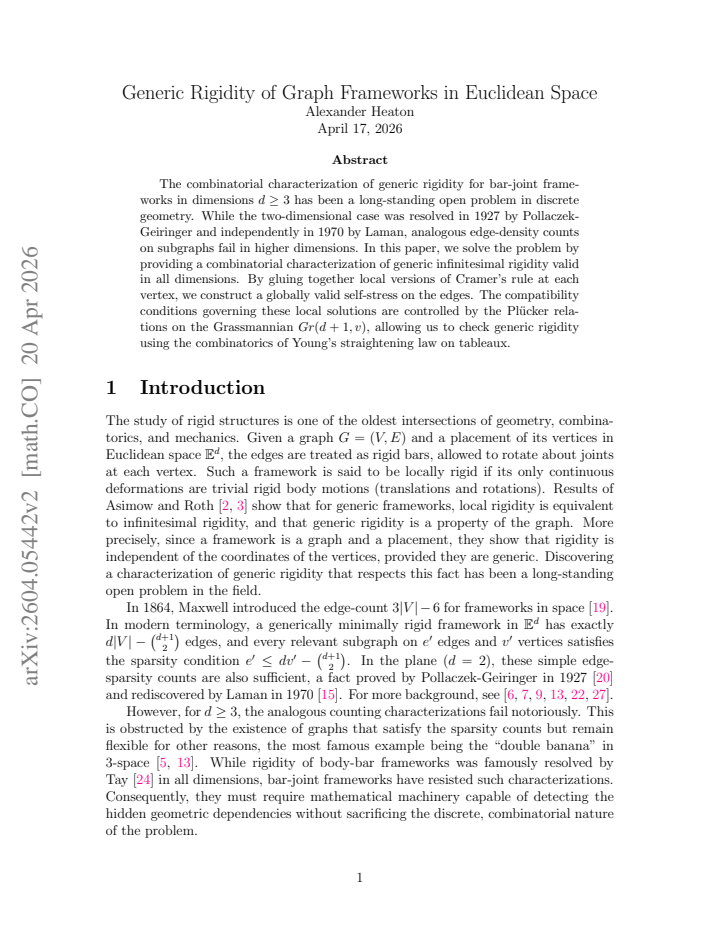

The combinatorial characterization of generic rigidity for bar-joint frameworks in dimensions $d \ge 3$ has been a long-standing open problem in discrete geometry. While the two-dimensional case was resolved in 1927 by Pollaczek-Geiringer and independently in 1970 by Laman, analogous edge-density counts on subgraphs fail in higher dimensions. In this paper, we solve the problem by providing a combinatorial characterization of generic infinitesimal rigidity valid in all dimensions. By gluing together local versions of Cramer's rule at each vertex, we construct a globally valid self-stress on the edges. The compatibility conditions governing these local solutions are controlled by the Pl\"ucker relations on the Grassmannian $Gr(d+1, v)$, allowing us to check generic rigidity using the combinatorics of Young's straightening law on tableaux.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims to resolve the open problem of combinatorially characterizing generic infinitesimal rigidity of bar-joint frameworks in Euclidean space of any dimension d by constructing a global self-stress through gluing local Cramer's-rule solutions at each vertex; the compatibility conditions are asserted to be governed exactly by the Plücker relations on Gr(d+1, v) and decidable via Young's straightening law on tableaux.

Significance. If the central construction is sound and the Plücker relations plus straightening law suffice without residual syzygies, the result would be a major advance in discrete geometry, supplying the first combinatorial test valid in all dimensions and extending the 2D Laman theorem via algebraic-combinatorial methods. The explicit use of Grassmannian relations to obtain a falsifiable combinatorial criterion is a notable strength.

major comments (2)
  1. [Gluing Construction] The gluing construction (described in the abstract and main body) asserts that compatibility of the local self-stresses is completely captured by the Plücker quadrics. For d ≥ 3 this requires an explicit argument that no additional linear dependencies among the rows of the generic rigidity matrix survive after gluing; the manuscript must demonstrate that the ideal generated by the Plücker relations, once tested via Young's straightening law, contains all syzygies of the rigidity matrix for generic point configurations in dimension 3 or higher.
  2. [Main Theorem] The sufficiency direction of the claimed combinatorial characterization (main theorem) rests on the claim that the straightening law eliminates every extra relation. A concrete check or lemma is needed showing that, for a generic framework in d = 3, the only obstructions to a global self-stress are those detected by the Plücker relations after local gluing; without this, the test may be incomplete.
minor comments (1)
  1. [Abstract] The abstract could briefly contrast the new test with the failure of simple edge-density counts (Laman-type) in d ≥ 3 to help readers situate the contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and for identifying points where the manuscript would benefit from additional explicit verification of the algebraic claims. We address each major comment below and will revise the paper accordingly to strengthen the presentation without altering the core result.

read point-by-point responses

  1. Referee: [Gluing Construction] The gluing construction (described in the abstract and main body) asserts that compatibility of the local self-stresses is completely captured by the Plücker quadrics. For d ≥ 3 this requires an explicit argument that no additional linear dependencies among the rows of the generic rigidity matrix survive after gluing; the manuscript must demonstrate that the ideal generated by the Plücker relations, once tested via Young's straightening law, contains all syzygies of the rigidity matrix for generic point configurations in dimension 3 or higher.

    Authors: We agree that an explicit demonstration is required to confirm there are no residual syzygies for d ≥ 3. The manuscript already invokes the fact that the Plücker ideal is the prime ideal of the Grassmannian and that Young's straightening law yields a basis for the quotient ring, which implies that any linear dependence not captured by the local gluing must correspond to a non-standard monomial and hence lies in the ideal. To make this fully rigorous and self-contained, the revised version will include a new lemma (placed after the gluing construction) that explicitly shows the cokernel of the glued rigidity map is isomorphic to the degree-1 part of the coordinate ring modulo the Plücker ideal, thereby containing all syzygies for generic point sets. revision: yes

  2. Referee: [Main Theorem] The sufficiency direction of the claimed combinatorial characterization (main theorem) rests on the claim that the straightening law eliminates every extra relation. A concrete check or lemma is needed showing that, for a generic framework in d = 3, the only obstructions to a global self-stress are those detected by the Plücker relations after local gluing; without this, the test may be incomplete.

    Authors: The sufficiency proof in the main theorem proceeds by constructing the global self-stress via the glued local Cramer's-rule solutions and showing that the resulting assignment is consistent precisely when the associated tableau straightens to a standard one. We acknowledge that a concrete verification for d=3 would improve readability. The revised manuscript will add a short subsection containing an explicit d=3 example (the generic tetrahedron with one added bar) together with the corresponding 3×3 minors and their Plücker relations; this example will be used to illustrate that no extraneous linear dependencies survive the straightening process, and the argument will be abstracted into the new lemma referenced in the response to the first comment. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation uses independent algebraic tools

full rationale

The paper constructs a global self-stress by gluing local Cramer's-rule solutions at vertices and asserts that compatibility is governed by the Plücker relations on Gr(d+1,v), which are then decided combinatorially via Young's straightening law. These are standard, externally established facts from algebraic geometry and combinatorics whose validity does not depend on the rigidity characterization being proved. No equations or steps in the abstract or description reduce the claimed combinatorial test to a tautology, a fitted parameter, or a self-citation chain. The central result therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claimed characterization rests on the standard genericity assumption of rigidity theory plus the assertion that Plücker relations fully govern the compatibility of local self-stresses; no new entities are introduced.

axioms (2)
  • domain assumption The framework is generic (vertices in general position)
    Invoked implicitly to ensure that algebraic dependencies are captured exactly by the combinatorial conditions.
  • domain assumption Plücker relations on Gr(d+1,v) control all compatibility conditions for the glued local solutions
    Stated in the abstract as the mechanism that reduces the problem to Young's straightening law.

pith-pipeline@v0.9.0 · 5423 in / 1436 out tokens · 60635 ms · 2026-05-10T20:00:37.936904+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    By gluing together local versions of Cramer's rule at each vertex, we construct a globally valid self-stress on the edges. The compatibility conditions governing these local solutions are controlled by the Plücker relations on the Grassmannian Gr(d+1, v), allowing us to check generic rigidity using the combinatorics of Young's straightening law on tableaux.

  • IndisputableMonolith/Foundation/AlexanderDualityProof.lean linking_forces_d3_cert unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    Theorem 1. ... G is infinitesimally flexible in E^d if and only if there exists a balanced source-stream-sink orientation Γ on a subgraph H of G ...

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages

  1. [1]

    Brian D. O. Anderson, Changbin Yu, Barı¸ s Fidan, and Julien M. Hendrickx. Rigid graph control architectures for autonomous formations: applying classical graph theory to the control of multiagent systems.IEEE Control Syst. Mag., 28(6):48–63, 2008

    work page 2008

  2. [2]

    Asimow and B

    L. Asimow and B. Roth. The rigidity of graphs.Trans. Amer. Math. Soc., 245:279–289, 1978

    work page 1978

  3. [3]

    Asimow and B

    L. Asimow and B. Roth. The rigidity of graphs. II.J. Math. Anal. Appl., 68(1):171–190, 1979

    work page 1979

  4. [4]

    Goldenberg, A

    James Aspnes, Tolga Eren, David K. Goldenberg, A. Stephen Morse, Walter Whiteley, Yang Richard Yang, Brian D. O. Anderson, and Peter N. Belhumeur. A theory of network localization.IEEE Transactions on Mobile Computing, 5(12):1663–1678, December 2006

    work page 2006

  5. [5]

    John, Jessica Sidman, and Ileana Streinu

    Christophe Clement, Audrey Lee-St. John, Jessica Sidman, and Ileana Streinu. Hyperbanana graphs. InProceedings of the 25th Canadian Conference on Computational Geometry (CCCG 2013), pages 25–30. University of Waterloo, 2013

    work page 2013

  6. [6]

    Rigidity

    Robert Connelly. Rigidity. In Peter M. Gruber and J¨ org M. Wills, editors,Handbook of Convex Geometry, volume A, pages 223–271. North-Holland, Amsterdam, 1993. 18

    work page 1993

  7. [7]

    Guest.Frameworks, Tensegrities, and Symmetry

    Robert Connelly and Simon D. Guest.Frameworks, Tensegrities, and Symmetry. Cambridge University Press, Cambridge, 2021

    work page 2021

  8. [8]

    H. Crapo. On the generic rigidity of plane frameworks. Research Report RR-1278, INRIA, August 1990. Projet ICSLA

    work page 1990

  9. [9]

    Rigidity of graphs and frameworks: A matroid theoretic approach.arXiv preprint arXiv:2508.11636, 2025

    James Cruickshank, Bill Jackson, Tibor Jord´ an, and Shin-ichi Tanigawa. Rigidity of graphs and frameworks: A matroid theoretic approach.arXiv preprint arXiv:2508.11636, 2025

    work page arXiv 2025

  10. [10]

    John, Stephanie Stark, Louis Theran, and Xilin Yu

    James Farre, Helena Kleinschmidt, Jessica Sidman, Audrey St. John, Stephanie Stark, Louis Theran, and Xilin Yu. Algorithms for detecting dependencies and rigid subsystems for CAD. Comput. Aided Geom. Design, 47:130–149, 2016

    work page 2016

  11. [11]

    London Mathematical Society Student Texts

    William Fulton.Young Tableaux: With Applications to Representation Theory and Geometry. London Mathematical Society Student Texts. Cambridge University Press, 1996

    work page 1996

  12. [12]

    Gessel and Xavier G

    Ira M. Gessel and Xavier G. Viennot. Binomial determinants, paths, and hook length formulae. Advances in Mathematics, 58(3):300–321, 1985

    work page 1985

  13. [13]

    Graver, Brigitte Servatius, and Herman Servatius.Combinatorial Rigidity, volume 2 of Graduate Studies in Mathematics

    Jack E. Graver, Brigitte Servatius, and Herman Servatius.Combinatorial Rigidity, volume 2 of Graduate Studies in Mathematics. American Mathematical Society, Providence, RI, 1993

    work page 1993

  14. [14]

    Jacobs and Bruce Hendrickson

    Donald J. Jacobs and Bruce Hendrickson. An algorithm for two-dimensional rigidity percola- tion: the pebble game.J. Comput. Phys., 137(2):346–365, 1997

    work page 1997

  15. [15]

    G. Laman. On graphs and rigidity of plane skeletal structures.J. Engineering Math., 4:331–340, 1970

    work page 1970

  16. [16]

    Pebble game algorithms and sparse graphs.Discrete Math., 308(8):1425–1437, 2008

    Audrey Lee and Ileana Streinu. Pebble game algorithms and sparse graphs.Discrete Math., 308(8):1425–1437, 2008

    work page 2008

  17. [17]

    On the vector representations of induced matroids.Bulletin of the London Mathematical Society, 5(1):85–90, 1973

    Bernt Lindstr¨ om. On the vector representations of induced matroids.Bulletin of the London Mathematical Society, 5(1):85–90, 1973

    work page 1973

  18. [18]

    Lov´ asz and Y

    L. Lov´ asz and Y. Yemini. On generic rigidity in the plane.SIAM J. Algebraic Discrete Methods, 3(1):91–98, March 1982

    work page 1982

  19. [19]

    Clerk Maxwell

    J. Clerk Maxwell. On the calculation of the equilibrium and stiffness of frames.The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science, 27(182):294–299, 1864

    work page

  20. [20]

    Pollaczek-Geiringer

    H. Pollaczek-Geiringer. ¨Uber die gliederung ebener fachwerke.ZAMM - Journal of Applied Mathematics and Mechanics / Zeitschrift f¨ ur Angewandte Mathematik und Mechanik, 7(1):58– 72, 1927

    work page 1927

  21. [21]

    A. J. Rader, B. M. Hespenheide, L. A. Kuhn, and M. F. Thorpe. Protein unfolding: rigidity lost.Proc. Natl. Acad. Sci. U.S.A., 99(6):3540–3545, 2002

    work page 2002

  22. [22]

    Rigidity and scene analysis

    Bernd Schulze and Walter Whiteley. Rigidity and scene analysis. In Jacob E. Goodman, Joseph O’Rourke, and Csaba D. T´ oth, editors,Handbook of Discrete and Computational Geometry, chapter 61, pages 1593–1624. CRC Press, Boca Raton, FL, 3rd edition, 2017

    work page 2017

  23. [23]

    Sturmfels.Algorithms in invariant theory

    B. Sturmfels.Algorithms in invariant theory. Texts and Monographs in Symbolic Computation. Springer-Verlag, Vienna, 1993

    work page 1993

  24. [24]

    Rigidity of multi-graphs

    Tiong-Seng Tay. Rigidity of multi-graphs. I. Linking rigid bodies in n-space.Journal of Com- binatorial Theory, Series B, 36(1):95–112, 1984

    work page 1984

  25. [25]

    Vinberg.A Course in Algebra

    Ernest B. Vinberg.A Course in Algebra. Graduate Studies in Mathematics ; Vol. 56. American Mathematical Society, 2003

    work page 2003

  26. [26]

    N. L. White and W. Whiteley. The algebraic geometry of stresses in frameworks.SIAM J. Algebraic Discrete Methods, 4(4):481–511, 1983

    work page 1983

  27. [27]

    Some matroids from discrete applied geometry

    Walter Whiteley. Some matroids from discrete applied geometry. In Joseph E. Bonin, James G. Oxley, and Brigitte Servatius, editors,Matroid Theory, volume 197 ofContemporary Mathe- matics, pages 171–311. American Mathematical Society, Providence, RI, 1996. 19

    work page 1996
