arxiv: 2604.05619 · v1 · submitted 2026-04-07 · ❄️ cond-mat.mes-hall

Two-Dimensional Space-Time Groups: Classification and Applications

Chenhang Ke , Congjun Wu This is my paper

Pith reviewed 2026-05-10 18:58 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords space-time groupsgroup cohomologynon-symmorphic symmetriesspace-time crystals2+1 dimensionsmetamaterialschirality-selective responsehorizontal cone
0
0 comments X

The pith

Space-time groups in 2+1 dimensions classify into 275 crystals, 203 of them non-symmorphic, via group cohomology.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Standard space groups describe only the spatial symmetries of static crystals. Dynamic systems such as laser-driven lattices and time-periodic metamaterials require a larger framework that combines space and time into space-time groups, including intertwined non-symmorphic operations like time-glide reflections. The paper applies group cohomology to enumerate every distinct 2+1D space-time group, obtaining a total of 275 space-time crystals. This enumeration directly yields two new physical effects: a chirality-selective response tied to particular space-time symmetries and a horizontal cone dispersion that appears only when non-symmorphic elements are present. The resulting catalog supplies a systematic route to design and predict phenomena in spatiotemporal materials.

Core claim

We perform a complete classification of the 2+1D space-time groups based on the method of group cohomology, leading to the identification of all 275 space-time crystals, including 203 non-symmorphic ones. Under this formalism, unique physical phenomena are uncovered: A chirality-selective response rule with specific space-time symmetry is fully investigated and a novel horizontal cone structure is predicted in space-time metamaterials as a direct consequence of non-symmorphic space-time symmetry.

What carries the argument

Group cohomology applied to space-time groups that include non-symmorphic operations such as time-glide reflection and time-screw rotation.

If this is right

  • The 275 groups give a complete design table for choosing symmetries that enforce desired spatiotemporal responses in dynamic crystals.
  • Non-symmorphic space-time elements enable chirality-selective scattering or transport rules absent from static space-group symmetry.
  • The horizontal cone dispersion offers a new route to control wave propagation speed and direction in space-time metamaterials.
  • This classification extends the Floquet description of time-periodic systems to include the full set of intertwined space-time symmetries.
  • The catalog supplies a starting point for predicting and engineering novel phenomena across condensed-matter and metamaterial platforms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cohomology approach could be repeated in 3+1 dimensions to classify three-dimensional space-time crystals.
  • Experimental platforms such as modulated optical lattices could be used to test whether the predicted horizontal cone appears under the stated non-symmorphic conditions.
  • Certain non-symmorphic space-time groups may protect topological edge states that combine spatial and temporal degrees of freedom.
  • The classification may help identify which time-varying metamaterial designs can realize protected transport without requiring static spatial periodicity.

Load-bearing premise

All physically realizable space-time symmetries in dynamic lattices are captured exactly by the abstract group-cohomology list without further restrictions from time periodicity or laboratory constraints.

What would settle it

Discovery of a symmetry-protected dispersion or selection rule in a two-dimensional dynamic lattice that cannot be assigned to any of the 275 listed groups, or failure to observe the horizontal cone in a metamaterial engineered with a non-symmorphic space-time symmetry.

Figures

Figures reproduced from arXiv: 2604.05619 by Chenhang Ke, Congjun Wu.

Figure 1
Figure 1. Figure 1: FIG. 1. List of fourteen (2+1)-dimensional ST Bravais lattices and how they are grouped into crystal systems. The red arrows [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

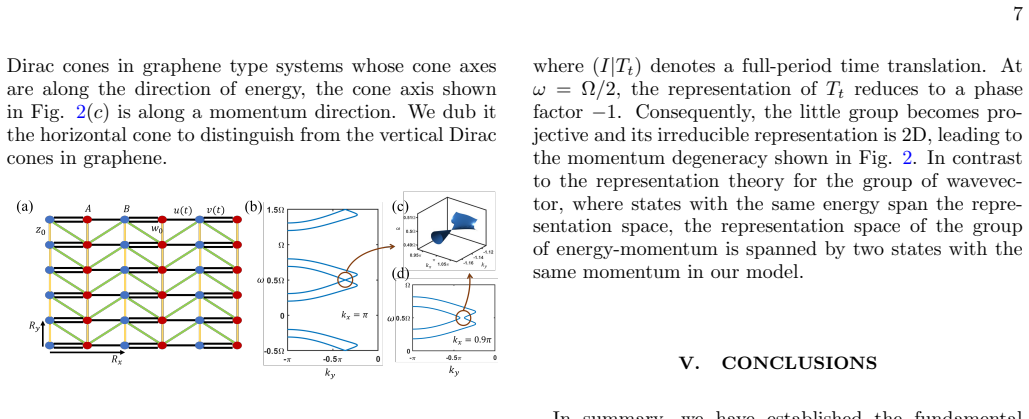

Figure 2. Figure 2: FIG. 2. (a) A tight-binding model with the time–glide re [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
read the original abstract

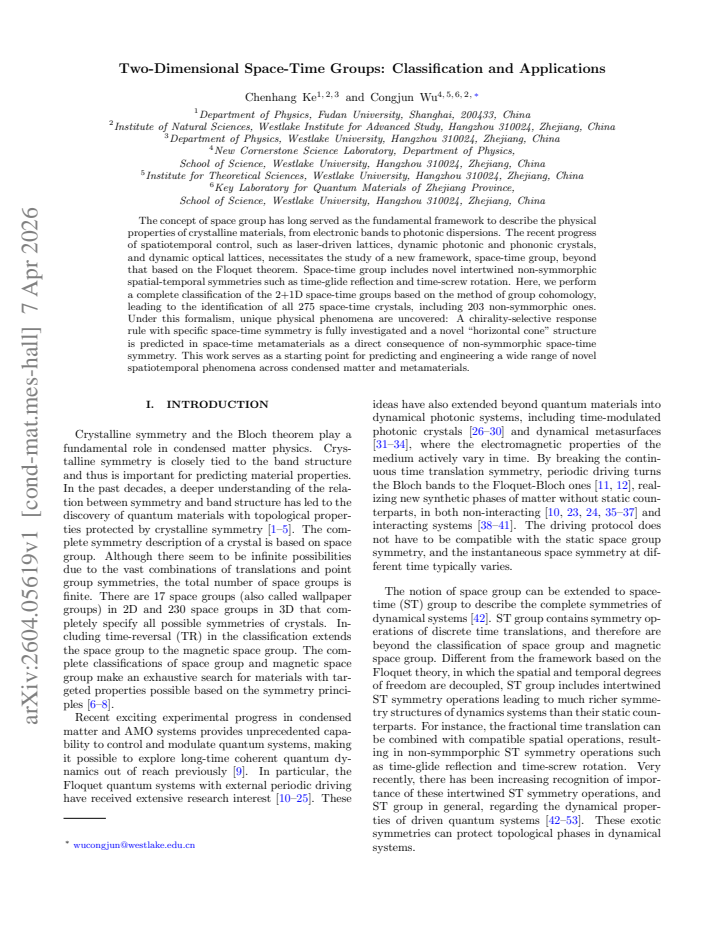

The concept of space group has long served as the fundamental framework to describe the physical properties of crystalline materials, from electronic bands to photonic dispersions. The recent progress of spatiotemporal control, such as laser-driven lattices, dynamic photonic and phononic crystals, and dynamic optical lattices, necessitates the study of a new framework, space-time group, beyond that based on the Floquet theorem. Space-time group includes novel intertwined non-symmorphic spatial-temporal symmetries such as time-glide reflection and time-screw rotation. Here, we perform a complete classification of the 2+1D space-time groups based on the method of group cohomology, leading to the identification of all 275 space-time crystals, including 203 non-symmorphic ones. Under this formalism, unique physical phenomena are uncovered: A chirality-selective response rule with specific space-time symmetry is fully investigated and a novel ``horizontal cone" structure is predicted in space-time metamaterials as a direct consequence of non-symmorphic space-time symmetry. This work serves as a starting point for predicting and engineering a wide range of novel spatiotemporal phenomena across condensed matter and metamaterials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript claims a complete classification of 2+1D space-time groups via group cohomology, yielding exactly 275 distinct space-time crystals (203 non-symmorphic). It identifies novel physical consequences including a chirality-selective response rule tied to specific space-time symmetries and a 'horizontal cone' dispersion structure in space-time metamaterials arising directly from non-symmorphic elements such as time-glide and time-screw operations.

Significance. If the enumeration holds, the work supplies a systematic extension of crystallographic classification to spatiotemporal symmetries, directly relevant to Floquet-engineered systems, dynamic photonic/phononic crystals, and laser-driven lattices. The explicit count of 275 groups and the derivation of falsifiable predictions (chirality rule, horizontal cone) from the cohomology classification constitute a useful reference catalog for the field.

minor comments (3)
  1. [Abstract and §2] The abstract and introduction state the total of 275 without a compact table or breakdown (e.g., by point-group type or cohomology class); adding such a summary table would improve readability and allow quick verification of the enumeration.
  2. [Classification section] Notation for combined space-time operations (time-glide, time-screw) is introduced but not always cross-referenced to the corresponding cohomology cocycles; a short glossary or explicit mapping in the classification section would reduce ambiguity.
  3. [Applications section] The horizontal-cone prediction is presented as a direct symmetry consequence, yet the accompanying dispersion plot lacks an explicit comparison to the symmorphic case; including this contrast would strengthen the claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary of our work on the complete classification of 2+1D space-time groups, the identification of 275 crystals (including 203 non-symmorphic), and the physical consequences such as the chirality-selective response and horizontal cone structures. The recommendation for minor revision is appreciated, and we note that no specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central result is a complete enumeration of 2+1D space-time groups via standard group cohomology applied to extensions of spatial groups by time-translation and combined space-time operations. This is a direct mathematical classification that does not reduce any claimed prediction or count (275 crystals, 203 non-symmorphic) to fitted parameters, self-definitions, or prior results from the same authors. The physical consequences (chirality-selective response, horizontal cone) are derived as symmetry implications rather than inputs. No load-bearing self-citation chains, ansatzes smuggled via citation, or renaming of known results appear in the derivation; the method is externally verifiable against group-cohomology literature and independent of the paper's own fitted or assumed values.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on applying group cohomology to space-time symmetry operations; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Group cohomology provides a complete method to classify all 2+1D space-time groups
    Invoked as the basis for the enumeration of 275 groups.
