arxiv: 2604.05692 · v2 · submitted 2026-04-07 · 💻 cs.IT · math.IT

The Incidence-Multiplicity Bound for Linear Exact Repair in MDS Array Codes

Huawei Wu This is my paper

Pith reviewed 2026-05-10 18:44 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords MDS array codeslinear exact repairrepair bandwidthrepair I/Oincidence multiplicityprojective geometryfield reduction
0
0 comments X

The pith

MDS array codes with redundancy above two obey a strictly tighter lower bound on linear exact repair bandwidth and I/O than earlier projective counts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper refines a projective-geometry counting argument to show that any linear exact repair scheme for an (n,k,ℓ) MDS array code over F_q must use at least ℓ(n-1) minus (r-1) times (q^ℓ-1)/(q-1) symbols of repair bandwidth and the same number of I/O accesses, both on average and in the worst case. The new bound matches the prior one when r equals two and improves it for every larger redundancy. The authors also construct MDS array codes from field reductions of normal rational curves that meet the bound for every n in a wide interval once ℓ is at least two, r at least two, and q satisfies simple divisibility conditions with r.

Core claim

Every linear exact repair scheme for an (n,n-r,ℓ) MDS array code over F_q with r≥2 has average and worst-case repair bandwidth and repair I/O at least ℓ(n-1)-(r-1)(q^ℓ-1)/(q-1). This incidence-multiplicity bound is attained simultaneously for bandwidth and I/O by codes obtained from field reduction of normal rational curves whenever ℓ≥2, r≥2, (r-1) divides (q-1), (q-1)/(r-1)≥2, and n lies between 2(r-1)(q^ℓ-1)/(q-1) and q^ℓ+1.

What carries the argument

The incidence-multiplicity bound obtained by refining the projective counting argument to track how often each point or line is visited across the linear repair equations.

Load-bearing premise

The linear repair constraints are completely captured by the incidence relations among points and subspaces in the projective geometry over F_q, with no extra hidden dependencies coming from the MDS property itself.

What would settle it

For parameters ℓ=2, r=3, q=7 (satisfying the divisibility conditions), construct the claimed MDS array code of length n=32 and check whether any linear exact repair scheme achieves bandwidth or I/O below 2(32-1)-2*(49-1)/6.

read the original abstract

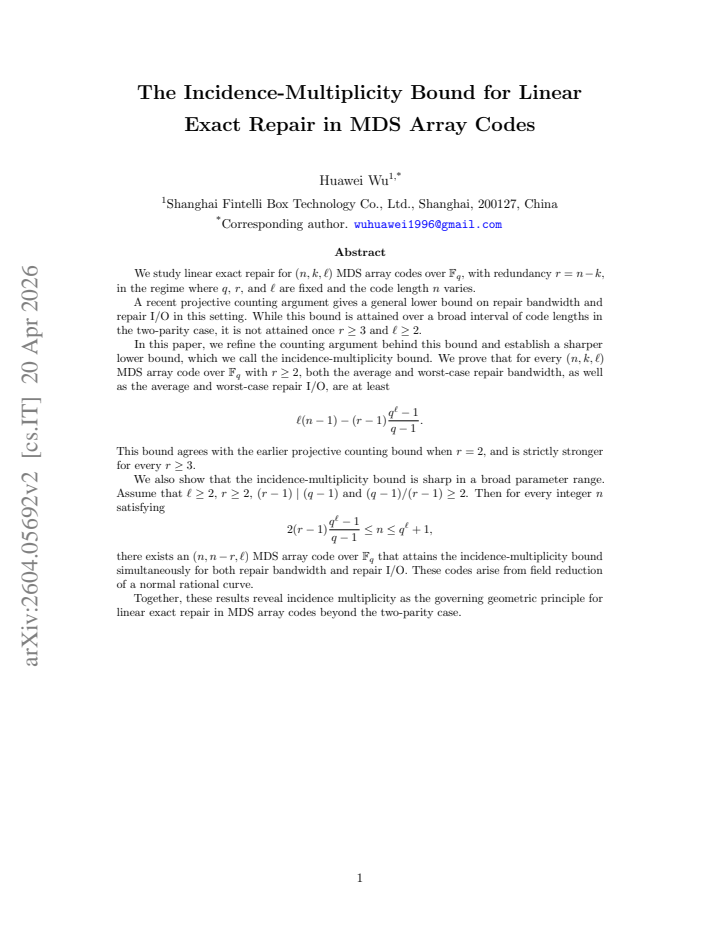

We study linear exact repair for $(n,k,\ell)$ MDS array codes over $\mathbb{F}_q$, with redundancy $r=n-k$, in the regime where $q$, $r$, and $\ell$ are fixed and the code length $n$ varies. A recent projective counting argument gives a general lower bound on repair bandwidth and repair I/O in this setting. While this bound is attained over a broad interval of code lengths in the two-parity case, it is not attained once $r\ge 3$ and $\ell\ge 2$. In this paper, we refine the counting argument behind this bound and establish a sharper lower bound, which we call the incidence-multiplicity bound. We prove that for every $(n,k,\ell)$ MDS array code over $\mathbb{F}_q$ with $r\ge 2$, both the average and worst-case repair bandwidth, as well as the average and worst-case repair I/O, are at least $$\ell(n-1)-(r-1)\frac{q^\ell-1}{q-1}.$$This bound agrees with the earlier projective counting bound when $r=2$, and is strictly stronger for every $r\ge 3$. We also show that the incidence-multiplicity bound is sharp in a broad parameter range. Assume that $\ell\ge 2$, $r\ge 2$, $(r-1)\mid(q-1)$, and $(q-1)/(r-1)\ge 2$. Then for every integer $n$ satisfying $$2(r-1)\frac{q^\ell-1}{q-1}\le n\le q^\ell+1,$$ there exists an $(n,n-r,\ell)$ MDS array code over $\mathbb{F}_q$ that attains the incidence-multiplicity bound simultaneously for both repair bandwidth and repair I/O. These codes arise from field reduction of a normal rational curve. Together, these results reveal incidence multiplicity as the governing geometric principle for linear exact repair in MDS array codes beyond the two-parity case.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper refines a projective counting argument to derive the incidence-multiplicity lower bound on linear exact repair bandwidth and I/O for (n,k,ℓ) MDS array codes over F_q with r=n-k≥2: both average and worst-case quantities are at least ℓ(n-1)-(r-1)(q^ℓ-1)/(q-1). The bound coincides with the prior projective bound when r=2 and is strictly stronger for r≥3. The authors further construct MDS array codes attaining the bound simultaneously for bandwidth and I/O when ℓ≥2, r≥2, (r-1)|(q-1), (q-1)/(r-1)≥2, and n lies in the interval [2(r-1)(q^ℓ-1)/(q-1), q^ℓ+1], using field reduction of normal rational curves.

Significance. If the counting argument and constructions hold, the work supplies a tighter, geometrically grounded bound that governs linear exact repair beyond the two-parity case and demonstrates its sharpness over a wide parameter range. The explicit normal-rational-curve constructions and the identification of incidence multiplicity as the governing principle constitute concrete advances for MDS array codes in distributed storage.

minor comments (2)
  1. [Abstract] The abstract states the bound and the sharpness regime clearly, but the parenthetical condition (q-1)/(r-1)≥2 could be restated once in the introduction for readers who skip the abstract.
  2. [Introduction] In the statement of the main theorem, the lower bound expression uses the same symbol ℓ for both the array size and the number of rows; a brief reminder that ℓ is fixed would prevent any momentary ambiguity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful reading and positive assessment of our manuscript. The referee summary accurately captures our refinement of the projective counting argument to the incidence-multiplicity bound and the constructions attaining it via field reduction of normal rational curves. We appreciate the recognition of the advance beyond the r=2 case.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation proceeds via a direct refinement of the projective incidence counting argument applied to the linear repair constraints of any (n,k,ℓ) MDS array code; the resulting incidence-multiplicity lower bound is obtained by algebraic counting that does not presuppose or fit to the final expression. Sharpness is established by an explicit construction that maps normal rational curves in PG(ℓ,r-1) to MDS array codes via field reduction, a standard finite-geometry technique whose parameters are independent of the bound being proved. No self-definitional equations, fitted inputs renamed as predictions, or load-bearing self-citations appear in the central chain. The r=2 case recovers a known bound while the r≥3 strengthening follows from the same counting without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work relies on established finite geometry and coding theory without introducing new free parameters or invented entities.

axioms (2)
  • standard math Finite fields F_q and projective spaces PG(ℓ-1,q) obey standard incidence and counting properties.
    Foundation for the refined projective counting argument.
  • domain assumption Normal rational curves exist in projective spaces and their field reductions produce MDS array codes.
    Invoked to establish existence of codes attaining the bound.
