arxiv: 2604.05817 · v1 · submitted 2026-04-07 · 🌌 astro-ph.HE

Recognition: 2 theorem links

· Lean Theorem

Unveiling axion signals in galactic supernovae with future MeV telescopes

Zhen Xie , Jiahao Liu , Bing Liu , Ruizhi Yang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:21 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords axion-like particlessupernovaeMeV gamma raysgalactic magnetic fieldsdark matterPrimakoff processtelescope sensitivity
0
0 comments X

The pith

Future MeV telescopes could detect axion-like particles from galactic supernovae at couplings two orders of magnitude below current limits.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates how axion-like particles produced in the cores of nearby core-collapse supernovae could convert into MeV gamma rays while traveling through the Milky Way's magnetic field. It combines simulations of the ALP flux, the energy-dependent conversion probability, and projected performance for next-generation telescopes with larger effective areas and better energy resolution. The analysis uses background estimates drawn from existing MeV missions and shows that these instruments could reach sensitivities down to photon-ALP couplings of about 1.61 × 10^{-13} GeV^{-1} for particles lighter than 10^{-9} eV. This reach would open previously untested regions of parameter space and provide stronger constraints on ultra-light ALPs as a dark matter candidate. The work focuses on the Galactic Center direction where magnetic field effects are strongest.

Core claim

Simulations of ALP production via the Primakoff process in supernova cores, followed by conversion to photons in galactic magnetic fields, demonstrate that next-generation MeV telescopes could achieve sensitivity to photon-ALP couplings as low as approximately 1.61 × 10^{-13} GeV^{-1} for masses below 10^{-9} eV toward the Galactic Center, allowing constraints two orders of magnitude below existing astrophysical bounds.

What carries the argument

The energy-dependent probability that ALPs produced in supernovae convert into MeV photons while traversing the Milky Way's magnetic field, folded with simulated ALP spectra and hypothetical telescope effective area and resolution.

If this is right

  • Future MeV missions would test ALP dark matter models in the ultra-light mass range that current instruments cannot reach.
  • Non-observation of the predicted signals would tighten upper limits on the photon-ALP coupling by roughly a factor of 100 relative to today's astrophysical bounds.
  • The same framework could be applied to other nearby supernovae to map how sensitivity varies with source distance and direction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Combining these projections with independent constraints from neutron-star cooling or stellar evolution would narrow the viable ALP parameter space further.
  • A real detection would directly connect supernova neutrino observations to gamma-ray signals, offering a new multi-messenger probe of particle physics.
  • The method could be extended to extragalactic supernovae if telescope sensitivity improves enough to overcome greater distances.

Load-bearing premise

The sensitivity projections rest on models of future telescope responses and backgrounds extrapolated from current MeV data; any inaccuracy in those models would invalidate the claimed improvement in reach.

What would settle it

Actual performance data from a deployed next-generation MeV telescope showing that its effective area or background levels fall short of the modeled values used in the projections.

Figures

Figures reproduced from arXiv: 2604.05817 by Bing Liu, Jiahao Liu, Ruizhi Yang, Zhen Xie.

Figure 1
Figure 1. Figure 1: The ALP production rate per unit energy in case of a nearly massless ALP with gaγ = 10−10 GeV−1 , integrated over the explosion time of 10 s. To calculate the rate of ALP production via the Primakoff process within an SN core, we closely follow the approach outlined in Ref. [16]. The differential ALP production rate per unit volume and photon energy is given by: dn˙ a dE = g 2 aγg 2 ef fT 3E2 8π 3(e E/T − … view at source ↗
Figure 2
Figure 2. Figure 2: Background flux in SN1987A, Betelgeuse and M31 region with a radius of 2 degrees, the background of 1-10 MeV is extrapolated from Ref.[37], and 50-100 MeV is from the work of Fermi-LAT[39]. The dashed line is the function we use to calculate the background by interpolating these data [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

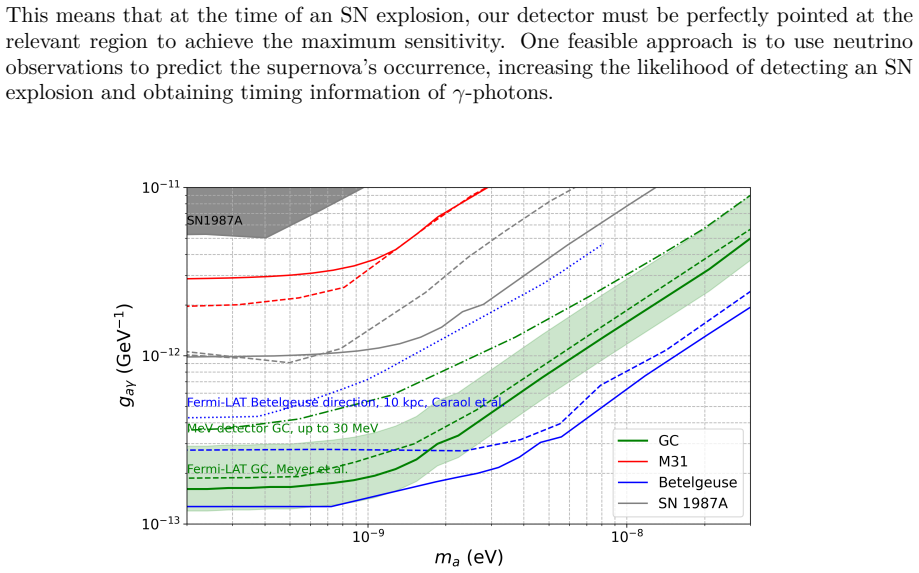

Figure 3. Figure 3: Our best results of expected limits on ALP parameters from an SN explosion. The gray area represents the results from SN 1987A[16], the Fermi-LAT results[8, 9] are shown with dashed lines, and solid lines of the same color indicate the MeV detector results. The shaded area shows the error range of the results at the Galactic Center(with solid line), and the dot-dashed line represents the case for an instru… view at source ↗

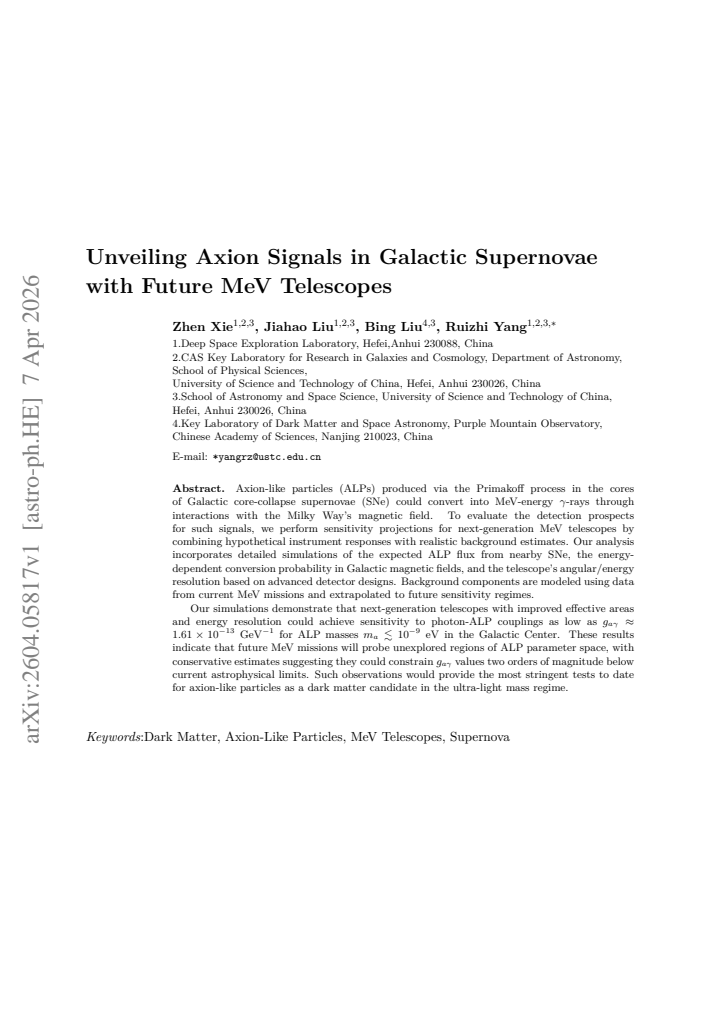

read the original abstract

Axion-like particles (ALPs) produced via the Primakoff process in the cores of Galactic core-collapse supernovae (SNe) could convert into MeV-energy gamma-rays through interactions with the Milky Way's magnetic field. To evaluate the detection prospects for such signals, we perform sensitivity projections for next-generation MeV telescopes by combining hypothetical instrument responses with realistic background estimates. Our analysis incorporates detailed simulations of the expected ALP flux from nearby SNe, the energy-dependent conversion probability in Galactic magnetic fields, and the telescope's angular/energy resolution based on advanced detector designs. Background components are modeled using data from current MeV missions and extrapolated to future sensitivity regimes. Our simulations demonstrate that next-generation telescopes with improved effective areas and energy resolution could achieve sensitivity to photon-ALP couplings as low as gagamma approx 1.61 x 10^-13 GeV^-1 for ALP masses ma < 10^-9 eV in Galactic Center. These results indicate that future MeV missions will probe unexplored regions of ALP parameter space, with conservative estimates suggesting they could constrain gagamma values two orders of magnitude below current astrophysical limits. Such observations would provide the most stringent tests to date for axion-like particles as a dark matter candidate in the ultra-light mass regime.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript simulates axion-like particle (ALP) production via the Primakoff process in Galactic core-collapse supernovae, their energy-dependent conversion to MeV gamma rays in the Milky Way's magnetic field, and the resulting signals observable by next-generation MeV telescopes. It combines these with hypothetical instrument responses (effective area, energy resolution) and background models extrapolated from COMPTEL/INTEGRAL data to project a sensitivity reach of g_{aγ} ≈ 1.61 × 10^{-13} GeV^{-1} for m_a < 10^{-9} eV, claiming this would probe unexplored ALP parameter space two orders of magnitude below current astrophysical limits.

Significance. If the projections are robust, the work would usefully illustrate the discovery potential of future MeV missions for ultra-light ALP dark matter via supernova signals, providing a concrete benchmark for instrument development and observation planning. The detailed modeling of ALP flux and conversion probability is a positive element that could serve as a template for similar studies.

major comments (2)
  1. [Sensitivity analysis / results] The headline sensitivity of g_{aγ} ≈ 1.61 × 10^{-13} GeV^{-1} (abstract and results section) is obtained by folding simulated ALP fluxes with hypothetical telescope response functions and background extrapolations; no dedicated validation against existing MeV data or full error budget on the instrument parameters is reported, so any systematic offset in effective area or background rejection directly scales the quoted limit.
  2. [ALP conversion in Galactic magnetic fields] In the conversion probability calculation (Section 3 or equivalent), P_{a→γ} for m_a < 10^{-9} eV depends on the assumed Galactic B-field coherence length and plasma frequency profile. The manuscript does not propagate uncertainties in these quantities to the final sensitivity, which is load-bearing for the central claim.
minor comments (1)
  1. [Abstract] The abstract states 'conservative estimates' without defining the conservatism criterion or showing the corresponding sensitivity curve.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review of our manuscript. We have carefully considered each major comment and provide point-by-point responses below. Revisions have been made to strengthen the presentation of uncertainties and the robustness of our projections.

read point-by-point responses

  1. Referee: The headline sensitivity of g_{aγ} ≈ 1.61 × 10^{-13} GeV^{-1} (abstract and results section) is obtained by folding simulated ALP fluxes with hypothetical telescope response functions and background extrapolations; no dedicated validation against existing MeV data or full error budget on the instrument parameters is reported, so any systematic offset in effective area or background rejection directly scales the quoted limit.

    Authors: We acknowledge that the analysis relies on hypothetical instrument responses and extrapolated backgrounds, limiting direct validation against current data for the future telescopes themselves. The background models are, however, grounded in extrapolations from COMPTEL and INTEGRAL observations as described in the methods. To address the concern, we will add a new subsection discussing systematic uncertainties in effective area and background rejection, including a quantitative error budget that illustrates how offsets would scale the sensitivity. This will be incorporated in the revised manuscript to improve transparency. revision: yes

  2. Referee: In the conversion probability calculation (Section 3 or equivalent), P_{a→γ} for m_a < 10^{-9} eV depends on the assumed Galactic B-field coherence length and plasma frequency profile. The manuscript does not propagate uncertainties in these quantities to the final sensitivity, which is load-bearing for the central claim.

    Authors: We agree that uncertainties in the Galactic magnetic field model parameters warrant explicit propagation. Our baseline calculation adopts standard values for the coherence length (~1 kpc) and plasma frequency profile from established literature models. In the revised version, we will include a dedicated sensitivity analysis in Section 3, varying the coherence length by ±50% and the plasma frequency within observational bounds, and demonstrate the resulting impact on P_{a→γ} and the final sensitivity reach. This will be presented alongside the central results. revision: yes

Circularity Check

0 steps flagged

No circularity in sensitivity projections; forward modeling from independent inputs

full rationale

The paper derives its sensitivity limit (g_aγ ≈ 1.61×10^{-13} GeV^{-1}) by simulating Primakoff ALP production in SN cores, energy-dependent conversion probability P_{a→γ} in Galactic B-fields, and folding the resulting flux with hypothetical telescope effective area, energy resolution, and background models extrapolated from COMPTEL/INTEGRAL. These steps are sequential calculations using external physics models and instrument assumptions rather than any self-definition, fitted parameter renamed as prediction, or load-bearing self-citation. The quoted result is an output of the chain, not equivalent to its inputs by construction. No uniqueness theorems, ansatzes, or renamings of known results appear in the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 0 invented entities

The central claim rests on standard domain assumptions about ALP production and conversion plus extrapolated instrument and background models; no free parameters or new entities are explicitly introduced in the abstract.

axioms (3)
  • domain assumption ALPs produced via Primakoff process in SN cores
    Invoked as the production mechanism for the expected flux.
  • domain assumption Energy-dependent conversion in Galactic magnetic fields
    Required to turn ALPs into observable MeV gamma rays.
  • domain assumption Backgrounds can be reliably extrapolated from current MeV missions
    Used to estimate future sensitivity.

pith-pipeline@v0.9.0 · 5530 in / 1514 out tokens · 82912 ms · 2026-05-10T19:21:28.679730+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

57 extracted references · 57 canonical work pages

  1. [1]

    L. F. Abbott and P. Sikivie. A cosmological bound on the invisible axion. Physics Letters B, 120(1-3):133–136, 1983

    work page 1983

  2. [2]

    Dine and W

    M. Dine and W. Fischler. The not-so-harmless axion. Physics Letters B , 120(1-3):137–141, 1983

    work page 1983

  3. [3]

    Cosmology of the invisible axion

    John Preskill, Mark B Wise, and Frank Wilczek. Cosmology of the invisible axion. Physics Letters B , 120(1-3):127–132, 1983

    work page 1983

  4. [4]

    R. D. Peccei and H. R. Quinn. Cp conservation in the presence of pseudoparticles. Physical Review Letters, 38(25):1440–1443, 1977

    work page 1977

  5. [5]

    G. G. Raffelt, J. Redondo, and N. V. Maira. The mev mass frontier of axion physics. Physical Review D—Particles, Fields, Gravitation, and Cosmology , 84(10):103008, 2011

    work page 2011

  6. [6]

    P. Sikivie. Axion cosmology. Physical Review Letters , 51(14):1415–1417, 1983

    work page 1983

  7. [7]

    G. G. Raffelt. Stars as laboratories for fundamental physics: The astrophysics of neutrinos, axions, and other weakly interacting particles . University of Chicago Press, 1996

    work page 1996

  8. [8]

    Meyer, M

    M. Meyer, M. Giannotti, A. Mirizzi, et al. Fermi large area telescope as a galactic supernovae axionscope. Physical Review Letters , 118(1):011103, 2017

    work page 2017

  9. [9]

    Calore, P

    F. Calore, P. Carenza, C. Eckner, et al. Uncovering axionlike particles in supernova gamma- ray spectra. Physical Review D , 109(4), February 2024

    work page 2024

  10. [10]

    Hoof and L

    S. Hoof and L. Schulz. Updated constraints on axion-like particles from temporal information in supernova sn1987a gamma-ray data. Journal of Cosmology and Astroparticle Physics, 2023(03):054, March 2023

    work page 2023

  11. [11]

    Primakoff

    H. Primakoff. Photo-production of neutral mesons in nuclear electric fields and the mean life of the neutral meson. Phys. Rev. , 81:899–899, Mar 1951

    work page 1951

  12. [12]

    P. Sikivie. Experimental tests of the ”invisible” axion. Phys. Rev. Lett. , 51:1415–1417, Oct 1983

    work page 1983

  13. [13]

    De Angelis, V

    A. De Angelis, V. Tatischeff, M. Tavani, et al. The e-astrogam mission: Exploring the extreme universe with gamma rays in the mev – gev range. Experimental Astronomy , 44(1):25–82, June 2017

    work page 2017

  14. [14]

    Fleischhack for the AMEGO-X team

    H. Fleischhack for the AMEGO-X team. AMEGO-X: MeV gamma-ray Astronomy in the Multi-messenger Era. In 37th International Cosmic Ray Conference , page 649, March 2022

    work page 2022

  15. [15]

    J. A. Tomsick, A. Zoglauer, C. Sleator, et al. The compton spectrometer and imager. arXiv:1908.04334, 2019

    work page arXiv 1908

  16. [16]

    Payez, C

    A. Payez, C. Evoli, T. Fischer, et al. Revisiting the sn1987a gamma-ray limit on ultralight axion-like particles. Journal of Cosmology and Astroparticle Physics , 2015(02):006, 2015

    work page 2015

  17. [17]

    Andriamonje, S

    S. Andriamonje, S. Aune, D. Autiero, et al. An improved limit on the axion–photon coupling from the cast experiment. Journal of Cosmology and Astroparticle Physics , 2007(04):010, 2007

    work page 2007

  18. [18]

    Horns, L

    D. Horns, L. Maccione, M. Meyer, et al. Hardening of tev gamma spectrum of active galactic nuclei in galaxy clusters by conversions of photons into axionlike particles. Physical Review D, 86(7), October 2012

    work page 2012

  19. [19]

    Carenza, M

    P. Carenza, M. Giannotti, J. Isern, et al. Axion astrophysics. Physics Reports, 1117:1–102, April 2025

    work page 2025

  20. [20]

    Lella, F

    A. Lella, F. Calore, P. Carenza, et al. Probing protoneutron stars with gamma-ray axionscopes. Journal of Cosmology and Astroparticle Physics , 2024(11):009, November 2024

    work page 2024

  21. [21]

    Di Lella, A

    L. Di Lella, A. Pilaftsis, G. Raffelt, et al. Search for solar kaluza-klein axions in theories of low-scale quantum gravity. Phys. Rev. D , 62:125011, Nov 2000

    work page 2000

  22. [22]

    G.G. Raffelt. Axions—motivation, limits and searches. Journal of Physics A: Mathematical and Theoretical, 40(25):6607, 2007

    work page 2007

  23. [23]

    Carenza, A

    P. Carenza, A. Mirizzi, and G. Sigl. Dynamical evolution of axion condensates under stimulated decays into photons. Phys. Rev. D , 101:103016, May 2020

    work page 2020

  24. [24]

    Caputo, G

    A. Caputo, G. G. Raffelt, and E. Vitagliano. Muonic boson limits: Supernova redux. Phys. Rev. D , 105:035022, Feb 2022

    work page 2022

  25. [25]

    Calore, P

    F. Calore, P. Carenza, M. Giannotti, et al. 511 kev line constraints on feebly interacting particles from supernovae. Phys. Rev. D , 105:063026, Mar 2022

    work page 2022

  26. [26]

    Rembiasz, M

    T. Rembiasz, M. Obergaulinger, M. Masip, et al. Heavy sterile neutrinos in stellar core- collapse. Physical Review D , 98(10), November 2018

    work page 2018

  27. [27]

    K. Mori, T. Takiwaki, K. Kotake, et al. Shock revival in core-collapse supernovae assisted by heavy axionlike particles. Physical Review D , 105(6), March 2022

    work page 2022

  28. [28]

    Berezhiani and A

    Z. Berezhiani and A. Drago. Gamma ray bursts via emission of axion-like particles. Physics Letters B , 473(3–4):281–290, February 2000

    work page 2000

  29. [29]

    M. D. Diamond and G. Marques-Tavares. γ-ray flashes from dark photons in neutron star mergers. Phys. Rev. Lett. , 128:211101, May 2022

    work page 2022

  30. [30]

    K. Mori, T. Takiwaki, K. Kotake, et al. Multimessenger signals of heavy axionlike particles in core-collapse supernovae: Two-dimensional simulations. Physical Review D , 108(6):063027, 2023

    work page 2023

  31. [31]

    2019, in Bulletin of the American Astronomical Society, Vol

    J. McEnery, J. A. Barrio, I. Agudo, et al. All-sky medium energy gamma-ray observatory: Exploring the extreme multimessenger universe. arXiv:1907.07558, 2019

    work page arXiv 1907

  32. [32]

    B. W. Carroll and D. A. Ostlie. An Introduction to Modern Astrophysics. Pearson Education, 2nd edition, 2006

    work page 2006

  33. [33]

    G. M. Harper, A. Brown, and E. F. Guinan. Betelgeuse: Observations, physical properties, and implications. Astronomy and Astrophysics Review , 16(1):15–29, 2008

    work page 2008

  34. [34]

    E. M. Levesque, P. Massey, and K.A. G. Olsen. The physical properties of the red supergiant betelgeuse: new results from the optical spectrum. The Astrophysical Journal , 628(2):973– 985, 2005

    work page 2005

  35. [35]

    Binney and M

    J. Binney and M. Merrifield. Galactic astronomy . Princeton University Press, 2021

    work page 2021

  36. [36]

    Z. Xie, B. Liu, J. Liu, et al. Limits on the primordial black holes dark matter with future mev detectors. Phys. Rev. D , 109:043020, Feb 2024

    work page 2024

  37. [37]

    Siegert, J

    T. Siegert, J. Berteaud, F. Calore, et al. Diffuse galactic emission spectrum between 0.5 and 8.0 mev. Astronomy &amp; Astrophysics , 660:A130, April 2022

    work page 2022

  38. [38]

    A. E. Vladimirov, S. W. Digel, G. Jóhannesson, et al. GALPROP WebRun: An internet-based service for calculating galactic cosmic ray propagation and associated photon emissions. Computer Physics Communications , 182:1156–1161, May 2011

    work page 2011

  39. [39]

    Galactic interstellar emission model for the 4fgl catalog analysis

    The Fermi-LAT collaboration. Galactic interstellar emission model for the 4fgl catalog analysis. open document, 2019

    work page 2019

  40. [40]

    G. J. Feldman and R. D. Cousins. Unified approach to the classical statistical analysis of small signals. Physical review D , 57(7):3873, 1998

    work page 1998

  41. [41]

    Jansson and G

    R. Jansson and G. R. Farrar. A New Model of the Galactic Magnetic Field. Astrophysical Journal, 757(1):14, September 2012

    work page 2012

  42. [42]

    H. R. Neilson, J. B. Lester, X. Haubois, et al. Asp conf. ser. vol. 451, 9th pacific rim conference on stellar astrophysics. 2011

    work page 2011

  43. [43]

    Diehl, H

    R. Diehl, H. Halloin, K. Kretschmer, et al. Radioactive 26al from massive stars in the galaxy. Nature, 439(7072):45–47, 2006

    work page 2006

  44. [44]

    E. F. Keane and M. Kramer. On the birthrates of galactic neutron stars. Monthly Notices of the Royal Astronomical Society , 391(4):2009–2016, 2008

    work page 2009

  45. [45]

    S. M. Adams, C.S. Kochanek, J. F. Beacom, et al. Observing the next galactic supernova. The Astrophysical Journal , 778(2):164, 2013

    work page 2013

  46. [46]

    J. F. Beacom and P. Vogel. Can a supernova be located by its neutrinos? Phys. Rev. D , 60:033007, Jul 1999

    work page 1999

  47. [47]

    Tomàs, D

    R. Tomàs, D. Semikoz, G. G. Raffelt, et al. Supernova pointing with low- and high-energy neutrino detectors. Physical Review D , 68(9), November 2003

    work page 2003

  48. [48]

    Mukhopadhyay, C

    M. Mukhopadhyay, C. Lunardini, F.X. Timmes, et al. Presupernova neutrinos: directional sensitivity and prospects for progenitor identification. The Astrophysical Journal , 899(2):153, 2020

    work page 2020

  49. [49]

    Syvolap and O

    V. Syvolap and O. Ruchayskiy. High-energy neutrino signals from supernova explosions: A new window into dark photon parameter space. Physical Review D , 110(11):115043, 2024

    work page 2024

  50. [50]

    D.A. Green. An updated catalogue of 310 galactic supernova remnants and their statistical properties. Journal of Astrophysics and Astronomy , 46(1):1–15, 2025

    work page 2025

  51. [51]

    S. Abe, M. Eizuka, S. Futagi, et al. Combined pre-supernova alert system with kamland and super-kamiokande. arXiv preprint arXiv:2404.09920 , 2024

    work page arXiv 2024

  52. [52]

    A. D. Santos. Latest results from super-kamiokande. arXiv preprint arXiv:2405.07900 , 2024

    work page arXiv 2024

  53. [53]

    Kurahashi for the IceCube Collaboration

    N. Kurahashi for the IceCube Collaboration. Highlights from the icecube neutrino observatory. arXiv preprint arXiv:2310.12840 , 2023

    work page arXiv 2023

  54. [54]

    Di Lodovico, Hyper-Kamiokande Collaboration, et al

    F. Di Lodovico, Hyper-Kamiokande Collaboration, et al. The hyper-kamiokande experiment. In Journal of Physics: Conference Series , volume 888, page 012020. IOP Publishing, 2017

    work page 2017

  55. [55]

    Abusleme et al., Potential to identify neutrino mass ordering with reactor antineu- trinos at JUNO, Chin

    JUNO Collaboration et al. Potential to identify the neutrino mass ordering with reactor antineutrinos in juno. arXiv preprint arXiv:2405.18008 , 2024

    work page arXiv 2024

  56. [56]

    B. Abi, R. Acciarri, M. A. Acero, et al. Volume i. introduction to dune. Journal of instrumentation, 15(08):T08008, 2020

    work page 2020

  57. [57]

    Scholberg

    K. Scholberg. Supernova neutrino detection. Annual Review of Nuclear and Particle Science, 62(1):81–103, 2012

    work page 2012
