Lecture Note for Bounded Controls in Continuous-Time and Control of Several Variables
Pith reviewed 2026-05-10 18:50 UTC · model grok-4.3
The pith
Optimal control problems with box constraints on the control require a modified Pontryagin maximum principle that includes intrinsic projection onto the admissible set.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper establishes the precise modification of Pontryagin's maximum principle for compact admissible control sets, supplies the projection or clamping formula for scalar quadratic Hamiltonians, and demonstrates the distinction between intrinsic projection inside the optimality system and post-hoc truncation of an unconstrained solution, together with the corresponding forward-backward sweep procedure.
What carries the argument
The projection or clamping formula that maps the candidate control derived from the Hamiltonian back into the box bounds, applied inside the coupled optimality system rather than after solution.
If this is right
- The optimality system now contains the projected control at each instant along the trajectory.
- Forward-backward sweep iterations apply the projection at every step to keep state and adjoint consistent.
- Post-hoc truncation of an unconstrained solution can produce incorrect adjoint variables and higher costs.

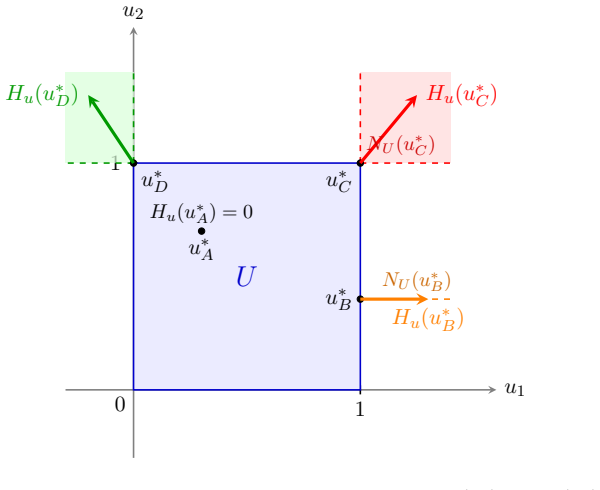

- The same projection extends componentwise to problems with several control variables.
Where Pith is reading between the lines
- Numerical implementations that embed the projection inside the iteration will avoid the inconsistencies that arise from external clipping.
- Biological models with bounded inputs, as referenced in the source book, would be natural test cases to observe whether the two approaches yield measurably different trajectories.
- The distinction suggests that some existing numerical codes for bounded optimal control may need re-examination if they rely on post-processing truncation.
Load-bearing premise
Readers already understand variational arguments, adjoint systems, and basic nonlinear analysis for unconstrained problems.
What would settle it
Solve a simple scalar linear-quadratic optimal control problem with box bounds once by clamping inside the forward-backward system and once by solving unconstrained then truncating afterward; different final costs or trajectories would confirm the distinction is required.
Figures
read the original abstract

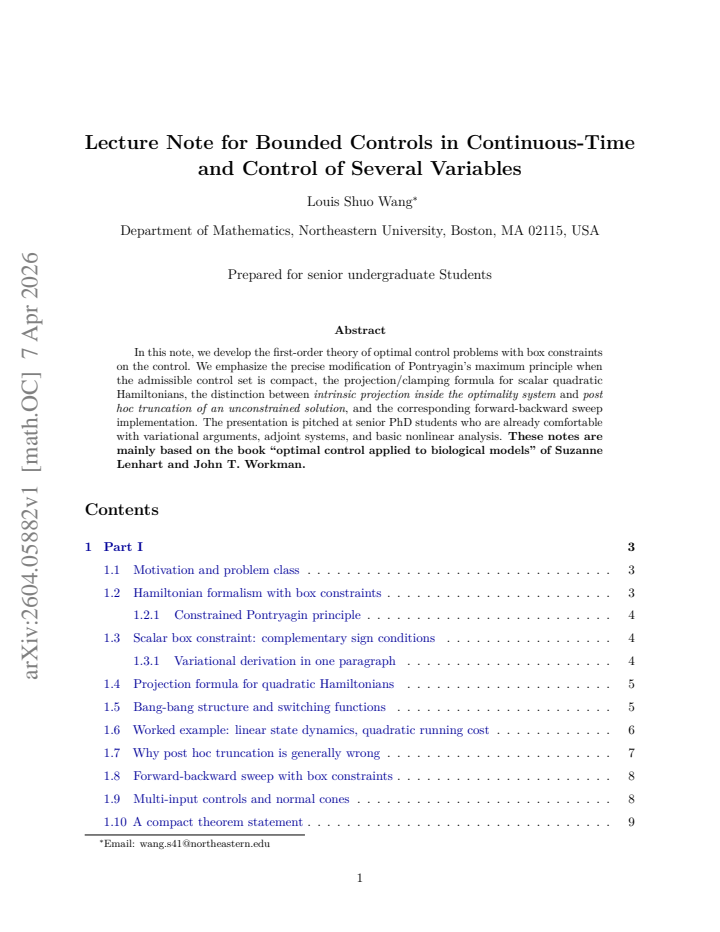

In this note, we develop the first-order theory of optimal control problems with box constraints on the control. We emphasize the precise modification of Pontryagin's maximum principle when the admissible control set is compact, the projection/clamping formula for scalar quadratic Hamiltonians, the distinction between intrinsic projection inside the optimality system and post hoc truncation of an unconstrained solution, and the corresponding forward-backward sweep implementation. The presentation is pitched at senior PhD students who are already comfortable with variational arguments, adjoint systems, and basic nonlinear analysis. These notes are mainly based on the book ``optimal control applied to biological models'' of Suzanne Lenhart and John T. Workman.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This lecture note develops the first-order theory of optimal control problems with box constraints on the control. It emphasizes the precise modification of Pontryagin's maximum principle for compact admissible control sets, the projection/clamping formula for scalar quadratic Hamiltonians, the distinction between intrinsic projection inside the optimality system versus post-hoc truncation of an unconstrained solution, and the corresponding forward-backward sweep implementation. The presentation is based primarily on the book by Lenhart and Workman and is pitched at senior PhD students already familiar with variational arguments, adjoint systems, and basic nonlinear analysis.
Significance. If the exposition accurately captures the standard theory, the note provides a focused pedagogical resource that clarifies subtle but practically important distinctions in applying Pontryagin's principle to bounded controls. The explicit treatment of intrinsic projection within the optimality system versus post-hoc truncation, together with the forward-backward sweep implementation, strengthens understanding of how to derive and solve the necessary conditions correctly; this is a useful supplement for students and applied researchers even though no new theorems or derivations are introduced.
minor comments (3)
- [Title] The title appears truncated (ending with 'and Control of Several Variables'); a complete title would improve discoverability and clarity.
- [Introduction] While the abstract states the notes are 'mainly based on' the Lenhart-Workman book, a short paragraph in the introduction citing the specific chapters or theorems being re-presented would help readers cross-reference the source material.
- [Preliminaries] Notation for the admissible control set (e.g., the precise definition of the box constraints) should be introduced once in a dedicated preliminary section rather than assumed from the referenced book, to make the note more self-contained.
Simulated Author's Rebuttal
We thank the referee for the positive and constructive report. The assessment that the lecture notes clarify subtle distinctions in applying Pontryagin's principle to box-constrained controls, while remaining accessible to senior PhD students, aligns with our intent. We appreciate the recommendation for minor revision and have used the opportunity to improve readability and precision in several places.
Circularity Check
Expository lecture note with no circular derivations or self-referential claims
full rationale
The manuscript is explicitly positioned as a pedagogical clarification of standard first-order necessary conditions (modified PMP for compact control sets, clamping formulas, intrinsic vs. post-hoc projection) drawn from the external book by Lenhart and Workman. No novel theorems, parameter fits, or derivations are asserted; the note contains no self-citations, no fitted inputs renamed as predictions, and no load-bearing steps that reduce to the paper's own inputs by construction. All content is self-contained against the cited external reference.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Standard assumptions of optimal control theory including existence of solutions, differentiability of the Hamiltonian, and validity of Pontryagin's maximum principle for unconstrained cases.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We emphasize the precise modification of Pontryagin’s maximum principle when the admissible control set is compact, the projection/clamping formula for scalar quadratic Hamiltonians
-
IndisputableMonolith/Foundation/BranchSelection.leanbranch_selection unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
u∗(t) = clamp[a,b](ũ(t)) = min{b,max{a,ũ(t)}}
