Quantum phases in the interacting generalized Su-Schrieffer-Heeger model
Pith reviewed 2026-05-10 18:46 UTC · model grok-4.3
The pith
Interactions transform the free-fermion SPT phases of a generalized Su-Schrieffer-Heeger model into distinct interacting topological phases that keep their diagnostic signatures.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the noninteracting limit the generalized Su-Schrieffer-Heeger model hosts one trivial phase and two SPT phases distinguished by winding numbers and entanglement-spectrum degeneracies. When interactions are turned on, these SPT phases become distinct interacting topological phases that continue to exhibit entanglement-spectrum degeneracy structures, boundary modes, and nonzero string order parameters. For strong repulsive interactions a symmetry-breaking phase with spatially uniform but unequal sublattice densities appears, while strong attractive interactions generate period-2 and period-4 charge-density-wave phases. At intermediate attractive interactions the competition between hopping,
What carries the argument
The generalized interacting Su-Schrieffer-Heeger model with intracell, nearest-neighbor, next-nearest-neighbor hoppings and on-site inter-sublattice interaction; the mechanism is the survival of topological diagnostics (entanglement-spectrum degeneracy, boundary modes, string order) under interactions together with the emergence of gapless phases classified by central charge.
Load-bearing premise
The numerical diagnostics such as entanglement-spectrum degeneracy and string order parameters continue to classify phases correctly even when interactions become strong enough to mix the original free-fermion bands.
What would settle it
A numerical computation that finds the string order parameter drops to zero or the entanglement spectrum loses its characteristic degeneracy inside the parameter region the paper identifies as an interacting topological phase would falsify the claim that the signatures are retained.
Figures
read the original abstract
We investigate the quantum phases of a half-filled generalized interacting Su-Schrieffer-Heeger model with intracell, nearest-neighbor, and next-nearest-neighbor intercell hoppings, together with an on-site inter-sublattice interaction. In the noninteracting limit, the model hosts one topologically trivial phase and two symmetry-protected topological (SPT) phases, distinguished under periodic boundary conditions by different winding numbers and under open boundary conditions by two-fold and four-fold entanglement-spectrum degeneracies, respectively. When interactions are introduced, these free-fermion SPT phases evolve into distinct interacting topological phases that retain characteristic signatures such as entanglement-spectrum degeneracy structures, boundary modes, and nonzero string order parameters. For strong repulsive interactions, a symmetry-breaking phase with unequal but spatially uniform sublattice densities appears between the trivial and topological regimes. For strong attractive interactions, period-2 and period-4 charge-density-wave phases emerge from particle clustering. At intermediate attractive interactions, the competition between interaction-induced localization and hopping-induced delocalization gives rise to a Luttinger liquid phase, a paired Luttinger liquid phase, and a gapless symmetry-protected topological (gSPT) phase. The gSPT phase is characterized by a gapless charge mode together with symmetry-protected current-carrying edge states. We further characterize the gapless phases and the associated quantum phase transitions through central charges and critical exponents.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates the quantum phases of the half-filled generalized interacting Su-Schrieffer-Heeger model with intracell, nearest-neighbor, and next-nearest-neighbor intercell hoppings together with an on-site inter-sublattice interaction. In the non-interacting limit it identifies one trivial phase and two SPT phases distinguished by winding numbers and entanglement-spectrum degeneracies (two-fold and four-fold). With finite interactions the free-fermion SPT phases evolve into interacting topological phases that retain entanglement-spectrum degeneracy, boundary modes, and nonzero string order parameters; strong repulsion produces a symmetry-breaking phase with uniform but unequal sublattice densities, while strong attraction yields period-2 and period-4 CDW phases. At intermediate attractive interactions the model realizes a Luttinger liquid, a paired Luttinger liquid, and a gapless SPT (gSPT) phase characterized by a gapless charge mode plus symmetry-protected current-carrying edge states; these gapless phases and their transitions are further analyzed via central charges and critical exponents.
Significance. If the numerical diagnostics remain reliable, the work supplies a comprehensive phase diagram for an extended 1D interacting fermionic chain that demonstrates the persistence of topological signatures under interactions and introduces a concrete realization of a gapless symmetry-protected topological phase. The multi-diagnostic approach (entanglement spectra, string order, central charges, boundary modes) and the explicit mapping from free-fermion to interacting regimes constitute a useful reference for the community studying interacting SPT physics in one dimension.
minor comments (4)
- The abstract states that the gSPT phase is 'characterized by a gapless charge mode together with symmetry-protected current-carrying edge states,' but the manuscript should explicitly show the edge-current operator or correlation function used to confirm the current-carrying property (rather than inferring it solely from symmetry protection).
- In the discussion of strong-repulsive interactions, the symmetry-breaking phase is described as having 'unequal but spatially uniform sublattice densities'; a brief plot or table of the density difference versus U would help readers assess the order-parameter magnitude and its saturation.
- The central-charge extractions for the Luttinger-liquid, paired-Luttinger-liquid, and gSPT phases rely on entanglement-entropy scaling; the manuscript should state the range of system sizes employed and the fitting window used to extract c, together with any finite-size extrapolation procedure.
- Notation for the three hopping amplitudes (t1, t2, t3) and the interaction U is introduced in the abstract but should be defined with explicit Hamiltonian terms in the first section of the main text for immediate readability.
Simulated Author's Rebuttal
We thank the referee for the careful and accurate summary of our work on the quantum phases of the half-filled generalized interacting Su-Schrieffer-Heeger model. We appreciate the positive evaluation of the significance of the results, including the comprehensive phase diagram, the persistence of topological signatures under interactions, and the concrete realization of the gapless SPT phase. The recommendation for minor revision is noted, and we are happy to incorporate any editorial improvements to enhance clarity or presentation.
Circularity Check
No significant circularity identified
full rationale
The paper's analysis relies on standard numerical diagnostics (entanglement-spectrum degeneracy, string order parameters, central charges, boundary modes) applied to the interacting generalized SSH model. These observables are independently established in the literature for classifying 1D fermionic phases and do not reduce to self-definitions, fitted inputs renamed as predictions, or load-bearing self-citations. Phase boundaries and the evolution from free-fermion SPT phases to interacting counterparts are determined directly from these external benchmarks rather than by construction from the target quantities themselves. The derivation chain remains self-contained with no quoted steps exhibiting circular reduction.
Axiom & Free-Parameter Ledger
free parameters (2)
- interaction strength U
- hopping amplitudes t1, t2, t3
axioms (2)
- domain assumption Half-filling constraint
- standard math Periodic and open boundary conditions used for diagnostics
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We investigate the quantum phases of a half-filled generalized interacting Su-Schrieffer-Heeger model with intracell, nearest-neighbor, and next-nearest-neighbor intercell hoppings, together with an on-site inter-sublattice interaction... distinguished under periodic boundary conditions by different winding numbers and under open boundary conditions by two-fold and four-fold entanglement-spectrum degeneracies
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
the Luttinger parameter K is extracted from correlation functions... central charges and critical exponents
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
The von Neumann entanglement entropy SvN in the(u,t 1)plane is shown in Fig
Interacting SSH limit (t2 = 0) We first consider the limitt2→0, where the model reduces to the interacting SSH chain with an intra-cell interactionu. The von Neumann entanglement entropy SvN in the(u,t 1)plane is shown in Fig. 2(a). Three gapped phases can be identified: two low-entanglement regions at smallt 1, and a regime withS vN ∼ln 2at largert 1. Fo...
-
[2]
Extended model witht 1 = 2t2 >0 We now turn ont2 >0with a fixed ratiot 1 = 2t2 and plotS vN in the(u,t 1)plane in Fig. 2(b). As in thet2 = 0 case, a gapless regime emerges from the special point (u,t 1) = (−2,0), consistent with the effective spin-1 pic- ture in which the single-ion anisotropy vanishes and the leading model is critical. Away from this poi...
-
[3]
To investigate the effects of largert 2, we plotS vN in the(u,t 2)plane with fixedt 1 = 0.1 in Fig
Phase diagram witht 1 = 0.1andt 2 >0 We have seen that turning on a smallt2 enlarges the gapless regime and also favors the trivial region by desta- bilizing SPT1. To investigate the effects of largert 2, we plotS vN in the(u,t 2)plane with fixedt 1 = 0.1 in Fig. 2(c). This cut intersects the gapless regime in Fig. 2(a) and allows us to study the evolutio...
-
[4]
Phase diagrams at fixedu To further illustrate the effects of interaction, we plot SvN in the(t 1,t 2)plane at fixedu=−4,−2, and6in Fig. 3(a), (b), and (c), respectively. These cuts show how interactions deform the noninteracting phase diagram. For strong attraction,u=−4, doublons on thet0 links are favored, producing two low-entanglement regimes at small...
-
[5]
Gapped symmetry-protected topological phases We now discuss the gapped SPT phases. Under OBCs, the distinct gapped phases are diagnosed by complemen- tary bulk and boundary signatures, including nonlocal SOPs, ES, and boundary excess charges. Figure 4 sum- marizes these quantities for the trivial phase, SPT1, and SPT2. Our SPT1 is adiabatically connected,...
-
[6]
Symmetry-breaking phases When the interaction is sufficiently strong, the system develops spontaneous symmetry breaking. As discussed above, the three symmetry-breaking phases are CDW2, CDW4, and SP, characterized by the local order parame- tersM 2,M 4, andM−defined in Eqs. (6)–(8). CDW2 and CDW4 are favored primarily whent 1 andt 2 dominate, respectively...
-
[7]
Critical properties of the gapless phases We now discuss the critical properties of the gapless phases. In addition to the gapped phases discussed above, the phase diagram contains extended regions of LL, pLL, and gSPT behavior. In the LL phase, both the single-particle and pair correlation functions decay algebraically, whereas in the pLL and gSPT phases...
-
[8]
The inset shows that the magnitudeoftheedge-currentprofiledecaysalgebraicallyinto the bulk, with a linear fit giving a slope of−0.89. the bulk. Finally, Fig. 7(b) showsSvN as a function of lnL. For LL at(t 1,t 2,u) = (0.5,0.15,−2)and pLL at (0.1,0.1,−2.7)and(0.3,0.2,−4), using bond dimension D= 1000, the extracted central charges are1.01,0.99, and1.02, re...
-
[9]

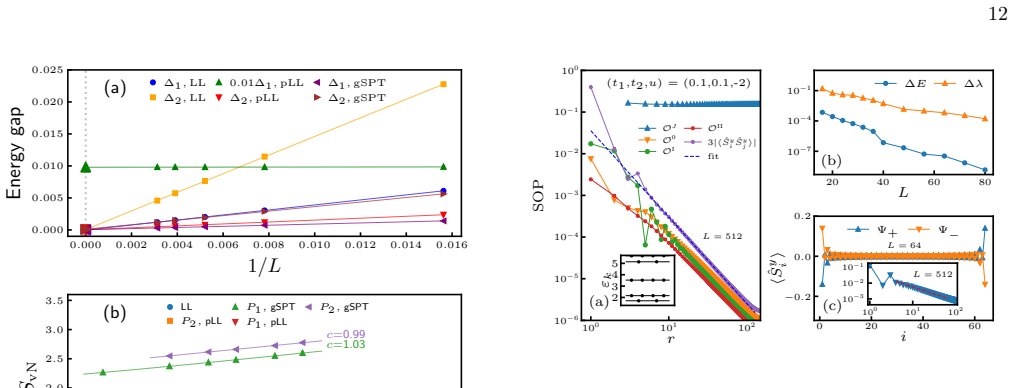

Figure 8(a) shows all SOPs defined in Eq
Gapless symmetry-protected topological phase We next turn to the topological properties of the gSPT phase. Figure 8(a) shows all SOPs defined in Eq. (15) at t1 =t 2 = 0.1,u=−2, andL= 512, with the left endpoint operator fixed ati=L/2 + 1. We find that O0,O I, andO II all decay algebraically to zero, whereas the SOP defined with the current endpoint operat...
-
[10]
The resulting profiles of⟨ˆSy i⟩are shown in Fig. 8(c). They are inver- sion symmetric, with opposite nonzero values localized near the two boundaries, andΨ + andΨ −carry oppo- site signs of⟨ˆSy i⟩, consistent with their degeneracy. The inset of Fig. 8(c) shows that|⟨ˆSy i⟩|decays algebraically into the bulk. A fit ofln|⟨ˆSy i⟩|versuslnigives an expo- nen...
-
[11]
P. M. Ostrovsky, I. V. Gornyi, and A. D. Mirlin, Phys. Rev. Lett.105, 036803 (2010)
work page 2010
- [12]
-
[13]
A. Altland, D. Bagrets, L. Fritz, A. Kamenev, and H. Schmiedt, Phys. Rev. Lett.112, 206602 (2014)
work page 2014
- [14]
-
[15]
L. Zhou, J. Gong, and X.-J. Yu, Commun. Phys.8, 214 (2025)
work page 2025
-
[16]
D. M. Kirschbaum, L. Chen, D. A. Zocco, H. Hu, F. Mazza, M. Karlich, M. Lužnik, D. H. Nguyen, J. Larrea Jiménez, A. M. Strydom, D. Adroja, X. Yan, A. Prokofiev, Q. Si, and S. Paschen, Nat. Phys. (2026), 10.1038/s41567-025-03135-w
- [17]
-
[18]
A. P. Schnyder, S. Ryu, A. Furusaki, and A. W. W. Ludwig, Physical Review B78, 195125 (2008)
work page 2008
- [19]
- [20]
-
[21]
A. M. Turner, F. Pollmann, and E. Berg, Phys. Rev. B 83, 075102 (2011)
work page 2011
- [22]
- [23]
-
[24]
I. Mondragon-Shem, T. L. Hughes, J. Song, and E. Pro- dan, Phys. Rev. Lett.113, 046802 (2014)
work page 2014
- [25]
- [26]
- [27]
-
[28]
E. J. Meier, F. A. An, and B. Gadway, Nat. Commun. 7, 13986 (2016)
work page 2016
-
[29]
D. Xie, W. Gou, T. Xiao, B. Gadway, and B. Yan, npj Quantum Inf5, 55 (2019)
work page 2019
-
[30]
S. De Léséleuc, V. Lienhard, P. Scholl, D. Barredo, S. Weber, N. Lang, H. P. Büchler, T. Lahaye, and A. Browaeys, Science365, 775 (2019)
work page 2019
-
[31]
G. Li, L. Wang, R. Ye, Y. Zheng, D.-W. Wang, X.-J. Liu, A. Dutt, L. Yuan, and X. Chen, Light Sci. Appl.12, 81 (2023)
work page 2023
-
[32]
D. J. Klaassen, L. Eek, A. N. Rudenko, E. D. Van ’T Westende, C. Castenmiller, Z. Zhang, P. L. De Boeij, A. Van Houselt, M. Ezawa, H. J. W. Zandvliet, C. Morais Smith, and P. Bampoulis, Nat. Commun.16, 2059 (2025)
work page 2059
-
[33]
E. Lieb, T. Schultz, and D. Mattis, Annals of Physics 16, 407 (1961)
work page 1961
-
[34]
Affleck, Journal of Physics: Condensed Matter1, 3047 (1989)
I. Affleck, Journal of Physics: Condensed Matter1, 3047 (1989)
work page 1989
-
[35]
M. Yamanaka, M. Oshikawa, and I. Affleck, Physical Review Letters79, 1110 (1997)
work page 1997
-
[36]
Oshikawa, Physical Review Letters84, 1535 (2000)
M. Oshikawa, Physical Review Letters84, 1535 (2000)
work page 2000
-
[37]
M. B. Hastings, Physical Review B69, 104431 (2004)
work page 2004
-
[38]
M.ChengandN.Seiberg,SciPostPhysics15,051(2023)
work page 2023
-
[39]
D. V. Else, Annual Review of Condensed Matter Physics (2025), 10.1146/annurev-conmatphys-031524-070514
-
[40]
J. P. Kestner, B. Wang, J. D. Sau, and S. Das Sarma, Phys. Rev. B83, 174409 (2011)
work page 2011
- [41]
- [42]
-
[43]
A. Montorsi, F. Dolcini, R. C. Iotti, and F. Rossi, Phys. Rev. B95, 245108 (2017)
work page 2017
- [44]
- [45]
-
[46]
H.-C. Jiang, Z.-X. Li, A. Seidel, and D.-H. Lee, Science Bulletin63, 753 (2018)
work page 2018
-
[47]
R. Thorngren, A. Vishwanath, and R. Verresen, Phys. Rev. B104, 075132 (2021)
work page 2021
-
[48]
T. Scaffidi, D. E. Parker, and R. Vasseur, Physical Re- view X7, 041048 (2017)
work page 2017
-
[49]
D. E. Parker, T. Scaffidi, and R. Vasseur, Phys. Rev. B 17 97, 165114 (2018)
work page 2018
-
[50]
L. Li, M. Oshikawa, and Y. Zheng, SciPost Phys.17, 013 (2024)
work page 2024
-
[51]
L. Li, M. Oshikawa, and Y. Zheng, SciPost Phys.18, 153 (2025)
work page 2025
- [52]
-
[53]
R. Verresen, R. Thorngren, N. G. Jones, and F. Poll- mann, Phys. Rev. X11, 041059 (2021)
work page 2021
-
[54]
W. P. Su, J. R. Schrieffer, and A. J. Heeger, Physical Review Letters42, 1698 (1979)
work page 1979
-
[55]
A. J. Heeger, S. Kivelson, J. R. Schrieffer, and W. P. Su, Reviews of Modern Physics60, 781 (1988)
work page 1988
-
[56]
Resta, Physical Review Letters80, 1800 (1998)
R. Resta, Physical Review Letters80, 1800 (1998)
work page 1998
-
[57]
L. Li, Z. Xu, and S. Chen, Phys. Rev. B89, 085111 (2014)
work page 2014
- [58]
- [59]
-
[60]
L. Qi, Y. Yan, Y. Xing, X.-D. Zhao, S. Liu, W.-X. Cui, X. Han, S. Zhang, and H.-F. Wang, Phys. Rev. Research 3, 023037 (2021)
work page 2021
-
[61]
R. G. Dias and A. M. Marques, Physical Review B105, 035102 (2022)
work page 2022
-
[62]
Zheng, Physical Review Applied18(2022), 10.1103/PhysRevApplied.18.054037
L.-N. Zheng, Physical Review Applied18(2022), 10.1103/PhysRevApplied.18.054037
-
[63]
F. Pellerin, R. Houvenaghel, W. A. Coish, I. Carusotto, and P. St-Jean, Physical Review Letters132, 183802 (2024)
work page 2024
- [64]
-
[65]
S. R. Manmana, A. M. Essin, R. M. Noack, and V. Gu- rarie, Physical Review B86, 205119 (2012)
work page 2012
-
[66]
T. Yoshida, R. Peters, S. Fujimoto, and N. Kawakami, Physical Review Letters112, 196404 (2014)
work page 2014
-
[67]
M. Yahyavi, L. Saleem, and B. Hetényi, J. Phys.: Con- dens. Matter30, 445602 (2018)
work page 2018
- [68]
-
[69]
A. A. Nersesyan, Phys. Rev. B102, 045108 (2020)
work page 2020
-
[70]
X.-L. Yu, L. Jiang, Y.-M. Quan, T. Wu, Y. Chen, L.-J. Zou, and J. Wu, Phys. Rev. B101, 045422 (2020)
work page 2020
- [71]
-
[72]
Gurarie, Physical Review B83, 085426 (2011)
V. Gurarie, Physical Review B83, 085426 (2011)
work page 2011
- [73]
-
[74]
A. Zegarra, D. R. Candido, J. C. Egues, and W. Chen, Physical Review B100, 075114 (2019)
work page 2019
-
[75]
P. B. Melo, S. A. S. Júnior, W. Chen, R. Mondaini, and T. Paiva, Phys. Rev. B108, 195151 (2023)
work page 2023
-
[76]
E. Di Salvo, A. Moustaj, C. Xu, L. Fritz, A. K. Mitchell, C. M. Smith, and D. Schuricht, Phys. Rev. B110, 165145 (2024)
work page 2024
- [77]
-
[78]
T. Jin, P. Ruggiero, and T. Giamarchi, Phys. Rev. B 107, L201111 (2023)
work page 2023
- [79]
- [80]
