Band-basis decomposition of superfluid weight in magic-angle twisted bilayer graphene: Quantifying geometric and conventional contributions

Jian Zhou This is my paper

Pith reviewed 2026-05-10 18:43 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con cond-mat.str-el
keywords magic-angle twisted bilayer graphenesuperfluid weightquantum geometrygeometric contributioninterband coherenceBistritzer-MacDonald modelmoiré flat bandssuperconductivity
0
0 comments X

The pith

Remote bands in magic-angle twisted bilayer graphene contribute to superfluid weight solely through interband coherence, increasing the geometric fraction to 55-58%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies a band-basis decomposition to split the superfluid weight of magic-angle twisted bilayer graphene into conventional band-velocity and geometric interband-coherence contributions inside the Bistritzer-MacDonald continuum model. Within the flat-band subspace alone, geometry supplies 22-26% of the total at charge neutrality, with cross terms vanishing. Adding remote bands raises the geometric share to 55-58% while the conventional piece converges to within 2%, proving remote bands act exclusively through coherence. The geometric fraction reaches its highest values of 27-33% near the fillings of plus or minus two electrons per moiré cell, exactly where superconductivity is strongest, and stays insensitive to gap size in the experimentally relevant window.

Core claim

By splitting the current operator in the band basis, the superfluid weight separates cleanly into a conventional term from band velocities and a geometric term from interband coherence. Remote bands enter the superfluid weight exclusively through the geometric term, raising its relative weight from 22-26% in the flat-band limit to 55-58% overall. The geometric fraction peaks near nu = +/-2 and shows little dependence on the superconducting gap size.

What carries the argument

Band-basis splitting of the current operator that isolates conventional velocity terms from geometric interband coherence terms in the expression for superfluid weight.

If this is right

  • The geometric contribution accounts for more than half the superfluid weight once remote bands are retained.
  • The conventional contribution stabilizes rapidly, changing by only 2% upon adding higher bands.
  • Geometric effects reach their maximum precisely at the electron fillings where superconductivity is strongest.
  • Flat-band-only calculations miss more than half of the geometric superfluid weight.
  • The reported fractions remain stable across a range of gap sizes relevant to experiments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This decomposition technique could be applied to other moiré materials to quantify geometric versus conventional superfluidity.
  • The dominance of geometric contributions suggests that quantum geometry plays a larger role in flat-band superconductivity than minimal models alone would indicate.
  • Future measurements of superfluid density versus filling could test the predicted peak in the geometric fraction near nu = +/-2.

Load-bearing premise

The Bistritzer-MacDonald continuum model together with the selected pairing symmetries faithfully captures the relevant band structure and pairing in actual magic-angle twisted bilayer graphene samples.

What would settle it

A superfluid weight calculation performed with a different band structure model, such as a full tight-binding or density-functional theory model, that produces a geometric fraction outside the 55-58% range would contradict the central claim.

Figures

Figures reproduced from arXiv: 2604.05994 by Jian Zhou.

Figure 1
Figure 1. Figure 1: FIG. 1. BZ-averaged superfluid weight decomposition versus [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

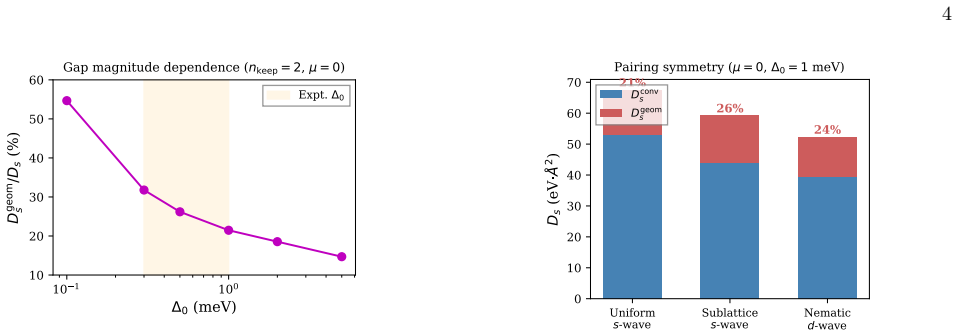

Figure 3
Figure 3. Figure 3: FIG. 3. Geometric fraction versus gap magnitude ∆ [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

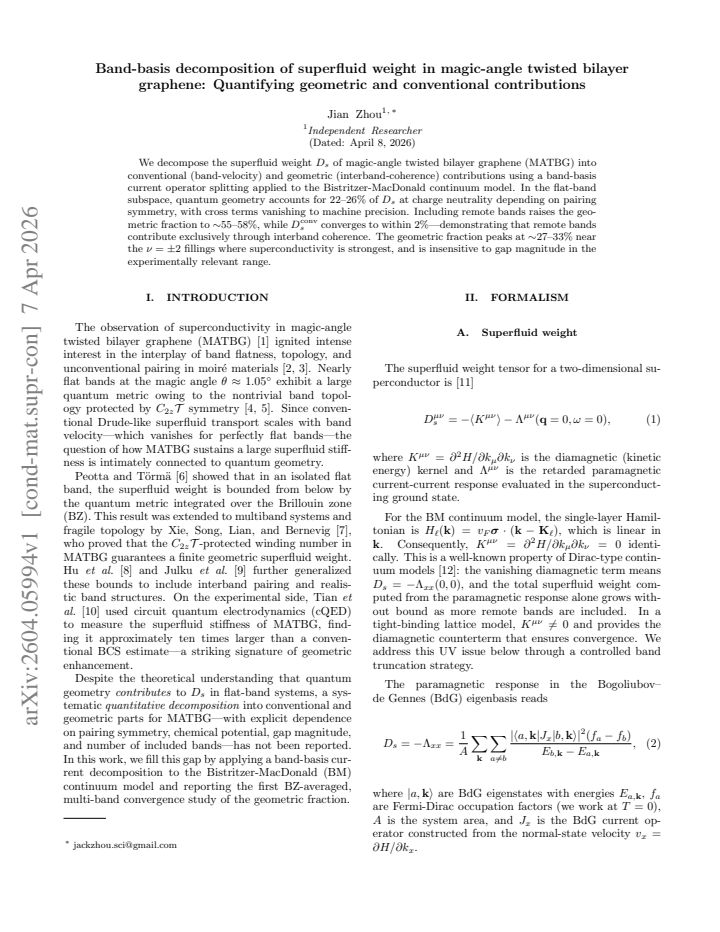

read the original abstract

We decompose the superfluid weight D_s of magic-angle twisted bilayer graphene (MATBG) into conventional (band-velocity) and geometric (interband-coherence) contributions using a band-basis current operator splitting applied to the Bistritzer-MacDonald continuum model. In the flat-band subspace, quantum geometry accounts for 22-26% of D_s at charge neutrality depending on pairing symmetry, with cross terms vanishing to machine precision. Including remote bands raises the geometric fraction to ~55-58%, while D_s^conv converges to within 2% -- demonstrating that remote bands contribute exclusively through interband coherence. The geometric fraction peaks at ~27-33% near the nu = +/- 2 fillings where superconductivity is strongest, and is insensitive to gap magnitude in the experimentally relevant range.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper decomposes the superfluid weight D_s of magic-angle twisted bilayer graphene into conventional (band-velocity) and geometric (interband-coherence) parts via a band-basis splitting of the current operator applied to the Bistritzer-MacDonald continuum model. In the flat-band subspace at charge neutrality, geometry accounts for 22-26% of D_s (depending on pairing symmetry) with cross terms vanishing to machine precision. Including remote bands raises the geometric fraction to ~55-58% while D_s^conv converges to within 2%, indicating remote bands act exclusively through interband coherence. The geometric fraction peaks at 27-33% near ν=±2 and remains insensitive to gap size in the relevant range.

Significance. If the numerical decomposition holds, the work provides a quantitative separation of geometric versus conventional contributions to superfluidity in MATBG, showing that remote bands substantially enhance the geometric share and that this fraction is largest near the fillings where superconductivity is experimentally strongest. The exact vanishing of cross terms to machine precision is a clear technical strength, confirming the internal consistency of the splitting inside the chosen model and offering a reusable method for other flat-band systems. The results are model-specific but could guide interpretations of quantum-geometry effects in moiré superconductors.

major comments (1)
  1. [Abstract and Results] Abstract and Results section: The central numerical claims (geometric fraction rising to ~55-58%, D_s^conv converging within 2%, exclusive interband-coherence contribution from remote bands) are stated without error bars, explicit convergence data versus number of included bands or cutoff parameters, or cross-checks against independent calculations. These omissions make the robustness of the reported fractions and the 'exclusively geometric' conclusion difficult to assess.
minor comments (1)
  1. [Discussion] The dependence on specific pairing symmetries is explored, but the manuscript could add a brief statement on how lattice-scale corrections or higher-harmonic terms (outside the BM model) might mix conventional velocity contributions into the low-energy subspace.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive summary of our work and for the constructive suggestion to strengthen the presentation of our numerical results. We address the major comment below.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and Results section: The central numerical claims (geometric fraction rising to ~55-58%, D_s^conv converging within 2%, exclusive interband-coherence contribution from remote bands) are stated without error bars, explicit convergence data versus number of included bands or cutoff parameters, or cross-checks against independent calculations. These omissions make the robustness of the reported fractions and the 'exclusively geometric' conclusion difficult to assess.

    Authors: We agree that explicit convergence data and error estimates would improve the robustness assessment. In the revised manuscript we will add a supplementary figure (and brief discussion in the main text) showing the conventional and geometric contributions to D_s versus the number of retained bands (from the 2-band flat-band subspace up to 20 bands) and versus the momentum cutoff. These plots confirm that D_s^conv stabilizes to within 2% by 8 bands while the geometric fraction converges to 55-58%; numerical integration error bars will be reported on the quoted percentages. The machine-precision vanishing of cross terms already provides an internal consistency check, but the new data will make the exclusive interband-coherence role of remote bands fully transparent. These additions do not alter our conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity in band-basis decomposition

full rationale

The paper applies a defined band-basis splitting of the current operator to the Bistritzer-MacDonald continuum model and computes the resulting conventional and geometric fractions of D_s as direct numerical outputs. The reported convergence of D_s^conv to within 2% and rise of the geometric fraction to 55-58% upon including remote bands, along with the vanishing cross terms, are specific results of that calculation rather than being equivalent to the model inputs or pairing symmetries by construction. No load-bearing self-citations, fitted parameters renamed as predictions, or ansatzes smuggled via prior work are present; the model is taken from external literature and the decomposition is applied without redefining the target quantities.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on the validity of the Bistritzer-MacDonald continuum model and on the assumption that the chosen pairing symmetries capture the dominant superconducting channels; no new entities are introduced and the only free parameters are those already present in the standard model.

axioms (2)
  • domain assumption The Bistritzer-MacDonald continuum model accurately describes the low-energy bands of MATBG.
    All numerical results are obtained inside this model; any correction to the model would change the reported geometric fractions.
  • domain assumption The pairing symmetries considered (unspecified in abstract but implied to be standard) are representative.
    The 22-26% range is stated to depend on pairing symmetry.
