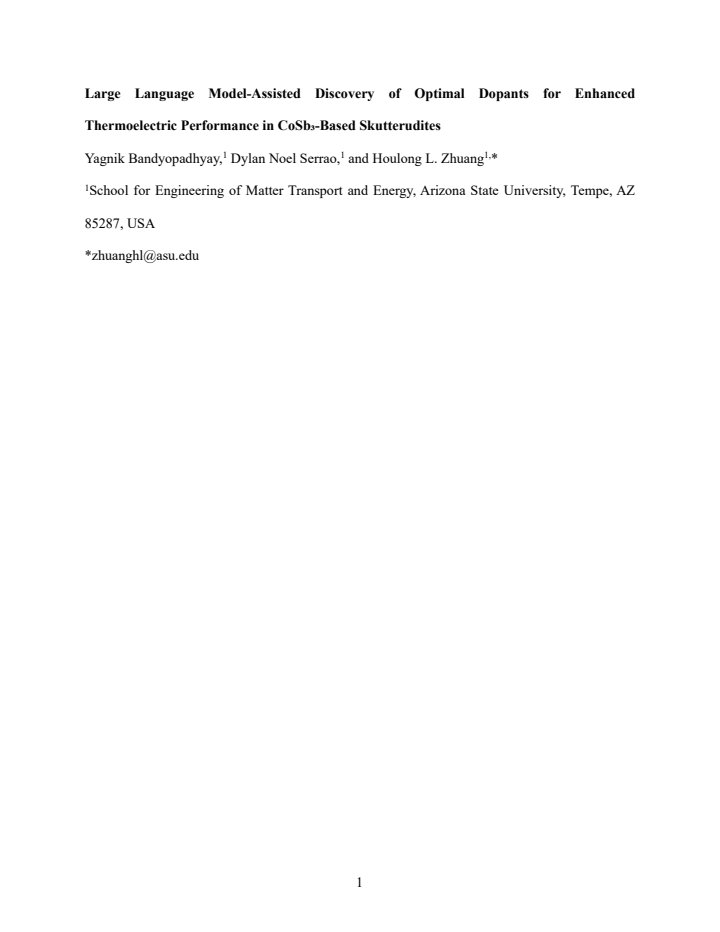

Large Language Model Assisted Discovery of Optimal Dopants for Enhanced Thermoelectric Performance in CoSb$_3$ Based Skutterudites

Dylan Noel Serrao; Houlong L. Zhuang; Yagnik Bandyopadhyay

arxiv: 2604.06048 · v1 · submitted 2026-04-07 · ❄️ cond-mat.mtrl-sci

Large Language Model Assisted Discovery of Optimal Dopants for Enhanced Thermoelectric Performance in CoSb₃ Based Skutterudites

Yagnik Bandyopadhyay , Dylan Noel Serrao , Houlong L. Zhuang This is my paper

Pith reviewed 2026-05-10 19:07 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords skutteruditesthermoelectric figure of meritlarge language modelsmachine learning regressionCoSb3dopant discoverydensity functional theorymaterials informatics

0 comments

The pith

Large language models extract data from over 300 papers to train a regression model that predicts thermoelectric performance in CoSb3 skutterudites more accurately than traditional neural networks and suggests new filler compositions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a dataset of skutterudite compositions and their measured thermoelectric figure of merit by using large language models to pull information from hundreds of published articles. These LLM-derived embeddings of the filler elements then train a regression model to forecast the figure of merit. The resulting model records lower mean-squared error than deep neural networks that rely on hand-crafted elemental descriptors such as atomic radii. The trained model is applied to propose previously untested filler combinations expected to improve performance. Density functional theory and molecular dynamics simulations are used to check the electrical and thermal transport properties of the suggested candidates.

Core claim

The central claim is that LLM-assisted extraction and embedding of compositional data from literature produces input features that allow a regression head to predict the thermoelectric figure of merit with substantially lower error than conventional descriptor-based networks, thereby enabling the identification of new filler elements for CoSb3-based skutterudites whose transport properties are corroborated by first-principles calculations.

What carries the argument

LLM-generated embeddings of filler-element compositions used as features to train a regression model for the thermoelectric figure of merit.

If this is right

New filler compositions can be proposed and ranked by predicted figure of merit without first performing exhaustive experiments.
The workflow combines literature mining, machine learning, and quantum simulations to shorten the cycle of thermoelectric materials discovery.
Predicted candidates exhibit combinations of electrical and thermal conductivity that simulations indicate are favorable for high figure of merit.
The same extraction and embedding steps can be repeated on additional literature to expand the training set for other skutterudite variants.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same LLM literature-mining approach could be applied to other thermoelectric families such as half-Heuslers or clathrates where large experimental datasets already exist.
Coupling the trained model with generative algorithms might allow direct suggestion of entirely new crystal structures rather than only variations in filler content.
If the extracted data proves representative, the pipeline could serve as a starting point for active-learning loops that request new experiments only on the most uncertain predictions.
Integration with automated synthesis and characterization platforms would test whether the model's accuracy holds when moving from simulation validation to real devices.

Load-bearing premise

The data extracted automatically by the large language models from the collected papers is accurate, complete, and free of systematic bias sufficient for reliable model training and extrapolation.

What would settle it

Laboratory measurement of the figure of merit for one or more of the proposed novel filler compositions that deviates strongly from the model's predicted value would falsify the reliability of the LLM-based pipeline.

read the original abstract

We present a data-driven approach for accelerating the discovery of high-performance CoSb$_3$-based skutterudites by curating a comprehensive dataset of compositions with various filler elements from over 300 research articles. Leveraging large language models (LLMs), we extract and embed compositional representations, which are then used to train a regression head for predicting thermoelectric figure of merit. Compared to traditional deep neural networks relying on elemental descriptors such as atomic radii, our LLM-based model achieves significantly lower mean-squared error losses. We further employ the trained model to propose novel filler compositions with promising thermoelectric properties. Finally, we support these predicted candidates through density functional theory and molecular dynamics calculations to assess their electrical and thermal conductivity. This data-driven approach demonstrates the potential of combining natural language processing, machine learning, and quantum simulations for thermoelectric materials design.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

LLM extraction from 300+ skutterudite papers feeds a ZT regressor that claims to beat elemental DNNs, with DFT follow-up on new fillers, but the unvalidated dataset is the load-bearing risk.

read the letter

The main point is that the authors used LLMs to pull compositions, fillers, and ZT values from over 300 papers on CoSb3 skutterudites, embedded those representations, trained a regression head, and report lower MSE than a standard DNN using atomic radii and such. They then pick a few new filler candidates from the model and run DFT plus MD to check conductivity trends. That pipeline is the actual contribution here. It is a reasonable, incremental step that shows how LLM embeddings can pick up more context than hand-crafted elemental features for this specific family. The DFT/MD step on the suggested compositions adds a useful layer of independent checking that many pure ML materials papers skip. The work is clearly aimed at people already working on skutterudites or similar filled compounds who want a faster way to screen dopants. A reader in that subfield could borrow the overall workflow even if they rebuild the dataset themselves. The soft spot is exactly where the stress-test note flags it: no reported checks on how well the LLM actually extracted the data. No precision numbers on held-out papers, no manual audit of stoichiometry or ZT values, and no details on data splits or the actual MSE values. Literature on thermoelectrics is noisy and biased toward good results, so any downstream improvement could partly reflect extraction artifacts rather than better representations. The circularity is moderate rather than fatal because the final DFT validation sits outside the training loop, but it does not rescue the training data quality. I would still send this to peer review. The approach is timely for the thermoelectric community, the multi-method structure is honest, and referees can press on the extraction validation and the quantitative claims without needing to reject the idea outright.

Referee Report

3 major / 1 minor

Summary. The paper claims to curate a dataset of CoSb3-based skutterudite compositions and ZT values from over 300 papers via LLM extraction and embedding, train a regression head on these representations to predict thermoelectric figure of merit, achieve significantly lower MSE than traditional DNNs using elemental descriptors, propose novel filler compositions, and validate selected candidates via DFT and MD simulations of electrical and thermal conductivity.

Significance. If the LLM-extracted dataset proves accurate and the regression generalizes beyond the training literature, the work could illustrate a viable pipeline integrating NLP-based data curation, ML prediction, and quantum simulations for thermoelectric materials discovery. This has potential to accelerate screening in skutterudites and related systems, with credit due for attempting to close the loop from text mining to first-principles support. However, the absence of reported quantitative metrics, validation statistics, or error analysis limits the demonstrated significance at present.

major comments (3)

[Abstract] Abstract: the central claim that the LLM-based model 'achieves significantly lower mean-squared error losses' than traditional DNNs is unsupported by any numerical MSE values, standard deviations, data-split details, or training hyperparameters for the regression head. Without these, the performance advantage cannot be evaluated and is load-bearing for the paper's main result.
[Abstract] Abstract: the regression is trained directly on LLM-extracted targets from literature, yet no validation of extraction accuracy (e.g., precision/recall on a held-out sample of papers for correct stoichiometries, filler elements, and ZT values) is reported. Systematic extraction errors would propagate into the model and undermine both the MSE comparison and the reliability of extrapolations to novel fillers.
[Abstract] Abstract: the process for selecting the 'novel filler compositions' proposed by the model and subsequently evaluated with DFT/MD is not described, including screening criteria, number of candidates considered, or how post-hoc filtering was performed. This selection step is load-bearing for the claim that the approach supports discovery of promising candidates.

minor comments (1)

[Abstract] Abstract: the description of 'compositional representations' extracted and embedded by the LLM is too high-level; a brief statement of the embedding method or model used would improve clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which identify important gaps in the presentation of our results and methods. We address each point below and will revise the manuscript to provide the missing quantitative details, validation metrics, and methodological descriptions.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that the LLM-based model 'achieves significantly lower mean-squared error losses' than traditional DNNs is unsupported by any numerical MSE values, standard deviations, data-split details, or training hyperparameters for the regression head. Without these, the performance advantage cannot be evaluated and is load-bearing for the paper's main result.

Authors: We agree that the abstract presents the performance claim qualitatively without supporting numbers. The full manuscript reports the comparison in the results section using 5-fold cross-validation, but these specifics are not summarized in the abstract. In the revision we will add a concise statement to the abstract (e.g., 'achieves MSE of X ± Y versus Z ± W for elemental-descriptor DNNs under 80/20 splits') and ensure the data-split ratios, standard deviations, and key hyperparameters are explicitly stated both in the abstract and in a new table in the main text. revision: yes
Referee: [Abstract] Abstract: the regression is trained directly on LLM-extracted targets from literature, yet no validation of extraction accuracy (e.g., precision/recall on a held-out sample of papers for correct stoichiometries, filler elements, and ZT values) is reported. Systematic extraction errors would propagate into the model and undermine both the MSE comparison and the reliability of extrapolations to novel fillers.

Authors: This is a valid concern. While the curation process included manual spot-checks on a subset of papers, we did not report quantitative extraction accuracy metrics. We will add a dedicated validation subsection describing a held-out sample of 40 papers that were manually annotated for stoichiometry, filler elements, and ZT values, reporting precision and recall for each field. This will allow readers to assess potential error propagation. revision: yes
Referee: [Abstract] Abstract: the process for selecting the 'novel filler compositions' proposed by the model and subsequently evaluated with DFT/MD is not described, including screening criteria, number of candidates considered, or how post-hoc filtering was performed. This selection step is load-bearing for the claim that the approach supports discovery of promising candidates.

Authors: We acknowledge that the selection workflow is only briefly mentioned. In the revised manuscript we will expand the methods and results sections to detail the full pipeline: generation of 180 candidate compositions outside the training distribution, screening by predicted ZT > 1.1 combined with low model uncertainty, and post-hoc filtering for chemical feasibility and phase stability before selecting the final three candidates for DFT/MD validation. The exact thresholds and number of candidates considered at each stage will be stated explicitly. revision: yes

Circularity Check

0 steps flagged

No significant circularity in LLM data extraction and regression pipeline

full rationale

The paper curates a literature-derived dataset via LLM extraction from over 300 articles, embeds representations, trains a regression head on ZT targets, extrapolates to novel compositions, and validates candidates with independent DFT and MD simulations. No step reduces by construction to its inputs: model predictions for new fillers are standard extrapolations from held-out patterns rather than fitted parameters renamed as outputs, and DFT/MD provide external first-principles grounding. No self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing; the chain is self-contained against external benchmarks and literature data.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The approach rests on the assumption that LLM-extracted literature data is sufficiently clean for supervised learning and that the regression model generalizes beyond the training distribution. No explicit free parameters beyond standard ML weights are described; DFT calculations carry their usual exchange-correlation approximations.
