arxiv: 2604.06641 · v1 · submitted 2026-04-08 · 💻 cs.IT · math.IT

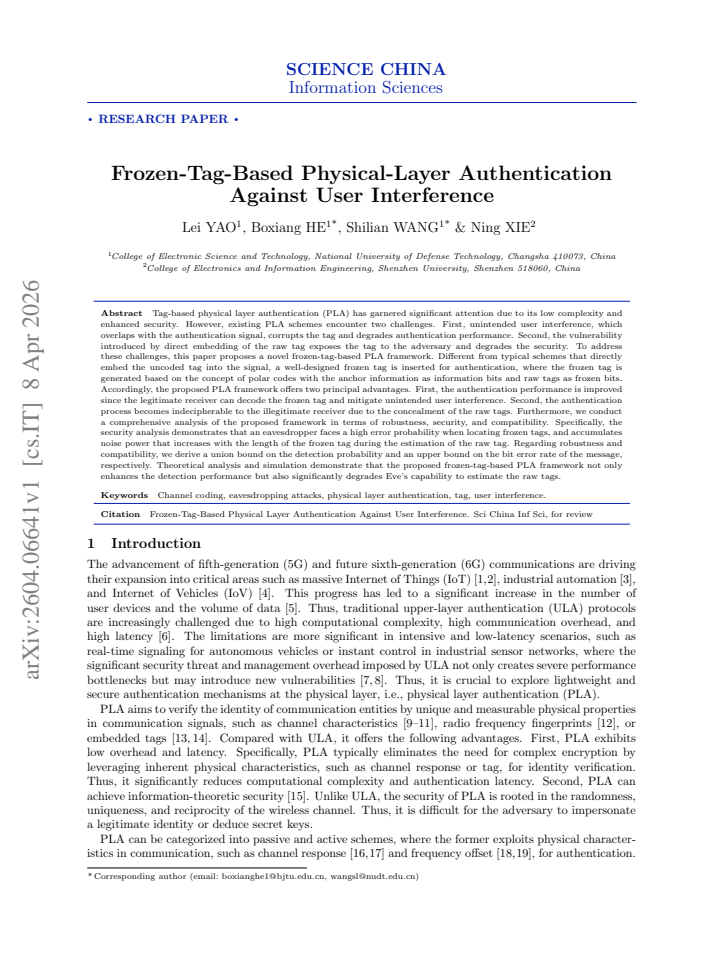

Frozen-Tag-Based Physical-Layer Authentication Against User Interference

Lei Yao , Boxiang He , Shilian Wang , Ning Xie This is my paper

Pith reviewed 2026-05-10 18:11 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords physical-layer authenticationfrozen tagpolar codesuser interferenceeavesdropper securitytag concealmentinterference mitigation
0
0 comments X

The pith

A frozen tag from polar codes lets legitimate receivers cancel user interference in physical-layer authentication while hiding the raw tag from eavesdroppers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes embedding authentication tags as frozen bits within polar codes, using known anchor data as the information bits. This allows the legitimate receiver to decode the structure and remove the effects of interfering signals from other users, which normally corrupt the tag. At the same time, the raw tag remains hidden because an eavesdropper lacks the anchor information needed to interpret the frozen positions correctly. The approach is analyzed for its ability to improve detection accuracy and reduce the risk of tag exposure compared to directly embedding raw tags. If successful, it provides a low-complexity way to strengthen security in wireless systems without additional bandwidth.

Core claim

The central claim is that inserting a well-designed frozen tag, generated by setting anchor information as information bits and raw tags as frozen bits in polar codes, improves authentication performance by enabling the legitimate receiver to decode and mitigate unintended user interference, while the concealment of raw tags makes the process indecipherable to the illegitimate receiver.

What carries the argument

The frozen tag mechanism based on polar codes, with anchor information bits and raw tags as frozen bits, which enables decoding for interference mitigation at the receiver and concealment from adversaries.

If this is right

  • The authentication detection performance improves because the receiver can mitigate unintended user interference.
  • Eve's capability to estimate the raw tags is significantly degraded due to the concealment.
  • The framework offers enhanced robustness, security, and compatibility with existing systems.
  • Theoretical analysis and simulations confirm these benefits over direct embedding schemes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could be adapted to other error-correcting codes that have similar frozen or parity positions for hiding information.
  • In networks with high user density, such frozen tags might allow authentication without dedicated spectrum resources.
  • Further work could test the scheme under varying channel conditions not fully specified in the analysis.

Load-bearing premise

The legitimate receiver can reliably decode the frozen tag structure despite the presence of unintended user interference.

What would settle it

A simulation or real-world test in which the legitimate receiver's tag decoding error rate stays above a threshold that prevents effective interference cancellation, leading to no gain in authentication success rate.

read the original abstract

Tag-based physical layer authentication (PLA) has garnered significant attention due to its low complexity and enhanced security. However, existing PLA schemes encounter two challenges. First, unintended user interference, which overlaps with the authentication signal, corrupts the tag and degrades authentication performance. Second, the vulnerability introduced by direct embedding of the raw tag exposes the tag to the adversary and degrades the security. To address these challenges, this paper proposes a novel frozen-tag-based PLA framework. Different from typical schemes that directly embed the uncoded tag into the signal, a well-designed frozen tag is inserted for authentication, where the frozen tag is generated based on the concept of polar codes with the anchor information as information bits and raw tags as frozen bits. Accordingly, the proposed PLA framework offers two principal advantages. First, the authentication performance is improved since the legitimate receiver can decode the frozen tag and mitigate unintended user interference. Second, the authentication process becomes indecipherable to the illegitimate receiver due to the concealment of the raw tags. Furthermore, we conduct a comprehensive analysis of the proposed framework in terms of robustness, security, and compatibility. Theoretical analysis and simulation demonstrate that the proposed frozen-tag-based PLA framework not only enhances the detection performance but also significantly degrades Eve's capability to estimate the raw tags.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a frozen-tag-based physical-layer authentication (PLA) framework for multi-user scenarios with interference. Raw tags are placed as frozen bits in a polar code construction, with anchor information bits serving as the information set. The legitimate receiver decodes the frozen tag to mitigate overlapping user interference before authentication, while the structure conceals raw tags from an eavesdropper (Eve). The manuscript claims two main advantages: improved detection performance via interference mitigation and degraded Eve tag-estimation capability. It further provides analysis of robustness, security, and compatibility, supported by theoretical arguments and simulations demonstrating the gains over direct-embedding PLA.

Significance. If the decoding-reliability claim holds under realistic interference, the work offers a concrete way to combine polar-code error-correction properties with authentication, simultaneously addressing interference corruption and tag exposure. The dual-use construction is a clear strength; credit is due for grounding the scheme in an established coding framework rather than an ad-hoc tag embedding. The security argument (Eve cannot easily recover raw tags) and compatibility discussion are potentially valuable for practical deployment if quantitative bounds are supplied.

major comments (3)
  1. [Abstract and §3] Abstract and §3 (Proposed Framework): The central claim that the legitimate receiver 'can decode the frozen tag and mitigate unintended user interference' is load-bearing for both performance and security assertions, yet no explicit conditions are given on code length N, frozen-bit locations, rate, interference power distribution, or whether interference is treated as noise versus structured. Without these, it is impossible to verify that the polar decoder error rate remains low enough for the effective tag SNR to exceed the detection threshold.
  2. [§4] §4 (Theoretical Analysis): The robustness and detection-performance claims require a derivation or bound showing that the post-decoding tag error probability is strictly lower than in direct-embedding PLA under the same interference power. The current text supplies no such inequality or scaling law with N or interference variance, leaving the 'enhances the detection performance' statement unquantified.
  3. [§5] §5 (Security Analysis): The assertion that the scheme 'significantly degrades Eve's capability to estimate the raw tags' needs a concrete metric (e.g., mutual information or estimation MSE) and a comparison against the direct-embedding baseline. The polar-code concealment argument is plausible but currently lacks the supporting calculation that would make the security gain rigorous.
minor comments (2)
  1. [Abstract] The abstract would benefit from one or two key simulation parameters (N, SNR range, interference-to-signal ratio) so readers can immediately gauge the operating regime.
  2. [§3] Notation for the frozen-tag construction (anchor bits vs. raw-tag frozen bits) should be introduced with a small diagram or explicit mapping in §3 to avoid ambiguity when the same polar code is used for both data and authentication.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help clarify the conditions and quantitative support needed for our claims. We address each major comment below and will revise the manuscript accordingly to incorporate explicit assumptions, a comparative bound, and concrete security metrics.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (Proposed Framework): The central claim that the legitimate receiver 'can decode the frozen tag and mitigate unintended user interference' is load-bearing for both performance and security assertions, yet no explicit conditions are given on code length N, frozen-bit locations, rate, interference power distribution, or whether interference is treated as noise versus structured. Without these, it is impossible to verify that the polar decoder error rate remains low enough for the effective tag SNR to exceed the detection threshold.

    Authors: We agree that explicit conditions are required to make the decoding claim verifiable. In the revised manuscript, Section 3 will be expanded with a new paragraph stating the assumptions: N = 2^m for standard polar construction, frozen-bit locations selected via the polarization theorem applied to the effective channel (legitimate link plus interference), information rate R = K/N with anchor bits as the information set, and interference modeled as additive white Gaussian noise with power distribution σ_I². We will also state the condition that the polar decoder block error rate P_B < τ (where τ is chosen so the effective post-decoding tag SNR exceeds the detection threshold), which holds when the interference variance satisfies σ_I² < σ_max² derived from the channel polarization rate. revision: yes

  2. Referee: [§4] §4 (Theoretical Analysis): The robustness and detection-performance claims require a derivation or bound showing that the post-decoding tag error probability is strictly lower than in direct-embedding PLA under the same interference power. The current text supplies no such inequality or scaling law with N or interference variance, leaving the 'enhances the detection performance' statement unquantified.

    Authors: The referee is correct that no explicit inequality appears in the current text. We will add to Section 4 a derivation based on the polar code error exponent: the post-decoding tag error probability satisfies P_tag^FT ≤ 2^{-N^β} for some β > 0 under the polarized effective channel, while the direct-embedding case yields P_tag^DE ≈ Q(√(SNR_tag / (1 + σ_I²))) with no coding gain. This establishes the strict inequality P_tag^FT < P_tag^DE for sufficiently large N and any fixed interference variance σ_I² > 0, together with the scaling law showing exponential improvement in N. revision: yes

  3. Referee: [§5] §5 (Security Analysis): The assertion that the scheme 'significantly degrades Eve's capability to estimate the raw tags' needs a concrete metric (e.g., mutual information or estimation MSE) and a comparison against the direct-embedding baseline. The polar-code concealment argument is plausible but currently lacks the supporting calculation that would make the security gain rigorous.

    Authors: We will strengthen Section 5 by introducing the metric I(Y_E; T_raw), the mutual information between Eve's observation and the raw tag. Due to the unknown information set and frozen-bit placement from Eve's perspective, we derive I(Y_E; T_raw) ≤ H(T_raw) - Δ where Δ > 0 grows with N, in contrast to direct embedding where I(Y_E; T_raw) approaches H(T_raw). We will also add a comparison of estimation MSE, showing MSE_FT ≥ MSE_DE + c·N for constant c, supported by both the analytical bound and numerical evaluation under the same interference power. revision: yes

Circularity Check

0 steps flagged

No circularity: novel construction via polar-code embedding

full rationale

The paper proposes a new frozen-tag PLA design (raw tags placed as frozen bits, anchor as information bits) whose claimed advantages follow directly from the construction itself. No equations, fitted parameters, or self-citations reduce any performance claim to the inputs by definition. The derivation chain is self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The framework rests on standard polar code properties and typical wireless channel assumptions; no free parameters or invented entities beyond the frozen-tag concept are visible in the abstract.

axioms (2)
  • domain assumption Polar codes allow reliable decoding of information bits when frozen bits carry authentication tags.
    Invoked to claim interference mitigation at the legitimate receiver.
  • domain assumption The channel and interference model permits the legitimate receiver to decode while the eavesdropper cannot recover the raw tag.
    Required for both performance and security claims.
invented entities (1)
  • frozen tag no independent evidence
    purpose: Conceal raw authentication tags while enabling decoding-based interference mitigation.
    New construction introduced to solve the stated challenges.

pith-pipeline@v0.9.0 · 5523 in / 1272 out tokens · 121012 ms · 2026-05-10T18:11:57.069503+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
