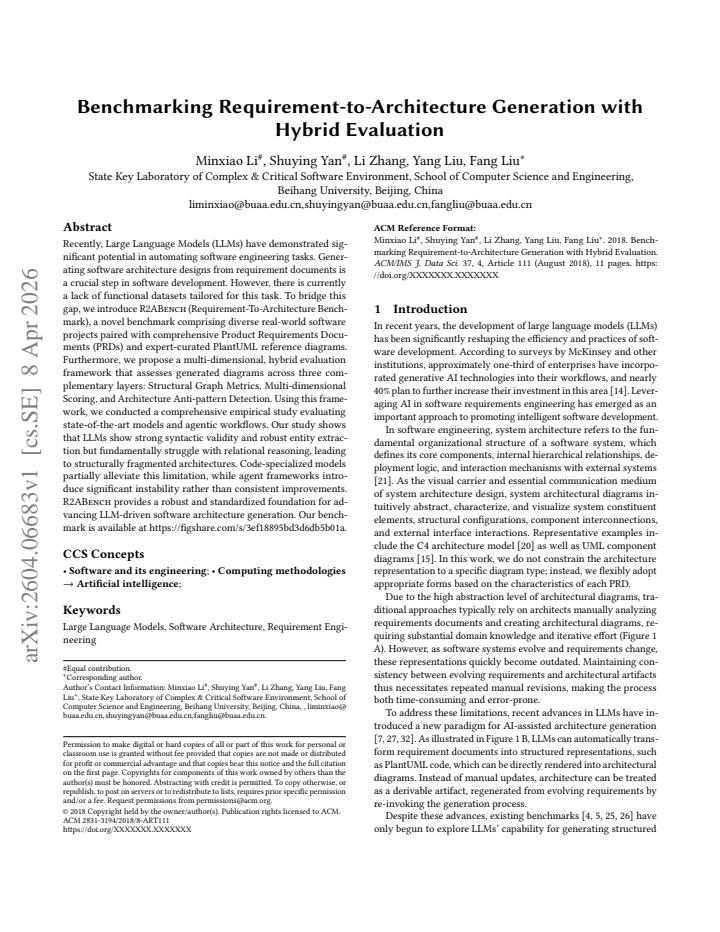

Benchmarking Requirement-to-Architecture Generation with Hybrid Evaluation

Minxiao Li , Shuying Yan , Li Zhang , Yang Liu , Fang Liu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:24 UTC · model grok-4.3

classification 💻 cs.SE
keywords R2ABenchLLM benchmarkingsoftware architecture generationrequirement to architecturerelational reasoningPlantUMLhybrid evaluationLLM limitations
0
0 comments X

The pith

Large language models extract entities from requirements well but fail to reason about their relations, producing fragmented architectures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates R2ABench to test how well large language models can turn product requirement documents into software architecture diagrams using PlantUML. It evaluates models with a new hybrid method that checks structural graphs, scores multiple quality aspects, and detects anti-patterns. Results indicate models reliably pull out entities and follow syntax rules but cannot properly link those entities, yielding disconnected designs. Code-focused models help somewhat with this linking problem, yet agent setups increase inconsistency instead of fixing it. This benchmark gives a clear way to track progress toward reliable automated architecture design.

Core claim

Our study shows that LLMs show strong syntactic validity and robust entity extraction but fundamentally struggle with relational reasoning, leading to structurally fragmented architectures. Code-specialized models partially alleviate this limitation, while agent frameworks introduce significant instability rather than consistent improvements. R2ABench provides a robust and standardized foundation for advancing LLM-driven software architecture generation.

What carries the argument

R2ABench benchmark paired with a hybrid evaluation framework that layers structural graph metrics, multi-dimensional scoring, and architecture anti-pattern detection on PlantUML diagrams.

Load-bearing premise

Expert-curated PlantUML reference diagrams constitute valid ground-truth architectures and the hybrid evaluation layers sufficiently measure architectural quality without further human validation.

What would settle it

Independent software architects scoring generated diagrams for coherence and relational completeness, then checking whether those human scores align with the automated hybrid metrics.

Figures

Figures reproduced from arXiv: 2604.06683 by Fang Liu, Li Zhang, Minxiao Li, Shuying Yan, Yang Liu.

Figure 1
Figure 1. Figure 1: Comparison of Traditional Manual vs. AI-Assisted [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Domain distribution of datasets in R2ABench. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

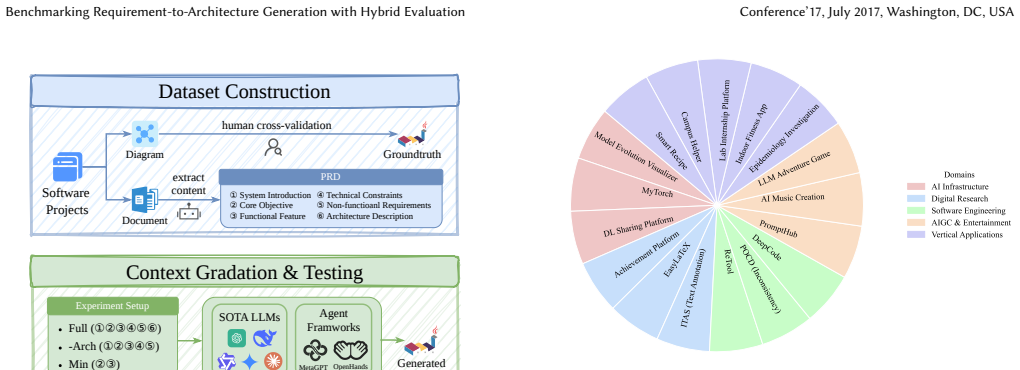

Figure 2
Figure 2. Figure 2: An overview of the R2ABench methodology, en￾compassing dataset construction, context gradation testing, and the multi-dimensional evaluation framework. and ROUGE [19], can measure the semantic similarity or surface￾level of generated content, but are insufficient for a rigorous evalu￾ation of UML diagrams at both the semantic and structural levels. Recently, the "LLM-as-a-Judge" approach [33] has emerged a… view at source ↗

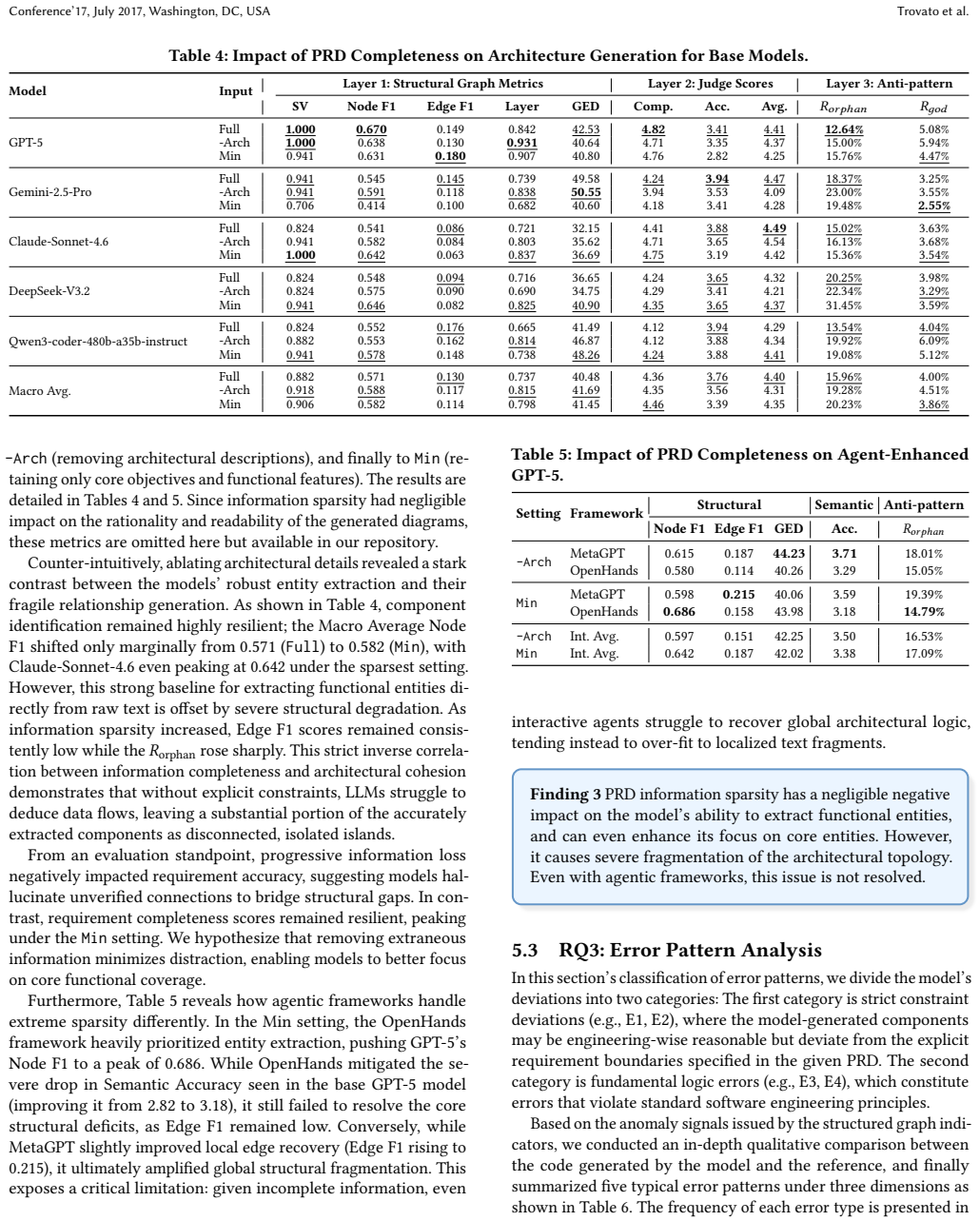

Figure 4
Figure 4. Figure 4: We provide a detailed analysis of each error type below. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 4
Figure 4. Figure 4: Distribution of error counts across different models. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
read the original abstract

Recently, Large Language Models (LLMs) have demonstrated significant potential in automating software engineering tasks. Generating software architecture designs from requirement documents is a crucial step in software development. However, there is currently a lack of functional datasets tailored for this task. To bridge this gap, we introduce R2ABench (Requirement-To-Architecture Benchmark), a novel benchmark comprising diverse real-world software projects paired with comprehensive Product Requirements Documents (PRDs) and expert-curated PlantUML reference diagrams. Furthermore, we propose a multi-dimensional, hybrid evaluation framework that assesses generated diagrams across three complementary layers: Structural Graph Metrics, Multi-dimensional Scoring, and Architecture Anti-pattern Detection. Using this framework, we conducted a comprehensive empirical study evaluating state-of-the-art models and agentic workflows. Our study shows that LLMs show strong syntactic validity and robust entity extraction but fundamentally struggle with relational reasoning, leading to structurally fragmented architectures. Code-specialized models partially alleviate this limitation, while agent frameworks introduce significant instability rather than consistent improvements. R2ABench provides a robust and standardized foundation for advancing LLM-driven software architecture generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces R2ABench, a benchmark for requirement-to-architecture generation consisting of real-world software projects paired with Product Requirements Documents (PRDs) and expert-curated PlantUML reference diagrams. It proposes a hybrid evaluation framework with three layers—Structural Graph Metrics, Multi-dimensional Scoring, and Architecture Anti-pattern Detection—and reports an empirical study on state-of-the-art LLMs and agentic workflows. The central finding is that LLMs exhibit strong syntactic validity and entity extraction but struggle with relational reasoning, producing structurally fragmented architectures; code-specialized models partially mitigate this, while agent frameworks add instability rather than consistent gains.

Significance. If the hybrid metrics are shown to align with human architectural judgments, this work would provide a valuable standardized benchmark and diagnostic framework for LLM-driven architecture generation, an important but under-benchmarked software engineering task. The creation of R2ABench as a new artifact with external models evaluated against it is a clear strength that supports reproducibility and future comparisons.

major comments (3)
  1. R2ABench construction section: the expert-curated PlantUML diagrams are presented as ground truth without inter-rater reliability statistics, details on curation protocol, or validation against independent architects, which directly affects the validity of claims about relational reasoning deficits.
  2. Hybrid Evaluation Framework section: no ablation of the three layers (structural graph metrics, multi-dimensional scoring, anti-pattern detection) and no correlation analysis between automated scores and independent human ratings of architectural quality are reported, leaving open the possibility that reported fragmentation is an artifact of uncalibrated metrics rather than a model limitation.
  3. Empirical Study / Results section: the manuscript supplies no dataset size (number of PRDs or diagrams), model count, or statistical tests for the comparative claims, making the conclusions about code-specialized models versus agents difficult to assess for robustness.
minor comments (2)
  1. Abstract: adding the number of projects in R2ABench and one or two key quantitative results would improve informativeness.
  2. Notation and terminology: ensure consistent capitalization and definition of 'hybrid evaluation framework' and its sub-layers across sections.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We sincerely thank the referee for their constructive and detailed feedback, which has identified key areas for improving the clarity, rigor, and transparency of our manuscript. We address each major comment below with specific plans for revision.

read point-by-point responses

  1. Referee: R2ABench construction section: the expert-curated PlantUML diagrams are presented as ground truth without inter-rater reliability statistics, details on curation protocol, or validation against independent architects, which directly affects the validity of claims about relational reasoning deficits.

    Authors: We thank the referee for this important observation on benchmark validity. The original manuscript describes the diagrams as expert-curated but provides insufficient protocol details. In the revised version, we will expand the R2ABench construction section to include a step-by-step account of the curation protocol (how PRDs were mapped to PlantUML elements by the expert architect), any internal consistency checks performed, and an explicit limitations subsection noting the single-expert process and absence of inter-rater reliability statistics. We will also highlight the expert's qualifications to support ground-truth quality. While we cannot retroactively compute inter-rater metrics, this expanded discussion will better ground our claims regarding relational reasoning deficits. revision: yes

  2. Referee: Hybrid Evaluation Framework section: no ablation of the three layers (structural graph metrics, multi-dimensional scoring, anti-pattern detection) and no correlation analysis between automated scores and independent human ratings of architectural quality are reported, leaving open the possibility that reported fragmentation is an artifact of uncalibrated metrics rather than a model limitation.

    Authors: We agree that ablations and human correlation would strengthen confidence in the hybrid framework. The manuscript presents the three layers as complementary without explicit ablations or human validation. In revision, we will add an analysis subsection examining each layer's incremental contribution based on our existing empirical observations (e.g., cases where anti-pattern detection flags issues missed by graph metrics). We will also report any feasible correlation with human ratings using available resources or, if new data collection is required, explicitly acknowledge this as a limitation while outlining a plan for future validation. This will help confirm that observed structural fragmentation reflects model behavior rather than uncalibrated metrics. revision: partial

  3. Referee: Empirical Study / Results section: the manuscript supplies no dataset size (number of PRDs or diagrams), model count, or statistical tests for the comparative claims, making the conclusions about code-specialized models versus agents difficult to assess for robustness.

    Authors: We acknowledge that explicit reporting of dataset scale, model counts, and statistical tests was insufficiently prominent, which may have obscured these details. In the revised manuscript, we will prominently state the exact size of R2ABench (number of PRDs and reference diagrams), enumerate all evaluated LLMs and agentic workflows, and incorporate appropriate statistical tests (e.g., significance testing for differences between code-specialized models and agent frameworks) to support the comparative claims. These changes will allow readers to more readily assess the robustness of our findings on relational reasoning limitations. revision: yes

Circularity Check

0 steps flagged

Low circularity: new benchmark and hybrid evaluation framework applied to external models

full rationale

The paper introduces R2ABench as a new artifact with real-world PRDs and expert-curated PlantUML references, plus a hybrid evaluation framework of structural graph metrics, multi-dimensional scoring, and anti-pattern detection. It then applies this framework to evaluate external state-of-the-art LLMs and agent workflows, reporting findings on syntactic validity, entity extraction, and relational reasoning deficits. No equations or derivations reduce claims to self-defined fitted quantities, no load-bearing self-citations are invoked for uniqueness or ansatz, and no predictions are statistically forced from subsets of the same data. The central empirical claims rest on independent application of the proposed metrics to model-generated outputs rather than any circular reduction to the paper's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

Claims rest on the new benchmark and the assumption that expert diagrams plus the three evaluation layers capture architectural quality. No explicit free parameters are described.

axioms (2)
  • domain assumption Expert-curated PlantUML diagrams serve as reliable ground truth for architecture quality.
    Invoked when using them as reference for all evaluations.
  • domain assumption The three-layer hybrid evaluation comprehensively assesses generated architecture quality.
    Central premise of the proposed framework.
invented entities (1)
  • R2ABench no independent evidence
    purpose: Benchmark dataset and evaluation framework for requirement-to-architecture generation
    Newly created in this paper with no external independent validation described.
