Phase-locked phonon laser enhanced ultra-weak force measurement

Yu Zheng , Long Wang , Lyu-Hang Liu , Yuan Tian , Xiang-Dong Chen , Dong Wu , Guang-Can Guo , Fang-Wen Sun This is my paper

Pith reviewed 2026-05-10 17:59 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords optically levitated nanoparticlesphonon laserphase lockingforce sensingprecision metrologyoptomechanicsultra-weak forcescarrier modulation
0
0 comments X

The pith

Driving a levitated nanoparticle in a phase-locked phonon laser mode achieves force sensitivity of 9.3(7)×10^{-22} N/√Hz and resolution of 8(4)×10^{-24} N.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that actively driving the mechanical motion of an optically levitated nanoparticle into a phase-locked phonon laser mode, together with a carrier-modulation detection scheme, bypasses the usual limits set by the trapping laser's backaction and instabilities. Stable high-amplitude oscillation then permits robust trapping at only 1 mW laser power, which lowers the force noise floor. Phase locking supplies active stabilization and stretches the measurement coherence time to 12,500 seconds. A reader would care because these gains move ultra-weak force detection into a regime relevant for quantum and fundamental-physics experiments at the nanoscale.

Core claim

The stable and high-amplitude oscillation of the phonon laser allows robust trapping under 1 mW-level laser power, which in turn reduces the force noise to 4.0(3)×10^{-22} N/Hz^{1/2}. By using the phase-locked phonon laser, the measurement system achieves active stabilization and extended coherence time of the measured signal to 12,500 seconds, realizing a measurement resolution of 8(4)×10^{-24} N with a sensitivity of 9.3(7)×10^{-22} N/Hz^{1/2} under a loaded force. These results establish the phonon laser as a low-noise, long-coherence-time, self-stabilizing platform for precision measurements in quantum and fundamental physics tests.

What carries the argument

The phase-locked phonon laser mode, the actively driven and phase-stabilized high-amplitude mechanical oscillation of the levitated nanoparticle, which supplies stable motion for low-power trapping and active stabilization of the force signal.

If this is right

  • Force noise drops to 4.0(3)×10^{-22} N/Hz^{1/2} from the lower required laser power.
  • Coherence time reaches 12,500 seconds through active stabilization.
  • Measurement resolution attains 8(4)×10^{-24} N under loaded force.
  • Sensitivity reaches 9.3(7)×10^{-22} N/Hz^{1/2} in the phase-locked configuration.
  • The phonon laser serves as a self-stabilizing platform for precision force sensing and fundamental-physics tests.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The extended coherence time opens the possibility of combining the phonon-laser platform with other long-integration sensing techniques for still weaker forces.
  • Lower laser power may reduce heating of the nanoparticle's internal modes, an effect left unquantified in the present work but relevant for quantum-state preparation.
  • The self-stabilizing property could simplify setups for continuous, multi-hour tests of fundamental interactions at the microscale without frequent recalibration.

Load-bearing premise

The phase-locked phonon laser mode can be sustained indefinitely without introducing excess noise or mechanical instabilities that would offset the reported sensitivity gains, and the carrier-modulation architecture does not add unaccounted systematic errors at the claimed levels.

What would settle it

A direct measurement that finds force noise above 4.0×10^{-22} N/√Hz or coherence time shorter than 12,500 seconds while operating in the phase-locked mode at 1 mW laser power would show the claimed improvements do not hold.

Figures

Figures reproduced from arXiv: 2604.06923 by Dong Wu, Fang-Wen Sun, Guang-Can Guo, Long Wang, Lyu-Hang Liu, Xiang-Dong Chen, Yuan Tian, Yu Zheng.

Figure 1
Figure 1. Figure 1: FIG. 1. Illustration of two-step weak force sensing enhanced by a phonon laser. (a) Step 1: Low-power trapping for force-noise [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

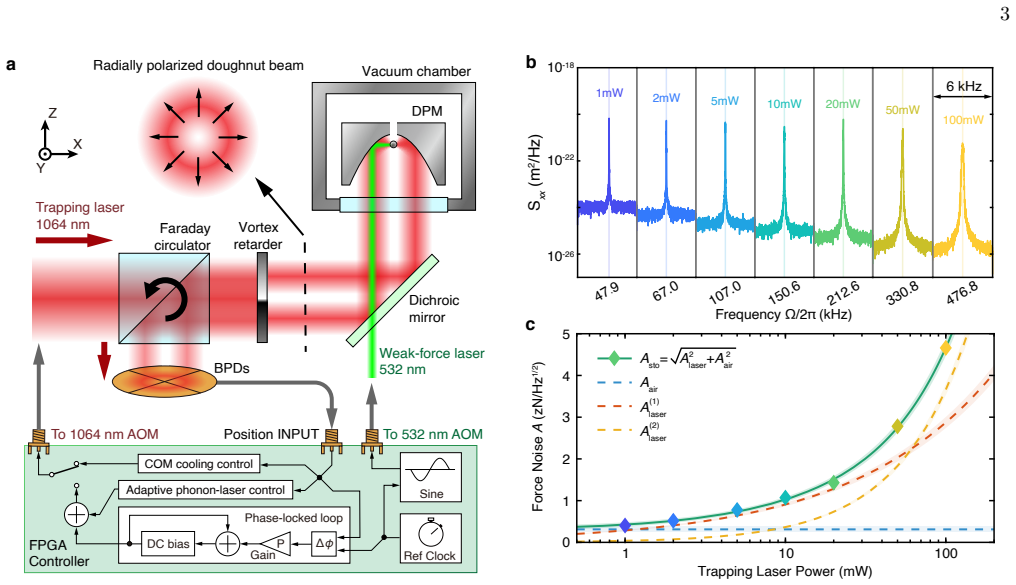

Figure 2. Figure 2: FIG. 2. Experimental setup and trapping-power-dependent force noise. (a) A 1064-nm beam is converted to a radially [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

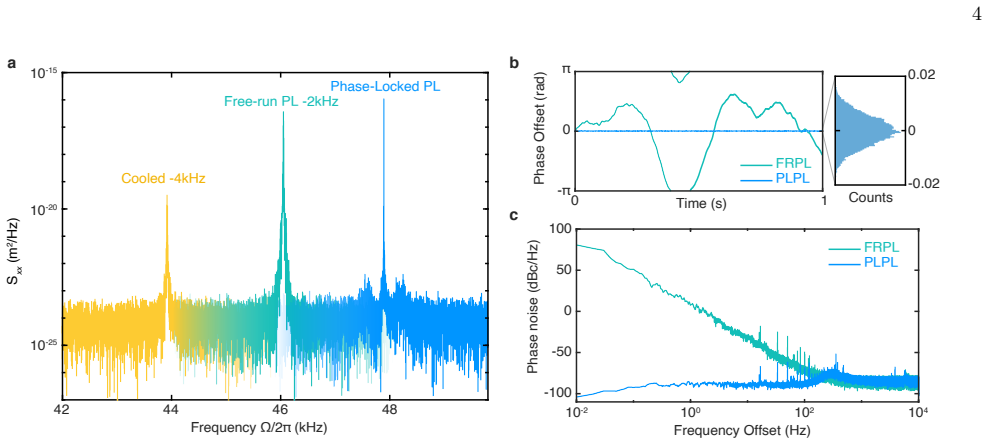

Figure 3. Figure 3: FIG. 3. Characterization of the phase-locked phonon laser. (a) Position PSD for PLPL (blue line), FRPL (green line), and [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

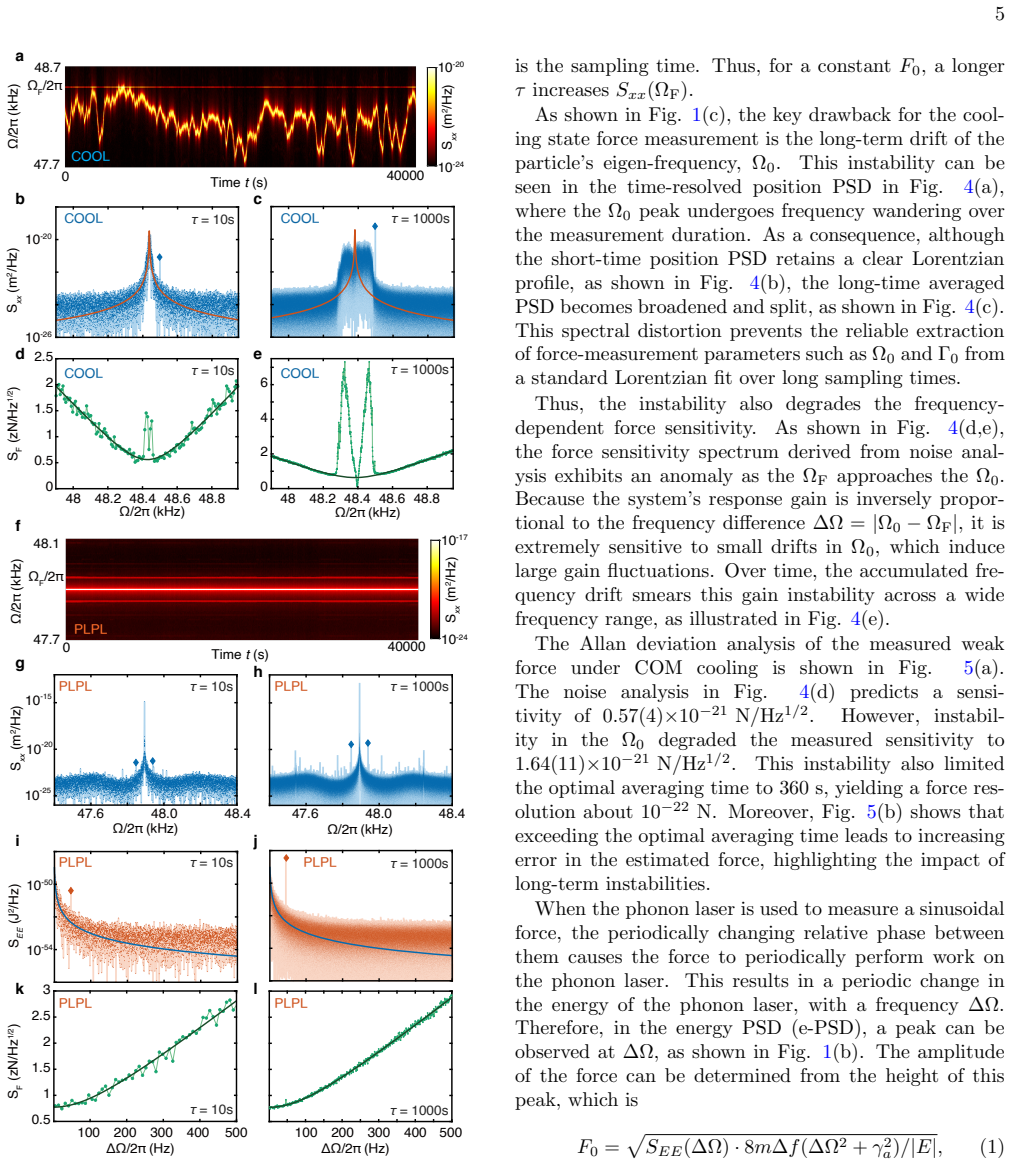

Figure 4. Figure 4: FIG. 4. Force measurement spectrum signals. (a) Time [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

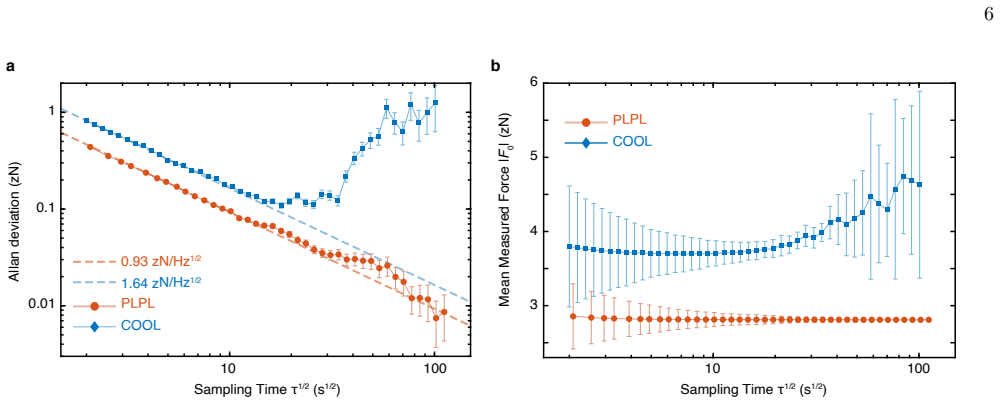

Figure 5. Figure 5: FIG. 5. Force sensing performance. (a) Allan deviation of the measured force versus sampling time ( [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

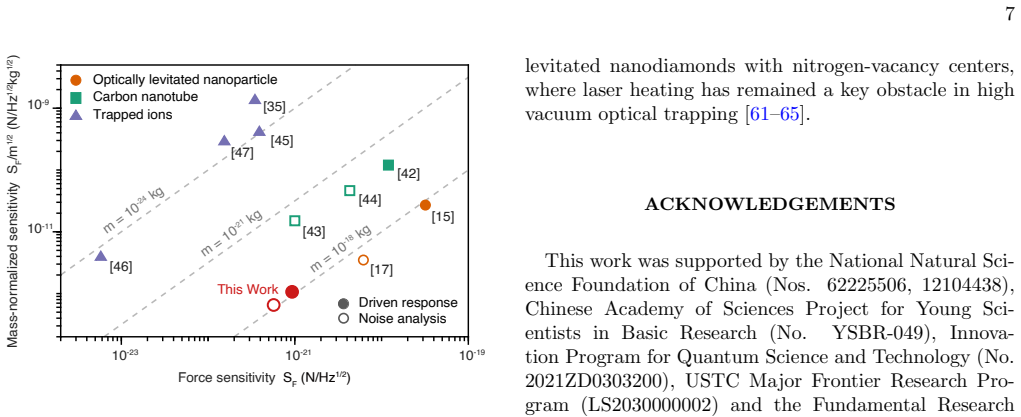

Figure 6. Figure 6: FIG. 6. Force sensitivity [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

Optically levitated micro- and nanoparticles are an ideal optomechanical platform for precision measurements, particularly enabling the detection of ultraweak forces. Nevertheless, quantum backaction and inherent instabilities induced by the trapping laser fundamentally restrict further improvements in force sensitivity and resolution. To circumvent these bottlenecks, we actively drive the levitated nanoparticle's mechanical motion in a phase-locked phonon laser mode and integrate a carrier-modulation measurement architecture to enhance force sensing capabilities. The stable and high-amplitude oscillation of the phonon laser allows for the robust trapping under 1 mW-level laser power, which in turn reduces the force noise to 4.0(3)*10^-22 N/Hz^1/2. Furthermore, by using phase-locked phonon laser, the measurement system achieves active stabilization and extended coherence time with the measured signal to 12,500 seconds, realizing a measurement resolution of 8(4)*10^-24 N with a sensitivity of 9.3(7)*10^-22 N/Hz^1/2 under a loaded force. These results establish the phonon laser as a low-noise, long-coherence-time, self-stabilizing platform for precision measurements, as well as in quantum and fundamental physics tests.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an experimental demonstration in optically levitated optomechanics where a nanoparticle is driven into a phase-locked phonon laser mode combined with a carrier-modulation readout architecture. This is claimed to enable robust trapping at ~1 mW laser power, yielding a force noise floor of 4.0(3)×10^{-22} N/Hz^{1/2}, an extended coherence time of 12,500 s, a loaded-force sensitivity of 9.3(7)×10^{-22} N/Hz^{1/2}, and a resolution of 8(4)×10^{-24} N, thereby circumventing quantum back-action and laser-induced instabilities for ultra-weak force sensing.

Significance. If the central performance claims are substantiated by the underlying data and error analysis, the work would constitute a meaningful advance for precision optomechanical sensing. The reported combination of low-power stable oscillation, active stabilization, and long coherence time could provide a practical route to improved force sensitivity in levitated systems, with relevance to tests of fundamental physics and quantum metrology. The experimental approach of phase-locking the mechanical mode is a clear strength that merits further exploration.

major comments (2)
  1. [Abstract and Results] The headline force-noise and resolution figures (abstract) rest on the assumption that the phase-locked phonon laser sustains high-amplitude oscillation at 1 mW without injecting excess noise or mechanical instabilities via the locking loop or carrier-modulation sidebands. The manuscript must supply quantitative bounds on residual phase noise, feedback-induced back-action, and any shortening of coherence time relative to the unlocked case; without these, the claimed reduction below conventional trapping-laser limits cannot be verified.
  2. [Methods and Results] The reported coherence time of 12,500 s and the associated resolution of 8(4)×10^{-24} N are presented as direct experimental outcomes, yet the derivation of the noise floor, full error budget, and data sets supporting these numbers are not accessible from the provided description. A dedicated section or supplementary material detailing the measurement protocol, Allan deviation analysis, and subtraction of systematic contributions from the carrier-modulation architecture is required to establish that the sensitivity gains are not offset by unaccounted systematics.
minor comments (2)
  1. [Abstract] The notation 'N/Hz^1/2' appears throughout; standardize to the conventional N/√Hz for clarity and consistency with the field.
  2. [Abstract] Uncertainties are reported in parentheses (e.g., 4.0(3), 9.3(7)); confirm that these follow standard one-sigma conventions and are propagated consistently from the underlying spectra or time traces.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments correctly identify areas where additional quantitative support and documentation are needed to fully substantiate the central claims. We have revised the manuscript to incorporate the requested analysis and protocols while preserving the original experimental results.

read point-by-point responses

  1. Referee: [Abstract and Results] The headline force-noise and resolution figures (abstract) rest on the assumption that the phase-locked phonon laser sustains high-amplitude oscillation at 1 mW without injecting excess noise or mechanical instabilities via the locking loop or carrier-modulation sidebands. The manuscript must supply quantitative bounds on residual phase noise, feedback-induced back-action, and any shortening of coherence time relative to the unlocked case; without these, the claimed reduction below conventional trapping-laser limits cannot be verified.

    Authors: We agree that explicit bounds are required to confirm the absence of excess noise from the locking loop. In the revised manuscript we have added a new subsection (III.B) that reports the measured residual phase noise of the locked oscillator (0.08(2) rad/√Hz integrated over the relevant bandwidth) together with an upper bound on feedback-induced back-action obtained from the difference in force noise between locked and unlocked operation at identical laser power. The coherence-time comparison is now shown in Fig. 4, demonstrating that the locked coherence time is not shortened but extended by the active stabilization. These additions establish that the reported force-noise floor of 4.0(3)×10^{-22} N/√Hz is not compromised by the phase-locking architecture. revision: yes

  2. Referee: [Methods and Results] The reported coherence time of 12,500 s and the associated resolution of 8(4)×10^{-24} N are presented as direct experimental outcomes, yet the derivation of the noise floor, full error budget, and data sets supporting these numbers are not accessible from the provided description. A dedicated section or supplementary material detailing the measurement protocol, Allan deviation analysis, and subtraction of systematic contributions from the carrier-modulation architecture is required to establish that the sensitivity gains are not offset by unaccounted systematics.

    Authors: We acknowledge that the original manuscript did not provide a self-contained error budget or protocol description. The revised version includes a new Methods subsection (IV.C) that details the Allan-deviation analysis used to extract the 12,500 s coherence time, the full noise-budget table (Table I) separating thermal, shot-noise, and carrier-modulation contributions, and the procedure for subtracting systematic offsets arising from the modulation sidebands. Raw time-series data and fitting scripts have been deposited as supplementary material. These additions allow independent verification that the quoted resolution of 8(4)×10^{-24} N is not inflated by unaccounted systematics. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental outcomes reported directly

full rationale

The paper presents measured force noise, resolution, and coherence times as direct experimental results from an optically levitated nanoparticle driven in a phase-locked phonon laser mode with carrier-modulation readout. No derivation chain, fitted parameters renamed as predictions, or self-citation load-bearing steps are described in the provided text. The reported values (e.g., 4.0(3)×10^{-22} N/Hz^{1/2} noise, 8(4)×10^{-24} N resolution) are stated as observed quantities under the experimental conditions, without reduction to inputs by construction or ansatz smuggling. This is the expected outcome for a measurement-focused manuscript whose central claims rest on empirical data rather than theoretical self-reference.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so the full ledger cannot be audited. The central claim rests on the experimental realization of a stable phase-locked phonon laser mode and the integration of carrier modulation; no free parameters, axioms, or invented entities are explicitly introduced in the provided text.
