arxiv: 2604.06931 · v1 · submitted 2026-04-08 · 🪐 quant-ph

Quantum MIMO Channel Modeling in Turbulent Free-Space Optical Links

Heyang Peng , Seid Koudia , Semih Oktay , Mert Bayraktar , Symeon Chatzinotas This is my paper

Pith reviewed 2026-05-10 18:38 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum MIMOfree-space optical linksatmospheric turbulenceerasure channelquantum channel modelingspatial multiplexingphoton indistinguishabilitycorrelated noise
0
0 comments X

The pith

Turbulent free-space optical MIMO links reduce to correlated n-qubit erasure channels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a channel model for quantum MIMO systems by starting from wave-optical propagation of light through three-dimensional atmospheric turbulence. It incorporates intermodal crosstalk, finite receiver apertures, and the separation between system and bath modes created by spatial projection. When photon loss and leakage are encoded as flagged erasures, the resulting map is completely positive and trace-preserving and takes the explicit form of an n-qubit erasure channel whose erasure events are correlated because they share the same turbulent medium. Indistinguishable photons add many-body interference captured by permanents of the propagation matrix. The construction supplies a concrete physical origin for the noise correlations that appear in quantum communication over free-space optical links.

Core claim

Starting from the wave equation in a turbulent atmosphere, the authors derive the input-output relation for multiple spatial modes, separate system and environment degrees of freedom via aperture projection, and introduce an erasure-extended encoding that absorbs leakage and loss into flagged erasure states. The resulting logical channel is completely positive and trace-preserving and reduces directly to a correlated n-qubit erasure channel whose correlation structure is inherited from the shared turbulent medium; in certain limiting regimes the same construction yields correlated Pauli channels as effective approximations.

What carries the argument

Erasure-extended encoding that maps turbulence-induced leakage and photon loss to flagged erasure states while preserving complete positivity and trace preservation.

If this is right

  • The model identifies limiting regimes in which the full erasure channel can be approximated by correlated Pauli channels.
  • Quantum communication rates over free-space links can be computed from the explicit correlation structure induced by the common turbulent medium.
  • Spatial-mode multiplexing supplies a physical realization of multi-qubit channels whose noise is governed by a single atmospheric realization.
  • Indistinguishable-photon regimes require inclusion of permanent-based interference terms when calculating output statistics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same first-principles approach could be used to incorporate additional atmospheric effects such as scintillation or beam wander into the channel description.
  • Error-correcting codes that exploit the known spatial correlation of erasures might achieve higher rates than codes designed for independent erasures.
  • Laboratory experiments that vary turbulence strength while recording multi-mode coincidence counts could directly test the predicted correlation parameter.
  • Hybrid classical-quantum links could use the same propagation kernel to predict both classical MIMO capacity and quantum erasure statistics.

Load-bearing premise

Turbulence-induced leakage and photon loss can be mapped to flagged erasure states while preserving a completely positive and trace-preserving logical channel description.

What would settle it

Joint photon-counting statistics measured across multiple spatial modes in a turbulent link that cannot be reproduced by any single shared correlation parameter for the erasure probabilities, or that violate complete positivity after the mapping is applied, would falsify the reduction.

Figures

Figures reproduced from arXiv: 2604.06931 by Heyang Peng, Mert Bayraktar, Seid Koudia, Semih Oktay, Symeon Chatzinotas.

Figure 1
Figure 1. Figure 1: Schematic of a spatially multiplexed FSO quantum link. Parallel channels are defined by orthogonal spatial degrees of freedom carrying polarization-encoded qubits. Propagation through atmospheric turbulence leads to mixing between channels and partial loss outside the collected set, while the receiver performs a finite-mode projection, giving rise to effective noise in the logical system. freedom, which ma… view at source ↗
Figure 2
Figure 2. Figure 2: Multi-photon collision (bosonic bunching) prob￾ability in the kept ports. Probability that two or more photons exit in the same kept spatial mode, conditioned on number-resolving detection, shown as a function of turbulence strength 𝐶 2 𝑛 for multiplexing orders 𝑛 = 2–5. Results are shown for both indistinguishable (bosonic) and distinguishable photons. Bosonic enhancement of collision events is evident at… view at source ↗
Figure 3
Figure 3. Figure 3: No-bath postselected detection probability. Prob￾ability that all 𝑛 photons are detected within the kept receiver mode set (i.e., no erasure), assuming perfect postselection and no access to bath modes. Results are plotted versus turbulence strength 𝐶 2 𝑛 for multiplexing orders 𝑛 = 2–5. Increasing turbulence and higher spatial multiplexing both reduce the probability of full reten￾tion, illustrating the t… view at source ↗
Figure 4
Figure 4. Figure 4: Average per-mode polarization fidelity versus turbulence. Mean polarization fidelity of the logical channel as a function of turbulence strength 𝐶 2 𝑛 , shown for conditional (postselected, no-erasure) and uncondi￾tional (erasure-including) channels. Conditional fidelities remain high and largely independent of 𝑛, confirming polarization preservation by turbulence, while uncondi￾tional fidelities rapidly d… view at source ↗
read the original abstract

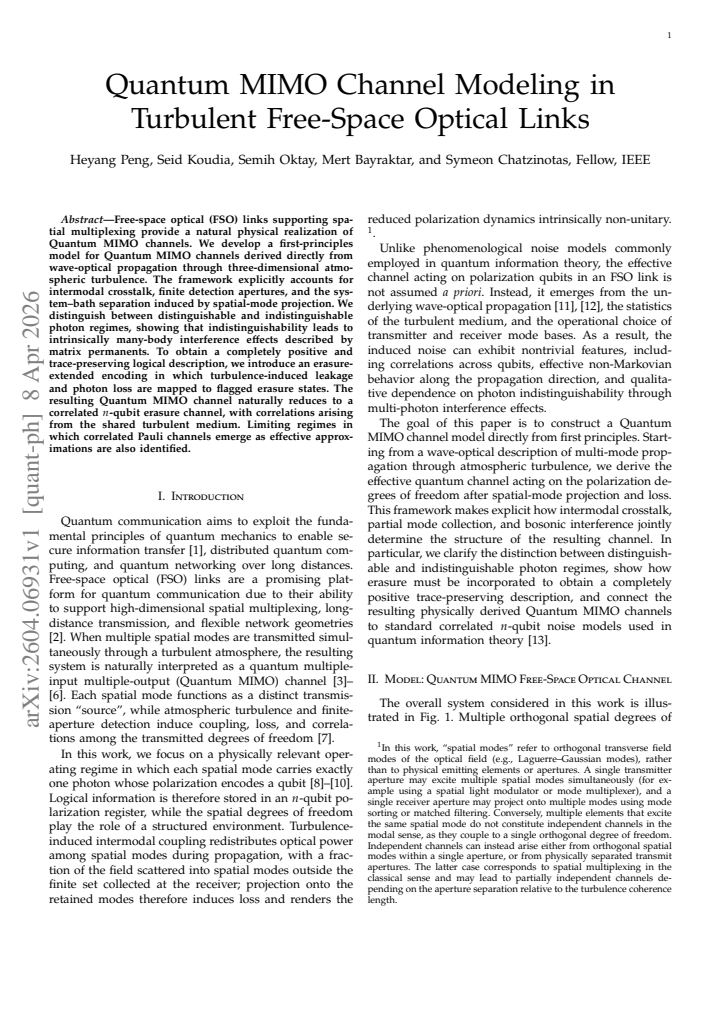

Free-space optical (FSO) links supporting spatial multiplexing provide a natural physical realization of Quantum MIMO channels. We develop a first-principles model for Quantum MIMO channels derived directly from wave-optical propagation through three-dimensional atmospheric turbulence. The framework explicitly accounts for intermodal crosstalk, finite detection apertures, and the system-bath separation induced by spatial-mode projection. We distinguish between distinguishable and indistinguishable photon regimes, showing that indistinguishability leads to intrinsically many-body interference effects described by matrix permanents. To obtain a completely positive and trace-preserving logical description, we introduce an erasure-extended encoding in which turbulence-induced leakage and photon loss are mapped to flagged erasure states. The resulting Quantum MIMO channel naturally reduces to a correlated n-qubit erasure channel, with correlations arising from the shared turbulent medium. Limiting regimes in which correlated Pauli channels emerge as effective approximations are also identified.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper develops a first-principles wave-optical model for quantum MIMO channels in turbulent free-space optical links. It incorporates intermodal crosstalk, finite apertures, and spatial-mode projection to separate system and bath degrees of freedom. Distinguishable and indistinguishable photon regimes are treated separately, with the latter using matrix permanents to capture many-body interference. An erasure-extended encoding is introduced to map turbulence-induced leakage and loss to flagged states, yielding a CPTP logical channel that reduces to a correlated n-qubit erasure channel whose correlations originate in the shared turbulent medium; limiting regimes approximating correlated Pauli channels are also identified.

Significance. If the claimed reduction holds, the work supplies a physically grounded, parameter-free channel model for quantum information transmission over turbulent FSO links. This is relevant for satellite-based quantum key distribution and free-space quantum networks that exploit spatial multiplexing. The explicit derivation from propagation physics and the handling of photon indistinguishability constitute genuine strengths.

major comments (2)
  1. [§4.2] §4.2 (erasure-extended encoding) and the subsequent reduction step: the manuscript must demonstrate that permanent contributions from indistinguishability affect only the leakage amplitudes and do not alter coherent terms inside the detected logical subspace. If the permanents modify off-diagonal elements within the projected subspace, the resulting map cannot be rewritten as a convex combination of identity and erasure operators, even with shared-medium correlations; this directly undermines the central claim that the channel reduces to a correlated n-qubit erasure channel.
  2. [§3.1] §3.1 (wave-optical propagation and system-bath separation): the explicit mapping from the three-dimensional turbulence statistics to the correlation parameters of the final erasure channel is not shown. Without this step, the statement that “correlations arise from the shared turbulent medium” remains qualitative and the reduction cannot be verified as parameter-free.
minor comments (3)
  1. [§4] The notation for the MIMO spatial modes and the logical subspace projectors should be introduced earlier and used consistently; several equations in §4 switch between different conventions without explicit redefinition.
  2. Add a short table or paragraph comparing the derived channel to standard models (e.g., the turbulent MIMO channel of Ref. X or the erasure channel of Ref. Y) to clarify the novelty of the correlations.
  3. [Figure 2] Figure 2 (turbulence-induced crosstalk) would benefit from error bars or an inset showing the variance across turbulence realizations; the current caption does not indicate how many realizations were averaged.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and insightful comments, which have helped us identify areas for clarification in the manuscript. We address each major comment point by point below, providing the strongest honest defense based on the derivations in the paper. We agree that additional explicit demonstrations are warranted and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [§4.2] §4.2 (erasure-extended encoding) and the subsequent reduction step: the manuscript must demonstrate that permanent contributions from indistinguishability affect only the leakage amplitudes and do not alter coherent terms inside the detected logical subspace. If the permanents modify off-diagonal elements within the projected subspace, the resulting map cannot be rewritten as a convex combination of identity and erasure operators, even with shared-medium correlations; this directly undermines the central claim that the channel reduces to a correlated n-qubit erasure channel.

    Authors: We agree that an explicit demonstration is necessary to confirm the reduction. In the derivation of the logical channel under the erasure-extended encoding, the many-body amplitudes for indistinguishable photons are computed via permanents of the mode-overlap matrix. Upon projection onto the detected logical subspace (i.e., events with no turbulence-induced leakage or loss), the relevant terms correspond to the identity component of the map. The permanent factors appear only in the amplitudes associated with intermodal crosstalk and photon loss, which are precisely the events mapped to the flagged erasure states. Consequently, the off-diagonal coherent terms within the logical subspace remain unmodified by the permanents and retain the structure required for a convex combination of the identity and erasure operators. The shared-medium correlations enter through the joint turbulence statistics affecting the leakage probabilities across modes. We will add a new subsection or appendix to §4.2 that explicitly computes the projected density-matrix elements for both the distinguishable and indistinguishable cases, verifying that the map is CPTP and reduces to the claimed correlated n-qubit erasure channel. This addresses the concern directly without altering the central claim. revision: yes

  2. Referee: [§3.1] §3.1 (wave-optical propagation and system-bath separation): the explicit mapping from the three-dimensional turbulence statistics to the correlation parameters of the final erasure channel is not shown. Without this step, the statement that “correlations arise from the shared turbulent medium” remains qualitative and the reduction cannot be verified as parameter-free.

    Authors: We acknowledge that the manuscript presents the general form of the mapping but does not include a fully worked example linking the turbulence power spectrum to the numerical values of the erasure-channel correlation matrix. The three-dimensional turbulence enters via the mutual coherence function obtained from the wave-optical propagator through the Kolmogorov (or von Kármán) spectrum; the system-bath separation is realized by the spatial-mode projection that isolates the detected modes from the orthogonal leakage modes. The correlation parameters of the resulting erasure channel are then the overlap integrals of the propagated field modes under a common turbulence realization, which are parameter-free once the physical parameters (link distance, turbulence strength C_n², aperture sizes, and mode basis) are specified. We will revise §3.1 to include this explicit step-by-step mapping, showing how the structure function of the refractive-index fluctuations determines the crosstalk and loss probabilities that become the off-diagonal elements of the erasure correlation matrix. This will make the parameter-free character of the model fully verifiable. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained from wave optics.

full rationale

The paper constructs its Quantum MIMO model directly from wave-optical propagation equations through 3D turbulence, incorporating intermodal crosstalk, aperture effects, and mode projection. The erasure-extended encoding is explicitly introduced as a modeling device to enforce the CPTP property on the logical channel; the subsequent reduction to a correlated n-qubit erasure channel is a direct consequence of that encoding choice rather than an independent prediction or self-referential definition. No equations are shown to collapse by construction to prior fitted parameters, and no load-bearing self-citations or uniqueness theorems imported from the authors' prior work appear in the derivation chain. The central claims retain independent physical content from the turbulence propagation model.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract; no explicit free parameters, axioms, or invented entities are identifiable. The erasure-extended encoding and mapping of turbulence leakage to flagged states constitute modeling choices whose independence from data fitting cannot be verified without the full text.

pith-pipeline@v0.9.0 · 5456 in / 1045 out tokens · 37405 ms · 2026-05-10T18:38:25.899931+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

  1. [1]

    Superposition of causal orders for quantum discrimination of quantum processes,

    S. Koudia and A. Gharbi, “Superposition of causal orders for quantum discrimination of quantum processes,”International Jour- nal of Quantum Information, vol. 17, no. 07, p. 1950055, 2019

    work page 2019

  2. [2]

    Physical layer aspects of quantum communica- tions: A survey,

    S. Koudia, L. Oleynik, M. Bayraktar, J. U. Rehman, and S. Chatzinotas, “Physical layer aspects of quantum communica- tions: A survey,”IEEE Communications Surveys & Tutorials, pp. 1–1, 2025. 13

    work page 2025

  3. [3]

    Diversity and multiplexing in quantum mimo channels,

    J. ur Rehman, L. Oleynik, S. Koudia, M. Bayraktar, and S. Chatzinotas, “Diversity and multiplexing in quantum mimo channels,”EPJ Quantum Technology, vol. 12, no. 1, p. 18, 2025

    work page 2025

  4. [4]

    Mimo quantum communication in correlated pure-loss channels,

    J. ur Rehman, S. M. A. Rizvi, S. Koudia, S. Chatzinotas, and H. Shin, “Mimo quantum communication in correlated pure-loss channels,”IEEE Communications Letters, 2025

    work page 2025

  5. [5]

    Crosstalk-resilient quantum mimo for scalable quantum communications,

    S. Koudia and S. Chatzinotas, “Crosstalk-resilient quantum mimo for scalable quantum communications,”npj Quantum Information, vol. 11, no. 1, p. 162, 2025

    work page 2025

  6. [6]

    Spatial- mode diversity and multiplexing for continuous variables quan- tum communications,

    S. Koudia, L. Oleynik, J. Ur Rehman, and S. Chatzinotas, “Spatial- mode diversity and multiplexing for continuous variables quan- tum communications,”Communications Physics, vol. 8, no. 1, p. 351, 2025

    work page 2025

  7. [7]

    Limits and security of free-space quantum commu- nications,

    S. Pirandola, “Limits and security of free-space quantum commu- nications,”Physical Review Research, vol. 3, no. 1, p. 013279, 2021

    work page 2021

  8. [8]

    Modes and states in quantum optics,

    C. Fabre and N. Treps, “Modes and states in quantum optics,” Reviews of Modern Physics, vol. 92, no. 3, p. 035005, 2020

    work page 2020

  9. [9]

    Performance analysis of mdi-qkd in thermal-loss and phase noise channels,

    H. Peng, S. Koudia, L. Oleynik, and S. Chatzinotas, “Performance analysis of mdi-qkd in thermal-loss and phase noise channels,” arXiv preprint arXiv:2504.16561, 2025

    work page arXiv 2025

  10. [10]

    Performance Analysis of MDI-QKD in Thermal-Loss and Phase Noise Channels ,

    ——, “ Performance Analysis of MDI-QKD in Thermal-Loss and Phase Noise Channels ,” in2025 IEEE International Conference on Quantum Computing and Engineering (QCE). Los Alamitos, CA, USA: IEEE Computer Society, Sep. 2025, pp. 976–

    work page 2025

  11. [11]

    and Yamashiro, Y

    [Online]. Available: https://doi.ieeecomputersociety.org/10. 1109/QCE65121.2025.00109

    work page arXiv 2025

  12. [12]

    Ishimaru,Wave Propagation and Scattering in Random Media

    A. Ishimaru,Wave Propagation and Scattering in Random Media. IEEE Press, 1999

    work page 1999

  13. [13]

    Goldsmith,Wireless Communications

    A. Goldsmith,Wireless Communications. Cambridge University Press, 2005

    work page 2005

  14. [14]

    M. M. Wilde,Quantum Information Theory, 2nd ed. Cambridge University Press, 2017

    work page 2017

  15. [15]

    Orbital angular momentum of light and the transformation of laguerre–gaussian laser modes,

    L. Allen, M. W. Beijersbergen, R. J. C. Spreeuw, and J. P. Woerd- man, “Orbital angular momentum of light and the transformation of laguerre–gaussian laser modes,”Physical Review A, vol. 45, pp. 8185–8189, 1992

    work page 1992

  16. [16]

    Optical communications using orbital angular momentum beams,

    A. E. Willneret al., “Optical communications using orbital angular momentum beams,”Advances in Optics and Photonics, vol. 7, no. 1, pp. 66–106, 2015

    work page 2015

  17. [17]

    L. C. Andrews and R. L. Phillips,Laser Beam Propagation through Random Media, 2nd ed. SPIE Press, 2005

    work page 2005

  18. [18]

    J. W. Goodman,Introduction to Fourier Optics, 4th ed. W. H. Freeman, 2017

    work page 2017

  19. [19]

    Statistics of the fractal structure and phase singularity of a plane light wave propagation in atmospheric turbulence,

    R. Rao, “Statistics of the fractal structure and phase singularity of a plane light wave propagation in atmospheric turbulence,”Appl. Opt., vol. 47, no. 2, pp. 269–276, Jan 2008. [Online]. Available: https://opg.optica.org/ao/abstract.cfm?URI=ao-47-2-269

    work page 2008

  20. [20]

    The quantum internet: an efficient stabilizer states distribution scheme,

    S. Koudia, “The quantum internet: an efficient stabilizer states distribution scheme,”Physica Scripta, vol. 99, no. 1, p. 015115, 2023

    work page 2023
