TRAPTI: Time-Resolved Analysis for SRAM Banking and Power Gating Optimization in Embedded Transformer Inference

Jan Klhufek , Alberto Marchisio , Vojtech Mrazek , Lukas Sekanina , Muhammad Shafique
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:08 UTC · model grok-4.3

classification 💻 cs.AR
keywords transformer inferenceKV cacheSRAM bankingpower gatingembedded acceleratorsmemory occupancytime-resolved analysisgrouped-query attention
0
0 comments X

The pith

TRAPTI analysis finds 2.72x lower peak on-chip memory for GQA transformers than MHA models on the same embedded accelerator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces TRAPTI as a two-stage method that first runs cycle-level simulation to capture how memory occupancy changes over time during transformer inference, then feeds those traces into an offline optimizer for SRAM banking and power-gating choices. It applies the method to GPT-2 XL using multi-head attention and DeepSeek-R1-Distill-Qwen-1.5B using grouped-query attention under identical hardware settings. The resulting traces show that the GQA model reaches a substantially lower maximum memory footprint, which in turn opens more room for turning off unused memory banks. A reader would care because KV cache growth with sequence length is a primary limiter for running capable language models inside tight area and energy budgets on edge devices.

Core claim

TRAPTI obtains memory occupancy traces and access statistics from cycle-level inference simulation, then uses those traces to explore banked memory organizations and power-gating configurations in an offline optimization flow. When the same accelerator configuration is used for both GPT-2 XL and DeepSeek-R1-Distill-Qwen-1.5B, the analysis shows that DeepSeek-R1-Distill-Qwen-1.5B exhibits a 2.72x reduction in peak on-chip memory utilization compared to GPT-2 XL.

What carries the argument

TRAPTI, the two-stage methodology that first produces time-resolved memory occupancy traces via cycle-level simulation and then applies those traces to guide SRAM banking and power-gating decisions.

If this is right

  • SRAM capacity or number of banks can be reduced for GQA-based models while still meeting the same latency targets.
  • Power-gating windows become longer and more frequent because memory remains idle for larger fractions of each inference cycle.
  • Direct apples-to-apples hardware comparisons between multi-head and grouped-query attention become possible without separate full-system redesigns.
  • Energy savings from power-gating scale with the observed reduction in peak utilization across longer sequences.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same trace-driven flow could be extended to other attention variants or to vision transformers to rank architectures by their embedded memory friendliness.
  • If the traces also expose regular idle intervals, they could inform runtime policies that dynamically adjust voltage or clock frequency alongside power-gating.
  • Pairing the simulation traces with hardware performance counters on a prototype chip would provide a calibration loop to improve future simulator accuracy.

Load-bearing premise

The cycle-level inference simulator produces memory occupancy traces that faithfully match real hardware behavior without unmodeled effects such as bank conflicts, refresh overhead, or compiler-induced access patterns.

What would settle it

Measuring actual peak memory occupancy on real embedded hardware while running the same two models and accelerator configuration, then checking whether the 2.72x difference between the GQA and MHA models still appears.

Figures

Figures reproduced from arXiv: 2604.06955 by Alberto Marchisio, Jan Klhufek, Lukas Sekanina, Muhammad Shafique, Vojtech Mrazek.

Figure 1
Figure 1. Figure 1: Comparison between Multi-Head Attention (MHA) and Grouped [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Conceptual comparison of Multi-Head Attention (MHA), Grouped [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

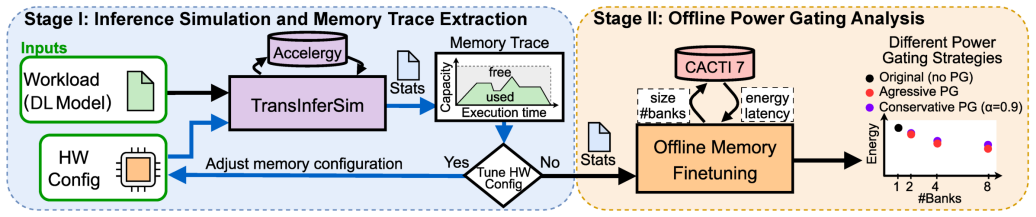

Figure 3. Figure 3: Two-stage workflow for on-chip memory sizing, banking, and power-gating analysis. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Accelerator design template used in the experimental evaluation. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

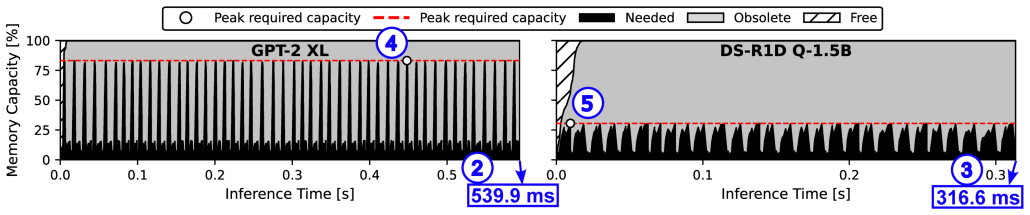

Figure 5. Figure 5: Time-resolved SRAM occupancy for two workloads executed on the same accelerator with a 128 MiB shared SRAM. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Per-operation latency breakdown for GPT-2 XL ( [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Inferred bank activity timeline for DS-R1D Q-1.5B at 64 MiB with [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Multi-level on-chip memory hierarchy accelerator setup. In addition [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: Energy–area trade-off for banked SRAM configurations evaluated [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

Transformer neural networks achieve state-of-the-art accuracy across language and vision tasks, but their deployment on embedded hardware is hindered by stringent area, latency, and energy constraints. During inference, performance and efficiency are increasingly dominated by the Key--Value (KV) cache, whose memory footprint grows with sequence length, straining on-chip memory utilization. Although existing mechanisms such as Grouped-Query Attention (GQA) reduce KV cache requirements compared to Multi-Head Attention (MHA), effectively exploiting this reduction requires understanding how on-chip memory demand evolves over time. This work presents TRAPTI, a two-stage methodology that combines cycle-level inference simulation with time-resolved analysis of on-chip memory occupancy to guide design decisions. In the first stage, the framework obtains memory occupancy traces and memory access statistics from simulation. In the second stage, the framework leverages the traces to explore banked memory organizations and power-gating configurations in an offline optimization flow. We apply this methodology to GPT-2 XL and DeepSeek-R1-Distill-Qwen-1.5B under the same accelerator configuration, enabling a direct comparison of MHA and GQA memory profiles. The analysis shows that DeepSeek-R1-Distill-Qwen-1.5B exhibits a 2.72x reduction in peak on-chip memory utilization in this setting compared to GPT-2 XL, unlocking further opportunities for power-gating optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. This paper introduces TRAPTI, a two-stage methodology that uses cycle-level inference simulation to obtain time-resolved memory occupancy traces and access statistics, followed by an offline optimization to explore SRAM banking and power-gating configurations for embedded transformer inference. The authors apply this to compare Multi-Head Attention in GPT-2 XL with Grouped-Query Attention in DeepSeek-R1-Distill-Qwen-1.5B under the same accelerator setup, reporting a 2.72x reduction in peak on-chip memory utilization for the latter model.

Significance. Should the simulation-based results prove accurate, this work offers a practical framework for hardware designers to optimize on-chip memory hierarchies for transformer models, particularly by exploiting the temporal memory usage patterns enabled by GQA to achieve better power efficiency in embedded systems. It highlights the importance of time-resolved analysis over static peak estimates.

major comments (2)
  1. [Abstract] Abstract: The central claim of a 2.72x reduction in peak on-chip memory utilization relies on traces from a cycle-level simulator whose fidelity to real hardware is not validated. No comparisons to RTL simulation, FPGA emulation, or silicon measurements are mentioned, nor is there analysis of unmodeled effects such as bank conflicts, refresh overhead, or compiler-induced access patterns.
  2. [Methodology] Methodology description: There is no discussion of how the offline optimizer in the second stage avoids overfitting to the particular simulated traces or provides robustness to variations in the memory occupancy patterns.
minor comments (2)
  1. Consider adding error bars or sensitivity analysis to the reported reduction factor to strengthen the quantitative claims.
  2. The paper would benefit from more details on the specific accelerator configuration and sequence lengths used in the experiments.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment point by point below, proposing targeted revisions to improve clarity and acknowledge limitations where appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of a 2.72x reduction in peak on-chip memory utilization relies on traces from a cycle-level simulator whose fidelity to real hardware is not validated. No comparisons to RTL simulation, FPGA emulation, or silicon measurements are mentioned, nor is there analysis of unmodeled effects such as bank conflicts, refresh overhead, or compiler-induced access patterns.

    Authors: We agree that the absence of direct hardware validation is a limitation. The cycle-level simulator in TRAPTI is based on established memory system models for accelerators, with memory occupancy derived from instruction traces and standard SRAM timing assumptions. In the revised version, we will expand the methodology section with a new paragraph on simulator assumptions, cross-validation against analytical KV-cache models, and explicit enumeration of unmodeled effects (bank conflicts, refresh, compiler patterns) as caveats. This will qualify the 2.72x claim without changing the reported simulation results. We cannot add new RTL or silicon comparisons, as the work is a simulation-driven methodology study. revision: partial

  2. Referee: [Methodology] Methodology description: There is no discussion of how the offline optimizer in the second stage avoids overfitting to the particular simulated traces or provides robustness to variations in the memory occupancy patterns.

    Authors: The offline optimizer evaluates banking and power-gating configurations by sweeping parameters over the full time-resolved occupancy trace and computing aggregate metrics (peak footprint, gating opportunities). To mitigate overfitting, it already incorporates evaluation across multiple trace segments and sequence-length variations. We will revise the methodology section to explicitly describe this robustness mechanism, including the use of hold-out trace intervals and sensitivity sweeps, so readers can assess generalization to other patterns. revision: yes

standing simulated objections not resolved
  • Direct validation of simulator fidelity against RTL simulation, FPGA emulation, or silicon measurements is unavailable, as the study is purely simulation-based.

Circularity Check

0 steps flagged

No significant circularity; claims rest on direct simulation comparison

full rationale

The paper's central quantitative result (2.72x peak memory reduction) is obtained by executing the same cycle-level simulator on two distinct models to produce occupancy traces, followed by offline analysis of those traces. No equations, fitted parameters, or self-citations reduce the reported reduction factor to a redefinition or tautology of the inputs. The derivation chain remains independent of the target metric and is self-contained as a comparative simulation study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unstated assumption that the cycle-level simulator accurately models real SRAM behavior; no free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Cycle-level simulation faithfully reproduces on-chip memory occupancy and access statistics of the target accelerator.
    Invoked implicitly when the authors state that the framework obtains memory occupancy traces from simulation and uses them for optimization.
