A Simple and Robust Balanced Homodyne Detector for High-Repetition-Rate Pulsed Sources

Samuele Altilia , Edoardo Suerra , Pietro Puppi , Sebastiano Corli , Enrico Prati , Simone Cialdi This is my paper

Pith reviewed 2026-05-10 17:44 UTC · model grok-4.3

classification ⚛️ physics.optics quant-ph
keywords balanced homodyne detectorhigh-repetition-rate pulsed sourcesshot-noise-limited detectiondirect photocurrent amplificationInGaAs photodiodesquantum opticspulse correlationsSNR optimization
0
0 comments X

The pith

A direct-amplification circuit for balanced homodyne detection achieves shot-noise-limited scaling at 100 MHz pulsed rates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops and tests a balanced homodyne detector for high-repetition-rate pulsed optical sources by directly amplifying the photocurrent extracted at the common photodiode node. This avoids the nonlinearities and dynamic instabilities that arise in conventional transimpedance-amplifier designs with ultrashort pulses. A theoretical model is derived for detector response, noise behavior, and pulse-to-pulse correlations. Experiments using matched InGaAs photodiodes illuminated by a 1030 nm mode-locked laser at 100 MHz confirm linear response, variance that scales with optical power exactly as expected for shot noise, a maximum SNR of about 14 dB after window optimization, and negligible inter-pulse correlations.

Core claim

The paper demonstrates that a direct photocurrent amplification architecture, without feedback loops, produces a simple and robust balanced homodyne detector for 100 MHz pulsed sources. Implemented with two matched InGaAs photodiodes, the device exhibits excellent linearity and the measured signal variance follows shot-noise-limited scaling with optical power. Optimizing the temporal integration window yields a maximum SNR of about 14 dB, while direct correlation measurements confirm negligible inter-pulse correlations, matching the quantitative predictions of the accompanying model.

What carries the argument

Direct amplification of the difference photocurrent at the common photodiode node without transimpedance feedback loops.

If this is right

  • The detector maintains linear response and shot-noise-limited variance scaling across a range of optical powers.
  • Optimizing the temporal integration window produces a maximum SNR of about 14 dB.
  • Correlation measurements show negligible inter-pulse correlations, allowing independent pulse-by-pulse detection.
  • The architecture provides a practical solution for high-speed pulsed homodyne detection in quantum optics.
  • The theoretical model accurately predicts signal variance, SNR, and correlation behavior.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The direct-amplification approach could be scaled to repetition rates above 100 MHz by adjusting integration timing and photodiode bandwidth.
  • Adaptation to other near-infrared wavelengths would broaden use in fiber-based quantum communication setups.
  • Integration with existing high-speed data acquisition systems would reduce overall complexity in continuous-variable quantum information experiments.

Load-bearing premise

The two photodiodes remain sufficiently matched and the direct amplification circuit adds no extra noise or correlations that would violate shot-noise-limited scaling.

What would settle it

If the measured signal variance deviates from linear scaling with optical power or if measurable inter-pulse correlations appear in the output, the claim of shot-noise-limited robust operation would be falsified.

Figures

Figures reproduced from arXiv: 2604.06994 by Edoardo Suerra, Enrico Prati, Pietro Puppi, Samuele Altilia, Sebastiano Corli, Simone Cialdi.

Figure 1
Figure 1. Figure 1: Principle of operation of the balanced detector, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

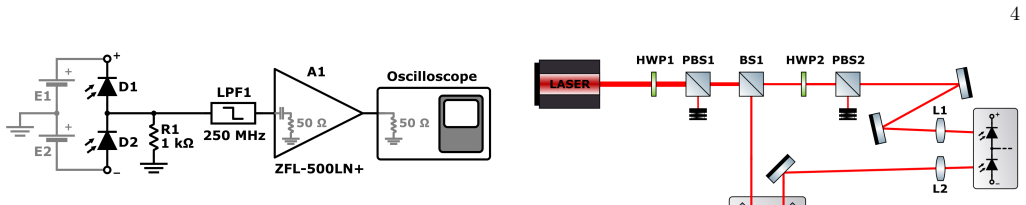

Figure 2. Figure 2: Electronic scheme of the homodyne detector. Two [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

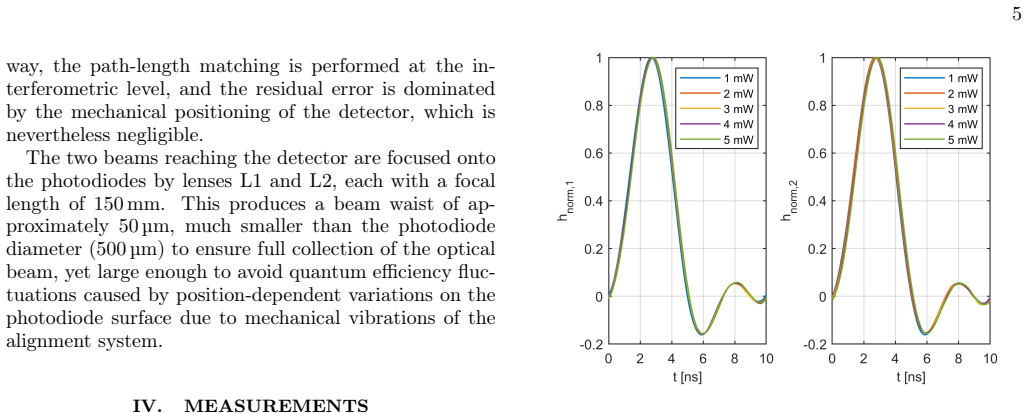

Figure 4. Figure 4: Invariance of the peak-normalized response func [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

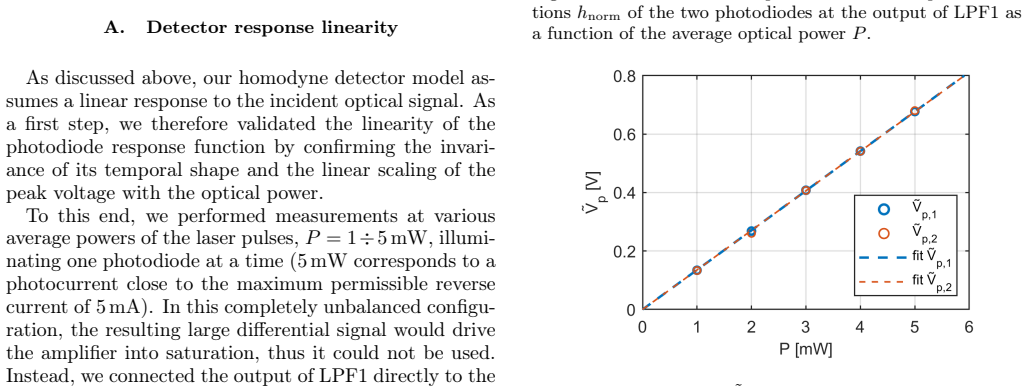

Figure 5. Figure 5: Linearity of V˜p as a function of P for the two photodiodes, demonstrating the absence of saturation effects. The slopes obtained are K1 = 0.1354 ± 0.0002, V mW−1 and K2 = 0.1353 ± 0.0007, V mW−1 ; the coefficients of determi￾nation are R 2 1 = 0.9999 and R 2 2 = 0.9994. we can therefore write Z T y˜(t) dt = V˜ p Z T hnorm(t) dt = R Q = R η q P T hν , (19) where q is the elementary charge, h is Planck’s co… view at source ↗
Figure 8

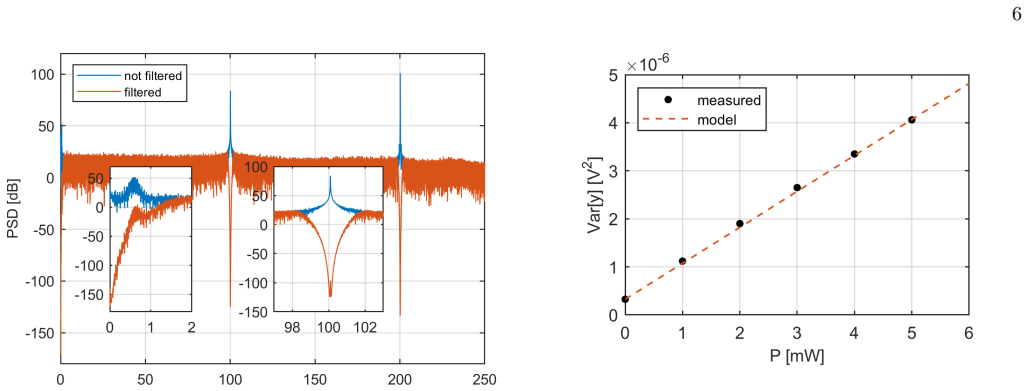

Figure 8. Figure 8: Variance of the homodyne signal as a function of [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 7

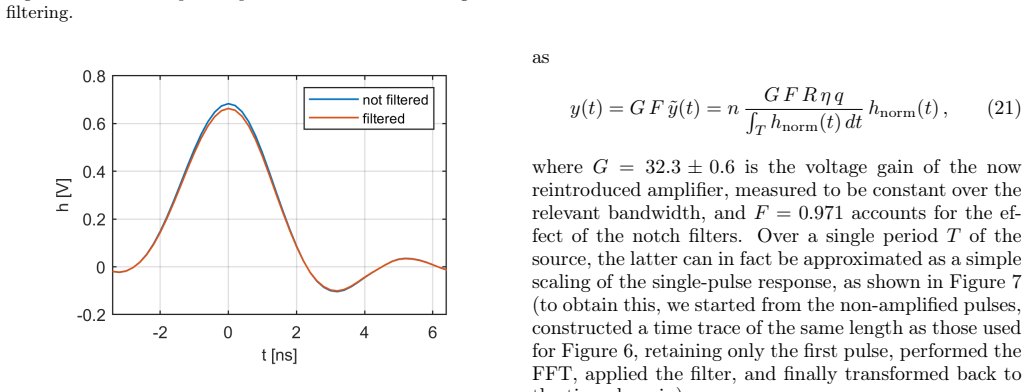

Figure 7. Figure 7: Pulse shape before and after digital filtering. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 11
Figure 11. Figure 11: shows the behavior of SNR2 as a function of the integration-window width ∆t around the voltage peak. The maximum SNR is obtained for an integration window of approximately 3 ns, corresponding to a value of about 14 dB, which is more than sufficient to observe quantum effects. At this SNR level, the shot noise clearly dominates over the electronic noise, allowing squeezing of the quadrature variance by sev… view at source ↗
Figure 10

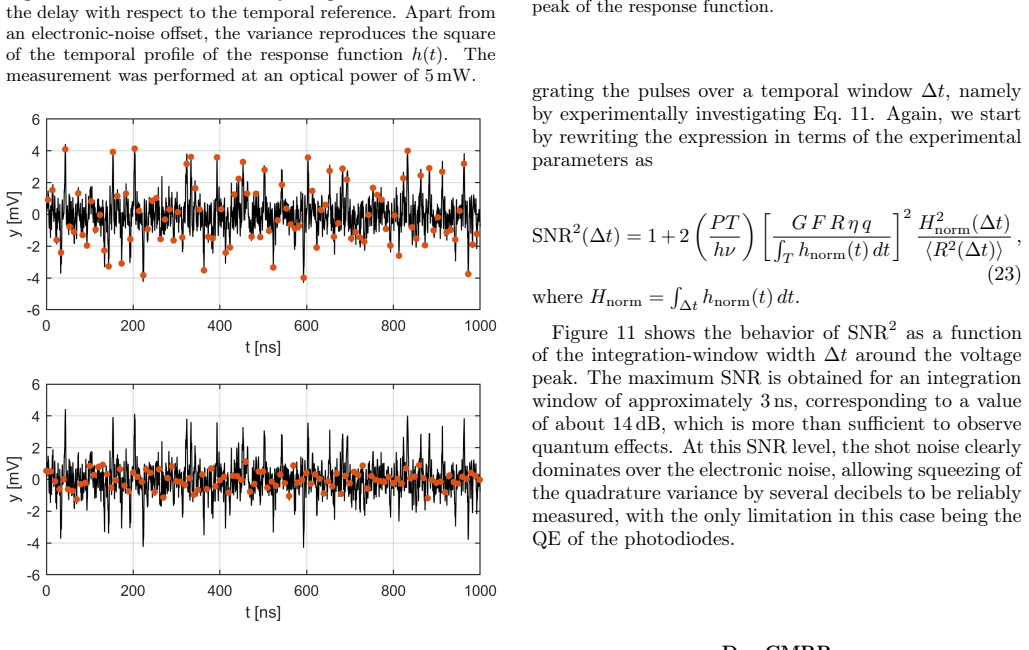

Figure 10. Figure 10: Homodyne signal trace with samples selected at [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 14
Figure 14. Figure 14: Single-pulse response function after filtering with [PITH_FULL_IMAGE:figures/full_fig_p008_14.png] view at source ↗
Figure 12
Figure 12. Figure 12: On the top, variance of the detector output as a [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Measured correlation coefficient Cm between the signal sampled at the photocurrent peak of a given pulse and that of subsequent pulses. The correlations are negligible, in￾dicating that the detector operates in the single-pulse regime. The dashed line represents the correlation trend calculated using Eq. 17 [PITH_FULL_IMAGE:figures/full_fig_p008_13.png] view at source ↗

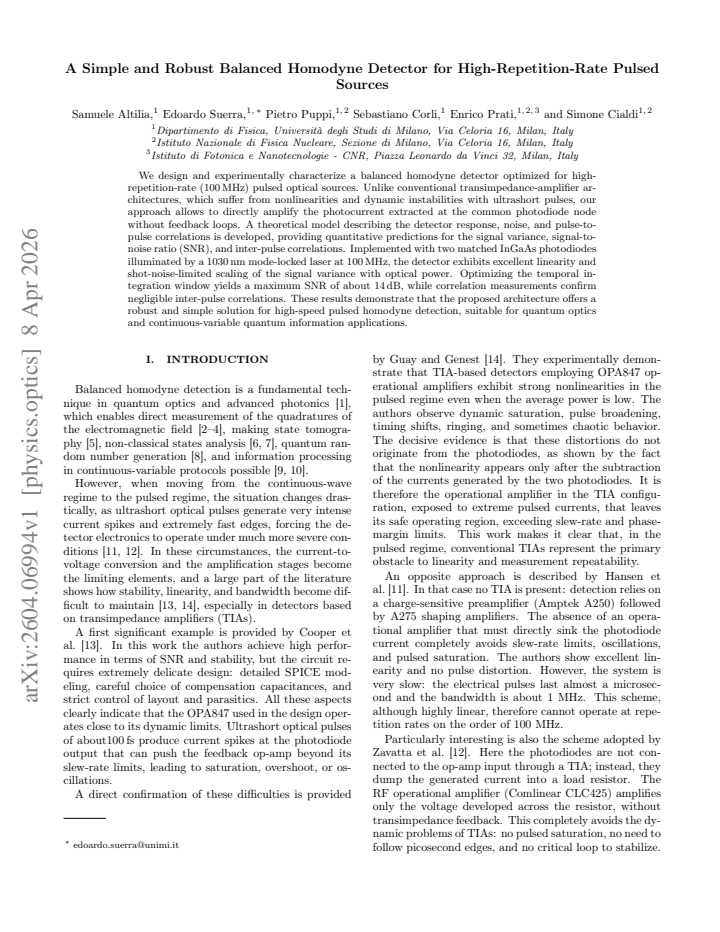

read the original abstract

We design and experimentally characterize a balanced homodyne detector optimized for high-repetition-rate (100 MHz) pulsed optical sources. Unlike conventional transimpedance-amplifier architectures, which suffer from nonlinearities and dynamic instabilities with ultrashort pulses, our approach allows to directly amplify the photocurrent extracted at the common photodiode node without feedback loops. A theoretical model describing the detector response, noise, and pulse-to-pulse correlations is developed, providing quantitative predictions for the signal variance, signal-to-noise ratio (SNR), and inter-pulse correlations. Implemented with two matched InGaAs photodiodes illuminated by a 1030 nm mode-locked laser at 100 MHz, the detector exhibits excellent linearity and shot-noise-limited scaling of the signal variance with optical power. Optimizing the temporal integration window yields a maximum SNR of about 14 dB, while correlation measurements confirm negligible inter-pulse correlations. These results demonstrate that the proposed architecture offers a robust and simple solution for high-speed pulsed homodyne detection, suitable for quantum optics and continuous-variable quantum information applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the design and experimental characterization of a balanced homodyne detector for 100 MHz pulsed sources that uses direct amplification of the photocurrent at the common node of two matched InGaAs photodiodes, avoiding transimpedance feedback. A supporting theoretical model predicts signal variance, SNR, and inter-pulse correlations. Experiments with a 1030 nm mode-locked laser show linear response, variance scaling linearly with optical power (claimed to be shot-noise limited), a maximum SNR of ~14 dB after optimizing the temporal integration window, and negligible pulse-to-pulse correlations.

Significance. If the shot-noise-limited performance and negligible correlations are independently verified, the architecture provides a simpler, more stable alternative to conventional transimpedance-amplifier detectors for high-repetition-rate pulsed homodyne detection in quantum optics and continuous-variable quantum information applications.

major comments (2)
  1. [Experimental results / noise characterization] The central experimental claim of shot-noise-limited scaling (abstract and results section) rests on the measured variance matching the theoretical shot-noise expression after accounting for the integration window. The manuscript must show an explicit overlay or quantitative comparison of measured variance versus calculated shot noise (including any free-parameter dependence on the window), with error bars and a statement of how deviations were assessed; without this, the scaling could be consistent with other noise sources masked by window choice.
  2. [Theoretical model and photodiode matching] The model and performance claims assume the two photodiodes are matched closely enough for adequate common-mode rejection at 100 MHz and that the direct-amplification circuit adds no excess noise or pulse memory. The manuscript should report the measured responsivity mismatch (or CMRR) and an independent measurement confirming circuit noise lies below the shot-noise floor across the operating power range.
minor comments (2)
  1. [Abstract and results] Clarify whether the 14 dB SNR value is obtained from a single optimized window or averaged, and state the exact window duration used.
  2. [Figures and methods] Add error bars or uncertainty estimates to all variance and SNR plots; label the integration-window optimization procedure explicitly.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our work and for the detailed comments that help improve the manuscript. We have revised the paper to address the concerns regarding the experimental validation of shot-noise-limited performance and the characterization of photodiode matching and circuit noise.

read point-by-point responses

  1. Referee: [Experimental results / noise characterization] The central experimental claim of shot-noise-limited scaling (abstract and results section) rests on the measured variance matching the theoretical shot-noise expression after accounting for the integration window. The manuscript must show an explicit overlay or quantitative comparison of measured variance versus calculated shot noise (including any free-parameter dependence on the window), with error bars and a statement of how deviations were assessed; without this, the scaling could be consistent with other noise sources masked by window choice.

    Authors: We appreciate this suggestion for strengthening the presentation of our results. While the manuscript includes a comparison of the measured variance scaling with the theoretical prediction in the results section, we agree that an explicit overlay plot with error bars would make the agreement clearer. In the revised manuscript, we have added a new figure (Figure 4) that overlays the measured signal variance (with error bars from 10 repeated measurements) against the calculated shot-noise variance as a function of optical power, for the optimized integration window. The theoretical curve uses the independently measured responsivity and the integration window duration as fixed parameters with no free fitting. Deviations are quantified by the root-mean-square relative error, which is below 5% across the power range, confirming consistency with shot-noise scaling rather than other noise sources. revision: yes

  2. Referee: [Theoretical model and photodiode matching] The model and performance claims assume the two photodiodes are matched closely enough for adequate common-mode rejection at 100 MHz and that the direct-amplification circuit adds no excess noise or pulse memory. The manuscript should report the measured responsivity mismatch (or CMRR) and an independent measurement confirming circuit noise lies below the shot-noise floor across the operating power range.

    Authors: We acknowledge the importance of explicitly quantifying the photodiode matching and circuit noise. The original manuscript states that matched photodiodes were used but does not provide the measured mismatch. In the revised version, we have included the measured responsivity mismatch of 2% (obtained from individual calibration of each photodiode under the same illumination conditions), which corresponds to a CMRR of approximately 34 dB at DC; we note that at 100 MHz the effective rejection is further aided by the short pulse duration and the integration window. Additionally, we have added an independent measurement of the circuit noise by blocking the optical input and measuring the output variance, which is more than 20 dB below the shot-noise level at the lowest operating power and remains negligible across the full power range. This confirms that the direct-amplification circuit does not introduce excess noise or significant pulse memory effects, consistent with the negligible inter-pulse correlations already reported. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental validation stands independently of the model

full rationale

The paper presents a theoretical model for detector response, noise, and inter-pulse correlations that generates quantitative predictions, followed by direct experimental implementation and measurement. Linearity, variance scaling with optical power, SNR optimization, and correlation results are reported as measured outcomes rather than outputs forced by fitting or self-definition. No load-bearing step reduces a claimed prediction to an input parameter by construction, and the work contains no self-citation chains that substitute for independent verification. The derivation chain remains self-contained against the experimental benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions from quantum optics and electronics; the integration window is a tunable parameter optimized experimentally.

free parameters (1)
  • temporal integration window
    Optimized experimentally to achieve maximum SNR of 14 dB rather than derived from first principles.
axioms (1)
  • domain assumption The variance of the photocurrent follows shot-noise statistics proportional to optical power.
    Invoked to interpret the scaling of signal variance with power as shot-noise-limited.
