arxiv: 2604.07177 · v1 · submitted 2026-04-08 · 💻 cs.GR · cs.LG

Splats under Pressure: Exploring Performance-Energy Trade-offs in Real-Time 3D Gaussian Splatting under Constrained GPU Budgets

Muhammad Fahim Tajwar , Arthur Wuhrlin , Bhojan Anand This is my paper

Pith reviewed 2026-05-10 16:54 UTC · model grok-4.3

classification 💻 cs.GR cs.LG
keywords 3D Gaussian Splattingreal-time renderingedge computingGPU emulationpower cappingperformance-energy trade-offsrasterization
0
0 comments X

The pith

Emulating lower GPU tiers via under-clocking and power caps maps the frame rates and energy costs of real-time 3D Gaussian splatting across hardware budgets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the feasibility of running real-time 3D Gaussian Splatting on edge devices that have limited GPU power. Researchers simulate a range of GPU performance levels on one high-end card by lowering core frequencies and setting power limits. At each simulated level they record frame rates, power draw, and energy per frame for scenes with different numbers of splats and levels of detail. This approach matters because it identifies the practical lower limits for deploying the technique in standalone headsets and thin clients without needing to test many separate machines.

Core claim

By systematically under-clocking the GPU core frequency and applying power caps, the study approximates different GPU capability tiers on a single high-end device. At each point in the resulting performance range the authors measure frame rate, runtime behaviour, and power consumption across scenes of varying complexity, pipelines, and optimisations. The resulting data enable analysis of FPS-power curves, energy per frame, and performance per watt, providing early insights into the lower bounds of client-side 3DGS rasterisation in energy-constrained environments.

What carries the argument

Emulation of multiple GPU tiers on one device through controlled core-frequency under-clocking and power capping, which varies floating-point performance to study 3DGS rasterisation behaviour.

If this is right

  • Frame rate drops and energy per frame rises as GPU budget shrinks or scene complexity grows.
  • Different rendering pipelines and optimisations produce distinct performance-per-watt profiles.
  • The method identifies the splat-count ranges that remain practical on embedded and mobile-class devices.
  • The same emulation covers the full spectrum from low-power edge hardware to high-end consumer GPUs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Hardware designers could use the resulting curves to set minimum GPU requirements for 3DGS applications in AR and VR headsets.
  • The emulation technique could be applied to other real-time rendering methods to reduce the need for physical test hardware.
  • If the approximation holds, developers can evaluate new 3DGS optimisations more quickly by avoiding purchases of multiple device tiers.

Load-bearing premise

Controlled under-clocking and power capping on a single high-end GPU accurately reproduces the runtime behaviour and power consumption of actual lower-tier GPUs in edge devices.

What would settle it

Running identical 3DGS scenes on several physical GPUs of different tiers and comparing the measured FPS-power curves and energy-per-frame values directly to the emulated results.

Figures

Figures reproduced from arXiv: 2604.07177 by Arthur Wuhrlin, Bhojan Anand, Muhammad Fahim Tajwar.

Figure 1

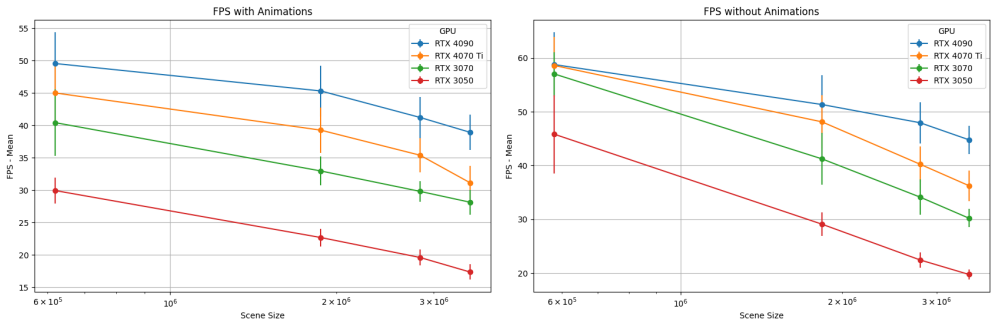

Figure 1. Figure 1: Mean and standard deviation of frame rates across emulated GPU capability tiers and scene sizes, illustrating the [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
read the original abstract

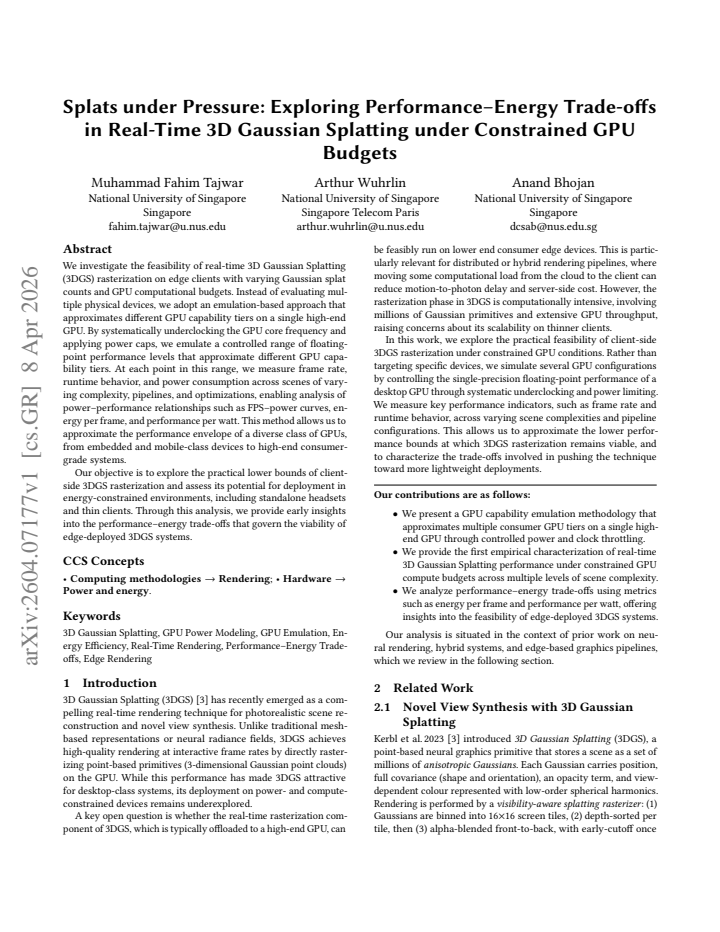

We investigate the feasibility of real-time 3D Gaussian Splatting (3DGS) rasterisation on edge clients with varying Gaussian splat counts and GPU computational budgets. Instead of evaluating multiple physical devices, we adopt an emulation-based approach that approximates different GPU capability tiers on a single high-end GPU. By systematically under-clocking the GPU core frequency and applying power caps, we emulate a controlled range of floating-point performance levels that approximate different GPU capability tiers. At each point in this range, we measure frame rate, runtime behaviour, and power consumption across scenes of varying complexity, pipelines, and optimisations, enabling analysis of power-performance relationships such as FPS-power curves, energy per frame, and performance per watt. This method allows us to approximate the performance envelope of a diverse class of GPUs, from embedded and mobile-class devices to high-end consumer-grade systems. Our objective is to explore the practical lower bounds of client-side 3DGS rasterisation and assess its potential for deployment in energy-constrained environments, including standalone headsets and thin clients. Through this analysis, we provide early insights into the performance-energy trade-offs that govern the viability of edge-deployed 3DGS systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper investigates the feasibility of real-time 3D Gaussian Splatting (3DGS) on edge GPUs with constrained budgets by emulating capability tiers on a single high-end GPU. It uses systematic core-frequency under-clocking and power capping to generate FPS-power curves, energy-per-frame, and performance-per-watt metrics across scenes of varying complexity, pipelines, and optimizations, aiming to identify practical lower bounds for client-side deployment in energy-constrained settings such as standalone headsets.

Significance. If the emulation produces representative results, the work supplies early, systematic data on performance-energy trade-offs that are directly relevant to AR/VR and edge-graphics applications. The controlled single-device design is a practical strength that enables reproducible exploration of the design space without requiring an array of physical GPUs.

major comments (1)
  1. [Methods (Emulation Approach)] The central feasibility claim rests on the emulation producing representative FPS-power and energy-per-frame surfaces for actual lower-tier GPUs. The methods section describes under-clocking and power capping but provides no validation runs on real embedded/mobile GPUs, nor any discussion of how differences in memory bandwidth, cache hierarchy, or core-to-memory ratios are handled. This directly affects the reliability of the reported trade-off curves.
minor comments (1)
  1. [Experimental Setup] Ensure that the specific 3DGS pipelines and optimizations tested (mentioned in the abstract) are enumerated with version numbers or parameter settings in the experimental setup so that the results can be reproduced.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their insightful comments and for acknowledging the practical strengths of our single-device emulation design. We address the major comment regarding the emulation approach in detail below. We agree that further elaboration on the method's limitations is necessary to enhance the manuscript's clarity and reliability.

read point-by-point responses

  1. Referee: [Methods (Emulation Approach)] The central feasibility claim rests on the emulation producing representative FPS-power and energy-per-frame surfaces for actual lower-tier GPUs. The methods section describes under-clocking and power capping but provides no validation runs on real embedded/mobile GPUs, nor any discussion of how differences in memory bandwidth, cache hierarchy, or core-to-memory ratios are handled. This directly affects the reliability of the reported trade-off curves.

    Authors: We thank the referee for highlighting this important aspect. While our emulation method enables systematic and reproducible exploration of the design space without requiring multiple physical devices, we agree that it does not account for all hardware-specific differences such as memory bandwidth and cache hierarchy. The revised manuscript will incorporate an expanded discussion in the Methods section on the emulation's assumptions and limitations, including how core-to-memory ratios may differ. We will emphasize that the trade-off curves provide valuable insights into performance-energy relationships under constrained budgets but should be interpreted with these caveats in mind. We will also add a forward-looking statement on the need for validation on real embedded GPUs in future studies. This addresses the concern by enhancing the manuscript's transparency regarding the reliability of the results. revision: partial

Circularity Check

0 steps flagged

No circularity: purely empirical measurement study with no derivations or models

full rationale

The paper describes a hardware emulation method (under-clocking and power capping on one GPU) followed by direct measurements of FPS, power, energy-per-frame, and performance-per-watt across scenes. No equations, fitted parameters, predictions, or self-citations are invoked as load-bearing steps in any derivation chain. The approach is measurement-driven; the central claim is that the collected data approximate edge-GPU behavior, which is an empirical question rather than a self-referential reduction. No patterns from the enumerated circularity kinds apply.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard assumptions about hardware emulation but introduces no new free parameters or entities.

axioms (1)
  • domain assumption GPU under-clocking and power capping can emulate lower-tier GPU performance levels
    Central to the emulation-based approach described in the abstract.

pith-pipeline@v0.9.0 · 5529 in / 1122 out tokens · 47484 ms · 2026-05-10T16:54:40.544924+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

11 extracted references · 11 canonical work pages

  1. [1]

    Barron, Ben Mildenhall, Dor Verbin, Pratul P

    Jonathan T. Barron, Ben Mildenhall, Dor Verbin, Pratul P. Srinivasan, and Peter Hedman. 2022. Mip-NeRF 360: unbounded anti-aliased neural radiance fields. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). The dataset released with this paper includes theGarden scene used in our experiments., 5470–5479. https://ope...

    work page 2022

  2. [2]

    Saqib Javed, Ahmad Jarrar Khan, Corentin Dumery, Chen Zhao, and Mathieu Salzmann. 2024. Temporally compressed 3d gaussian splatting for dynamic scenes. (2024). https://arxiv.org/abs/2412.05700 arXiv: 2412.05700[cs.CV]

    work page arXiv 2024

  3. [3]

    Bernhard Kerbl, Georgios Kopanas, Thomas Leimkühler, and George Drettakis

    work page

  4. [4]

    https://repo-sam.inria.fr/fungraph/3d-g aussian-splatting/

    3d gaussian splatting for real-time radiance field rendering.ACM Trans- actions on Graphics, 42, 4, (July 2023). https://repo-sam.inria.fr/fungraph/3d-g aussian-splatting/

    work page 2023

  5. [5]

    Bernhard Kerbl, Andreas Meuleman, Georgios Kopanas, Michael Wimmer, Alexandre Lanvin, and George Drettakis. 2024. A hierarchical 3d gaussian representation for real-time rendering of very large datasets.ACM Transactions on Graphics, 43, 4, (July 2024). https://repo-sam.inria.fr/fungraph/hierarchical- 3d-gaussians/

    work page 2024

  6. [6]

    Srinivasan, Matthew Tancik, Jonathan T

    Ben Mildenhall, Pratul P. Srinivasan, Matthew Tancik, Jonathan T. Barron, Ravi Ramamoorthi, and Ren Ng. 2020. Nerf: representing scenes as neural radiance fields for view synthesis. (2020). https://arxiv.org/abs/2003.08934 arXiv: 2003.08934[cs.CV]

    work page arXiv 2020

  7. [7]

    NVIDIA Corporation. 2025. Geforce rtx 40–20 series product specifications. https://www.nvidia.com/en-sg/geforce/graphics-cards/. Accessed 14 Jul 2025. (2025)

    work page 2025

  8. [8]

    Yuang Shi, Géraldine Morin, Simone Gasparini, and Wei Tsang Ooi. 2024. Lapisgs: layered progressive 3d gaussian splatting for adaptive streaming. arXiv preprint arXiv:2408.14823

    work page arXiv 2024

  9. [9]

    Guanjun Wu, Taoran Yi, Jiemin Fang, Lingxi Xie, Xiaopeng Zhang, Wei Wei, Wenyu Liu, Qi Tian, and Xinggang Wang. 2024. 4d gaussian splatting for real- time dynamic scene rendering. InProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 20310–20320

    work page 2024

  10. [10]

    Charlene Yang. 2020. 8 steps to 3.7 tflop/s on nvidia v100 gpu: roofline analysis and other tricks. https://arxiv.org/abs/2008.11326. arXiv:2008.11326. (2020)

    work page arXiv 2020

  11. [11]

    Vickie Ye et al. 2025. Gsplat: an open-source library for gaussian splatting. Journal of Machine Learning Research, 26, 34, 1–17. 6

    work page 2025
