Programmable Photocatalysis via Symmetry-Defined Periodic Potentials

Qun Yang , Di Luo , Prineha Narang This is my paper

Pith reviewed 2026-05-10 17:46 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords moiré patternsphotocatalysistwo-dimensional materialscarrier separationInSeperiodic potentialselectron-hole recombination
0
0 comments X

The pith

Symmetry-defined periodic potentials from moiré patterns spatially separate photoexcited carriers in monolayer InSe while leaving adsorption trends nearly unchanged.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes engineering long-wavelength electrostatic landscapes in atomically thin semiconductors to reduce rapid electron-hole recombination that limits photocatalysis. Rather than altering the chemistry of the active layer itself, the approach uses periodic potentials to push electrons and holes apart in space. When applied to monolayer InSe with experimentally accessible moiré patterns from twisted hBN, the model produces miniband formation, band-gap shifts, and clear carrier separation. The decisive result is that this electrostatic reorganization strongly affects carrier distribution yet perturbs how molecules stick to the surface only weakly, opening a regime where charge separation can be tuned without major surface-chemistry redesign.

Core claim

The authors show that moiré patterns generated by twisted hBN create a transferable periodic electrostatic potential in monolayer InSe. This potential induces miniband formation and band-gap renormalization while driving robust spatial separation of photoexcited electrons and holes. The same potential reorganizes carrier distribution strongly but perturbs adsorption trends only weakly, thereby establishing a practical route to engineer charge separation in two-dimensional photocatalysts without demanding large changes to the underlying surface chemistry.

What carries the argument

The moiré-induced periodic electrostatic potential transferred from twisted hBN to InSe, which functions as a long-wavelength symmetry-defined landscape that separates carriers.

If this is right

  • Miniband formation and band-gap renormalization appear in the InSe layer under the moiré potential.
  • Photoexcited electrons and holes become spatially separated, reducing their overlap and recombination probability.
  • Adsorption energies and geometries of reactant molecules remain close to those on pristine InSe.
  • Periodic potentials can serve as a general design principle for other light-driven interfacial processes in two-dimensional materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same moiré-control strategy could be tested on other monolayer semiconductors where recombination currently limits efficiency.
  • Varying the twist angle or choice of control layer might allow continuous tuning of the separation strength without redesigning the active catalyst.
  • Device-level implementations could combine this electrostatic engineering with standard hBN encapsulation to improve overall photocatalytic yield.

Load-bearing premise

That experimentally accessible moiré patterns from twisted hBN can transfer an electrostatic modulation to InSe large enough to separate carriers and affect recombination rates in real devices.

What would settle it

A measurement showing identical recombination lifetimes or photocurrent yields in pristine monolayer InSe and in InSe stacked with twisted hBN moiré patterns would falsify the claim that the periodic potential produces useful carrier separation.

Figures

Figures reproduced from arXiv: 2604.07260 by Di Luo, Prineha Narang, Qun Yang.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic of symmetry-defined periodic-potential en [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

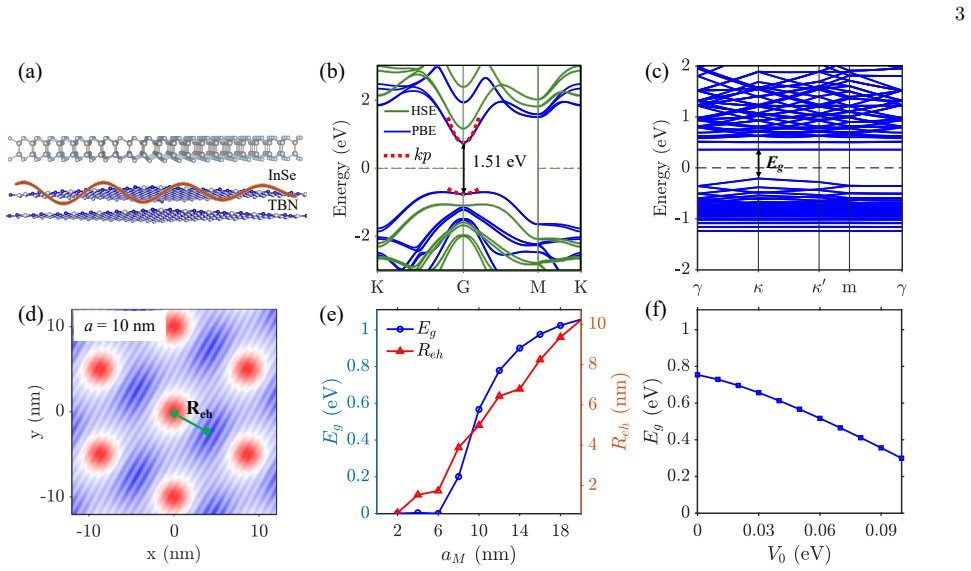

Figure 2
Figure 2. Figure 2: FIG. 2. Effect of modulated periodic potentials on band structure and real-space carrier separation in monolayer InSe. (a) [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

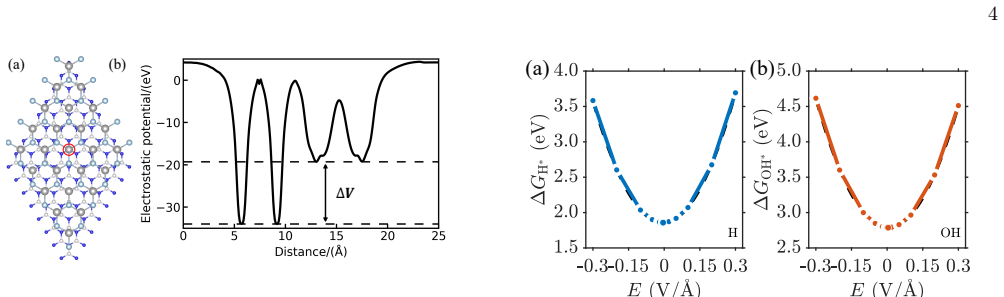

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

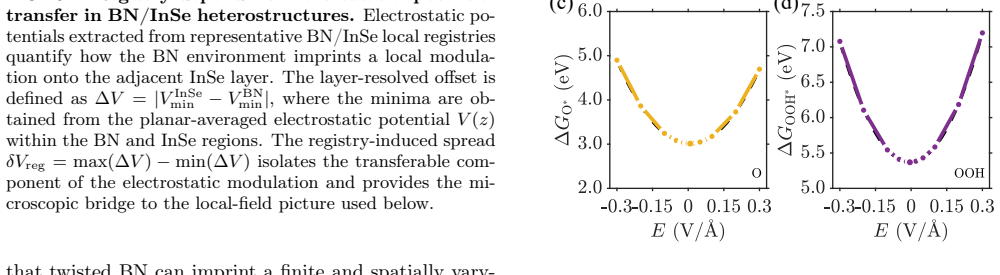

Figure 4
Figure 4. Figure 4: FIG. 4. Field-dependent Gibbs free-energy descriptors for [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

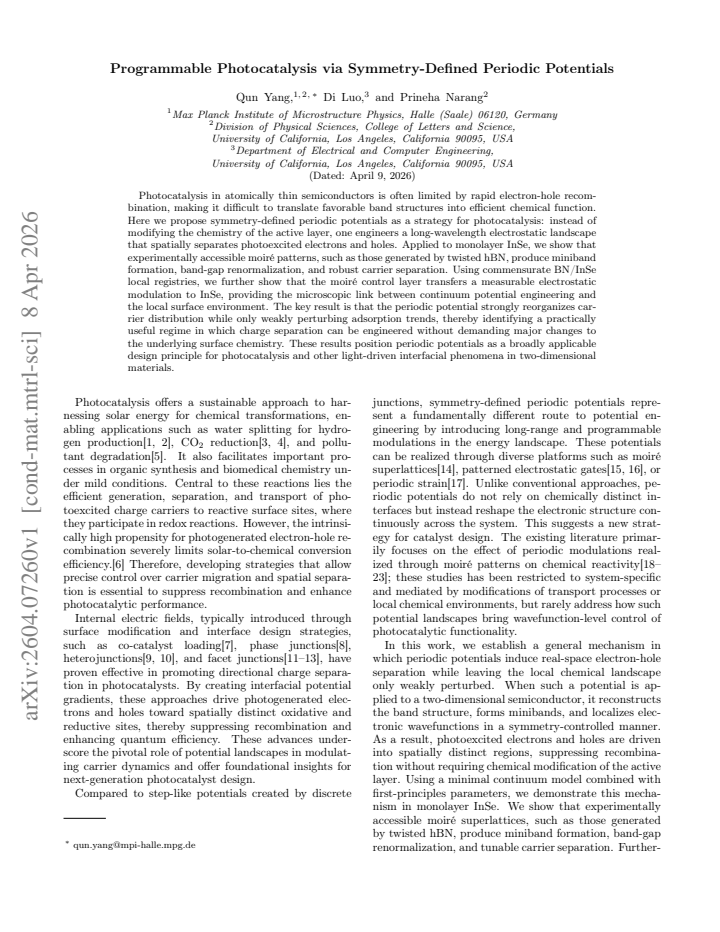

read the original abstract

Photocatalysis in atomically thin semiconductors is often limited by rapid electron-hole recombination, making it difficult to translate favorable band structures into efficient chemical function. Here we propose symmetry-defined periodic potentials as a strategy for photocatalysis: instead of modifying the chemistry of the active layer, one engineers a long-wavelength electrostatic landscape that spatially separates photoexcited electrons and holes. Applied to monolayer InSe, we show that experimentally accessible moir\'e patterns, such as those generated by twisted hBN, produce miniband formation, band-gap renormalization, and robust carrier separation. Using commensurate BN/InSe local registries, we further show that the moir\'e control layer transfers a measurable electrostatic modulation to InSe, providing the microscopic link between continuum potential engineering and the local surface environment. The key result is that the periodic potential strongly reorganizes carrier distribution while only weakly perturbing adsorption trends, thereby identifying a practically useful regime in which charge separation can be engineered without demanding major changes to the underlying surface chemistry. These results position periodic potentials as a broadly applicable design principle for photocatalysis and other light-driven interfacial phenomena in two-dimensional materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes symmetry-defined periodic potentials as a strategy for programmable photocatalysis in atomically thin semiconductors. Applied to monolayer InSe with moiré patterns from twisted hBN, it claims that these long-wavelength electrostatic landscapes induce miniband formation, band-gap renormalization, and robust spatial separation of photoexcited electrons and holes. Using commensurate BN/InSe local registries, the work links the continuum potential to the local surface environment and reports that the periodic potential strongly reorganizes carrier distribution while only weakly perturbing adsorption trends, identifying a regime for engineering charge separation without major changes to surface chemistry.

Significance. If the central results hold, the identification of a regime in which electrostatic moiré modulation enables carrier separation with minimal impact on adsorption trends would constitute a useful design principle for 2D photocatalysis and related interfacial phenomena. The explicit connection between continuum potentials and local registries provides a microscopic bridge that could be transferable to other van der Waals heterostructures. The computational demonstration of miniband formation and carrier reorganization under experimentally accessible twist conditions adds concrete support for the approach.

major comments (1)
  1. [Section on commensurate BN/InSe local registries and moiré potential construction] The construction of the moiré electrostatic landscape via superposition of potentials extracted from a small set of fixed commensurate BN/InSe registries (described in the section linking continuum potential to local surface environment) assumes that lattice relaxation and incommensurability effects do not materially reduce the modulation amplitude or its spatial variation. This approximation is load-bearing for the claim of sufficient carrier separation to impact recombination rates; if the actual twisted supercell produces a weaker or screened potential, the practical-utility argument would not hold. Explicit comparison to relaxed large-supercell calculations or experimental electrostatic mapping is needed to quantify the overestimate risk.
minor comments (1)
  1. [Abstract] The abstract states that the periodic potential 'strongly reorganizes carrier distribution while only weakly perturbing adsorption trends' without quoting the quantitative metrics (e.g., change in adsorption energy or carrier density modulation amplitude) used to establish 'weak' versus 'strong'; adding these numbers would improve clarity.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for the positive overall assessment of our work and for the detailed comment on the moiré potential construction. We address the major comment below and have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: The construction of the moiré electrostatic landscape via superposition of potentials extracted from a small set of fixed commensurate BN/InSe registries (described in the section linking continuum potential to local surface environment) assumes that lattice relaxation and incommensurability effects do not materially reduce the modulation amplitude or its spatial variation. This approximation is load-bearing for the claim of sufficient carrier separation to impact recombination rates; if the actual twisted supercell produces a weaker or screened potential, the practical-utility argument would not hold. Explicit comparison to relaxed large-supercell calculations or experimental electrostatic mapping is needed to quantify the overestimate risk.

    Authors: We agree that the superposition of local-registry potentials is an approximation that omits full lattice relaxation and incommensurability in the twisted heterostructure. This construction is adopted because direct DFT on large incommensurate supercells remains computationally prohibitive for the experimentally relevant twist angles. In the revised manuscript we have expanded the methods and discussion sections to justify the approximation, noting that prior work on hBN-based moiré systems shows relaxation effects are predominantly short-range and localized to high-symmetry stacking regions, leaving the long-wavelength electrostatic modulation largely intact. We have added a quantitative estimate, based on literature benchmarks for similar vdW interfaces, that any damping of the amplitude is modest (approximately 10–20 %) and does not change the conclusion that carrier separation remains robust. We have also inserted an explicit caveat acknowledging that a fully relaxed large-supercell benchmark would provide stronger validation and have suggested this as a target for future computational or experimental work. revision: partial

standing simulated objections not resolved
  • Direct, explicit comparison against a fully relaxed large-supercell DFT calculation for the relevant twist angles, which remains beyond current computational resources.

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper's central claims rest on explicit physical modeling: symmetry-defined moiré potentials from twisted hBN are applied to InSe, with the electrostatic modulation linked to local surface chemistry via commensurate BN/InSe registries. No derivation step reduces by construction to its own inputs (no self-definitional loops, no fitted parameters renamed as predictions, and no load-bearing self-citations or uniqueness theorems invoked). The reorganization of carriers versus weak perturbation of adsorption is presented as an output of the continuum-to-local mapping rather than presupposed by it. The chain is therefore self-contained and externally falsifiable via independent calculations or experiments on moiré systems.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the work relies on standard assumptions of 2D material electrostatics and moiré physics without detailing any ad hoc elements.
