Recognition: no theorem link

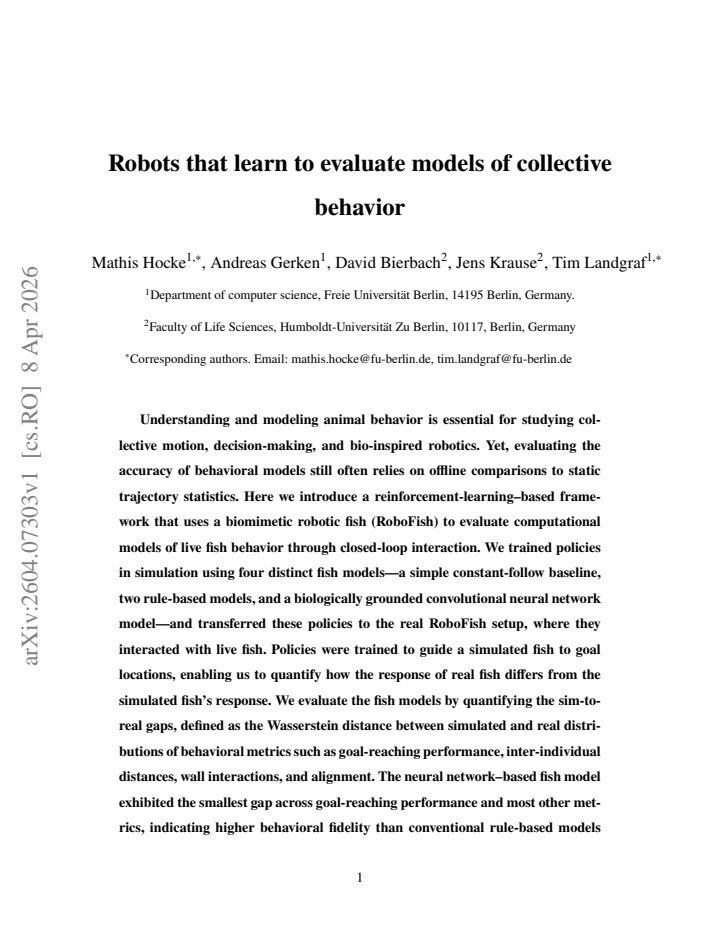

Robots that learn to evaluate models of collective behavior
Pith reviewed 2026-05-10 17:47 UTC · model grok-4.3
The pith
A robotic fish distinguishes neural network models of fish behavior as more accurate than rule-based models through closed-loop interactions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We introduce a reinforcement-learning framework that evaluates computational models of fish behavior by transferring simulation-trained policies to a biomimetic RoboFish, which then interacts with live fish in goal-directed tasks. Models are ranked by the Wasserstein distance between simulated and real distributions of behavioral metrics including goal-reaching performance, inter-individual distances, wall interactions, and alignment. The neural network-based model shows the smallest gaps on goal-reaching and most other metrics, demonstrating higher behavioral fidelity than rule-based models. This separation establishes that the closed-loop robotic evaluation can quantitatively distinguish候选
What carries the argument
Closed-loop sim-to-real gap measurement, where RL policies trained to guide a simulated fish to goals are transferred to the RoboFish hardware and the resulting Wasserstein distances on behavioral metric distributions quantify each model's fidelity to live fish responses.
If this is right
- Models of collective behavior can be ranked by fidelity using interactive robotic tests rather than offline statistics alone.
- Specific metric gaps, such as in alignment or wall avoidance, can highlight where a given model fails to capture real fish responses.
- Simulation-trained policies become reusable tools for embodied validation of new candidate models on the same hardware.
- The framework supports iterative refinement of models by identifying which behavioral aspects drive the largest sim-to-real discrepancies.
- Bio-inspired robotic systems can adopt the highest-fidelity models identified through these live interactions for improved group coordination.
Where Pith is reading between the lines
- The same transfer-and-compare approach could be adapted to test behavioral models in other species by swapping the robot platform and metric set.
- Large gaps on particular metrics could directly suggest missing features to add to the neural network, such as new sensory inputs or social rules.
- Extending the method to multi-robot swarms would allow direct testing of whether a model correctly predicts group-level decisions under physical constraints.
- Over time, repeated use of this evaluation could shift validation of animal behavior models from static data matching toward predictive accuracy in live embodied settings.
Load-bearing premise
That policies trained in simulation transfer to the physical RoboFish with enough fidelity that differences in behavioral metric distributions can be attributed to the fish models rather than hardware or control mismatches.
What would settle it
Repeated trials in which the neural network model produces Wasserstein distances on goal-reaching and alignment that are statistically indistinguishable from or larger than those of the rule-based models when the same policy and fish groups are used.
read the original abstract
Understanding and modeling animal behavior is essential for studying collective motion, decision-making, and bio-inspired robotics. Yet, evaluating the accuracy of behavioral models still often relies on offline comparisons to static trajectory statistics. Here we introduce a reinforcement-learning-based framework that uses a biomimetic robotic fish (RoboFish) to evaluate computational models of live fish behavior through closed-loop interaction. We trained policies in simulation using four distinct fish models-a simple constant-follow baseline, two rule-based models, and a biologically grounded convolutional neural network model-and transferred these policies to the real RoboFish setup, where they interacted with live fish. Policies were trained to guide a simulated fish to goal locations, enabling us to quantify how the response of real fish differs from the simulated fish's response. We evaluate the fish models by quantifying the sim-to-real gaps, defined as the Wasserstein distance between simulated and real distributions of behavioral metrics such as goal-reaching performance, inter-individual distances, wall interactions, and alignment. The neural network-based fish model exhibited the smallest gap across goal-reaching performance and most other metrics, indicating higher behavioral fidelity than conventional rule-based models under this benchmark. More importantly, this separation shows that the proposed evaluation can quantitatively distinguish candidate models under matched closed-loop conditions. Our work demonstrates how learning-based robotic experiments can uncover deficiencies in behavioral models and provides a general framework for evaluating animal behavior models through embodied interaction.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces a reinforcement-learning framework that uses a biomimetic robotic fish (RoboFish) to evaluate computational models of collective fish behavior via closed-loop interactions with live fish. Policies are trained in simulation under four fish models (constant-follow baseline, two rule-based models, and a convolutional neural network model) to guide a virtual fish to goal locations; these policies are then transferred to the physical robot. Model accuracy is quantified by Wasserstein distances between the distributions of behavioral metrics (goal-reaching performance, inter-individual distances, wall interactions, and alignment) observed in simulation versus reality. The neural-network model produces the smallest gaps on most metrics, which the authors interpret as evidence of higher behavioral fidelity and as proof that the closed-loop evaluation can distinguish candidate models.
Significance. If the central attribution holds, the work supplies a concrete embodied benchmark that moves model evaluation beyond offline trajectory statistics into interactive, goal-directed settings. The combination of RL-trained policies, sim-to-real transfer, and Wasserstein metrics on multiple behavioral axes offers a reproducible, quantitative protocol that could be adopted for testing other collective-behavior models. The explicit demonstration that the method separates the NN model from rule-based alternatives is a tangible contribution.
major comments (1)
- The claim that smaller Wasserstein gaps demonstrate superior fidelity of the neural-network fish model presupposes that policy transfer from simulation to the physical RoboFish is equivalent across all four models and free of confounding robot-specific dynamics. The abstract and experimental description supply no robot-only validation runs, no ablation of hardware effects (actuator lag, sensor noise, fluid drag), and no confirmation that the closed-loop stimuli delivered to live fish match between sim and real. This assumption is load-bearing for the central attribution of performance differences to fish-model accuracy rather than to unmodeled hardware mismatches.
minor comments (2)
- The abstract would benefit from a brief statement of the number of experimental trials per condition and whether metric differences were assessed with statistical tests.
- Notation for the four fish models and the precise definition of each behavioral metric should be introduced consistently in the main text before the results are presented.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive critique of our work. The concern regarding potential confounding from sim-to-real policy transfer is well-taken, and we address it directly below.
read point-by-point responses
-
Referee: The claim that smaller Wasserstein gaps demonstrate superior fidelity of the neural-network fish model presupposes that policy transfer from simulation to the physical RoboFish is equivalent across all four models and free of confounding robot-specific dynamics. The abstract and experimental description supply no robot-only validation runs, no ablation of hardware effects (actuator lag, sensor noise, fluid drag), and no confirmation that the closed-loop stimuli delivered to live fish match between sim and real. This assumption is load-bearing for the central attribution of performance differences to fish-model accuracy rather than to unmodeled hardware mismatches.
Authors: We acknowledge that the current manuscript does not include dedicated robot-only validation runs (i.e., policy execution without live fish) or systematic ablations isolating hardware effects such as actuator lag, sensor noise, or fluid drag. All four policies were transferred to the identical physical RoboFish platform and executed under the same real-world conditions when interacting with live fish. While the robot hardware remains fixed, we recognize that policies trained under different fish models may generate distinct action sequences that interact differently with unmodeled dynamics, potentially contributing to the observed Wasserstein gaps. We did not perform additional experiments to decouple these factors. In the revised version we will (1) add an explicit discussion of this assumption and its limitations in the methods and discussion sections, (2) provide further detail on how sensory inputs and robot trajectories are matched between simulation and reality, and (3) clarify that the primary source of variation across conditions is the fish model used during policy training. These changes will qualify the central attribution without altering the reported results. revision: partial
Circularity Check
No significant circularity; evaluation uses independent live-fish data and standard metrics
full rationale
The paper trains RL policies in simulation under each candidate fish model (constant-follow, rule-based, NN), transfers them to physical RoboFish hardware, and measures Wasserstein distances between simulated and real distributions of goal-reaching, distances, wall interactions, and alignment. These distances are computed from external live-fish trajectories and a standard statistical distance; no equation or claim reduces a fitted parameter to a prediction by construction, nor does any load-bearing premise rest on a self-citation chain that itself lacks independent verification. The NN model is presented as one of four pre-existing candidates rather than being derived from the evaluation itself.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Policies trained to guide a simulated fish to goals will produce informative interactions when transferred to the physical RoboFish.
- domain assumption The chosen behavioral metrics (goal-reaching performance, inter-individual distances, wall interactions, alignment) are adequate to distinguish model quality.
Reference graph
Works this paper leans on
-
[1]
J. Krause, A. F. Winfield, J.-L. Deneubourg, Interactive robots in experimental biology.Trends in Ecology & Evolution26(7), 369–375 (2011), 00112, doi:10.1016/j.tree.2011.03.015,http: //linkinghub.elsevier.com/retrieve/pii/S0169534711000851
-
[2]
T. Landgraf,et al., Interactive Robotic Fish for the Analysis of Swarm Behavior, inAdvances in Swarm Intelligence, Y. Tan, Y. Shi, H. Mo, Eds., Lecture Notes in Computer Science (Springer, Berlin, Heidelberg) (2013), pp. 1–10, doi:10.1007/978-3-642-38703-6 1, 00019
-
[3]
T. Vicsek, A. Czir ´ok, E. Ben-Jacob, I. Cohen, O. Shochet, Novel Type of Phase Tran- sition in a System of Self-Driven Particles.Physical Review Letters75(6), 1226–1229 (1995), 04436, doi:10.1103/PhysRevLett.75.1226,https://link.aps.org/doi/10.1103/ PhysRevLett.75.1226
-
[4]
I. D. Couzin, J. Krause, R. James, G. D. Ruxton, N. R. Franks, Collective Memory and Spatial Sorting in Animal Groups.Journal of Theoretical Biology218(1), 1–11 (2002), 01717, doi:10.1006/jtbi.2002.3065,http://www.sciencedirect.com/science/article/pii/ S0022519302930651
-
[5]
I. Aoki, A simulation study on the schooling mechanism in fish.NIPPON SUISAN GAKKAISHI 48(8), 1081–1088 (1982), 00000, doi:10.2331/suisan.48.1081,http://joi.jlc.jst.go. jp/JST.Journalarchive/suisan1932/48.1081?from=CrossRef
-
[6]
C. W. Reynolds, Flocks, herds and schools: A distributed behavioral model.ACM SIG- GRAPH Computer Graphics21(4), 25–34 (1987), 09308, doi:10.1145/37402.37406,http: //portal.acm.org/citation.cfm?doid=37402.37406
-
[7]
A. Huth, C. Wissel, The simulation of the movement of fish schools.Journal of The- oretical Biology156(3), 365–385 (1992), doi:10.1016/S0022-5193(05)80681-2,https: //www.sciencedirect.com/science/article/pii/S0022519305806812
-
[8]
E. Eyjolfsdottir, K. Branson, Y. Yue, P. Perona, Learning recurrent representations for hi- erarchical behavior modeling.arXiv:1611.00094 [cs](2016), arXiv: 1611.00094,http: //arxiv.org/abs/1611.00094. 18
-
[9]
F. J. H. Heras, F. Romero-Ferrero, R. C. Hinz, G. G. de Polavieja, Deep attention networks reveal the rules of collective motion in zebrafish.PLOS Computational Biology15(9), e1007354 (2019), 00008, doi:10.1371/journal.pcbi.1007354,https://dx.plos.org/10. 1371/journal.pcbi.1007354
-
[10]
T. Costa, A. Laan, F. J. H. Heras, G. G. de Polavieja, Automated Discovery of Lo- cal Rules for Desired Collective-Level Behavior Through Reinforcement Learning.Fron- tiers in Physics8(2020), doi:10.3389/fphy.2020.00200,https://www.frontiersin.org/ journals/physics/articles/10.3389/fphy.2020.00200/full
-
[11]
Behavioral Ecology and Sociobiology(2010), doi:10.1007/s00265-010-0988-y
Faria, A novel method for investigating the collective behaviour of fish: introducing ‘Robofish’. Behavioral Ecology and Sociobiology(2010), doi:10.1007/s00265-010-0988-y
-
[12]
T. Landgraf,et al., RoboFish: increased acceptance of interactive robotic fish with realistic eyes and natural motion patterns by live Trinidadian guppies.Bioinspiration & Biomimetics 11(1), 015001 (2016), 00066, doi:10.1088/1748-3190/11/1/015001,https://doi.org/10. 1088%2F1748-3190%2F11%2F1%2F015001
-
[13]
Polverino, Fish and Robots Swimming Together in a Water Tunnel: Robot Color and Tail-Beat Frequency Influence Fish Behavior.PLoS ONE(2013), doi:10.1371/journal.pone.0077589
-
[14]
D. Bierbach,et al., Using a robotic fish to investigate individual differences in social responsive- ness in the guppy.Royal Society Open Science5(8), 181026 (2018), doi:10.1098/rsos.181026, https://royalsocietypublishing.org/doi/full/10.1098/rsos.181026
-
[15]
V. Papaspyros, G. Theraulaz, C. Sire, F. Mondada, Quantifying the biomimicry gap in biohybrid robot-fish pairs.Bioinspiration & Biomimetics19(4), 046020 (2024), doi:10.1088/1748-3190/ ad577a,https://doi.org/10.1088/1748-3190/ad577a
-
[16]
M. Maxeiner,et al., Social competence improves the performance of biomimetic robots leading live fish.Bioinspiration & Biomimetics18(4), 045001 (2023), doi:10.1088/1748-3190/acca59, https://dx.doi.org/10.1088/1748-3190/acca59. 19
-
[17]
Domain Randomization for Transferring Deep Neural Networks from Simulation to the Real World
J. Tobin,et al., Domain Randomization for Transferring Deep Neural Networks from Simulation to the Real World.arXiv:1703.06907 [cs](2017), 00726 arXiv: 1703.06907,http://arxiv. org/abs/1703.06907
work page Pith review arXiv 2017
-
[18]
X. B. Peng, M. Andrychowicz, W. Zaremba, P. Abbeel, Sim-to-Real Transfer of Robotic Control with Dynamics Randomization, in2018 IEEE International Conference on Robotics and Automation (ICRA)(IEEE, Brisbane, QLD) (2018), pp. 3803–3810, doi:10.1109/ICRA. 2018.8460528,https://ieeexplore.ieee.org/document/8460528/
-
[19]
P. P. Klamser,et al., Impact of Variable Speed on Collective Movement of Animal Groups (2021), doi:10.48550/arXiv.2106.00959,http://arxiv.org/abs/2106.00959, arXiv:2106.00959 [physics, q-bio]
-
[20]
Materials and methods are available as supplementary material
-
[21]
L. Bennett, B. Melchers, B. Proppe, Curta: A General-purpose High-Performance Com- puter at ZEDAT, Freie Universit¨at Berlin (2020), doi:10.17169/REFUBIUM-26754,https: //refubium.fu-berlin.de/handle/fub188/26993, artwork Size: 5 S
-
[22]
Proximal Policy Optimization Algorithms
J. Schulman, F. Wolski, P. Dhariwal, A. Radford, O. Klimov, Proximal Policy Optimization Al- gorithms (2017), doi:10.48550/arXiv.1707.06347,http://arxiv.org/abs/1707.06347, arXiv:1707.06347 [cs]. Acknowledgments We thank Gregor Gebhardt and Julian Stastny for contributions during the early stages of the project, and Janosch Brandhorst for helpful discussi...
work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv.1707.06347 2017
-
[23]
Furthermore, Mathis Hocke and Andreas Gerken were supported by the Elsa-Neumann Scholarship of the State of Berlin
and Germany’s Excellence Strategy (EXC 2002/1 ’Science of Intelligence’, Project Number 390523135). Furthermore, Mathis Hocke and Andreas Gerken were supported by the Elsa-Neumann Scholarship of the State of Berlin. The authors would like to thank the HPC Service of FUB-IT, Freie Universit¨at Berlin, for computing time (21). There are no competing interes...
2002
-
[24]
the bootstrap CI for the Wasserstein gap,
-
[25]
a permutation test (100,000 permutations), and
-
[26]
All policies showed highly significant sim-to-real differences (all𝑝 <0.01)
Cliff’s delta. All policies showed highly significant sim-to-real differences (all𝑝 <0.01). Sim-to-real gap (per-time-step metrics).Per-time-step values (25 Hz) are autocorrelated; there- fore, Wasserstein distances were computed at thetrial levelrather than by pooling all time steps. For each policy and metric, we compared each simulated trial with each ...
