Finite Volume Effects on Transverse Momentum Spectra at LHC and RHIC Using a Blast-Wave Model with Planck Transformed Temperatures
Pith reviewed 2026-05-10 18:41 UTC · model grok-4.3
The pith
A finite-volume blast-wave model with Planck-transformed temperatures extracts physically consistent freeze-out parameters from heavy-ion data, unlike infinite-volume versions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The finite volume model with Planck transformed laboratory frame parameters yields temperature values fully consistent with relativistic thermodynamics (except for a small anomaly at sqrt(s_NN) = 193 and 200 GeV) and produces realistic fire cylinder volumes several times larger than the initial nuclear overlap volume, while the conventional infinite volume model yields unphysical results: infinite volume, infinite maximum half-length, and maximum longitudinal flow velocity equal to the speed of light at all energies.
What carries the argument
Cylindrically symmetric finite-volume Boltzmann-Gibbs blast-wave model that applies Planck transformations to convert local rest-frame thermodynamic variables into laboratory-frame values.
If this is right
- Finite system size must be incorporated explicitly to avoid unphysical thermodynamic parameters when fitting transverse momentum spectra.
- Thermodynamic variables require the correct Lorentz (Planck) transformation to maintain covariance between frames.
- Reliable freeze-out temperatures and volumes can be extracted across the full RHIC-to-LHC energy range only with the finite-volume treatment.
- Conventional infinite-volume blast-wave analyses are likely to return unreliable parameters for any collision system.
Where Pith is reading between the lines
- The same finite-volume and transformation corrections may be needed in other hydrodynamic or thermal models used to interpret heavy-ion data.
- The elongation of the fitted cylinder relative to the initial overlap suggests that longitudinal expansion continues until kinetic freeze-out.
- Re-analysis of older RHIC and LHC data sets with this model could revise previously published freeze-out temperature trends.
Load-bearing premise
The claim that fire-cylinder volumes several times larger than the initial nuclear overlap volume demonstrate physical realism rather than arising from the model's functional form or the specific data sets used.
What would settle it
An independent measurement of the emitting source size at kinetic freeze-out, for example via femtoscopic correlations or photon emission rates, that is systematically smaller than the fitted cylinder volumes would contradict the model's interpretation of those volumes as realistic.

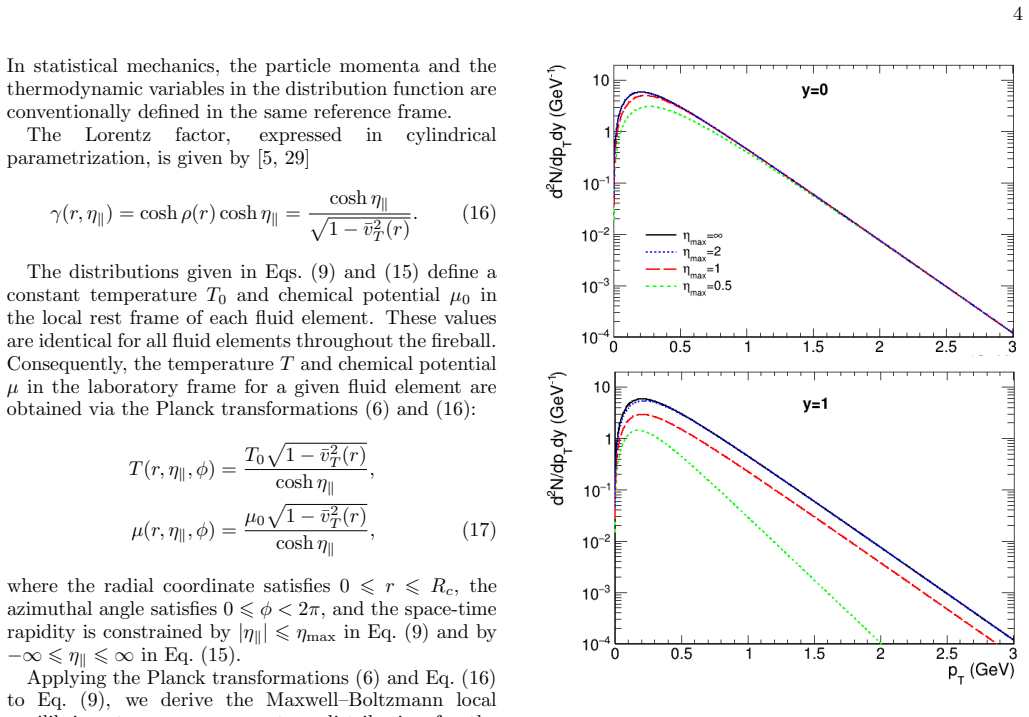

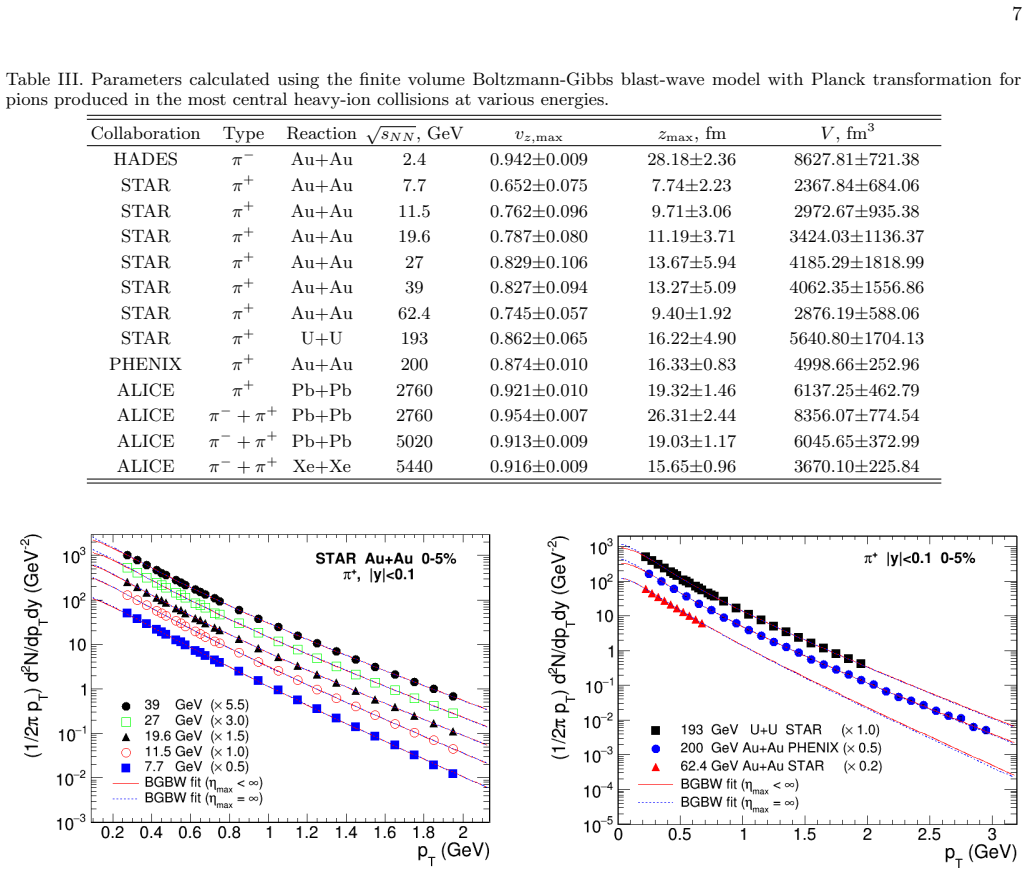

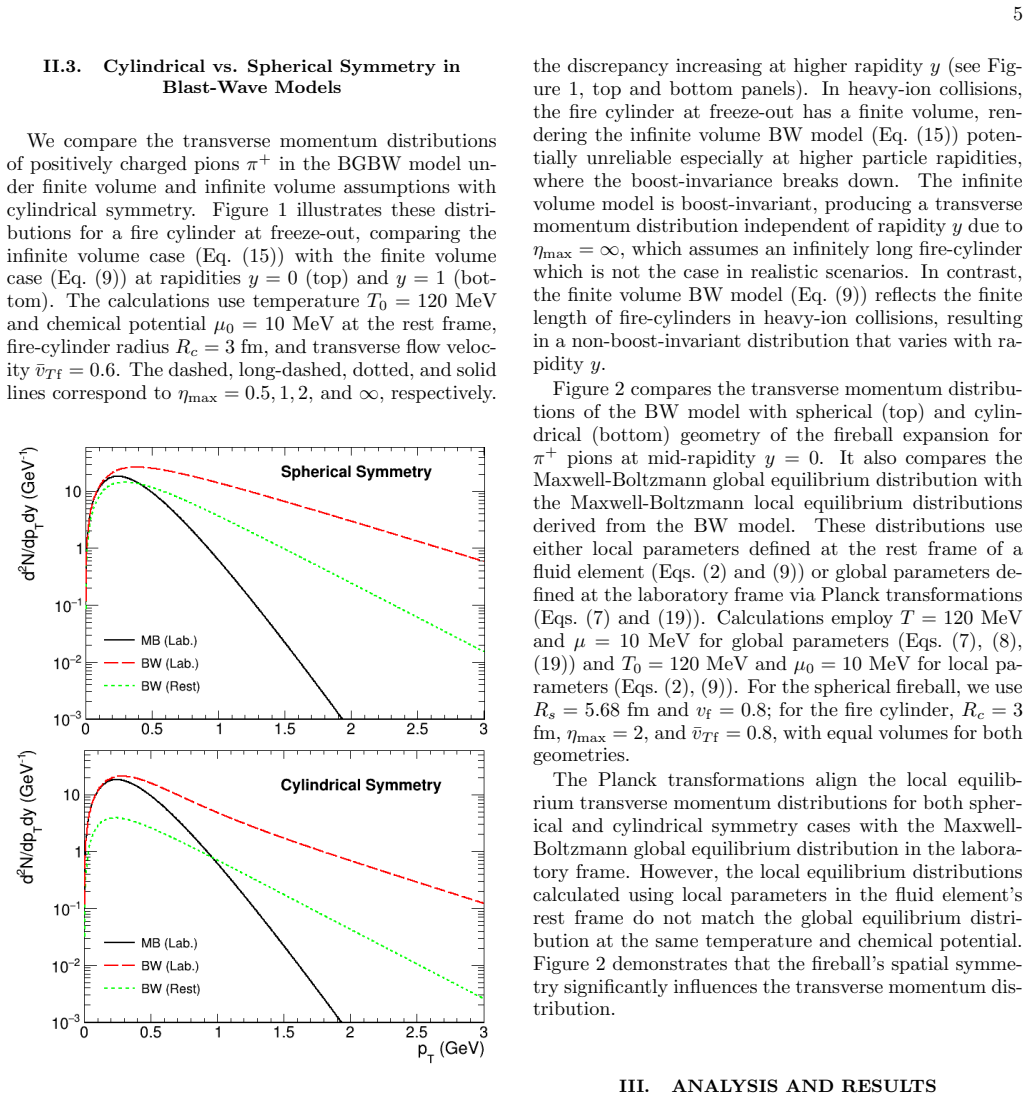

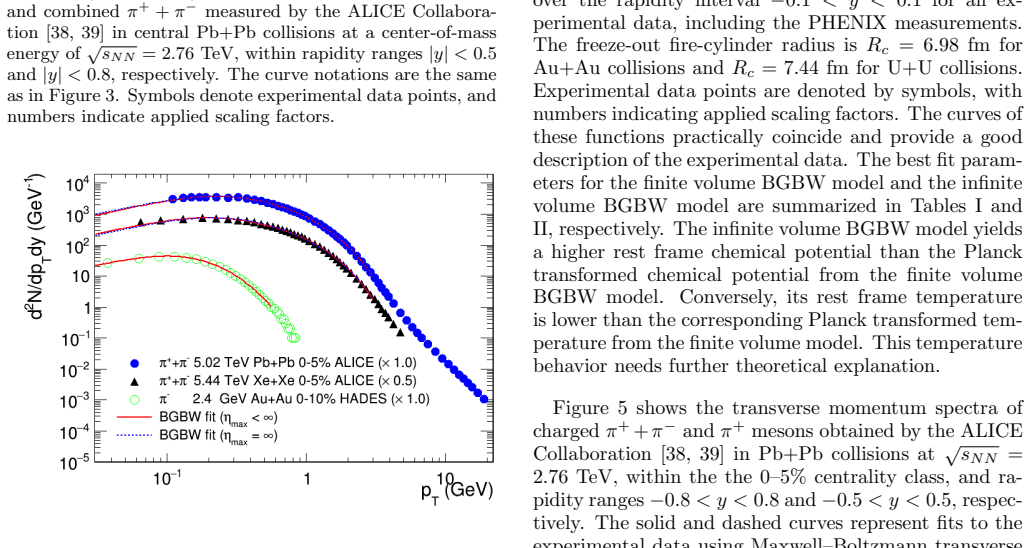

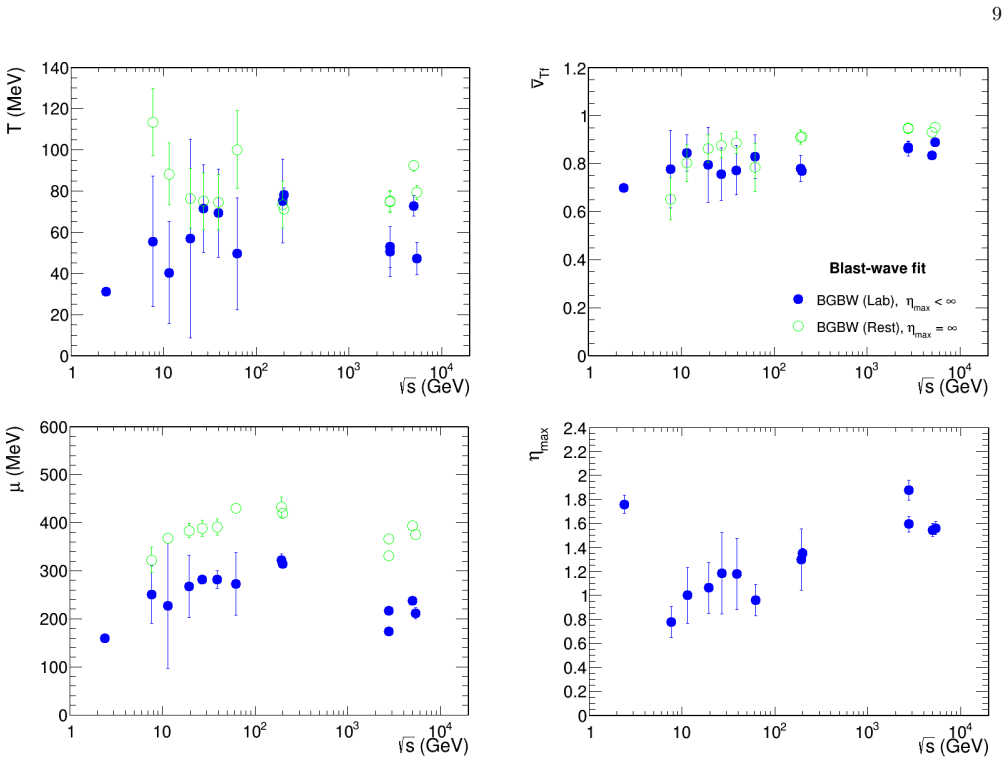

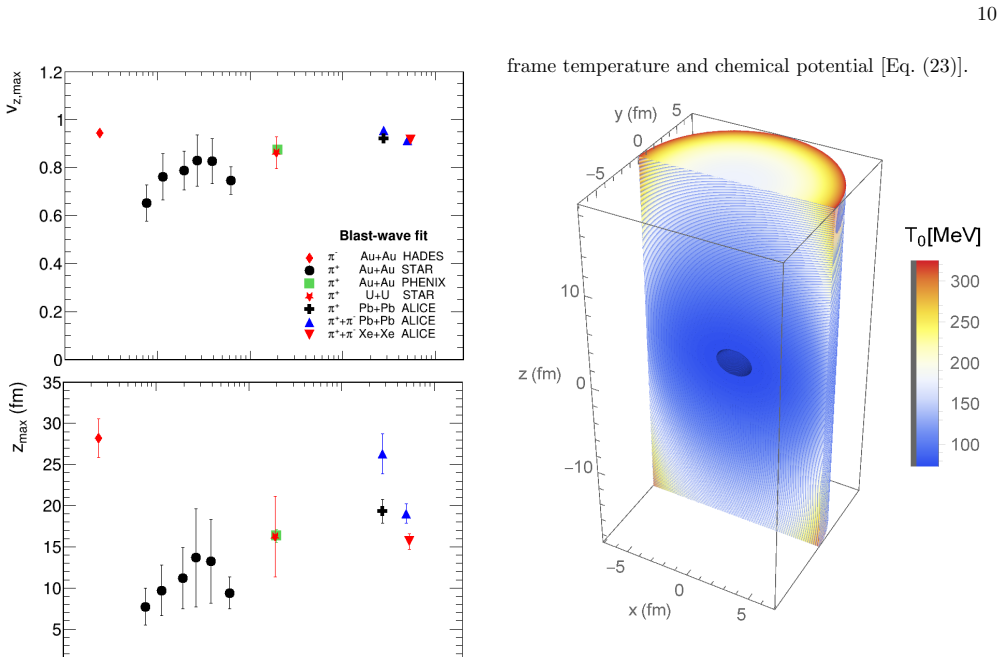

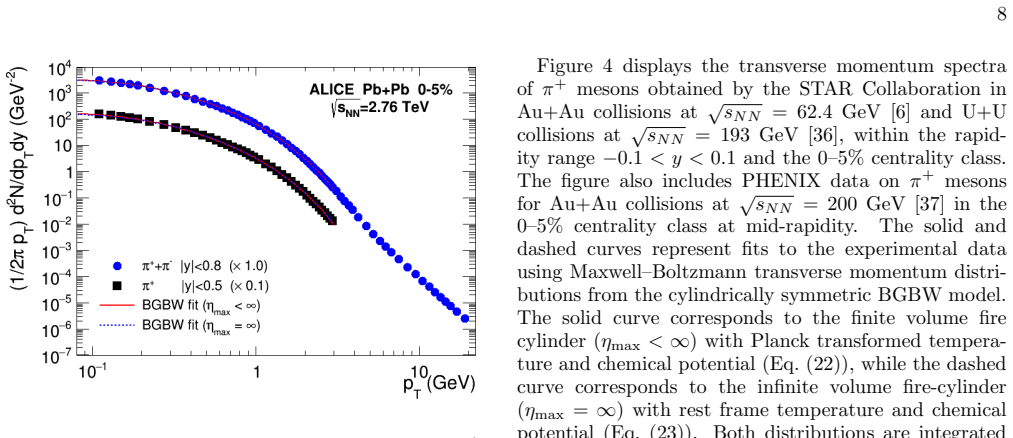

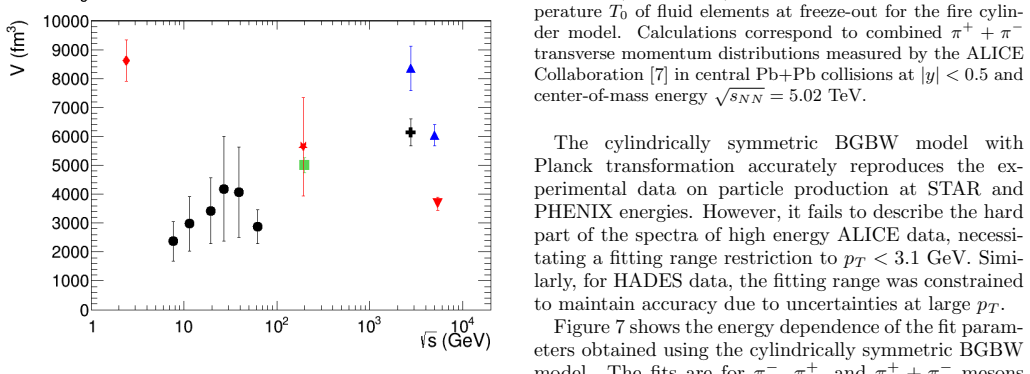

Figures
read the original abstract
We investigate finite volume effects on the transverse momentum spectra of charged pions produced in the most central heavy-ion collisions at RHIC and LHC energies. A cylindrically symmetric finite volume Boltzmann-Gibbs blast-wave model is employed that fully incorporates the finite longitudinal extent of the fire cylinder at kinetic freeze-out. The model applies Planck transformations to convert the local rest frame temperature and chemical potential of each fluid element into laboratory frame values, ensuring full Lorentz covariance. This approach is compared with the conventional infinite volume blast-wave model, in which the thermodynamic parameters remain defined in the local rest frame while the particle momenta are expressed in the laboratory frame. Both models are fitted to the experimental transverse momentum distributions of charged pions measured by the HADES, STAR, PHENIX, and ALICE collaborations over the center-of-mass energy range $\sqrt{s_{NN}} = 2.4$ GeV to $5.44$ TeV. The finite volume model with Planck transformed laboratory frame parameters yields temperature values fully consistent with relativistic thermodynamics (except for a small anomaly at $\sqrt{s_{NN}} = 193$ and $200$ GeV) and produces realistic fire cylinder volumes several times larger than the initial nuclear overlap volume. In contrast, the conventional infinite volume model yields unphysical results: infinite volume, infinite maximum half-length, and maximum longitudinal flow velocity equal to the speed of light at all energies. These findings demonstrate that a proper treatment of finite system size, together with the correct Lorentz (Planck form) transformation of the thermodynamic variables, is essential for the reliable extraction of freeze-out parameters in heavy-ion collisions.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a cylindrically symmetric finite-volume Boltzmann-Gibbs blast-wave model that incorporates the finite longitudinal extent of the fire cylinder and applies Planck transformations to convert local-rest-frame temperature and chemical potential into laboratory-frame values. This model is fitted to charged-pion pT spectra from HADES, STAR, PHENIX, and ALICE across √sNN = 2.4 GeV to 5.44 TeV and compared with the conventional infinite-volume blast-wave model; the authors conclude that only the finite-volume + Planck approach yields thermodynamically consistent temperatures (except at two energies) and realistic volumes, while the infinite-volume model produces unphysical infinities in volume, half-length, and longitudinal flow velocity.
Significance. If the central claim holds after addressing the parameter-interpretation issue, the work would demonstrate that finite-size effects and Lorentz-covariant thermodynamic transformations are required for reliable freeze-out parameter extraction in heavy-ion collisions, potentially affecting how blast-wave models are applied to RHIC and LHC data.
major comments (2)
- [Abstract] Abstract and results: the assertion that the fitted fire-cylinder volumes are 'realistic' because they are 'several times larger than the initial nuclear overlap volume' is load-bearing for the claim that the finite-volume model is physically superior. Because the volume (and maximum half-length) are free fit parameters adjusted to the absolute normalization and low-pT shape of the pion spectra, this comparison is circular without an independent constraint such as comparison to measured HBT radii or total multiplicity; the manuscript does not provide such a cross-check.
- [Abstract] Abstract and § (results): the conventional infinite-volume model is reported to prefer infinite volume, infinite half-length, and longitudinal flow velocity = c at all energies. It is not shown whether this divergence is an artifact of allowing the same unconstrained volume parameter to float without a finite-size cutoff or whether the finite-volume model avoids analogous pathologies through its functional form alone; this weakens the comparative conclusion that the Planck transformation plus finite volume is 'essential'.
minor comments (2)
- All fit parameters (T, μ, flow-velocity profile coefficients, volume, half-length) together with their uncertainties and χ²/dof values should be collected in a single table for each energy and model to allow direct reproducibility.
- The two energies (√sNN = 193 and 200 GeV) where the finite-volume temperatures deviate from relativistic thermodynamics expectations should be discussed in more detail, including whether the anomaly persists under variations of the flow-velocity profile or data-selection cuts.
Simulated Author's Rebuttal
We thank the referee for the careful and constructive review. We address the two major comments below and outline the revisions we will make to strengthen the manuscript.
read point-by-point responses
-
Referee: [Abstract] Abstract and results: the assertion that the fitted fire-cylinder volumes are 'realistic' because they are 'several times larger than the initial nuclear overlap volume' is load-bearing for the claim that the finite-volume model is physically superior. Because the volume (and maximum half-length) are free fit parameters adjusted to the absolute normalization and low-pT shape of the pion spectra, this comparison is circular without an independent constraint such as comparison to measured HBT radii or total multiplicity; the manuscript does not provide such a cross-check.
Authors: We agree that the volume and half-length are fit parameters constrained by the spectra normalization, so the comparison to the initial nuclear overlap volume is a consistency check rather than fully independent validation. The manuscript does not include direct comparisons to HBT radii or total multiplicities across the full energy range. We will revise the abstract and discussion sections to qualify the description of the volumes as 'realistic,' explicitly note this limitation, and emphasize that the primary strength of the finite-volume model is the extraction of thermodynamically consistent temperatures and finite parameters rather than the volume magnitude alone. revision: partial
-
Referee: [Abstract] Abstract and § (results): the conventional infinite-volume model is reported to prefer infinite volume, infinite half-length, and longitudinal flow velocity = c at all energies. It is not shown whether this divergence is an artifact of allowing the same unconstrained volume parameter to float without a finite-size cutoff or whether the finite-volume model avoids analogous pathologies through its functional form alone; this weakens the comparative conclusion that the Planck transformation plus finite volume is 'essential'.
Authors: The infinite-volume model allows volume, half-length, and longitudinal velocity to vary without upper bounds, and the fit drives them to these unphysical limits to accommodate the low-pT yield. The finite-volume formulation integrates over a bounded cylinder, which inherently prevents such divergences while enforcing the Planck transformations. This is a direct consequence of the model's geometry rather than an arbitrary cutoff. We will add clarifying text in the results section and abstract to explain this distinction and demonstrate that the finite-volume approach with Planck transformations yields stable, physical parameters where the unconstrained infinite-volume model does not. revision: partial
Circularity Check
Fitted fire-cylinder volumes interpreted as evidence of physical realism
specific steps
-
fitted input called prediction
[Abstract]
"produces realistic fire cylinder volumes several times larger than the initial nuclear overlap volume. In contrast, the conventional infinite volume model yields unphysical results: infinite volume, infinite maximum half-length, and maximum longitudinal flow velocity equal to the speed of light at all energies."
The fire-cylinder volume is a free parameter fitted to the absolute normalization of the pion pT spectra. Declaring the fitted value 'realistic' because it exceeds the initial nuclear overlap volume, while the unconstrained infinite-volume model diverges to infinity, uses the same fit outputs as evidence of physical consistency. No independent observable (e.g., HBT radii or total multiplicity) is invoked to break the dependence on the fitting procedure itself.
full rationale
The paper fits both the finite-volume Planck model and the conventional infinite-volume blast-wave model to the same experimental pT spectra. It then presents the resulting finite volumes (several times the initial overlap) as realistic and the infinite-volume outcomes as unphysical, using these fit results to conclude that the finite-volume treatment is essential. Because the volume parameter is unconstrained and directly adjusted to match the absolute normalization and low-pT shape of the data, the comparison to initial overlap volume and the divergence to infinity are internal consequences of the fitting procedure rather than independent validation. This produces partial circularity in the central claim without external cross-checks such as HBT radii.
Axiom & Free-Parameter Ledger
free parameters (4)
- freeze-out temperature T
- chemical potential mu
- longitudinal flow velocity profile parameters
- fire-cylinder volume and maximum half-length
axioms (3)
- domain assumption The collision system at kinetic freeze-out can be modeled as a cylindrically symmetric expanding cylinder with finite longitudinal extent.
- domain assumption Planck transformations provide the correct Lorentz-covariant mapping of local rest-frame temperature and chemical potential to the laboratory frame.
- domain assumption Boltzmann-Gibbs statistics apply to the particle distributions in the finite-volume fire cylinder.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AbsoluteFloorClosure.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The model applies Planck transformations to convert the local rest frame temperature and chemical potential of each fluid element into laboratory frame values, ensuring full Lorentz covariance.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Both models are fitted to the experimental transverse momentum distributions of charged pions... yields temperature values fully consistent with relativistic thermodynamics
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
It allows the fireball volume to be calculated consis- tently within the model, without any additional assump- tions. This is impossible in the conventional blast-wave model, where the fireball volume is infinite by definition
-
[2]
The temperature and chemical potential can be speci- fied directly in the laboratory frame (in which the fireball is at rest). The local temperature and chemical potential in the rest frame of each fluid element are then obtained as spatially varying fields using the Planck transforma- tions
-
[3]
Conversely, the temperature and chemical potential can be specified in the local rest frame of each fluid ele- ment, after which the corresponding quantities in the lab- oratory frame are obtained as spatially dependent fields via the Planck transformations. We compared the cylindrically symmetric finite vol- ume Boltzmann–Gibbs blast-wave model – using P...
work page 2023
-
[4]
P.J. Siemens, and J.O. Rasmussen, Evidence for a blast wave from compress nuclear matter, Phys. Rev. Lett. 42, 14 (1979) 880-883. 13
work page 1979
-
[5]
E. Schnedermann, J. Sollfrank and U. Heinz, Thermal phenomenology of hadrons from 200-A/GeV S+S colli- sions, Phys. Rev. C 48, 5 (1993) 2462–2475
work page 1993
-
[6]
F. Reti` ere and M. A. Lisa, Observable implications of geometrical and dynamical aspects of freeze out in heavy ion collisions, Phys. Rev. C 70, 4 (2004) 044907
work page 2004
-
[7]
Z. Tang, Y. Xu, L. Ruan, G. van Buren, F. Wang, and Z. Xu, Spectra and radial flow at RHIC with Tsallis statistics in a Blast-Wave description, Phys. Rev. C 79, 5 (2009) 051901(R)
work page 2009
-
[8]
Florkowski, Phenomenology of Ultra-Relativistic Heavy-Ion Collisions, World Scientific, 2010
W. Florkowski, Phenomenology of Ultra-Relativistic Heavy-Ion Collisions, World Scientific, 2010
work page 2010
-
[9]
B.I. Abelev et al. (STAR Collaboration), Systematic Measurements of Identified Particle Spectra in pp, d+Au and Au+Au Collisions from STAR, Phys. Rev. C 79 (2009) 034909
work page 2009
-
[10]
S. Acharya et al. (ALICE Collaboration), Production of charged pions, kaons, and (anti-)protons in Pb-Pb and inelastic pp collisions at √sN N = 5.02 TeV, Phys. Rev. C 101 (2020) 044907
work page 2020
-
[11]
J. Adams et al. (STAR Collaboration), Identified particle distributions in pp and Au+Au collisions at √sN N = 200 GeV, Phys. Rev. Lett. 92, 11 (2004) 112301
work page 2004
-
[12]
J. Adam et al. (ALICE Collaboration), Centrality de- pendence of the pseudorapidity density distribution for charged particles in Pb-Pb collisions at √sN N = 5.02 TeV, Phys. Lett. B 772 (2017) 567–577
work page 2017
-
[13]
J. Adam et al. (ALICE Collaboration), Centrality depen- dence of the nuclear modification factor of charged pions, kaons, and protons in Pb-Pb collisions at √sN N = 2.76 TeV, Phys. Rev. C 93, 3 (2016) 034913
work page 2016
-
[14]
J. Tariq, M.U. Ashraf, G. Nigmatkulov, Estimation of kinetic temperature and radial flow velocity using iden- tified hadrons and light (anti-)nuclei produced in rela- tivistic heavy-ion collisions at energies available at BNL RHIC and CERN LHC, Phys. Rev. C 110 (2024) 014903
work page 2024
-
[15]
I. Melo and B. Tom´ aˇ sik, Kinetic freeze-out in central heavy-ion collisions between 7.7 and 2760 GeV per nu- cleon pair, J. Phys. G: Nucl. Part. Phys. 47 (2020) 045107
work page 2020
-
[16]
D.-F. Wang, S. Zhang, and Y.-G. Ma, Nuclear system size scan for freeze-out properties in relativistic heavy-ion collisions by using a multiphase transport model, Phys. Rev. C 101, 034906 (2020)
work page 2020
-
[17]
J. Song, F.-L. Shao, and Z.-T. Liang, Quark number scal- ing ofp T spectra for Ω andϕin relativistic heavy-ion collisions, Phys. Rev. C 102, 014911 (2020)
work page 2020
-
[18]
K.-J. Sun and L.-W. Chen, Analytical coalescence for- mula for particle production in relativistic heavy-ion col- lisions, Phys. Rev. C 95, 044905 (2017)
work page 2017
- [19]
- [20]
-
[21]
S. Saha, R. Singh, and B. Mohanty,p T -differential radial flow in a blast-wave model, Phys. Rev. C 112, 024902 (2025)
work page 2025
- [22]
-
[23]
Tom´ aˇ sik, Blast-wave snapshots from RHIC, arXiv: nucl-th/0304079
B. Tom´ aˇ sik, Blast-wave snapshots from RHIC, arXiv: nucl-th/0304079
-
[24]
J. Cleymans, G.I. Lykasov, A.S. Parvan, A.S. Sorin, O.V. Teryaev, D. Worku, Systematic properties of the Tsallis distribution: Energy dependence of parameters in high energy p-p collisions, Phys. Lett. B 723, 351 (2013)
work page 2013
-
[25]
A.S. Parvan, O.V. Teryaev, and J. Cleymans, System- atic comparison of Tsallis statistics for charged pions pro- duced in pp collisions, Eur. Phys. J. A 53 (2017) 102
work page 2017
-
[26]
M.D. Azmi, T. Bhattacharyya, J. Cleymans, M.W. Paradza, Energy density at kinetic freeze- out in Pb-Pb collisions at the LHC using the Tsallis distribution, J. Phys. G: Nucl. Part. Phys. 47, 045001 (2020)
work page 2020
-
[27]
Bazavov et al., Equation of state in (2+1)-flavor QCD, Phys
A. Bazavov et al., Equation of state in (2+1)-flavor QCD, Phys. Rev. D 90, 094503 (2014)
work page 2014
-
[28]
Bors´ anyi et al., Full result for the QCD equation of state with 2+1 flavors, Phys
S. Bors´ anyi et al., Full result for the QCD equation of state with 2+1 flavors, Phys. Lett. B 730, 99 (2014)
work page 2014
-
[29]
P. Braun-Munzinger and J. Wambach, The phase dia- gram of strongly interacting matter, Rev. Mod. Phys. 81, 1031 (2009)
work page 2009
-
[30]
J. Cleymans, K. Redlich, Chemical and thermal freeze- out parameters from 1A to 200A GeV, Phys. Rev. C 60, 054908 (1999)
work page 1999
-
[31]
V.D. Toneev, A.S. Parvan, Canonical strangeness and distillation effects in hadron production, J. Phys. G: Nucl. Part. Phys. 31, 583 (2005)
work page 2005
-
[32]
A.S. Parvan, Study on relativistic transformations for thermodynamic quantities: Boltzmann–Gibbs and Tsal- lis blast-wave models, Eur. Phys. J. A 61, 11 (2025) 261
work page 2025
- [33]
-
[34]
Y. Nara, A. Jinno, K. Murase, and A. Ohnishi, Directed flow of Λ in high-energy heavy-ion collisions and Λ po- tential in dense nuclear matter, Phys. Rev. C 106, 044902 (2022)
work page 2022
-
[35]
S. Choi and K.S. Lee, Blast-wave model with two freeze- out temperatures for hadrons produced in relativistic heavy-ion collisions, Phys. Rev. C 84, 064905 (2011)
work page 2011
-
[36]
D.H. Rischke, and M. Gyulassy, The time delay signature of quark - gluon plasma formation in relativistic nuclear collisions, Nucl. Phys. A 608 (1996) 479-512
work page 1996
-
[37]
D. ter Haar, H. Wergeland, Thermodynamics and statis- tical mechanics in the special theory of relativity, Phys. Rep. 1C (1971) 31
work page 1971
-
[38]
L. Adamczyk et al. (STAR Collaboration), Bulk Proper- ties of the Medium Produced in Relativistic Heavy-Ion Collisions from the Beam Energy Scan Program, Phys. Rev. C 96 (2017) 044904
work page 2017
-
[39]
M.S. Abdallah et al. (STAR Collaboration), Pion, kaon, and (anti)proton production in U+U collisions at√sN N = 193 GeV measured with the STAR detector, Phys. Rev. C 107 (2023) 024901
work page 2023
-
[40]
S.S. Adler et al. (PHENIX Collaboration), Identified charged particle spectra and yields in Au+Au collisions at √sN N = 200 GeV, Phys. Rev. C 69 (2004) 034909
work page 2004
-
[41]
B. Abelev et al. (ALICE Collaboration), Centrality de- pendence ofπ,K,pproduction in Pb-Pb collisions at√sN N = 2.76 TeV, Phys. Rev. C 88 (2013) 044910
work page 2013
-
[42]
B. Abelev et al. (ALICE Collaboration), Production of charged pions, kaons and protons at large transverse mo- menta in pp and Pb–Pb collisions at √sN N = 2.76 TeV, Phys. Lett. B 736 (2014) 196
work page 2014
-
[43]
S. Acharya et al. (ALICE Collaboration), Production of pions, kaons, (anti-)protons andϕmesons in Xe–Xe col- 14 lisions at √sN N = 5.44 TeV, Eur. Phys. J. C 81 (2021) 584
work page 2021
-
[44]
J. Adamczewski-Musch et al. (HADES Collabora- tion), Charged-pion production in Au+Au collisions at√sN N = 2.4 GeV, Eur. Phys. J. A 56 (2020) 259
work page 2020
