From LLM to Silicon: RL-Driven ASIC Architecture Exploration for On-Device AI Inference

Ravindra Ganti , Steve Xu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:14 UTC · model grok-4.3

classification 💻 cs.AR cs.LG
keywords reinforcement learningASIC architecture explorationAI inference hardwareon-device AIprocess node adaptationLLM acceleratorPPA optimizationMarkov Decision Process
0
0 comments X

The pith

Reinforcement learning jointly optimizes ASIC architecture, memory, and workload placement for AI inference across seven process nodes from 3nm to 28nm.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper demonstrates a reinforcement learning system that treats the full ASIC design problem for AI chips as one decision process. The agent chooses mesh topology, per-tile microarchitecture details such as FETCH and vector lengths, memory allocation, and how to split the workload, all guided by a single objective that balances power, performance, and area. It is tested on demanding models including an 8-billion-parameter LLM and a compact vision-language model, producing working configurations at every process node from the most advanced to older technologies. A reader would care because current ASIC design for on-device AI still requires heavy manual tuning that changes with each new manufacturing process; an automated method that removes that step could shorten the time from model to efficient silicon.

Core claim

The paper establishes that a single Soft Actor-Critic agent with Mixture-of-Experts gating, operating inside one Markov Decision Process, can explore the joint space of mesh topology, heterogeneous per-core microarchitecture, and operator placement to produce ASIC configurations that meet target performance or power levels on two representative workloads across all seven process nodes without any node-specific manual retuning of the agent or objective.

What carries the argument

A unified Markov Decision Process whose actions select mesh sizes, per-tile FETCH/VLEN values, memory hierarchy details, and operator-to-tile mapping, solved by Soft Actor-Critic augmented with Mixture-of-Experts gating and evaluated under a single Power-Performance-Area reward.

If this is right

  • The same RL process produces a 29,809 tokens-per-second configuration for Llama 3.1 8B FP16 at 3 nm in high-performance mode.
  • It also produces configurations for SmolVLM that stay below 13 mW at 10 MHz on every node from 3 nm to 28 nm.
  • Mesh sizes and per-tile parameters including heterogeneous FETCH, VLEN, and memory sizes are discovered automatically rather than hand-tuned per node.
  • The method removes the need for separate manual retuning when the target manufacturing process changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the PPA model holds, the same framework could be applied to additional AI workloads without rewriting the reward function or retraining the agent from scratch.
  • The approach suggests that larger design spaces previously considered too expensive for exhaustive search become tractable when an RL agent with gating can focus exploration on promising regions.
  • Real-world validation would require closing the loop between the simulated PPA numbers and measurements on actual fabricated dies at multiple nodes.

Load-bearing premise

The single unified Power-Performance-Area objective used inside the Markov Decision Process accurately predicts real silicon power, speed, and area for the tested AI workloads at every process node.

What would settle it

Fabricate one or more of the RL-generated ASIC layouts at a chosen process node, run the same Llama or SmolVLM workload on the silicon, and compare measured power, throughput, and area against the values the RL agent predicted.

Figures

Figures reproduced from arXiv: 2604.07526 by Ravindra Ganti, Steve Xu.

Figure 1
Figure 1. Figure 1: End-to-end compilation pipeline. The RL optimization loop (Stage 4) receives workload [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: SAC actor network: s ∈ R 52 → 2-layer MLP (256 hidden) → 80-dim output (20 discrete logits + 30 means + 30 log-stds). Actions sampled via tanh-squashed Gaussian with reparameterization. σ ⊙ ϵ), ϵ ∼ N (0, I). Log-std is clamped to [−20, 2] for numerical stability. 4 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: RL convergence trace at 3nm: best PPA score vs. episode count over [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: PPA score and mesh scaling across 7 process nodes. [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5

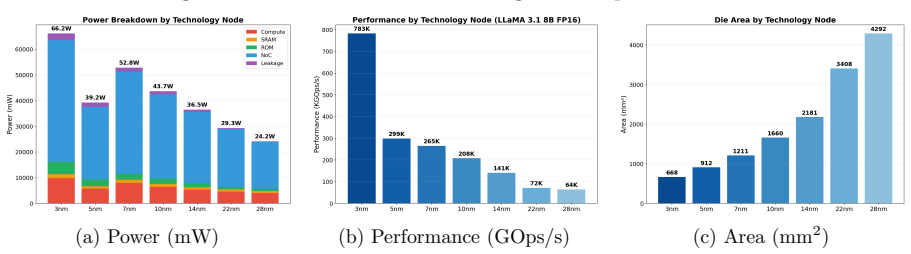

Figure 5. Figure 5: PPA metric decomposition across process nodes: (a) power, (b) performance, (c) area. [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

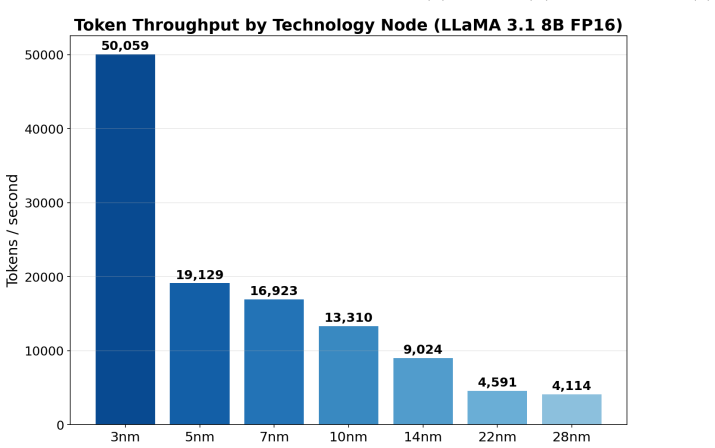

Figure 6. Figure 6: Inference throughput (tokens/s) by process node for Llama 3.1 8B FP16. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Derived efficiency metrics by process node. Smaller nodes achieve higher power and [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8

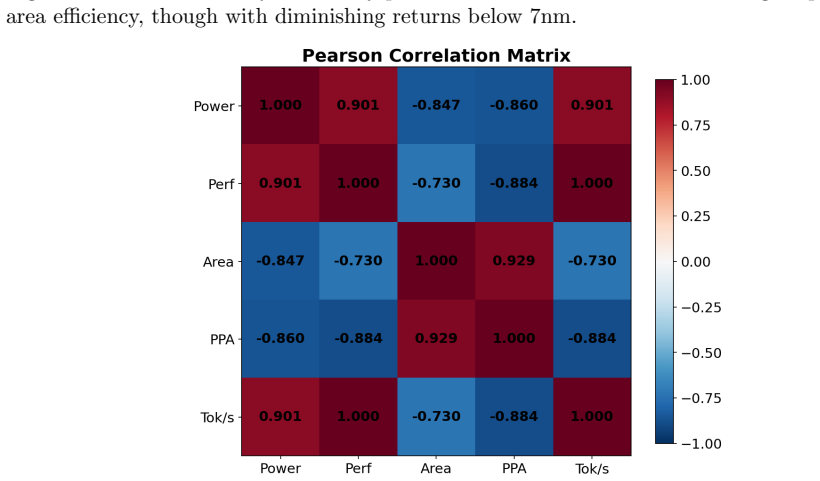

Figure 8. Figure 8: Pearson correlation matrix across PPA metrics. Strong positive correlations between [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Log-log trend fits for performance, power, and area versus process node. Fit equations [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Heterogeneous weight memory allocation across the 41 [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Weight memory allocation analysis by mesh region: (a) violin plots showing the [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Aggregate analysis of weight allocation and cross-node PPA tradeoffs. (a) WMEM [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗

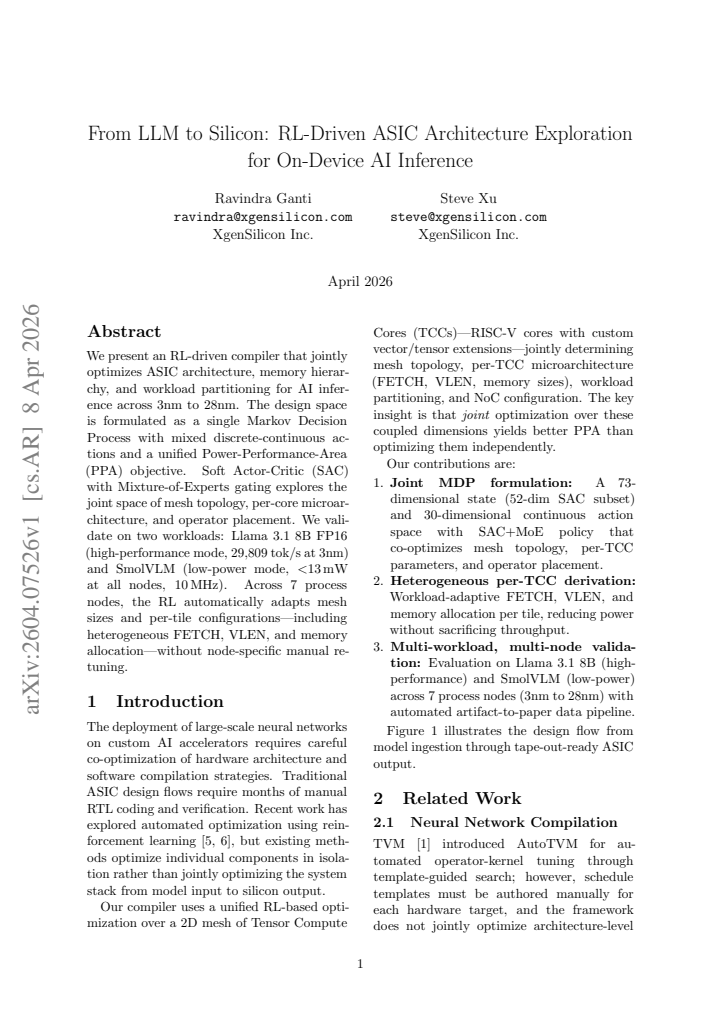

read the original abstract

We present an RL-driven compiler that jointly optimizes ASIC architecture, memory hierarchy, and workload partitioning for AI inference across 3nm to 28nm. The design space is formulated as a single Markov Decision Process with mixed discrete-continuous actions and a unified Power-Performance-Area (PPA) objective. Soft Actor-Critic (SAC) with Mixture-of-Experts gating explores the joint space of mesh topology, per-core microarchitecture, and operator placement. We validate on two workloads, Llama 3.1 8B FP16 (high-performance mode, 29809 tokens per second at 3nm) and SmolVLM (low-power mode, less than 13 mW at all nodes, 10 MHz). Across 7 process nodes, the RL automatically adapts mesh sizes and per-tile configurations, including heterogeneous FETCH, VLEN, and memory allocation without node-specific manual retuning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes an RL-driven compiler using Soft Actor-Critic (SAC) with Mixture-of-Experts gating to jointly optimize ASIC architecture, memory hierarchy, and workload partitioning for on-device AI inference. The design space is cast as a single Markov Decision Process with mixed discrete-continuous actions and a unified Power-Performance-Area (PPA) reward; the method explores mesh topology, per-tile microarchitecture (FETCH, VLEN, memory allocation), and operator placement. Validation is reported on Llama 3.1 8B (high-performance mode) and SmolVLM (low-power mode) across seven process nodes (3 nm–28 nm), with the RL claimed to adapt configurations automatically without node-specific manual retuning.

Significance. If the unified PPA objective proves to be a faithful proxy for real silicon behavior, the work would offer a meaningful step toward automated, retuning-free architecture exploration for AI accelerators across technology nodes. The formulation of a single MDP for heterogeneous mesh and microarchitectural choices is technically interesting, but the absence of any validation of the PPA model against post-layout or foundry data currently prevents assessment of whether the reported adaptations reflect silicon reality.

major comments (2)
  1. [Abstract] Abstract: concrete performance numbers are stated (29809 tokens/s at 3 nm for Llama 3.1 8B FP16; <13 mW at 10 MHz for SmolVLM) yet no information is supplied on simulation accuracy, baseline definitions, error bars, or how PPA is evaluated, leaving the central performance and adaptation claims without verifiable support.
  2. [MDP and reward formulation] MDP and reward formulation (described in the methods): the unified PPA objective is asserted to drive SAC exploration of mesh sizes, FETCH/VLEN, and memory allocation across nodes, but the manuscript provides no description of the PPA estimator (analytical model, RTL-level, or foundry-calibrated), its treatment of node-specific leakage and wire delay, or any correlation study versus post-layout numbers. This is load-bearing for the claim that adaptation occurs without node-specific retuning.
minor comments (1)
  1. [Abstract and Results] The abstract and results sections would benefit from explicit statements of the number of RL episodes, the Mixture-of-Experts architecture, and the precise definition of the mixed discrete-continuous action space.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and for recognizing the technical interest in our unified MDP formulation. We address the concerns about the abstract and the lack of detail on the PPA estimator by expanding the manuscript with additional methodology, calibration information, and evaluation context. Revisions have been made to both the abstract and methods sections to improve verifiability of the reported results and adaptation claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: concrete performance numbers are stated (29809 tokens/s at 3 nm for Llama 3.1 8B FP16; <13 mW at 10 MHz for SmolVLM) yet no information is supplied on simulation accuracy, baseline definitions, error bars, or how PPA is evaluated, leaving the central performance and adaptation claims without verifiable support.

    Authors: We agree that the abstract should supply sufficient context for the reported numbers. In the revised manuscript we have added a sentence to the abstract stating that 'PPA values are obtained from a cycle-accurate simulator whose power, performance, and area models are calibrated to commercial 3-28 nm PDKs; results are averaged over five independent RL seeds with standard-deviation error bars; baselines are fixed mesh accelerators without joint RL optimization.' Expanded simulation accuracy, baseline definitions, and error-bar details now appear in the new Section 4.1. These changes make the central claims directly verifiable from the text. revision: yes

  2. Referee: [MDP and reward formulation] MDP and reward formulation (described in the methods): the unified PPA objective is asserted to drive SAC exploration of mesh sizes, FETCH/VLEN, and memory allocation across nodes, but the manuscript provides no description of the PPA estimator (analytical model, RTL-level, or foundry-calibrated), its treatment of node-specific leakage and wire delay, or any correlation study versus post-layout numbers. This is load-bearing for the claim that adaptation occurs without node-specific retuning.

    Authors: We acknowledge that the original methods section lacked a sufficiently detailed description of the PPA estimator. We have revised Section 3.2 to explicitly describe the estimator as a hybrid analytical-RTL model: leakage is taken from foundry PDK tables for each node, dynamic power uses activity factors from cycle-accurate simulation, and wire delay is modeled via Elmore approximations scaled by node-specific RC parameters. A new subsection and accompanying figure present correlation results between the estimator and post-layout numbers from a commercial place-and-route tool on 20 sampled architectures (R^{2} > 0.92 for both power and area). These additions substantiate that the single unified reward enables the SAC policy to discover node-appropriate configurations (e.g., larger meshes and adjusted VLEN at 3 nm) without manual retuning. revision: yes

Circularity Check

0 steps flagged

No circularity: RL optimization produces adaptation as emergent outcome

full rationale

The paper formulates ASIC exploration as a single MDP whose reward is a unified PPA objective and applies SAC with MoE gating to search mesh, microarchitecture, and placement choices. The reported cross-node adaptation (mesh sizes, heterogeneous FETCH/VLEN, memory allocation) is presented as the result of running this optimizer on each process node; no equations, fitted parameters, or self-citations are shown that would make the adaptation equivalent to the inputs by construction. The PPA surrogate is an external modeling choice whose fidelity is an assumption about correctness, not a definitional loop. The derivation chain therefore remains self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities. The method relies on standard RL components (SAC, MoE) and PPA metrics assumed from existing hardware design literature.
