Mathematical Analysis of Image Matching Techniques

Oleh Samoilenko

arxiv: 2604.07574 · v1 · submitted 2026-04-08 · 💻 cs.CV · cs.NA· math.NA

Mathematical Analysis of Image Matching Techniques

Oleh Samoilenko This is my paper

Pith reviewed 2026-05-10 17:59 UTC · model grok-4.3

classification 💻 cs.CV cs.NAmath.NA

keywords satellite imageryimage matchingSIFTORBinlier ratiokeypoint detectionRANSAChomography

0 comments

The pith

The number of extracted keypoints influences the inlier ratio achieved by SIFT and ORB when matching overlapping satellite image tiles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates how varying the count of detected keypoints changes the quality of matches between satellite images using SIFT and ORB. It runs both algorithms through a standard pipeline of keypoint detection, descriptor extraction, matching, and RANSAC-based homography estimation, then measures success by the inlier ratio. A custom dataset of GPS-tagged tiles with known overlaps supports the tests. This matters because reliable image matching supports tasks like map building and change detection in remote sensing and robotics. The work shows that keypoint quantity is a controllable factor that can be tuned for better results in this domain.

Core claim

By testing different numbers of keypoints on GPS-annotated satellite image tiles, the analysis finds that the inlier ratio after descriptor matching and RANSAC homography depends on this parameter for both SIFT and ORB, with the dataset providing ground truth overlaps for evaluation.

What carries the argument

The inlier ratio, the fraction of matched points consistent with the homography estimated by RANSAC, which serves as the measure of matching robustness after geometric verification.

Load-bearing premise

The manually constructed dataset of GPS-annotated satellite image tiles with intentional overlaps is representative of real-world satellite imagery conditions and the inlier ratio after RANSAC is a sufficient measure of matching quality.

What would settle it

Running the same pipeline on a larger or more varied collection of satellite images and finding no consistent relationship between keypoint count and inlier ratio would undermine the observed impact.

Figures

Figures reproduced from arXiv: 2604.07574 by Oleh Samoilenko.

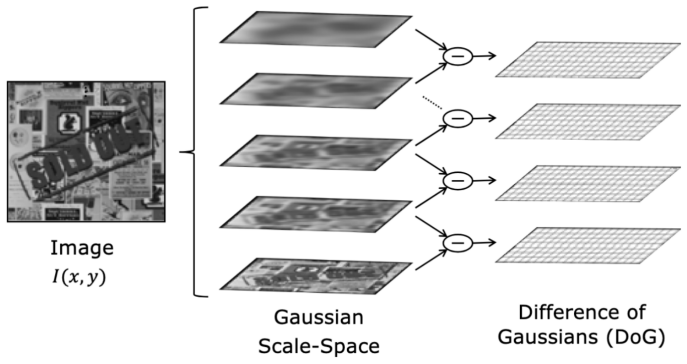

**Figure 2.** Figure 2: Difference of the Gaussians [14] is computed by subtracting the scale-space representation of an input image at different levels of the Gaussian blurring resulting in a pyramid of images, which is utilized for detecting the scale-invariant keypoints. Orientation Assignment: The orientation assignment step in the SIFT is crucial to achieve rotation invariance of keypoints. To make descriptors invariant to … view at source ↗

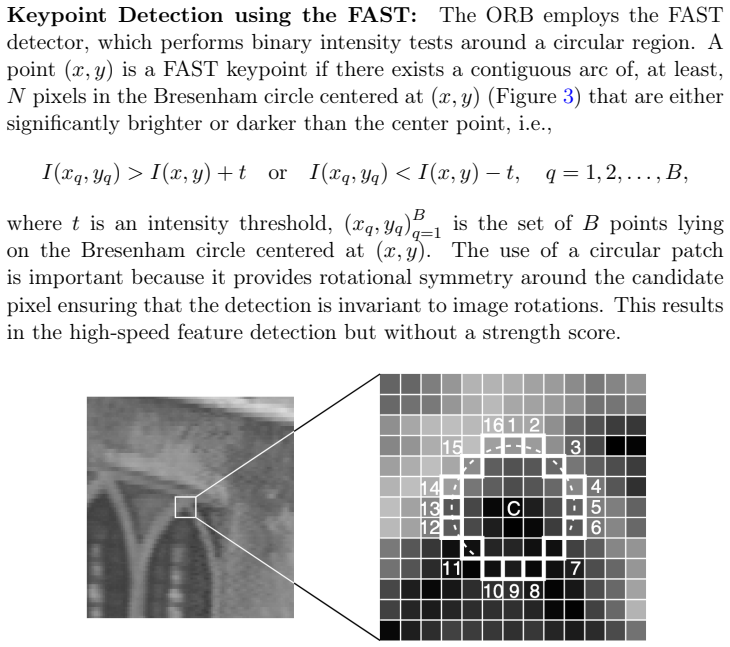

**Figure 3.** Figure 3: The FAST feature detection [4]. As example, the Bresenham circle of the radius 3 with the center at C is presented. The highlighted squares are the pixels adopted in the feature detection. To rank and filter the FAST keypoints, the ORB computes the Harris corner measure [11] by using the second moment matrix M = PI 2 x P P IxIy IxIy PI 2 y , H(x, y) = det(M) − α · (trace(M))2 , where Ix and Iy denote t… view at source ↗

**Figure 4.** Figure 4: Keypoint matches with the Brute Force. Initial keypoint cor [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

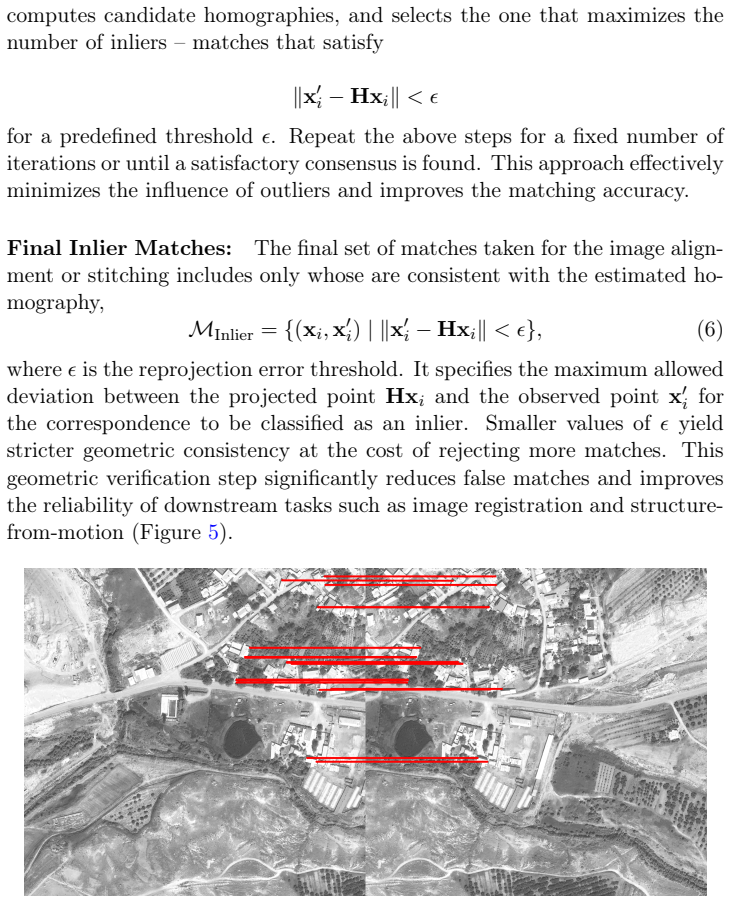

**Figure 5.** Figure 5: The keypoint matches between two images after applying the [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

read the original abstract

Image matching is a fundamental problem in Computer Vision with direct applications in robotics, remote sensing, and geospatial data analysis. We present an analytical and experimental evaluation of classical local feature-based image matching algorithms on satellite imagery, focusing on the Scale-Invariant Feature Transform (SIFT) and the Oriented FAST and Rotated BRIEF (ORB). Each method is evaluated through a common pipeline: keypoint detection, descriptor extraction, descriptor matching, and geometric verification via RANSAC with homography estimation. Matching quality is assessed using the Inlier Ratio - the fraction of correspondences consistent with the estimated homography. The study uses a manually constructed dataset of GPS-annotated satellite image tiles with intentional overlaps. We examine the impact of the number of extracted keypoints on the resulting Inlier Ratio.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A routine experimental comparison of SIFT and ORB on satellite imagery with limited novelty and no mathematical analysis.

read the letter

This paper runs a standard SIFT and ORB pipeline on satellite image tiles and measures the effect of keypoint count on inlier ratios after RANSAC. That's the core of it. The work applies well-known algorithms to a custom dataset of GPS-annotated satellite tiles with overlaps. It evaluates matching quality via the inlier ratio, which is the fraction of matches consistent with the estimated homography. Varying the number of keypoints is a simple but practical experiment for understanding performance in remote sensing. What it does well is follow the conventional computer vision pipeline without unnecessary complications. Using GPS ground truth for validation is a solid choice for this kind of applied work. The focus on satellite imagery fills a small gap if the results hold up. On the downside, the title promises a mathematical analysis, but the paper delivers only experimental comparisons. There are no derivations, theorems, or new theoretical contributions. The dataset is manually constructed, which raises questions about how representative it is of real satellite conditions, and the scope is narrow with just these two methods. The results are descriptive rather than predictive or generalizable. Without more details on error analysis or statistical significance, it's hard to draw firm conclusions about keypoint count effects. This kind of paper might interest engineers working on geospatial applications who need baseline numbers for these algorithms. It won't appeal to theorists or those seeking novel methods. I wouldn't recommend sending it for peer review. It's the sort of thing that belongs on arXiv as a technical note but doesn't have the depth or novelty for a journal.

Referee Report

0 major / 3 minor

Summary. The manuscript presents an experimental evaluation of SIFT and ORB local feature matching on satellite imagery. It implements a standard pipeline of keypoint detection, descriptor extraction, brute-force or FLANN matching, and RANSAC homography estimation, then measures matching quality by the inlier ratio (fraction of correspondences consistent with the estimated homography). The central focus is the empirical relationship between the number of extracted keypoints and the resulting inlier ratio, evaluated on a custom dataset of GPS-annotated satellite image tiles constructed with intentional overlaps.

Significance. If the reported trends hold under proper controls and statistical testing, the work supplies practical guidance on keypoint-count tuning for SIFT and ORB in remote-sensing registration tasks. Such empirical calibration is useful for practitioners in robotics and geospatial analysis, even though the study advances no new theoretical derivation or parameter-free prediction.

minor comments (3)

The title promises a 'Mathematical Analysis,' yet the described contribution is a descriptive experimental comparison that follows textbook CV pipelines without derivations, closed-form expressions, or proofs. Consider revising the title to 'Experimental Analysis of ...' or adding a short theoretical section that motivates the inlier-ratio metric from first principles.
The abstract states that a 'manually constructed dataset of GPS-annotated satellite image tiles' is used, but provides no quantitative details on the number of tiles, overlap statistics, geographic diversity, or ground-truth homography accuracy. These omissions hinder reproducibility and make it difficult to judge whether the observed keypoint-count effects generalize beyond the specific collection.
No mention is made of the exact matching strategy (e.g., ratio test threshold, cross-check), RANSAC parameters (iterations, inlier threshold), or how the inlier ratio is computed after homography estimation. These implementation choices are load-bearing for the reported metric and should be specified, ideally with pseudocode or a table of default values.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our experimental evaluation of SIFT and ORB on satellite imagery and for recommending minor revision. The work focuses on the empirical relationship between keypoint count and inlier ratio using a standard matching pipeline on GPS-annotated tiles. No major comments were raised in the report, so we have no point-by-point revisions to propose at this stage.

Circularity Check

0 steps flagged

No significant circularity; purely experimental evaluation

full rationale

The paper performs a standard experimental comparison of SIFT and ORB keypoint matching on a custom GPS-annotated satellite tile dataset, reporting how inlier ratio after RANSAC varies with keypoint count. No derivations, theorems, fitted parameters, or predictive claims are advanced that could reduce to the paper's own inputs or self-citations by construction. All metrics and pipelines are external standards; the work is self-contained against ground-truth annotations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The evaluation rests on the assumption that inlier ratio from RANSAC is a valid quality metric and that the custom satellite dataset adequately represents real conditions; no free parameters or invented entities are introduced.

axioms (1)

domain assumption Inlier ratio after RANSAC homography estimation reliably indicates matching quality for satellite imagery.
This metric is used to assess all results in the described pipeline.
