arxiv: 2604.07677 · v1 · submitted 2026-04-09 · 💻 cs.RO

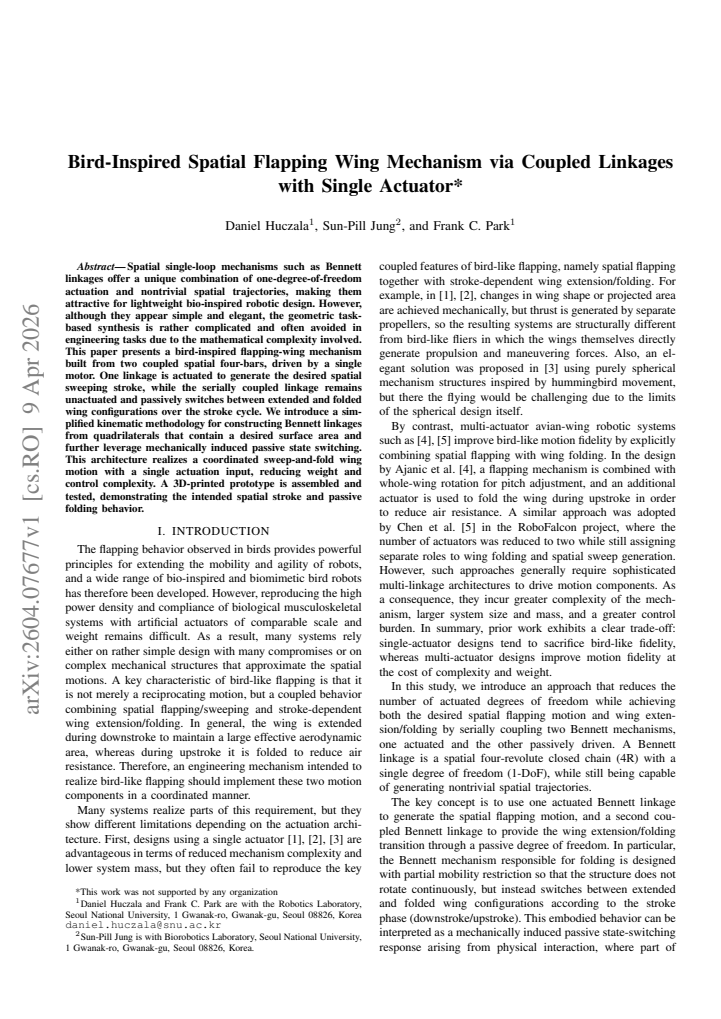

Bird-Inspired Spatial Flapping Wing Mechanism via Coupled Linkages with Single Actuator

Daniel Huczala , Sun-Pill Jung , Frank C. Park This is my paper

Pith reviewed 2026-05-10 18:21 UTC · model grok-4.3

classification 💻 cs.RO
keywords flapping wingBennett linkagespatial four-barpassive foldingsingle actuatorbio-inspired robotkinematic synthesiscoupled linkages
0
0 comments X

The pith

Coupled spatial linkages let one motor drive both the sweeping stroke and passive folding of a bird-inspired wing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a flapping-wing mechanism from two Bennett linkages connected in series and powered by a single actuator. The first linkage is driven to produce the spatial sweeping motion across the stroke cycle, while the second linkage, left unactuated, relies on mechanical coupling to extend and fold the wing at the appropriate points. A simplified synthesis procedure builds each linkage from a quadrilateral chosen to enclose a target surface area. The authors build and test a 3D-printed prototype that exhibits the intended coordinated motion without additional motors or sensors. A reader would care because the design replaces active control of folding with passive mechanics, which can lower weight, parts count, and electrical complexity in small flying robots.

Core claim

The mechanism consists of two serially coupled spatial four-bar linkages in which the actuated linkage generates the prescribed spatial sweep while the unactuated linkage automatically switches between extended and folded wing states over each cycle; the construction begins by selecting quadrilaterals that contain the desired surface area and then applies a reduced kinematic procedure to obtain the Bennett linkages that realize the motion.

What carries the argument

A pair of serially coupled Bennett linkages, one actively driven for spatial stroke and the second passively switched by mechanical coupling for wing folding.

If this is right

  • Only one motor is required for the full sweep-and-fold cycle instead of separate actuators for each degree of freedom.
  • The design reduces overall mass and wiring by eliminating hardware for active folding control.
  • The kinematic synthesis method allows the linkages to be sized directly from a chosen surface area without full spatial mechanism optimization.
  • The 3D-printed realization confirms that the spatial trajectory and passive folding occur together under single-input drive.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same passive-coupling principle could be applied to other periodic robotic motions, such as leg folding in walking machines, where timing is dictated by linkage geometry rather than sensors.
  • Scaling the mechanism to larger wingspans would require checking whether inertial forces still suffice to trigger reliable folding without binding or excessive friction.
  • Energy consumption measurements on the prototype during sustained flapping would indicate how much power is saved compared with two-actuator designs.
  • The approach may extend to multi-wing configurations in which several passive linkages share a common drive shaft.

Load-bearing premise

The unactuated linkage will reliably switch between extended and folded wing states at the correct instants solely because of the geometric coupling, without external forces or separate actuation.

What would settle it

Continuous operation of the prototype in which the wing does not fold or unfold at the expected stroke positions or requires manual assistance to change configuration would show that passive state switching does not occur as claimed.

Figures

Figures reproduced from arXiv: 2604.07677 by Daniel Huczala, Frank C. Park, Sun-Pill Jung.

Figure 1
Figure 1. Figure 1: Schematic drawing of the proposed wing design. Red: linkage [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Quadrilateral p0, p1, p′ 2 , p′ 3 in folded configuration during upstroke. B. Flapping Motion Mechanism This section describes the generation of flapping motion using two spatial Bennett linkages, the Stroke-linkage and the Folding-linkage. It is yet left to design the Stroke-linkage that will carry the Folding-linkage obtained in the previous section. For the Stroke-linkage, the design strategy differs, a… view at source ↗
Figure 4
Figure 4. Figure 4: Front and right views comparison of planar linkage (above) and [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Continuous rational motion interpolating for given poses (left); [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: CAD model of the flapping wing (above) with physical joint limits [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
read the original abstract

Spatial single-loop mechanisms such as Bennett linkages offer a unique combination of one-degree-of-freedom actuation and nontrivial spatial trajectories, making them attractive for lightweight bio-inspired robotic design. However, although they appear simple and elegant, the geometric task-based synthesis is rather complicated and often avoided in engineering tasks due to the mathematical complexity involved. This paper presents a bird-inspired flapping-wing mechanism built from two coupled spatial four-bars, driven by a single motor. One linkage is actuated to generate the desired spatial sweeping stroke, while the serially coupled linkage remains unactuated and passively switches between extended and folded wing configurations over the stroke cycle. We introduce a simplified kinematic methodology for constructing Bennett linkages from quadrilaterals that contain a desired surface area and further leverage mechanically induced passive state switching. This architecture realizes a coordinated sweep-and-fold wing motion with a single actuation input, reducing weight and control complexity. A 3D-printed prototype is assembled and tested, demonstrating the intended spatial stroke and passive folding behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper claims to introduce a bird-inspired flapping-wing mechanism using two serially coupled Bennett linkages driven by a single actuator. One linkage is actuated to produce a spatial sweeping stroke, while the unactuated linkage passively switches between extended and folded wing states through mechanical coupling. A simplified synthesis method constructs the Bennett linkages from quadrilaterals with specified surface area, and a 3D-printed prototype is presented as demonstrating the coordinated sweep-and-fold motion.

Significance. If validated, the single-actuator architecture with passive folding could reduce weight and control complexity in bio-inspired aerial robots, extending established Bennett linkage kinematics to a new coupled application. The prototype provides initial feasibility evidence, though stronger quantitative support would enhance its impact on lightweight spatial mechanism design.

major comments (3)
  1. [Abstract] Abstract and prototype description: the central claim of reliable 'mechanically induced passive state switching' in the unactuated linkage is not supported by kinematic singularity analysis, torque balance, or dynamic simulation. A 1DOF spatial mechanism has a unique configuration per input angle, but the paper provides no evidence that coupling forces alone overcome dead points or locking tendencies to produce the fold/extend transitions at the intended stroke phases rather than stalling.
  2. [Prototype] Prototype testing section: the 3D-printed prototype is stated to demonstrate the spatial stroke and passive folding, but no quantitative data (e.g., measured wing tip trajectories, folding angles, cycle timing, or error relative to desired motion) or error analysis is reported. This leaves the soundness of the validation for the coordinated motion claim at a qualitative level only.
  3. [Kinematic Synthesis] Kinematic methodology: the simplified construction of Bennett linkages from quadrilaterals containing a desired surface area is introduced as a contribution, but the manuscript lacks explicit equations, parameter definitions, or step-by-step derivations to allow verification of how this reduces geometric task-based synthesis complexity compared to standard methods.
minor comments (1)
  1. Add labels, scale bars, and motion direction arrows to all mechanism figures to improve clarity and reproducibility of the coupled linkage assembly.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight areas where the manuscript can be strengthened. We address each major point below and will incorporate revisions to improve the rigor and clarity of the presentation on the coupled Bennett linkage mechanism.

read point-by-point responses

  1. Referee: [Abstract] Abstract and prototype description: the central claim of reliable 'mechanically induced passive state switching' in the unactuated linkage is not supported by kinematic singularity analysis, torque balance, or dynamic simulation. A 1DOF spatial mechanism has a unique configuration per input angle, but the paper provides no evidence that coupling forces alone overcome dead points or locking tendencies to produce the fold/extend transitions at the intended stroke phases rather than stalling.

    Authors: We agree that the passive switching claim requires stronger supporting analysis. The 1DOF nature ensures a unique configuration for each input, but we will add in revision a dedicated kinematic analysis subsection that maps the configuration space of the coupled system, verifies the absence of singularities within the operating stroke range, and provides a static torque balance calculation showing that the coupling forces from the actuated linkage are sufficient to drive the unactuated linkage through the intended fold/extend transitions without stalling at dead points. revision: yes

  2. Referee: [Prototype] Prototype testing section: the 3D-printed prototype is stated to demonstrate the spatial stroke and passive folding, but no quantitative data (e.g., measured wing tip trajectories, folding angles, cycle timing, or error relative to desired motion) or error analysis is reported. This leaves the soundness of the validation for the coordinated motion claim at a qualitative level only.

    Authors: The referee is correct that the current prototype section is qualitative only. In the revised manuscript we will expand this section with quantitative validation obtained from high-speed video tracking of the prototype, including measured wing-tip trajectories, folding angles as a function of input crank angle, cycle timing consistency across multiple runs, and RMS error relative to the theoretical paths derived from the kinematic model. revision: yes

  3. Referee: [Kinematic Synthesis] Kinematic methodology: the simplified construction of Bennett linkages from quadrilaterals containing a desired surface area is introduced as a contribution, but the manuscript lacks explicit equations, parameter definitions, or step-by-step derivations to allow verification of how this reduces geometric task-based synthesis complexity compared to standard methods.

    Authors: We acknowledge that the synthesis procedure is not presented with sufficient mathematical detail. The revision will include an expanded kinematic synthesis section that provides the full set of governing equations, explicit definitions for all geometric parameters (quadrilateral side lengths, twist angles, and surface-area constraint), and a numbered step-by-step derivation showing how the quadrilateral-to-Bennett mapping is constructed and why it reduces the search space relative to classical task-based synthesis methods. revision: yes

Circularity Check

0 steps flagged

No circularity: kinematic construction and coupling are independent of fitted inputs or self-referential definitions

full rationale

The paper's central contribution is a new coupling of two Bennett linkages (one actuated, one unactuated) to achieve coordinated sweep-and-fold motion from a single input. The described 'simplified kinematic methodology' constructs the linkages from quadrilaterals chosen to enclose a target surface area; this is a forward geometric procedure, not a prediction that reduces to its own output by construction. Passive state switching is asserted as a direct geometric consequence of serial coupling and the 1DOF constraint, without any fitted parameters, self-citation chains, or ansatz smuggling that would make the result tautological. The prototype serves as external validation rather than an input to the kinematics. No load-bearing step equates the claimed behavior to the input data or prior self-citations by definition.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard spatial kinematics and the assumption that passive coupling produces reliable state switching; no new entities are postulated.

free parameters (1)
  • Quadrilateral surface area and dimensions
    Chosen to produce the target spatial trajectories when constructing the Bennett linkages.
axioms (2)
  • standard math Bennett linkages are one-degree-of-freedom spatial mechanisms
    Invoked as the foundation for generating the desired sweeping stroke.
  • domain assumption Serial coupling induces passive switching between extended and folded states
    Assumed to occur mechanically over each stroke cycle without additional actuation or external forces.

pith-pipeline@v0.9.0 · 5474 in / 1266 out tokens · 49658 ms · 2026-05-10T18:21:19.842304+00:00 · methodology
