Granular Superconductivity in La₂PrNi₂O_(7-δ) Thin Films
Pith reviewed 2026-05-10 18:27 UTC · model grok-4.3
The pith
The two-step resistive transition in La2PrNi2O7-δ thin films stems from granular superconductivity involving two distinct grain phases coupled by Josephson junctions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The two-step transition in La₂PrNi₂O₇₋δ thin films originates from the granular nature of superconductivity, specifically the coexistence of two distinct superconducting grain phases coupled by a Josephson junction network. A secondary, lower-temperature transition appears in the R(T) curve even when residual resistance becomes vanishingly small near 30 K, which significantly lowers the zero-resistance transition temperature T_{c,zero} ≈ 10 K and limits advanced spectroscopic studies.
What carries the argument
Josephson junction network that couples two distinct superconducting grain phases within the granular film microstructure
If this is right
- The granular coupling lowers the practical zero-resistance temperature to roughly 10 K despite higher-temperature onset superconductivity.
- Improved oxygen homogeneity is required to eliminate the secondary transition and reach bulk-like superconductivity.
- The two-step behavior currently prevents reliable spectroscopic and transport studies at the optimal transition temperature.
Where Pith is reading between the lines
- Films grown under tighter oxygen control or on substrates that promote larger grains could suppress the lower-temperature step and raise T_{c,zero}.
- Similar granularity effects may appear in other nickelate thin-film systems if oxygen stoichiometry is difficult to homogenize during growth.
- Transport measurements that probe the current dependence of the transitions could map the Josephson coupling strength directly.
Load-bearing premise
The two-step transition is produced by two different superconducting grain phases joined by Josephson links rather than by structural defects or other forms of inhomogeneity unrelated to granularity.
What would settle it
Fabrication of La₂PrNi₂O₇₋δ films with uniform oxygen distribution and no evidence of distinct grain phases that nevertheless still exhibit a clear two-step resistive transition would disprove the granular mechanism.

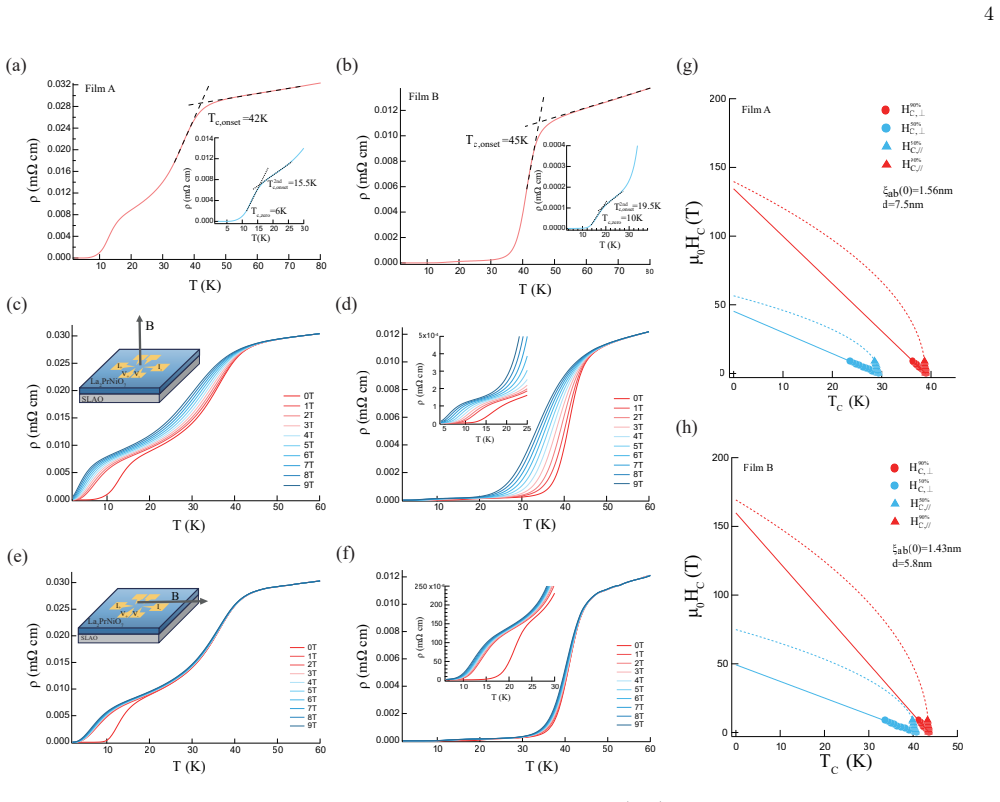

Figures
read the original abstract
Superconductivity realized in bilayer nickelate thin films enables direct spectroscopic and transport studies at ambient pressure. However, a persistent two-step resistive transition remains a major barrier to achieving optimal superconducting properties. Here, we show that the two-step transition in La$_2$PrNi$_2$O$_{7-\delta}$ thin films originates from the granular nature of superconductivity, specifically, the coexistence of two distinct superconducting grain phases coupled by a Josephson junction network. A secondary, lower-temperature transition appears in the $R(T)$ curve, even when residual resistance becomes vanishingly small near 30 K. This two-step behavior significantly lowers the zero-resistance transition temperature, $T_{c, zero}$$\approx$ 10 K, and limits advanced spectroscopic studies. Our findings reveal the microscopic mechanism underlying the two-step transition in thin films and underscore the need for improved oxygen homogeneity to achieve bulk superconductivity in this system.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims that the persistent two-step resistive transition in La₂PrNi₂O₇₋δ thin films originates from granular superconductivity, specifically the coexistence of two distinct superconducting grain phases coupled by a Josephson junction network due to oxygen non-uniformity. This mechanism produces a secondary lower-temperature transition in R(T) even as resistance vanishes near 30 K, resulting in a zero-resistance transition temperature T_{c,zero} ≈ 10 K that limits further studies; the authors conclude that improved oxygen homogeneity is required to achieve bulk superconductivity.
Significance. If the granular interpretation holds, the result would identify a concrete microscopic origin for the two-step transition that has hindered optimization of nickelate thin films, directly linking oxygen inhomogeneity to the suppression of T_{c,zero} and providing a clear target for synthesis improvements that could enable higher-quality samples for spectroscopy and transport.
major comments (3)
- [Results and Discussion] The central attribution of the two-step R(T) feature to two distinct grain phases coupled by Josephson junctions rests on transport data alone; no local structural, spectroscopic, or microstructural evidence (e.g., TEM, STM, or XRD mapping of grain boundaries) is presented to confirm the existence of discrete phases rather than a continuous oxygen gradient or non-granular inhomogeneity.
- [Transport measurements] No Josephson-specific signatures are reported, such as the magnetic-field dependence of the inter-grain critical current or the expected scaling of the lower transition with applied field or current; without these, the Josephson-network model cannot be distinguished from other sources of resistive broadening.
- [Discussion] The manuscript does not include quantitative modeling (e.g., effective-medium or percolation calculations) that would predict the observed ~20 K separation between the two transitions from plausible grain-size or oxygen-variation distributions, leaving the interpretation largely qualitative.
minor comments (2)
- [Abstract and Figure captions] Notation for the oxygen deficiency (δ) and the two transition temperatures should be defined consistently in the text and figures.
- [Abstract] The abstract states that residual resistance becomes 'vanishingly small near 30 K' yet T_{c,zero} ≈ 10 K; a brief clarification of how the intermediate plateau is quantified would improve readability.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments, which help clarify the strengths and limitations of our transport-based interpretation. We address each major comment point by point below, indicating where revisions will be made to the manuscript.
read point-by-point responses
-
Referee: [Results and Discussion] The central attribution of the two-step R(T) feature to two distinct grain phases coupled by Josephson junctions rests on transport data alone; no local structural, spectroscopic, or microstructural evidence (e.g., TEM, STM, or XRD mapping of grain boundaries) is presented to confirm the existence of discrete phases rather than a continuous oxygen gradient or non-granular inhomogeneity.
Authors: We agree that direct local probes would provide stronger confirmation of discrete grain phases and oxygen inhomogeneity. Our interpretation relies on the transport signatures, particularly the presence of two sharp, well-separated transitions whose field and current dependences differ markedly (as shown in the existing data). A continuous oxygen gradient would be expected to produce a single broadened transition rather than distinct steps persisting even when residual resistance is negligible. We will add a paragraph in the revised Discussion explicitly acknowledging this limitation and the desirability of future TEM or STM studies, while noting that the transport data remain inconsistent with a purely continuous inhomogeneity model. revision: partial
-
Referee: [Transport measurements] No Josephson-specific signatures are reported, such as the magnetic-field dependence of the inter-grain critical current or the expected scaling of the lower transition with applied field or current; without these, the Josephson-network model cannot be distinguished from other sources of resistive broadening.

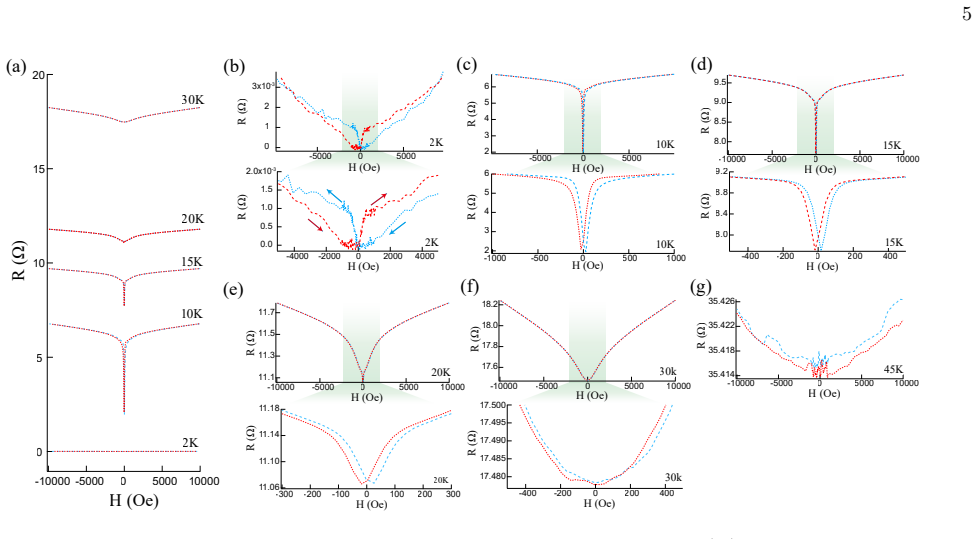

Authors: The manuscript already presents magnetic-field sweeps (Figure 3) demonstrating that the lower transition is suppressed at lower fields than the upper one, consistent with weaker inter-grain Josephson coupling. We will expand the analysis section to include explicit discussion of the field and current scaling of the lower transition, referencing the existing datasets to quantify the critical current behavior and better differentiate the Josephson-network scenario from simple resistive broadening mechanisms. revision: yes
-
Referee: [Discussion] The manuscript does not include quantitative modeling (e.g., effective-medium or percolation calculations) that would predict the observed ~20 K separation between the two transitions from plausible grain-size or oxygen-variation distributions, leaving the interpretation largely qualitative.
Authors: We acknowledge that a quantitative model would strengthen the paper. However, without independent measurements of grain-size distributions or local oxygen profiles, any such calculation necessarily involves assumptions. In the revision we will incorporate a simple effective-medium estimate using plausible ranges of oxygen variation and grain sizes drawn from the literature on similar nickelate films; this will illustrate that the observed ~20 K separation is consistent with the model while remaining transparent about the assumptions involved. revision: partial
Circularity Check
No circularity: observational interpretation with no derivation chain or self-referential steps
full rationale
The paper presents an interpretive claim that the two-step resistive transition arises from granular superconductivity with two distinct grain phases coupled by a Josephson network, based on R(T) data showing a secondary transition near 10 K despite vanishing resistance near 30 K. No equations, derivations, fitted parameters, or predictions are described in the abstract or claim summary. The central attribution is a direct reading of transport observations rather than any reduction to self-defined quantities, fitted inputs renamed as predictions, or load-bearing self-citations. This makes the argument self-contained as an empirical interpretation without circular structure.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Granular superconductors display two-step resistive transitions arising from intra-grain superconductivity followed by inter-grain Josephson coupling.
Forward citations
Cited by 3 Pith papers
-
Superconductivity in bilayer La$_3$Ni$_2$O$_7$: A review focusing on the strong-coupling Hund's rule assisted pairing mechanism
Superconductivity in La3Ni2O7 arises from interlayer Cooper pairs of 3d_x2-y2 electrons driven by effective J_perp from Hund-assisted AFM exchange transfer, while localized 3d_z2 electrons form rung singlets that prod...
-
Experimental Progress in Ambient-Pressure Superconducting Bilayer Nickelate Films
Epitaxial strain enables ambient-pressure superconductivity in bilayer nickelate films, facilitating detailed studies of their properties and phase diagrams.
-
Superconductivity in Ruddlesden-Popper nickelates: a review of recent progress, focusing on thin films
The review covers experimental and theoretical progress on superconductivity in Ruddlesden-Popper nickelates, emphasizing ambient-pressure thin-film results in La3Ni2O7.
Reference graph
Works this paper leans on
-
[1]
H. Sun, M. Huo, X. Hu, J. Li, Z. Liu, Y. Han, L. Tang, Z. Mao, P. Yang, B. Wang, J. Cheng, D. Yao, G. Zhang, and M. Wang, Signatures of superconductivity near 80 K in a nickelate under high pressure, Nature621, 493 (2023)
work page 2023
-
[2]
J. Hou, P. Yang, Z. Liu, J. Li, P. Shan, L. Ma, G. Wang, N. Wang, H. Guo, J. Sun, Y. Uwatoko, M. Wang, G. Zhang, B. Wang, and J. Cheng, Emergence of High-Temperature Superconducting Phase in Pressur- ized La3Ni2O7 Crystals, Chin. Phys. Lett.40, 117302 (2023)
work page 2023
- [3]
-
[4]
G. Wang, N. N. Wang, X. L. Shen, J. Hou, L. Ma, L. F. Shi, Z. A. Ren, Y. D. Gu, H. M. Ma, P. T. Yang, Z. Y. Liu, H. Z. Guo, J. P. Sun, G. M. Zhang, S.Calder, J.Yan, B.S.Wang, Y.Uwatoko,andJ.Cheng, Pressure-Induced Superconductivity In Polycrystalline La2PrNi2O7−δ, Phys. Rev. X14, 011040 (2024)
work page 2024
-
[5]
F.Li, Z.Xing, D.Peng, J.Dou, N.Guo, L.Ma, Y.Zhang, L. Wang, J. Luo, J. Yang, J. Zhang, T. Chang, Y.-S. Chen, W. Cai, J. Cheng, Y. Wang, Y. Liu, T. Luo, N. Hi- rao, T. Matsuoka, H. Kadobayashi, Z. Zeng, Q. Zheng, R. Zhou, Q. Zeng, X. Tao, and J. Zhang, Bulk Super- conductivity up to 96 K in Pressurized Nickelate Single Crystals, Nature649, 871 (2026)
work page 2026
-
[6]
N. Wang, G. Wang, X. Shen, J. Hou, J. Luo, X. Ma, H. Yang, L. Shi, J. Dou, J. Feng, J. Yang, Y. Shi, Z. Ren, H. Ma, P. Yang, Z. Liu, Y. Liu, H. Zhang, X. Dong, Y. Wang, K. Jiang, J. Hu, S. Nagasaki, K. Kitagawa, S. Calder, J. Yan, J. Sun, B. Wang, R. Zhou, Y. Uwa- toko, and J. Cheng, Bulk High-Temperature Supercon- ductivity in Pressurized Tetragonal La2P...
work page 2024
-
[7]
M. Wang, H. Wen, T. Wu, D. Yao, and T. Xiang, Nor- mal and Superconducting Properties of La3Ni2O7, Chin. Phys. Lett.41, 077402 (2024)
work page 2024
-
[8]
Y. Zhu, D. Peng, E. Zhang, B. Pan, X. Chen, L. Chen, H. Ren, F. Liu, Y. Hao, N. Li, Z. Xing, F. Lan, J. Han, J. Wang, D. Jia, H. Wo, Y. Gu, Y. Gu, L. Ji, W. Wang, H. Gou, Y. Shen, T. Ying, X. Chen, W. Yang, H. Cao, C. Zheng, Q. Zeng, J. Guo, and J. Zhao, Superconductiv- ity in Pressurized Trilayer La4Ni3O10−δ Single Crystals, Nature631, 531 (2024)
work page 2024
-
[9]
M. Shi, D. Peng, K. Fan, Z. Xing, S. Yang, Y. Wang, H. Li, R. Wu, M. Du, B. Ge, Z. Zeng, Q. Zeng, J. Ying, T. Wu, and X. Chen, Pressure Induced Superconductiv- ityinHybridRuddlesden-PopperLa 5Ni3O11 SingleCrys- tals, Nat. Phys.21, 1780 (2025). 7
work page 2025
- [10]
-
[11]
Q. Gao, Y. Zhao, X. Zhou, and Z. Zhu, Preparation of Superconducting Thin Films of Infinite-Layer Nickelate Nd0.8Sr0.2NiO2, Chin. Phys. Lett.38, 077401 (2021)
work page 2021
-
[12]
D. Li, B. Y. Wang, K. Lee, S. P. Harvey, M. Osada, B.H.Goodge, L.F.Kourkoutis,andH.Y.Hwang,Super- conducting Dome in Nd1−xSrxNiO2 Infinite Layer Films, Phys. Rev. Lett.125, 027001 (2020)
work page 2020
-
[13]
D. Li, K. Lee, B. Y. Wang, M. Osada, S. Crossley, H. R. Lee, Y. Cui, Y. Hikita, and H. Y. Hwang, Supercon- ductivity in an Infinite-Layer Nickelate, Nature572, 624 (2019)
work page 2019
-
[14]
J. Oppliger, J. Küspert, A.-C. Dippel, M. V. Zimmer- mann, O. Gutowski, X. Ren, X. Zhou, Z. Zhu, R. Frison, Q. Wang, L. Martinelli, I. Biało, and J. Chang, Discovery of Giant Unit-Cell Super-Structure in the Infinite-Layer Nickelate PrNiO2+x, Commun. Mater.6, 3 (2025)
work page 2025
-
[15]
E. K. Ko, Y. Yu, Y. Liu, L. Bhatt, J. Li, V. Thampy, C. Kuo, B. Y. Wang, Y. Lee, K. Lee, J. Lee, B. H. Goodge, D. A. Muller, and H. Y. Hwang, Signatures of Ambient Pressure Superconductivity in Thin Film La3Ni2O7, Nature638, 935 (2025)
work page 2025
- [16]
-
[17]
Y. Liu, E. K. Ko, Y. Tarn, L. Bhatt, J. Li, V. Thampy, B. H. Goodge, D. A. Muller, S. Raghu, Y. Yu, and H. Y. Hwang, Superconductivity and Normal-State Transport in Compressively Strained La2PrNi2O7 Thin Films, Nat. Mater.24, 1221 (2025)
work page 2025
-
[18]
G. Zhou, W. Lv, H. Wang, Z. Nie, Y. Chen, Y. Li, H. Huang, W. Chen, Y. Sun, Q. Xue, and Z. Chen, Ambient-Pressure Superconductivity Onset above 40 K in (La,Pr)3Ni2O7−δ Films, Nature640, 641 (2025)
work page 2025
-
[19]
G. Zhou, H. Wang, H. Huang, Y. Chen, F. Peng, W. Lv, Z. Nie, W. Wang, J. Jia, Q. Xue, and Z. Chen, Supercon- ductivity Onset above 60 K in Ambient-Pressure Nicke- late Films, Natl. Sci. Rev. , nwag151 (2026)
work page 2026
-
[20]
B. Hao, M. Wang, W. Sun, Y. Yang, Z. Mao, S. Yan, H. Sun, H. Zhang, L. Han, Z. Gu, J. Zhou, D. Ji, and Y. Nie, Superconductivity in Sr-doped La3Ni2O7 Thin Films, Nat. Mater.24, 1756 (2025)
work page 2025
-
[21]
Y. Shi, C. Song, Y. Jia, Y. Wang, Q. Li, Y. Chen, Y. Yang, J. Fu, M. Qin, D. Song, Z. Chen, H. Yuan, Y. Xie, and M. Zhang, Critical Thickness and Long- Term Ambient Stability in Superconducting LaPr2Ni2O7 Films, Adv. Mater.38, e10394 (2026)
work page 2026
-
[22]
P. Li, G. Zhou, W. Lv, Y. Li, C. Yue, H. Huang, L. Xu, J. Shen, Y. Miao, W. Song, Z. Nie, Y. Chen, H. Wang, W. Chen, Y. Huang, Z.-H. Chen, T. Qian, J. Lin, J. He, Y.-J. Sun, Z. Chen, and Q. Xue, Angle-Resolved Photoemission Spectroscopy of Super- conducting (La,Pr)3Ni2O7/SrLaAlO4 Heterostructures, Natl. Sci. Rev.12, nwaf205 (2025)
work page 2025
-
[23]
Z. Luo, X. Hu, M. Wang, W. Wú, and D. Yao, Bilayer Two-Orbital Model of La3Ni2O7 under Pressure, Phys. Rev. Lett.131, 126001 (2023)
work page 2023
-
[24]
B. Y. Wang, Y. Zhong, S. Abadi, Y. Liu, Y. Yu, X. Zhang, Y.-M. Wu, R. Wang, J. Li, Y. Tarn, E. K. Ko, V. Thampy, M. Hashimoto, D. Lu, Y. S. Lee, T. P. Devereaux, C. Jia, H. Y. Hwang, and Z.-X. Shen, Elec- tronic Structure of Compressively Strained Thin Film La2PrNi2O7 (2025), 2504.16372 [cond-mat]
- [25]
-
[26]
Z. Nie, Y. Li, W. Lv, L. Xu, Z. Jiang, P. Fu, G. Zhou, W. Song, Y. Chen, H. Wang, H. Huang, J. Lin, J. Jia, D. Shen, P. Li, Q. Xue, and Z. Chen, Superconductiv- ity and electronic structures of nickelate thin film super- structures, Nature 10.1038/s41586-026-10352-7 (2026)
-
[27]
J. Shen, G. Zhou, Y. Miao, P. Li, Z. Ou, Y. Chen, Z. Wang, R. Luan, H. Sun, Z. Feng, X. Yong, Y. Li, L. Xu, W. Lv, Z. Nie, H. Wang, H. Huang, Y.-J. Sun, Q.- K. Xue, J. He, and Z. Chen, Nodeless Superconducting Gap and Electron-Boson Coupling in (La,Pr,Sm)3Ni2O7 Films (2025), 2502.17831 [cond-mat]
-
[28]
X. Ren, R. Sutarto, X. Wu, J. Zhang, H. Huang, T. Xi- ang, J. Hu, R. Comin, X. Zhou, and Z. Zhu, Resolving the Electronic Ground State of La3Ni2O7−δ Films, Com- mun. Phys.8, 52 (2025)
work page 2025
-
[29]
L. Bhatt, E. Abarca Morales, A. Y. Jiang, E. K. Ko, Y. Zhao, N. Schnitzer, G. A. Pan, D. Ferenc Segedin, Y. Liu, Y. Yu, C. M. Brooks, A. S. Botana, H. Y. Hwang, J. A. Mundy, D. A. Muller, and B. H. Goodge, Struc- tural Modifications in Strain-Engineered Bilayer Nick- elate Thin Films, Nature 10.1038/s41586-026-10446-2 (2026)
- [30]
-
[31]
W. Lyu, Z. Nie, H. Wang, Y. Chen, H. Huang, G. Zhou, Q. Xue, and Z. Chen, Preparation and Optimization of High-Temperature Superconducting Ruddlesden-Popper Nickelate Thin Films, Acta Phys. Sin.74, 0 (2025)
work page 2025
- [32]
- [33]
-
[34]
S. Eley, S. Gopalakrishnan, P. M. Goldbart, and N. Ma- son, Approaching Zero-Temperature Metallic States in Mesoscopic Superconductor–Normal–Superconductor Arrays, Nat. Phys.8, 59 (2012)
work page 2012
- [35]
-
[36]
D. R. Saykin, M. Gonzalez, J. Fowlie, S. A. Kivelson, H. Y. Hwang, and A. Kapitulnik, Spin-Glass State in Nickelate Superconductors, npj Quantum Mater.10, 94 (2025)
work page 2025
-
[37]
S. Shifang, Z. Yong, P. Guoqiang, Y. Daoqi, Z. Han, C. Zuyao, Q. Yitai, K. Weiyan, and Z. Qirui, The Be- haviour of Negative Magnetoresistance and Hysteresis in YBa2Cu3O7−δ, Europhys. Lett.6, 359 (1988). 8
work page 1988
-
[38]
D. A. Balaev, S. V. Semenov, and M. I. Petrov, Cor- relation Between Magnetoresistance and Magnetization Hysteresis in a Granular High-T C Superconductor: Im- pact of Flux Compression in the Intergrain Medium, J Supercond. Nov. Magn.27, 1425 (2014)
work page 2014
-
[39]
D. A. Balaev, D. M. Gokhfeld, A. A. Dubrovski˘ ı, S. I. Popkov, K. A. Shaikhutdinov, and M. I. Petrov, Magne- toresistance Hysteresis in Granular HTSCs as a Manifes- tation of the Magnetic Flux Trapped by Superconduct- ing Grains in YBCO + CuO Composites, J Exp. Theor. Phys.105, 1174 (2007)
work page 2007
-
[40]
L. Ji, M. S. Rzchowski, N. Anand, and M. Tinkham, Magnetic-Field-Dependent Surface Resistance and Two- Level Critical-State Model for Granular Superconduc- tors, Phys. Rev. B47, 470 (1993)
work page 1993
-
[41]
A. Barone and G. Paterno, Physics and Applications of the Josephson Effect, Il Nuovo Cimento D4, 411 (1984)
work page 1984
-
[42]
D. J. Resnick, J. C. Garland, J. T. Boyd, S. Shoemaker, and R. S. Newrock, Kosterlitz-Thouless Transition in Proximity-Coupled Superconducting Arrays, Phys. Rev. Lett.47, 1542 (1981)
work page 1981
-
[43]
D. W. Abraham, C. J. Lobb, M. Tinkham, and T. M. Klapwijk, Resistive Transition in Two-Dimensional Ar- rays of Superconducting Weak Links, Phys. Rev. B26, 5268 (1982)
work page 1982
-
[44]
D. A. Balaev, D. M. Gohfeld, S. I. Popkov, K. A. Saihut- dinov,andM.I.Petrov,High-TemperatureSuperconduc- tor Based Composites: Large Magnetoresistance in Weak Magnetic Fields, Tech. Phys. Lett.27, 952 (2001)
work page 2001
-
[45]
S. V. Semenov, D. A. Balaev, and M. I. Petrov, Universal Behavior and Temperature Evolution of the Magnetore- sistance Hysteresis in Granular High-Temperature Su- perconductors Y–Ba–Cu–O, Phys. Solid State63, 1069 (2021)
work page 2021
-
[46]
V. Ambegaokar and B. I. Halperin, Voltage Due to Ther- mal Noise in the Dc Josephson Effect, Phys. Rev. Lett. 22, 1364 (1969)
work page 1969
-
[47]
Tinkham, Resistive Transition of High-Temperature Superconductors, Phys
M. Tinkham, Resistive Transition of High-Temperature Superconductors, Phys. Rev. Lett.61, 1658 (1988)
work page 1988
-
[48]
B. O. Wells, Y. S. Lee, M. A. Kastner, R. J. Chris- tianson, R. J. Birgeneau, K. Yamada, Y. Endoh, and G. Shirane, Incommensurate Spin Fluctuations in High- Transition Temperature Superconductors, Science277, 1067 (1997)
work page 1997
