arxiv: 2604.07908 · v1 · submitted 2026-04-09 · 📡 eess.SY · cs.SY

A Game-Theoretic Decentralized Real-Time Control of Electric Vehicle Charging Stations - Part II: Numerical Simulations

Riccardo Ramaschi , Mario Paolone , Sonia Leva This is my paper

Pith reviewed 2026-05-10 18:21 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords electric vehiclescharging stationsdecentralized controlStackelberg gameADMM algorithmenergy managementincentivessimulation
0
0 comments X

The pith

A Stackelberg game lets an electric vehicle charging station set incentives that steer individual charging decisions toward lower station costs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents simulation results for a two-layer control system at an electric vehicle charging station. The upper layer uses a Stackelberg game to decide power limits and price incentives offered to vehicles. The lower layer lets each vehicle optimize its own charging profile in response to those incentives. Tests on a large station compare the approach to three baselines: a non-game decentralized method, a fully centralized optimizer, and charging without any coordination. The game method delivers lower total costs, more balanced charging across users, and quicker solution times, suggesting it can harness the flexibility of many vehicle batteries without requiring full central oversight.

Core claim

The authors embed the SG-ADMM algorithm inside a hierarchical energy management system where the charging station leader trades available power against incentives to the electric vehicles. Each vehicle then solves its local charging problem as a follower. Numerical experiments on a sizable charging facility show that this incentive-driven distributed scheme produces charging plans with better cost performance, greater fairness among users, and lower computational burden than either a centralized benchmark or a standard ADMM-based decentralized scheme without the game layer.

What carries the argument

The SG-ADMM (Stackelberg Game-based Alternating Direction Method of Multipliers) that lets the station design incentives to align vehicle responses with station goals while solving the resulting optimization in a distributed fashion.

If this is right

  • The charging station can achieve system-level cost savings while only broadcasting incentives rather than dictating exact power setpoints to each vehicle.
  • Fairness metrics improve because the incentive structure discourages any single vehicle from claiming disproportionate power.
  • Computation remains feasible even as the number of vehicles grows, because each vehicle solves a small local problem.
  • The method operates in real time by iterating between leader decisions and follower responses within each control interval.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If drivers respond to incentives differently than the model assumes, the performance gains seen in simulation may shrink or disappear.
  • The framework could incorporate additional objectives such as minimizing carbon emissions from the grid mix by adjusting the leader's cost function.
  • Future work might test the approach on stations with on-site solar or battery storage to see how the game handles variable supply.

Load-bearing premise

Electric vehicle users will adjust their charging behavior precisely according to the incentive signals in the way the game model predicts.

What would settle it

Deploying the incentive signals at a real charging station and measuring whether the observed charging power profiles match the simulated equilibrium solutions within a small tolerance.

Figures

Figures reproduced from arXiv: 2604.07908 by Mario Paolone, Riccardo Ramaschi, Sonia Leva.

Figure 1
Figure 1. Figure 1: Charging station layout: components and configuration. The image is [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Time frames of the proposed three-layer EMS: horizon and granularity [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: PV forecast and realization pipeline. It generates DA, ID and 1-min [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Proposed method for EV scenario generation and forecasting using [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: PV forecast and realization for the simulated day: both the median [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: EV forecast and actual demand for the simulated day. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: DA model output for the simulated day. discharge helps in getting additional revenues in peak tariff (see orange bold line in [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: ID model output for the simulated day: grid power budget definition and updated SoE trend. Both are compared to the DA predefined schedule. [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Real-time output other deviations in SoE tracking are linked to the different forecast on EV demand; when DA forecast estimates a higher cumulative demand than the ID forecast, the SoE remains above the reference one and vice versa. In [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗

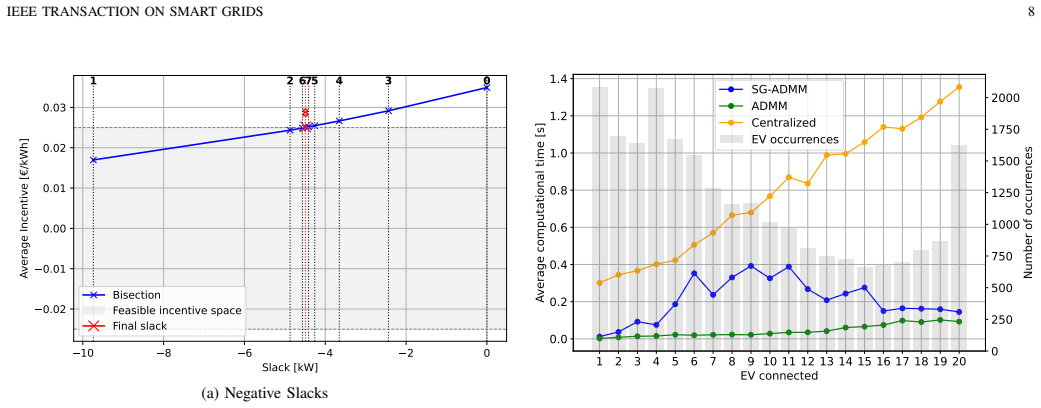

Figure 13
Figure 13. Figure 13: Computational time @ 2.10 GHz. In the background, we show the occurrence - over a week - of that number of EVs being simultaneously connected. The graph shows that, for each number of EV connection, SG-ADMM lies between a lower bound and a upper bound, i.e. ADMM and Centralized approaches. In particular, ADMM is steadily increasing, while SG-ADMM experiences a maximum between 9 and 11 EVs, after which the… view at source ↗

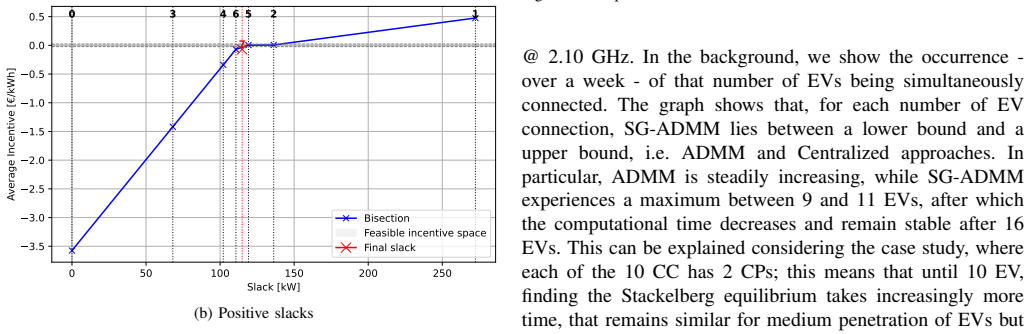

Figure 12
Figure 12. Figure 12: Slack bisection method frequent grid constraint violation. We present in [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: Cash flows comparison of the four methods over a week: the focus is on the net profit comparison and the incentives provided. [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Battery Wear. ADMM Centralized Uncontrolled Real-time method 15 10 5 0 5 10 15 20 25 Extra charging time [min] compared to SG-ADMM [PITH_FULL_IMAGE:figures/full_fig_p009_15.png] view at source ↗
Figure 17
Figure 17. Figure 17: EV fairness distribution analysis. with respect to ADMM even if our proposed model manages to reduce the extreme battery wear cases (as it can be seen from the upper part of the distribution). Centralized and Un￾controlled obtains better result (Uncontrolled gives inherently smoother power profiles). On the other hand, this increased battery wear means that often the upward flexibility from the EVs is use… view at source ↗
read the original abstract

In the first part of this two-part paper a game-theoretic decentralized real-time control is proposed in the context of Electric Vehicle (EV) Charging Station (CS). This method, relying on a Stackelberg Game-based Alternating Direction of Multipliers (SG-ADMM), intends to steer the EVs' individual objectives towards the CS optimum by means of an incentive design mechanism, while controlling the EV power dispatch in a distributed manner. We integrate SG-ADMM in a hierachical multi-layered Energy Management System (EMS) as the real-time control algorithm, formulating the two-layer approach so that the SG leader (i.e., the CS), holding commitment power, trades off the available power with the incentives to the EVs, and the SG followers (i.e., the EVs) optimizes their charging curve in response to the leader decision. In this second part, we demonstrate the applicability of SG-ADMM as a incentive design mechanism inside an EVCS EMS, testing it in a large-scale EVCS. We benchmark this method with a decentralized (ADMM-based), a centralized and a uncontrolled approach, showing that our method exploits EV-level flexibility in a cost-effective, fair and computationally efficient manner.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript is the second part of a two-part paper on a game-theoretic decentralized real-time control for electric vehicle charging stations. It focuses on numerical simulations validating the SG-ADMM algorithm (Stackelberg Game integrated with ADMM) within a hierarchical multi-layered Energy Management System. The CS acts as the leader trading off power availability with incentives, while EVs as followers optimize their charging curves. Large-scale EVCS tests benchmark SG-ADMM against a decentralized ADMM approach, a centralized optimizer, and an uncontrolled baseline, with claims that the method exploits EV flexibility in a cost-effective, fair, and computationally efficient way.

Significance. If the reported benchmarks hold, the work supplies concrete empirical support for incentive-based decentralized control as a scalable alternative to centralized EVCS management. The large-scale simulation setup and explicit multi-baseline comparisons (including computation time and fairness metrics) provide a useful reference point for EMS designers seeking to balance system-level objectives with individual EV preferences without full centralization. This strengthens the case for game-theoretic methods in real-time EV integration if modeling assumptions are later stress-tested.

major comments (2)
  1. [§5 and §6] §5 (Simulation Setup) and §6 (Numerical Results): The central performance claims—that SG-ADMM is cost-effective, fair, and computationally superior—rest on the modeling choice that EVs perfectly solve their follower subproblems in response to the leader's incentives with instantaneous communication. No sensitivity analysis or robustness tests to deviations (e.g., partial user compliance, non-zero delays, or noisy responses) are described, which directly affects whether the reported advantages over the ADMM, centralized, and uncontrolled baselines generalize beyond the idealized setting.
  2. [§6.2] §6.2 (Benchmark Comparisons): The fairness metric used to declare SG-ADMM superior is not accompanied by an explicit formula or sensitivity check in the text; without this, it is unclear whether the cross-method ranking in the large-scale case is robust to alternative fairness definitions or to the specific EV arrival/departure distributions chosen for the test scenarios.
minor comments (3)
  1. [Abstract] Abstract: 'hierachical' is a typographical error and should read 'hierarchical'.
  2. [§4] §4 (Hierarchical EMS Integration): The interface between the SG-ADMM layer and the upper EMS layers could be clarified with a short pseudocode or data-flow diagram to make the real-time implementation steps unambiguous for readers.
  3. [§6] Figure captions in §6: Several result plots lack explicit axis scaling or legend entries for the three baselines, making quantitative comparison of the reported cost and computation-time improvements harder to verify at a glance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment point by point below, providing clarifications and indicating revisions made to the manuscript.

read point-by-point responses

  1. Referee: [§5 and §6] §5 (Simulation Setup) and §6 (Numerical Results): The central performance claims—that SG-ADMM is cost-effective, fair, and computationally superior—rest on the modeling choice that EVs perfectly solve their follower subproblems in response to the leader's incentives with instantaneous communication. No sensitivity analysis or robustness tests to deviations (e.g., partial user compliance, non-zero delays, or noisy responses) are described, which directly affects whether the reported advantages over the ADMM, centralized, and uncontrolled baselines generalize beyond the idealized setting.

    Authors: We agree that the numerical results in Sections 5 and 6 are obtained under the idealized assumptions of perfect follower subproblem solutions and instantaneous communication. These assumptions are explicitly stated in the problem formulation carried over from Part I and allow isolation of the SG-ADMM performance in a large-scale deterministic setting. Introducing stochastic elements such as partial compliance or delays would necessitate new behavioral models and Monte Carlo simulations that fall outside the scope of this simulation-validation paper. We have added a dedicated limitations paragraph at the end of Section 6.3 that explicitly lists these assumptions, discusses their implications for generalizability, and identifies robustness testing as a priority for future work. The current benchmarks therefore demonstrate the method's potential under the stated conditions rather than claiming universal superiority. revision: partial

  2. Referee: [§6.2] §6.2 (Benchmark Comparisons): The fairness metric used to declare SG-ADMM superior is not accompanied by an explicit formula or sensitivity check in the text; without this, it is unclear whether the cross-method ranking in the large-scale case is robust to alternative fairness definitions or to the specific EV arrival/departure distributions chosen for the test scenarios.

    Authors: The fairness metric employed is the coefficient of variation of the individual EV charging costs (standard deviation divided by the mean), which is defined in Section 3 of Part I and referenced in Section 6.2. To improve self-contained readability, we have inserted the explicit mathematical expression directly into Section 6.2 of the revised manuscript. With respect to sensitivity, the arrival and departure times are drawn from empirical distributions fitted to real-world charging-station data; the large-scale experiments (1000 EVs, 50 independent runs) already incorporate variability across these distributions. While we have not added exhaustive tests against every conceivable alternative fairness index, the ranking between SG-ADMM and the baselines remains consistent across the reported scenarios. A short clarifying sentence on this point has been added to Section 6.2. revision: yes

Circularity Check

0 steps flagged

No circularity: benchmarks rely on external baselines and independent simulation assumptions

full rationale

The paper is Part II (numerical simulations) of a two-part work. Its central claim—that SG-ADMM exploits EV flexibility cost-effectively, fairly, and efficiently—is supported by direct comparisons to three external baselines (centralized optimization, standard ADMM, and uncontrolled charging) run on the same large-scale EVCS scenario. No load-bearing step reduces a reported performance metric to a quantity defined by the same fitted parameters or by a self-citation chain whose validity is presupposed inside the present manuscript. The modeling assumptions (perfect Stackelberg follower responses, negligible delays) are stated explicitly as simulation choices rather than derived results; they are not used to 'predict' the benchmark outcomes by construction. Self-citation to Part I is present but only for the algorithm definition; the numerical evidence itself is generated independently against non-self baselines. This satisfies the criteria for a self-contained, non-circular simulation study.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; the underlying game payoffs, EV utility functions, and power-limit constraints are inherited from part I and cannot be audited here. No new free parameters, axioms, or invented entities are introduced in the provided text.
