arxiv: 2604.08313 · v2 · submitted 2026-04-09 · 💻 cs.CV

Weakly-Supervised Lung Nodule Segmentation via Training-Free Guidance of 3D Rectified Flow

Richard Petersen , Fredrik Kahl , Jennifer Alv\'en This is my paper

Pith reviewed 2026-05-10 18:17 UTC · model grok-4.3

classification 💻 cs.CV
keywords weakly-supervised segmentationlung nodule3D rectified flowtraining-free guidancemedical image segmentationimage-level labelsLUNA16
0
0 comments X

The pith

A frozen 3D rectified flow model produces accurate lung nodule segmentations when guided by a predictor fine-tuned only on image-level labels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Creating detailed 3D segmentation masks for medical images requires expensive expert voxel labeling. The paper demonstrates that a pretrained rectified flow model can be kept frozen and steered via training-free guidance from a separate predictor that needs only image-level labels for its fine-tuning. This plug-and-play combination yields higher-quality nodule segmentations than standard weakly-supervised baselines. The method works for multiple predictor architectures and reliably locates nodules of different sizes and shapes. Results on the LUNA16 dataset support the claim that generative models can serve as reusable backbones for weakly-supervised 3D medical segmentation.

Core claim

By pairing a pretrained 3D rectified flow model with a predictor fine-tuned solely on image-level labels and applying training-free guidance, the method achieves improved weakly-supervised segmentation of lung nodules without any retraining of the generative model. The approach produces better segmentations than baseline methods on LUNA16 and detects nodules consistently across varying sizes and shapes when tested with two different predictors.

What carries the argument

Training-free guidance of a frozen pretrained 3D rectified flow model directed by signals from a predictor fine-tuned only on image-level labels.

If this is right

  • The plug-and-play combination improves segmentation quality over attribution-based baselines for lung nodules.
  • The same guidance strategy works with at least two distinct predictor models without retraining the flow component.
  • Nodules of varying sizes and shapes are detected more reliably than with prior weakly-supervised techniques.
  • Generative foundation models can be reused across different weakly-supervised 3D medical segmentation tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Annotation costs in clinical imaging pipelines could drop if only image-level labels are needed to adapt existing generative models.
  • The training-free guidance pattern might extend to other 3D structures such as organs or lesions in CT or MRI volumes.
  • Pretrained generative models could become standard reusable components for multiple downstream medical vision tasks that currently require dense labels.

Load-bearing premise

A predictor fine-tuned solely on image-level labels supplies sufficiently precise guidance signals to steer the frozen rectified flow model toward accurate voxel-level boundaries for small and variable lung nodules.

What would settle it

Evaluating the full pipeline on the LUNA16 test set and observing that segmentation metrics such as Dice scores fall below those of standard weakly-supervised baselines, especially on small nodules.

Figures

Figures reproduced from arXiv: 2604.08313 by Fredrik Kahl, Jennifer Alv\'en, Richard Petersen.

Figure 1

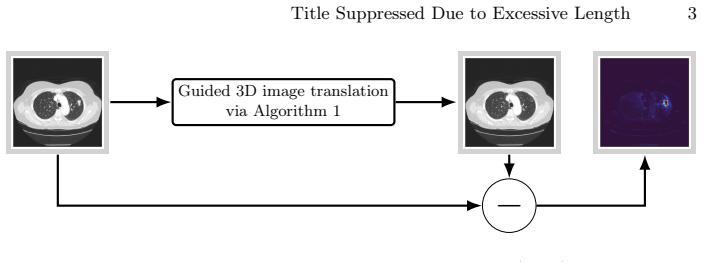

Figure 1. Figure 1: Overview of the weakly-supervised segmentation (WSS) framework. A predictor-guided rectified flow model generates a counterfactual reconstruction, and the residual image with respect to the input yields the segmentation mask. 2 Method Our method leverages pretrained foundation models in a plug-and-play man￾ner to extract weakly-supervised segmentations of lung nodules. Specifically, we combine MAISI-v2, a … view at source ↗
Figure 2

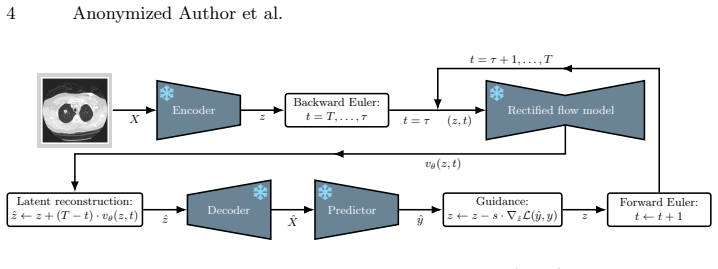

Figure 2. Figure 2: Overview of the proposed training-free guidance (TFG) framework for predictor-guided rectified flow in latent space, performed at inference. The symbol indicates that the models are frozen. Training-free guidance. In order to avoid costly retraining of the generative model, we leverage the TFG framework [2,26,27], which enables guiding an ar￾bitrary generative model using a predictor model, rather than tra… view at source ↗
Figure 3

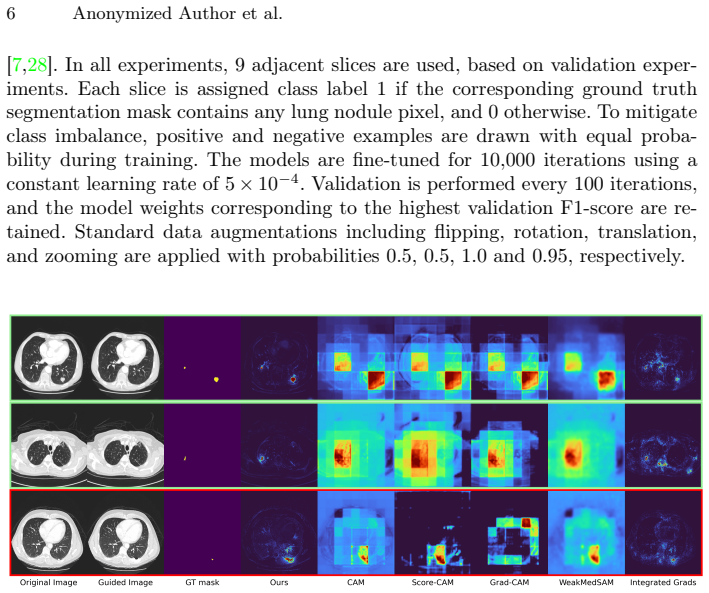

Figure 3. Figure 3: Visual comparisons of WSS on LUNA16 for the MedSAM TinyVit predictor. Success and failure cases in green and red frame, respectively. The proposed method suppresses the lung nodules in the guided reconstruction (Columns 1-2), resulting in WSS that closely match the shape and size of the ground-truth masks (Columns 3- 4). The CAM-based methods generally over-segments nodules, producing masks that extend bey… view at source ↗
Figure 4

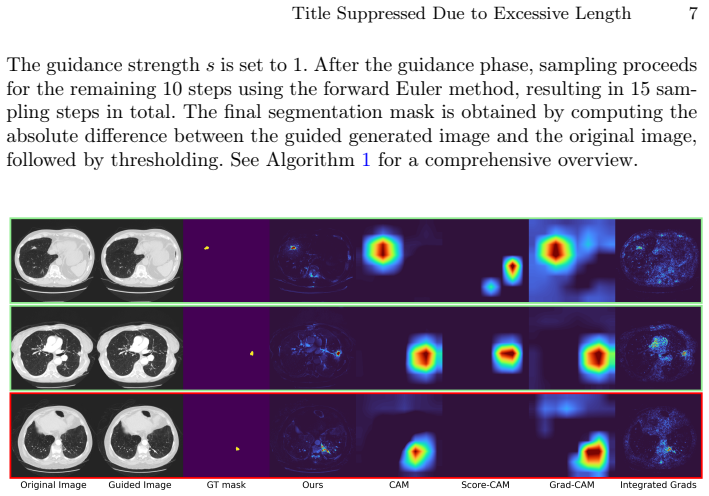

Figure 4. Figure 4: Visual comparisons of the WSS on LUNA16 for the RadImgNet ResNet50 pre￾dictor. Similar trends can be observed with a CNN-based predictor, where the proposed method produces masks that more closely follow the ground-truth nodule boundaries compared to the baseline methods. Experimental results. We evaluate the proposed WSS method in a plug-and-play setting where the predictor is pretrained and kept fixed. F… view at source ↗
read the original abstract

Dense annotations, such as segmentation masks, are expensive and time-consuming to obtain, especially for 3D medical images where expert voxel-wise labeling is required. Weakly supervised approaches aim to address this limitation, but often rely on attribution-based methods that struggle to accurately capture small structures such as lung nodules. In this paper, we propose a weakly-supervised segmentation method for lung nodules by combining pretrained state-of-the-art rectified flow and predictor models in a plug-and-play manner. Our approach uses training-free guidance of a 3D rectified flow model, requiring only fine-tuning of the predictor using image-level labels and no retraining of the generative model. The proposed method produces improved-quality segmentations for two separate predictors, consistently detecting lung nodules of varying size and shapes. Experiments on LUNA16 demonstrate improvements over baseline methods, highlighting the potential of generative foundation models as tools for weakly supervised 3D medical image segmentation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a weakly-supervised 3D lung nodule segmentation method that combines a pretrained rectified flow generative model with a predictor fine-tuned solely on image-level labels. It uses training-free guidance of the frozen 3D flow model in a plug-and-play manner, without retraining the generative component, and claims that this produces improved segmentations on the LUNA16 dataset for two separate predictors while consistently detecting nodules of varying sizes and shapes.

Significance. If the central claim holds, the work has moderate significance by showing how pretrained generative foundation models can support weakly-supervised medical image segmentation with reduced annotation and retraining costs. The training-free guidance approach is a potential strength for practical deployment. However, the lack of quantitative metrics, ablations, or detailed baseline comparisons in the experiments makes the practical impact difficult to assess at present.

major comments (2)
  1. [§4] §4 (Experiments): The results on LUNA16 are described only qualitatively as 'improvements over baseline methods' and 'improved-quality segmentations' without reporting standard metrics (e.g., Dice score, IoU, sensitivity), error bars, statistical significance, or specific baseline implementations. This is load-bearing for the central claim of demonstrated improvements and consistent detection across nodule sizes/shapes.
  2. [§3] §3 (Method): The training-free guidance mechanism is not specified in sufficient detail to show how an image-level predictor (fine-tuned only on presence/absence labels) produces reliable voxel-level guidance signals for the frozen 3D rectified flow model, especially for small, variable lung nodules where attribution methods are noted to struggle. This transfer is the core assumption and requires explicit formulation or pseudocode.
minor comments (2)
  1. The abstract and introduction would benefit from a brief qualitative figure or example showing the guidance process and resulting segmentations to illustrate the plug-and-play claim.
  2. [§3] Notation for the rectified flow model and predictor components should be introduced consistently with equation numbers or definitions in §3 to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comments point by point below and will revise the paper to incorporate additional details and quantitative results where needed.

read point-by-point responses

  1. Referee: [§4] §4 (Experiments): The results on LUNA16 are described only qualitatively as 'improvements over baseline methods' and 'improved-quality segmentations' without reporting standard metrics (e.g., Dice score, IoU, sensitivity), error bars, statistical significance, or specific baseline implementations. This is load-bearing for the central claim of demonstrated improvements and consistent detection across nodule sizes/shapes.

    Authors: We agree that quantitative evaluation is necessary to fully support the claims of improvement. The current version focuses on qualitative visualization to highlight consistency across nodule sizes and shapes, but we will revise Section 4 to report Dice scores, IoU, sensitivity, with error bars, statistical significance tests, and explicit descriptions of the baseline methods and their implementations on LUNA16. These metrics will be added from our existing experiments to demonstrate the gains. revision: yes

  2. Referee: [§3] §3 (Method): The training-free guidance mechanism is not specified in sufficient detail to show how an image-level predictor (fine-tuned only on presence/absence labels) produces reliable voxel-level guidance signals for the frozen 3D rectified flow model, especially for small, variable lung nodules where attribution methods are noted to struggle. This transfer is the core assumption and requires explicit formulation or pseudocode.

    Authors: We will expand Section 3 with an explicit formulation of the training-free guidance. The image-level predictor outputs a scalar probability that is converted into a guidance gradient applied directly in the voxel space of the frozen 3D rectified flow at each sampling step; this steers the flow trajectory toward label-consistent regions without retraining the generative model. The 3D nature of the flow provides the voxel-level resolution, bypassing direct attribution limitations for small nodules by leveraging the pretrained generative prior. We will include the mathematical equations and pseudocode for the full guidance procedure in the revision. revision: yes

Circularity Check

0 steps flagged

No circularity: method uses external pretrained models and standard image-level fine-tuning

full rationale

The paper proposes a plug-and-play combination of a frozen pretrained 3D rectified flow model with a predictor that is fine-tuned only on image-level labels. No equation or derivation step reduces the claimed voxel-level segmentation output to a quantity defined by the target segmentation itself, nor does any central claim rest on a self-citation chain that is unverified or tautological. The reported improvements on LUNA16 are presented as empirical outcomes of this external-model guidance procedure rather than as a mathematical identity or a fitted prediction by construction. The approach is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that pretrained rectified flow models are sufficiently general to be guided by a lightly fine-tuned predictor for accurate small-structure segmentation; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Pretrained state-of-the-art rectified flow models can be effectively steered for segmentation tasks using only a fine-tuned predictor without retraining the generative model.
    Invoked when the method is described as plug-and-play with no retraining of the flow model.

pith-pipeline@v0.9.0 · 5461 in / 1401 out tokens · 69016 ms · 2026-05-10T18:17:49.141125+00:00 · methodology
