The pith

Light-controlled van der Waals tunnel junctions enable electrical access to nonequilibrium dynamics and collective excitations in quantum materials.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This review examines the combination of optical excitation with electron tunneling in atomically thin van der Waals materials. It outlines the basic mechanisms of photo-assisted transport and the construction of junctions with engineered barriers and tunable alignments. The work shows how these structures deliver electrical readouts of excited carrier populations and collective behaviors that are otherwise difficult to probe. It connects these mechanisms to concrete device uses in light detection, tunneling-based emission, sensing, and data storage. The authors also map out directions such as quantum-geometric measurements and scalable device platforms.

Core claim

Van der Waals tunnel junctions under optical excitation open transport pathways that are inaccessible without light, allowing electrical access to nonequilibrium dynamics and collective excitations in quantum materials through photo-assisted transport and supporting functionalities in photodetection, tunneling-driven light emission, sensing, and memory.

What carries the argument

Photo-assisted transport in van der Waals heterostructures with clean interfaces, engineered barriers, and tunable band alignment.

If this is right

  • The junctions support photodetection by converting optical signals into modulated tunneling currents.
  • Tunneling-driven light emission becomes possible through controlled carrier injection under illumination.
  • Sensing and memory functions arise from light-induced changes in transport pathways.
  • The platform enables quantum-geometric probes and twist-resolved spectroscopy of material excitations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same structures could be used to electrically read out moire ferroelectricity in twisted layers.
  • Integration with existing fabrication flows might produce hybrid circuits that combine sensing and computation.
  • Varying the twist angle between layers offers a route to test how stacking order modulates the photo-assisted effects.

Load-bearing premise

The review assumes that the mechanisms and results from the cited prior literature on photo-assisted transport in vdW heterostructures are accurate and representative of the field.

What would settle it

Systematic measurements on light-illuminated van der Waals tunnel junctions that show no photo-assisted current or associated functionalities beyond those expected from equilibrium tunneling would falsify the central claims.

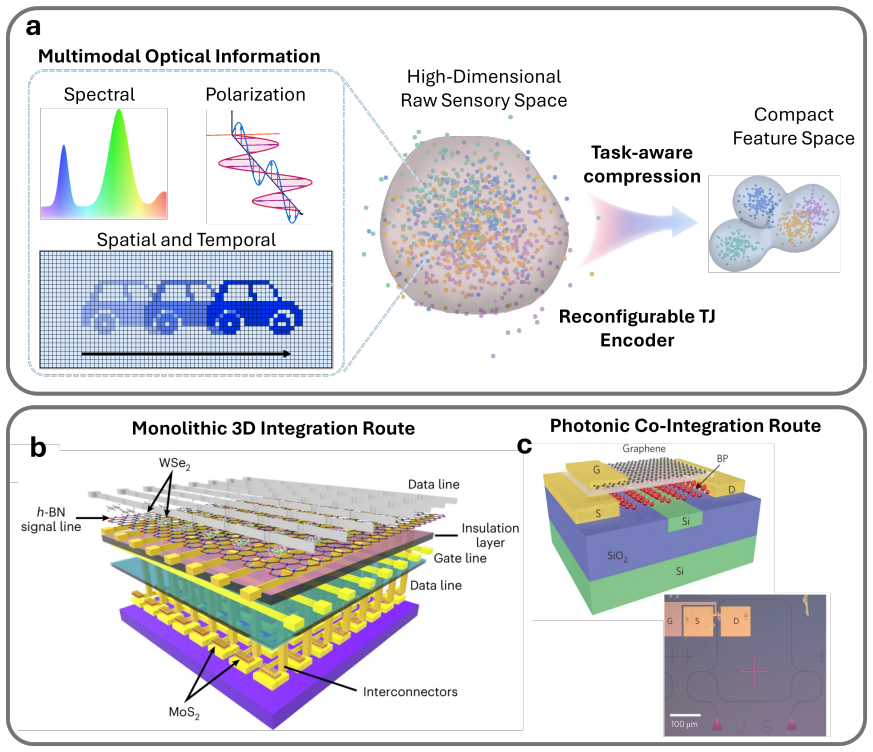

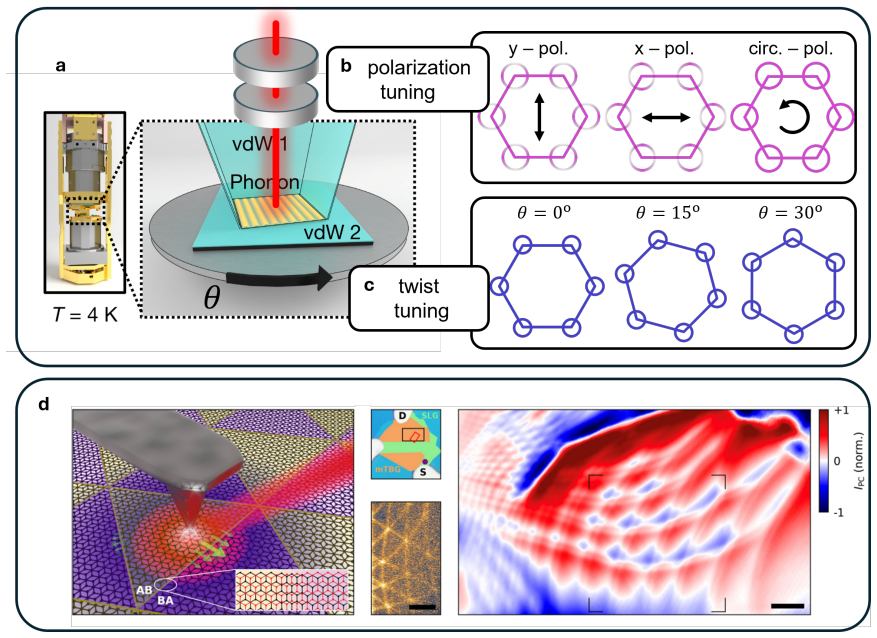

Figures

Figures reproduced from arXiv: 2604.08399 by Jian Tang, Mohamed Shehabeldin, Pablo Jarillo-Herrero, Qiong Ma, Ran Li, Xuguo Zhou, Yuxuan Cosmi Lin.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p035_1.png] view at source ↗
Figure 2

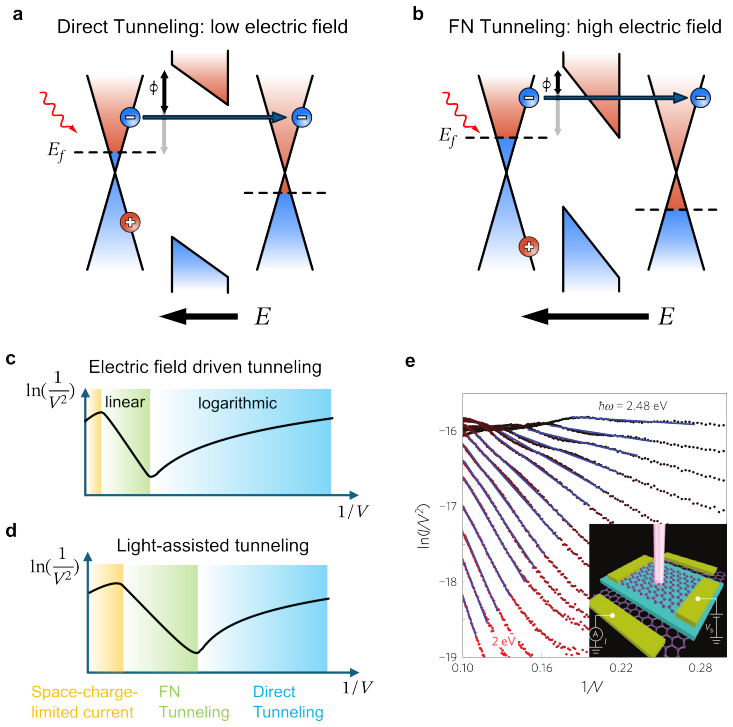

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p036_2.png] view at source ↗
Figure 3

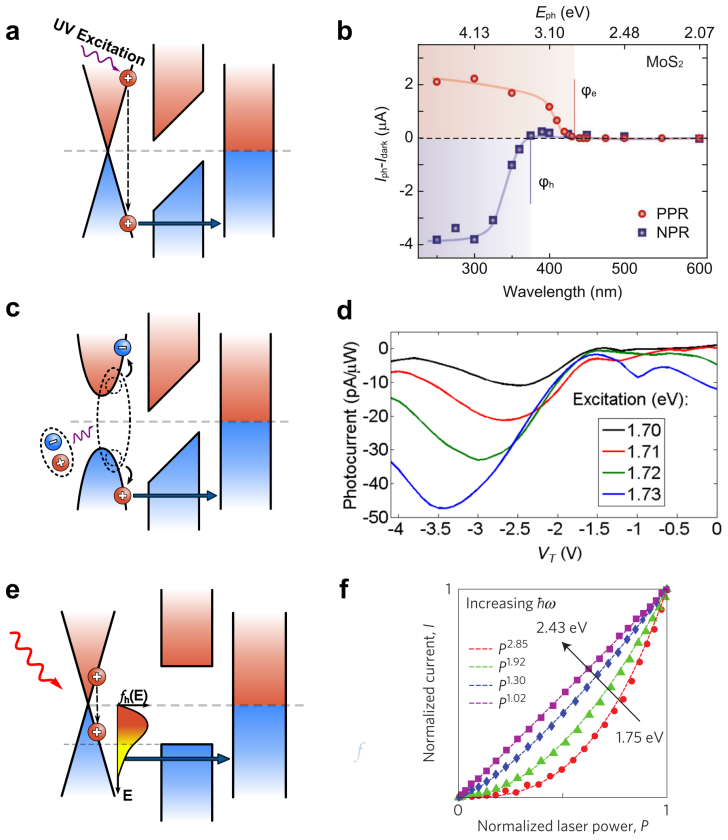

Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p037_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p038_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p039_5.png] view at source ↗
Figure 6

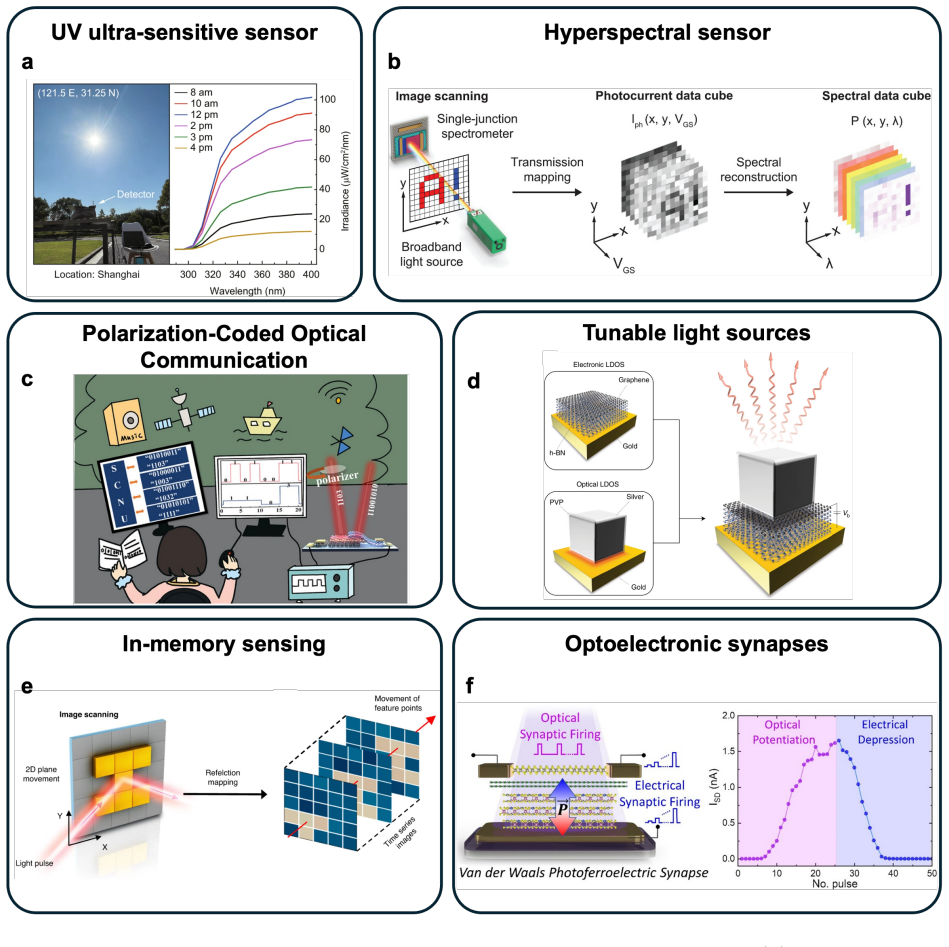

Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p040_6.png] view at source ↗
Figure 7

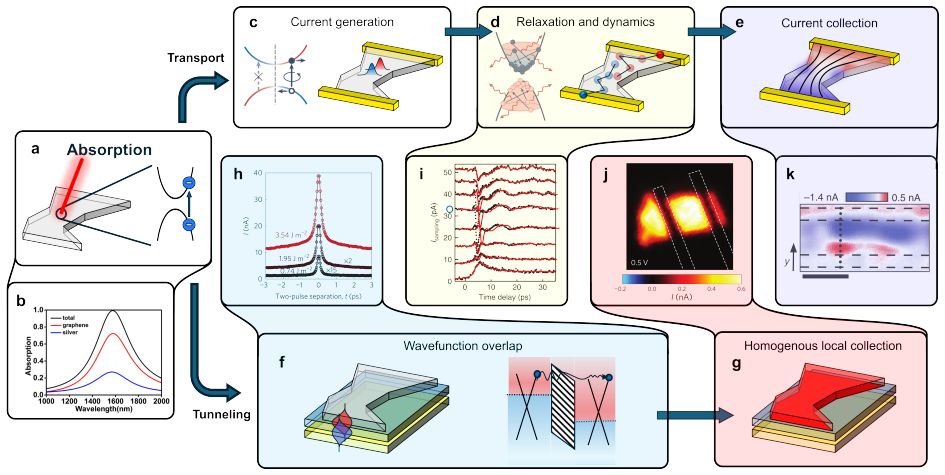

Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p041_7.png] view at source ↗

Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p042_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9 [PITH_FULL_IMAGE:figures/full_fig_p043_9.png] view at source ↗
read the original abstract

The phenomenon of electron tunneling has long been central to quantum transport and continues to provide a powerful framework for understanding and controlling electronic processes in solids. When combined with optical excitation, tunneling becomes a particularly rich platform for experiments, because light can drive nonequilibrium carrier populations and open transport pathways that are inaccessible without optical excitation. The emergence of van der Waals (vdW) materials has greatly expanded this opportunity by enabling atomically thin heterostructures with clean interfaces, engineered barriers, and highly tunable band alignment. In this review, we discuss the fundamental mechanisms of photo-assisted transport and the realization of vdW tunnel junctions, and show how they provide electrical access to nonequilibrium dynamics and collective excitations in quantum materials. We further examine emerging functionalities including photodetection, tunneling-driven light emission, sensing, and memory. Finally, we present a forward-looking perspective on new opportunities such as quantum-geometric probes, twist-resolved spectroscopy, moire ferroelectricity, and scalable architectures for computing and sensing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript is a review article that synthesizes the mechanisms of photo-assisted electron tunneling in van der Waals heterostructures, the design of tunnel junction architectures, and their applications in functionalities such as photodetection, light emission, sensing, and memory. It emphasizes the role of vdW materials in providing tunable band alignments and clean interfaces for accessing nonequilibrium carrier dynamics, and outlines future directions including quantum-geometric effects and moiré systems.

Significance. This review is significant for the field of condensed matter and mesoscopic physics as it provides a comprehensive overview of an emerging platform for light-matter interaction in 2D materials. By linking fundamental transport mechanisms to practical functionalities, it can serve as a reference for experimentalists and theorists working on optoelectronic devices and quantum materials. The discussion of opportunities in twistronics and ferroelectricity highlights its potential to inspire new research directions.

minor comments (2)
  1. [Abstract] Abstract: The phrase 'highly tunable band alignment' is used without citing specific examples of tuning methods (e.g., electrostatic gating, twist angle, or material choice) or typical energy scales; adding one sentence with references would improve accessibility.
  2. The review would benefit from a summary table in the functionalities section listing key device architectures, measured responsivities or efficiencies, and representative references to allow quick comparison across photodetection, emission, sensing, and memory applications.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our review on light-controlled van der Waals tunnel junctions. We appreciate the recognition of the manuscript's significance for the condensed-matter and mesoscopic-physics communities and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity: review synthesizes external literature

full rationale

This is a review paper with no original derivation chain, equations, or predictions. All mechanisms, functionalities, and opportunities are presented as summaries of cited prior experimental and theoretical results on vdW heterostructures, band alignment, and photo-assisted tunneling. No step reduces by construction to a fit, self-citation, or ansatz internal to this manuscript; the central claim follows directly from accurate citation of independent work. The paper is therefore self-contained against external benchmarks with no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a review paper; no new free parameters, axioms, or invented entities are introduced by the authors beyond those already present in the cited literature.
