arxiv: 2604.08531 · v2 · submitted 2026-04-09 · 📡 eess.SP · cs.IT· math.IT

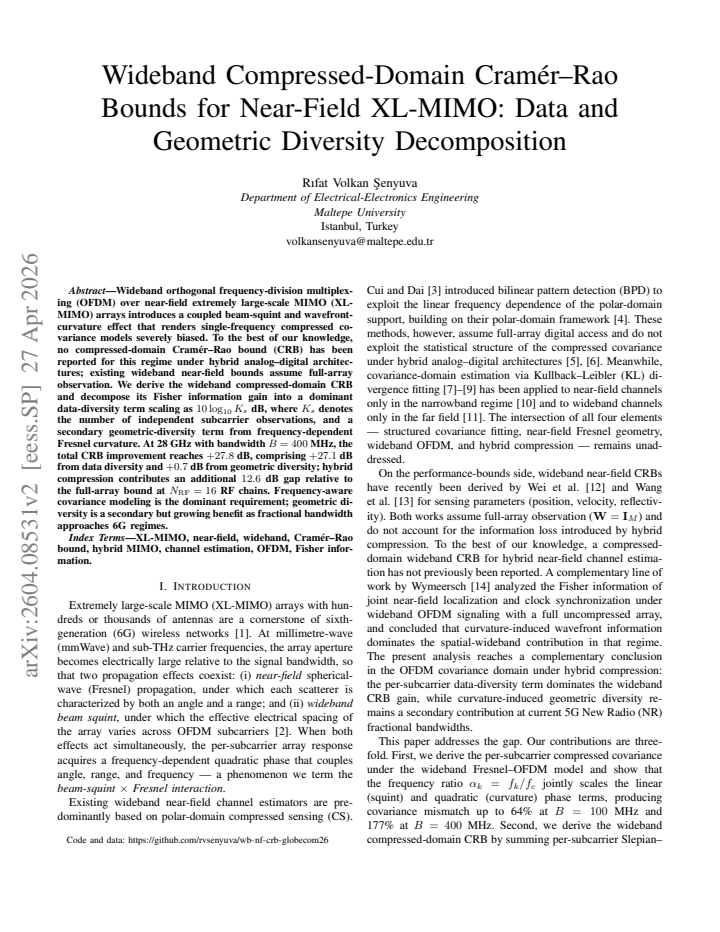

Wideband Compressed-Domain Cramer-Rao Bounds for Near-Field XL-MIMO: Data and Geometric Diversity Decomposition

R{\i}fat Volkan \c{S}enyuva This is my paper

Pith reviewed 2026-05-10 17:15 UTC · model grok-4.3

classification 📡 eess.SP cs.ITmath.IT
keywords wideband OFDMcompressed-domain CRBnear-field XL-MIMOdata diversitygeometric diversityFisher informationhybrid architecturesbeam squint
0
0 comments X

The pith

Wideband OFDM in near-field XL-MIMO yields a compressed CRB improved 27.8 dB at 28 GHz, driven mainly by data diversity from subcarriers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper derives the wideband compressed-domain Cramer-Rao bound for parameter estimation in near-field extremely large MIMO arrays under hybrid analog-digital architectures with OFDM signaling. It decomposes the resulting Fisher information gain into a dominant term from independent observations across multiple subcarriers and a smaller term from frequency-dependent changes in wavefront curvature. A sympathetic reader would care because single-frequency models become biased once beam-squint and Fresnel effects couple across bandwidth, and the bound quantifies how much accuracy is recovered by using the full wideband structure. The numbers show that most of the gain is available simply by treating each subcarrier as a separate observation rather than from the curvature variation itself.

Core claim

The wideband compressed-domain CRB decomposes its Fisher information gain into a dominant data-diversity term scaling as 10 log10(Ks) dB with the number of independent subcarrier observations Ks and a secondary geometric-diversity term from frequency-dependent Fresnel curvature. At 28 GHz with B = 400 MHz the total improvement reaches +27.8 dB over narrowband models, of which +27.1 dB comes from data diversity and +0.7 dB from geometric diversity; hybrid compression at N_RF = 16 adds a further 12.6 dB gap relative to the full-array bound.

What carries the argument

Decomposition of the Fisher information matrix into data-diversity and geometric-diversity components inside the frequency-dependent compressed covariance model.

If this is right

  • Multiple independent subcarrier observations supply the primary CRB improvement and scale logarithmically with their number.
  • Frequency-dependent wavefront curvature supplies an additional but smaller gain that increases as fractional bandwidth grows.
  • Hybrid architectures with few RF chains still capture the wideband gains but retain a fixed gap to full-array performance.
  • Frequency-aware covariance modeling is required; single-frequency approximations produce severely biased bounds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • As fractional bandwidths approach 6G targets the geometric-diversity contribution may become more noticeable and could be exploited by adaptive subcarrier selection.
  • The same decomposition could inform compressed sensing algorithms that allocate RF chains differently across frequencies to maximize localization accuracy.
  • Extending the model to include mutual coupling or nonlinear hardware effects would reveal whether those factors interact with the data-versus-geometric split.

Load-bearing premise

The wideband OFDM signal model with coupled beam-squint and wavefront-curvature effects is accurately represented by frequency-dependent covariance matrices under hybrid analog-digital architectures.

What would settle it

Direct comparison of the derived CRB values against Monte-Carlo estimation error variances for near-field parameters such as angle and range, obtained from simulated or measured XL-MIMO arrays at 28 GHz with 400 MHz bandwidth, would confirm or refute the claimed 27.8 dB total improvement.

Figures

Figures reproduced from arXiv: 2604.08531 by R{\i}fat Volkan \c{S}enyuva.

Figure 1

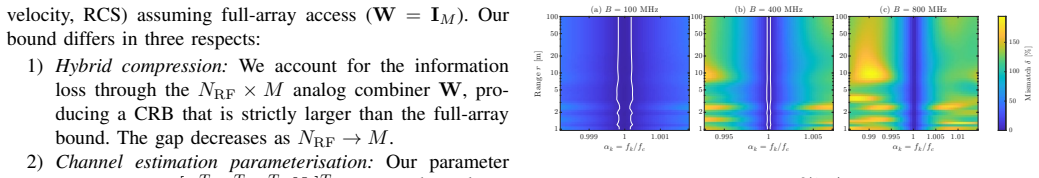

Figure 1. Figure 1: Relative covariance mismatch δ(k, r) vs. frequency ratio αk and range r for B ∈ {100, 400, 800} MHz. White contour: δ = 5%. Mismatch reaches 64%, 177%, and 194% at B = 100, 400, 800 MHz, motivating frequency-aware processing. 0 20 40 60 80 100 Range r [m] 10 -5 10 -4 10 -3 10 -2 p C R B3 [deg] (a) NB compressed WB compressed WB full-array EBRD 0 20 40 60 80 100 Range r [m] 10 -6 10 -4 10 -2 10 0 10 2 p C R… view at source ↗
Figure 2

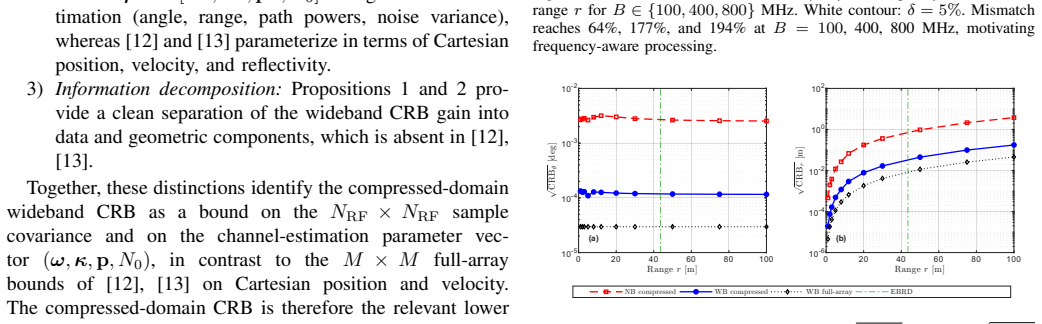

Figure 2. Figure 2: CRB vs. range at B = 400 MHz: (a) √ CRBθ [deg], (b) √ CRBr [m]. Dashed: narrowband compressed. Dotted: full-array wideband. Vertical line: EBRD. Geometric diversity peaks at close range (r ≤ 5 m); the wideband bound stays ≈27 dB below the narrowband bound. the data-diversity contribution becomes constant; the residual CRB decrease visible in [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

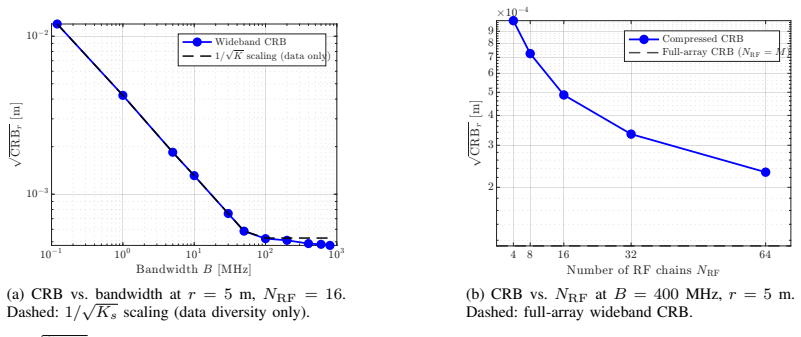

Figure 3. Figure 3: Range CRB √ CRBr at r = 5 m, SNR = 10 dB: (a) bandwidth sweep at NRF = 16; (b) RF-chain sweep at B = 400 MHz. Total CRB gain +27.8 dB at B = 400 MHz; compression gap narrows from 12.6 to 9.4 dB at NRF = 32. for OFDM pilot-based channel estimation: each subcarrier carries an independent pilot symbol at fixed transmit power, and the Ks-fold data-diversity gain directly reflects the Ks additional pilot symbol… view at source ↗
read the original abstract

Wideband orthogonal frequency-division multiplexing (OFDM) over near-field extremely large-scale MIMO (XL-MIMO) arrays introduces a coupled beam-squint and wavefront-curvature effect that renders single-frequency compressed covariance models severely biased. To the best of our knowledge, no compressed-domain Cramer-Rao bound (CRB) has been reported for this regime under hybrid analog-digital architectures; existing wideband near-field bounds assume full-array observation. We derive the wideband compressed-domain CRB and decompose its Fisher information gain into a dominant data-diversity term scaling as 10 log10(Ks) dB, where Ks denotes the number of independent subcarrier observations, and a secondary geometric-diversity term from frequency-dependent Fresnel curvature. At 28 GHz with bandwidth B = 400 MHz, the total CRB improvement reaches +27.8 dB, comprising +27.1 dB from data diversity and +0.7 dB from geometric diversity; hybrid compression contributes an additional 12.6 dB gap relative to the full-array bound at N_RF = 16 RF chains. Frequency-aware covariance modeling is the dominant requirement; geometric diversity is a secondary but growing benefit as fractional bandwidth approaches 6G regimes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper derives the wideband compressed-domain Cramer-Rao bound (CRB) for near-field XL-MIMO OFDM systems under hybrid analog-digital architectures. It decomposes the Fisher information gain into a dominant data-diversity term scaling as 10 log10(Ks) dB (Ks = number of independent subcarriers) plus a secondary geometric-diversity term from frequency-dependent Fresnel curvature. At 28 GHz with B = 400 MHz, it reports a total CRB improvement of +27.8 dB (+27.1 dB data diversity, +0.7 dB geometric diversity) and a 12.6 dB gap relative to the full-array bound at N_RF = 16.

Significance. If the derivation holds, the work fills a gap by providing the first compressed-domain CRB for the coupled beam-squint and near-field curvature regime, which is directly relevant to 6G XL-MIMO design. The explicit decomposition and numerical quantification of data versus geometric contributions, together with the hybrid-compression gap, offer concrete guidance on when frequency-aware modeling is essential and when geometric diversity becomes material as fractional bandwidth grows.

major comments (1)
  1. The central decomposition of the FIM into additive data-diversity and geometric-diversity terms (Abstract and the derivation leading to the reported +27.8 dB / +0.7 dB split) rests on the assumption that the compressed observations are fully described by independent per-subcarrier covariances R_k = W^H A(f_k) P A(f_k)^H W + sigma^2 I with frequency-flat analog combiner W. In the near-field regime the array response A(f) is range- and angle-dependent; the frequency-flat W therefore induces frequency-dependent distortion of the effective steering vectors that can produce non-zero cross-subcarrier correlations in the likelihood. If such terms exist, the FIM is no longer block-diagonal across subcarriers and the reported additive split (and the small +0.7 dB geometric term) may be an artifact of the modeling choice rather than a physical gain. Please provide the explicit likelihood or FIM in
minor comments (2)
  1. Clarify the precise definition of Ks (number of independent subcarrier observations) versus total subcarriers and how the independence assumption is validated numerically.
  2. The hybrid-compression gap of 12.6 dB at N_RF = 16 is an important result; state explicitly whether this gap is computed under the same wideband model or under a narrowband approximation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and for identifying a key modeling assumption that requires clarification. We address the concern regarding the block-diagonal structure of the FIM and have revised the manuscript to include the explicit likelihood and FIM derivations.

read point-by-point responses

  1. Referee: The central decomposition of the FIM into additive data-diversity and geometric-diversity terms (Abstract and the derivation leading to the reported +27.8 dB / +0.7 dB split) rests on the assumption that the compressed observations are fully described by independent per-subcarrier covariances R_k = W^H A(f_k) P A(f_k)^H W + sigma^2 I with frequency-flat analog combiner W. In the near-field regime the array response A(f) is range- and angle-dependent; the frequency-flat W therefore induces frequency-dependent distortion of the effective steering vectors that can produce non-zero cross-subcarrier correlations in the likelihood. If such terms exist, the FIM is no longer block-diagonal across subcarriers and the reported additive split (and the small +0.7 dB geometric term) may be an artifact of the modeling choice rather than a physical gain. Please provide the explicit likelihood or FIM in

    Authors: We thank the referee for this observation. In the hybrid OFDM architecture, the frequency-flat analog combiner W is applied in the time domain to the received vector r(t), yielding z(t) = W^H r(t). The subsequent FFT demodulation produces per-subcarrier observations z_k that remain statistically independent across subcarriers k because (i) the OFDM subcarriers are orthogonal by design and (ii) the additive noise is spatially and temporally white. Consequently, the frequency-domain observations follow independent complex-Gaussian distributions with covariances R_k = W^H A(f_k) P A(f_k)^H W + sigma^2 I, even though A(f_k) is range- and angle-dependent. The joint likelihood therefore factors as the product over k of the individual likelihoods p(z_k | theta), implying that the Fisher information matrix is strictly additive: I(theta) = sum_k I_k(theta). The data-diversity term arises from the summation over K_s independent contributions, while the geometric-diversity term arises from the explicit f_k-dependence inside each A(f_k). No cross-subcarrier correlation terms appear in the stacked covariance. We have inserted the explicit likelihood expression and the step-by-step derivation of the additive FIM in the revised Section III, together with a short appendix proving independence of the z_k under the OFDM white-noise model. revision: yes

Circularity Check

0 steps flagged

Derivation self-contained from signal model to CRB; scaling follows standard independent-observation summation

full rationale

The paper starts from the wideband OFDM signal model with frequency-dependent array responses and compressed covariances R_k under hybrid architectures, then derives the compressed-domain FIM by direct summation over subcarriers. The reported data-diversity term (10 log10(Ks) dB) is the direct mathematical consequence of adding Ks independent per-subcarrier FIM contributions, while the geometric term isolates the residual variation due to Fresnel curvature across frequency; neither reduces to a fitted parameter, self-definition, or self-citation chain. The numerical values (+27.1 dB, +0.7 dB) are obtained by evaluating the derived expressions at the stated carrier frequency and bandwidth, without circular substitution of outputs for inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper introduces no free parameters or invented entities. It relies on standard statistical assumptions for CRB validity and domain-specific modeling of near-field wideband channels.

axioms (2)
  • standard math The likelihood function satisfies the regularity conditions required for the Cramer-Rao bound to be valid.
    Invoked implicitly as the foundation for any CRB derivation in the abstract.
  • domain assumption The wideband OFDM signal model with coupled beam-squint and wavefront-curvature effects is accurately captured by frequency-dependent covariance matrices.
    Stated in the abstract as the reason single-frequency models are severely biased.
