Mesoscopic transport in a Chern mosaic

Sayak Bhattacharjee , Julian May-Mann , Yves H. Kwan , Trithep Devakul , Aaron Sharpe
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:49 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.str-el
keywords Chern mosaicmesoscopic transportdomain wall networksquantum Hall resistanceChern numbersmoiré heterostructuressemi-classical transport
0
0 comments X

The pith

Simple domain wall networks in Chern mosaics produce zero, integer, or fractional quantum resistances in longitudinal and Hall transport.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how electronic transport works in a Chern mosaic, which is a patterned arrangement of domains each having different Chern numbers in their electronic bands. It shows through calculations that even straightforward configurations of these domains and their walls can lead to resistances that are multiples or fractions of the basic quantum resistance unit, for both the usual resistance and the Hall resistance. This is done using a semi-classical approach at zero temperature and magnetic field, offering a practical way to model and compare with experiments in two-dimensional materials like moiré heterostructures where such mosaics can form naturally.

Core claim

In a Chern mosaic with domains of differing local Chern numbers, the linear-response resistances computed semi-classically for various domain wall network geometries at zero temperature and zero magnetic field take values that are zero, integer, or fractional multiples of the quantum of resistance, in both longitudinal and transverse Hall channels.

What carries the argument

The domain wall network in the Chern mosaic, whose geometry determines the effective transport channels and resistances via semi-classical analysis of chiral edge modes at the walls.

If this is right

  • Resistances can be fractional even in simple, regular domain patterns.
  • The semi-classical method provides a catalog of possible responses for different geometries.
  • These findings apply directly to moiré heterostructures with local parameter variations.
  • Transport measurements can reveal the underlying Chern number domains without needing full quantum calculations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar effects might appear in other topological materials with domain structures beyond moiré systems.
  • Extending the analysis to finite temperatures or magnetic fields could reveal additional transport phenomena.
  • Device engineering could use these networks to create tunable resistance values for quantum electronics applications.

Load-bearing premise

The semi-classical analysis remains valid and sufficient to capture the linear-response resistances of the domain-wall networks at zero temperature and zero magnetic field.

What would settle it

Measuring resistances in a fabricated Chern mosaic sample at very low temperature and zero magnetic field that deviate from the predicted zero, integer, or fractional multiples for the given domain configuration would disprove the semi-classical predictions.

Figures

Figures reproduced from arXiv: 2604.08654 by Aaron Sharpe, Julian May-Mann, Sayak Bhattacharjee, Trithep Devakul, Yves H. Kwan.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. A schematic illustration of a part of a horizontal edge [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

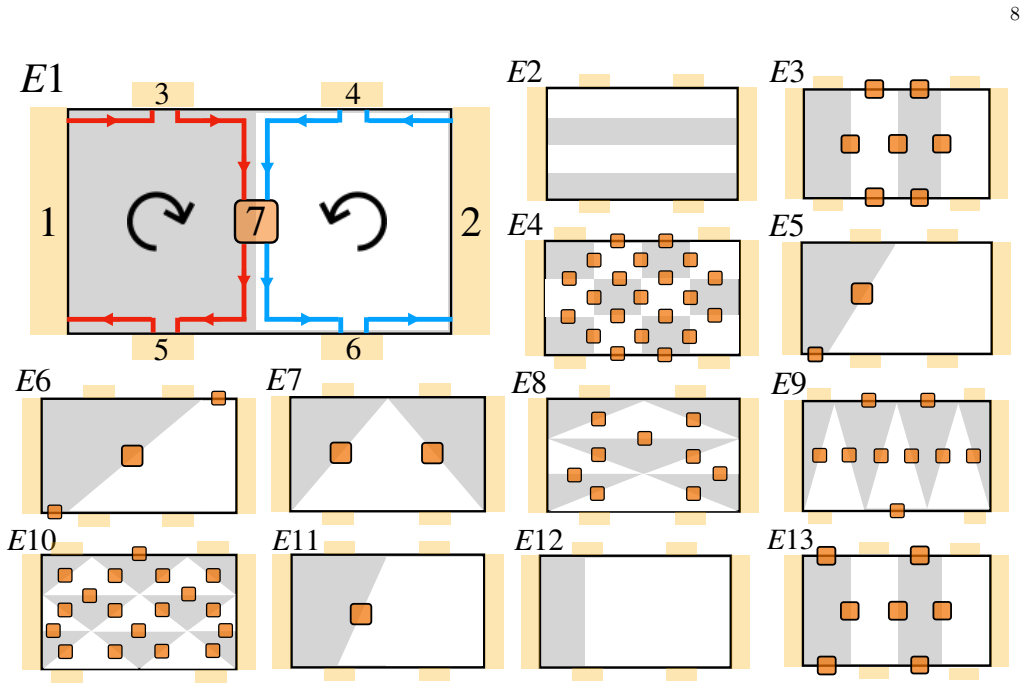

Figure 4
Figure 4. Figure 4: FIG. 4. Schematic Hall bars of samples with mosaic geometries whose transport measurements are analytically computed in [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

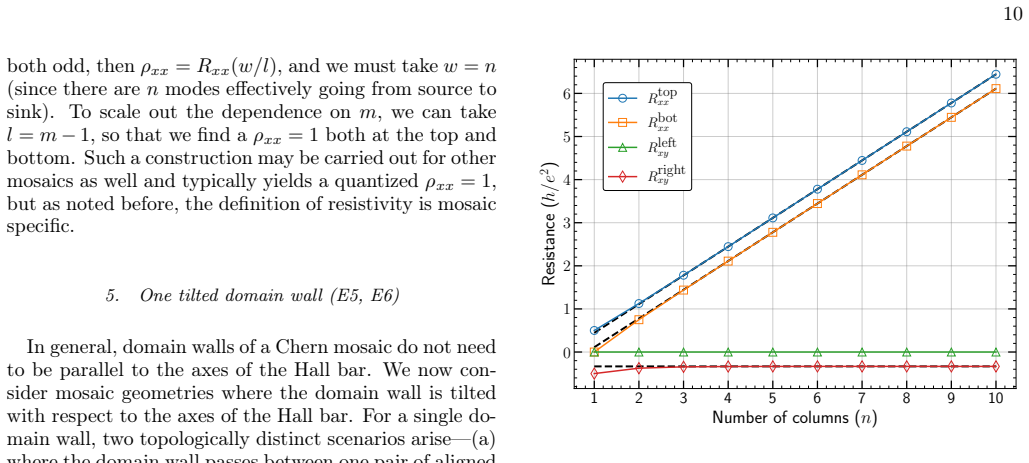

Figure 5
Figure 5. Figure 5: FIG. 5. Resistances of the mosaic with a row of triangular [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

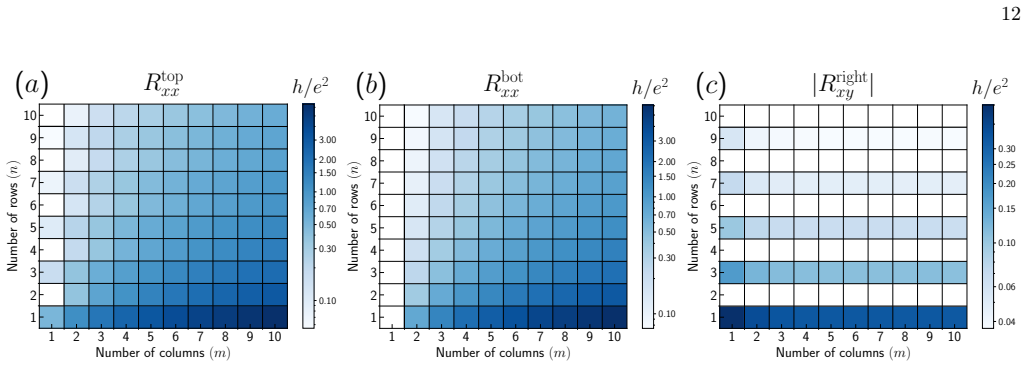

Figure 6
Figure 6. Figure 6: FIG. 6. Resistances of the triangular Chern mosaic as a function of the number of columns, [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. A schematic of a Chern mosaic with a pair of helical [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Voltage map for the [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. A mode numbering convention for scattering junc [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Transmission probability from lead 3 to lead 6 [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. A schematic of a bipartite bipolar higher Chern mo [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Deviation of the actual voltages (blue square and [PITH_FULL_IMAGE:figures/full_fig_p018_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. Schematic of a Chern mosaic with [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗
read the original abstract

We analyze mesoscopic electronic transport in a Chern mosaic: a regular pattern of domains whose electronic bands carry differing local Chern numbers. An example platform where a Chern mosaic can arise is a moir\'e heterostructure, where variations in the local moir\'e parameters can produce such domains. We compute resistances at linear response for a variety of domain wall network geometries at zero temperature and magnetic field. Simple domain configurations can exhibit zero, integer, or fractional multiples of the quantum of resistance in both the longitudinal and transverse (Hall) responses. Our simple semi-classical analysis provides a useful computational method and comparative catalog for ongoing experiments in two-dimensional topological materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript analyzes mesoscopic electronic transport in Chern mosaics—regular patterns of domains with differing local Chern numbers, as may arise in moiré heterostructures—using a semi-classical resistor-network model at zero temperature and zero magnetic field. It computes linear-response resistances for various domain-wall network geometries and reports that simple configurations produce longitudinal and Hall resistances that are zero, integer, or fractional multiples of h/e², with conductances set by local Chern numbers inside domains and chiral modes along walls. The work positions the semi-classical catalog as a practical computational tool for interpreting experiments in two-dimensional topological materials.

Significance. If the semi-classical results are robust, the paper supplies a straightforward comparative catalog and method for predicting transport signatures in systems with spatially varying topology. This is useful for ongoing experiments on moiré platforms where domain structures are common. The approach is computationally lightweight and directly links local invariants to global resistances without requiring uniform Chern numbers across the sample.

major comments (1)
  1. [semi-classical analysis (abstract and main transport calculations)] The central claim that simple domain configurations exhibit exact zero/integer/fractional multiples of h/e² rests on modeling domain-wall junctions as classical nodes obeying Kirchhoff rules with perfect transmission. At T=0 and B=0, phase-coherent scattering or partial backscattering at crossings is not obviously excluded; any deviation would alter the effective network resistances and the reported fractional values. A concrete cross-check against a scattering-matrix or tight-binding calculation for at least the simplest geometries (e.g., a single crossing or minimal loop) is needed to establish the regime of validity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comment on the semi-classical analysis. We respond to the major comment below.

read point-by-point responses

  1. Referee: [semi-classical analysis (abstract and main transport calculations)] The central claim that simple domain configurations exhibit exact zero/integer/fractional multiples of h/e² rests on modeling domain-wall junctions as classical nodes obeying Kirchhoff rules with perfect transmission. At T=0 and B=0, phase-coherent scattering or partial backscattering at crossings is not obviously excluded; any deviation would alter the effective network resistances and the reported fractional values. A concrete cross-check against a scattering-matrix or tight-binding calculation for at least the simplest geometries (e.g., a single crossing or minimal loop) is needed to establish the regime of validity.

    Authors: The manuscript presents results strictly within a semi-classical resistor-network model, as stated in the abstract and main text, in which domain walls support perfectly transmitting chiral modes and junctions obey current conservation via Kirchhoff's laws. Within this framework the reported resistances are exactly zero, integer or fractional multiples of h/e². We acknowledge that, in a fully phase-coherent T=0, B=0 limit, quantum interference or imperfect transmission at crossings could produce deviations. The semi-classical treatment is offered as a computationally lightweight tool for interpreting experiments on moiré platforms, where finite temperature, disorder or domain sizes larger than the coherence length typically suppress such corrections. We will revise the manuscript by adding a dedicated paragraph (or short subsection) that explicitly states the model assumptions, delineates the regime of expected validity, and notes possible quantum corrections as an avenue for future work. This addition will clarify the scope without altering the semi-classical calculations themselves. revision: partial

Circularity Check

0 steps flagged

No significant circularity; standard semi-classical network applied to new geometries

full rationale

The paper computes linear-response resistances for domain-wall networks by assigning local Hall conductances from given Chern numbers inside domains and chiral modes along walls, then solving the resulting classical resistor network at T=0, B=0. These steps rely on standard Kirchhoff rules and Landauer-Buttiker-type transmission for perfect chiral channels, which are external to the specific mosaic geometries catalogued. No equation reduces a claimed prediction to a fitted parameter defined inside the paper, no load-bearing uniqueness theorem is imported via self-citation, and the central results are direct evaluations rather than self-definitional or ansatz-smuggled quantities. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the semi-classical approximation for zero-temperature, zero-field linear response across domain walls whose local Chern numbers differ; no free parameters, invented entities, or additional axioms are stated in the abstract.

axioms (1)
  • domain assumption Semi-classical transport theory applies to mesoscopic domain-wall networks at zero temperature and zero magnetic field
    Invoked to compute resistances for the listed geometries.
