Fast and Scalable Production of Stacked Prism X-ray Lenses for Astrophysics Using Two-Photon Polymerization

Chlo\'e Delmotte; Filip af Malmborg; Kian Shaker; Mark Pearce

arxiv: 2604.09182 · v1 · submitted 2026-04-10 · 🌌 astro-ph.IM · astro-ph.HE

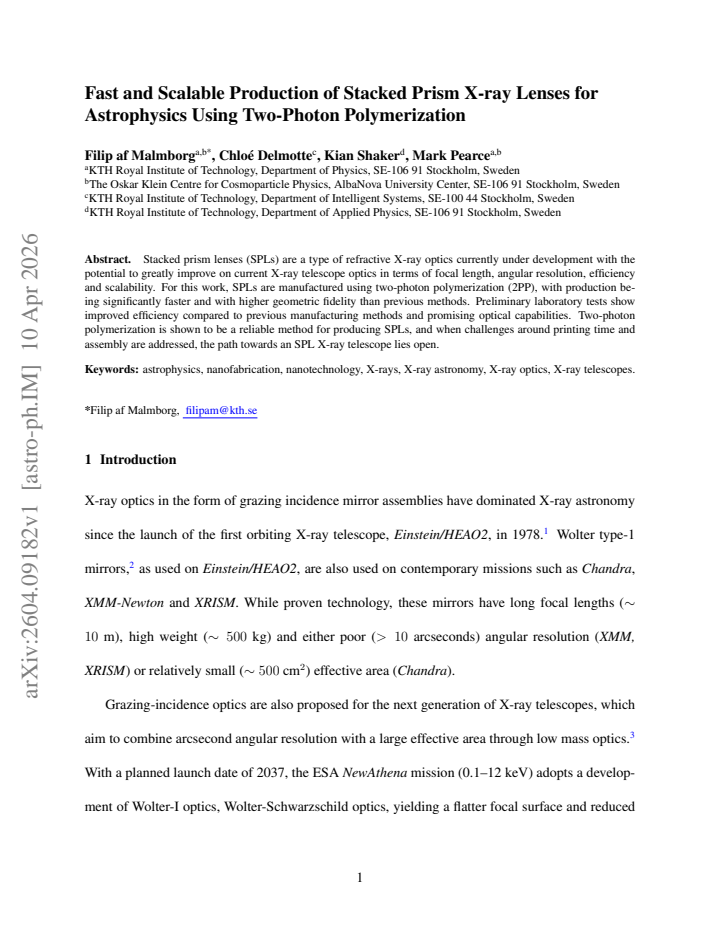

Fast and Scalable Production of Stacked Prism X-ray Lenses for Astrophysics Using Two-Photon Polymerization

Filip af Malmborg , Chlo\'e Delmotte , Kian Shaker , Mark Pearce This is my paper

Pith reviewed 2026-05-10 17:06 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.HE

keywords stacked prism lensestwo-photon polymerizationX-ray opticsrefractive X-ray lensesastrophysics instrumentation3D microfabricationX-ray telescope optics

0 comments

The pith

Two-photon polymerization produces stacked prism X-ray lenses faster and with higher geometric fidelity than prior methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that two-photon polymerization can manufacture stacked prism lenses for X-ray telescopes much more quickly while achieving better shape accuracy than earlier techniques. Laboratory tests with the new lenses indicate higher efficiency and workable optical behavior. A reader interested in telescope design would note that this method reduces the practical barriers to building refractive X-ray optics that could offer shorter focal lengths and finer angular resolution than current grazing-incidence mirrors. The work positions the lenses as a viable route once remaining production and assembly steps are refined.

Core claim

Stacked prism lenses manufactured by two-photon polymerization exhibit significantly reduced production times and higher geometric fidelity than lenses made by previous methods, with preliminary laboratory tests confirming improved efficiency and promising X-ray optical performance.

What carries the argument

Two-photon polymerization (2PP) as a direct-write 3D fabrication process for creating the precise prism geometries of stacked prism lenses (SPLs).

If this is right

Lens production time drops substantially compared with earlier fabrication routes.
Geometric accuracy of the prism structures improves, reducing unwanted scattering or aberrations.
Measured X-ray transmission efficiency rises in initial bench tests.
An assembled SPL-based telescope becomes feasible once printing throughput and mounting issues are solved.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Arrays of such lenses could be produced in sufficient numbers to build wide-field X-ray instruments.
Rapid iteration during design could let researchers test variations in prism angle or material within days rather than weeks.
The same fabrication route might apply to other refractive X-ray components beyond stacked prisms.

Load-bearing premise

Printing time and assembly steps can be scaled without losing the gains in speed and accuracy, and the laboratory efficiency gains will appear under actual telescope operating conditions.

What would settle it

Repeated production runs that fail to show faster fabrication or higher fidelity, or X-ray tests in which the new lenses do not focus more efficiently than earlier SPLs, would disprove the reliability of the method.

Figures

Figures reproduced from arXiv: 2604.09182 by Chlo\'e Delmotte, Filip af Malmborg, Kian Shaker, Mark Pearce.

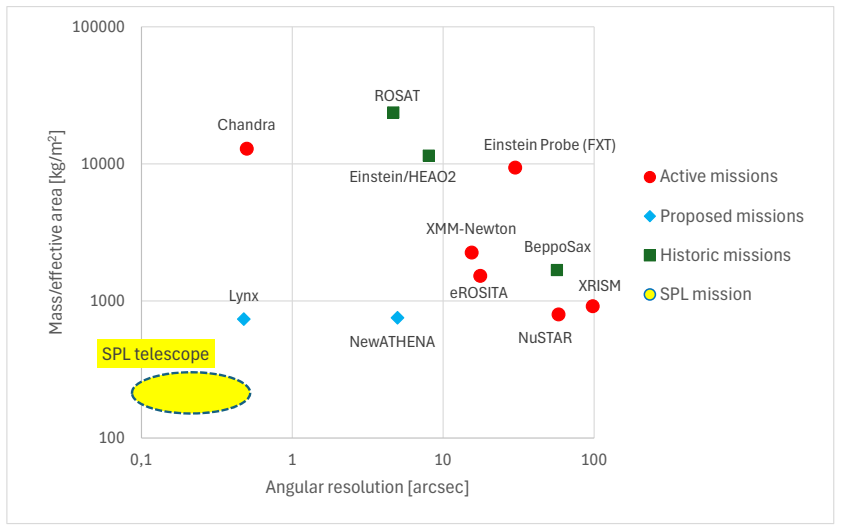

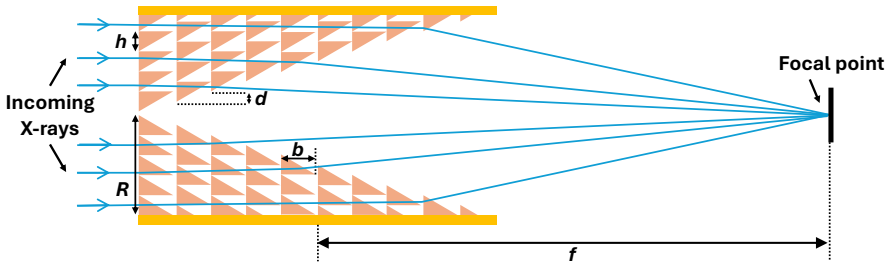

**Figure 2.** Figure 2: Working principle of an SPL lens. Distances and lengths are not to scale, typical values of [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

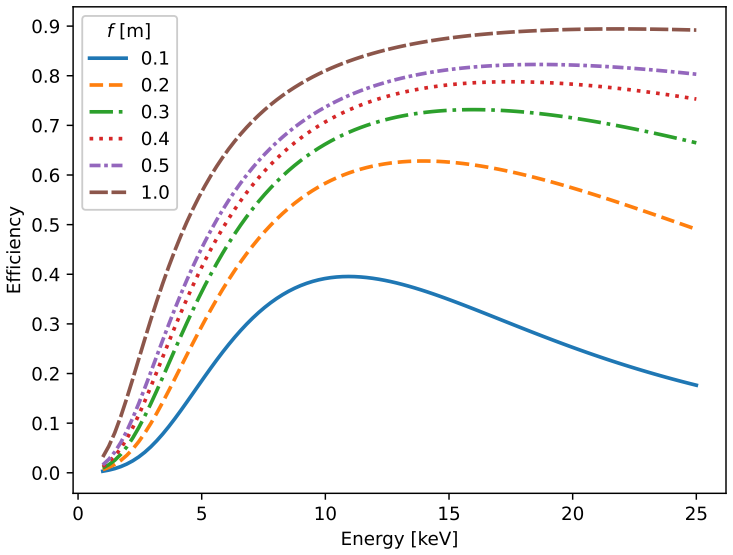

**Figure 3.** Figure 3: Efficiency of different SPL designs across a range of focal lengths and energies, with a fixed [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

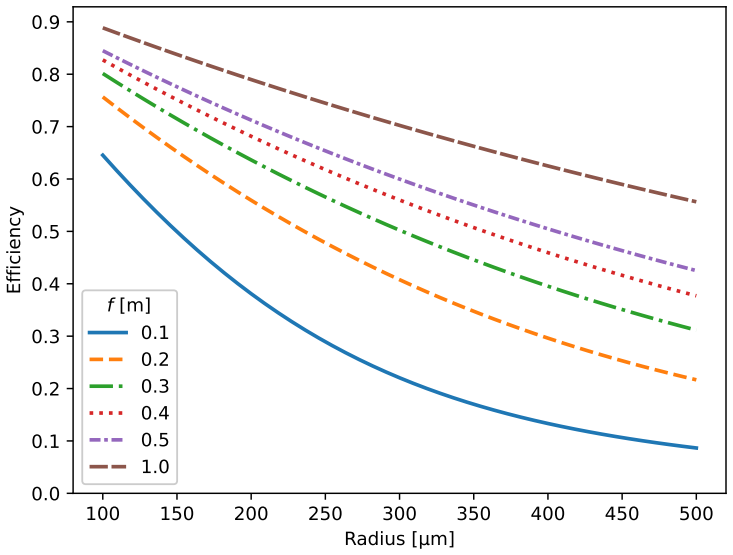

**Figure 4.** Figure 4: Efficiency of different SPL designs across a range of focal lengths and radii, at a fixed [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

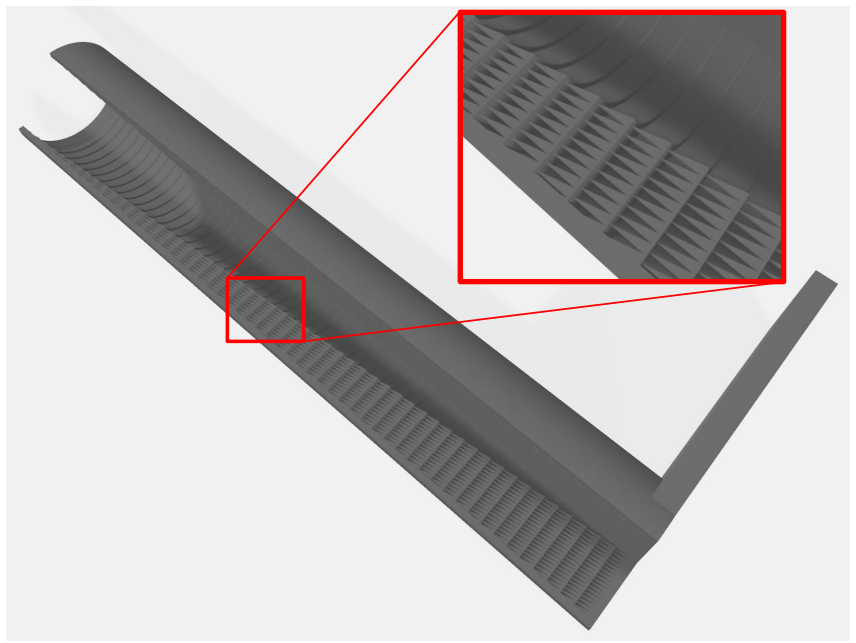

**Figure 5.** Figure 5: CAD model of final lens design, with a 90 degree slice taken out to show the interior, and [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

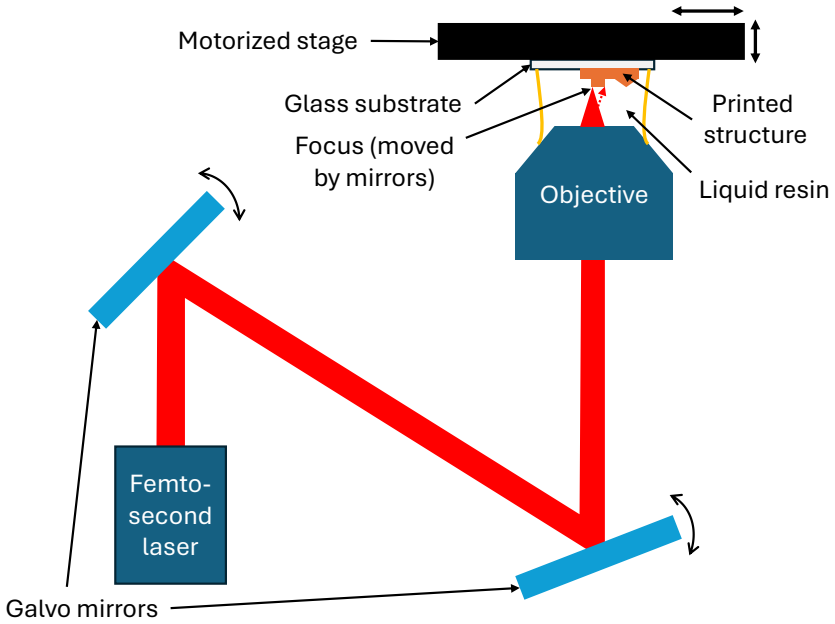

**Figure 6.** Figure 6: Schematic (not to scale) image of the principle behind 3D printing with two-photon poly [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗

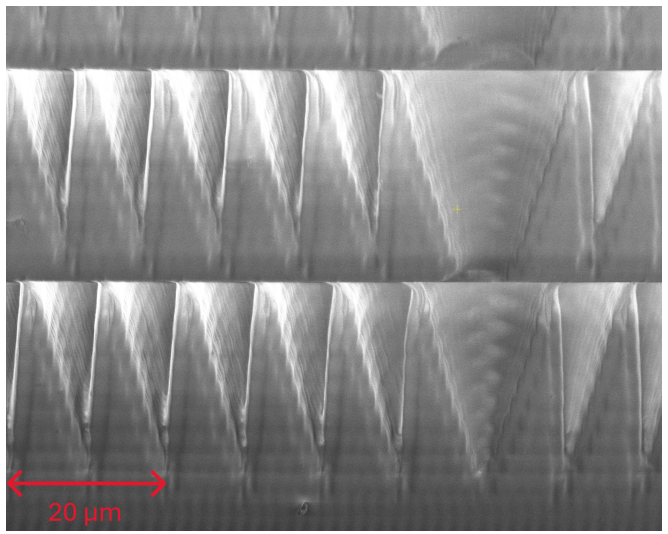

**Figure 7.** Figure 7: SEM image of rows of SPL prisms from a parameter scan print using a too-coarse slicing [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗

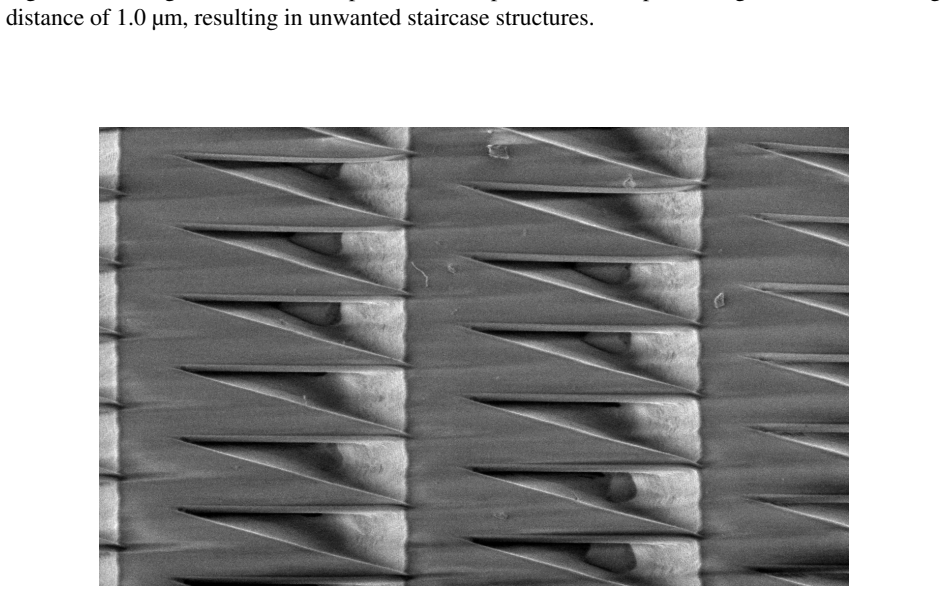

**Figure 8.** Figure 8: SEM image of print with optimized print parameters, showing a sufficiently smooth surface. [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

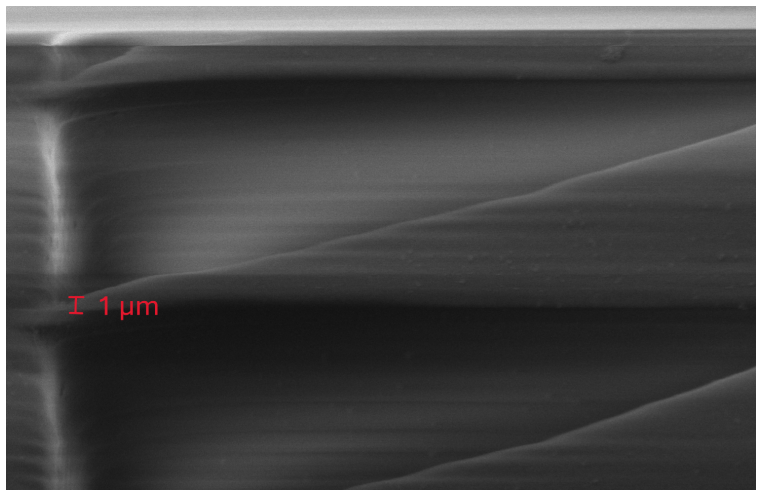

**Figure 9.** Figure 9: Zoomed-in SEM image of slightly widened tips of prisms. Most prism tips were found to [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗

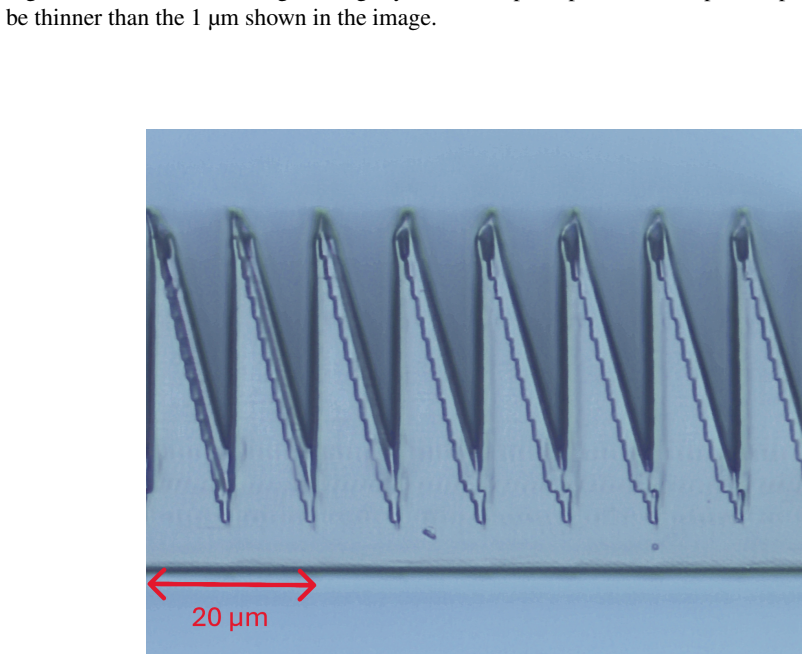

**Figure 10.** Figure 10: Optical image of parameter scan print, showing staircase structures and split prism tips due [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗

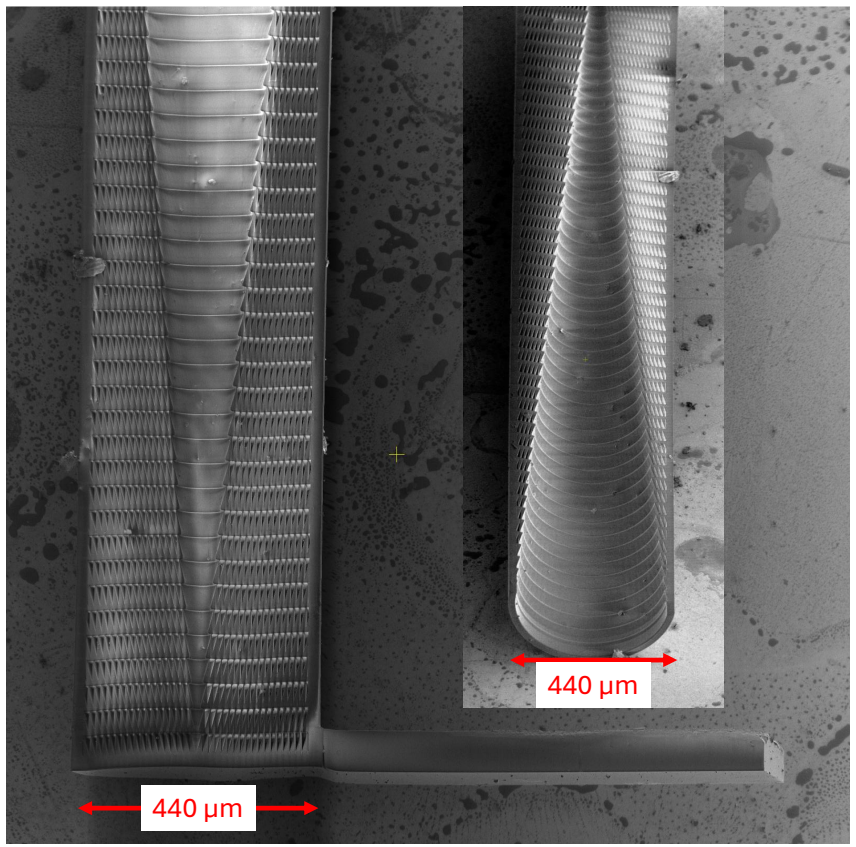

**Figure 11.** Figure 11: SEM images of 2PP manufactured lens, showing the bottom of the lens with the protruding [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗

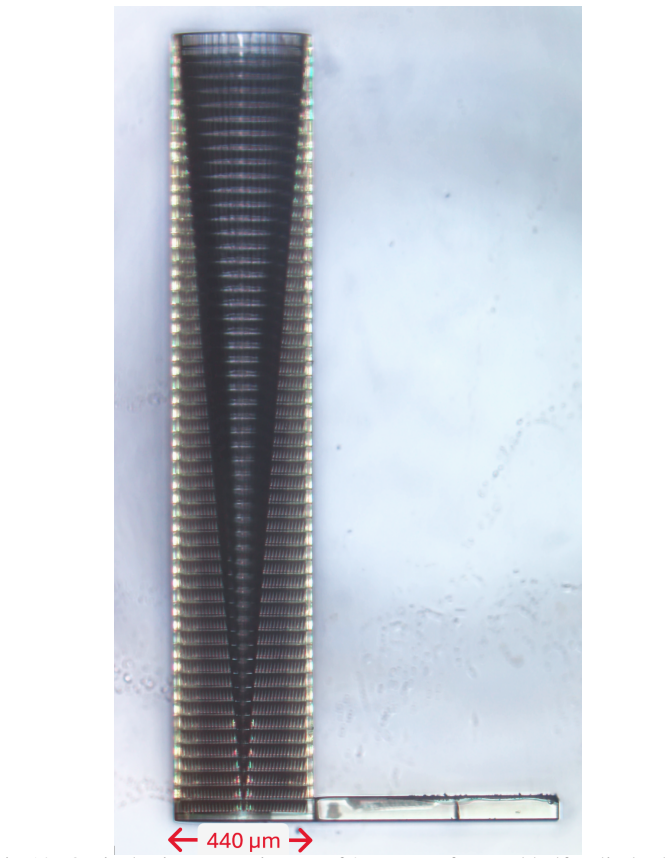

**Figure 12.** Figure 12: Optical microscope image of 2PP manufactured half-cylinder lens. [PITH_FULL_IMAGE:figures/full_fig_p018_12.png] view at source ↗

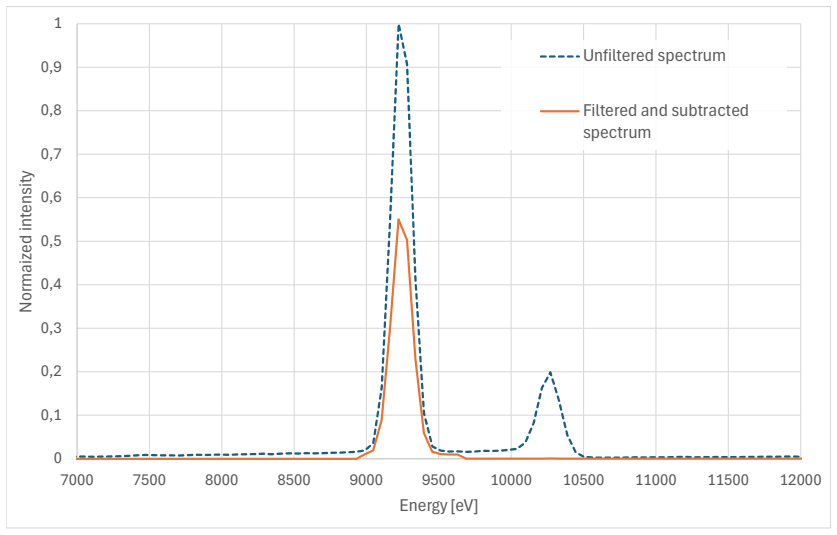

**Figure 13.** Figure 13: Part of the spectrum (showing the main fluorescence peaks) of the Excillum D2 source, [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗

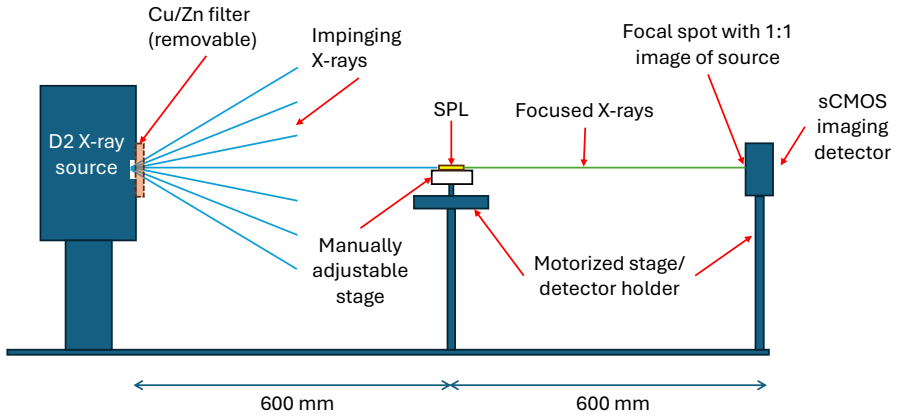

**Figure 14.** Figure 14: Schematic drawing of the test setup used to characterize the SPL. [PITH_FULL_IMAGE:figures/full_fig_p020_14.png] view at source ↗
