arxiv: 2604.09488 · v1 · submitted 2026-04-10 · 🌌 astro-ph.IM

Recognition: unknown

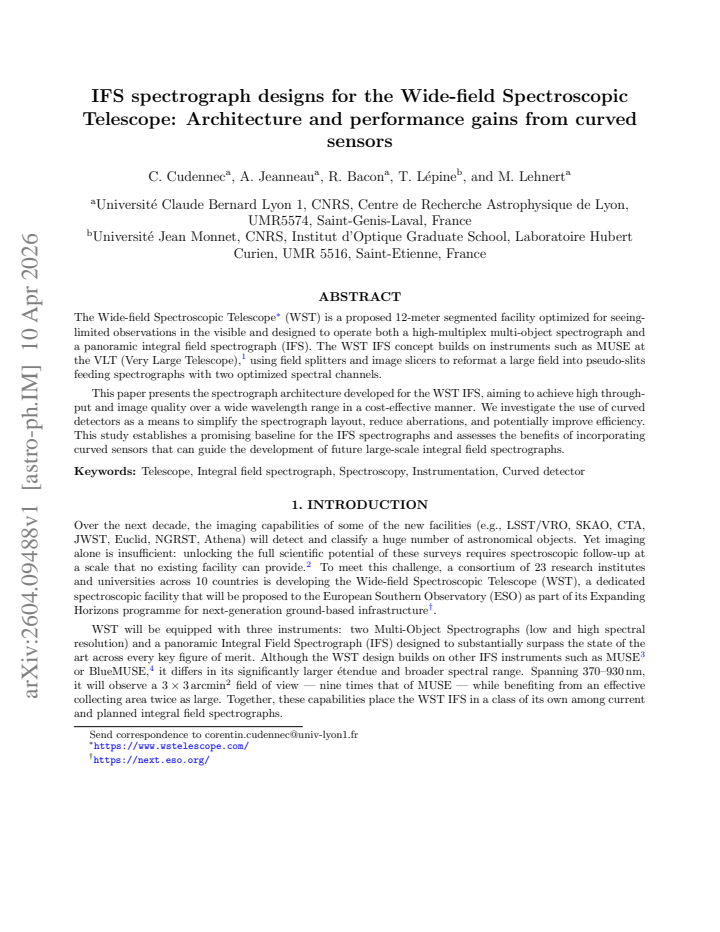

IFS spectrograph designs for the Wide-field Spectroscopic Telescope: Architecture and performance gains from curved sensors

Corentin Cudennec , Alexandre Jeanneau , Roland Bacon , Thierry L\'epine , Matthew Lehnert

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:59 UTC · model grok-4.3

classification 🌌 astro-ph.IM

keywords integral field spectroscopycurved detectorsspectrograph designimage slicersWide-field Spectroscopic Telescopeoptical aberrationshigh-throughput spectroscopy

0 comments

The pith

Curved detectors allow simpler, higher-efficiency spectrograph layouts for the WST integral field spectrograph.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper outlines an integral field spectrograph architecture for the proposed 12-meter Wide-field Spectroscopic Telescope that splits the field and uses image slicers to feed two optimized spectral channels. It then examines how curved sensors can reduce the number of optical elements, cut aberrations, and raise overall throughput across a wide wavelength range. The work treats these gains as a practical route to high-performance, cost-effective designs for panoramic integral field spectroscopy. A sympathetic reader would care because large-scale IFS instruments have historically been complex and expensive; any simplification that preserves image quality matters for future facilities.

Core claim

The WST IFS concept reformats a large field via field splitters and image slicers into pseudo-slits that feed spectrographs operating in two spectral channels. Curved detectors match the focal surface of the camera optics, thereby simplifying the layout, lowering aberrations, and improving efficiency without additional corrective elements.

What carries the argument

Curved sensors that conform to the curved focal surface of the spectrograph camera, thereby eliminating the need for field flatteners and reducing optical aberrations.

If this is right

The spectrograph can maintain high throughput and image quality over a broad visible wavelength range with fewer optical surfaces.
Overall instrument cost and complexity decrease because curved detectors remove the need for additional corrector optics.
The same architecture can serve as a scalable baseline for other large integral field spectrographs on future telescopes.
Two-channel spectral optimization becomes easier to implement without compromising field coverage or resolution.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If curved sensors prove reliable at scale, they could shorten the optical train in other seeing-limited spectrographs and reduce the mass that must be supported on large telescopes.
The approach may encourage detector manufacturers to prioritize curved formats for astronomy, changing the trade-off between detector size and optical simplicity.
Future IFS designs could trade some of the efficiency gain for even larger fields or higher spectral resolution while staying within similar cost envelopes.

Load-bearing premise

The modeled performance improvements from curved sensors can be realized in hardware without manufacturing or alignment difficulties that erase the gains.

What would settle it

A laboratory or on-sky test of a curved-detector spectrograph module that measures actual image quality, throughput, and alignment stability against the same module built with a flat detector.

Figures

Figures reproduced from arXiv: 2604.09488 by Alexandre Jeanneau, Corentin Cudennec, Matthew Lehnert, Roland Bacon, Thierry L\'epine.

**Figure 2.** Figure 2: Overall architecture of the WST integral field spectrograph. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: Field-splitting scheme. The science field of view is first divided into a 4 [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: The inset shows a field-splitter concept for illustration with only 8 mirrors, rather than the full set of 16. [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

**Figure 5.** Figure 5: Layout of the MUSE splitting stage and relay. WST’s second splitting stage will likely have a similar architecture [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

**Figure 6.** Figure 6: Preliminary design for the image slicer subsystem. [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

**Figure 7.** Figure 7: Spectrograph layout for the design using flat detectors. The red and green dots respectively correspond to [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗

**Figure 8.** Figure 8: Cumulative distribution of the FWHM spot size in the blue and red arms for the [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗

**Figure 9.** Figure 9: Spectrograph layout for the design using curved detectors. The red dots correspond to aspherics. [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗

**Figure 10.** Figure 10: Cumulative distribution of the FWHM spot size in the blue and red arms for the [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗

**Figure 11.** Figure 11: Height differences between the best toroidal image surface and the real image surface shape in the blue (left) [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗

**Figure 12.** Figure 12: Height differences between the best cylindrical image surface and the real image surface shape in the blue [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗

read the original abstract

The Wide-field Spectroscopic Telescope (WST) is a proposed 12-meter segmented facility optimized for seeing limited observations in the visible and designed to operate both a high-multiplex multi-object spectrograph and a panoramic integral field spectrograph (IFS). The WST IFS concept builds on instruments such as MUSE at the VLT (Very Large Telescope), using field splitters and image slicers to reformat a large field into pseudo-slits feeding spectrographs with two optimized spectral channels. This paper presents the spectrograph architecture developed for the WST IFS, aiming to achieve high through put and image quality over a wide wavelength range in a cost-effective manner. We investigate the use of curved detectors as a means to simplify the spectrograph layout, reduce aberrations, and potentially improve efficiency. This study establishes a promising baseline for the IFS spectrographs and assesses the benefits of incorporating curved sensors that can guide the development of future large-scale integral field spectrographs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The WST IFS paper gives a usable optical baseline with curved sensors but the claimed gains rest on idealized ray-tracing without tolerance checks.

read the letter

The paper works out a two-channel spectrograph layout for the proposed WST integral field unit. It splits the field, uses image slicers, and feeds two optimized spectral channels, then shows how curved detectors let the camera optics stay simpler while cutting aberrations across the visible range. That is the concrete new piece: a scaled-up MUSE-style architecture with quantitative flat-versus-curved comparisons for a 12 m telescope. The modeling follows standard ray-tracing practice and produces clear throughput and image-quality numbers that instrument teams can use as a reference point. The architecture section is direct about the layout choices and the cost-saving angle. The main limitation is that the performance edge is calculated under perfect conditions. The models assume the detector conforms exactly to the curved focal surface, with uniform QE and no extra wavefront error from mounting, thermal contraction, or radius mismatch. No error budget or Monte-Carlo tolerance run appears for curvature radius, tilt, or pixel-scale variation. The abstract flags manufacturing challenges, yet the results section does not test whether the reported gains survive realistic fabrication and alignment constraints. This is a design study aimed at teams planning wide-field IFS instruments on large facilities. Readers who need a starting optical baseline and a first-cut comparison of curved sensors will get value from it. The work is coherent enough on its own terms to deserve referee time, mainly to press for the missing tolerance analysis and any early hardware feasibility notes. I would send it to review rather than desk-reject.

Referee Report

1 major / 0 minor

Summary. The paper outlines the spectrograph architecture for the WST's panoramic integral field spectrograph, employing field splitters and image slicers to create pseudo-slits for two optimized spectral channels. It examines how curved detectors can simplify the design, mitigate aberrations, and boost efficiency, while establishing a baseline for such instruments and quantifying the advantages of curved sensors.

Significance. Should the modeled advantages of curved sensors prove realizable, the work supplies an important reference architecture for future large-format IFS systems, potentially enabling higher performance in wide-field spectroscopic surveys with reduced complexity and cost.

major comments (1)

[Abstract] The benefits of curved sensors are assessed through optical modeling, but the manuscript does not include a tolerance analysis or error budget addressing deviations in curvature radius, sensor tilt, or integration-induced wavefront errors, which are flagged as future challenges in the abstract; this is essential to substantiate the central claim of net performance gains over flat-sensor baselines.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and for recognizing the potential significance of the WST IFS architecture. We address the single major comment below.

read point-by-point responses

Referee: [Abstract] The benefits of curved sensors are assessed through optical modeling, but the manuscript does not include a tolerance analysis or error budget addressing deviations in curvature radius, sensor tilt, or integration-induced wavefront errors, which are flagged as future challenges in the abstract; this is essential to substantiate the central claim of net performance gains over flat-sensor baselines.

Authors: We agree that a quantitative tolerance analysis would strengthen the substantiation of net performance gains. The present work deliberately focuses on ideal-case optical modeling to establish the baseline architecture and quantify the first-order benefits of curved sensors. The abstract correctly flags detailed tolerance and integration studies as future engineering tasks. In the revised manuscript we will add a concise new subsection (in the discussion) that provides a preliminary tolerance and error budget. This will include first-order estimates of the effects of curvature-radius deviations, sensor tilt, and integration-induced wavefront errors on throughput and image quality, using representative manufacturing tolerances drawn from the literature on curved detectors. We believe this addition will directly address the referee’s concern without expanding the paper beyond its intended scope. revision: yes

Circularity Check

0 steps flagged

No circularity: standard optical modeling of design variants

full rationale

The paper presents an IFS spectrograph architecture study that uses ray-tracing and performance modeling to compare flat versus curved detector layouts. No equations, parameters, or results are shown to reduce to their own inputs by construction; the reported gains are direct outputs of the optical model under stated assumptions rather than self-referential fits or self-citation chains. The derivation chain is therefore self-contained against external optical principles.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities can be extracted. Likely relies on standard optical design assumptions and detector performance models not detailed here.
