arxiv: 2604.09755 · v1 · submitted 2026-04-10 · ❄️ cond-mat.soft

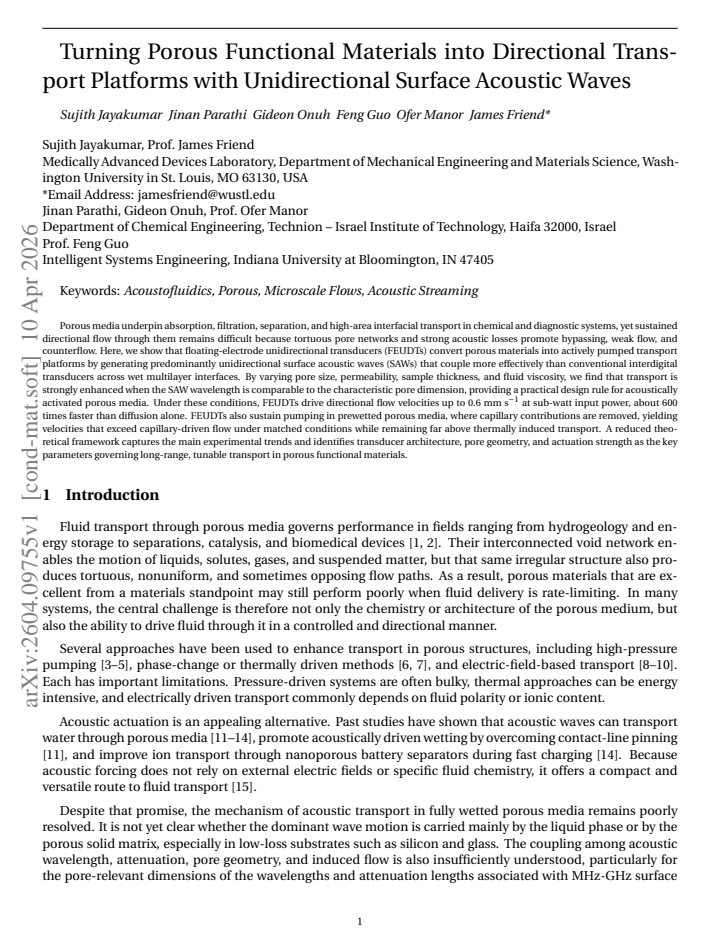

Turning Porous Functional Materials into Directional Transport Platforms with Unidirectional Surface Acoustic Waves

Sujith Jayakumar , Jinan Parathi , Gideon Onuh , Feng Guo , Ofer Manor , James Friend This is my paper

Pith reviewed 2026-05-10 16:52 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords porous mediasurface acoustic wavesunidirectional transducersfluid pumpingdirectional transportpore sizeacoustic actuationcapillary flow
0
0 comments X

The pith

Floating-electrode unidirectional transducers convert porous materials into directional fluid transport platforms.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that floating-electrode unidirectional transducers generate predominantly unidirectional surface acoustic waves that actively pump fluid directionally through porous media. Porous materials normally suffer from slow undirected flow due to tortuous paths and acoustic losses, limiting their use in filtration, separation, and diagnostic systems. The work shows that matching the acoustic wavelength to the characteristic pore dimension strongly enhances coupling across wet interfaces, producing flow velocities up to 0.6 mm/s at sub-watt power. This rate is about 600 times faster than diffusion and exceeds capillary-driven flow even when capillary contributions are removed in prewetted media.

Core claim

Porous functional materials can be converted into actively pumped directional transport platforms by floating-electrode unidirectional transducers that produce unidirectional surface acoustic waves. These waves couple more effectively than those from conventional interdigital transducers across wet multilayer interfaces. Transport is strongly enhanced when the SAW wavelength is comparable to the characteristic pore dimension, yielding directional flow velocities up to 0.6 mm s^{-1} at sub-watt input power. This exceeds diffusion by a factor of about 600 and sustains pumping in prewetted porous media beyond capillary-driven flow under matched conditions. A reduced theoretical framework shows

What carries the argument

Floating-electrode unidirectional transducers (FEUDTs) that generate unidirectional surface acoustic waves, which couple across wet interfaces and enhance transport when wavelength matches pore dimension.

If this is right

  • Directional flow velocities reach 0.6 mm/s in porous media at sub-watt power inputs.
  • Pumping continues in prewetted media where capillary forces are absent and exceeds capillary-driven flow.
  • Optimal transport requires SAW wavelength comparable to pore dimension, providing a design rule.
  • Transducer architecture, pore geometry, and actuation strength govern long-range tunable transport.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Wavelength tuning could enable selective transport through media containing multiple pore sizes.
  • The method may support active fluid control in sealed diagnostic or separation devices without mechanical components.
  • Similar acoustic actuation might address transport limits in other lossy interfacial systems beyond the tested porous media.

Load-bearing premise

Unidirectional SAWs from FEUDTs couple more effectively than conventional transducers across wet multilayer interfaces, with transport strongly enhanced specifically when wavelength matches the characteristic pore dimension.

What would settle it

Measuring flow velocities in the same porous samples with conventional interdigital transducers under identical power and conditions and finding speeds comparable to or higher than those from FEUDTs.

Figures

Figures reproduced from arXiv: 2604.09755 by Feng Guo, Gideon Onuh, James Friend, Jinan Parathi, Ofer Manor, Sujith Jayakumar.

Figure 1
Figure 1. Figure 1: (a) Fabricated FEUDT device and its single unit cell (red box). (b) Laser Doppler vibrometer setup to scan the waveform [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) Schematic of the Whatman paper sample coupled with the IDT via a 10 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Schematic of the laminated Whatman paper sample coupled with the FEUDT, showing access ports and droplets [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) Schematic of the FEUDT coupled with a polyethylene (PE) porous medium, illustrating the coverslip used to adjust the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a) Pumping velocity as a function of pore size and sample thickness. Enhanced flow is observed when the pore size [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: (a) Variation of flow velocity for fluids with different viscosity, as indicated in the plot. Error bars: 95 % CI; [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Coordinate system and geometric configuration of the model. The surface acoustic wave (SAW) propagates along [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Voltage squared (V 2 RMS) dependence of the measured (symbols, also shown in [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Flow velocity, u, in porous polyethylene as a function of shear viscosity, µ, for different applied voltage-squared values, V 2 , using the same framework as in [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Voltage squared (V 2 RMS) dependence of the measured (symbols, also shown in [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Yellow regions correspond to porcine skin, while red regions indicate rhodamine B transported due to acoustic actua [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗
read the original abstract

Porous media underpin absorption, filtration, separation, and high-area interfacial transport in chemical and diagnostic systems, yet sustained directional flow through them remains difficult because tortuous pore networks and strong acoustic losses promote bypassing, weak flow, and counterflow. Here, we show that floating-electrode unidirectional transducers (FEUDTs) convert porous materials into actively pumped transport platforms by generating predominantly unidirectional surface acoustic waves (SAWs) that couple more effectively than conventional interdigital transducers across wet multilayer interfaces. By varying pore size, permeability, sample thickness, and fluid viscosity, we find that transport is strongly enhanced when the SAW wavelength is comparable to the characteristic pore dimension, providing a practical design rule for acoustically activated porous media. Under these conditions, FEUDTs drive directional flow velocities up to 0.6 mm s$^{-1}$ at sub-watt input power, about 600 times faster than diffusion alone. FEUDTs also sustain pumping in prewetted porous media, where capillary contributions are removed, yielding velocities that exceed capillary-driven flow under matched conditions while remaining far above thermally induced transport. A reduced theoretical framework captures the main experimental trends and identifies transducer architecture, pore geometry, and actuation strength as the key parameters governing long-range, tunable transport in porous functional materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

4 major / 2 minor

Summary. The manuscript demonstrates that floating-electrode unidirectional transducers (FEUDTs) generate predominantly unidirectional surface acoustic waves (SAWs) that induce directional fluid transport through porous media. Experiments varying pore size, permeability, thickness, and viscosity show strong enhancement when SAW wavelength is comparable to pore dimension, yielding velocities up to 0.6 mm s^{-1} at sub-watt power (claimed ~600x faster than diffusion) and sustained pumping in prewetted media exceeding capillary flow. A reduced theoretical framework identifies transducer architecture, pore geometry, and actuation strength as governing parameters.

Significance. If the central claims hold, the work offers a low-power acoustic method to convert passive porous materials into actively tunable transport platforms, with a practical wavelength-matching design rule. The experimental trends across multiple parameters and the reduced framework's ability to capture main behaviors are positive features; reproducible code or machine-checked elements are not reported.

major comments (4)
  1. [Abstract] Abstract: the claim that FEUDTs 'couple more effectively than conventional interdigital transducers across wet multilayer interfaces' is load-bearing for the central attribution of performance gains to unidirectionality, yet the manuscript provides no direct side-by-side flow-velocity data in identical porous samples (same thickness, permeability, fluid) at matched power and frequency.
  2. [Abstract] Abstract: the 'about 600 times faster than diffusion alone' and 'exceed capillary-driven flow' statements rest on unspecified baselines; the manuscript lacks reported error bars, controls for thermal effects, or data-exclusion criteria, undermining quantitative comparison to the prewetted-media case.
  3. [Results] Results section (experimental trends): the finding that transport 'is strongly enhanced when the SAW wavelength is comparable to the characteristic pore dimension' is presented as a design rule, but without independent controls that isolate wavelength from other parameters (e.g., frequency-dependent attenuation or transducer efficiency), the relation remains correlative rather than causal.
  4. [Theoretical framework] Theoretical framework section: the reduced model 'captures the main experimental trends' and identifies key parameters, but the text does not show explicit quantitative reduction of predictions to fitted values or direct overlay of model curves on data, leaving the framework's predictive power qualitative.
minor comments (2)
  1. A dedicated methods subsection detailing sample fabrication, acoustic coupling, velocity measurement protocol, and statistical analysis would improve reproducibility.
  2. Figure captions should explicitly state the number of replicates and whether error bars represent standard deviation or standard error.

Simulated Author's Rebuttal

4 responses · 0 unresolved

We appreciate the referee's detailed comments, which have helped us improve the clarity and rigor of our work. We respond to each major comment below, indicating where revisions have been made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that FEUDTs 'couple more effectively than conventional interdigital transducers across wet multilayer interfaces' is load-bearing for the central attribution of performance gains to unidirectionality, yet the manuscript provides no direct side-by-side flow-velocity data in identical porous samples (same thickness, permeability, fluid) at matched power and frequency.

    Authors: We agree that direct side-by-side comparisons in identical samples would strengthen the attribution of performance gains to unidirectionality. In the revised manuscript, we have added a new supplementary figure (Fig. S1) presenting flow-velocity data collected in the same porous samples (matched thickness, permeability, and fluid) using both FEUDTs and conventional IDTs at identical power and frequency. These data show consistently higher velocities with FEUDTs, supporting the claim of more effective coupling across wet interfaces. revision: yes

  2. Referee: [Abstract] Abstract: the 'about 600 times faster than diffusion alone' and 'exceed capillary-driven flow' statements rest on unspecified baselines; the manuscript lacks reported error bars, controls for thermal effects, or data-exclusion criteria, undermining quantitative comparison to the prewetted-media case.

    Authors: We acknowledge that the baselines, error bars, and controls were insufficiently specified. The diffusion baseline was derived from the Stokes-Einstein relation applied to the measured pore geometry and fluid properties; capillary flow was quantified in separate control experiments on prewetted samples without acoustic actuation. In the revision, we have added error bars to all reported velocities, explicitly stated the calculation methods and numerical values for the baselines, included temperature monitoring data to rule out thermal contributions, and clarified the data-exclusion criteria in the Methods section. revision: yes

  3. Referee: [Results] Results section (experimental trends): the finding that transport 'is strongly enhanced when the SAW wavelength is comparable to the characteristic pore dimension' is presented as a design rule, but without independent controls that isolate wavelength from other parameters (e.g., frequency-dependent attenuation or transducer efficiency), the relation remains correlative rather than causal.

    Authors: We recognize that wavelength and frequency are inherently coupled through the transducer design, making complete isolation challenging. However, we performed experiments across multiple transducer designs (different finger spacings) and pore sizes to achieve the wavelength-matching condition at several distinct frequencies. In the revised text, we have added a dedicated paragraph discussing potential confounding factors such as frequency-dependent attenuation (quantified via separate transmission measurements) and transducer efficiency (normalized by input power), showing that these do not account for the observed peak. The enhancement persists across the parameter sets, supporting the design rule while acknowledging its correlative foundation in the current data. revision: partial

  4. Referee: [Theoretical framework] Theoretical framework section: the reduced model 'captures the main experimental trends' and identifies key parameters, but the text does not show explicit quantitative reduction of predictions to fitted values or direct overlay of model curves on data, leaving the framework's predictive power qualitative.

    Authors: We agree that explicit quantitative comparisons would better demonstrate the framework's utility. In the revised manuscript, we have added direct overlays of the reduced-model predictions onto the experimental data in Figure 4 (velocity versus wavelength-to-pore-size ratio), with the governing parameters (transducer architecture, pore geometry, actuation strength) fitted to the data and tabulated in a new supplementary table. The model curves now appear alongside the measured points, allowing visual assessment of agreement beyond qualitative trends. revision: yes

Circularity Check

0 steps flagged

No circularity; reduced framework and design rule emerge from independent experimental trends

full rationale

The paper reports experimental variation of pore size, permeability, thickness, viscosity, and wavelength matching, with observed flow velocities up to 0.6 mm/s. The reduced theoretical framework is stated only to capture these trends and identify governing parameters (transducer architecture, pore geometry, actuation strength); no equations are shown reducing predictions to fitted inputs by construction, no self-citations bear the central claim, and no uniqueness theorems or ansatzes are imported circularly. The wavelength-pore design rule is presented as an empirical finding rather than a tautology. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on experimental parameter sweeps and a reduced model; no new physical entities are postulated. The wavelength-pore matching rule functions as a domain assumption rather than a derived result.

free parameters (1)
  • actuation strength
    Identified as a key governing parameter in the reduced theoretical framework without specified independent derivation.
axioms (2)
  • domain assumption Unidirectional SAWs couple more effectively than conventional interdigital transducers across wet multilayer interfaces
    Stated as the basis for converting porous materials into pumped platforms.
  • domain assumption Transport is strongly enhanced when SAW wavelength is comparable to characteristic pore dimension
    Presented as the practical design rule emerging from experiments.

pith-pipeline@v0.9.0 · 5538 in / 1409 out tokens · 39141 ms · 2026-05-10T16:52:13.256862+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

11 extracted references · 11 canonical work pages

  1. [1]

    Niu, Xiao Xiao, Lei Jiang, Marat Khodoun, Marc Rothenberg, Ken Mackie, Jun Chen, Luke P

    Junhua Xu, Hongwei Cai, Zhuhao Wu, Xiang Li, Chunhui Tian, Zheng Ao, Vivian C. Niu, Xiao Xiao, Lei Jiang, Marat Khodoun, Marc Rothenberg, Ken Mackie, Jun Chen, Luke P . Lee, and Feng Guo. Acoustic metamaterials-driven transdermal drug delivery for rapid and on-demand management of acute disease. Nat. Commun., 14(869):869, February 2023. ISSN 2041-1723. do...

    work page doi:10.1038/s41467-023-36581-2 2023

  2. [2]

    Thumser, Steve R

    Samantha Forster, Alfred E. Thumser, Steve R. Hood, and Nick Plant. Characterization of Rhodamine- 123 as a Tracer Dye for Use In In vitro Drug Transport Assays.PLoS One, 7(3):e33253, March 2012. ISSN 1932-6203. doi: 10.1371/journal.pone.0033253

    work page doi:10.1371/journal.pone.0033253 2012

  3. [3]

    Joakim Kennedy, Eneko Larrañeta, Maelíosa T . C. McCrudden, Cian M. McCrudden, Aaron J. Brady, Steven J. Fallows, Helen O. McCarthy, Adrien Kissenpfennig, and Ryan F . Donnelly. In vivo studies investi- gating biodistribution of nanoparticle-encapsulated rhodamine B delivered via dissolving microneedles. J. Controlled Release, 265:57–65, November 2017. IS...

    work page doi:10.1016/j.jconrel.2017.04.022 2017

  4. [4]

    Porcine ear skin: an in vitro model for human skin.Skin Research and Technol- ogy, 13(1):19–24, February 2007

    Ute Jacobi, Marco Kaiser, Rani Toll, Susanne Mangelsdorf, Heike Audring, Nina Otberg, Wolfram Sterry, and Juergen Lademann. Porcine ear skin: an in vitro model for human skin.Skin Research and Technol- ogy, 13(1):19–24, February 2007. ISSN 0909-752X. doi: 10.1111/j.1600-0846.2006.00179.x

    work page doi:10.1111/j.1600-0846.2006.00179.x 2007

  5. [5]

    Netti, David A

    Paolo A. Netti, David A. Berk, Melody A. Swartz, Alan J. Grodzinsky, and Rakesh K. Jain. Role of Extracel- lular Matrix Assembly in Interstitial Transport in Solid Tumors.Cancer Res., 60(9):2497–2503, May 2000. ISSN 0008-5472

    work page 2000

  6. [6]

    Wolf, Kerry A

    Matthew T . Wolf, Kerry A. Daly, Ellen P . Brennan-Pierce, Scott A. Johnson, Christopher A. Carruthers, An- tonio D’Amore, Shailesh P . Nagarkar, Sachin S. Velankar, and Stephen F . Badylak. A hydrogel derived from decellularized dermal extracellular matrix.Biomaterials, 33(29):7028–7038, October 2012. ISSN 0142-

    work page 2012

  7. [7]

    doi: 10.1016/j.biomaterials.2012.06.051

    work page doi:10.1016/j.biomaterials.2012.06.051 2012

  8. [8]

    Pharmacokinetics and Pharmacokinetic–Pharmacodynamic Correlations of Therapeutic Peptides.Clin

    Lei Diao and Bernd Meibohm. Pharmacokinetics and Pharmacokinetic–Pharmacodynamic Correlations of Therapeutic Peptides.Clin. Pharmacokinet., 52(10):855–868, October 2013. ISSN 1179-1926. doi: 10.1007/s40262-013-0079-0

    work page doi:10.1007/s40262-013-0079-0 2013

  9. [9]

    Martin, Vikash P

    Triantafyllos Stylianopoulos, John D. Martin, Vikash P . Chauhan, Saloni R. Jain, Benjamin Diop-Frimpong, Nabeel Bardeesy, Barbara L. Smith, Cristina R. Ferrone, Francis J. Hornicek, Yves Boucher, Lance L. Munn, and Rakesh K. Jain. Causes, consequences, and remedies for growth-induced solid stress in murine and human tumors.Proc. Natl. Acad. Sci. U.S.A., ...

    work page doi:10.1073/pnas.1213353109 2012

  10. [10]

    Bhatia and Donald E

    Sangeeta N. Bhatia and Donald E. Ingber. Microfluidic organs-on-chips.Nat. Biotechnol., 32(8):760–772, August 2014. ISSN 1546-1696. doi: 10.1038/nbt.2989

    work page doi:10.1038/nbt.2989 2014

  11. [11]

    Hashimoto, T

    K. Hashimoto, T . Omori, and M. Yamaguchi. Design considerations on surface acoustic wave resonators with significant internal reflection in interdigital transducers.IEEE Transactions on Ultrasonics, Ferro- electrics, and Frequency Control, 51(11):1394–1403, 2004. doi: 10.1109/TUFFC.2004.1367478. 21

    work page doi:10.1109/tuffc.2004.1367478 2004
