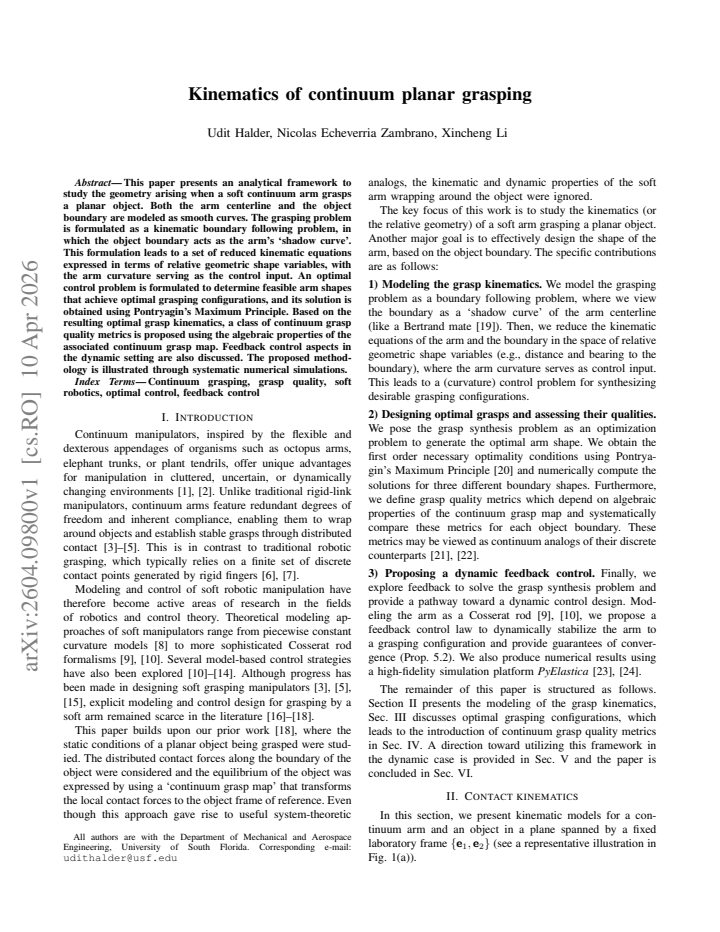

Kinematics of continuum planar grasping

Udit Halder , Nicolas Echeverria Zambrano , Xincheng Li This is my paper

Pith reviewed 2026-05-10 16:36 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords continuum roboticsplanar graspingkinematic modelingboundary followingshadow curveoptimal controlgrasp metricssoft robots
0
0 comments X

The pith

Grasping with soft continuum arms reduces to a kinematic boundary-following problem in which the object boundary serves as the arm's shadow curve.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out an analytical framework for planar grasping by soft continuum arms by modeling both the arm centerline and the object boundary as smooth curves. The grasping task is reformulated as a boundary-following kinematic problem where the object boundary functions as the arm's shadow curve. This reduction produces a simpler set of kinematic equations that use arm curvature as the control input. Solving the associated optimal control problem via Pontryagin's Maximum Principle identifies optimal arm shapes, from which the authors define a new class of grasp quality metrics based on the algebraic properties of the continuum grasp map. This geometric approach matters because it offers a way to analyze and plan soft grasping without relying on rigid-link approximations, potentially improving control design for compliant robots.

Core claim

The grasping problem is formulated as a kinematic boundary following problem in which the object boundary acts as the arm's shadow curve. This formulation leads to reduced kinematic equations expressed in terms of relative geometric shape variables, with the arm curvature serving as the control input. An optimal control problem is formulated to determine feasible arm shapes that achieve optimal grasping configurations, and its solution is obtained using Pontryagin's Maximum Principle. Based on the resulting optimal grasp kinematics, a class of continuum grasp quality metrics is proposed using the algebraic properties of the associated continuum grasp map.

What carries the argument

The shadow curve formulation of the object boundary, which reduces the full arm kinematics to boundary-following equations controlled solely by arm curvature.

If this is right

  • Optimal arm shapes for grasping are found by solving the reduced boundary-following optimal control problem using Pontryagin's Maximum Principle.
  • Grasp quality metrics arise directly from the algebraic properties of the continuum grasp map derived from optimal solutions.
  • Feedback control strategies for dynamic grasping follow from the kinematic model in the dynamic setting.
  • Numerical simulations confirm the method across different planar object geometries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The boundary-following reduction may allow real-time optimization of grasp configurations in soft robotic systems by avoiding high-dimensional state spaces.
  • Similar shadow-curve concepts could extend the framework to non-planar grasping or multi-arm coordination tasks.
  • These quality metrics might be validated against traditional force-closure measures in physical continuum robot experiments.

Load-bearing premise

The arm centerline and the object boundary can be modeled as smooth curves, and the boundary-following reduction captures all essential kinematic constraints for feasible grasping.

What would settle it

A grasping experiment with a physical continuum arm and an object having discontinuous curvature would falsify the claim if the predicted optimal shapes and contact geometries do not match the observed behavior.

Figures

Figures reproduced from arXiv: 2604.09800 by Nicolas Echeverria Zambrano, Udit Halder, Xincheng Li.

Figure 1
Figure 1. Figure 1: (a) Schematic of a continuum arm grasping a planar object with smooth boundary. The boundary of the object [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Optimal grasping configurations obtained by solving the optimal control problem (9). The problem is solved for three different [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Grasp quality maps for the metrics Q1, Q2 and Q3 for the circular, elliptical, and deformed circular objects. The quality values are normalized by the maximum quality for each object, where darker regions denote higher quality. The purple point indicates the optimal starting location, and the corresponding arm configuration is shown as a purple dashed curve. solving (16) are drawn in purple dashed lines. A… view at source ↗
Figure 4
Figure 4. Figure 4: Dynamic simulation results for a soft arm grasping a fixed [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

This paper presents an analytical framework to study the geometry arising when a soft continuum arm grasps a planar object. Both the arm centerline and the object boundary are modeled as smooth curves. The grasping problem is formulated as a kinematic boundary following problem, in which the object boundary acts as the arm's 'shadow curve'. This formulation leads to a set of reduced kinematic equations expressed in terms of relative geometric shape variables, with the arm curvature serving as the control input. An optimal control problem is formulated to determine feasible arm shapes that achieve optimal grasping configurations, and its solution is obtained using Pontryagin's Maximum Principle. Based on the resulting optimal grasp kinematics, a class of continuum grasp quality metrics is proposed using the algebraic properties of the associated continuum grasp map. Feedback control aspects in the dynamic setting are also discussed. The proposed methodology is illustrated through systematic numerical simulations.
