Self-doped Crystal from Preempted Band-inversion Transitions

Jiechao Feng , Zhaoyu Han , Michael P. Zaletel , Zhihuan Dong This is my paper

Pith reviewed 2026-05-10 16:02 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mes-hall
keywords self-doped crystalWigner crystalband inversionrhombohedral grapheneanomalous Hall crystalBerry curvatureHartree-Fockquantum geometry
0
0 comments X

The pith

Self-doped crystals arise when band-inversion transitions between commensurate crystals are preempted by an incommensurate phase with a small Fermi sea.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that self-doped crystals, in which a slightly incommensurate Wigner crystal coexists with a small Fermi sea, generically appear from preempted band-inversion transitions between commensurate crystals. This supplies simple band-theory criteria for predicting their occurrence. Self-consistent Hartree-Fock calculations confirm such a phase exists in the lambda-jellium model, positioned between a halo Wigner crystal and an anomalous Hall crystal, and also in rhombohedral pentalayer graphene, between a Wigner crystal and a disqualified halo anomalous Hall crystal. The mechanism ties the appearance of these phases to the Berry curvature distribution in the parent band. If correct, the result explains observed self-doped states in graphene experiments and gives a route to identify them in other systems via band-structure considerations.

Core claim

Self-doped crystals generically arise from preempted band-inversion transitions between commensurate crystals. In the lambda-jellium model a self-doped crystal phase intervenes between a halo Wigner crystal and an anomalous Hall crystal that would otherwise connect through a Dirac transition at commensuration; the direct Wigner crystal to anomalous Hall crystal transition is forbidden by a mismatch of symmetry indices. In rhombohedral pentalayer graphene the same mechanism places a self-doped crystal between a Wigner crystal and a disqualified halo anomalous Hall crystal. The Berry curvature distribution of the parent band controls whether the self-doped crystal appears.

What carries the argument

The preempted band-inversion transition, in which an incommensurate self-doped crystal with a small Fermi sea intervenes instead of a direct transition between two commensurate crystals.

Load-bearing premise

Band-inversion transitions between commensurate crystals are always preempted specifically by the self-doped crystal phase rather than other competing orders, and Hartree-Fock mean-field theory accurately captures the non-perturbative physics and symmetry features.

What would settle it

Observation of the predicted self-doped crystal phase in rhombohedral pentalayer graphene between the Wigner crystal and halo anomalous Hall crystal regimes, or its clear absence in the lambda-jellium model at the corresponding parameter values.

Figures

Figures reproduced from arXiv: 2604.09820 by Jiechao Feng, Michael P. Zaletel, Zhaoyu Han, Zhihuan Dong.

Figure 1

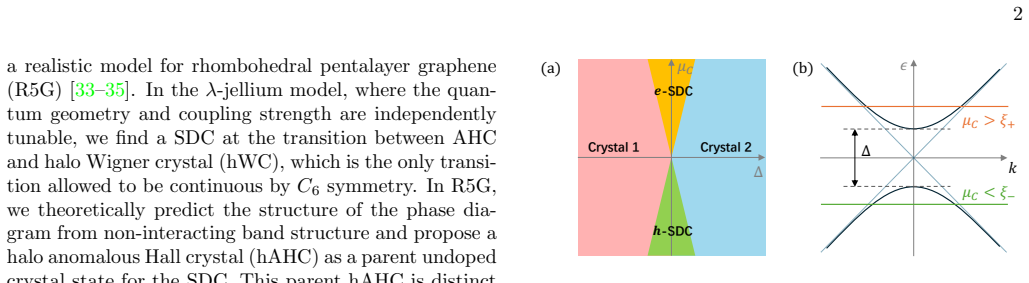

Figure 1. Figure 1: FIG. 1. (a) Schematic phase diagram for SDC preempting a [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

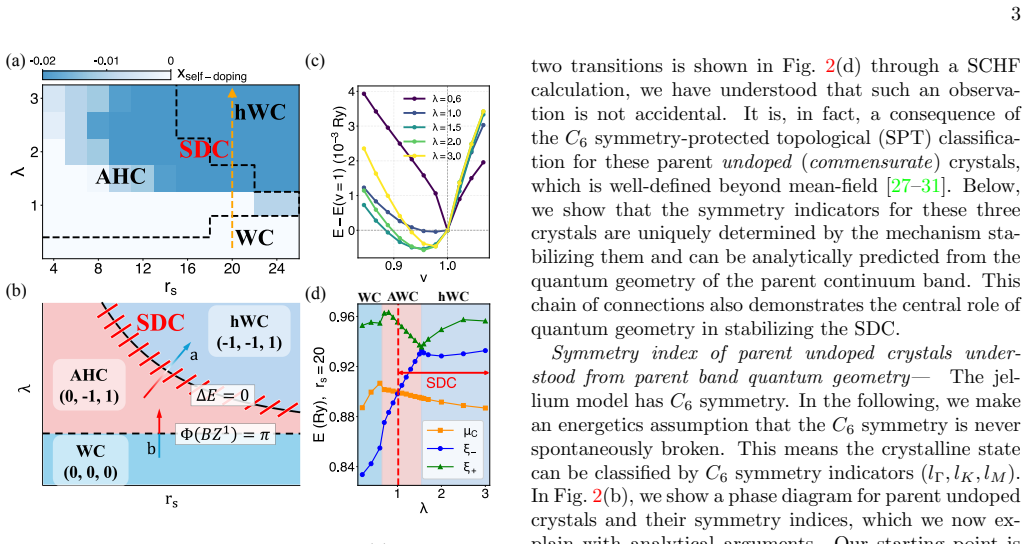

Figure 2. Figure 2: FIG. 2. Phase diagram for [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

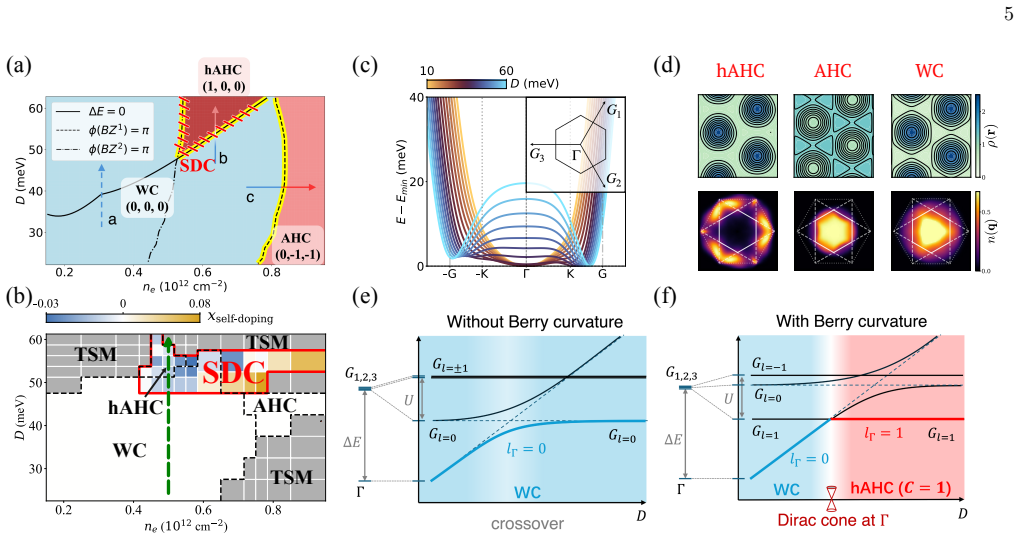

Figure 3. Figure 3: FIG. 3. Phase diagram for rhombohedral pentalayer graphene (R5G). (a) Phase diagram for competing commensurate ( [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

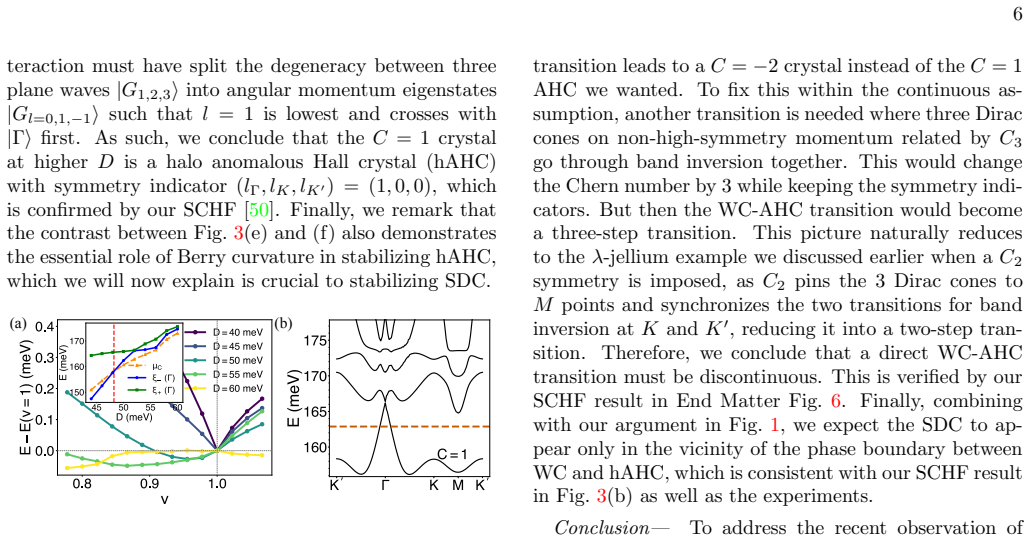

Figure 4. Figure 4: FIG. 4. Characterization of SDC phase of R5G at [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

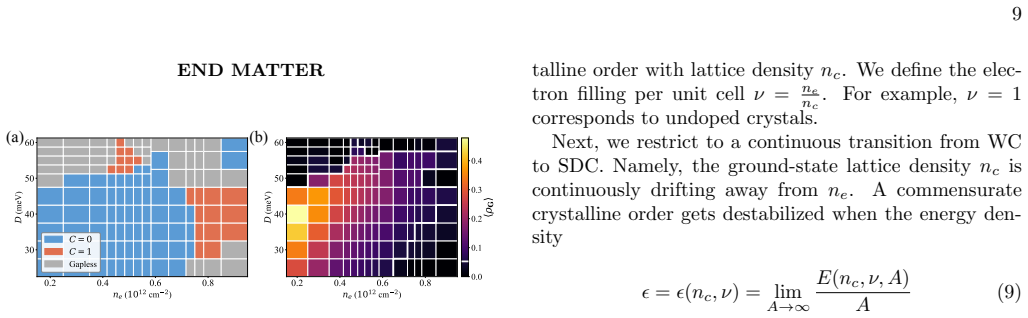

Figure 5. Figure 5: FIG. 5. (a) HF phase diagram for R5G, obtained by a HF [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

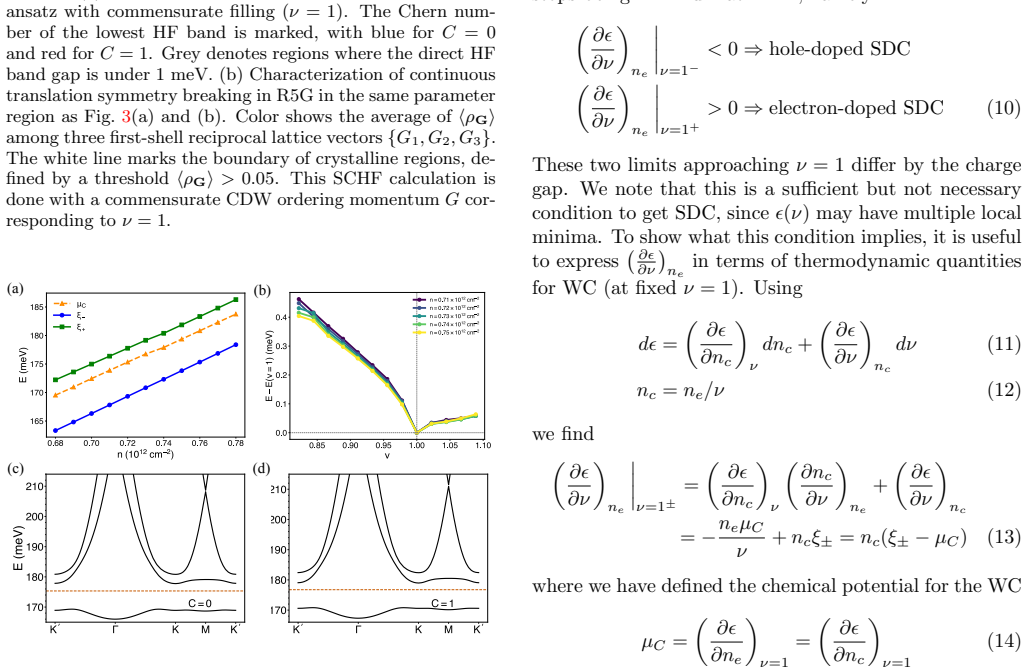

Figure 6. Figure 6: FIG. 6. Absence of SDC along the first-order WC-AHC tran [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
read the original abstract

Recent experiments in rhombohedral graphene find evidence for a "self-doped" Wigner crystal (SDC) in which a slightly incommensurate Wigner crystal (WC) coexists with a small Fermi sea. We provide non-perturbative arguments that such SDCs generically arise from preempted band-inversion transitions between commensurate crystals, which motivates simple band-theory criteria for their appearance. Self-consistent Hartree-Fock calculations establish the existence of a SDC consistent with this mechanism in both the $\lambda$-jellium model and rhombohedral pentalayer graphene (R5G). In the $\lambda$-jellium model, we identify a SDC phase located between a "halo"-WC and an anomalous Hall crystal (AHC), which would otherwise be connected via a Dirac transition when pinned to commensuration; this contrasts with the WC-AHC transition, which we show cannot be connected by a continuous transition due to a mismatch of symmetry indices. In R5G, we predict a SDC phase located between a WC and a "disqualified" halo anomalous Hall crystal. We discuss in general how the Berry curvature distribution in the parent band affects the appearance of SDC, revealing a novel role of quantum geometry in inducing exotic quantum phases of matter.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper claims that self-doped crystals (SDCs) generically arise from preempted band-inversion transitions between commensurate crystals. Non-perturbative symmetry arguments establish that direct WC-AHC transitions are forbidden due to symmetry-index mismatch, motivating simple band-theory criteria based on this mismatch and Berry curvature distribution. Self-consistent Hartree-Fock calculations demonstrate an intervening SDC phase in the λ-jellium model (between halo-WC and AHC) and in rhombohedral pentalayer graphene (between WC and disqualified halo AHC).

Significance. If the central claims hold, the work provides a symmetry-protected mechanism explaining experimental SDC observations in rhombohedral graphene, with explicit HF demonstrations in two models and falsifiable band-theory criteria. The non-perturbative symmetry arguments and parameter-free aspects of the mismatch criterion are notable strengths, as is the discussion of quantum geometry's role in phase selection.

major comments (2)
  1. [λ-jellium model and HF results] The HF calculations establishing the SDC phase in the λ-jellium model (between halo-WC and AHC) are load-bearing for the preemption claim; however, without explicit comparison of energies or order parameters to alternative competing orders (e.g., other CDW states) or estimates of fluctuation effects, it remains unclear whether SDC specifically preempts the band inversion rather than HF bias favoring Slater determinants in the correlated regime.
  2. [Symmetry arguments section] The symmetry-index mismatch argument forbidding a continuous WC-AHC transition is central and non-perturbative, but the manuscript should explicitly tabulate or derive the symmetry indices for the WC, AHC, and SDC phases (including the relevant space group or point group representations) to allow verification of the group-theory criterion.
minor comments (3)
  1. Add convergence details, error estimates, or parameter scans for the self-consistent HF calculations to assess numerical robustness.
  2. Clarify the precise meaning of 'disqualified' halo anomalous Hall crystal and its relation to the band-inversion criteria in the R5G discussion.
  3. Ensure all experimental references on self-doped Wigner crystals in graphene are cited in the introduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading, positive assessment of the significance of our work, and constructive major comments. We address each point below and have revised the manuscript accordingly to strengthen the presentation while preserving the core claims.

read point-by-point responses

  1. Referee: [λ-jellium model and HF results] The HF calculations establishing the SDC phase in the λ-jellium model (between halo-WC and AHC) are load-bearing for the preemption claim; however, without explicit comparison of energies or order parameters to alternative competing orders (e.g., other CDW states) or estimates of fluctuation effects, it remains unclear whether SDC specifically preempts the band inversion rather than HF bias favoring Slater determinants in the correlated regime.

    Authors: We appreciate the referee's emphasis on the need for explicit comparisons to establish the robustness of the SDC phase. In the revised manuscript, we have added new panels to Figure 3 (and accompanying text) that plot the total Hartree-Fock energy versus the tuning parameter λ for the halo-WC, SDC, and AHC phases, demonstrating that the SDC has the lowest energy in the intervening regime. We also show the evolution of order parameters, including the CDW amplitude and the integrated Berry curvature (anomalous Hall response), confirming the continuous connection through the SDC. While Hartree-Fock is a mean-field method and cannot fully capture fluctuation effects or exhaustively rule out all possible competing CDW orders, the non-perturbative symmetry mismatch argument (independent of the approximation) provides separate support for preemption of the direct transition. We have added a paragraph in the discussion section explicitly noting the limitations of mean-field theory and the scope of our comparisons, which focus on the phases linked by the band-inversion criterion. revision: partial

  2. Referee: [Symmetry arguments section] The symmetry-index mismatch argument forbidding a continuous WC-AHC transition is central and non-perturbative, but the manuscript should explicitly tabulate or derive the symmetry indices for the WC, AHC, and SDC phases (including the relevant space group or point group representations) to allow verification of the group-theory criterion.

    Authors: We agree that explicit tabulation will enhance verifiability of the central symmetry argument. In the revised manuscript, we have added a new subsection (Sec. II C) and Table I that tabulates the symmetry indices for the WC, AHC, and SDC phases. For the λ-jellium model, we use the continuous translation symmetry approximated via large supercells and list the relevant point-group representations (C6v) along with the associated Chern numbers and density modulation characters. For rhombohedral graphene, we employ the lattice space group and derive the indices from the irreducible representations of the charge density waves and the Berry curvature distribution. The table explicitly shows the mismatch between WC and AHC (preventing a continuous transition) while the incommensurate SDC evades this constraint. Derivations from the little-group analysis are provided in the supplemental material for completeness. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's chain relies on symmetry-index mismatch arguments (standard group theory forbidding direct WC-AHC transitions) and self-consistent Hartree-Fock computations locating an intervening SDC in the λ-jellium and R5G models. No step reduces by construction to its inputs: the band-theory criteria follow from external symmetry considerations, HF is a variational method whose outputs are not forced by the target claim or by fitted parameters renamed as predictions, and no load-bearing self-citations or ansatz smuggling are exhibited. The results remain falsifiable against external benchmarks or more advanced methods.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The paper rests primarily on standard condensed-matter symmetry analysis and mean-field approximations rather than introducing many new fitted quantities or entities.

free parameters (1)
  • lambda in jellium model
    The interaction parameter lambda is tuned to locate the SDC phase between halo-WC and AHC.
axioms (2)
  • domain assumption Mismatch in symmetry indices forbids continuous transition between WC and AHC
    Invoked to explain why direct connection is impossible and SDC intervenes.
  • domain assumption Berry curvature distribution in parent band controls SDC appearance
    Used to generalize the mechanism beyond specific models.
