arxiv: 2604.09931 · v1 · submitted 2026-04-10 · 📡 eess.SY · cs.CE· cs.SY· math.OC

Online Electricity Pricing from Frequency Measurements

Xinwei Liu , Vladimir Dvorkin This is my paper

Pith reviewed 2026-05-10 16:34 UTC · model grok-4.3

classification 📡 eess.SY cs.CEcs.SYmath.OC
keywords electricity pricingfrequency dynamicsreal-time marketsdistributed controlpower system stabilityprice formationgenerator remuneration
0
0 comments X

The pith

Electricity prices can be formed directly from local frequency measurements to balance the power grid in real time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

By modeling the real-time market as a dynamic price-discovery process, the paper integrates it with standard frequency dynamics of the power system. This integration produces an explicit mechanism for setting prices based only on frequency measurements at each location. The resulting prices guide each generator's response in a way that resembles a distributed PID controller, paying them for helping to correct imbalances. Sympathetic readers would see value in closing the gap between slow market timescales and fast physical dynamics. If correct, this enables decentralized pricing and control without needing extra data sharing.

Core claim

The central discovery is that integrating a dynamic price-discovery process for the real-time market with the grid's frequency dynamics yields an explicit price formation mechanism derived from frequency measurements. This mechanism functions as a distributed PID-like controller for each generator. Frequency response is driven and remunerated by electricity prices computed solely from local frequency measurements.

What carries the argument

Integrated market-frequency dynamics producing a price signal from local frequency measurements that remunerates and controls generator responses like a PID controller.

If this is right

  • Generators adjust power output based solely on local frequency-derived prices to stabilize the system.
  • No inter-generator communication is required for the pricing or response mechanism.
  • Real-time prices become available on the fast timescale of frequency changes rather than slower market cycles.
  • The prices simultaneously serve economic remuneration and physical stabilization goals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This could simplify market operations by removing the need for centralized real-time dispatch signals.
  • It opens a path to automatic pricing of frequency regulation services at the local level.
  • Simulations on test power systems could check if the mechanism maintains stability during sudden load changes.

Load-bearing premise

The real-time market can be represented as a dynamic price-discovery process that integrates with frequency dynamics to give a locally usable price signal that is both stabilizing and economically meaningful.

What would settle it

Demonstrating in a power system simulation or real test that applying these locally derived prices leads to persistent frequency deviations or mismatched economic outcomes would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.09931 by Vladimir Dvorkin, Xinwei Liu.

Figure 1
Figure 1. Figure 1: Block diagram of the controller. The controller gets the local frequency measurement, computes the frequency-dependent price adjustment to the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

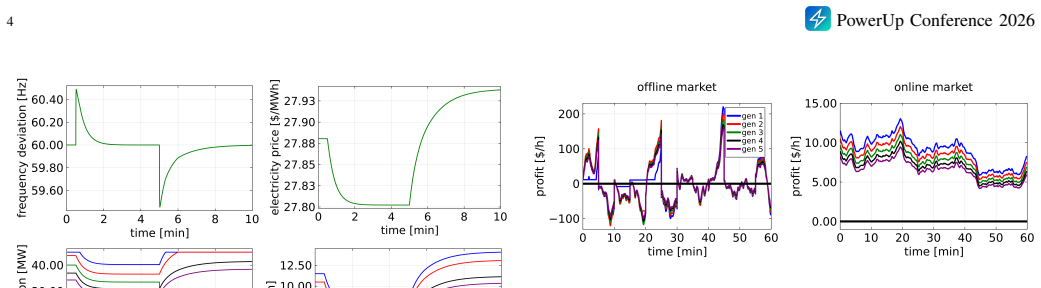

Figure 4
Figure 4. Figure 4: Offline versus online market profits of each generator. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

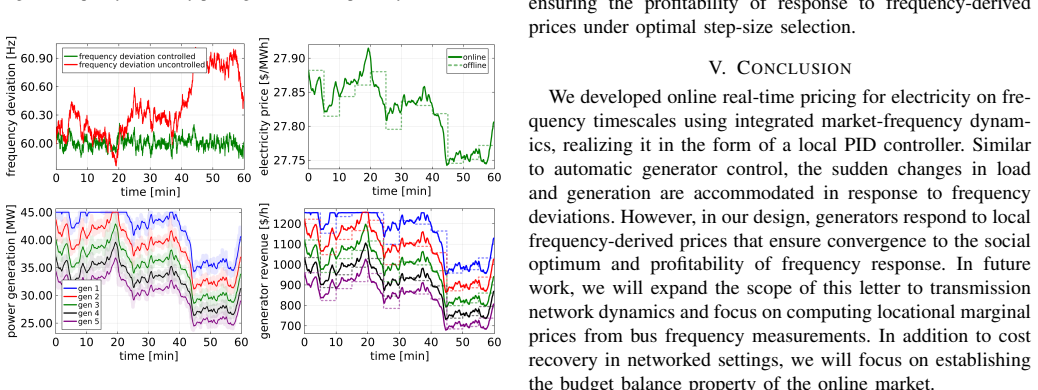

Figure 3
Figure 3. Figure 3: Frequency and market dynamics in time-varying setting. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

Frequency dynamics in power systems reflect active power imbalance in real time, thereby providing an instantaneous signal to inform electricity pricing. However, existing real-time markets operate on much slower timescales and fail to exploit this signal. In this letter, we develop integrated market--frequency dynamics that enable online pricing directly from frequency measurements. Representing the real-time market as a dynamic price-discovery process, and integrating this process with the grid frequency dynamics, we derive an explicit price formation mechanism from frequency measurements. This mechanism manifests as a distributed PID-like controller for each generator, where frequency response is driven and remunerated by electricity prices derived solely from local frequency measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper develops integrated market-frequency dynamics by modeling the real-time electricity market as a dynamic price-discovery process and coupling it to standard swing-equation frequency dynamics. From this coupling the authors derive an explicit local price signal p(t) that each generator uses to form a distributed PID-like frequency response, with both the control action and the remuneration determined solely from local frequency measurements.

Significance. If the derivation is sound and the resulting price is economically interpretable, the work would provide a concrete mechanism for real-time pricing that operates on the same timescale as primary frequency control, eliminating the need for inter-generator communication while linking physical imbalance directly to economic signals. This could improve both stability margins and market responsiveness in low-inertia systems.

major comments (3)
  1. [§3.2, Eq. (18)] §3.2, Eq. (18): the price dynamics are explicitly chosen so that the closed-loop generator response reproduces a PID controller on frequency deviation; this choice ensures the control law but does not enforce that the resulting steady-state price equals the marginal cost of the underlying economic dispatch problem or satisfies any supply-demand balance beyond the frequency balance itself.
  2. [§4, Theorem 1] §4, Theorem 1: the claim that the derived price is 'economically meaningful' rests on the equilibrium of the price-discovery process coinciding with optimal dispatch; however, the proof only shows frequency stabilization and does not compare the equilibrium price vector against the solution of the standard DCOPF or any benchmark market-clearing model.
  3. [§5.1] §5.1, simulation setup: the numerical examples demonstrate frequency regulation but report no metric (e.g., price deviation from marginal cost or total generation cost) that would confirm the prices are consistent with economic optimality rather than an arbitrary stabilizing signal.
minor comments (3)
  1. [§2.1] The swing-equation model in §2.1 omits damping and governor dynamics that are standard in frequency studies; a brief justification or sensitivity check would strengthen the claim of generality.
  2. Notation for the price variable alternates between p(t) and λ(t) across sections; consistent use would improve readability.
  3. [Figure 3] Figure 3 caption does not specify the time scale or the exact frequency deviation signal used; adding these details would clarify the PID-like behavior.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments, which help clarify the scope and limitations of our work on integrating real-time pricing with frequency dynamics. We address each major comment below, indicating planned revisions to the manuscript where appropriate. Our responses focus on accurately representing the paper's contributions without overclaiming economic optimality.

read point-by-point responses

  1. Referee: [§3.2, Eq. (18)] the price dynamics are explicitly chosen so that the closed-loop generator response reproduces a PID controller on frequency deviation; this choice ensures the control law but does not enforce that the resulting steady-state price equals the marginal cost of the underlying economic dispatch problem or satisfies any supply-demand balance beyond the frequency balance itself.

    Authors: We agree with this characterization. Equation (18) is deliberately constructed to yield a local price signal p(t) that induces a distributed PID-like response to frequency deviations, using only local measurements, as the core contribution of the integrated market-frequency model. The steady-state price thereby reflects the real-time imbalance via frequency but is not constrained to equal marginal costs from a full economic dispatch. In the revision, we will add explicit text in §3.2 clarifying that the economic role is to remunerate primary frequency response in real time rather than to solve a complete supply-demand optimization. revision: partial

  2. Referee: [§4, Theorem 1] the claim that the derived price is 'economically meaningful' rests on the equilibrium of the price-discovery process coinciding with optimal dispatch; however, the proof only shows frequency stabilization and does not compare the equilibrium price vector against the solution of the standard DCOPF or any benchmark market-clearing model.

    Authors: The referee is correct that Theorem 1 proves asymptotic stability of the coupled dynamics to an equilibrium with zero frequency deviation, without a direct comparison to the DCOPF solution. The economic interpretability we emphasize arises from the price being formed instantaneously from the physical imbalance signal (frequency), providing a distributed mechanism that links control action to remuneration without communication. To prevent any overstatement, we will revise the discussion following Theorem 1 to state that the equilibrium price balances frequency under the proposed dynamics and to note explicitly that equivalence to optimal dispatch solutions is not established or claimed. revision: yes

  3. Referee: [§5.1] the numerical examples demonstrate frequency regulation but report no metric (e.g., price deviation from marginal cost or total generation cost) that would confirm the prices are consistent with economic optimality rather than an arbitrary stabilizing signal.

    Authors: We acknowledge that the simulations in §5.1 primarily validate frequency regulation performance and the distributed implementation. In the revised manuscript, we will augment the numerical results with steady-state price values for the test cases and include a brief qualitative discussion relating these prices to the underlying generation costs in the system. We will also add a clarifying sentence that the examples illustrate the control behavior derived from the price dynamics rather than benchmark optimality against DCOPF. revision: yes

Circularity Check

0 steps flagged

Derivation integrates market price dynamics with frequency equations without reducing to self-definition or fitted inputs by construction.

full rationale

The paper presents an integration of a dynamic price-discovery process with swing-equation frequency dynamics to obtain a local price signal that induces PID-like generator response. No equations in the provided text reduce the resulting price p(t) to a quantity defined in terms of itself or to a fitted parameter renamed as prediction. The construction begins from standard frequency dynamics and an assumed price process, then derives the closed-loop behavior; this is a standard modeling step rather than a circular redefinition. No self-citation load-bearing steps, uniqueness theorems, or ansatzes imported from prior author work are visible in the abstract or description. The central claim therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard power-system frequency dynamics and the modeling choice to treat the market as a dynamic price-discovery process; no free parameters or invented entities are visible in the abstract.

axioms (2)
  • domain assumption Power system frequency dynamics follow standard swing-equation or similar differential models that link frequency deviation to active power imbalance.
    Invoked implicitly when integrating market dynamics with frequency dynamics.
  • domain assumption A real-time market can be represented as a continuous dynamic price-discovery process.
    Stated directly in the abstract as the starting point for integration.

pith-pipeline@v0.9.0 · 5399 in / 1202 out tokens · 28622 ms · 2026-05-10T16:34:21.777012+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

8 extracted references · 8 canonical work pages

  1. [1]

    D. S. Kirschen and G. Strbac,Fundamentals of power system economics. John Wiley & Sons, 2018

    work page 2018

  2. [2]

    Achieving real-time eco- nomic dispatch in power networks via a saddle point design approach,

    X. Zhang, N. Li, and A. Papachristodoulou, “Achieving real-time eco- nomic dispatch in power networks via a saddle point design approach,” in2015 IEEE Power & Energy Society General Meeting, pp. 1–5, 2015

    work page 2015

  3. [3]

    A unified framework for frequency control and congestion management,

    C. Zhao, E. Mallada, S. Low, and J. Bialek, “A unified framework for frequency control and congestion management,” in2016 Power Systems Computation Conference (PSCC), pp. 1–7, IEEE, 2016

    work page 2016

  4. [4]

    Optimal load-side control for frequency regulation in smart grids,

    E. Mallada, C. Zhao, and S. Low, “Optimal load-side control for frequency regulation in smart grids,”IEEE Transactions on Automatic Control, vol. 62, no. 12, pp. 6294–6309, 2017

    work page 2017

  5. [5]

    On the stability, economic efficiency and incentive compatibility of electricity market dynamics,

    P. You, Y . Jiang, E. Yeung, D. F. Gayme, and E. Mallada, “On the stability, economic efficiency and incentive compatibility of electricity market dynamics,”IEEE Transactions on Automatic Control, 2025

    work page 2025

  6. [6]

    Walras’ tatonnement in the theory of exchange,

    H. Uzawa, “Walras’ tatonnement in the theory of exchange,”The Review of Economic Studies, vol. 27, no. 3, pp. 182–194, 1960

    work page 1960

  7. [7]

    Power system stability,

    P. Kunduret al., “Power system stability,”Power system stability and control, vol. 10, no. 1, pp. 7–1, 2007

    work page 2007

  8. [8]

    Online inertia estimation of inverter-based resources using bus frequency measurements,

    N. Z. Shahraki, K. Dey, T. Lin, and A. M. Gole, “Online inertia estimation of inverter-based resources using bus frequency measurements,”Electric Power Systems Research, vol. 252, p. 112306, 2026

    work page 2026
