arxiv: 2604.10198 · v1 · submitted 2026-04-11 · ⚛️ physics.optics · physics.app-ph

Engineering Multi-wavelength Emission in All-Fiber Laser Mode-Locked Through Nonlinear Polarization Rotation

Pith reviewed 2026-05-10 15:55 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords multi-wavelength emissionnonlinear polarization rotationfiber lasermode-lockingbirefringencecomb filtererbium-dopedDWDM
0
0 comments X

The pith

Controlling birefringence makes NPR a reconfigurable comb filter for multi-wavelength fiber laser outputs

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that in an all-fiber erbium-doped ring laser, adjusting the intracavity birefringence allows nonlinear polarization rotation to function as a tunable comb filter. This enables stable mode-locking at one to seven wavelengths simultaneously, with the ability to switch channels reversibly and suppress or activate them individually without changing the cavity setup. A reader would care because this provides a compact, simple way to create reconfigurable multi-channel sources for applications like dense wavelength division multiplexing and photonic signal processing. The effect comes from the balance between the birefringent filtering and nonlinear phase modulation in the cavity.

Core claim

By controlling the intracavity birefringence, NPR acts as a reconfigurable comb filter that enables flexible wavelength selection without modifying the cavity architecture, supporting stable spectral states from single- to seven-wavelength mode-locking with reversible switching and channel activation or suppression.

What carries the argument

The NPR-induced reconfigurable comb filter arising from controlled birefringence, which interacts with nonlinear phase modulation to stabilize multiple wavelength channels for mode-locking.

Load-bearing premise

Adjusting intracavity birefringence alone will produce deterministic, stable, and reversible multi-wavelength mode-locking states via the interplay of NPR comb filtering and nonlinear phase modulation.

What would settle it

An experiment showing that multi-wavelength states cannot be consistently achieved or switched reversibly by birefringence control alone, or that they are unstable due to environmental factors, would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.10198 by Amala Jose, K. Nithyanandan, Subrata Manna.

Figure 1
Figure 1. Figure 1: Experimental setup of the NPR-based mode [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Polarization states of mode-locked laser [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Single wavelength NPR-based mode-locked [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Output spectra corresponding to multi-wavelength operation from one to seven spectral peaks. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Measured seven-wavelength output spectrum of [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Temporal stability of the seven-wavelength mode [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: RF spectra of the seven-wavelength mode-locked [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: Pulse train of seven-wavelength mode-locked state [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 10

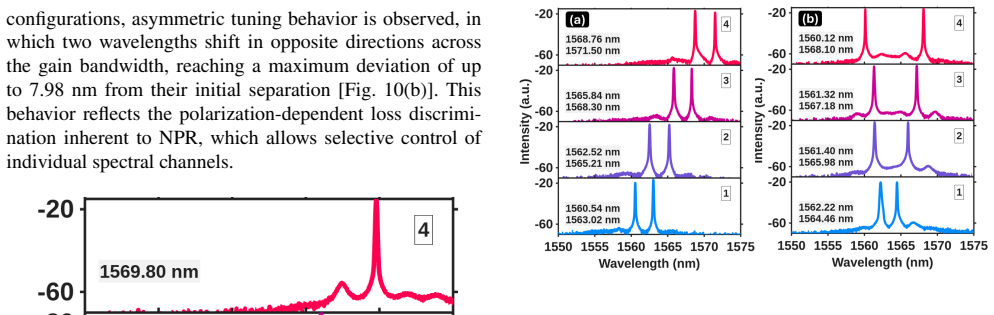

Figure 10. Figure 10: Two wavelength tunability in the (a) same direc [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: Output spectra showing single-wavelength tuning [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: (a) Three-wavelength, and (b) four-wavelength [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: Spectra of the three-wavelength mode-locked [PITH_FULL_IMAGE:figures/full_fig_p008_13.png] view at source ↗
Figure 12
Figure 12. Figure 12: Dynamic switching of a two-wavelength mode [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: Output spectra of the four-wavelength mode-locked fiber laser illustrating four-bit binary operation through [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
read the original abstract

The increasing demand for multi-wavelength optical sources to support dense wavelength-division multiplexing (DWDM) channels has driven the development of compact and reconfigurable multi-wavelength fiber lasers. Here, we demonstrate a continuously tunable and deterministically switchable multi-wavelength erbium-doped fiber laser based on nonlinear polarization rotation (NPR) in a compact all-fiber ring cavity. By controlling the intracavity birefringence, NPR acts as a reconfigurable comb filter that enables flexible wavelength selection without modifying the cavity architecture. The laser supports stable spectral states ranging from single- to seven-wavelength mode-locking, enabling reversible wavelength switching and activation/suppression of individual channels. The selectable spectral states can be mapped to binary bit operations, where each wavelength channel represents a controllable logical state. The behavior arises from the interplay between NPR-induced birefringent comb filtering and nonlinear phase modulation, providing a simple and compact platform for reconfigurable multi-channel ultrafast sources for DWDM and photonic signal processing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 4 minor

Summary. The manuscript presents an experimental demonstration of a compact all-fiber erbium-doped ring laser mode-locked via nonlinear polarization rotation (NPR). By adjusting intracavity birefringence using polarization controllers, NPR functions as a reconfigurable comb filter, enabling stable and reversible multi-wavelength mode-locking from single- to seven-wavelength states without cavity modifications. The work includes a cavity schematic, specific polarization settings, output spectra for each state, and demonstrations of channel activation/suppression and switching sequences. The spectral configurations are conceptually mapped to binary bit operations, arising from the interplay of NPR-induced birefringent filtering and nonlinear phase modulation.

Significance. If the reported experimental results hold, the demonstration provides a simple, compact platform for reconfigurable multi-wavelength ultrafast sources suitable for DWDM applications and photonic signal processing. The ability to achieve deterministic, reversible wavelength selection and individual channel control through birefringence tuning alone, supported by direct spectral and switching data, represents a practical advance over more complex cavity designs. The experimental evidence of repeatable states from 1 to 7 wavelengths strengthens the utility claim.

minor comments (4)
  1. [Abstract] The abstract describes the laser as 'continuously tunable' while the results emphasize discrete spectral states; clarify this distinction in the introduction or results to avoid potential reader confusion.
  2. [Discussion] The discussion of the mechanism (NPR comb filtering combined with nonlinear phase modulation) remains qualitative; adding a brief calculation or reference to the expected filter period based on birefringence would help substantiate the observed wavelength spacings.
  3. [Figures] Figure captions and labels for the output spectra should explicitly note the resolution bandwidth and any averaging used, to facilitate direct comparison with other multi-wavelength laser reports.
  4. [Experimental Setup] A summary table listing the polarization controller settings (or rotation angles) corresponding to each multi-wavelength state would improve reproducibility and allow readers to replicate the binary-like switching.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and the recommendation for minor revision. The referee's summary accurately captures the experimental demonstration of reconfigurable multi-wavelength mode-locking in a compact all-fiber NPR laser, including the birefringence-controlled channel selection and binary mapping of spectral states.

Circularity Check

0 steps flagged

No significant circularity: purely experimental demonstration

full rationale

The paper reports an experimental all-fiber laser setup using NPR for multi-wavelength mode-locking. Claims rest on measured output spectra, polarization controller settings, and observed reversible switching between single- to seven-wavelength states, with no equations, fitted parameters, or derivation chain present in the manuscript. Results are directly supported by cavity schematic and experimental data sequences; no self-referential reduction, self-citation load-bearing, or ansatz smuggling occurs. The work is self-contained against external benchmarks as a physical demonstration.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim is an experimental demonstration that relies on standard, previously established principles of nonlinear polarization rotation, birefringence in optical fiber, and erbium-doped fiber amplification. No new free parameters, axioms, or invented entities are introduced.
