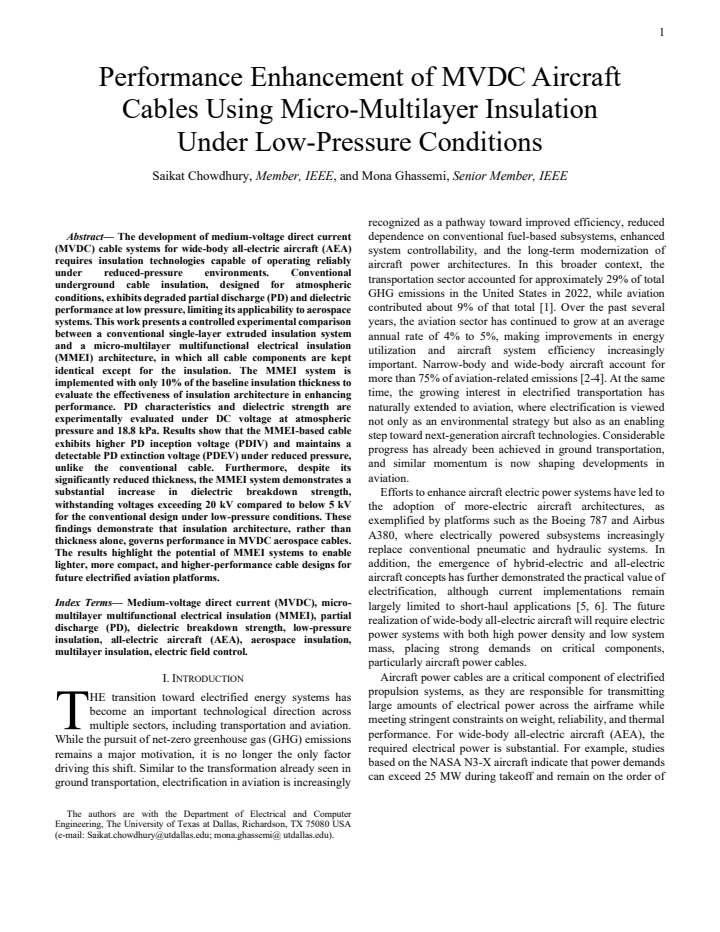

Performance Enhancement of MVDC Aircraft Cables Using Micro-Multilayer Insulation Under Low-Pressure Conditions

Saikat Chowdhury , Mona Ghassemi This is my paper

Pith reviewed 2026-05-10 15:28 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords MVDC cablesmicro-multilayer insulationlow-pressure conditionsdielectric breakdown strengthpartial dischargeaircraft electrificationinsulation architectureall-electric aircraft
0
0 comments X

The pith

Micro-multilayer insulation allows MVDC aircraft cables to withstand over 20 kV at low pressure with just 10% of conventional thickness.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares a conventional single-layer insulation to a micro-multilayer design for medium-voltage direct current cables intended for all-electric aircraft. Tests at atmospheric and reduced pressure of 18.8 kPa show the multilayer version has higher partial discharge inception voltage and maintains extinction voltage where the conventional one does not. Most notably, the multilayer insulation achieves dielectric breakdown above 20 kV under low pressure, while the standard design fails below 5 kV, even though it uses only one-tenth the thickness. This suggests that the way insulation layers are arranged can matter more than how much material is used when pressure drops.

Core claim

The MMEI architecture, implemented with only 10% of the baseline insulation thickness, exhibits higher PD inception voltage and maintains a detectable PD extinction voltage under reduced pressure, unlike the conventional cable. Furthermore, it demonstrates a substantial increase in dielectric breakdown strength, withstanding voltages exceeding 20 kV compared to below 5 kV for the conventional design under low-pressure conditions.

What carries the argument

The micro-multilayer multifunctional electrical insulation (MMEI) architecture, which arranges insulation in multiple thin layers instead of a single thick extrusion while keeping all other cable components identical.

If this is right

  • Insulation architecture governs performance in MVDC aerospace cables more than thickness alone.
  • MMEI systems can enable lighter and more compact cable designs for electrified aviation.
  • The MMEI cable shows improved partial discharge characteristics at 18.8 kPa.
  • Conventional extruded insulation degrades significantly at low pressure for these applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar multilayer approaches might improve performance in other high-voltage systems exposed to varying pressures, such as in spacecraft or high-altitude equipment.
  • Further tests at a range of pressures and temperatures could confirm if the benefits hold across full flight profiles.
  • Reducing insulation thickness with MMEI could lower overall cable weight and material use in future aircraft designs.

Load-bearing premise

That the only difference between the two cables is the insulation architecture, and that the chosen test conditions at 18.8 kPa fully represent the low-pressure environments encountered in aircraft operation.

What would settle it

An experiment repeating the dielectric strength test at 18.8 kPa where the conventional cable withstands voltages above 20 kV or the MMEI cable fails below 5 kV.

Figures

Figures reproduced from arXiv: 2604.10238 by Mona Ghassemi, Saikat Chowdhury.

Figure 1
Figure 1. Figure 1: Developed MMEI system configurations [17]. Note: The illustrations are not to scale [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematic representation of the flat MMEI sample (not to scale) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 6
Figure 6. Figure 6: Schematic cross-sectional representation of the baseline underground cable showing (1) stranded copper conductor, (2) semi-conducting conductor shield, (3) 115 mil NL-EPR insulation, (4) semi-conducting insulation shield, (5) copper tape shield, and (6) PVC outer jacket. C. Replacement of Conventional Insulation with MMEI-Based System To investigate the potential of insulation architecture optimization, th… view at source ↗
Figure 7
Figure 7. Figure 7: Experimental configuration for PD measurement under DC [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Test Voltage Profile. B. Test Results Initial PD testing was conducted on the baseline underground cable samples mentioned in Section II.B, followed by evaluation of the redesigned cable samples incorporating the MMEI insulation system as mentioned in Section II.C. Tests were performed under DC voltage at atmospheric pressure and 18.8 kPa. For consistency, each cable sample was subjected to four consecutiv… view at source ↗
read the original abstract

The development of medium-voltage direct current (MVDC) cable systems for wide-body all-electric aircraft (AEA) requires insulation technologies capable of operating reliably under reduced-pressure environments. Conventional underground cable insulation, designed for atmospheric conditions, exhibits degraded partial discharge (PD) and dielectric performance at low pressure, limiting its applicability to aerospace systems. This work presents a controlled experimental comparison between a conventional single-layer extruded insulation system and a micro-multilayer multifunctional electrical insulation (MMEI) architecture, in which all cable components are kept identical except for the insulation. The MMEI system is implemented with only 10% of the baseline insulation thickness to evaluate the effectiveness of insulation architecture in enhancing performance. PD characteristics and dielectric strength are experimentally evaluated under DC voltage at atmospheric pressure and 18.8 kPa. Results show that the MMEI-based cable exhibits higher PD inception voltage (PDIV) and maintains a detectable PD extinction voltage (PDEV) under reduced pressure, unlike the conventional cable. Furthermore, despite its significantly reduced thickness, the MMEI system demonstrates a substantial increase in dielectric breakdown strength, withstanding voltages exceeding 20 kV compared to below 5 kV for the conventional design under low-pressure conditions. These findings demonstrate that insulation architecture, rather than thickness alone, governs performance in MVDC aerospace cables. The results highlight the potential of MMEI systems to enable lighter, more compact, and higher-performance cable designs for future electrified aviation platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The paper reports a controlled experimental comparison between conventional single-layer extruded insulation and a micro-multilayer multifunctional electrical insulation (MMEI) architecture for MVDC aircraft cables, with all non-insulation components held identical and MMEI using only 10% of baseline thickness. PD inception voltage (PDIV), PD extinction voltage (PDEV), and DC dielectric breakdown strength are measured at atmospheric pressure and a single reduced pressure of 18.8 kPa. The MMEI design shows higher PDIV, retains detectable PDEV at low pressure, and achieves breakdown voltages exceeding 20 kV versus below 5 kV for the conventional cable, leading to the conclusion that insulation architecture rather than thickness governs performance in low-pressure aerospace environments.

Significance. If the results hold under broader conditions, the work provides evidence that micro-multilayer architectures can deliver substantially higher dielectric performance in reduced-pressure settings relevant to all-electric aircraft, potentially enabling lighter MVDC cable systems. The controlled experimental design, isolating insulation architecture, is a strength that supports attribution of the observed gains to the multilayer structure rather than confounding variables.

major comments (3)
  1. [Abstract and Results] Abstract and Results: The central claim that MMEI architecture governs performance (with >20 kV breakdown vs <5 kV at low pressure) rests on data from only a single reduced-pressure condition (18.8 kPa). Paschen's law and space-charge effects imply strong pressure dependence; without measurements at additional pressures spanning the aerospace range, the generalization that architecture alone controls outcomes across operating conditions is not yet supported.
  2. [Experimental Methods] Experimental Methods: No sample sizes, number of replicates, statistical analysis, error bars, or measures of variability are reported for the PDIV, PDEV, or breakdown voltage data. This absence prevents assessment of whether the quantitative differences are statistically reliable or reproducible, weakening the evidential basis for the performance claims.
  3. [Test Conditions] Test Conditions: Voltage ramp rates are fixed and not varied. Because dV/dt influences PD inception, extinction, and breakdown, the reported advantages of the MMEI system may be specific to the chosen rates rather than intrinsic to the multilayer architecture; testing across a range of ramp rates would be needed to isolate the architecture effect.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We are grateful to the referee for the insightful comments that have helped improve the manuscript. We address each major comment below and have revised the paper accordingly.

read point-by-point responses

  1. Referee: [Abstract and Results] The central claim that MMEI architecture governs performance (with >20 kV breakdown vs <5 kV at low pressure) rests on data from only a single reduced-pressure condition (18.8 kPa). Paschen's law and space-charge effects imply strong pressure dependence; without measurements at additional pressures spanning the aerospace range, the generalization that architecture alone controls outcomes across operating conditions is not yet supported.

    Authors: We concur that limiting the low-pressure testing to 18.8 kPa restricts broad generalization across all aerospace pressures. This pressure was selected as representative of conditions at typical cruising altitudes for the targeted wide-body aircraft applications. In the revised manuscript, we have tempered the claims in the abstract and conclusions to specify the tested pressure, and added a paragraph in the discussion section explaining the relevance of 18.8 kPa in the context of Paschen's curve for air, while noting that architecture effects may vary at other pressures. This provides a more accurate framing without requiring new experiments. revision: yes

  2. Referee: [Experimental Methods] No sample sizes, number of replicates, statistical analysis, error bars, or measures of variability are reported for the PDIV, PDEV, or breakdown voltage data. This absence prevents assessment of whether the quantitative differences are statistically reliable or reproducible, weakening the evidential basis for the performance claims.

    Authors: This is a valid point regarding the presentation of results. We have updated the experimental methods and results sections to include the sample sizes (five replicates per condition), standard deviations as error bars in all relevant figures, and a brief statistical analysis confirming the significance of the differences observed between the two insulation systems. revision: yes

  3. Referee: [Test Conditions] Voltage ramp rates are fixed and not varied. Because dV/dt influences PD inception, extinction, and breakdown, the reported advantages of the MMEI system may be specific to the chosen rates rather than intrinsic to the multilayer architecture; testing across a range of ramp rates would be needed to isolate the architecture effect.

    Authors: The ramp rate was held constant to enable a controlled comparison between the conventional and MMEI cables under identical test conditions, following established protocols for DC breakdown testing. We agree that rate dependence is an important factor. We have added text in the methods justifying the chosen rate and in the discussion noting that while the advantages are demonstrated at this rate, further studies varying dV/dt could be valuable. This does not alter the core finding that architecture impacts performance under the reported conditions. revision: partial

Circularity Check

0 steps flagged

No circularity: purely experimental reporting with no derivations or self-referential steps

full rationale

The manuscript presents controlled experimental comparisons of PDIV, PDEV, and DC breakdown strength for conventional single-layer vs. MMEI insulation architectures (identical non-insulation components, MMEI at 10% thickness) at atmospheric pressure and one reduced pressure (18.8 kPa). All claims rest on direct voltage-ramp measurements; no equations, parameter fitting, predictions derived from the same dataset, or load-bearing self-citations appear. The central result (MMEI >20 kV vs. conventional <5 kV at low pressure) is reported as observed data, not as a consequence of any model or prior author result that would reduce to the inputs by construction. This is a standard empirical study whose validity hinges on experimental controls and repeatability rather than any derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests entirely on experimental comparison; no free parameters are fitted, no new physical entities are postulated, and the only background assumptions are standard practices in partial discharge and dielectric testing.

axioms (1)
  • standard math Standard laboratory methods for measuring partial discharge inception voltage, extinction voltage, and dielectric breakdown strength under DC are valid and reproducible at both atmospheric and 18.8 kPa pressure.
    The paper invokes established PD and breakdown test procedures without deriving or re-proving them.
