arxiv: 2604.10387 · v2 · submitted 2026-04-12 · 💻 cs.DC

Recognition: unknown

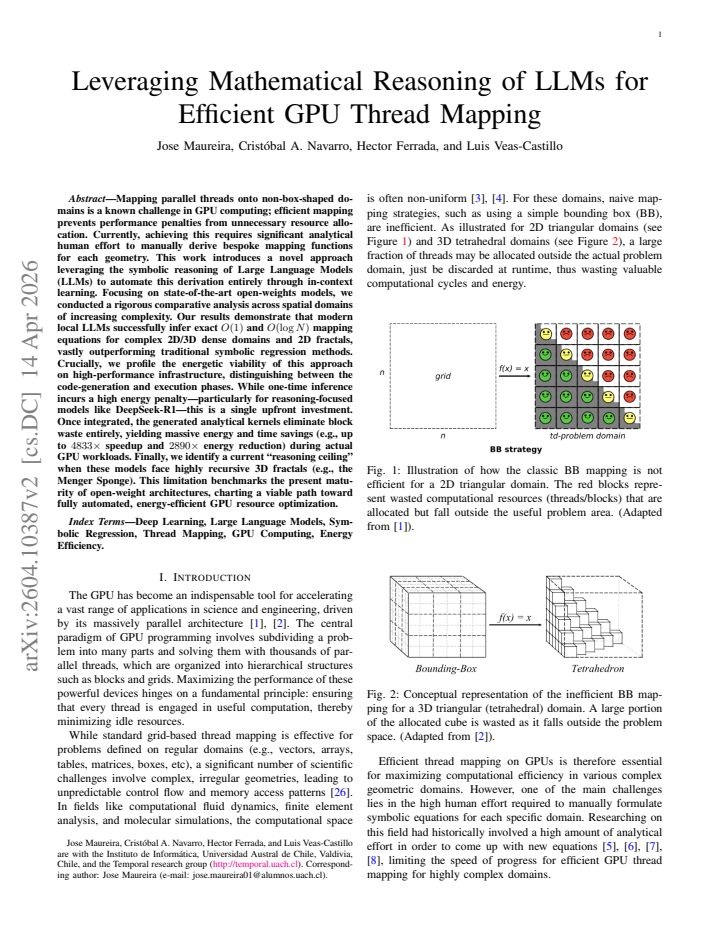

Leveraging Mathematical Reasoning of LLMs for Efficient GPU Thread Mapping

Jose Maureira , Crist\'obal A. Navarro , Hector Ferrada , Luis Veas-Castillo

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:31 UTC · model grok-4.3

classification 💻 cs.DC

keywords GPU thread mappinglarge language modelsin-context learningenergy efficiencysymbolic regressionfractal domainsparallel computingO(1) mappings

0 comments

The pith

LLMs can automatically derive exact O(1) and O(log N) thread-mapping equations for complex GPU domains, delivering up to thousands-fold speedups by eliminating block waste.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that state-of-the-art open-weight large language models can use in-context learning to generate precise mathematical functions that map GPU threads onto non-rectangular shapes such as dense 2D/3D volumes and 2D fractals. This replaces the current requirement for human experts to derive custom mappings by hand for each geometry. When the generated analytical kernels are used, they assign threads without any unused blocks, producing large reductions in both execution time and energy during actual GPU workloads. The authors separate the one-time cost of asking the LLM from the repeated savings at runtime and show that the latter dominates. They also document where current models reach a limit on highly recursive 3D fractals.

Core claim

Modern local LLMs successfully infer exact O(1) and O(log N) mapping equations for complex 2D/3D dense domains and 2D fractals through in-context learning, vastly outperforming traditional symbolic regression methods. Once integrated, the generated analytical kernels eliminate block waste entirely, yielding massive energy and time savings (up to 4833x speedup and 2890x energy reduction) during actual GPU workloads. A current reasoning ceiling exists for highly recursive 3D fractals such as the Menger Sponge.

What carries the argument

In-context learning with open-weight LLMs to generate analytical thread-mapping functions that assign parallel threads to non-box-shaped spatial domains without waste.

If this is right

The one-time energy cost of LLM inference is amortized over repeated executions of the resulting kernels.
Generated mappings remove all block waste on the tested irregular domains during GPU execution.
LLMs outperform symbolic regression when deriving these mappings for the studied 2D/3D and fractal cases.
Highly recursive 3D fractals currently exceed the reliable reasoning capability of the tested models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same prompting strategy could be applied to derive mappings for other parallel architectures that face similar resource-waste problems.
Compiler tools might eventually embed this generation step so that programmers no longer need to think about domain shape at all.
If the ceiling on recursive fractals is lifted in future models, the method would extend to a wider set of scientific simulation domains.

Load-bearing premise

The equations produced by the LLMs are mathematically correct, contain no hallucinations, and deliver the claimed performance without any post-generation human correction or verification.

What would settle it

A tested domain where an LLM-generated mapping function produces incorrect thread assignments or fails to achieve any speedup over standard block-based allocation.

Figures

Figures reproduced from arXiv: 2604.10387 by Crist\'obal A. Navarro, Hector Ferrada, Jose Maureira, Luis Veas-Castillo.

**Figure 2.** Figure 2: Conceptual representation of the inefficient BB map [PITH_FULL_IMAGE:figures/full_fig_p001_2.png] view at source ↗

**Figure 3.** Figure 3: Overview of the proposed automated discovery pipeline. (1) Data extraction from the target domain, (2) Neural symbolic [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: Visual overview of the six evaluated computational [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 5.** Figure 5: Computational efficiency (Points/Joule) of each open-source model across six spatial domains—three 2D (top) and [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

read the original abstract

Mapping parallel threads onto non-box-shaped domains is a known challenge in GPU computing; efficient mapping prevents performance penalties from unnecessary resource allocation. Currently, achieving this requires significant analytical human effort to manually derive bespoke mapping functions for each geometry. This work introduces a novel approach leveraging the symbolic reasoning of Large Language Models (LLMs) to automate this derivation entirely through in-context learning. Focusing on state-of-the-art open-weights models, we conducted a rigorous comparative analysis across spatial domains of increasing complexity. Our results demonstrate that modern local LLMs successfully infer exact O(1) and O(log N) mapping equations for complex 2D/3D dense domains and 2D fractals, vastly outperforming traditional symbolic regression methods. Crucially, we profile the energetic viability of this approach on high-performance infrastructure, distinguishing between the code-generation and execution phases. While one-time inference incurs a high energy penalty -- particularly for reasoning-focused models like DeepSeek-R1 -- this is a single upfront investment. Once integrated, the generated analytical kernels eliminate block waste entirely, yielding massive energy and time savings (e.g., up to 4833x speedup and 2890x energy reduction) during actual GPU workloads. Finally, we identify a current "reasoning ceiling" when these models face highly recursive 3D fractals (e.g., the Menger Sponge). This limitation benchmarks the present maturity of open-weight architectures, charting a viable path toward fully automated, energy-efficient GPU resource optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

LLMs can generate working thread mappings for irregular GPU domains and cut runtime waste sharply, but the paper does not show independent checks that the equations are mathematically exact rather than just empirically useful.

read the letter

The two things to know are that open LLMs can produce mapping functions for non-box GPU domains that deliver large speed and energy gains at execution time, and that the work separates the one-time cost of LLM inference from the repeated savings once the kernel runs. The mappings target 2D and 3D dense shapes plus some fractals, and the reported numbers reach thousands of times better performance by removing block waste entirely. They also flag where current models hit a wall on highly recursive 3D cases like the Menger Sponge. That honesty about limits is useful. The new element is treating in-context learning as a replacement for manual derivation or symbolic regression. They compare several local models on domains of increasing complexity and show cases where the LLM outputs O(1) or O(log N) forms that regression misses. The energy profiling is practical: it measures the high upfront cost for reasoning models but shows the downstream payoff when the analytical kernel runs without waste. The soft spot is verification. The abstract and results treat the outputs as exact, yet there is no clear account of systematic checks such as exhaustive thread-index enumeration, algebraic equivalence proofs, or comparison to reference implementations. If the confirmation was limited to spot checks or model self-consistency, then small errors could remain and weaken both the outperformance claim and the big speedup figures. Readers will still need to validate the functions themselves before trusting them in production code. This work is aimed at GPU programmers and HPC groups that handle irregular geometries in scientific computing or graphics. Someone looking for ways to cut down on hand-crafted mappings will find concrete examples and a realistic energy discussion. I would send it to peer review. The application is fresh and the energy angle adds value, but referees should require stronger evidence on how exactness was established and whether the gains hold on additional test cases.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes using in-context learning with open-weight LLMs to automatically derive exact O(1) or O(log N) thread-mapping functions for non-rectangular GPU domains (2D/3D dense shapes and 2D fractals). It reports that modern local models succeed where symbolic regression fails, eliminate block waste, and deliver large execution-phase speedups (up to 4833×) and energy reductions (up to 2890×) after a one-time inference cost; it also notes a current reasoning ceiling on highly recursive 3D fractals such as the Menger sponge.

Significance. If the LLM-derived mappings are verifiably correct, the approach would automate a labor-intensive step in GPU kernel design and yield substantial runtime efficiency gains. The explicit separation of inference-phase energy cost from execution-phase savings, together with the identification of a reasoning ceiling, supplies a useful empirical benchmark for both systems and LLM research. These elements are genuine strengths of the work.

major comments (3)

[Abstract / Evaluation] Abstract and Evaluation sections: the central claim that LLMs 'successfully infer exact' O(1)/O(log N) mappings is load-bearing for all performance and energy assertions, yet the manuscript provides no explicit account of how exactness was established (exhaustive enumeration of thread indices, algebraic simplification to a known reference form, or systematic comparison against a ground-truth implementation). Without this verification step, hallucinations or off-by-one errors cannot be ruled out and the reported 4833×/2890× gains remain unsupported.
[Methodology] Methodology: the description of prompt construction, number of in-context examples, and any post-generation checks (self-consistency, human review, or automated testing) is insufficient. Because the method relies entirely on LLM symbolic reasoning rather than symbolic regression or hand derivation, these details are required to assess reproducibility and to explain why the approach succeeds on the tested domains.
[Results] Results: the comparative evaluation against symbolic regression should report per-domain success rates, failure modes, and the precise equations produced by each method. The current high-level statement that LLMs 'vastly outperform' is not accompanied by the quantitative data needed to substantiate the claim.

minor comments (2)

[Abstract / Energy Profiling] The abstract states that 'one-time inference incurs a high energy penalty'; a table or figure quantifying inference energy for each model (DeepSeek-R1, etc.) versus the subsequent execution savings would make the trade-off clearer.
[Notation] Notation for the mapping functions (e.g., how thread indices are transformed) should be introduced consistently in the text and any accompanying figures.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which identify key areas where additional rigor and transparency will strengthen the manuscript. We address each major comment below and commit to major revisions that incorporate the requested details without altering the core claims or results.

read point-by-point responses

Referee: [Abstract / Evaluation] Abstract and Evaluation sections: the central claim that LLMs 'successfully infer exact' O(1)/O(log N) mappings is load-bearing for all performance and energy assertions, yet the manuscript provides no explicit account of how exactness was established (exhaustive enumeration of thread indices, algebraic simplification to a known reference form, or systematic comparison against a ground-truth implementation). Without this verification step, hallucinations or off-by-one errors cannot be ruled out and the reported 4833×/2890× gains remain unsupported.

Authors: We agree that an explicit verification protocol is essential to support the exactness claims. In the experiments, exactness was confirmed via algebraic equivalence to known reference forms for dense domains, exhaustive enumeration of all thread indices for small-to-medium N (up to 10^6), and direct comparison against ground-truth implementations for fractal cases. However, this process was described only at a high level. We will add a dedicated subsection in the Evaluation section that details the verification criteria, test ranges, and any discrepancies checked, thereby directly addressing the concern and allowing independent assessment of the mappings. revision: yes
Referee: [Methodology] Methodology: the description of prompt construction, number of in-context examples, and any post-generation checks (self-consistency, human review, or automated testing) is insufficient. Because the method relies entirely on LLM symbolic reasoning rather than symbolic regression or hand derivation, these details are required to assess reproducibility and to explain why the approach succeeds on the tested domains.

Authors: We concur that greater methodological transparency is needed for reproducibility. The revised manuscript will expand the Methodology section to include the complete prompt templates (including the number and selection of in-context examples, which ranged from 2 to 5 per domain), the generation parameters, and the post-generation checks performed: self-consistency via multiple samples, automated execution testing of the emitted functions on sample inputs, and limited human review for the most complex cases. These additions will clarify both the procedure and the factors contributing to success on the evaluated domains. revision: yes
Referee: [Results] Results: the comparative evaluation against symbolic regression should report per-domain success rates, failure modes, and the precise equations produced by each method. The current high-level statement that LLMs 'vastly outperform' is not accompanied by the quantitative data needed to substantiate the claim.

Authors: This is a fair critique of the current presentation. We will revise the Results section to include a comprehensive per-domain comparison table. The table will report exact success rates (LLMs achieved exact mappings on all tested 2D/3D dense and 2D fractal domains; symbolic regression succeeded on a subset with approximations or failures), enumerate failure modes for symbolic regression (e.g., non-closed-form outputs or incorrect coefficients), and list representative equations produced by both methods. This quantitative breakdown will substantiate the performance differential. revision: yes

Circularity Check

0 steps flagged

No circularity: LLM in-context generation is independent of paper inputs

full rationale

The paper's central chain is: supply domain examples to an external LLM via in-context learning, obtain candidate O(1)/O(log N) mapping equations, integrate the resulting kernels, and measure empirical speedups/energy savings on GPU workloads. No step reduces by construction to a parameter fitted inside the paper, a self-defined quantity, or a self-citation whose content is the target result. The LLM outputs are treated as external symbolic reasoning; performance numbers are measured post-generation on actual hardware, not derived from the same data used to prompt the model. Absence of verification details affects correctness risk but does not create a definitional or fitted-input loop. Self-citations, if present, are not load-bearing for the mapping equations themselves.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are identifiable from the abstract; the work builds on existing LLM capabilities and standard GPU computing concepts without introducing new fitted quantities or postulated objects.

pith-pipeline@v0.9.0 · 5577 in / 1199 out tokens · 58084 ms · 2026-05-10T16:31:59.688511+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

30 extracted references · 19 canonical work pages · 8 internal anchors

[1]

A., & Hitschfeld, N

Navarro, C. A., & Hitschfeld, N. (2014). GPU maps for the space of computation in triangular domain problems. Proceedings - 16th 10 IEEE International Conference on High Performance Computing and Communications, HPCC 2014. https://doi.org/10.1109/HPCC.2014.64

work page doi:10.1109/hpcc.2014.64 2014
[2]

A., Bustos, B., & Hitschfeld, N

Navarro, C. A., Bustos, B., & Hitschfeld, N. (2016). Potential benefits of a block-space GPU approach for discrete tetrahedral domains. Proceed- ings of the 2016 42nd Latin American Computing Conference, CLEI

2016
[3]

https://doi.org/10.1109/CLEI.2016.7833394

work page doi:10.1109/clei.2016.7833394 2016
[4]

A., Vega, R., Bustos, B., & Hitschfeld, N

Navarro, C. A., Vega, R., Bustos, B., & Hitschfeld, N. (2017). Block- Space GPU Mapping for Embedded Sierpi ´nski Gasket Fractals. Pro- ceedings - 2017 IEEE 19th Intl Conference on High Performance Computing and Communications, HPCC 2017. https://doi.org/10.1109/ HPCC-SmartCity-DSS.2017.56

2017
[5]

A., Vernier, M., Bustos, B., & Hitschfeld, N

Navarro, C. A., Vernier, M., Bustos, B., & Hitschfeld, N. (2018). Com- petitiveness of a non-linear block-space GPU thread map for simplex domains. IEEE Transactions on Parallel and Distributed Systems, 29(12). https://doi.org/10.1109/TPDS.2018.2849705

work page doi:10.1109/tpds.2018.2849705 2018
[6]

A., Bustos, B., & Hitschfeld, N

Navarro, C. A., Bustos, B., & Hitschfeld, N. (2019). Analysis of a Self- Similar GPU Thread Map for Data-parallel m-Simplex Domains. 2019 International Conference on High Performance Computing and Simula- tion, HPCS 2019. https://doi.org/10.1109/HPCS48598.2019.9188081

work page doi:10.1109/hpcs48598.2019.9188081 2019
[7]

A review on brain tumor segmentation based on deep learning methods with federated learning techniques

Navarro, C. A., Quezada, F. A., Hitschfeld, N., Vega, R., & Bustos, B. (2020). Efficient GPU thread mapping on embedded 2D fractals. Future Generation Computer Systems, 113. https://doi.org/10.1016/j. future.2020.07.006

work page doi:10.1016/j 2020
[8]

A., Navarro, C

Quezada, F. A., Navarro, C. A., Hitschfeld,N., & Bustos, B. (2022). Squeeze: Efficient compact fractals for tensor core GPUs. Future Gen- eration Computer Systems, 135. https://doi.org/10.1016/j.future.2022.04. 023

work page doi:10.1016/j.future.2022.04 2022
[9]

A., Quezada, F

Navarro, C. A., Quezada, F. A., Bustos, B., Hitschfeld, N., & Kindelan, R. (2022). A scalable and energy efficient GPU thread map for m- simplex domains. Future Generation Computer Systems, 141. https: //doi.org/10.1016/j.future.2022.12.020

work page doi:10.1016/j.future.2022.12.020 2022
[10]

Biggio, L., et al. (2021). Neural Symbolic Regression that Scales. Proceedings of the 38th International Conference on Machine Learning (ICML), PMLR 139:936-945

2021
[11]

Bendinelli, T., et al. (2023). Controllable Neural Symbolic Regression. Proceedings of the 40th International Conference on Machine Learning (ICML), PMLR 202:2063-2077

2023
[12]

A., et al

Kamienny, P. A., et al. (2023). Deep Generative Symbolic Regression with Monte-Carlo Tree Search.Proceedings of the 40th International Conference on Machine Learning (ICML), PMLR 202:15682-15697

2023
[13]

Vaswani, A., et al. (2017). Attention is All You Need. Advances in Neural Information Processing Systems, 30. https://arxiv.org/abs/1706. 03762

2017
[14]

Vastl, M., et al. (2024). SymFormer: End-to-End Symbolic Regression Using Transformer-Based Architecture. IEEE Access, 12. https://doi.org/ 10.1109/ACCESS.2024.3374649

work page doi:10.1109/access.2024.3374649 2024
[15]

Merler, M., et al. (2024). In-Context Symbolic Regression: Leveraging Large Language Models for Function Discovery. Proceedings of the 62nd Annual Meeting of the Association for Computational Linguistics. https://aclanthology.org/2024.acl-srw.49/

2024
[16]

Li, Y ., et al. (2024). MLLM-SR: Conversational Symbolic Regression base Multi-Modal Large Language Models.arXiv preprint. https://arxiv. org/abs/2406.05410v1

work page internal anchor Pith review arXiv 2024
[17]

Shojaee, P., et al. (2024). LLM-SR: Scientific Equation Discovery via Programming with Large Language Models. https://arxiv.org/abs/2404. 18400

2024
[18]

Sharlin, S., & Josephson, T. (2024). In Context Learning and Reasoning for Symbolic Regression with Large Language Models. https://arxiv.org/ abs/2410.17448

work page internal anchor Pith review Pith/arXiv arXiv 2024
[19]

Shazeer, N., et al. (2017). Outrageously Large Neural Networks: The Sparsely-Gated Mixture-of-Experts Layer. https://arxiv.org/abs/1701. 06538

2017
[20]

The Llama 3 Herd of Models

AI@Meta (2024). The Llama 3 Herd of Models. https://arxiv.org/abs/ 2407.21783

work page internal anchor Pith review Pith/arXiv arXiv 2024
[21]

Qwen2 Technical Report

Qwen Team (2024). Qwen2 Technical Report. https://arxiv.org/abs/2407. 10671

2024
[22]

DeepSeek-R1: Incentivizing Reasoning Capability in LLMs via Reinforcement Learning

DeepSeek-AI (2025). DeepSeek-R1: Incentivizing Reasoning Capability in LLMs via Reinforcement Learning. https://arxiv.org/abs/2501.12948

work page internal anchor Pith review Pith/arXiv arXiv 2025
[23]

Gemma: Open Models Based on Gemini Research and Technology

Google DeepMind (2024). Gemma: Open Models Based on Gemini Research and Technology. https://arxiv.org/abs/2403.08295

work page internal anchor Pith review Pith/arXiv arXiv 2024
[24]

Mistral Nemo

Mistral AI (2024). Mistral Nemo. https://mistral.ai/news/mistral-nemo/

2024
[25]

Zheng, Z., Ning, K., Wang, Y ., Zhang, J., Zheng, D., Ye, M., & Chen, J. (2024). A Survey of Large Language Models for Code: Evolution, Benchmarking, and Future Trends. https://arxiv.org/abs/2311.10372

work page arXiv 2024
[26]

Yu, Z., et al. (2025). From System 1 to System 2: A Survey of Reasoning Large Language Models. https://arxiv.org/abs/2502.17419

work page internal anchor Pith review arXiv 2025
[27]

Burtscher, M., Nasre, R., & Pingali, K. (2012). A quantitative study of irregular programs on GPUs.2012 IEEE International Symposium on Workload Characterization (IISWC). https://doi.org/10.1109/IISWC. 2012.6402918

work page doi:10.1109/iiswc 2012
[28]

Elsevier, 2014

Kirk, D. B., & Hwu, W. W. (2016). Programming Massively Parallel Processors: A Hands-on Approach (3rd Edition). Morgan Kaufmann. https://www.sciencedirect.com/science/book/9780128119860

work page arXiv 2016
[29]

Jain, N., et al. (2024). LiveCodeBench: Holistic and Contamination Free Evaluation of Large Language Models for Code. https://arxiv.org/abs/ 2403.07974

work page internal anchor Pith review arXiv 2024
[30]

Is Your Code Generated by ChatGPT Really Correct? Rigorous Evaluation of Large Language Models for Code Generation

Liu, J., et al. (2024). Is Your Code Generated by ChatGPT Really Correct? Rigorous Evaluation of Large Language Models for Code Generation.Advances in Neural Information Processing Systems 36 (NeurIPS 2023). https://arxiv.org/abs/2305.01210 APPENDIXA DETAILEDPROMPTSPECIFICATION To guide the models in equation inference, a detailed prompt was designed that...

work page internal anchor Pith review arXiv 2024
