arxiv: 2604.11057 · v1 · submitted 2026-04-13 · ❄️ cond-mat.mes-hall

Unconventional alternating out-of-plane spin polarization in the coplanar kagome antiferromagnet

Ousmane Ly , Satoru Hayami This is my paper

Pith reviewed 2026-05-10 16:13 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords kagome antiferromagnetspin chiralityout-of-plane spin polarizationaltermagnetismspintronicsedge statesnoncollinear magnetismspin separation
0
0 comments X

The pith

A noncollinear kagome antiferromagnet generates alternating out-of-plane spin polarization from its magnetic unit cell's spin chirality without spin-orbit coupling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that in a coplanar noncollinear kagome antiferromagnet the spin chirality of the magnetic unit cell alone produces an alternating out-of-plane spin polarization. This occurs even when relativistic spin-orbit coupling is absent. Under spatial confinement the polarization manifests as real-space spin separation patterns fixed by the termination symmetry of the lattice. Breaking the transverse mirror symmetry further yields an altermagnetic-like band splitting, while edge states display a spin-edge locking that ties their polarization to propagation direction. A sympathetic reader cares because the result points to a nonrelativistic route for generating and controlling spin currents in antiferromagnetic platforms.

Core claim

The central claim is that a noncollinear kagome antiferromagnet can generate an alternating out-of-plane spin polarization originating from the spin chirality of the magnetic unit cell, in the absence of relativistic spin-orbit coupling. Under spatial confinement the system develops distinct real-space spin separation patterns whose structure is governed by the symmetry of the lattice termination. Breaking the transverse mirror symmetry of the ribbon produces an altermagnetic-like spin splitting in the band structure, and propagating edge states acquire an unconventional spin polarization through a spin-edge locking mechanism.

What carries the argument

The spin chirality of the magnetic unit cell in the coplanar noncollinear kagome antiferromagnet, which directly induces out-of-plane spin polarization and real-space spin separation under confinement.

If this is right

  • Distinct real-space spin separation patterns appear under spatial confinement and are fixed by the symmetry of the lattice termination.
  • Breaking the transverse mirror symmetry of the ribbon produces an altermagnetic-like spin splitting in the electronic band structure.
  • Propagating edge states acquire unconventional spin polarization through a spin-edge locking effect.
  • Spin-polarized transport can be realized in coplanar antiferromagnets without relativistic interactions.
  • Magnetic symmetry combined with confinement provides a route to spin-polarized currents in nonrelativistic platforms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The mechanism suggests that similar chirality-driven polarization could appear in other noncollinear antiferromagnets whose magnetic unit cells lack inversion symmetry.
  • Device geometries that deliberately break mirror symmetry might be used to engineer controllable spin splitting in antiferromagnetic ribbons.
  • The spin-edge locking could be exploited to filter or separate spin currents along the boundaries of confined samples.
  • Room-temperature operation becomes plausible if the effect survives in materials where spin-orbit coupling is naturally weak.

Load-bearing premise

The model assumes an ideal coplanar noncollinear magnetic structure in which spin chirality by itself produces the out-of-plane polarization, together with simplified ribbon geometries for confinement that omit disorder and additional interaction effects.

What would settle it

Tight-binding or first-principles calculations on a confined kagome ribbon with confirmed coplanar noncollinear order and zero spin-orbit coupling that show no alternating out-of-plane spin polarization or no spin-edge locking would falsify the mechanism.

Figures

Figures reproduced from arXiv: 2604.11057 by Ousmane Ly, Satoru Hayami.

Figure 1
Figure 1. Figure 1: FIG. 1. A sketch of the investigated ribbon with symmet [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Real-space spin densities in the ribbon for different transport energies, corresponding to the propagation of [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

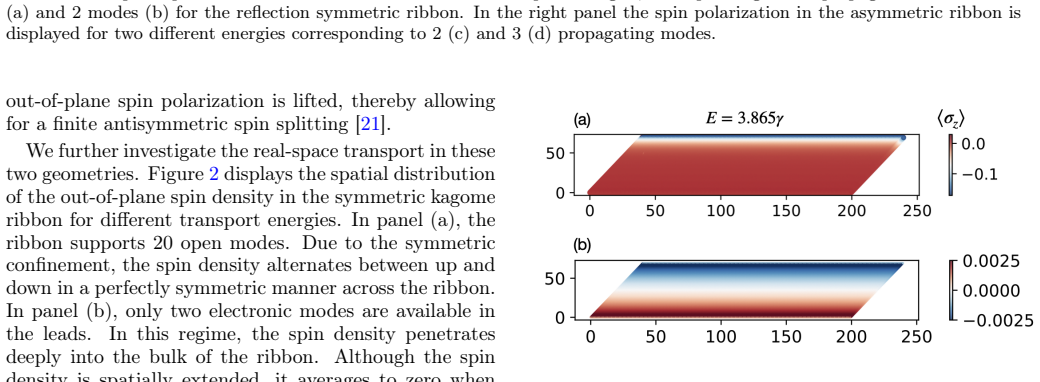

Figure 3
Figure 3. Figure 3: FIG. 3. Spin resolved edge states for both top-bottom sym [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

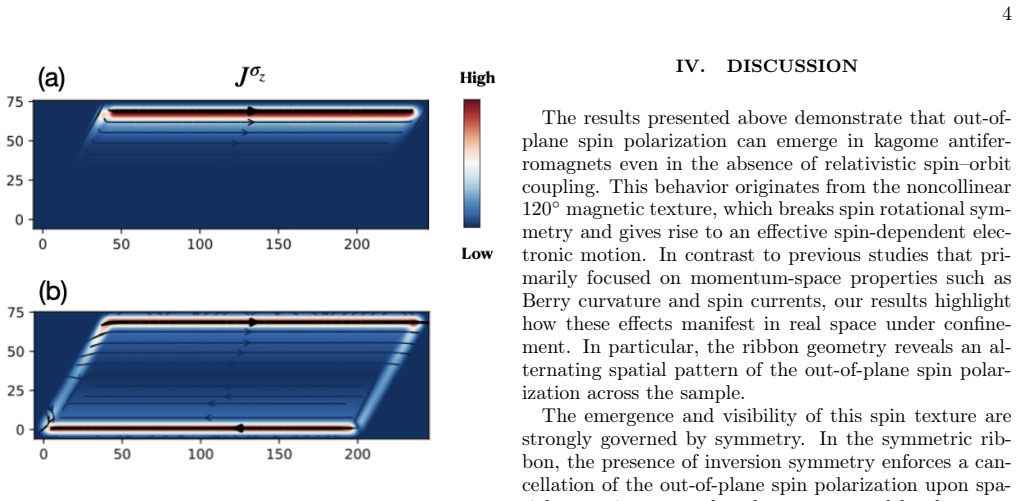

Figure 4
Figure 4. Figure 4: FIG. 4. Spin current distribution in the ribbon for the edge [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. The real-space spin densities in the symmetric ribbon [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

The emergence of spin-polarized currents in nonrelativistic platforms continues to attract significant interest in spintronics. Here we demonstrate that a noncollinear kagome antiferromagnet can generate an alternating out-of-plane spin polarization originating from the spin chirality of the magnetic unit cell, in the absence of relativistic spin--orbit coupling. Under spatial confinement, the system develops distinct real-space spin separation patterns whose structure is governed by the symmetry of the lattice termination. In particular, breaking the transverse mirror symmetry of the ribbon produces an altermagnetic-like spin splitting in the band structure. Furthermore, we uncover a spin--edge locking mechanism in which propagating edge states acquire an unconventional spin polarization. These results highlight how magnetic symmetry and confinement can generate spin-polarized transport in coplanar antiferromagnets without relying on relativistic interactions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 0 minor

Summary. The manuscript claims that a coplanar noncollinear kagome antiferromagnet with 120° magnetic order generates an alternating out-of-plane spin polarization originating purely from the spin chirality of the magnetic unit cell, without relativistic spin-orbit coupling. In ribbon geometries, spatial confinement produces real-space spin separation whose pattern is dictated by the symmetry of the lattice termination; breaking the transverse mirror symmetry yields an altermagnetic-like spin splitting in the bands, and edge states exhibit a spin-edge locking effect.

Significance. If the central derivation holds, the work identifies a nonrelativistic, symmetry-based route to spin-polarized states and transport in antiferromagnets that does not rely on SOC or external fields. This is potentially significant for spintronics, as it leverages intrinsic magnetic chirality and confinement. The internal consistency of the spin-mixing terms (in-plane exchange fields allowing nonzero out-of-plane expectation values via lattice superposition) and the direct link from lowered mirror symmetry to the splitting are strengths.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our manuscript, which correctly captures the central claim that coplanar kagome antiferromagnets with 120° order produce alternating out-of-plane spin polarization from magnetic chirality alone, without spin-orbit coupling, along with the resulting confinement effects and spin-edge locking. The significance assessment is appreciated. As the major comments section contains no specific points, we have no revisions to propose.

Circularity Check

0 steps flagged

No significant circularity; derivation rests on explicit model and symmetry arguments

full rationale

The paper constructs a tight-binding model for the kagome lattice with coplanar 120° antiferromagnetic order, explicitly sets the local exchange fields to have zero z-component and omits SOC, then computes the resulting eigenstates and spin expectation values. The out-of-plane polarization emerges directly from the noncollinear in-plane spin texture via the lattice superposition of spin-mixing terms; the ribbon geometry and termination symmetry are imposed as boundary conditions. No parameter is fitted to the target polarization, no self-citation supplies a uniqueness theorem that forbids alternatives, and the central result is not renamed from a known empirical pattern. The derivation is therefore self-contained against the stated Hamiltonian and symmetry assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract relies on standard symmetry properties of the kagome lattice and the assumption of a coplanar noncollinear magnetic order; no free parameters or new entities are explicitly introduced in the summary.

axioms (2)
  • domain assumption The magnetic structure is a coplanar noncollinear kagome antiferromagnet whose spin chirality is the sole source of out-of-plane polarization.
    Invoked to explain the polarization in the absence of spin-orbit coupling.
  • domain assumption Ribbon geometries with chosen lattice terminations break transverse mirror symmetry in a controlled way.
    Used to produce the altermagnetic-like splitting and spin separation patterns.

pith-pipeline@v0.9.0 · 5442 in / 1400 out tokens · 74869 ms · 2026-05-10T16:13:00.586913+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

23 extracted references · 23 canonical work pages

  1. [1]

    Žutić, J

    I. Žutić, J. Fabian, and S. Das Sarma, Spintronics: Fun- damentals and applications, Rev. Mod. Phys.76, 323 (2004)

    work page 2004

  2. [2]

    S. A. Wolf, D. D. Awschalom, R. A. Buhrman, J. M. Daughton, S. von Molnár, M. L. Roukes, A. Y. Chtchelkanova, and D. M. Treger, Spintronics: A spin- based electronics vision for the future, Science294, 1488 (2001)

    work page 2001

  3. [3]

    Hirohata, K

    A. Hirohata, K. Yamada, Y. Nakatani, I.-L. Prejbeanu, B. Diény, P. Pirro, and B. Hillebrands, Review on spin- tronics: Principles and device applications, Journal of Magnetism and Magnetic Materials509, 166711 (2020)

    work page 2020

  4. [4]

    Manchon, H

    A. Manchon, H. C. Koo, J. Nitta, S. M. Frolov, and R. A. Duine, New perspectives for rashba spin–orbit coupling, Nature Materials14, 871 (2015)

    work page 2015

  5. [5]

    Nagaosa, J

    N. Nagaosa, J. Sinova, S. Onoda, A. H. MacDonald, and N. P. Ong, Anomalous hall effect, Rev. Mod. Phys.82, 1539 (2010)

    work page 2010

  6. [6]

    Sinova, S

    J. Sinova, S. O. Valenzuela, J. Wunderlich, C. H. Back, and T. Jungwirth, Spin hall effects, Rev. Mod. Phys.87, 1213 (2015)

    work page 2015

  7. [7]

    H. Chen, Q. Niu, and A. H. MacDonald, Anomalous hall effect arising from noncollinear antiferromagnetism, Phys. Rev. Lett.112, 017205 (2014)

    work page 2014

  8. [8]

    Nakatsuji, N

    S. Nakatsuji, N. Kiyohara, and T. Higo, Large anoma- lous hall effect in a non-collinear antiferromagnet at room temperature, Nature527, 212 (2015)

    work page 2015

  9. [9]

    A. K. Nayak, J. E. Fischer, Y. Sun, B. Yan, J. Karel, A. C. Komarek, C. Shekhar, N. Kumar, W. Schnelle, J.Kübler, C.Felser,andS.S.P.Parkin,Largeanomalous halleffectdrivenbyanonvanishingberrycurvatureinthe noncolinear antiferromagnet mn<sub>3</sub>ge, Sci- ence Advances2, e1501870 (2016)

    work page 2016

  10. [10]

    Železný, Y

    J. Železný, Y. Zhang, C. Felser, and B. Yan, Spin- polarized current in noncollinear antiferromagnets, Phys. Rev. Lett.119, 187204 (2017)

    work page 2017

  11. [11]

    Zhang, J

    Y. Zhang, J. Železný, Y. Sun, J. van den Brink, and B. Yan, Spin hall effect emerging from a noncollinear magnetic lattice without spin–orbit coupling, New Jour- nal of Physics20, 073028 (2018)

    work page 2018

  12. [12]

    Baltz, A

    V. Baltz, A. Manchon, M. Tsoi, T. Moriyama, T. Ono, and Y. Tserkovnyak, Antiferromagnetic spintronics, Rev. Mod. Phys.90, 015005 (2018)

    work page 2018

  13. [13]

    Bonbien, F

    V. Bonbien, F. Zhuo, A. Salimath, O. Ly, A. Abbout, and A. Manchon, Topological aspects of antiferromag- nets, Journal of Physics D: Applied Physics55, 103002 (2021)

    work page 2021

  14. [14]

    B. K. Nikolić, L. P. Zârbo, and S. Souma, Imaging meso- scopic spin hall flow: Spatial distribution of local spin currents and spin densities in and out of multiterminal spin-orbit coupled semiconductor nanostructures, Phys. Rev. B73, 075303 (2006)

    work page 2006

  15. [15]

    C. L. Kane and E. J. Mele, Quantum spin hall effect in graphene, Phys. Rev. Lett.95, 226801 (2005)

    work page 2005

  16. [16]

    B. A. Bernevig, T. L. Hughes, and S.-C. Zhang, Quantum spin hall effect and topological phase transition in hgte quantum wells, Science314, 1757 (2006)

    work page 2006

  17. [17]

    C. W. Groth, M. Wimmer, A. R. Akhmerov, and X. Waintal, Kwant: a software package for quantum transport, New Journal of Physics16, 063065 (2014)

    work page 2014

  18. [18]

    H.Katsura, N.Nagaosa,andA.V.Balatsky,Spincurrent andmagnetoelectriceffectinnoncollinearmagnets,Phys. Rev. Lett.95, 057205 (2005)

    work page 2005

  19. [19]

    Hayami, Mechanism of antisymmetric spin polariza- tion in centrosymmetric multiple-qmagnets based on ef- fective chiral bilinear and biquadratic spin cross prod- ucts, Phys

    S. Hayami, Mechanism of antisymmetric spin polariza- tion in centrosymmetric multiple-qmagnets based on ef- fective chiral bilinear and biquadratic spin cross prod- ucts, Phys. Rev. B105, 024413 (2022)

    work page 2022

  20. [20]

    Hayami, Y

    S. Hayami, Y. Yanagi, and H. Kusunose, Bottom-up de- sign of spin-split and reshaped electronic band structures in antiferromagnets without spin-orbit coupling: Proce- dure on the basis of augmented multipoles, Phys. Rev. B 102, 144441 (2020). 6

    work page 2020

  21. [21]

    Hayami, Y

    S. Hayami, Y. Yanagi, and H. Kusunose, Spontaneous antisymmetric spin splitting in noncollinear antiferro- magnets without spin-orbit coupling, Phys. Rev. B101, 220403 (2020)

    work page 2020

  22. [22]

    Y. Yu, M. B. Lyngby, T. Shishidou, M. Roig, A. Kreisel, M. Weinert, B. M. Andersen, and D. F. Agterberg, Odd- parity magnetism driven by antiferromagnetic exchange, Phys. Rev. Lett.135, 046701 (2025)

    work page 2025

  23. [23]

    Mitscherling, J

    J. Mitscherling, J. Priessnitz, C. K. Geschner, and L. Šmejkal, Microscopic origin ofp-wave magnetism (2026)

    work page 2026
